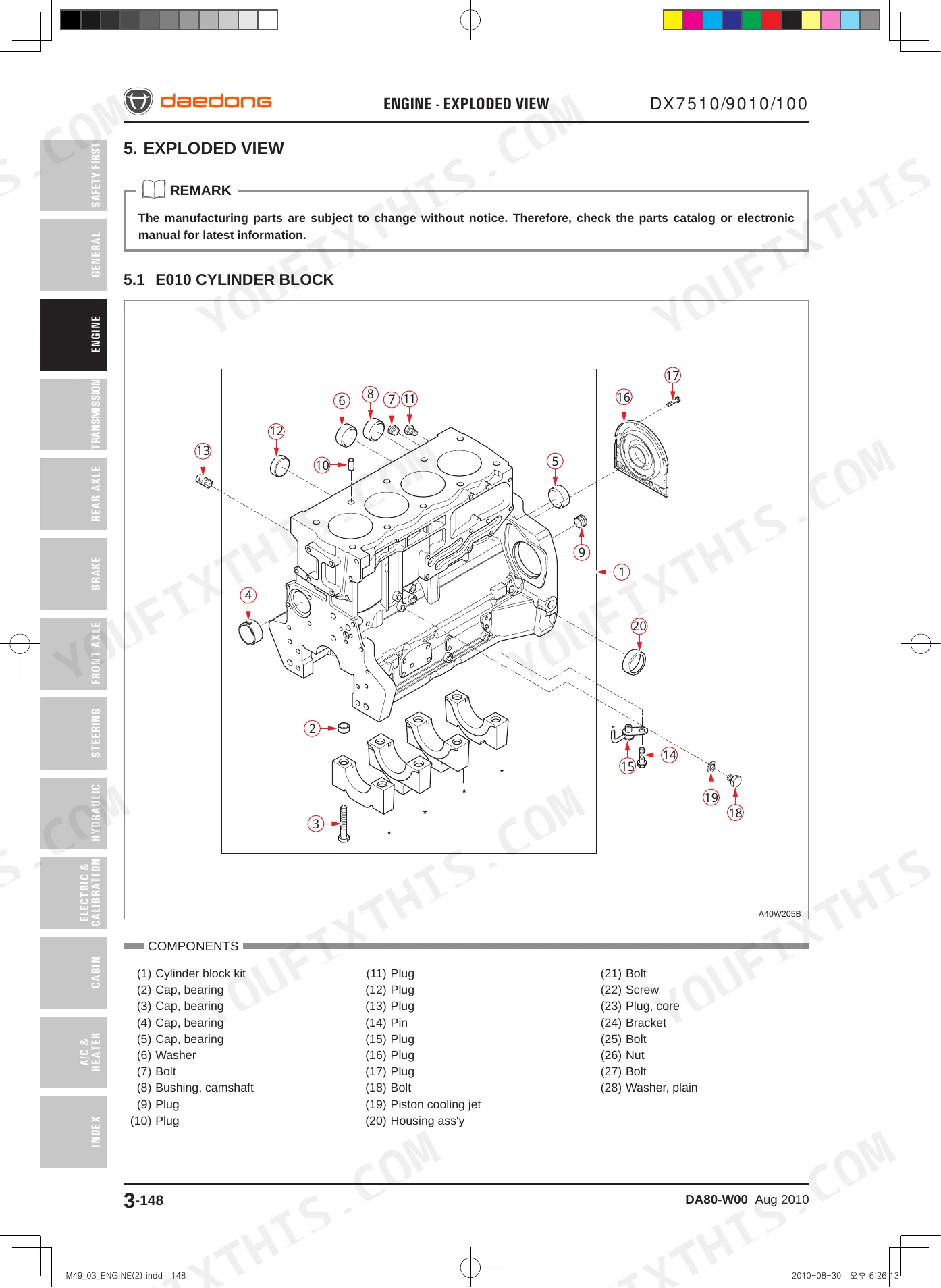

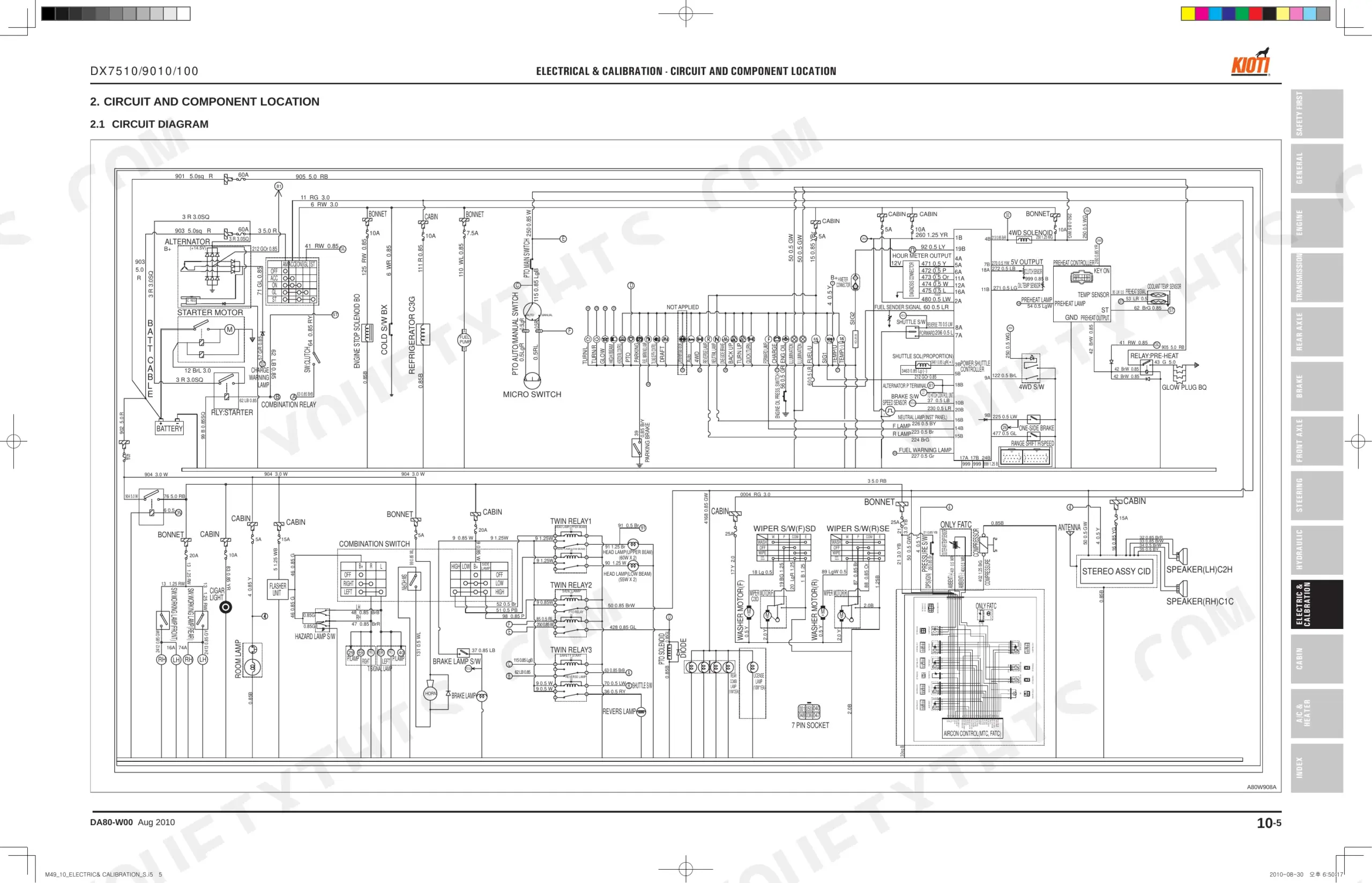

Kioti dealers worked from this exact book (OEM #DA80-W00) to service the 2002-2010 DX7510, DX9010, and DX100 from the factory. The hydraulic schematics trace full circuit flow through the MLS load-sensing valve and draft control system; the wiring diagrams give circuit locations for sensors, relays, and fuse boxes; and exploded views break down the power reverse shuttle, PTO shaft, and rear differential. Also covered: troubleshooting charts across ten major systems, pinout references for the electrical section, calibration steps for the power shuttle controller, and torque tables for transmission and engine fasteners. Inlet valve lash sets to 0.20 mm, exhaust to 0.45 mm; cylinder head bolts run in two passes, 50 N·m then 100 N·m. Bookmarked and keyword-searchable, so you land on the right spec instead of paging through 884 of them.
What's Inside This Kioti DX7510, DX9010, DX100 Manual
| System | Pages | Key Topics |
|---|---|---|

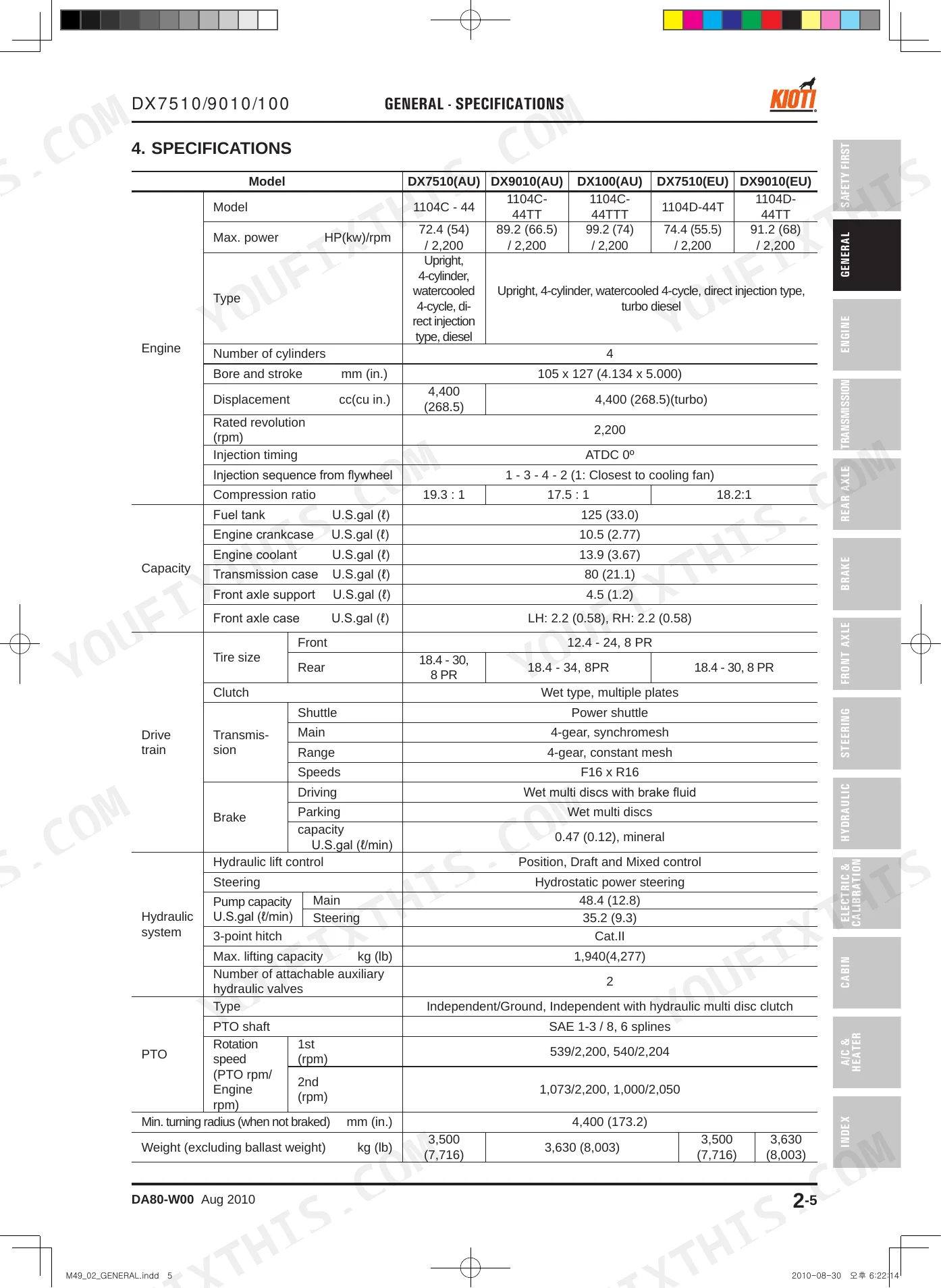

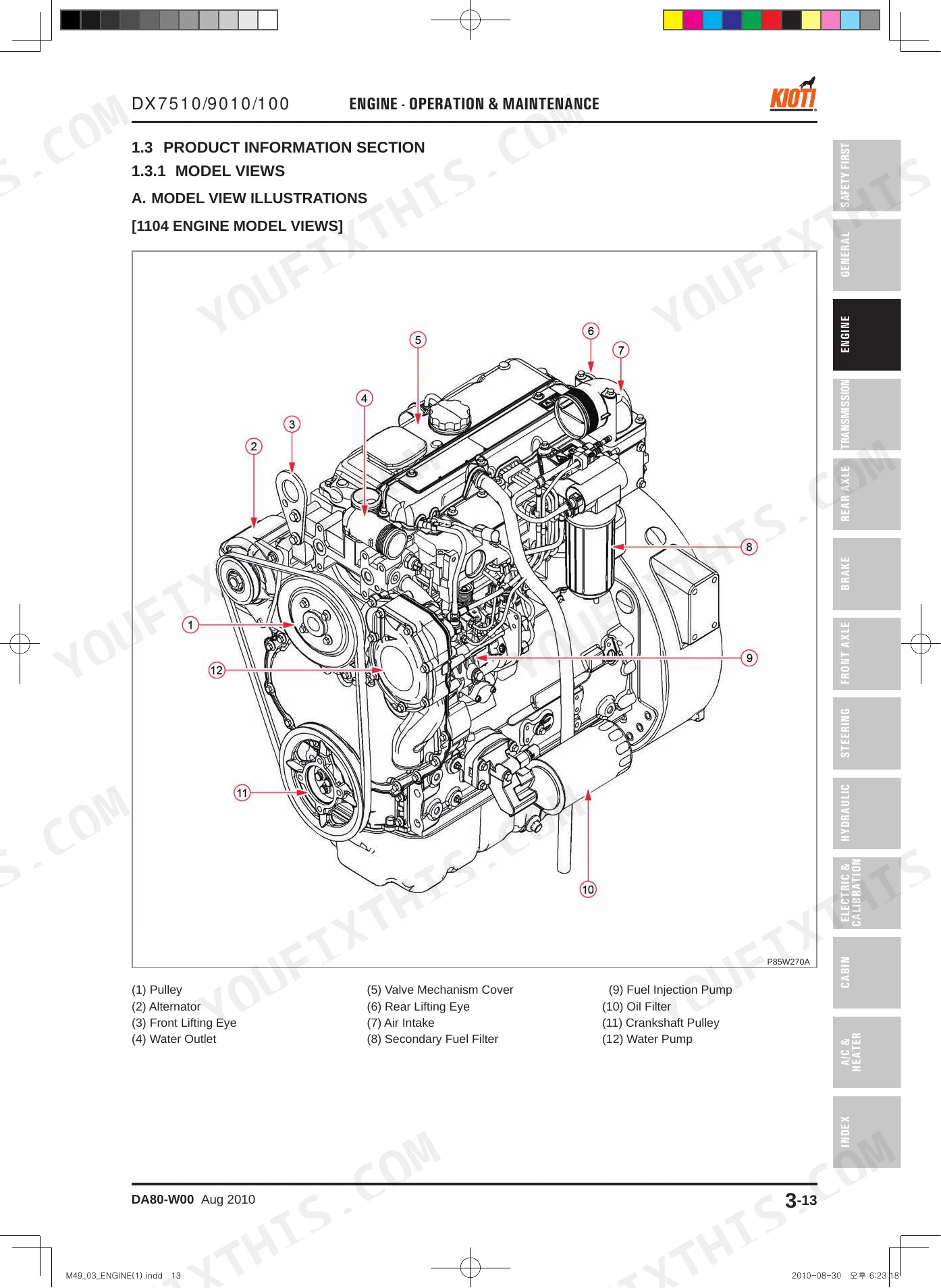

| General | 21-46 | Description for Symbols and Abbreviations, Identification Number (Tractor Serial Number Location, Engine Serial Number Location, Transmission Number), Dimensions, Specifications |
| Engine (1) | 47-191 | Troubleshooting (Excessive Engine Oil Consumption, Hydraulic Oil in Engine Oil, Water in Engine Oil, Low Oil Pressure, High Oil Pressure, Engine Overheating, Coolant Leakage, Frequently Discharged Battery) |
| Engine (2) | 192-350 | Troubleshooting (Excessive Engine Oil Consumption, Hydraulic Oil in Engine Oil, Water in Engine Oil, Low Oil Pressure, High Oil Pressure, Engine Overheating, Coolant Leakage, Frequently Discharged Battery) |
| Transmission | 351-448 | Specifications and Tightening Torque (Sealant and Adhesive Specifications, Tightening Torques for Major Components) |
| Rear Axle | 449-478 | Specifications and Structure (Transmission Fluid, Tightening Torque), Operating Principle (Power Transfer, Differential System, Differential Lock System) |
| Brake | 479-504 | Operating Principle, Structure Of Brake Pedal And Parking Brake, Brake Operating System, Master Cylinder Assembly, Balance(Equalizer) Valve, Brake Case, Self-Adjustment, Parking Brake |
| Front Axle | 505-556 | Specifications (Servicing Specifications, Tightening Torque for Bolt/Nut) |
| Steering | 557-586 | Specifications and Tightening Torque (Specifications for Steering System, Major Tightening Torques) |
| Hydraulic | 587-668 | Operating Principle, Mounting Location, Hydraulic Schematic, Hydraulic Circuit Diagram, Operating Diagram, Implement Section, Main Section, Component Description |
| Electrical & Calibration | 669-768 | Specifications, Circuit and Component Location (Circuit Diagram, Location of Sensors and Electric Components, Sensors, Units and Relays, Lamps, Switches and Fuses) |
| Cabin | 769-818 | Cabin Assembly (Exploded View for Exterior or Interior Components, T780A Cabin, T890A Fender, T850A Roof, Controls and Mountings, T590A/T585A Cabin Mounting, T700A/T2455A Main Gear Shift Lever, T670A Accelerator/T740A Position /Draft Control Levers, T710A/T505A Double Acting Lever /T360A Joystick Valve, T500A/T2455A Main Gear & Range Shift Levers/T720A PTO Lever, T495A Shuttle Lever /T2456A Shuttle/Pto Levers, Cabin Removal, Front Side of Cabin, Left Side, Rear Side, Right Side, Removal and Installation of Components in Inner Section, Removal and Installation of Components in Cabin Mounting Bolt) |
| Air Conditioner & Heater | 819-872 | Air Conditioner/Heater, Operating Principle, Principle Of Cooling System, System Flow, Cooling Cycle, Refrigerant And Compressor Oil, Compressor, Receiver-Drier |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head bolts (first tightening) | 50 N·m (37 lb ft) | p. 125 |
| Cylinder head bolts (final tightening) | 100 N·m (74 lb ft) | p. 125 |
| Valve Lash Setting (Inlet) | 0.20 mm (0.008 inch) | p. 61 |
| Valve Lash Setting (Exhaust) | 0.45 mm (0.018 inch) | p. 61 |
| Transmission oil capacity (including rear axle) | 80ℓ (21.1 U.S.gal.) | p. 353 |
| Clutch housing and flywheel housing mounting bolt (M12) | 102.9 ~ 117.6 Nm | p. 355 |
| Rear wheel mounting nut (M18) | 274.5 ~ 318.7 Nm | p. 450 |
| Rear axle bearing cover mounting bolt (M12) | 77.4 ~ 90.2 Nm | p. 450 |
| Brake pedal free play | 15 ~ 30 mm (0.5 ~ 1.2 in.) | p. 480 |
| Brake disc thickness | 4.6 ~ 4.8 mm (0.1811 ~ 0.1889 in.) | p. 480 |
| Front wheel alignment Toe-in | 2 ~ 8 mm (0.08 ~ 0.32 in.) | p. 506 |
| Front axle Rocking force | 49.0 ~ 117.6 N | p. 506 |
Kioti DX7510, DX9010, DX100 Common Problems This Manual Covers

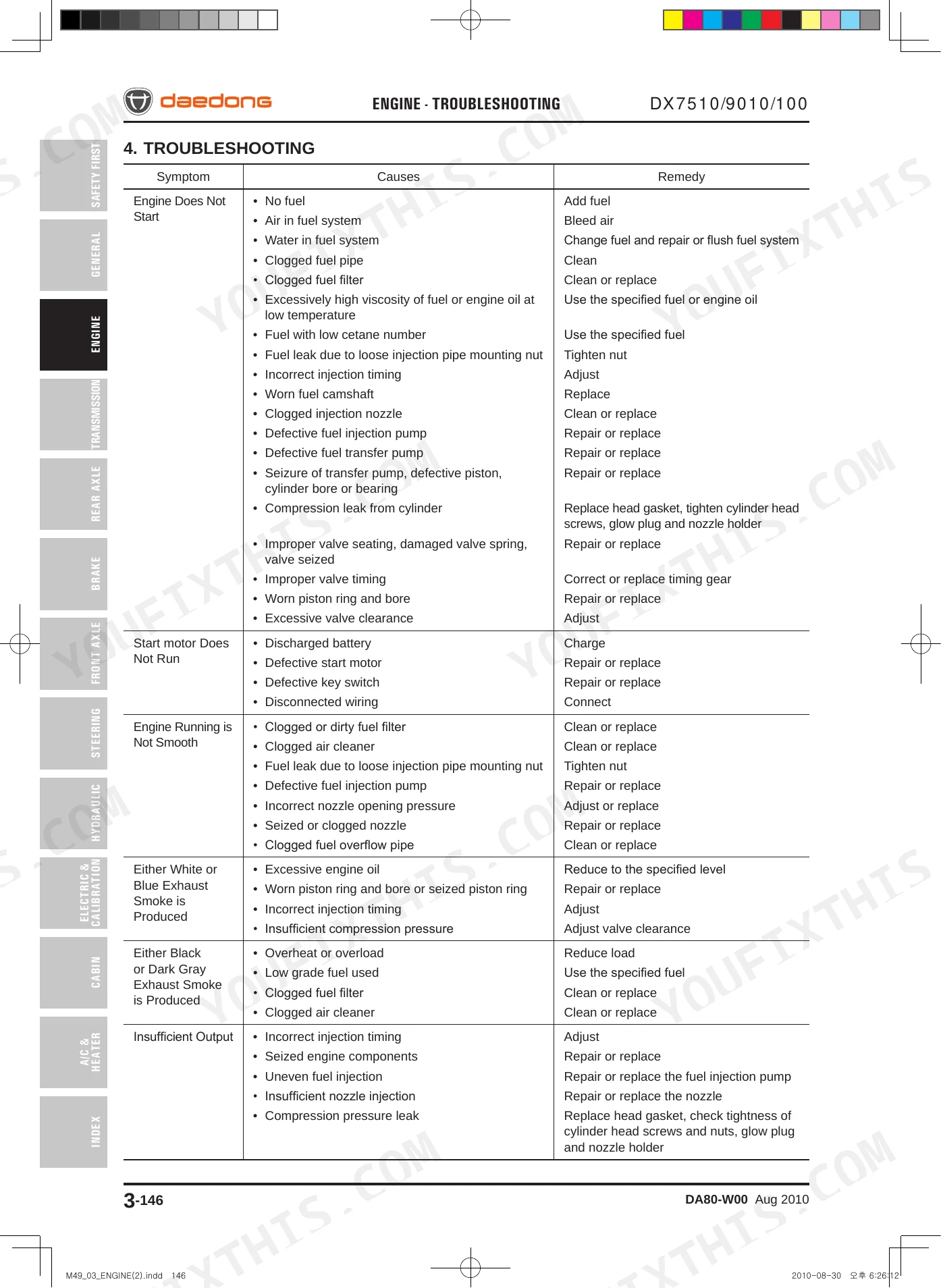

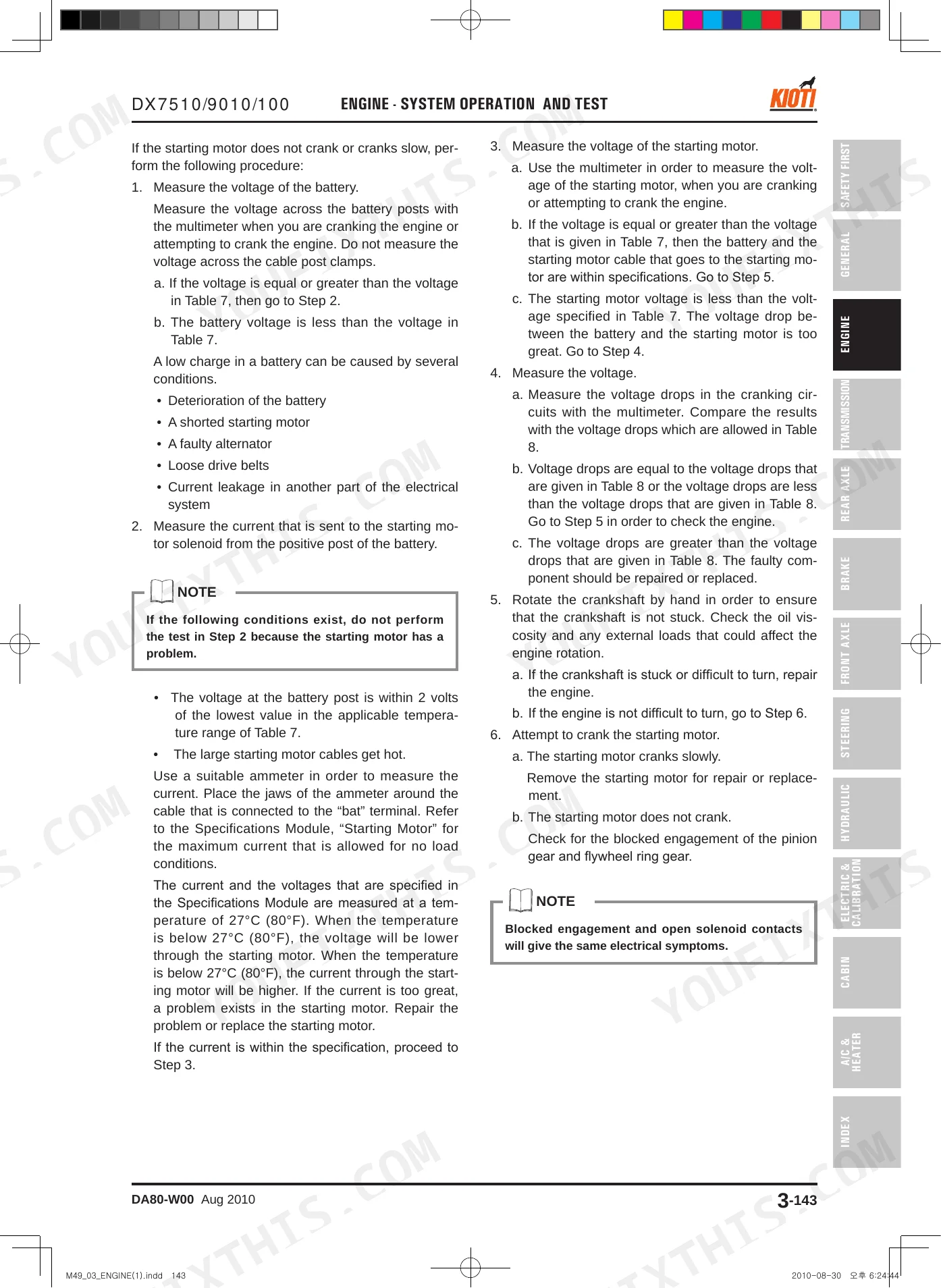

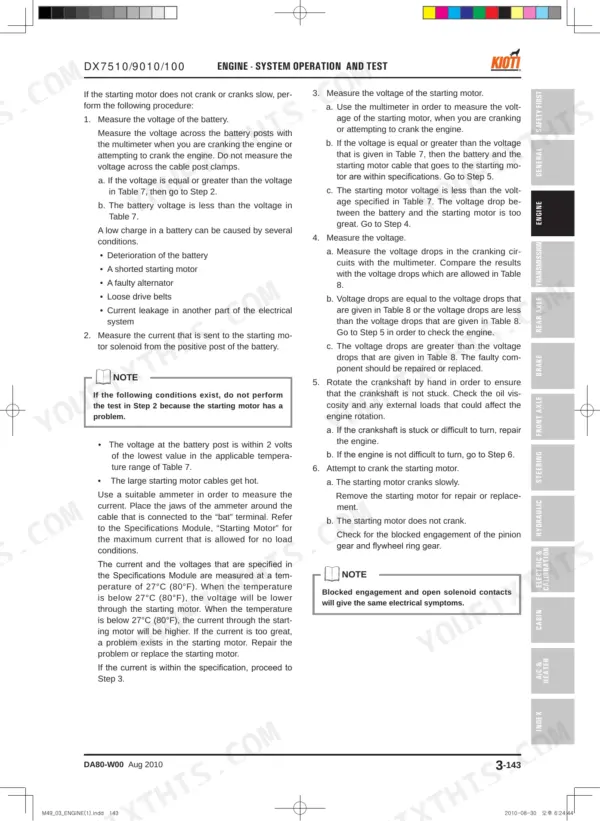

Kioti DX7510 engine cranks but won't fire in cold conditions, glow plugs suspected p. 192
Check battery load capacity first: cold-start current must reach 850 CCA (page 671); a weak cell won't complete the glow cycle. Test each glow plug for continuity and verify preheat time is adequate for ambient temperature. Work through the no-start sequence in the Engine Troubleshooting section starting on page 192 to isolate fuel, air, and compression.
Manual Section: Engine TroubleshootingGear pops out of range under load or shift lever feels stiff and notchy p. 413
Drain and inspect the transmission oil; total system capacity is 80 L (page 353) and contaminated fluid is the most common cause. Measure synchronizer ring clearance on the range-shift double synchro: minimum serviceable clearance is 0.8 mm (page 413). Also verify shift fork-to-groove clearance is within 0.1~0.3 mm (page 414) before pulling the transmission.
Manual Section: Transmission TroubleshootingBrakes pull hard to one side when stopping, pedal travel feels uneven left to right p. 480
Measure pedal free play on both left and right pedals; spec is 15~30 mm (page 480). A disc worn below 4.6 mm (page 480) will cause unequal clamping force. Bleed both brake circuits separately, torque each bleeder to 13.7~15.6 Nm (page 480), then road-test before linking the pedals.
Manual Section: Brake TroubleshootingEngine oil pressure warning light stays on at operating temperature, rod knock audible at idle p. 131
Verify oil level, then install a mechanical gauge and read pressure at maximum governed speed; minimum acceptable is 280 kPa (41 psi) per page 131. If pressure is below spec, replace the oil filter torqued to 12 N·m (page 129) and inspect for internal bypass wear. Run through the low-pressure chart in the Engine section on page 192.
Manual Section: Engine TroubleshootingFront wheels wander on straight roads, steering pulls left or right with no implement attached p. 506
Inspect front toe-in and tire pressures first; correct toe-in is 2~8 mm (page 506). Confirm steering unit relief pressure holds at 140 kgf/cm² (page 558), since low pressure lets front axle loading overwhelm the circuit. Check tie rod ends for wear, and torque the tie rod nuts to 166.7~196.1 Nm (page 507) after any adjustment.
Manual Section: Front Axle TroubleshootingPTO won't engage at the switch, no response from rear shaft with all levers set p. 671
Test battery voltage under load first; the system requires a battery rated at 850 CCA (page 671), and low voltage prevents the PTO solenoid from latching. Inspect the PTO fuse and check key switch continuity at the relay terminals. Verify the PTO engagement lever is fully seated before suspecting a solenoid or clutch-pack failure.
Manual Section: Electrical & Calibration Troubleshooting (PTO)Frequently Asked Questions
What are the torque specs for the DX7510 / DX9010 / DX100 cylinder head, engine cover, or wheel bolts?
For the cylinder head, tighten bolts to 50 N·m (37 lb ft) initially, then to 100 N·m (74 lb ft). The valve mechanism cover bolts should be tightened to 9 N·m (7 lb ft). Front wheel bolt/nut torque is 166.7 ~ 186.3 Nm (17 ~ 19 kgf-m, 122.9 ~ 137.4 lb-ft), while rear wheel nuts are 274.5 ~ 318.7 Nm (28 ~ 32.5 kgf-m, 202.5 ~ 235.1 lb-ft) and rim bolts are 274.5 ~ 333.4 Nm (28 ~ 34 kgf-m, 202.5 ~ 245.9 lb-ft).
How do I troubleshoot starting or electrical problems on a DX7510 / DX9010 / DX100?
To troubleshoot starting or electrical problems, refer to the Electrical & Calibration chapter. For issues like the PTO not operating, check battery voltage (11.8 ~ 12.9 V), battery terminals, slow-blow fuse (60 A), and key switch connections. For charging system problems, measure the voltage between the No. 71 terminal and alternator body (ground), which should be 12 V ~ 13.8 V.
How do I bleed the fuel system on a DX7510 / DX9010 / DX100?
To bleed the fuel system, remove the fuel injector cover and turn the ignition key to the RUN position for three minutes, then to OFF. Loosen the flare nuts on all fuel injectors and operate the starting motor until fuel is free of air. Tighten the flare nuts to 30 N·m (22 lb ft) and run the engine at low idle for at least five minutes.
What are the replacement specifications for engine components?
Replacement specifications for engine components include maximum permissible wear limits. For instance, the maximum permissible end play of a worn camshaft is 0.60 mm (0.023 inch), and the maximum permissible wear of a connecting rod bearing journal is 0.04 mm (0.0016 inch). The maximum end play of the crankshaft is 0.51 mm (0.0201 inch).
Is this Kioti DX7510, DX9010, DX100 Workshop Manual a digital download?
Immediate download of the complete 884-page searchable Workshop Manual. Access it on any device: laptop at your desk or phone out in the field.
Are there any print restrictions on this Kioti DX7510, DX9010, DX100 manual?
None at all. The PDF is DRM-free, so print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

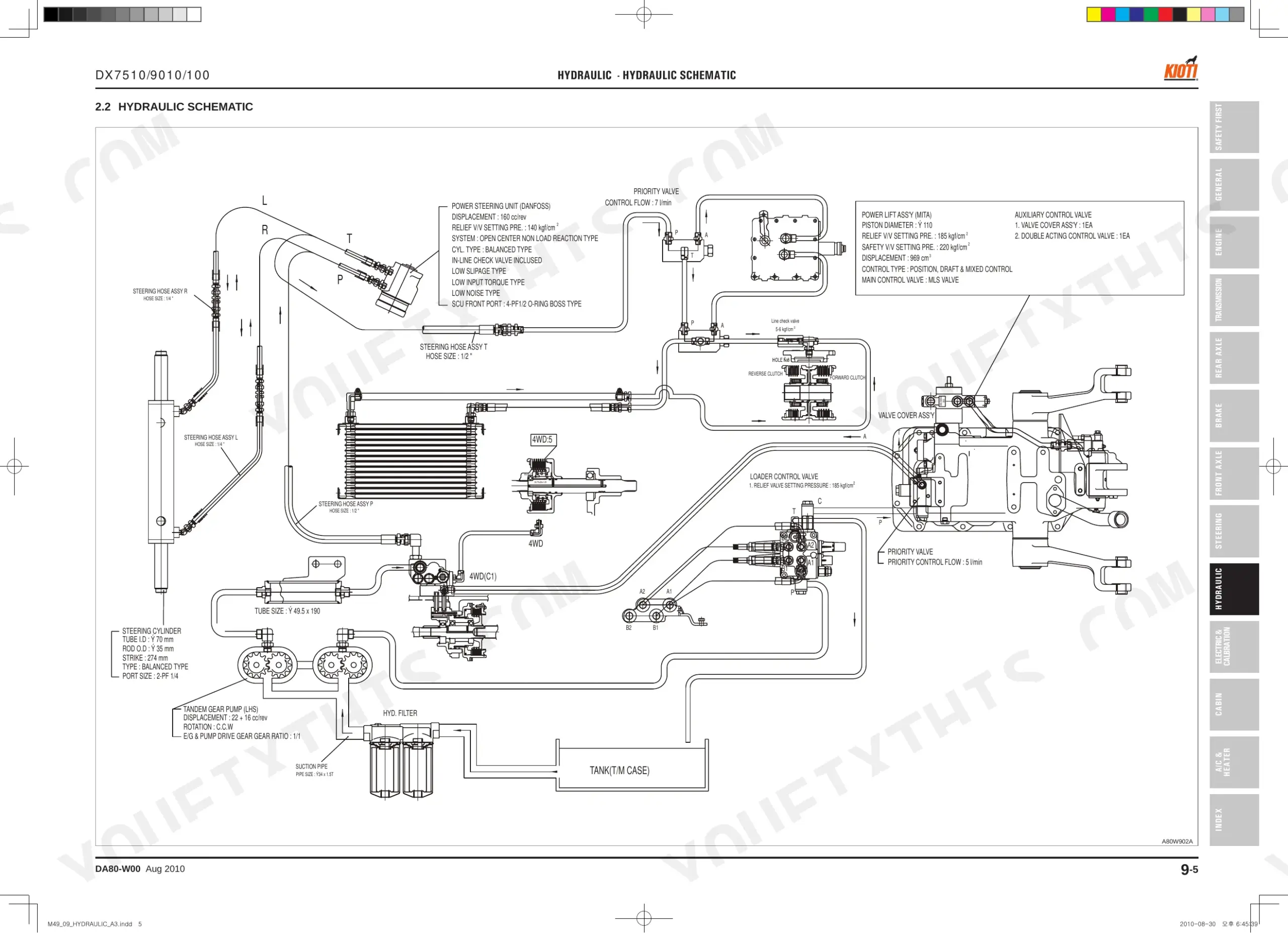

Can I find hydraulic circuit diagrams in this Kioti DX7510, DX9010, DX100?
Yes. Complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are all included.
Document Quality
This document is a scanned PDF, providing a digital copy of the original workshop manual. You can search and copy text throughout the entire document thanks to a functional OCR layer. The text quality is generally crisp and easy to read, with only minor blurriness on some smaller details, which is typical for a scanned manual. All diagrams and illustrations are raster images, but they are clear and their labels are readable. The pages are clean, free from significant scan artifacts or skewed content, though you will find a couple of blank filler pages.
