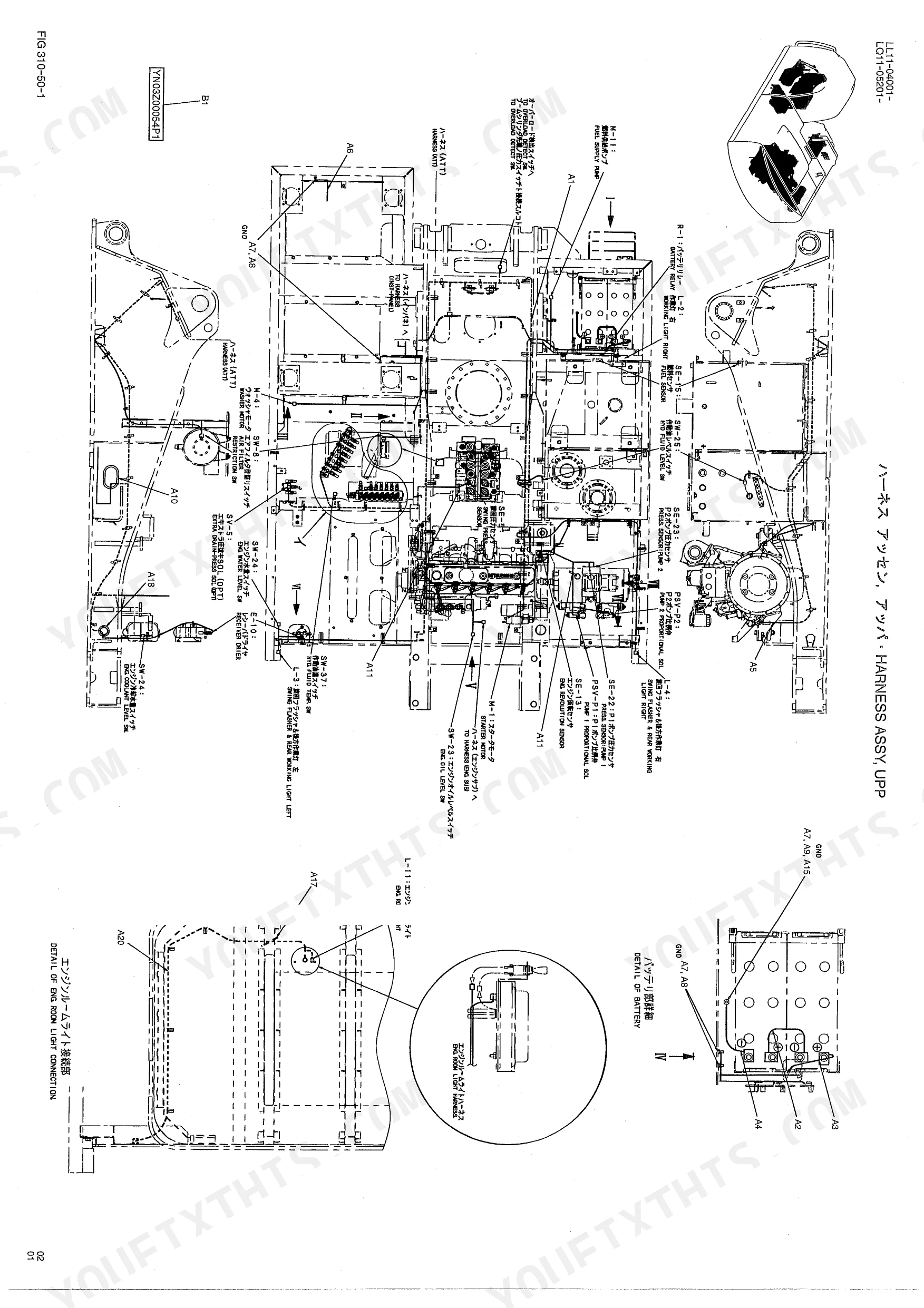

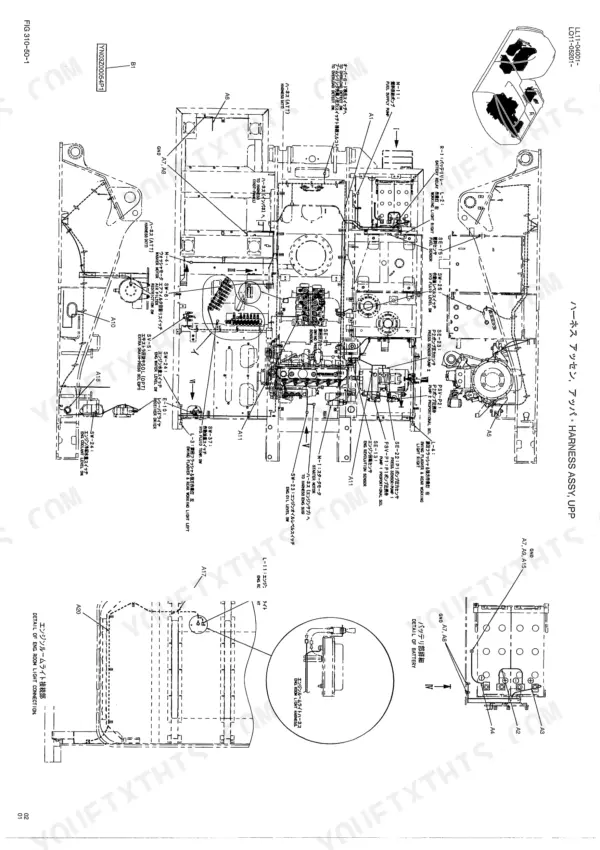

Written for the Kobelco SK250-6ES and SK250LC-6ES hydraulic excavators, this 634-page Kobelco SK250-6ES parts catalog PDF (OEM ID S3LQ00011ZE01) is also listed as compatible with five SK230-6E and SK250-6E series variants. Exploded views break each assembly into numbered components, from the slewing ring, swing motor and swing reduction to the crawler idler, idler adjust assembly, track rollers and shoes. Hydraulic schematics and wiring diagrams back up the listings for the upper hydraulic lines and the cab and engine harnesses, while a closing parts index cross-references part numbers. Check relief settings as printed: 37.8 MPa at 30 L/min for the F1 port relief valve, 24.5 MPa at 220 L/min for F7. Whether your job is rebuilding the idler adjust assembly or adding boom safety hose lines, the part numbers are grouped by assembly. Bookmarked and searchable, it travels wherever your excavator works.
What's Inside This Kobelco SK250-6ES, SK250LC-6ES Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| General Maintenance Items | 23-28 | Filter List, Nut & Sleeve Parts No, Paint Color |

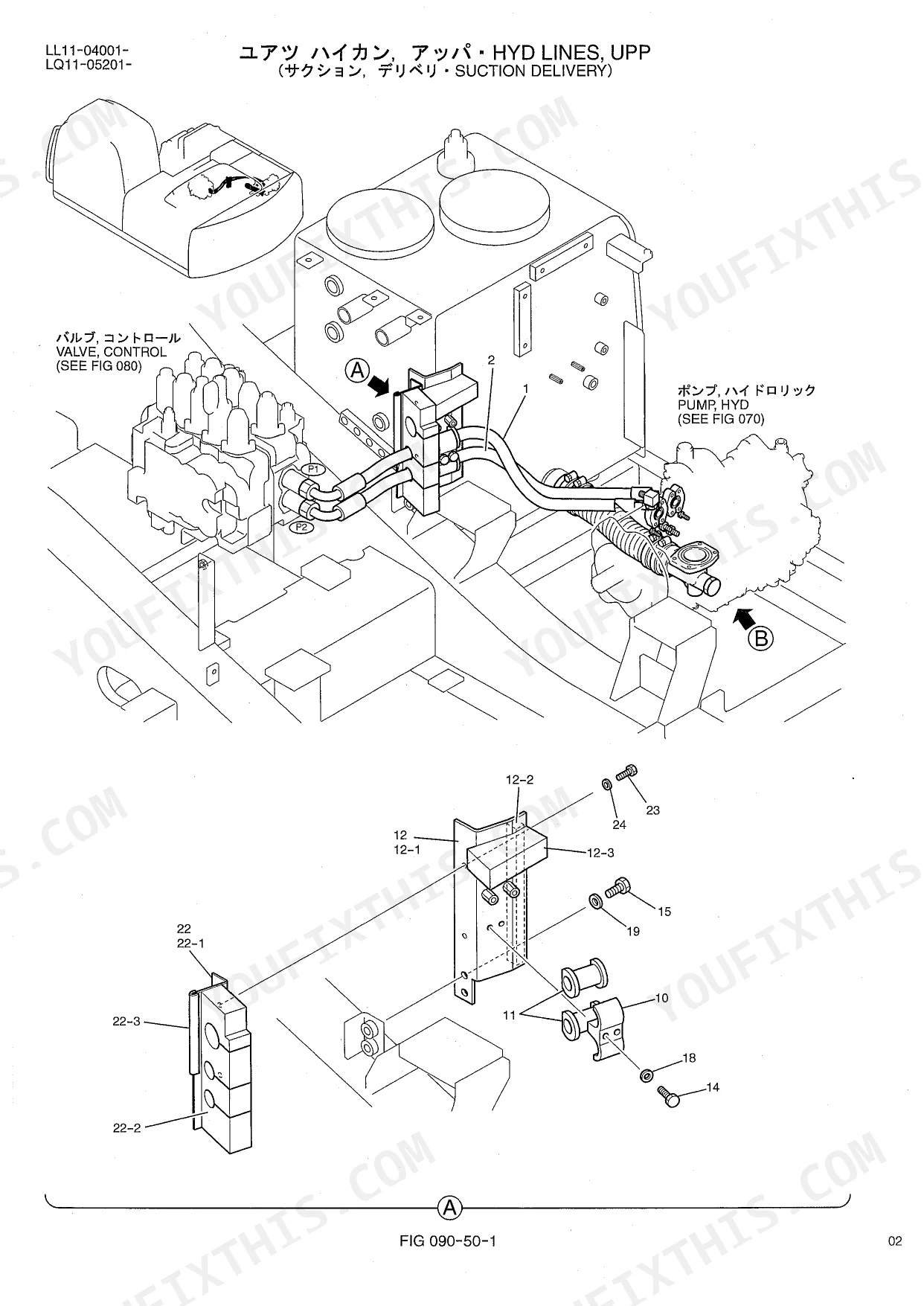

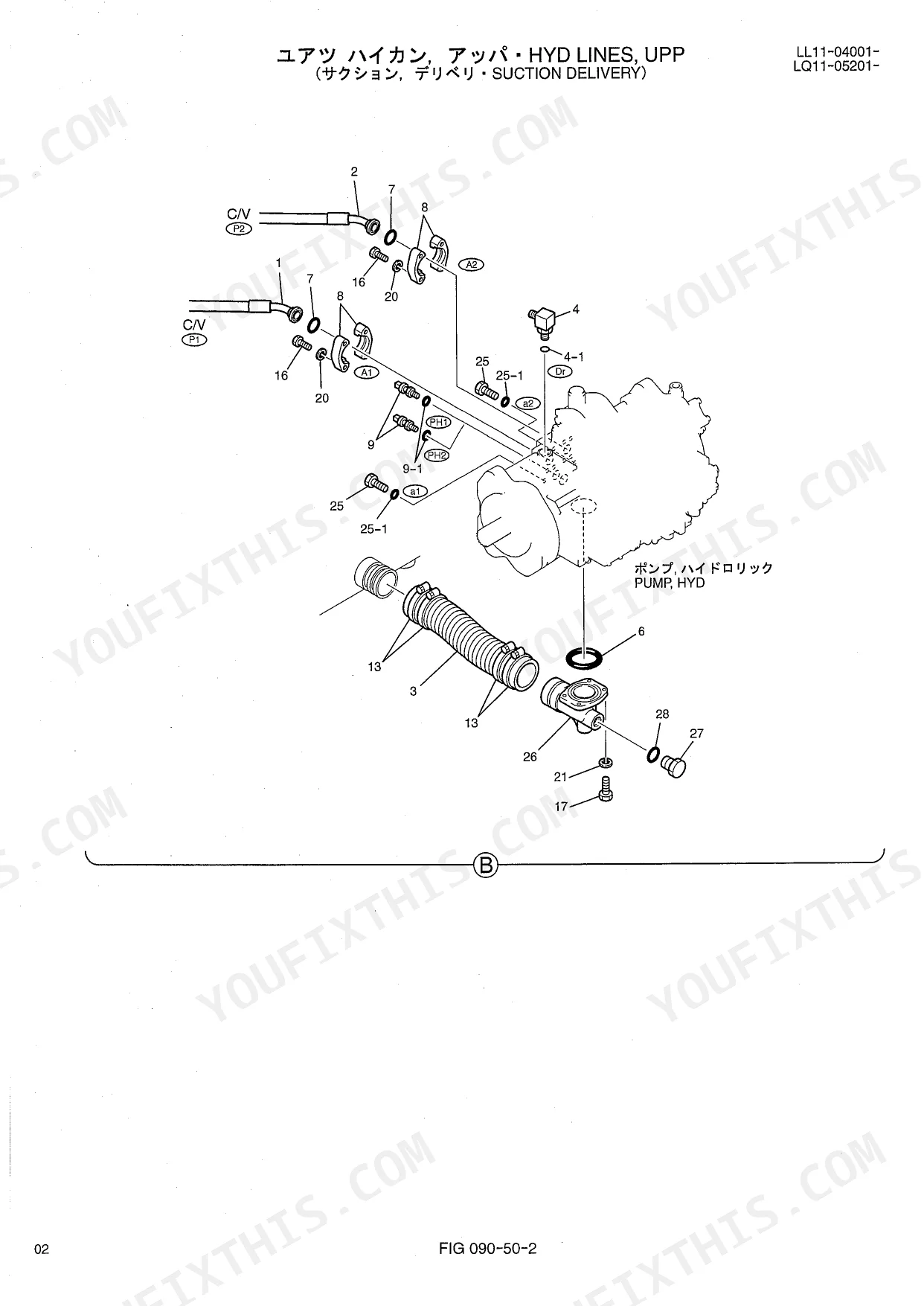

| Superstructure | 29-212 | Frame Assy, Upp, Counterweight Assy, Engine Assy, Engine Instal, Radiator Instal, Radiator Assy, Fuel Lines |

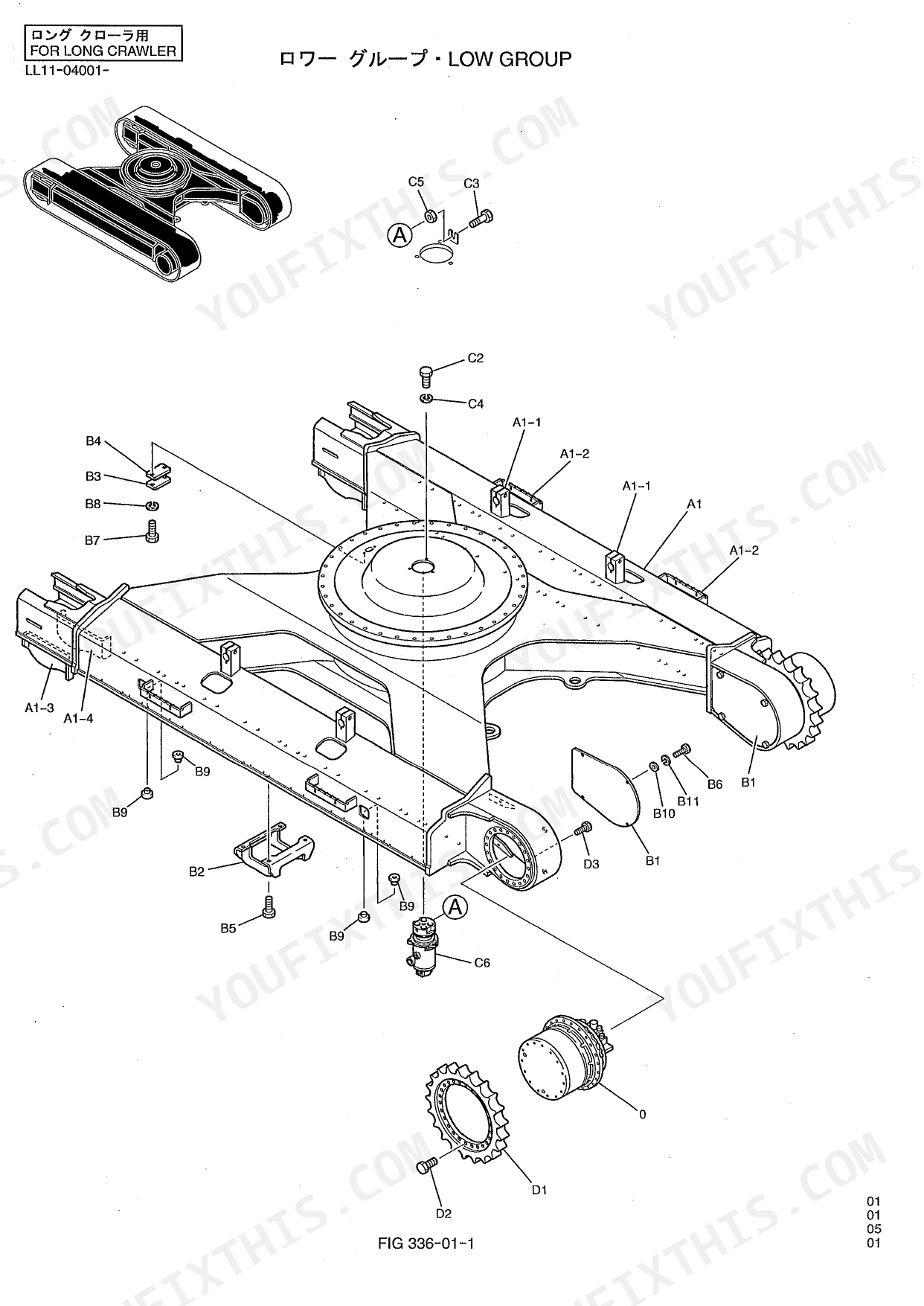

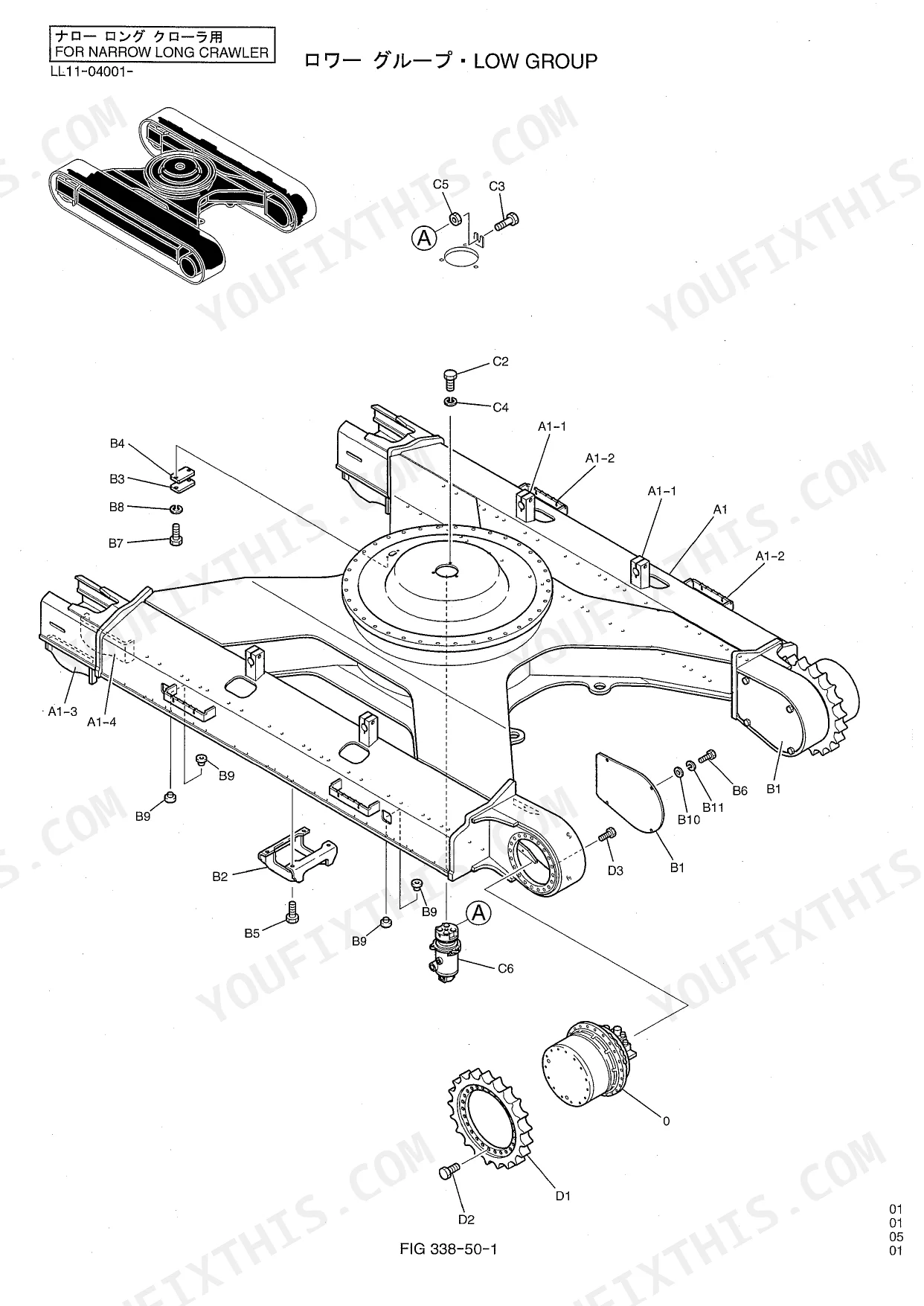

| Undercarriage | 213-238 | Low Group, Ring Assy, Slewing, Idler Assy, Crawler, Idler Adjust Assy, Roller Assy, Track |

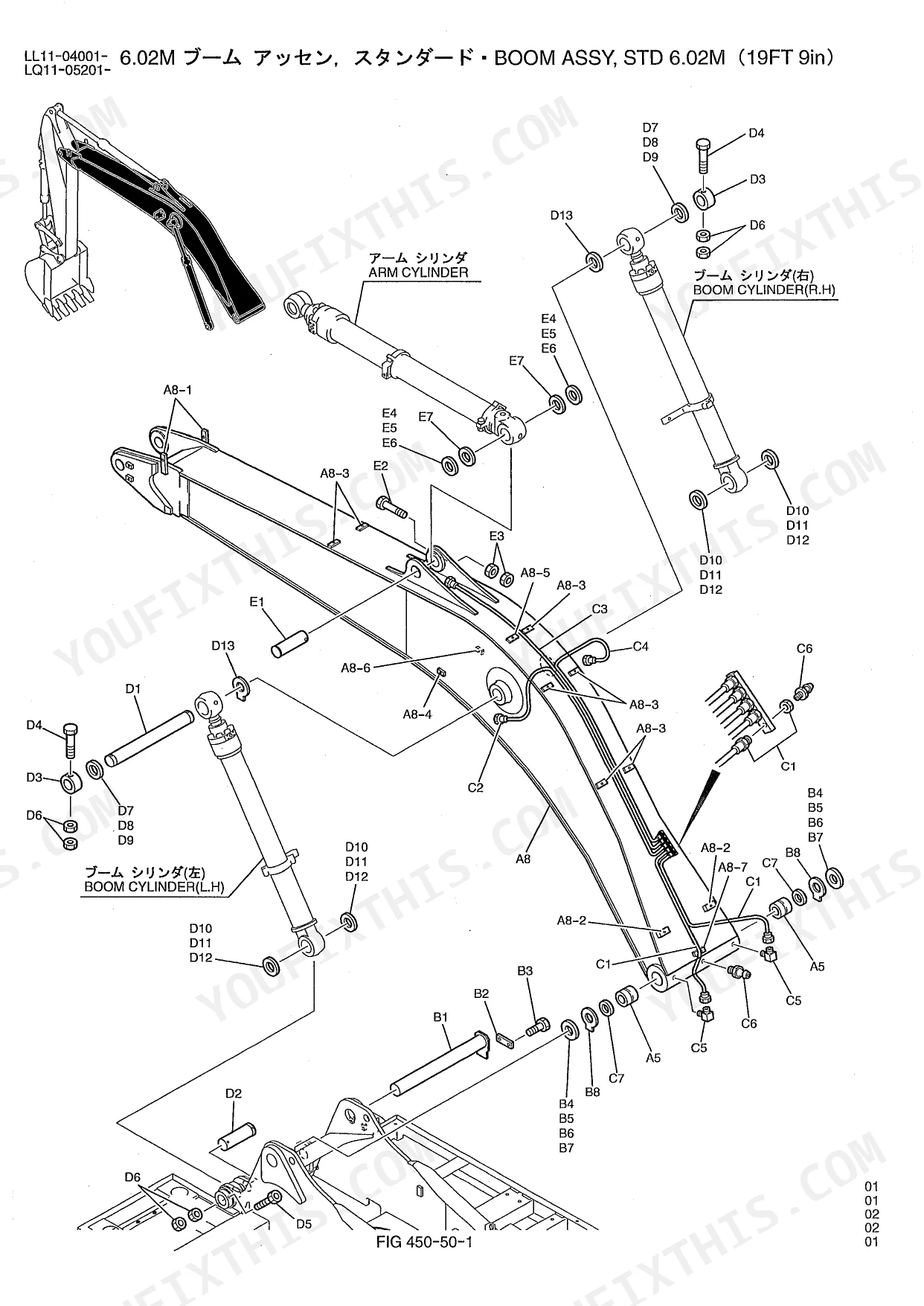

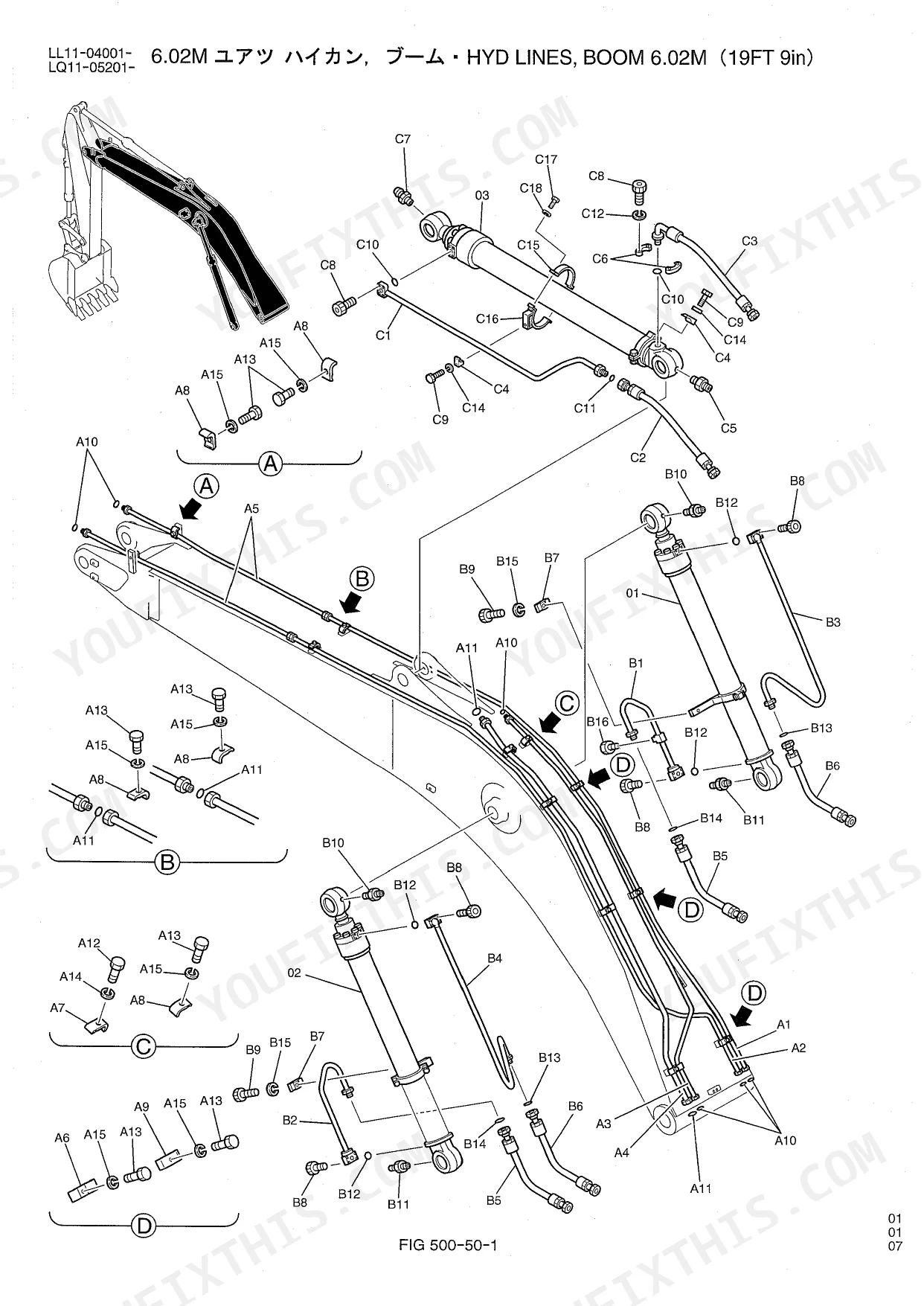

| Attachments | 239-256 | Boom Assy, Std, Hyd Lines, Boom, Arm, Bucket Instal |
| Tools and Spare Parts | 257-260 | Tool & Accessory, Element Kit, Sun Visor Assy, Mirror Instal, Light Instal |
| Optional Parts | 261-292 | Control Lines, Valve, Sun Visor Assy, Mirror Instal, Light Instal, Elec Assy, Upp, Arm Assy |
| Name - Plate | 293-310 | Name Plate Instal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Shim (1.0) | 1.0 mm | p. 57 |
| Set Pressure (F1) | 20.6MPa at 70L/min | p. 350 |
| Set Pressure (F6) | 25.0MPa at 50L/min | p. 350 |
| Set Pressure (F1 - Valve Assy, Port Relief) | 37.8MPa at 30L/min | p. 430 |
| Set Pressure (F7 - Valve Assy, Port Relief) | 24.5MPa at 220L/min | p. 430 |
| Set Pressure (F1 - Valve Assy, Holding) | 39.7MPa at 150L/min | p. 444 |
| Set Pressure (F2 - Valve Assy, Holding) | 37.8MPa at 150L/min | p. 444 |
Kobelco SK250-6ES, SK250LC-6ES Common Problems This Manual Covers
Kobelco SK250-6ES water separator element and gasket part numbers hard to find for fuel system service
Open the water separator exploded view on page 54 and match item numbers to the list on page 55. The complete separator is LS02P01012F2; the element alone is LS02P01012S002, with drain plug LS02P01012S010 and O-ring LS02P01012S012. Check page 53 to confirm the separator belongs to your fuel lines group LQ21P00006F3.
Manual Section: Fuel System Troubleshooting p. 55Engine fuel filter and oil filter element part numbers needed for scheduled service on Mitsubishi engine
Check the engine assy parts list on page 37: the fuel filter element is ME015254 and the oil filter element is ME088532. For internal engine parts beyond this list, refer to the Mitsubishi engine parts catalog as that page directs. Verify against the filter list under General Maintenance Items on page 23 before ordering.
Manual Section: Engine Troubleshooting p. 37Two radiator hose part numbers look identical on radiator install page, unsure which one to order
Check the callouts on the radiator install view at page 40 against the list on page 41: B3 is LQ05P01094P1 and B4 is LQ05P01093P1, one of each. The same pair shows on the engine assy list at page 37. For the core or oil cooler, use the radiator assy list on page 45 (cooler LQ05P00020S002).
Manual Section: Cooling System Troubleshooting p. 41Main pump assy piston and shoe repair kit hard to identify in the pump breakdown
Check the pump assy section view on page 372 against the parts list on page 373 for LQ10V00010F1 through F3. Pistons (item 151) and shoes (item 152) carry an asterisk, so order the repair kit listed on page 374 that consists of 151X9 and 152X9. Read the F1, F2 and F3 quantity columns before ordering O-rings and seals.
Manual Section: Hydraulic Components Troubleshooting p. 374Pump regulator and solenoid valve assy part numbers needed, original pump listed as not in service
Check the pump assy list on page 375 for LQ10V00011F1 and F2: regulator assy LQ10V01004F1 for the F1 build or LQ10V01004F2 for the F2 build, plus solenoid valve assy YN35V00041F1. Items marked NOT IN SERVICE refer you to the LQ10V00010 breakdown on page 373. Confirm your machine against the catalog supplied with it, as page 336 instructs, before ordering.
Manual Section: Hydraulic Components Troubleshooting p. 375Main control valve assy part number and section layout needed for slewing, boom, arm and travel
Check the valve install view on page 70 to see which sections serve slewing, boom, arm, bucket, travel left, travel right and travel straight. The list on page 71 gives control valve assy LQ30V00018F1 and points to the component parts pages for internals. Mounting brackets are LQ64H01018P2 and YN64H01214P1 on the same list.
Manual Section: Hydraulic System Troubleshooting p. 71Frequently Asked Questions
What is the part number for the ELEMENT KIT,OIL- in this manual?
Page 24 lists part number ME088532 for the ELEMENT KIT,OIL-. p. 24
What is the part number for the SETSCREW in this manual?
Page 31 lists part number ZS83C20020 for the SETSCREW. p. 31
What is the part number for the COUNTERWEIGHT in this manual?
Page 33 lists part number LQ60C00073D1 for the COUNTERWEIGHT. p. 33
What is the part number for the STARTER SAFETY RELAY in this manual?
Page 37 lists part number ME077148 for the STARTER SAFETY RELAY. p. 37
What is the part number for the STAY in this manual?
Page 41 lists part number LQ05P01055P1 for the STAY. p. 41
Will this Kobelco SK250-6ES Parts Catalog download right away?
Immediate download of the complete 634-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Kobelco SK250-6ES manual?
Yes. Print the pages or sections you need for your own shop use. Any standard printer works.
