Tracking down a part number before you phone the dealer is exactly what this Kubota BX22D Parts Catalog (OEM #100K0694) is for. Across 262 pages: 60 pages of parts lists matched to exploded-view diagrams for every major system, including 15 pages on the engine, 8 pages each on hydraulic and electrical components, 10 pages on drivetrain, plus full coverage of the HST, front axle, steering cylinder, and three-point linkage. Cross-references let you trace a component from the wire harness assembly down to the 15A fuse, or follow a hydraulic oil line from suction through delivery into the steering circuit. The clutch shaft runs a 13T gear; the injection pump shim measures 0.20mm. Those are the numbers a dealer asks for. Stop squinting at worn part tags or describing a bracket over the phone. Search by keyword and pull the right number on the first try.
What's Inside This Kubota BX22D Parts Manual

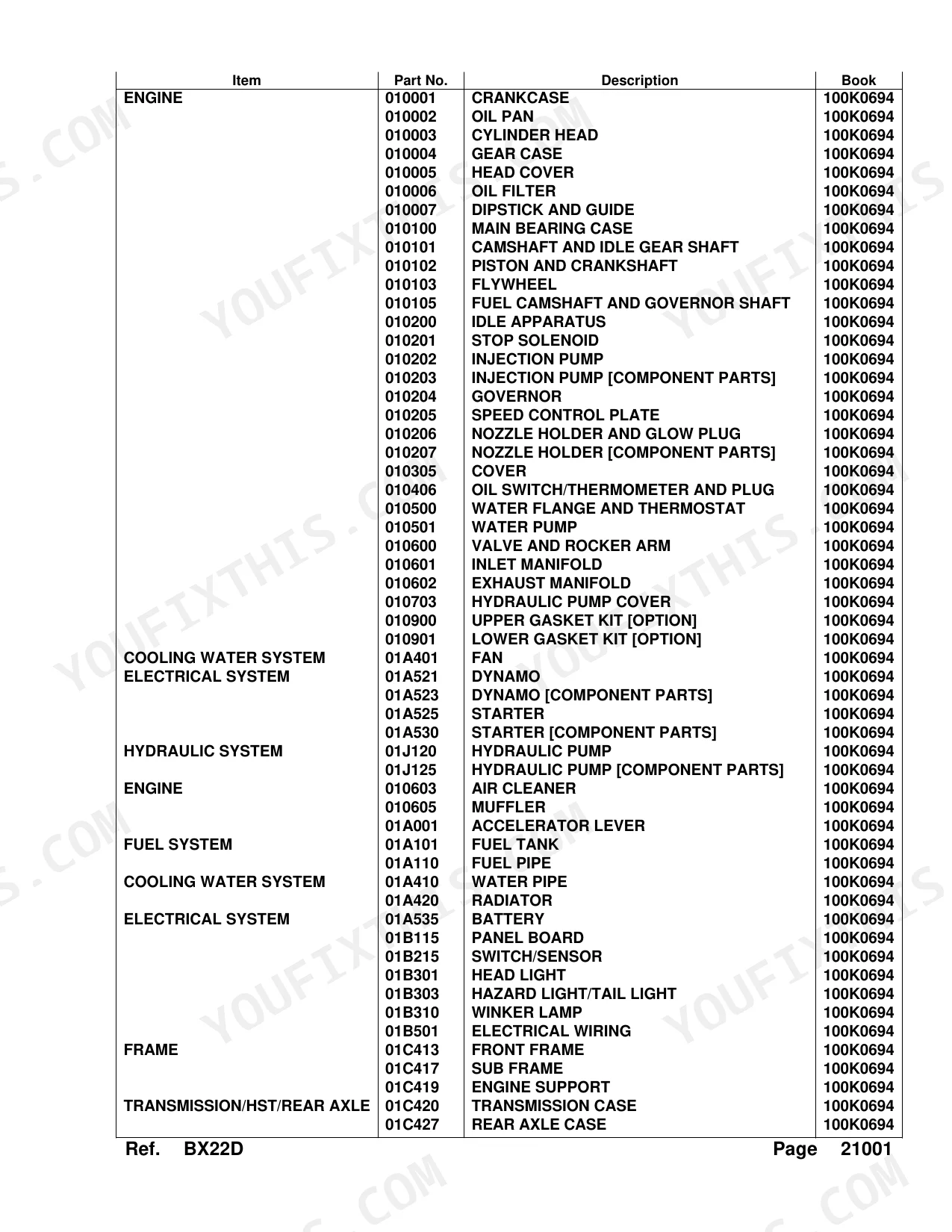

| System | Pages |
|---|---|

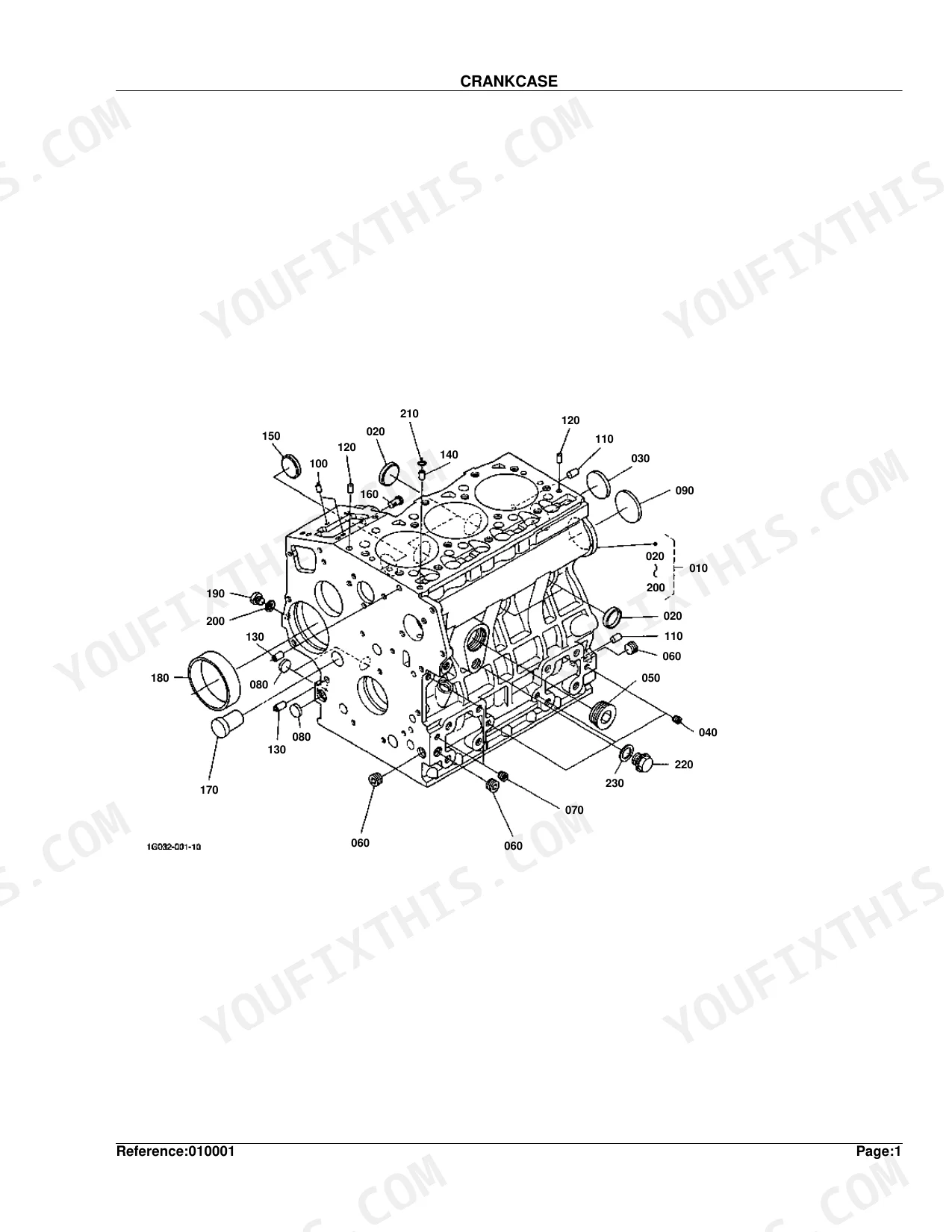

| Crankcase | - |
| Oil Pan | - |
| Cylinder Head | - |
| Gear Case | - |
| Head Cover | - |
| Oil Filter | - |
| Dipstick and Guide | - |
| Main Bearing Case | - |
| Camshaft and Idle Gear Shaft | - |
| Piston and Crankshaft | - |
| Flywheel | - |
| Fuel Camshaft and Governor Shaft | - |
| Idle Apparatus | - |
| Stop Solenoid | - |
| Injection Pump | - |
| Injection Pump [Component Parts] | - |
| Governor | - |
| Speed Control Plate | - |
| Nozzle Holder and Glow Plug | - |
| Nozzle Holder [Component Parts] | - |
| Oil Switch/Thermometer and Plug | - |
| Water Flange and Thermostat | - |
| Water Pump | - |
| Valve and Rocker Arm | - |
| Inlet Manifold | - |
| Exhaust Manifold | - |
| Hydraulic Pump Cover | - |
| Upper Gasket Kit [Option] | - |
| Lower Gasket Kit [Option] | - |
| Fan | - |
| Dynamo | - |
| Dynamo [Component Parts] | - |
| Starter | - |
| Starter [Component Parts] | - |

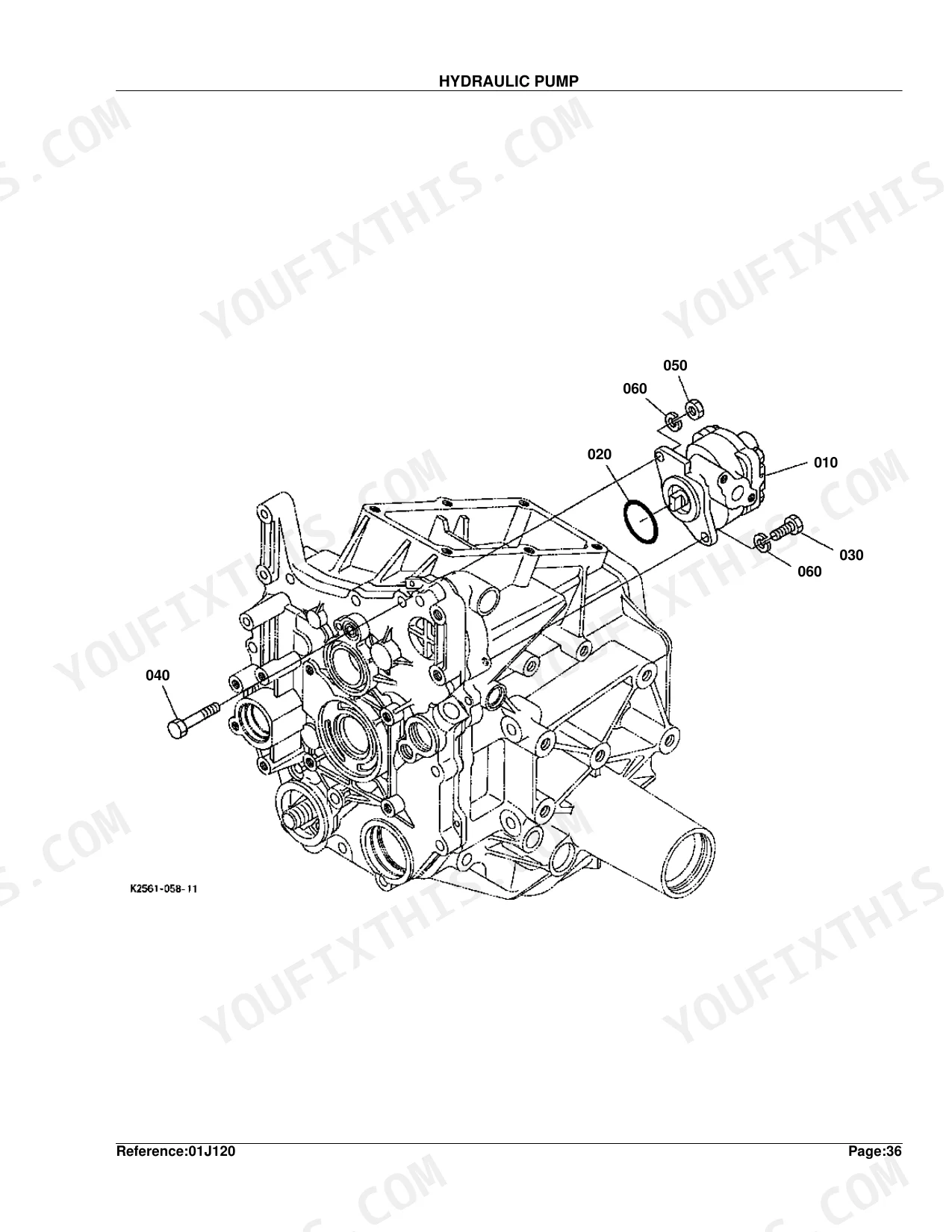

| Hydraulic Pump | - |
| Hydraulic Pump [Component Parts] | - |
| Air Cleaner | - |
| Muffler | - |
| Accelerator Lever | - |
| Fuel Tank | - |
| Fuel Pipe | - |
| Water Pipe | - |
| Radiator | - |

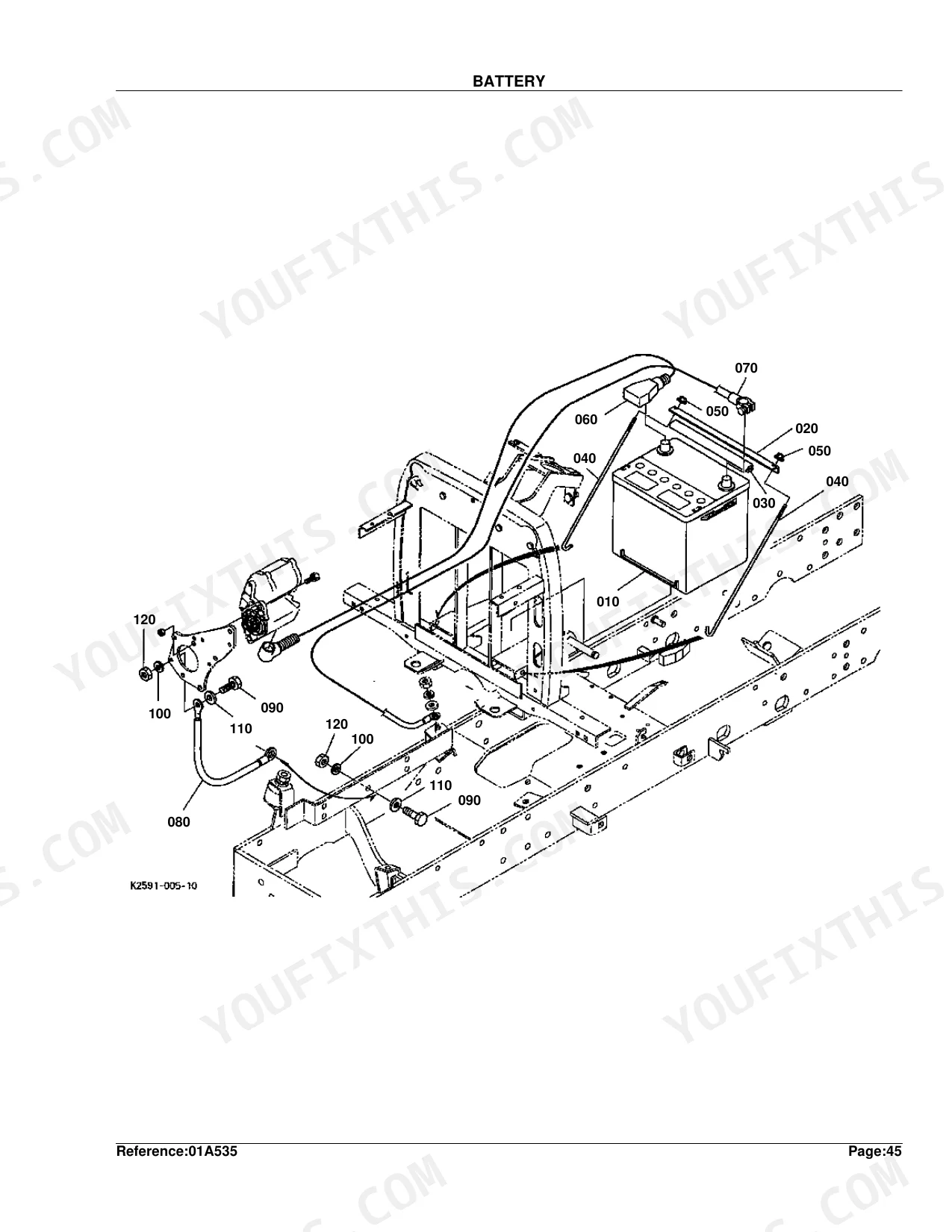

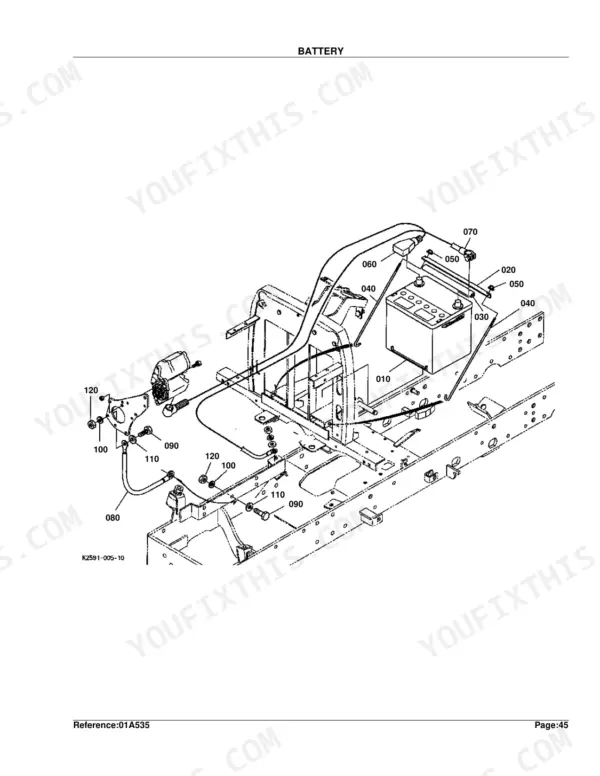

| Battery | - |
| Panel Board | - |
| Switch/Sensor | - |
| Head Light | - |
| Hazard Light/Tail Light | - |
| Winker Lamp | - |
| Electrical Wiring | - |

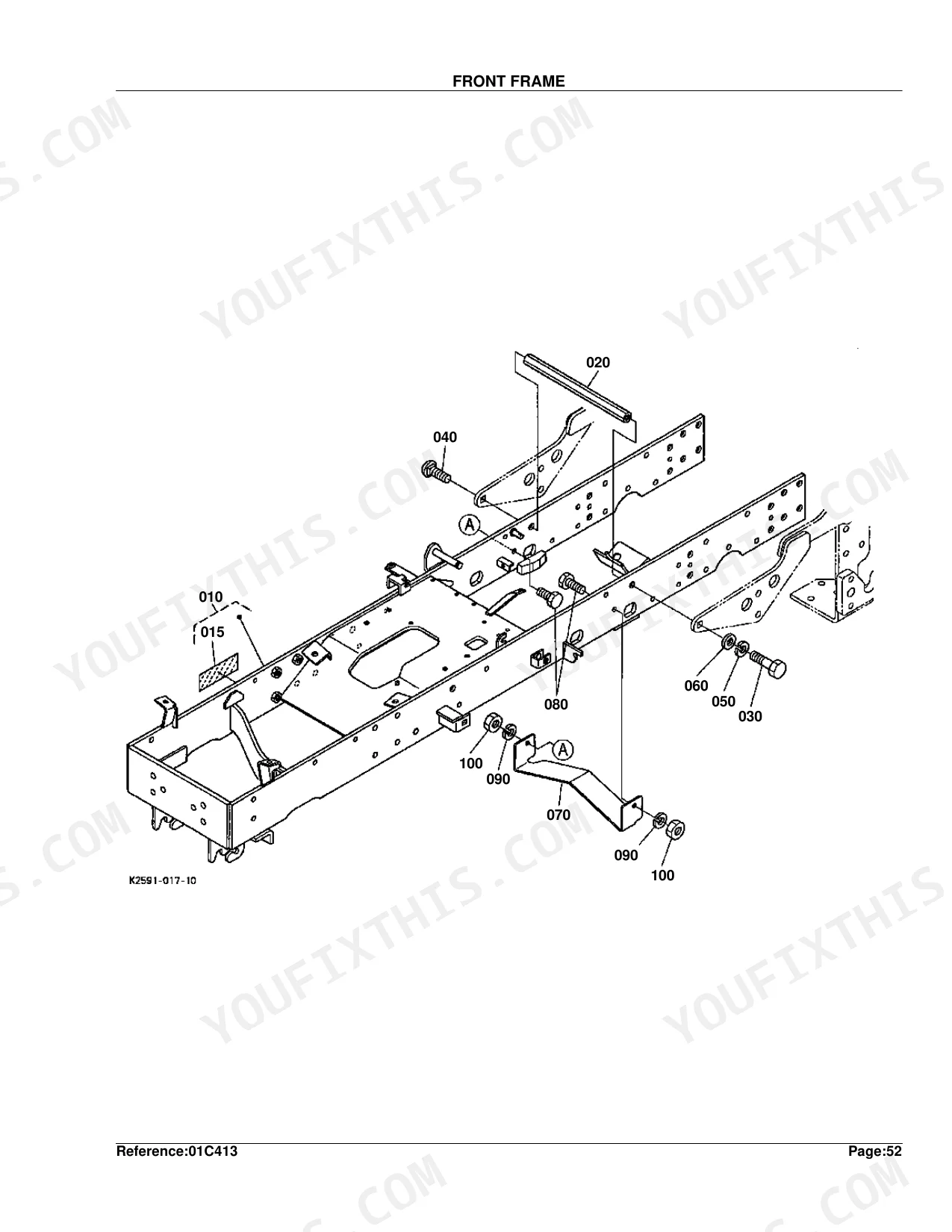

| Front Frame | - |
| Sub Frame | - |
| Engine Support | - |
| Transmission Case | - |
| Rear Axle Case | - |

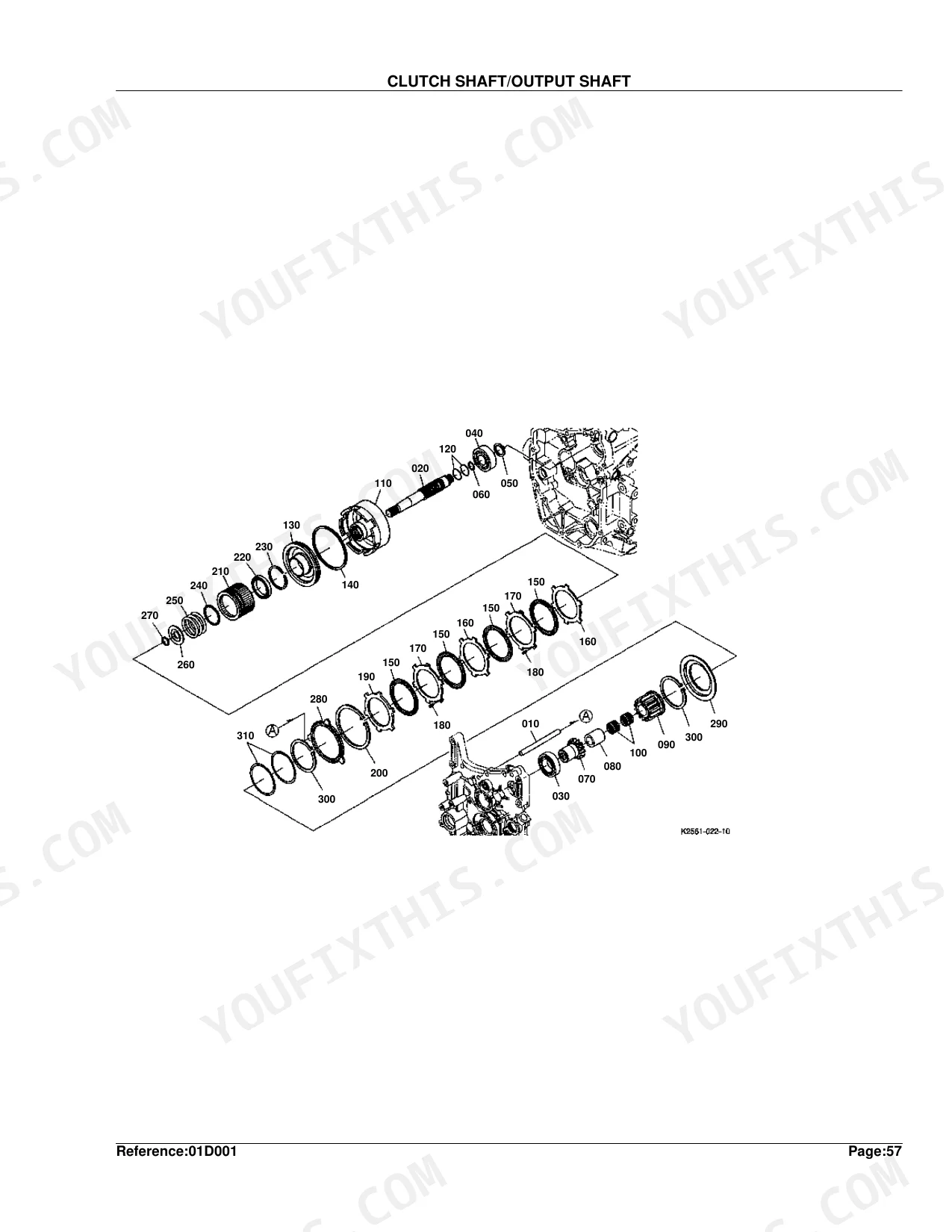

| Clutch Shaft/Output Shaft | - |
| Propeller Shaft | - |
| HST | - |
| HST [Component Parts] | - |
| Range Gear Shaft | - |
| PTO Shaft | - |
| Mid PTO | - |
| Rear Differential | - |
| FWD Idle Shaft | - |
| Gp Idle Shaft | - |
| Front Wheel Propeller Shaft | - |
| Range Gear Shift Fork | - |
| PTO Gear Shift Fork | - |
| PTO Gear Shift Arm | - |
| Differential Lock Shift Fork | - |
| Rear Axle | - |
| Brake | - |
| Neutral Holder Link | - |
| Speed Control Pedal | - |
| Range Gear Shift Lever | - |
| Front Wheel Drive Lever | - |
| PTO Select Lever | - |
| PTO Gear Shift Lever | - |
| Hydraulic Control Lever | - |
| Brake Pedal | - |
| Differential Lock Pedal | - |
| Front Differential Case | - |
| Front Differential | - |
| Differential Gear Shaft | - |
| Front Axle Case | - |
| Front Axle | - |
| Steering Handle | - |
| Steering Controller | - |
| Steering Linkage | - |
| Steering Cylinder [Component Parts] | - |
| Hydraulic Oil Line(Suction) | - |
| Hydraulic Oil Line(Delivery) | - |
| Hydraulic Oil Line(Steering) | - |
| Hydraulic Cylinder | - |
| Hydraulic Piston/Lift Arm | - |
| Control Valve | - |
| Control Valve [Component Parts] | - |
| Top Link | - |
| Lower Link | - |
| Lift Rod | - |
| Top Link Bracket/Fender Bracket | - |
| Mower Rear Link RH | - |
| Mower Rear Link LH | - |
| PTO Protector | - |
| Front Guard | - |
| Front Glille Support | - |
| Bonnet | - |
| Bonnet Side | - |
| Center Pillar | - |
| Panel Frame | - |
| Fender | - |

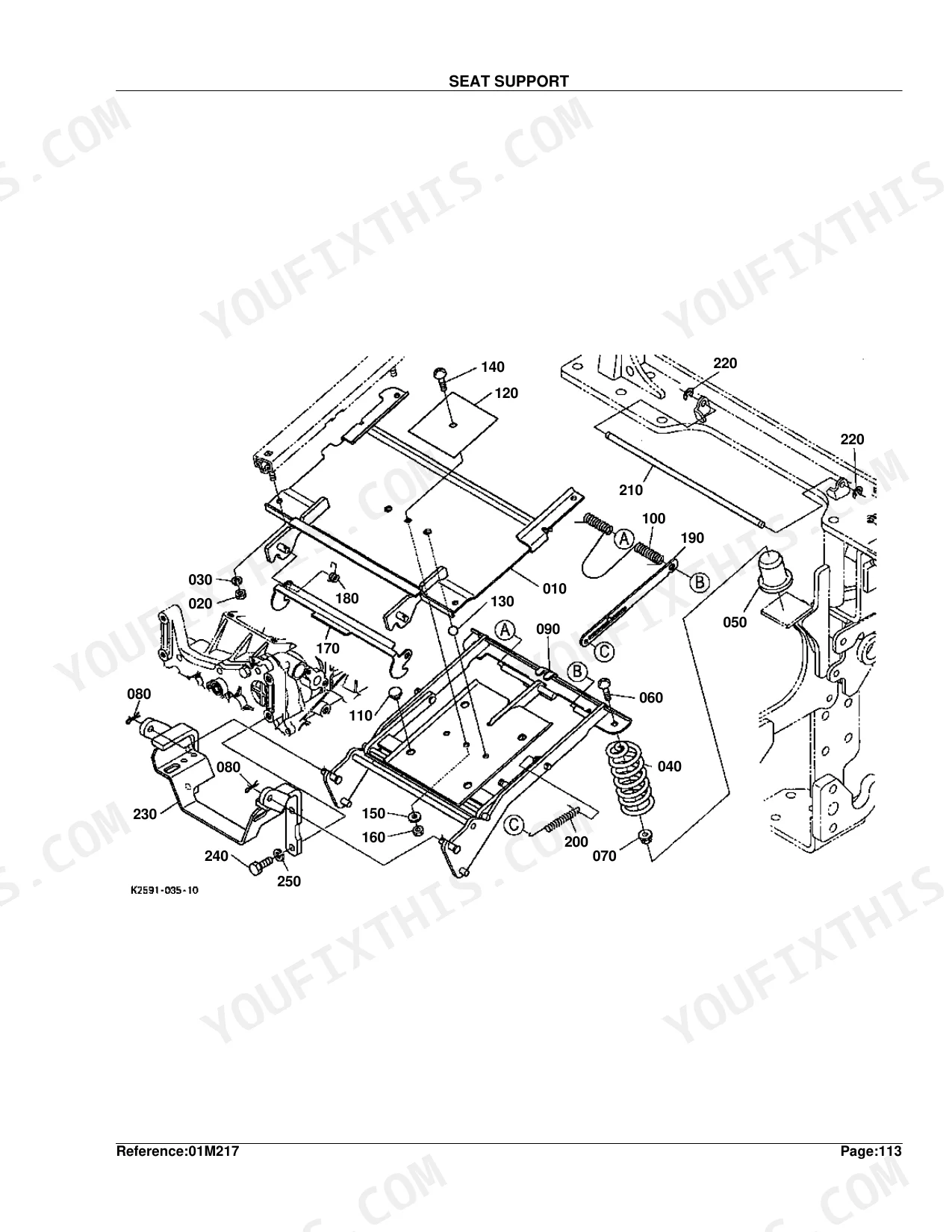

| Seat Support | - |
| Step | - |
| ROPS | - |
| Smv Emblem | - |
| Front Wheel (18*8.50-8) | - |
| Rear Wheel (26*12.00-12) | - |
| Label (Front) [English] | - |
| Label (Front) [French] | - |
| Label (Rear) [English] | - |
| Label (Rear) [French] | - |
| Accessories and Service Parts | - |
| Alternator Kit [Option] | - |
| Alternator [Component Parts] [Option] | - |
| Warking Light Kit [Option] | - |
Every system also includes a diagram and a parts list.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| FUSE | 15A | p. 107 |
| Shim Injection Pump | 0.20mm | p. 35 |
| Washer Adjusting | 0.10mm | p. 45 |
| Fuse (Electrical Wiring) | 15A | p. 107 |
| Gear (Clutch Shaft) | 13T | p. 119 |
| Shim Brake | 0.5mm | p. 119 |
| Gear Low (Range Gear Shaft) | 17T | p. 127 |
| Shim (Range Gear Shaft) | 0.5mm | p. 127 |
| Gear Mid PTO | 26T | p. 131 |
| Shim (Rear Differential) | 0.6mm | p. 133 |
| Gear Bevel F (Front Differential) | 12T | p. 175 |
| Shim (Differential Gear Shaft) | 1.0mm | p. 175 |
Kubota BX22D Common Problems This Manual Covers
Kubota BX22D engine cranks but will not start due to blown fuses or bad shutoff solenoid p. 107
Check the exploded view for the wiring harness on page 107. Locate the 15A fuse for the electrical wiring system. Cross-reference the component parts list to find the correct replacement part number for the main harness and fuel stop solenoid.
Manual Section: Electrical WiringSteering or front-end driveline vibration and loud clicking noises during tight turns p. 175
Inspect the differential gear shaft diagram on page 175 to identify the 12T front differential bevel gear and the components around it. The 1.0mm differential gear shaft shim is listed alongside it, so confirm both before ordering your rebuild parts.
Manual Section: Differential Gear ShaftHydrostatic transmission performance drops and range gear area becomes noisy or pops out of gear p. 127
Inspect the range gear shaft parts diagram on page 127. Locate the 17T low gear and its associated 0.5mm shim in the exploded view. Cross-reference the part numbers in the table below the diagram to order the correct replacement components.
Manual Section: Range Gear ShaftEngine runs rough, lacks power, and smokes excessively from poor fuel delivery at the injection pump p. 35
Check the injection pump breakdown on page 35 for the part number of the 0.20mm injection pump shim needed at reassembly. Confirm the joint eye and related hardware in the parts list so nothing is missing from your order.
Manual Section: Injection PumpFrequently Asked Questions
What are the replacement specifications for fuel shutoff solenoid?
Order the fuel shutoff solenoid as Part No. 17454-60010, listed as "SOLENOID STOP", weighing 0.35 kgf (0.77 lb).
What are the replacement specifications for fuses?
Several fuses are listed. FUSE Part No. 35820-75560 is rated 15A and weighs 0.002 kgf (0.0044 lb). FUSE Part No. 36919-56650 is rated 20A at the same 0.002 kgf (0.0044 lb). The 30A FUSE, Part No. 51950-29320, weighs 0.005 kgf (0.011 lb).
Is this Kubota BX22D Parts Catalog a digital download?
A 262-page Parts Catalog in searchable PDF, ready the moment checkout completes. Read it on a computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Kubota BX22D manual?
Yes, print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
Does this Kubota BX22D Parts Catalog cover the hydraulic system?
Yes. It includes hydraulic component specifications and exploded views, though not circuit diagrams or system schematics.
Document Quality
This document is a scanned PDF, but an OCR layer has been applied, so you can search and copy text from all pages. The text quality is generally crisp and readable throughout, with only minor variations sometimes visible in scanned characters. All diagrams and illustrations are clear raster images, and their labels are easy to read. The page condition is clean, free from scan artifacts, stains, marks, or skewed content, and there are no notable blank or filler pages.
