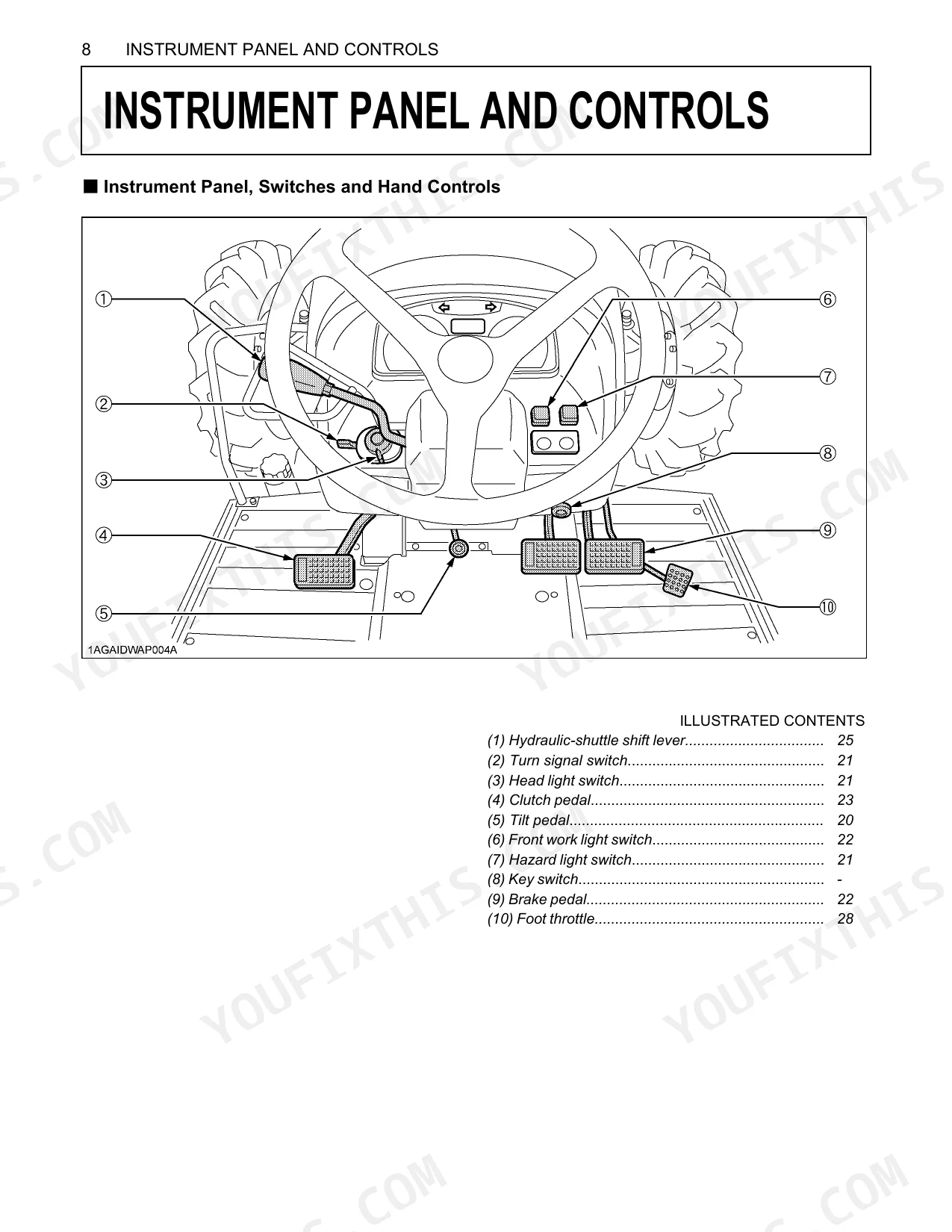

This is the operator's manual for the Kubota M96SDTM tractor, a 142 page guide in English. The first part covers the features common to the M series, and the second part covers the special features of the M96SDTM, so read both before operating. The tractor uses the Kubota V3800 series diesel engine.It walks through the instrument panel and controls, starting and running the engine, operating the tractor and the foldable ROPS, the PTO, three point hitch, hydraulic unit, tires, wheels and ballast, and the full maintenance and periodic service schedule.Use it to find specifications and capacities, follow the correct service intervals, set tire pressures and wheel torque, and work through the engine troubleshooting chart. Delivered as a downloadable PDF you can read on any device or print for the shop.
What's Inside This Kubota M96SDTM Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Ops - Tractor M965SDTM (3N470-99712) | 1 | PTO Clutch Control Lever, Main Gear Shift Lever, Operator's Seat, Warning Buzzer, PTO Drive Shaft |
| Abbreviation List | 2 | Two Wheel Drive, Four Wheel Drive, American Petroleum Institute, American Society of Agricultural and Biological Engineers, American Society for Testing and Materials |
| Universal Symbols | 3 | Safety Alert Symbol, Engine Warning, Diesel Fuel, Fuel-Level, Engine-Rotational Speed, Hourmeter/Elapsed Operating Hours |
| WSM - Mudder Tractor M96SDTM | 121-142 | Foreword, Safety First, Contents Page (Specifications, Tires, Wheels and Ballast, Maintenance, Periodic Service, Options, Appendices) |

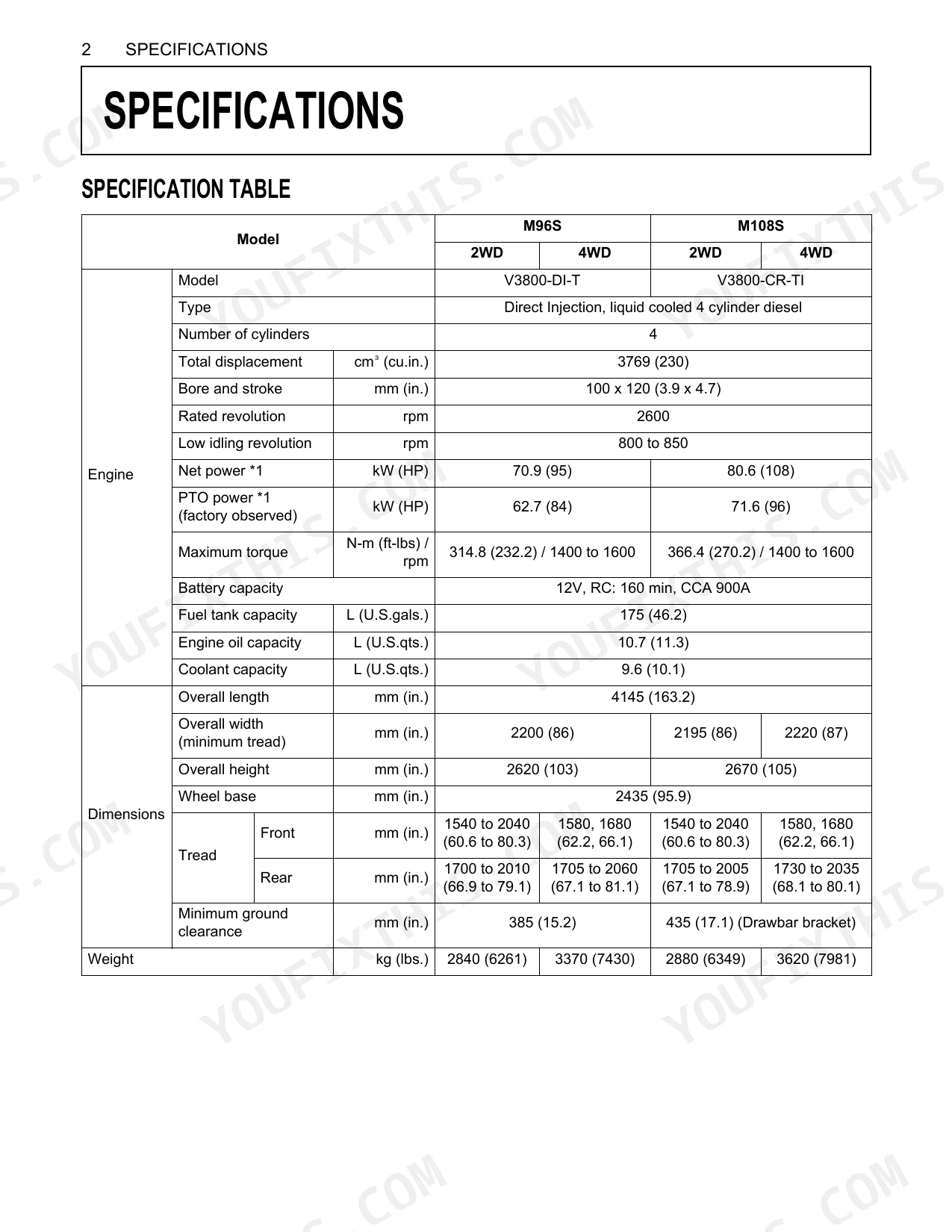

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel bolt torque (Standard tire) | 260 to 304 N-m | p. 139 |
| Battery cables | Not specified | p. 116 |
| Battery capacity | 12V, RC: 160 min, CCA 900A | p. 125 |
| Safety switch | Not specified | p. 71 |
| Air cleaner primary element replacement interval | every 1 year | p. 134 |
| Radiator cleaning parts or fins | Not specified | p. 69 |
| Fuel filter replacement interval | every 400 Hr | p. 135 |
| Proper fan belt tension (deflection) | 10 to 12 mm | p. 76 |
| Compressed air pressure for cleaning air cleaner primary element | under 205 kPa | p. 75 |
| Engine Oil Capacity | 10.7 L (11.3 U.S.qts.) | p. 24 |
| Fuel Tank Capacity | 175 L (46.2 U.S.gals.) | p. 24 |
| Coolant Capacity | 9.6 L (10.1 U.S.qts.) | p. 24 |
Kubota M96SDTM Common Problems This Manual Covers
Engine will not crank or start
The M96SDTM may crank slowly or not turn over at all, usually from a weak battery, corroded or loose battery cables, or a faulty safety switch. The Troubleshooting section includes an engine troubleshooting chart to isolate the fault.
Manual Section: Troubleshooting p. 116Overheating under load
Overheating during heavy work often means the radiator fins are clogged with dust and debris. The Periodic Service section covers cleaning the radiator and cooling system on schedule.
Manual Section: Periodic Service p. 86Power loss or stalling from bad fuel
Contaminated fuel or water in the diesel can make the engine lose power, run rough, or stall. The Maintenance section covers the service intervals and the lubricant and fuel handling that keep the fuel system clean.
Manual Section: Maintenance p. 81Weak performance from a dirty air filter
A dirty or worn air cleaner element restricts airflow and saps engine performance. The Periodic Service section gives the air cleaner element replacement interval and cleaning procedure.
Manual Section: Periodic Service p. 86Hard starting in cold weather
In cold weather the engine can be slow to start. The Operating The Engine section covers cold weather starting and the block heater to get reliable starts.
Manual Section: Operating The Engine p. 34Wrong tire pressure or loose wheel bolts

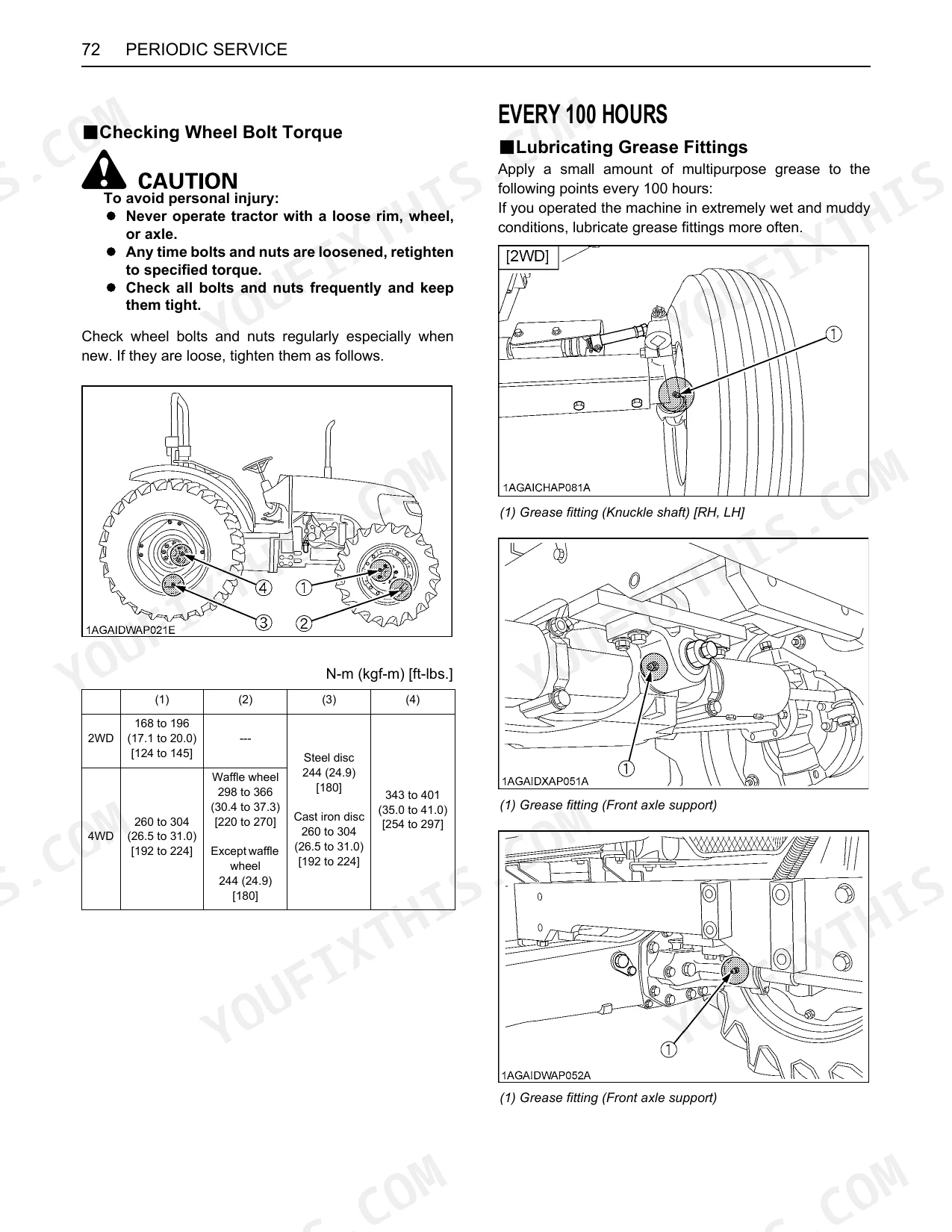

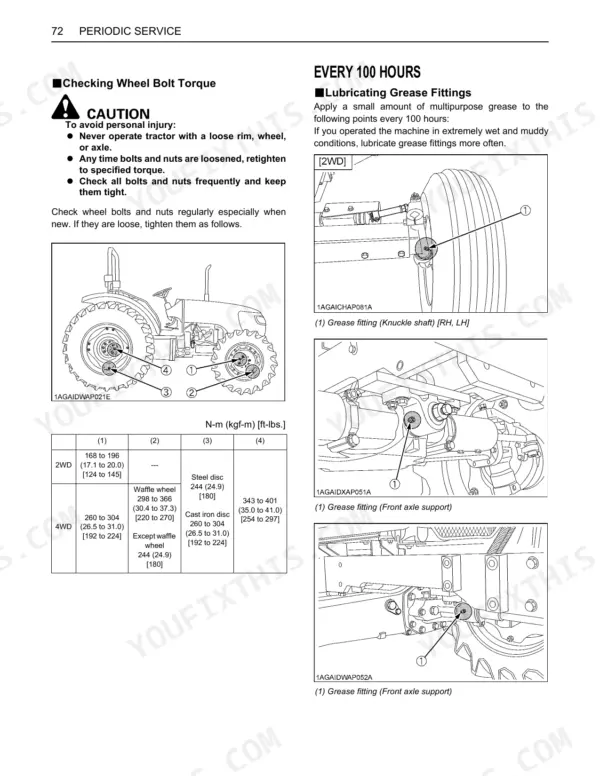

Incorrect tire pressure or loose wheel bolts affect stability and traction. The Tires, Wheels and Ballast section lists the inflation pressures and wheel bolt torque of 260 to 304 N-m.
Manual Section: Tires, Wheels and Ballast p. 75Frequently Asked Questions
Which tractor does this manual cover?
It is the operator's manual for the Kubota M96SDTM tractor, 142 pages. The first part covers common M series features and the second covers the M96SDTM specifics, so read both.
What is the engine oil capacity?
The M96SDTM holds 10.7 L of engine oil. It is listed with the fuel and coolant capacities in the Specifications section. p. 24
What torque do the wheel bolts need?
The Tires, Wheels and Ballast section gives a standard tire wheel bolt torque of 260 to 304 N-m. p. 75
What do I get after purchasing this Kubota M96SDTM manual?
This is a 142-page searchable PDF ready for immediate download. Works on any device, pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Kubota M96SDTM Operator Manual printable?
Yes, print as many copies as you want, there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
