Looking for a Landini Legend workshop manual PDF? This is three factory publications in one 689-page file: the Legend workshop manual (OEM #3549054 M2, pages 1-380) covering the 105, 115, 130, 145 and 165, the DeltaSix transmission manual (OEM #3652037 M1, pages 381-683), and the RP70 supplement. Inside: complete wiring diagrams with connector layouts, hydraulic circuit schematics for the power steering, power pack and trailer brake valve, plus exploded drawings of both Dana and Carraro 4WD front axles. You also get full DeltaSix transmission teardown procedures and LandTools software calibration with fault-finding for the electronic power lift. Straight from the spec tables on pages 47 and 48: the 105 engine peaks at 395 Nm and the 165 at 636 Nm. Bookmarked chapters and a real text layer mean you jump to any section or search any spec, right from the tablet in your shop.
What's Inside This Landini Legend 105-165 Manual
| System | Pages | Key Topics |
|---|---|---|
| Working in Safety | 4-14 | Accident Prevention, Safety Decals, Replacing Tractor Parts, Safe Use of the Tractor, ROPS |

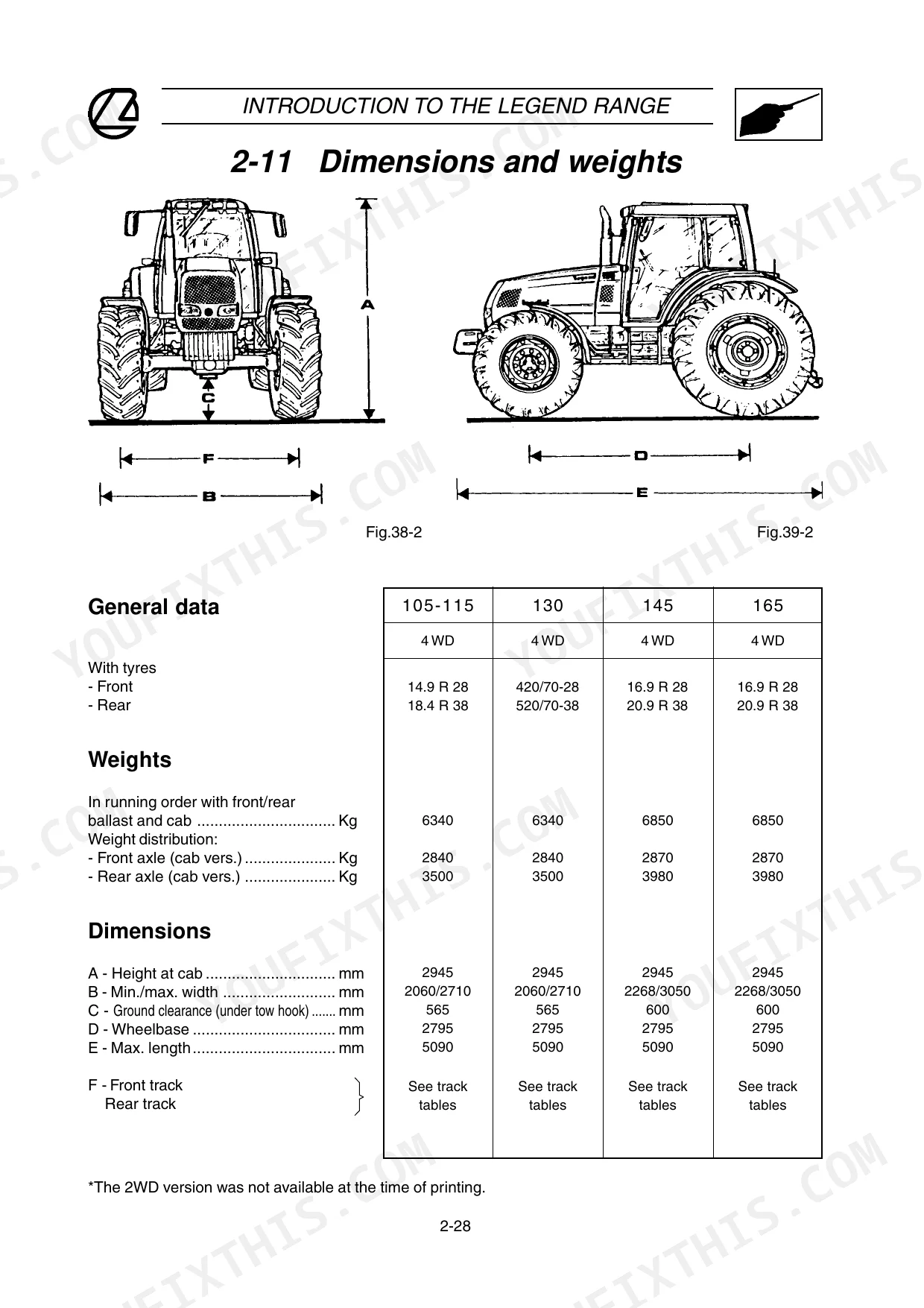

| Introduction to the Legend Range | 16-34 | Legend Range Models, Tractor Identification, Instruments and Controls, Electronic Power Lift Operation |
| Engine | 45-67 | Technical Specifications, Combustion System, Cylinder Head, Pistons, Liners, Crankshaft, Fuelling Circuit, Lubrication |
| Clutch | 68-80 | Single-Plate Clutch, Double-Plate Clutch, Wear Points, Troubleshooting |

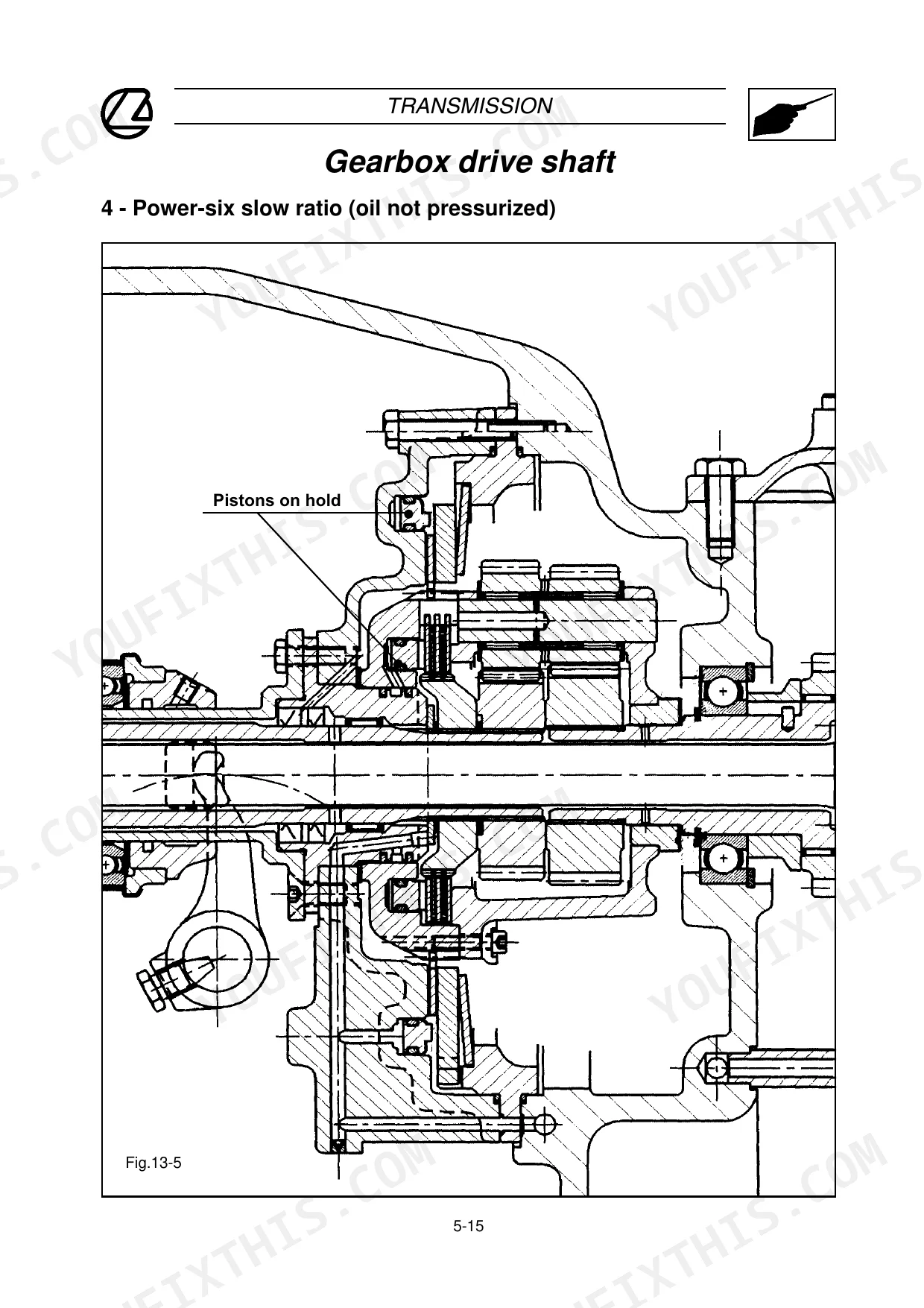

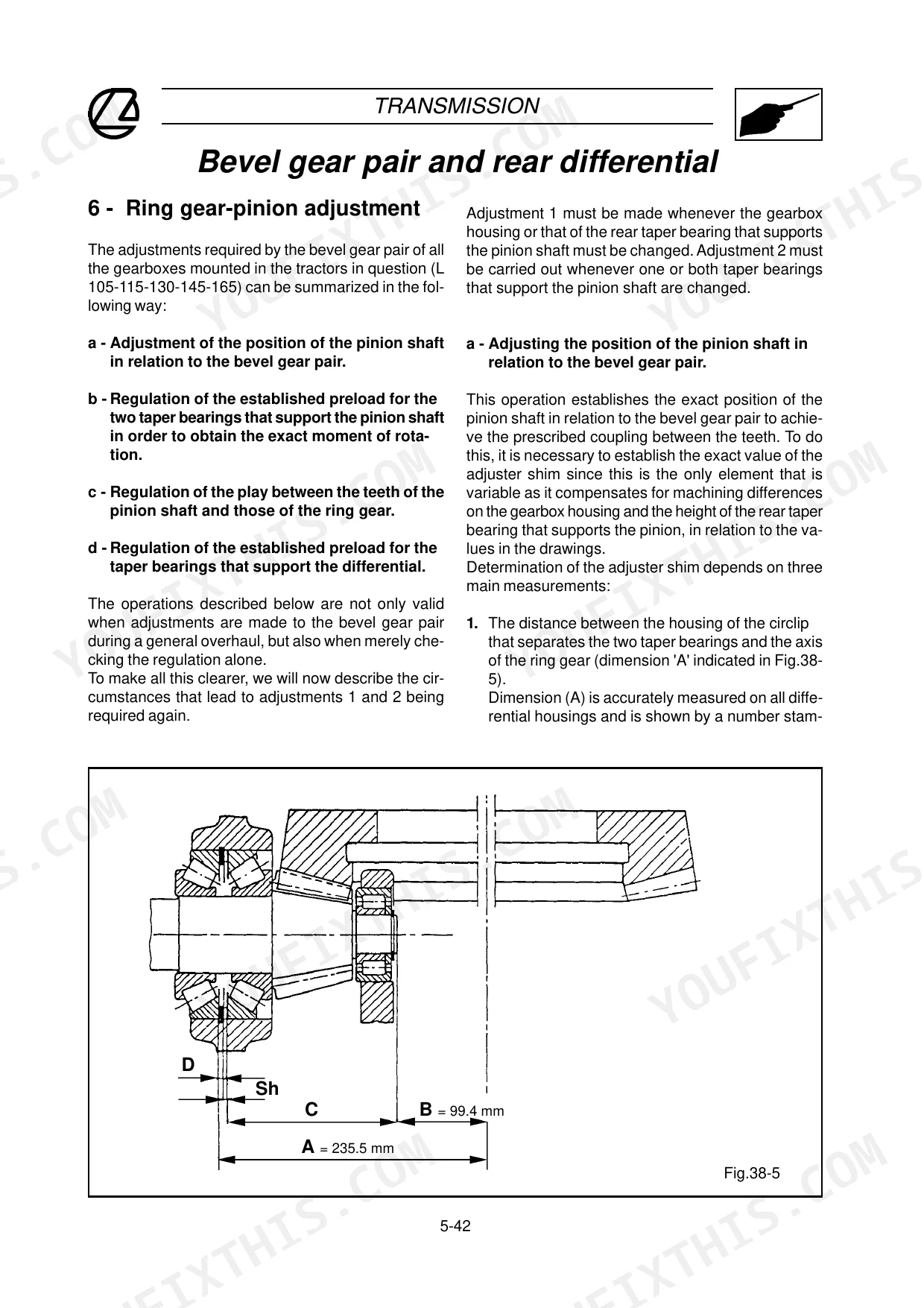

| Transmission | 81-141 | General Description, Gearbox Drive Shaft, Gearbox, Bevel Gear Pair, Rear Differential, Brakes, Rear Final Drives |
| Power Take-Off | 142-151 | Technical Specifications, Hydraulic PTO, Mechanical PTO |
| Dana 4WD Front Axle | 152-162 | General Description, Technical Specifications, Axle Adjustments, Exploded Drawings |
| Carraro 4WD Front Axle | 163-176 | General Description, Technical Specifications, Axle Adjustment, Exploded Drawings |

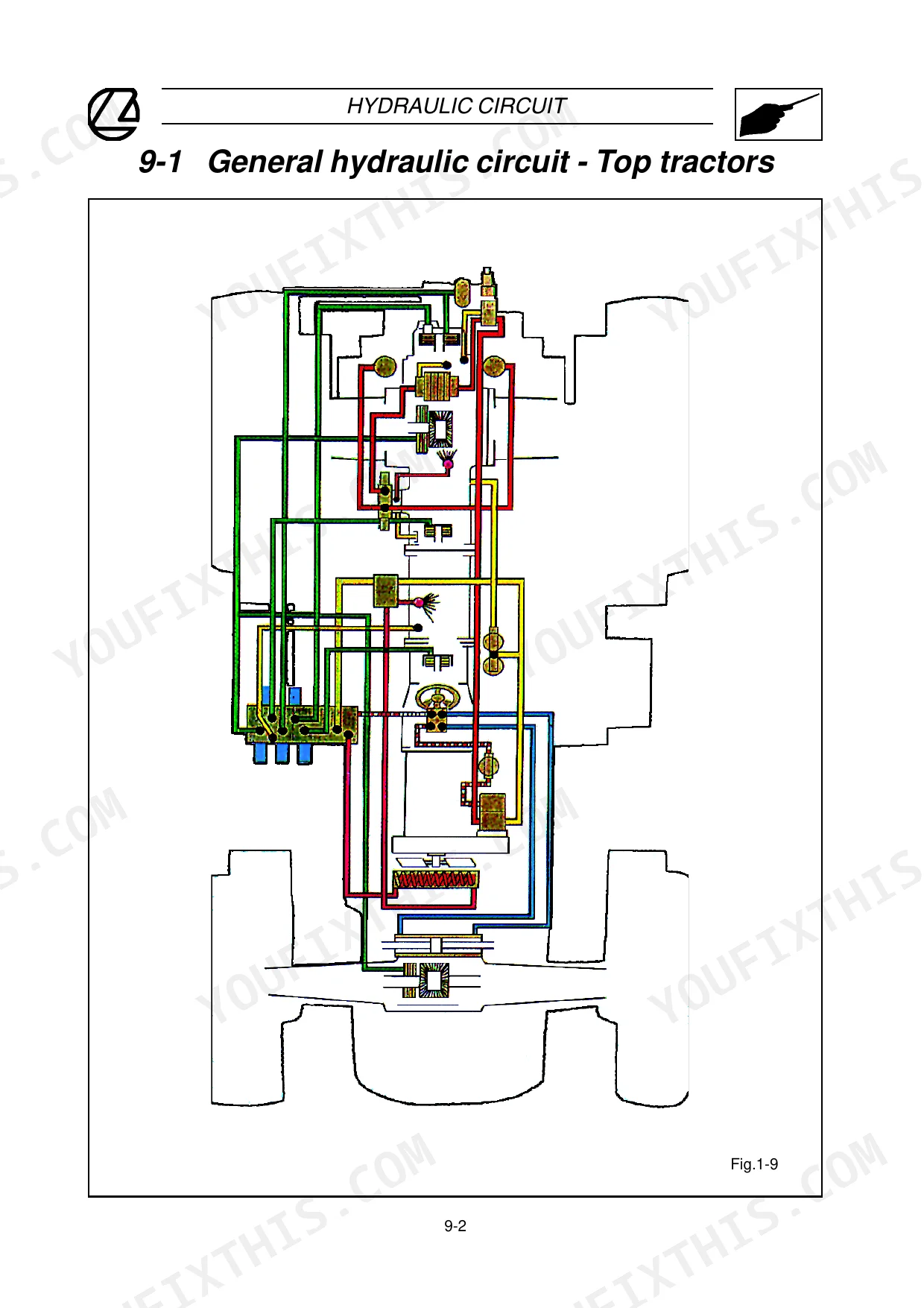

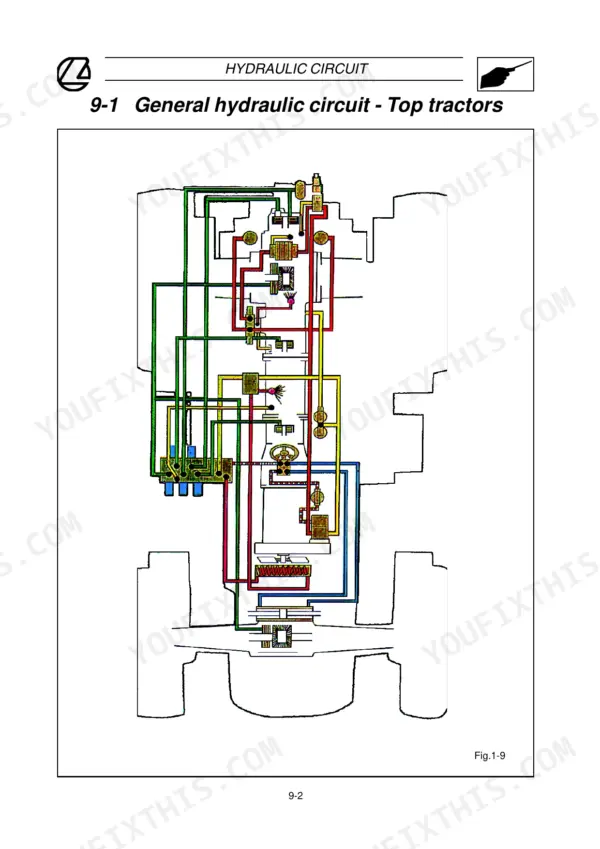

| Hydraulic Circuit | 177-236 | General Hydraulic Circuit, Power Steering System, Hydraulic Power Pack, Auxiliary Control Valves, Trailer Brake Valve |
| Mechanically Controlled Power Lift | 237-269 | External Controls, Automatic Draft Control, Sensitivity Control, Operating Phases, Power Lift Adjustments |

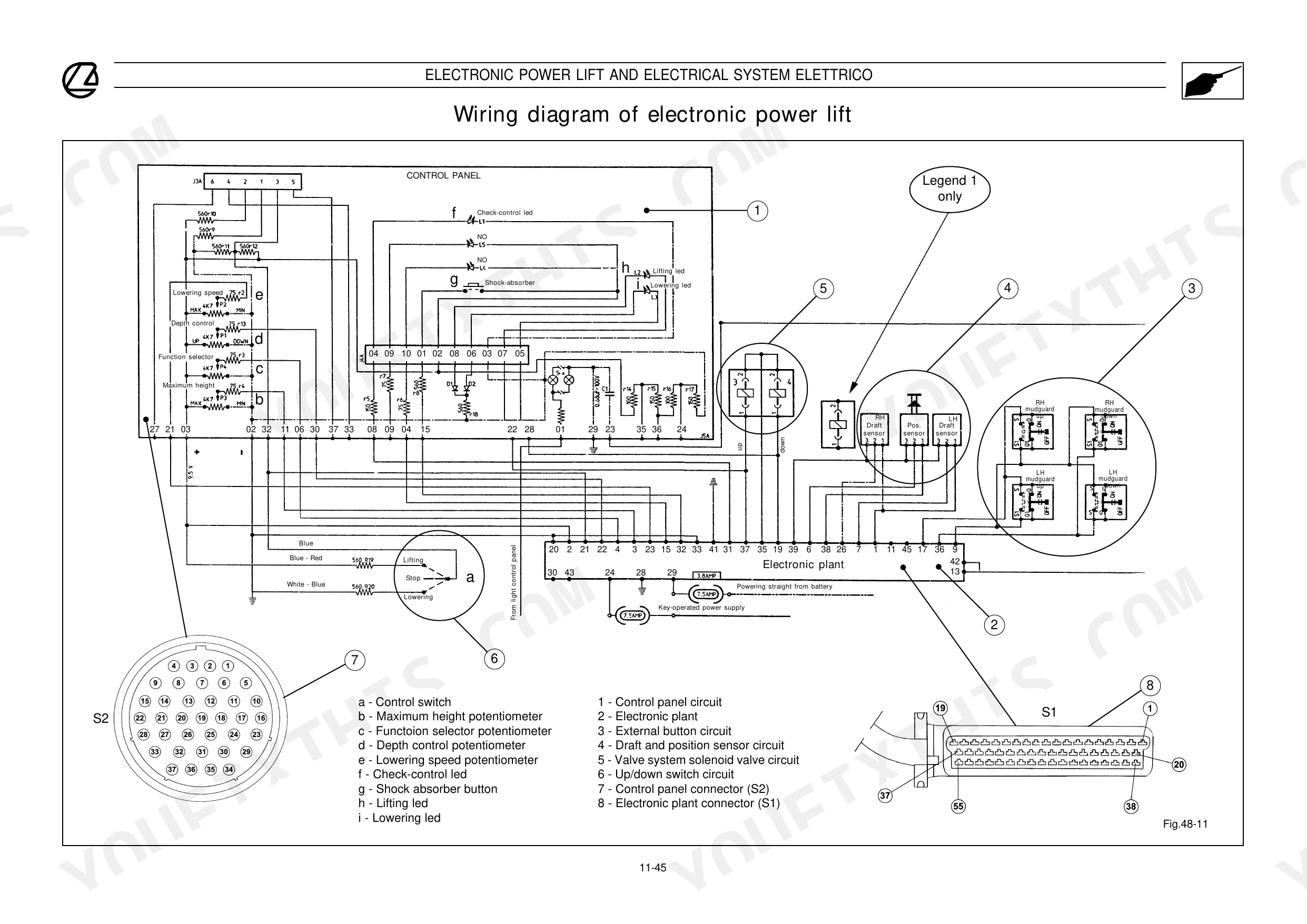

| Electronic Power Lift and Electrical System | 270-342 | General Definitions, Electronic Power Lift Control, Sensors, Wiring and Connectors, Instrument Panel, General Electrical System |
| A/C and Ecc Air-Conditioning Systems | 343-380 | Basic Principles, Operating Principle, Main Components, Maintenance, Emptying and Charging, Troubleshooting |
| DeltaSix Transmission | 381-440 | Modular Transmission, Main Components, Performance, Disassembly, Remounting and Adjustment |
| LandTools Software | 594-673 | Installation, Main Control Panel, Functional Tests, Calibration, Fault Finding, Replacing Electronic Plant |
| Special Tools | 674-683 | Constructional Drawings, 141 Ds-Lg, 142 Ds-Lg, 143 Ds-Lg, 144 Ds-Lg, 145 Ds-Lg |

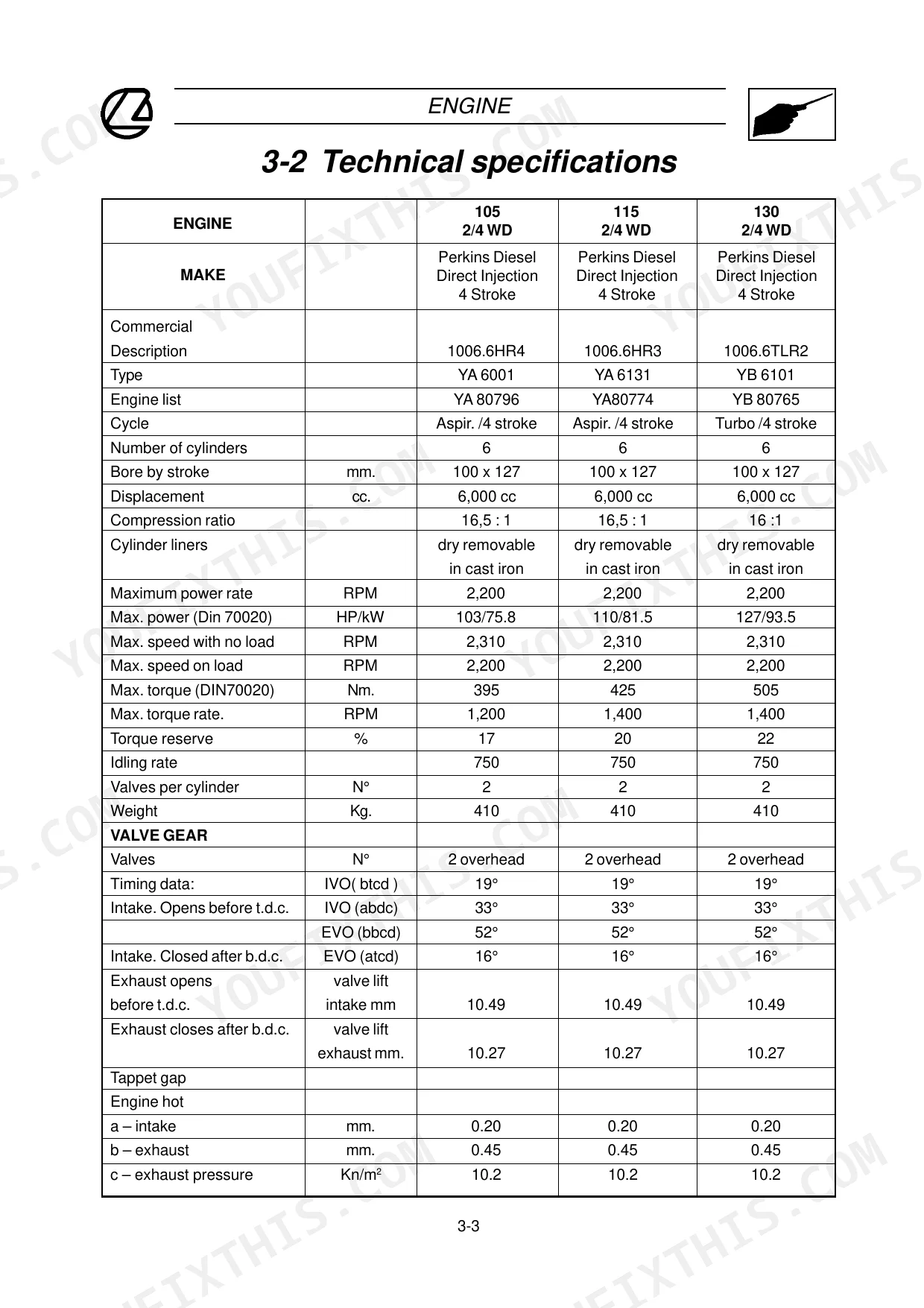

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Max. torque (DIN70020) for 105 | 395 Nm | p. 47 |
| Max. torque (DIN70020) for 115 | 425 Nm | p. 47 |
| Battery Capacity | 95 A/h | p. 51 |
| Battery Charging time | 20 hours | p. 51 |
| Double cartridge filter on intake | 40 micron | p. 181 |
| Filter on delivery | 20 micron | p. 181 |
| Inductive sensor resistance | 450 ohm | p. 537 |
| Clutch pedal limit switch resistance (switch pressed) | 550 ± 10 Ω | p. 571 |
| Clutch pedal limit switch resistance (switch released) | 2740 ± 10 Ω | p. 571 |
| Engine oil filter change interval | 250 hours | p. 39 |
| Fuel tank capacity | 190 L | p. 27 |
| Engine valve clearance (intake, hot) | 0.20 mm | p. 47 |
Landini Legend 105-165 Common Problems This Manual Covers
Landini Legend hydraulics sluggish when oil warms up, rear lift slow, remote valves weak under load
Check transmission oil level first; the system holds 85 L (page 293), and low oil starves both pumps. Tee a gauge into the low pressure circuit and verify 17 to 18 bar per the specs on page 181. If pressure is low, replace the 40 micron intake and 20 micron delivery filter cartridges before condemning the pump.
Manual Section: Hydraulic Circuit p. 181Engine cranks slowly or will not start in cold weather, battery seems weak after sitting
Load test the battery before condemning the starter: spec is 12 V, 95 Ah, with 750 A cold cranking surge at -18 C, all on page 501. Clean and tighten both ground straps, then follow the starter motor checks on page 63. Recharge a flat battery slowly, about 20 hours at low amperage.

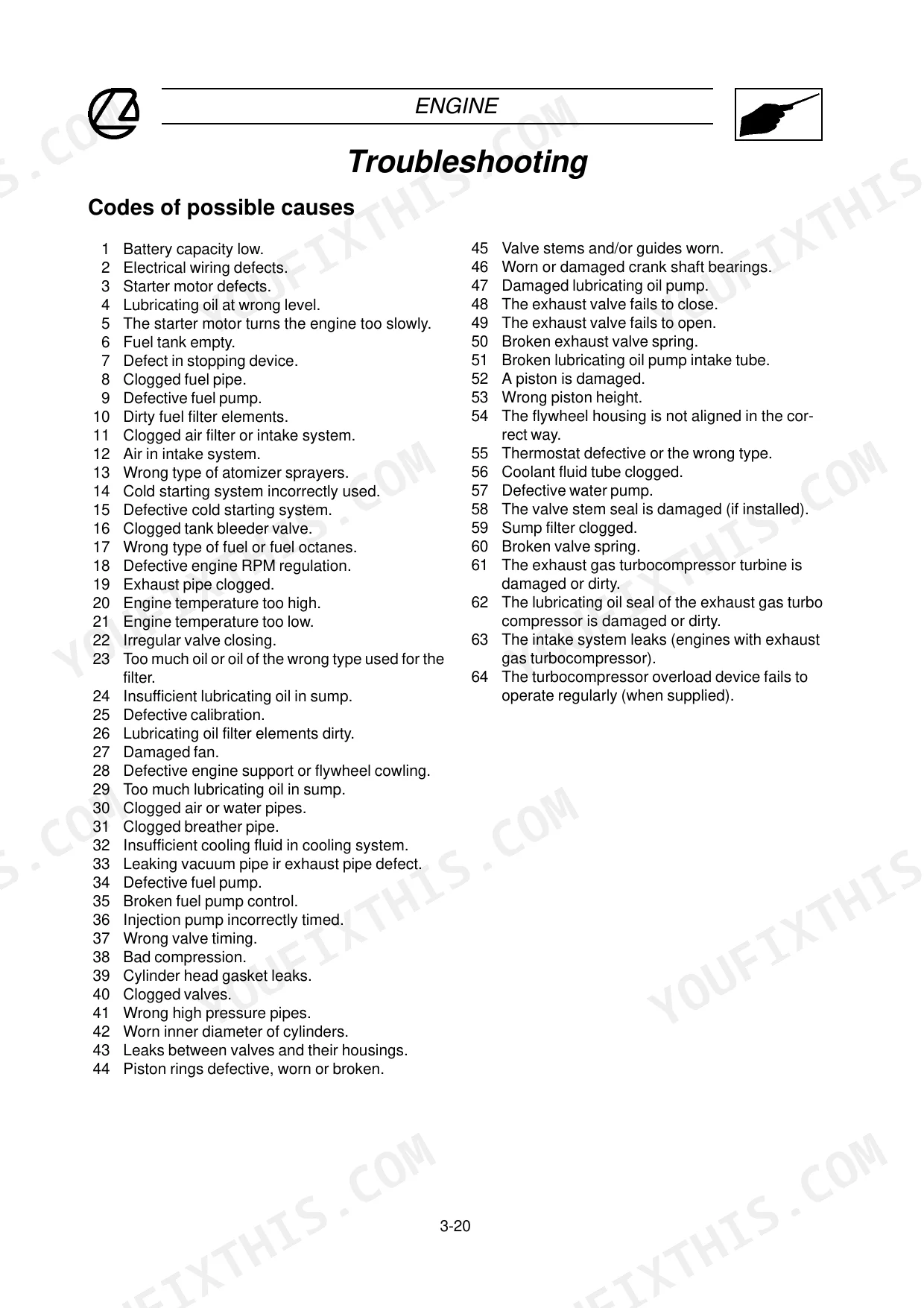

Manual Section: Engine Troubleshooting p. 63Engine down on power under load, black exhaust smoke, fuel consumption higher than normal
Replace the fuel filter and air filter, then drain any water from the fuel system before chasing bigger faults. Work through the insufficient power and exhaust fumes checks starting on page 63. While the engine is hot, set valve clearances to 0.20 mm intake and 0.45 mm exhaust from page 47.
Manual Section: Engine Troubleshooting p. 63PTO drops out under load or flashes overspeed fault code 001883, seat switch alarm shows too
Check the seat switch first; code 002818 means the PTO sees no operator in the seat. Next unplug the PTO speed sensor and measure it: a healthy inductive sensor reads 450 ohm, listed on page 537. Inspect the sensor tip and gap, then clean connector pins and repair chafed harness sections before buying parts.
Manual Section: Power Take-Off p. 142Power shuttle engages harshly or delays when reversing, response feels different between forward and reverse
Test the clutch pedal limit switch with a multimeter: 550 ±10 ohm pressed, 2740 ±10 ohm released, per page 571. Readings outside that range confuse shuttle engagement. Check the reverse shuttle lever contacts and Hall effect sensors next, then run a shuttle calibration through the LandTools software covered from page 594.
Manual Section: DeltaSix Transmission Troubleshooting p. 571Frequently Asked Questions
What are the torque specifications for the cylinder head bolts on a Landini Legend tractor?
When replacing the cylinder head gasket, the bolts must be torqued using the angular method. First, torque the bolts to 110 Nm, then apply an additional angle based on the bolt length: 150 degrees for small bolts, 180 degrees for medium bolts, and 210 degrees for long bolts. p. 55
What is the replacement interval for the engine oil filter?
The engine oil filter should be changed every 500 hours of operation. p. 39
What is the replacement interval for the fuel filter cartridges?
The fuel filter cartridges should be changed every 500 hours of operation. p. 39
What is the correct valve clearance for the engine when hot?
For a hot engine, the intake valve clearance should be 0.20 mm and the exhaust valve clearance should be 0.45 mm. p. 47
How do I check the pressure of the low pressure circuit?
The pressure reading after all functions are engaged must be between 16 bar and 20 bar. If the pressure is lower, check the calibration of the upkeep valve on the Comatrol or Slanzi power pack by inserting a pressure gauge on the delivery. p. 485
Is this Landini 105 & variants Workshop Manual a digital download?
You get a 689-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Landini 105 & variants Workshop Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
