A skipped pilot filter change or a misread track tension check is how a healthy mini excavator ends up parked with a crew standing around it. The Link-Belt 80 Spin Ace operator manual PDF (OEM ID 1116) packs 158 pages of factory operating, safety, and maintenance instruction for your Spin Ace 80. Wiring diagrams map the fuses, battery, and working light circuits, while a hydraulic schematic traces the pilot control circuit through the machine. Lifting capacity charts, the lubrication chart, and full fluid specifications fill the back third of the book. Fill the swing reduction gear with 2.2 liters of oil, and swap the pilot filter every 1000 hours. Guess either and you cook a reduction gear. Bookmarks and a real text layer drop you on the capacities table in two clicks, faster than thumbing a greasy paper copy.
What's Inside This Link-Belt 80 Spin Ace Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-12 | To the Owner, Excavator Components, Identification Numbers |
| Safety, Decals, and Hand Signals | 13-28 | Safety Rules, Safety Area, Utility Safety, Operator Precautions, Decals, Hand Signals |

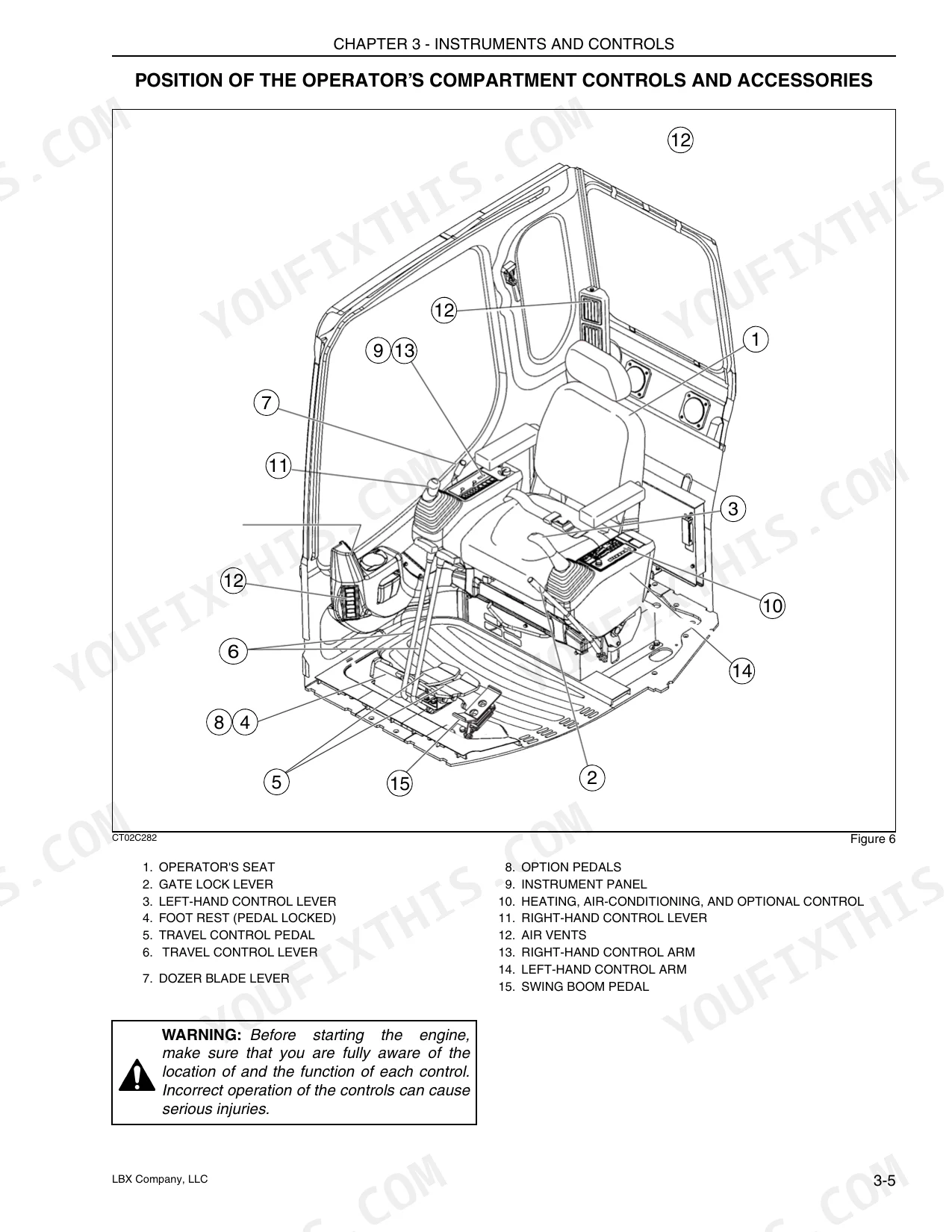

| Instruments and Controls | 29-58 | Cab Door, Steps and Access Handles, Position of the Operator’s Compartment Controls and Accessories, Right-Hand Control Arm, Instrument Panel, Left-Hand Control Arm |

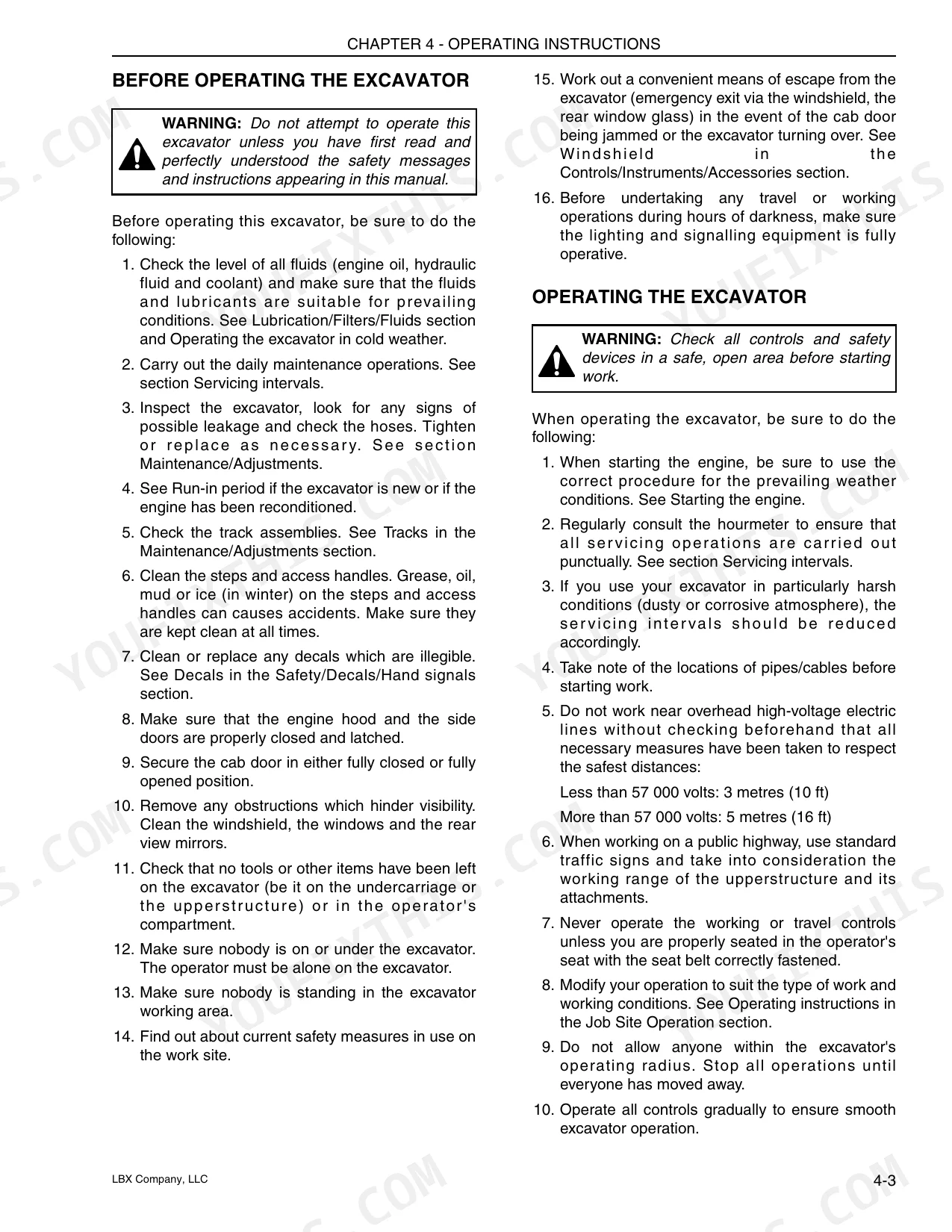

| Operating Instructions | 59-80 | Before Operating the Excavator, Operating the Excavator, Run-In Period, Starting the Engine, Bringing the Excavator Up to Operating Temperature, Engine Operation |

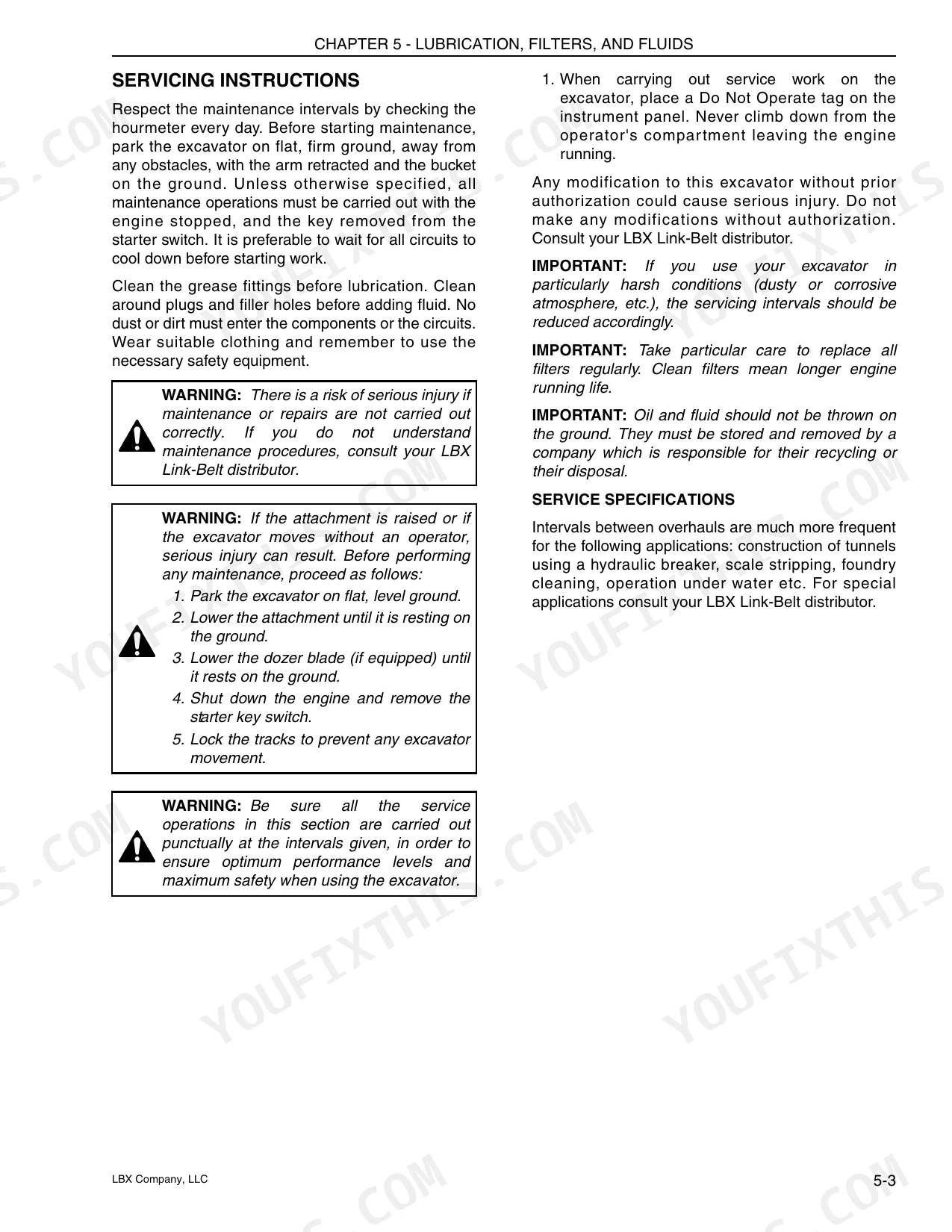

| Lubrication, Filters, and Fluids | 81-114 | Servicing Instructions, Daily Inspections, Hourmeter, Lubrication Chart for 80 Spin Ace, Fluids and Lubricants, Fluid and Lubricant Capacities and Specifications |
| Maintenance and Adjustments | 115-130 | Tracks, Checking the Condition of Rubber Tracks, Replacing the Rubber Tracks, Track Rollers and Idler Wheels, Radiator and Oil Cooler, Fan and Alternator Drive Belt |
| Electrical | 131-140 | Fuses, Battery, Connecting One or Two Booster Batteries, Alternator, Starter Motor, Replacing a Bulb, Working Lights |
| Specifications | 141-152 | Engines, Electrical Systems, Hydraulic System, Undercarriage, Capacity of Systems and Components, Weights, Ground Pressure, Booms |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Replace the hydraulic breaker return circuit filter | Every 100 hours | p. 101 |
| Replace the pilot filter | Every 1000 hours | p. 101 |
| Swing reduction gear oil capacity | 2.2 liters (.5 gal) | p. 112 |
| Travel reduction gear oil capacity | 1.30 liters (.3 gal) | p. 114 |
| Spin Ace 75 track shoe bolt torque | 220 to 270 Nm (162 to 199 ft lb) | p. 119 |
| Spin Ace 135 track shoe bolt torque | 390 to 430 Nm (287 to 317 ft lb) | p. 119 |
| Hydraulic pump torque setting | 63-73 Nm | p. 130 |
| Upper roller torque setting | 267-312 Nm | p. 130 |
| Lower roller torque setting | 521-608 Nm | p. 130 |
| Idler wheel torque setting | 62-73 Nm | p. 130 |
| Main pump max flow | 2 x 71.4 l/min. (2 x 18.9 gpm) | p. 143 |
| Upperstructure swing speed | 10 rpm | p. 143 |
Link-Belt 80 Spin Ace Common Problems This Manual Covers
Link-Belt Spin Ace 80 loses swing and one track after sitting several weeks
Check the hydraulic oil level in the sight glass; the reservoir holds 50 liters (page 101). Bleed air from the hydraulic system using the procedure in the same section, then cycle swing and both travel circuits slowly at low idle until response returns. If swing is still dead, call your dealer before working the machine.
Manual Section: Hydraulic System Troubleshooting p. 101Engine oil pressure warning light comes on during operation at normal temperature
Shut the engine down immediately and park on level ground. Check the oil level on the dipstick and top up to the full mark; a dry refill takes 9.6 liters (page 94). Compare the light against the instrument panel table on page 33. If it returns at full mark, do not restart; call your dealer.
Manual Section: Instruments and Controls p. 33Machine pulls to one side and travel feels weak when climbing grades
Check track tension on both sides using the procedure in the maintenance section on page 115; uneven tension makes the machine pull. Verify the travel reduction gear oil level in each final drive; each gear case holds 1.30 liters (page 114). Test on flat ground in high range, which should reach 4.9 km/h; if one side lags, see your dealer.
Manual Section: Maintenance and Adjustments p. 115Cab air conditioner blows warm air and airflow from vents feels weak
Clean the cab intake filter and the air recycling filter; both are due every 50 hours and clog faster in dusty work (page 128). Check the compressor belt for correct tension, glazing, or cracks. Inspect the sight glass for refrigerant charge with the system running; steady bubbles mean low charge, so have your dealer recharge it.
Manual Section: Air Conditioning Troubleshooting p. 128Frequently Asked Questions
What are the torque specifications for the track shoe bolts on the Link-Belt 80?
The tightening torque for the track shoe bolts on the Spin Ace 75 is 220 to 270 Nm (162 to 199 ft lb), and for the Spin Ace 135, it is 390 to 430 Nm (287 to 317 ft lb). p. 119
What is the engine oil capacity for the Link-Belt 80?
The engine oil capacity for the Link-Belt 80 is 9.6 liters (2.5 gal) when performing an oil change with a filter replacement. p. 93
What is the correct interval for changing the hydraulic fluid?
The hydraulic fluid should be changed every 5000 hours of operation. p. 101
What is the required tension slack for the fan and alternator drive belt?
The tension slack for the fan and alternator drive belt should be between 8 and 12 mm when applying 10 kg of pressure to the center of the belt. p. 124
What is the capacity of the hydraulic reservoir?
The hydraulic reservoir has a capacity of 50 liters (13 gal). p. 101
Is this Link-Belt 80 manual a PDF I download?
A single searchable PDF file of 158 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Does this Link-Belt 80 manual allow printing?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
