This is the factory service manual for the Mustang 2022 and 2032 skid-steer loaders, both powered by the Yanmar 3TNE88 diesel engine. Published as part number 908272, it runs 171 pages of assembly, disassembly, testing, and troubleshooting procedures.Coverage spans the mainframe and ROPS, wheel drives and drive chains, the T-bar and hand controls, the hydrostatic drive system, the work hydraulic system with self-leveling valve tests, the electrical system, and the engine. General specifications, lubrication points, and torque values are included throughout.With this PDF you can adjust and replace drive chains, pressure-test the hydrostatic and hydraulic circuits, set control tracking and self-leveling, chase electrical faults, and service the engine to spec. It gives an owner or independent mechanic the same procedures a dealer technician follows on these loaders.
What's Inside This Mustang 2022, 2032 Manual
| System | Pages | Key Topics |
|---|---|---|

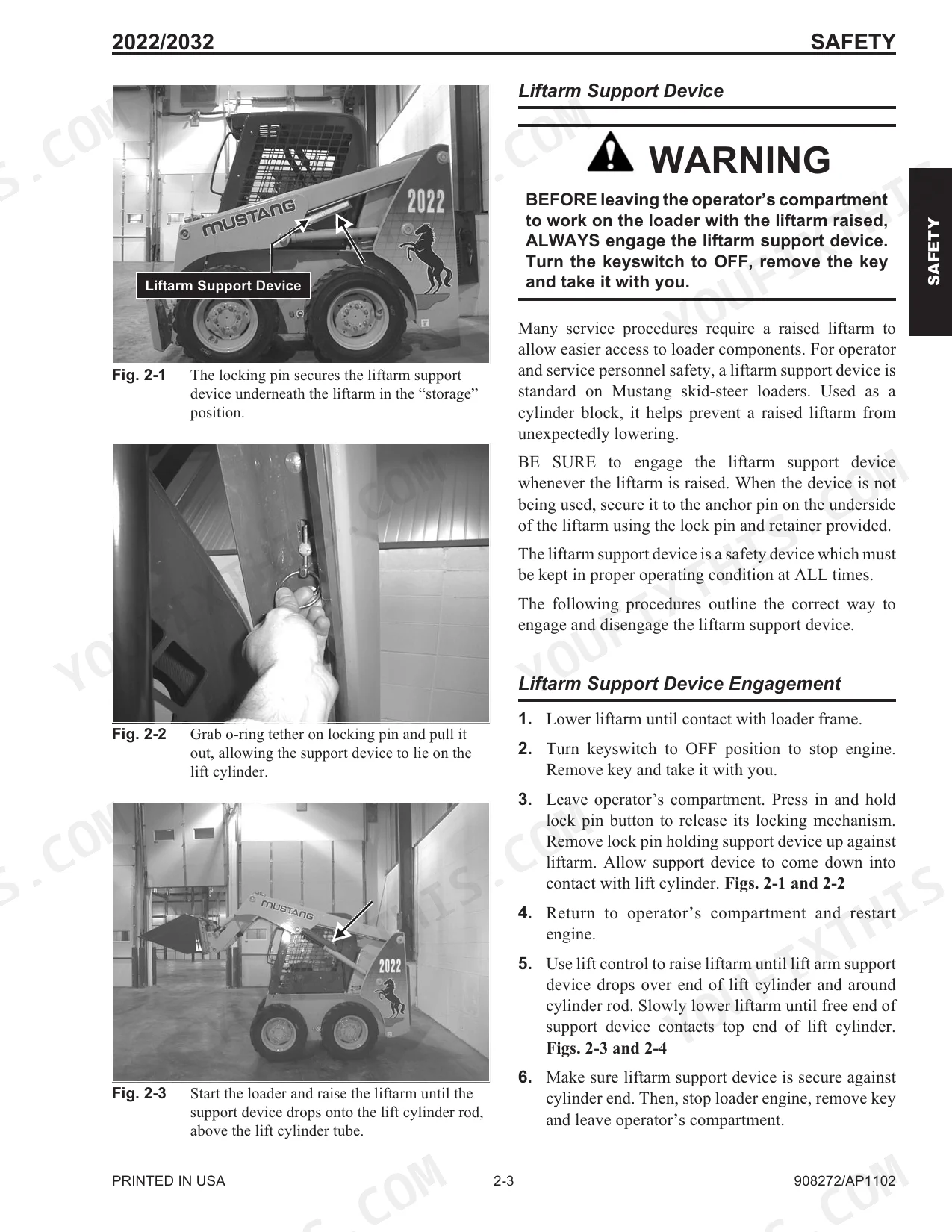

| Introduction | 2-6 | Tire Options, Buckets and Capacities, Safety, General Information, Signal Words, Additional Safety Reminders, Mandatory Safety Shutdown Procedure, Liftarm Support Device |
| Specifications | 7-8 | Tire Options, Buckets and Capacities |
| Safety | 9-16 | - |
| Lubrication | 17-20 | Hydraulic Oil Reservoir, Crankcase Oil, Chaincases, Grease Fitting Locations, Cooling System Drain Procedure |

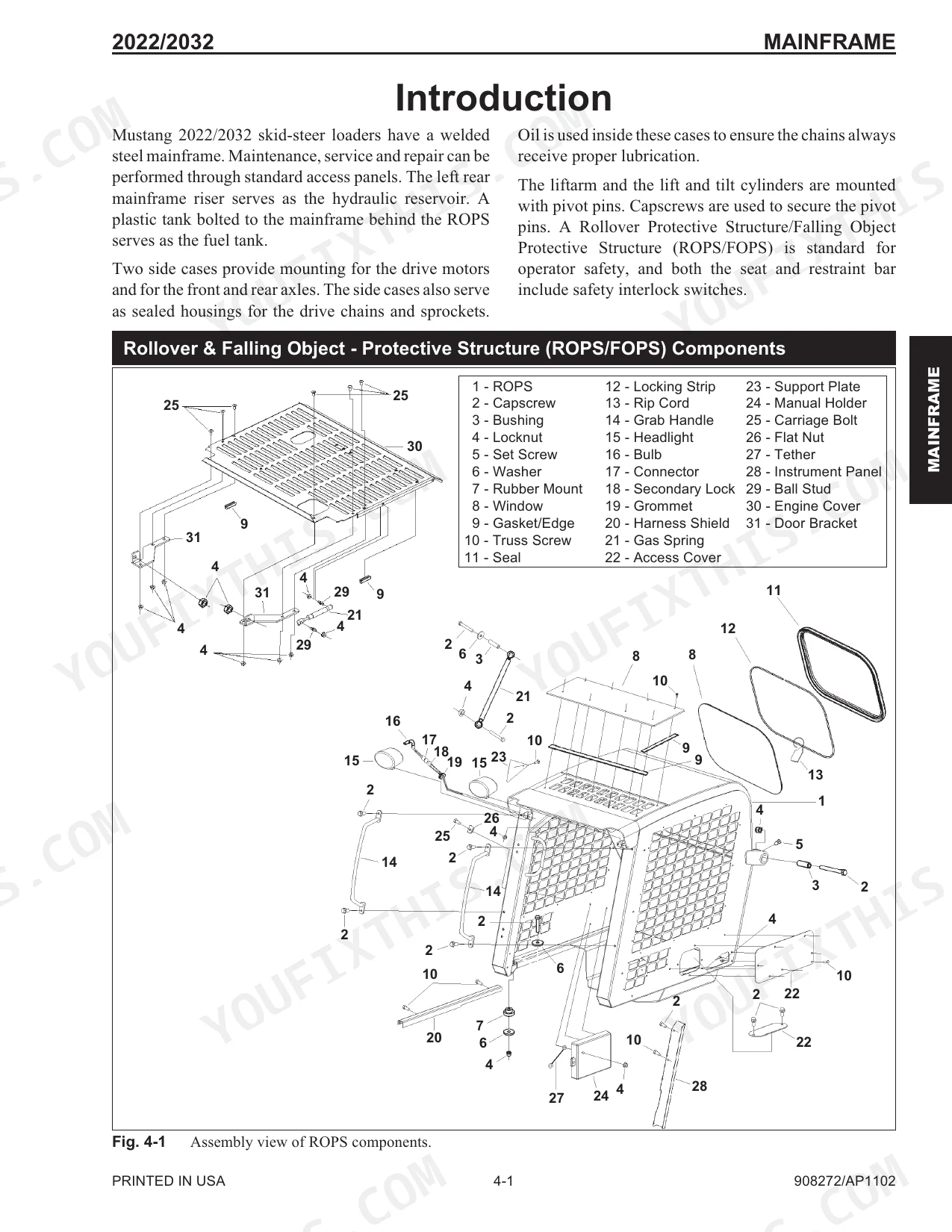

| Mainframe | 21-40 | Introduction, Engine Access Cover Removal and Installation, Rollover Protective Structure Removal and Installation, Seat Removal and Installation, Seat Slide Replacement |
| Wheel Drives | 41-46 | Introduction, Drive Chain Adjustment, Drive Chain Removal and Installation, Axle Removal and Installation |
| Controls | 47-76 | Introduction, Control Handle Removal and Installation, Control Handle Position and Tracking Adjustment, Dual Control Weldment Removal and Installation - T-Bar Controls |
| Hydrostatic System | 77-92 | Introduction, Troubleshooting Guide, Hydrostatic Pump Case Drain Test, Charge Pressure Test and Adjustment, Hydrostatic Pump Relief Valves, Drive Motor Hot Oil Shuttle Valve |

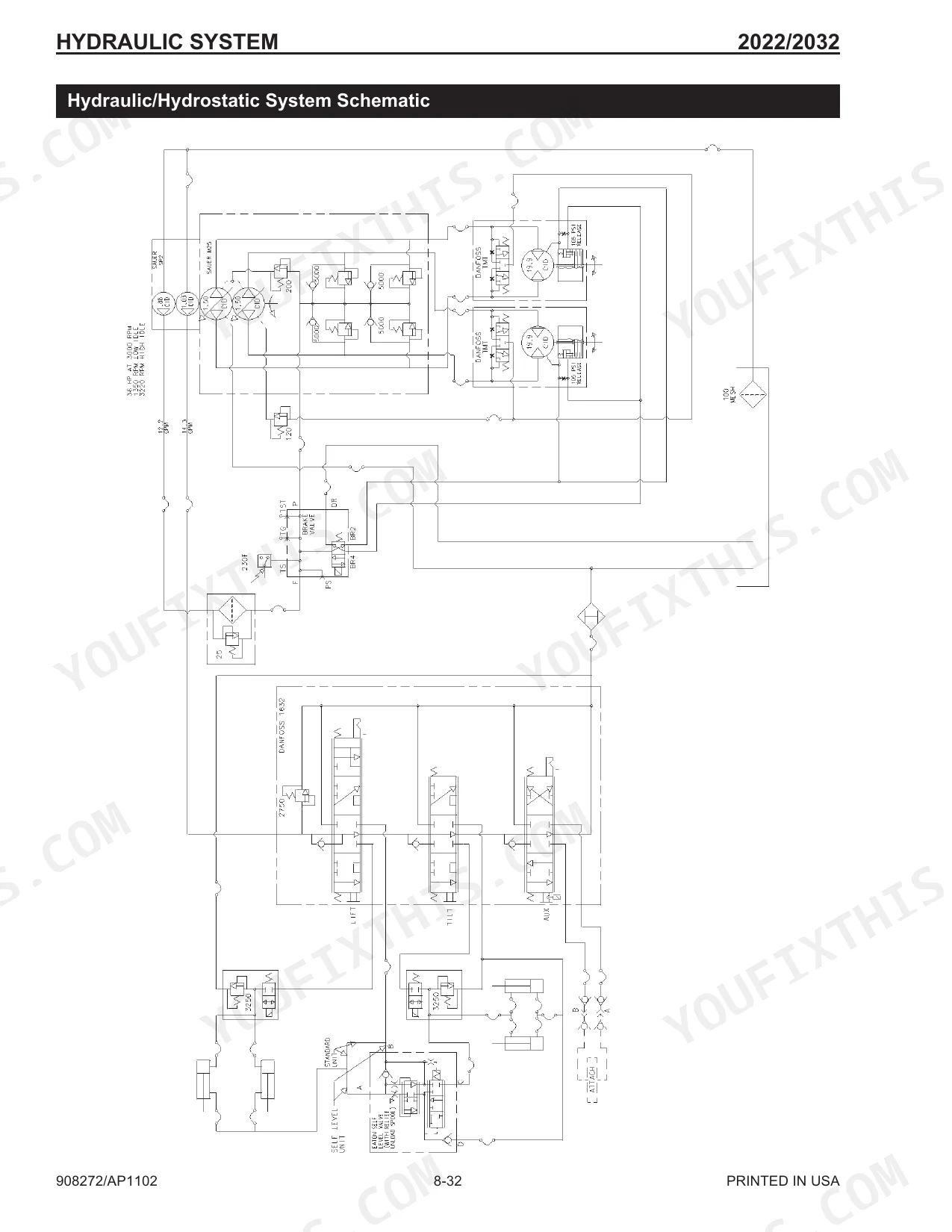

| Hydraulic System | 93-124 | Introduction, Troubleshooting Guide, System Pressure Test - Control Valve, Tilt Cylinder Test, Self-Leveling Valve Test, Self-Leveling Valve Adjustment, Lift Cylinder Test |
| Electrical System | 125-142 | Introduction, Troubleshooting Guide, Relay Test and Operation, Electrical Circuits, Seat Switch Removal and Installation, Restraint Bar Switch Removal and Installation |
| Engine | 143-162 | Introduction, Troubleshooting Guide, Engine Oil Filter Element Removal and Installation, Air Cleaner Assembly Removal and Installation, Air Filter Element Removal and Installation |

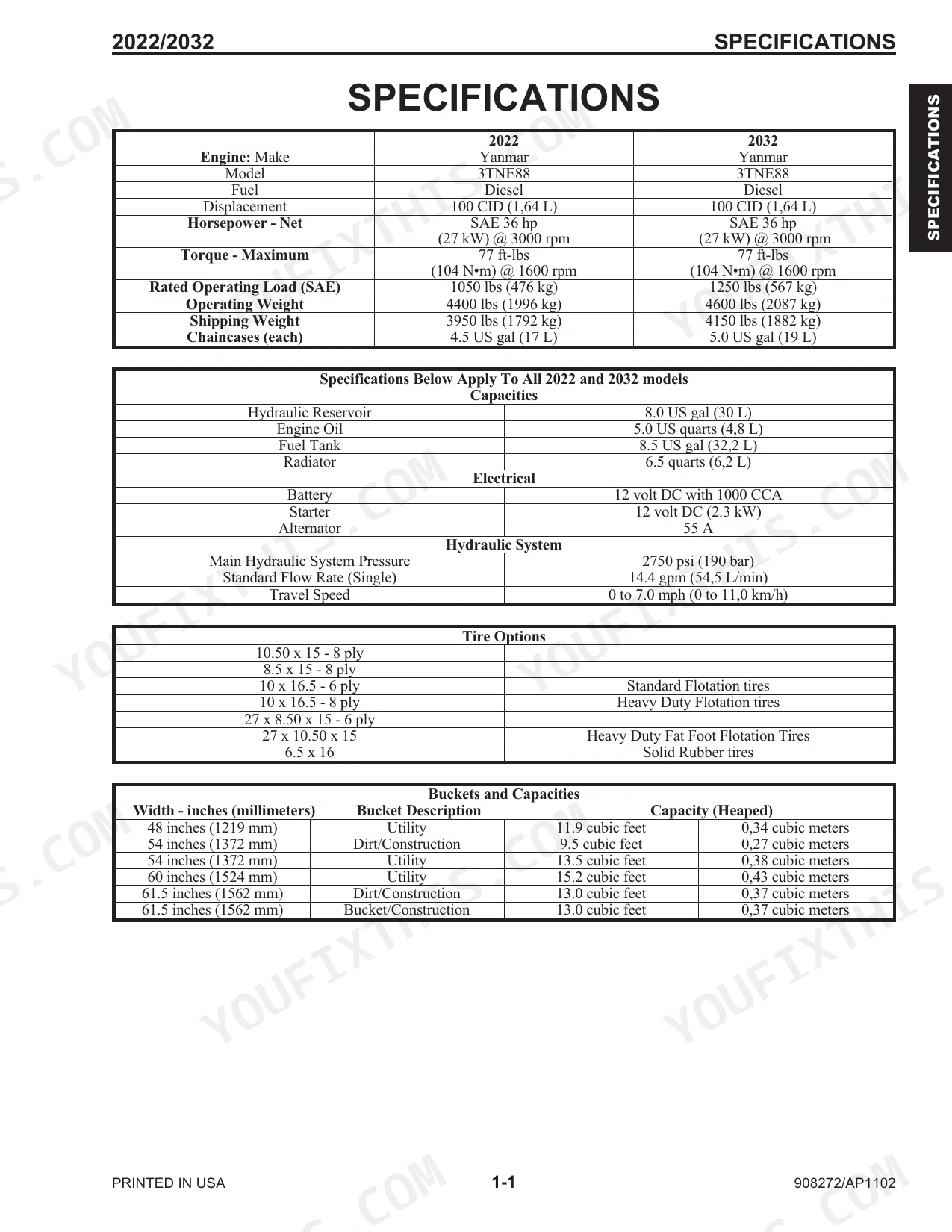

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel nut torque | 120 ft-lbs (163 N•m) | p. 43 |
| Engine Displacement | 100 CID (1,64 L) | p. 7 |
| Engine Horsepower - Net | SAE 36 hp (27 kW) @ 3000 rpm | p. 7 |
| Engine Torque - Maximum | 77 ft-lbs (104 N•m) @ 1600 rpm | p. 7 |
| Hydraulic Reservoir Capacity | 8.0 US gal (30 L) | p. 7 |
| Main Hydraulic System Pressure | 2750 psi (190 bar) | p. 7 |
| Auxiliary Hydraulic Pressure Optimum Setting | 2500 PSI (172 bar) | p. 99 |

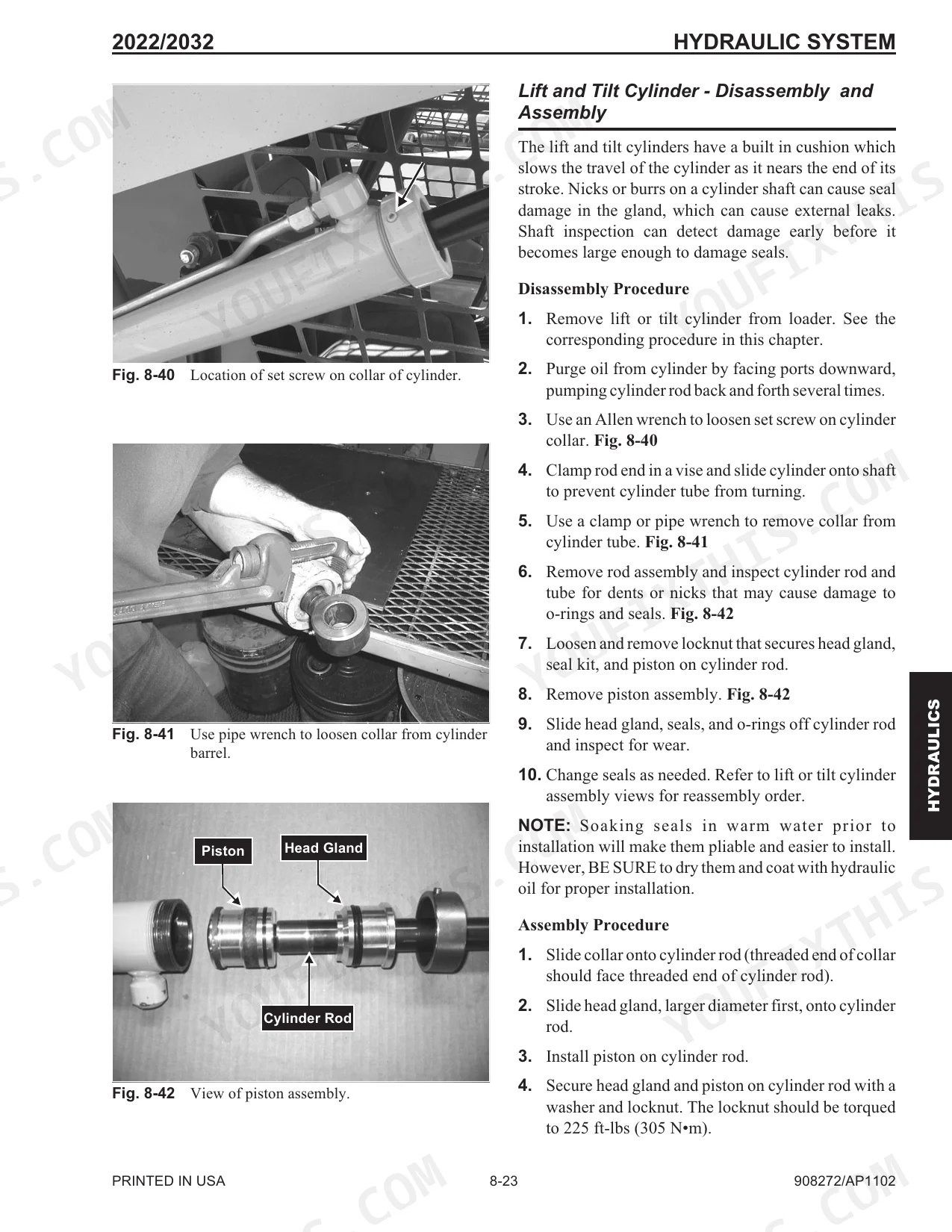

| Lift/Tilt Cylinder Rod Locknut Torque | 225 ft-lbs (305 N•m) | p. 115 |
| Coil Retaining Nut Torque (Solenoid Valve) | 45 in-lbs (5,1 N•m) | p. 121 |
| Fan Belt Deflection | 1/2" (13 mm) under a load of 20 lbs (27 N•m) | p. 154 |
| 2022 | ||
| Rated Operating Load (SAE) | 1050 lbs (476 kg) | p. 7 |
| 2032 | ||
| Rated Operating Load (SAE) | 1250 lbs (567 kg) | p. 7 |
Mustang 2022, 2032 Common Problems This Manual Covers
Weak or erratic lift and tilt
Slow, jerky, or weak lift and tilt response points to low or contaminated fluid, a worn pump, or a valve fault. The Hydraulic System section covers system pressure tests, cylinder tests, and self-leveling valve tests and adjustment.
Manual Section: Hydraulic System p. 93Loader pulls to one side or loses drive

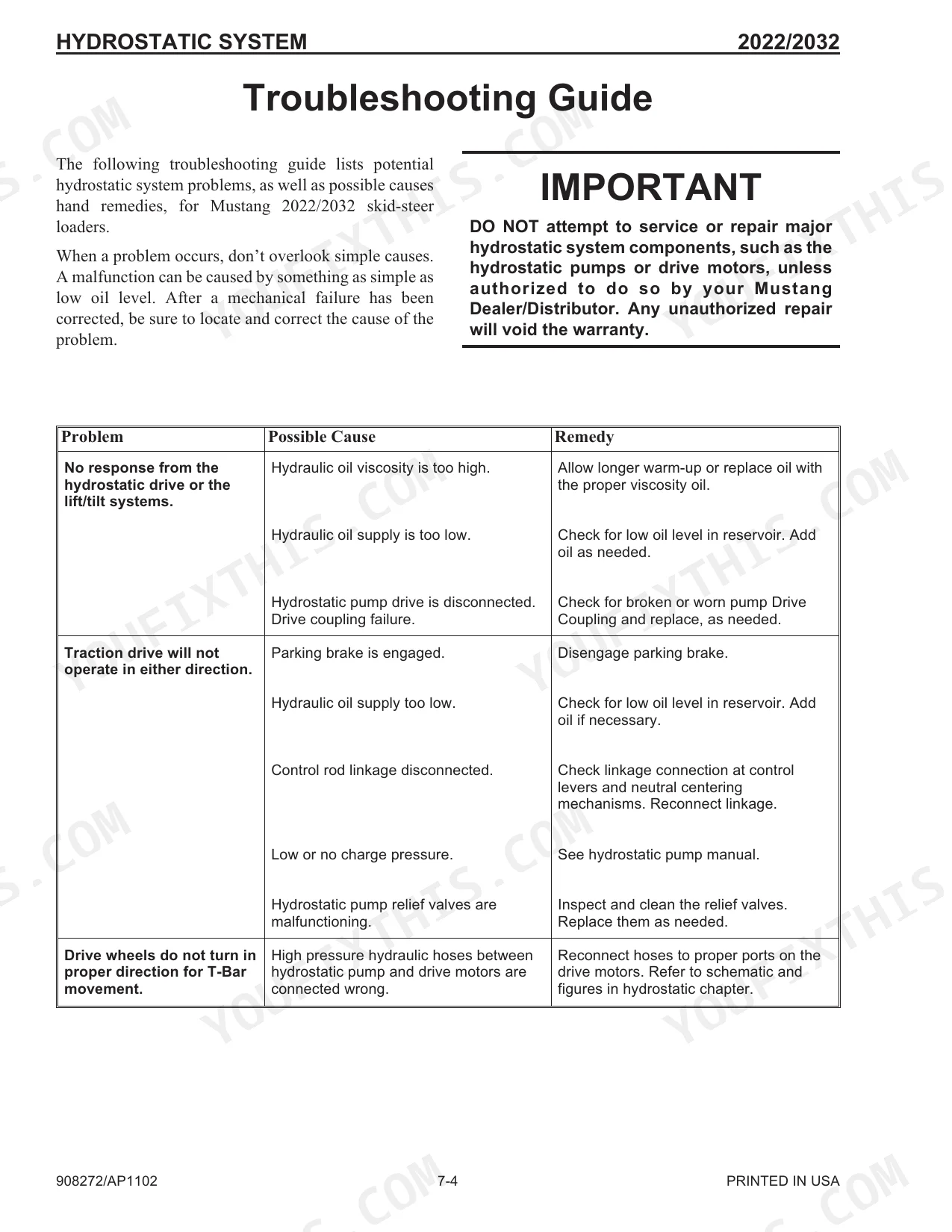

Uneven tracking or a drop in drive power on a skid-steer usually starts in the hydrostatic circuit. The Hydrostatic System section provides a troubleshooting guide, pump case drain test, and charge pressure test and adjustment.
Manual Section: Hydrostatic System p. 77Drive chain stretch or slack
A loose or worn drive chain causes noise, slop, and eventually failure. The Wheel Drives section covers drive chain adjustment plus chain and axle removal and installation.
Manual Section: Wheel Drives p. 41No-start or intermittent electrical faults

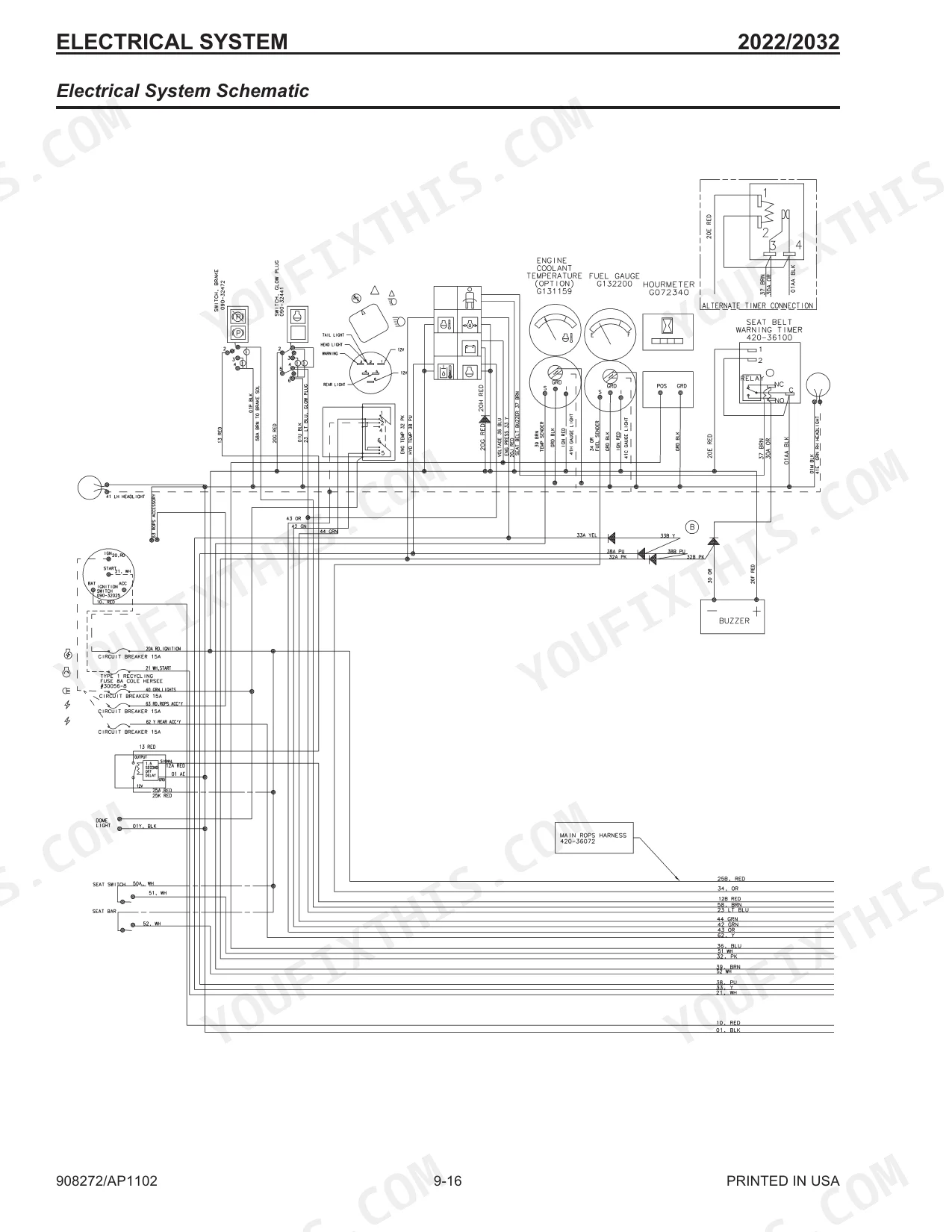

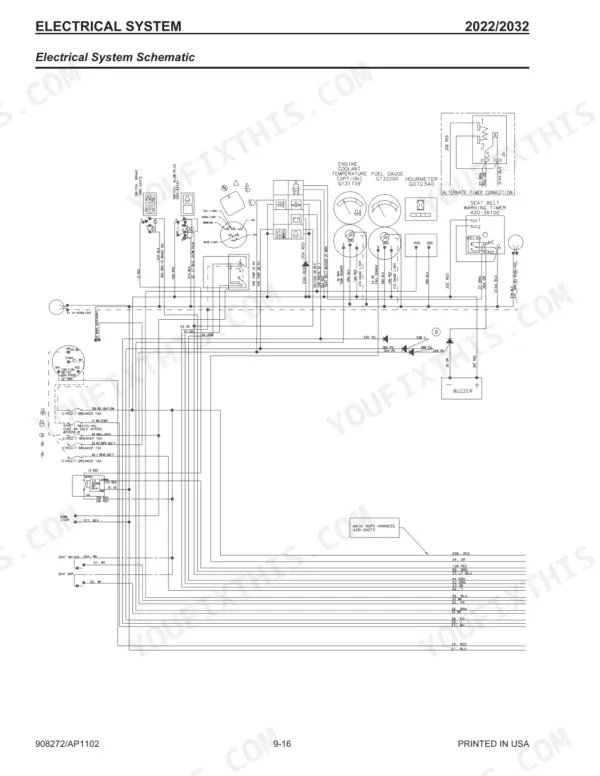

A machine that will not start or cuts out often has a bad relay, seat switch, or wiring fault. The Electrical System section includes a troubleshooting guide, relay tests, and the electrical circuits.
Manual Section: Electrical System p. 125Engine power loss or overheating
Clogged filters, a slack fan belt, or fuel delivery problems rob power and let the engine run hot. The Engine section covers the troubleshooting guide, oil and air filter service, and fan belt checks.
Manual Section: Engine p. 143Controls drift out of adjustment
Wandering neutral or poor tracking makes the loader hard to drive straight and creep at idle. The Controls section covers control handle position and tracking adjustment and neutral centering.
Manual Section: Controls p. 47Frequently Asked Questions
Which machines does this manual cover?
It covers the Mustang 2022 and 2032 skid-steer loaders, both fitted with the Yanmar 3TNE88 engine. Published as part number 908272.
Does it give the wheel nut torque?
Yes. The Wheel Drives section covers axle and wheel service, and the wheel nut torque is specified at 120 ft-lbs (163 Nm). p. 41
Can I troubleshoot the hydrostatic drive?
Yes. The Hydrostatic System section includes a troubleshooting guide, pump case drain test, and charge pressure test and adjustment for the drive circuit. p. 77
Does it list the hydraulic system pressure?
Yes. The Hydraulic System section covers pressure testing, and the main hydraulic system pressure is given as 2750 psi (190 bar). p. 93
What format is this Mustang 2022, 2032 manual in?
A 171-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone — no shipping wait.
Are there any print restrictions on this Mustang 2022, 2032 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are electrical wiring diagrams included in this Mustang 2022, 2032 manual?
Included. The Mustang 2022, 2032 Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
