This is the factory service manual for the Mustang 2803ZT compact excavator (serial prefix AG, 2008), powered by the Yanmar 3TNV76-NNS diesel engine. Published as part number 918279, it runs 154 pages of specifications, maintenance, and repair procedures.Coverage includes chassis and engine specifications, the full maintenance program, engine service on the 3TNV76-NNS, the hydraulic system with its PVD pump and main valve block, the electrical system with the fuse box, and the options group for counterweight and auxiliary hydraulics. Tightening torques and fluid capacities are listed throughout.With this PDF you can set valve clearance, bleed and service the fuel system, pressure-test the hydraulics, trace electrical and fuse faults, and connect attachments correctly. It puts dealer-level detail in the hands of an owner or independent mechanic.
What's Inside This Mustang 2803ZT Manual
| System | Pages | Key Topics |
|---|---|---|
| Specifications | 23-34 | Chassis, Engine (Fuel Injection Pump, Capacities, Tightening Torques), Hydraulic System (Work Hydraulics, Auxiliary Hydraulics Oil Flow), Undercarriage and Swivel Unit, Dozer Blade |
| Maintenance | 35-84 | Fluids and Lubricants (Additional Oil Change and Filter Replacement), Maintenance Label (Explanation of Symbols on the Maintenance Label) |
| Engine | 85-96 | 3TNV76-Nns Engine Overview, Fuel System, Checking and Adjusting Valve Tip Clearance, Tightening Order for Cylinder Head Bolts, Checking the Injection Nozzles (Pressure Check) |
| Hydraulic System | 97-128 | Hydraulic Pump Pvd-0B-23Bp-8G3-5083A (Pump Unit: Exploded View, Pilot Oil Supply Unit), Main Valve Block (Ports, Legend, Diagram, Pressure Limiting Valves, Pump Assignment) |
| Electric System | 129-140 | Ohm's Law; Power, Measuring Equipment, Measuring Methods, Cable Color Coding, Relays (Use, Mode of Function), Socket, Electric Units, Fuse Box |
| Options | 141-154 | Counterweight (Specifications), Connecting Auxiliary Hydraulics, Attachments, Auxiliary Hydraulics Connections |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

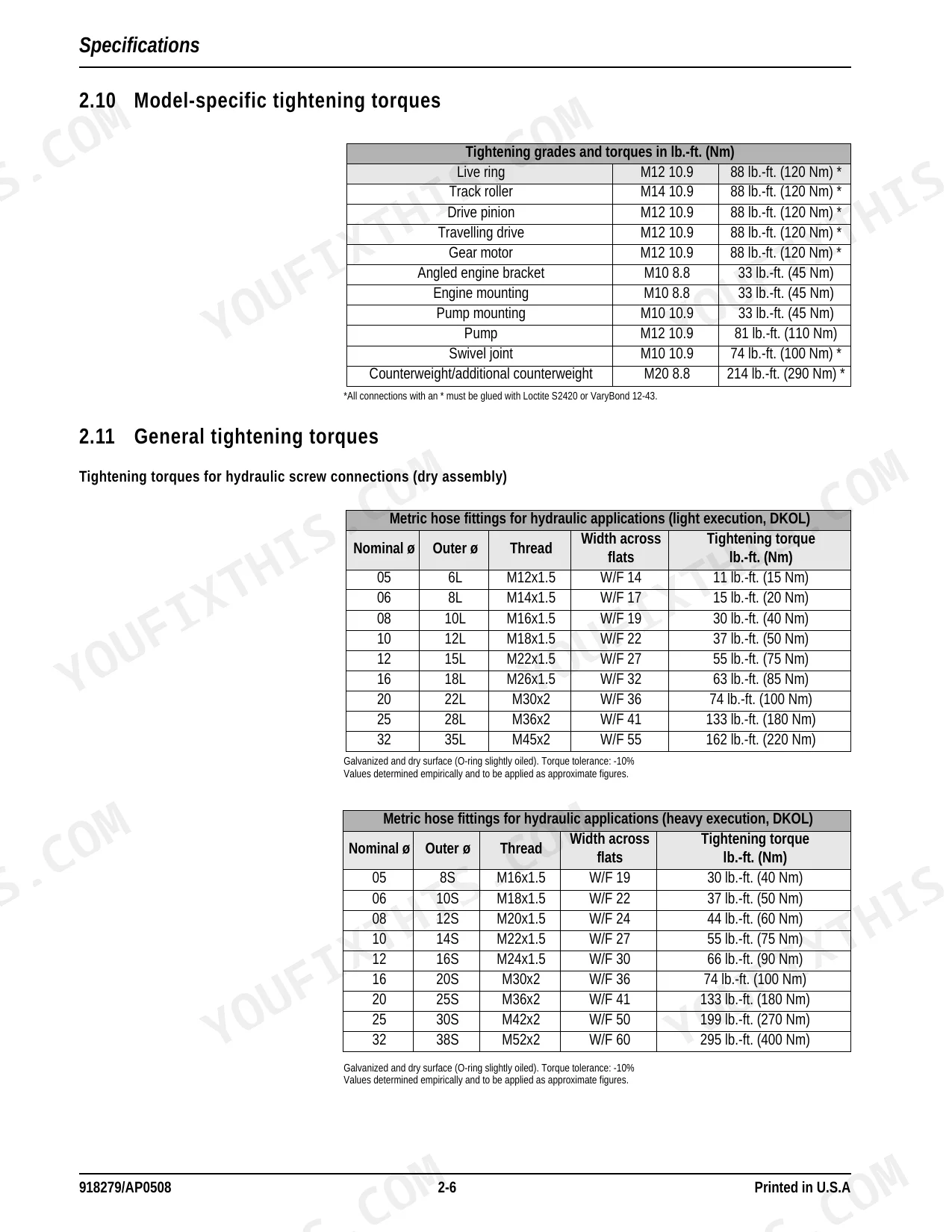

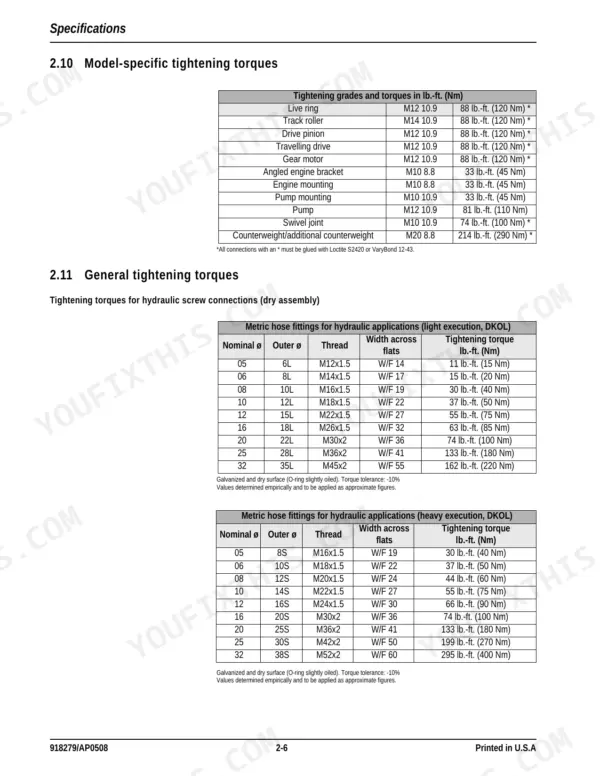

| Travelling drive torque | 88 lb.-ft. (120 Nm) | p. 28 |
| Hydraulic hose fittings torque (light execution range) | 11 lb.-ft. (15 Nm) to 162 lb.-ft. (220 Nm) | p. 28 |
| Hydraulic hose replacement interval | every six years | p. 71 |
| Battery voltage | 12 V | p. 25 |
| Battery capacity | 44 Ah | p. 25 |
| Starter voltage | 12 V | p. 25 |
| Starter power | 1.4 hp (1.1 kW) | p. 25 |
| Fuse F1 rated current | 40 A | p. 26 |
| Fuse F2 rated current | 50 A | p. 26 |
| Track roller torque | 88 lb.-ft. (120 Nm) | p. 28 |
| Bucket pin diameter | 1-1/2 in. (40 mm) | p. 34 |

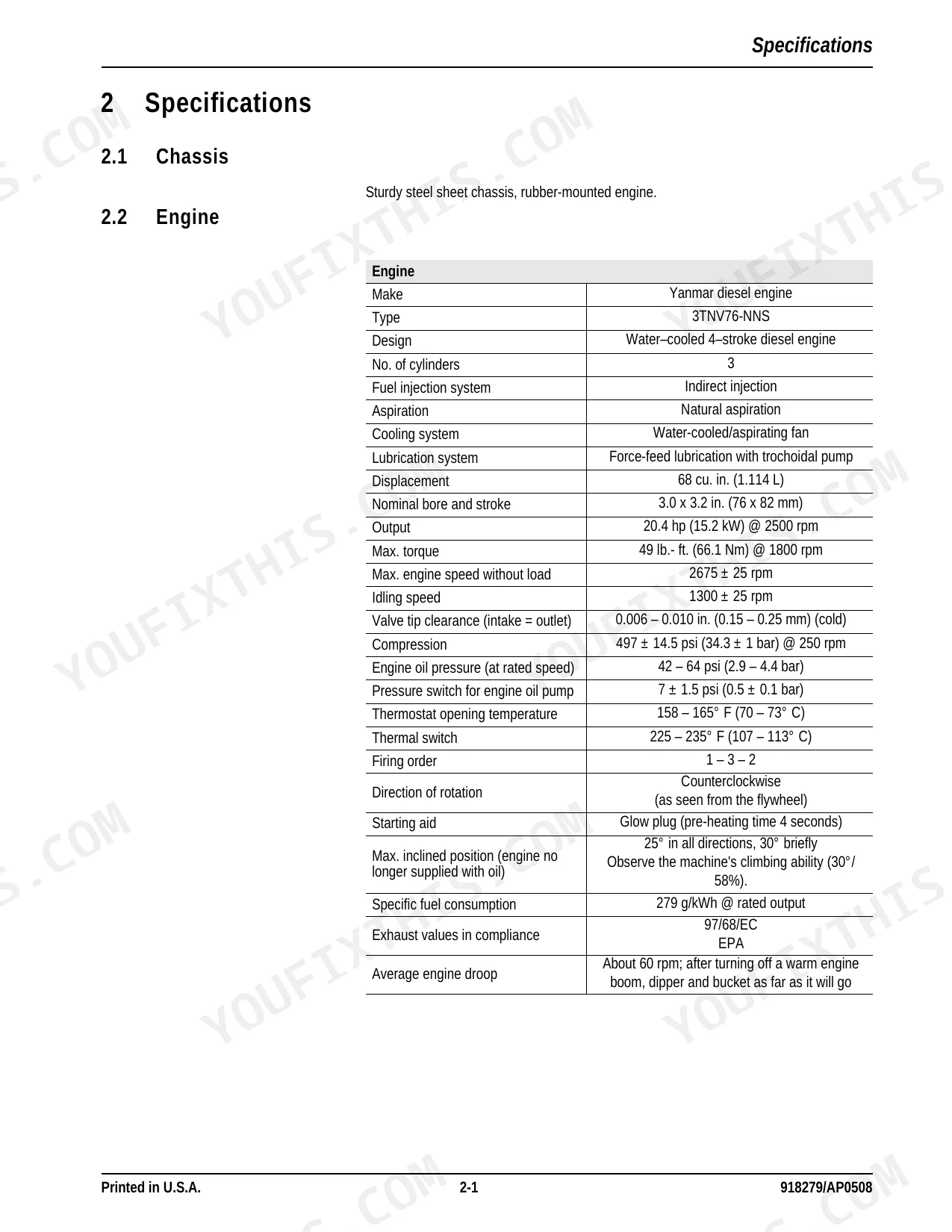

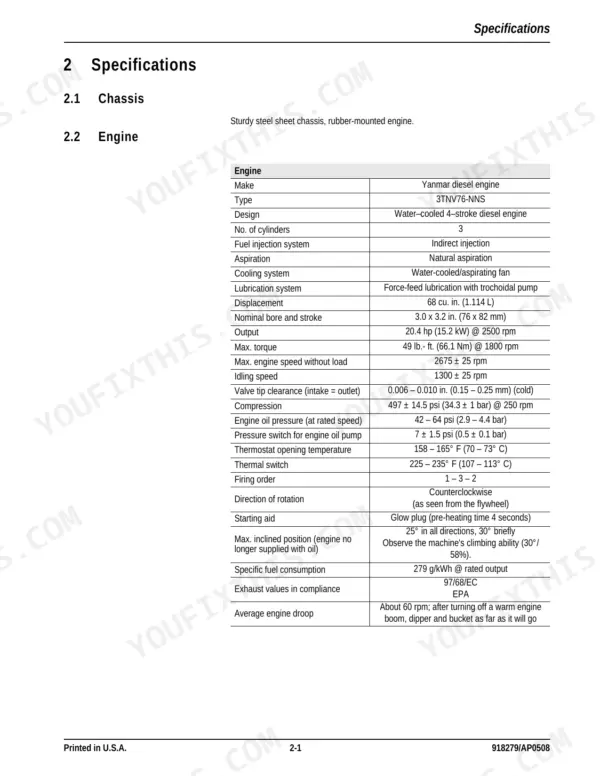

| Engine Output | 20.4 hp (15.2 kW) @ 2500 rpm | p. 23 |
Mustang 2803ZT Common Problems This Manual Covers
Excavator will not start

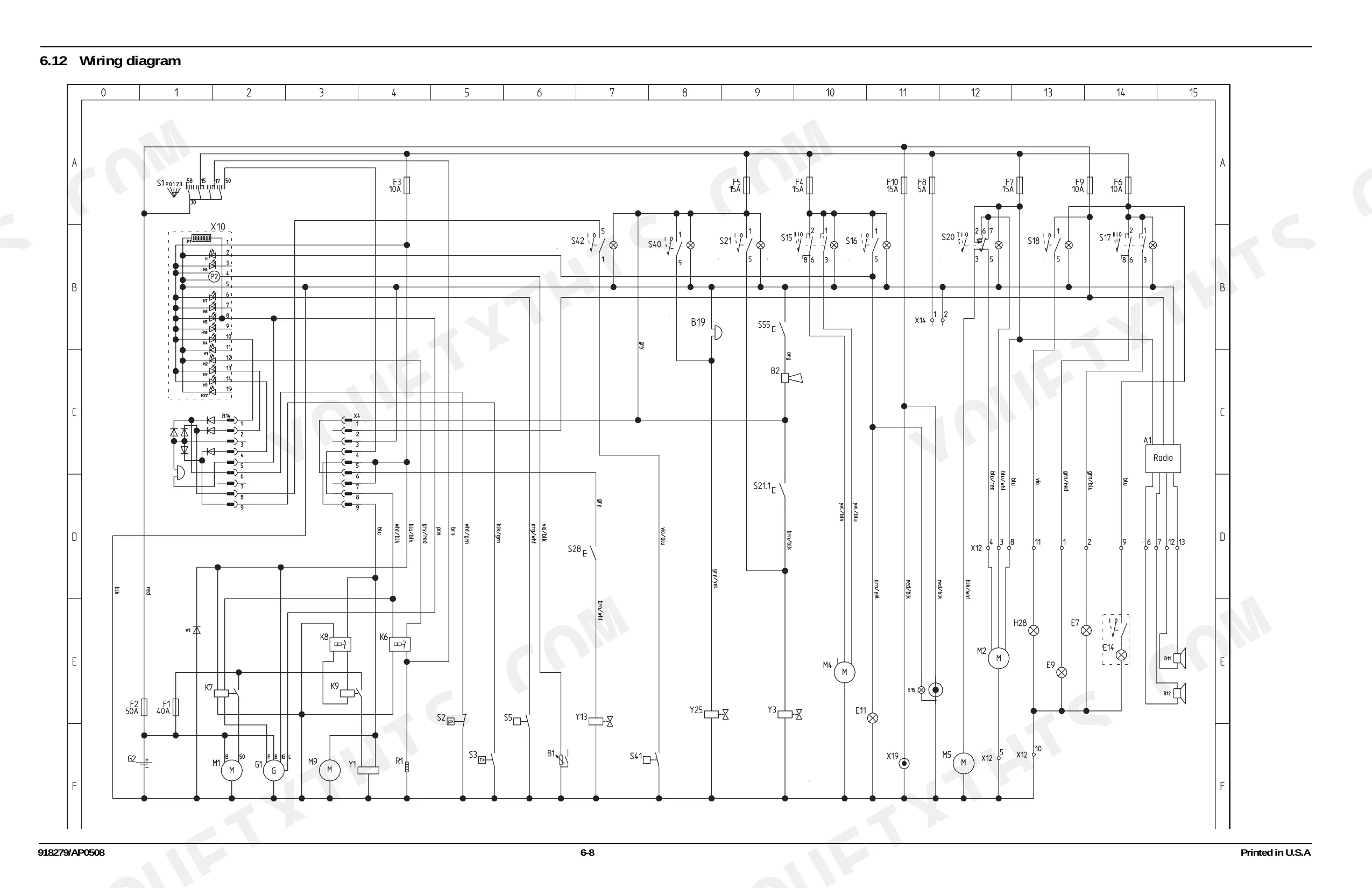

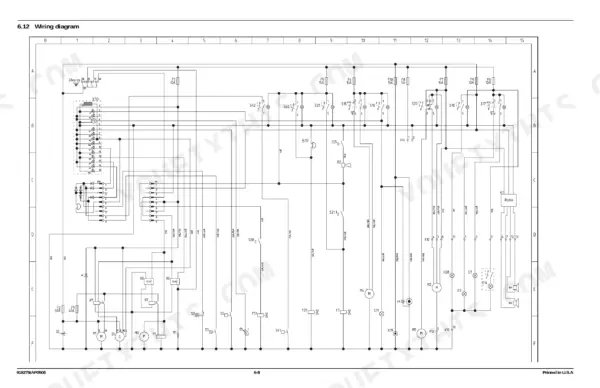

A machine that cranks slowly or will not fire often has a weak battery, corroded terminals, or a failed starter. The Electric system section covers relays, the fuse box, and electrical units, with the battery and starter ratings listed.
Manual Section: 6 Electric system p. 129Weak or leaking hydraulics
Slow, jerky, or fading hydraulic performance points to worn seals, damaged hoses, or low fluid. The Hydraulic system section details the PVD pump, main valve block, and pressure limiting valves.
Manual Section: 5 Hydraulic system p. 97Rapid track and undercarriage wear
Neglected track tension and packed debris cause premature wear and derailment risk. The Maintenance section covers the inspection schedule and daily lubrication that keep the undercarriage in service.
Manual Section: 3 Maintenance p. 35Rough running or power loss

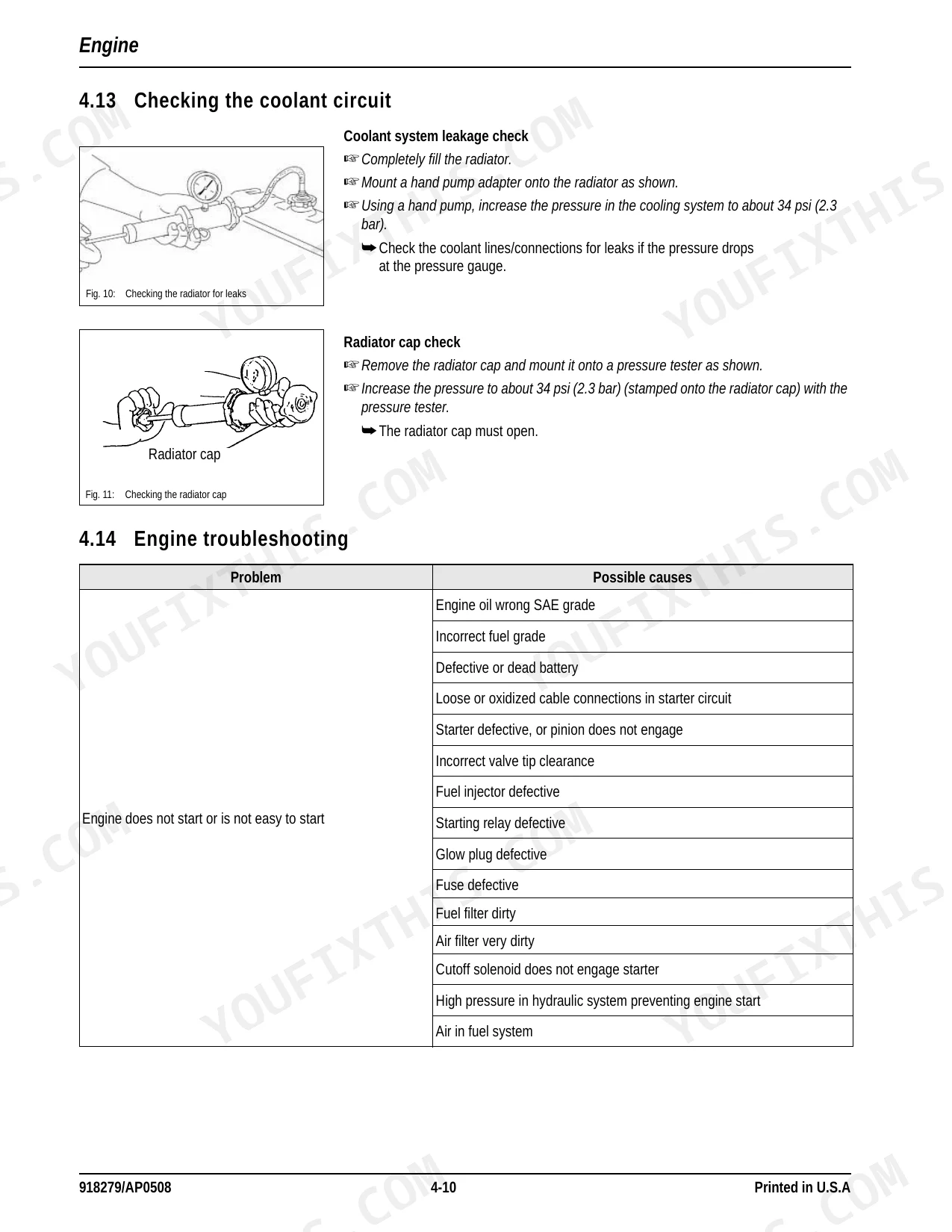

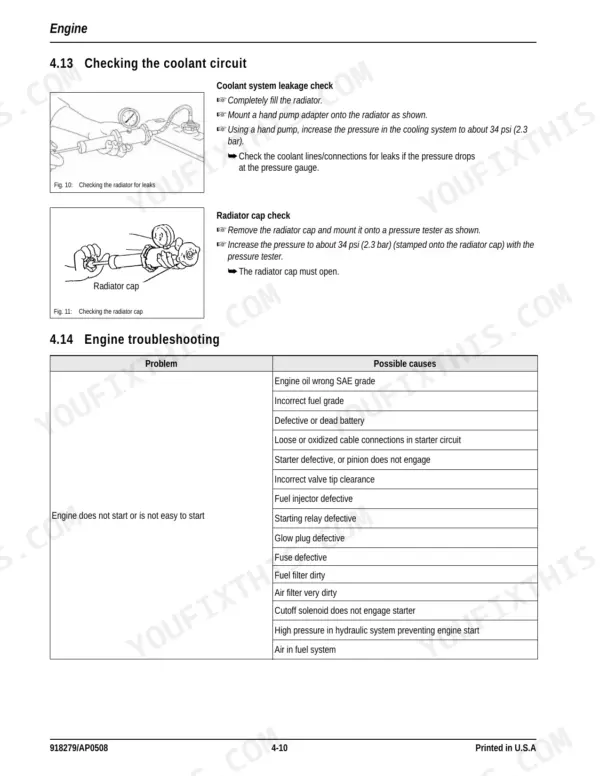

Hard running or lost power often ties back to valve clearance, injection, or fuel delivery. The Engine section covers the 3TNV76-NNS overview, fuel system, valve tip clearance, and injection nozzle pressure checks.
Manual Section: 4 Engine p. 85Attachment or auxiliary hydraulic problems
Attachments that will not run or run poorly usually come down to the auxiliary hydraulic connections and flow setup. The Options section covers connecting auxiliary hydraulics, attachments, and the counterweight.
Manual Section: 7 Options p. 141Aging hydraulic hoses and seals

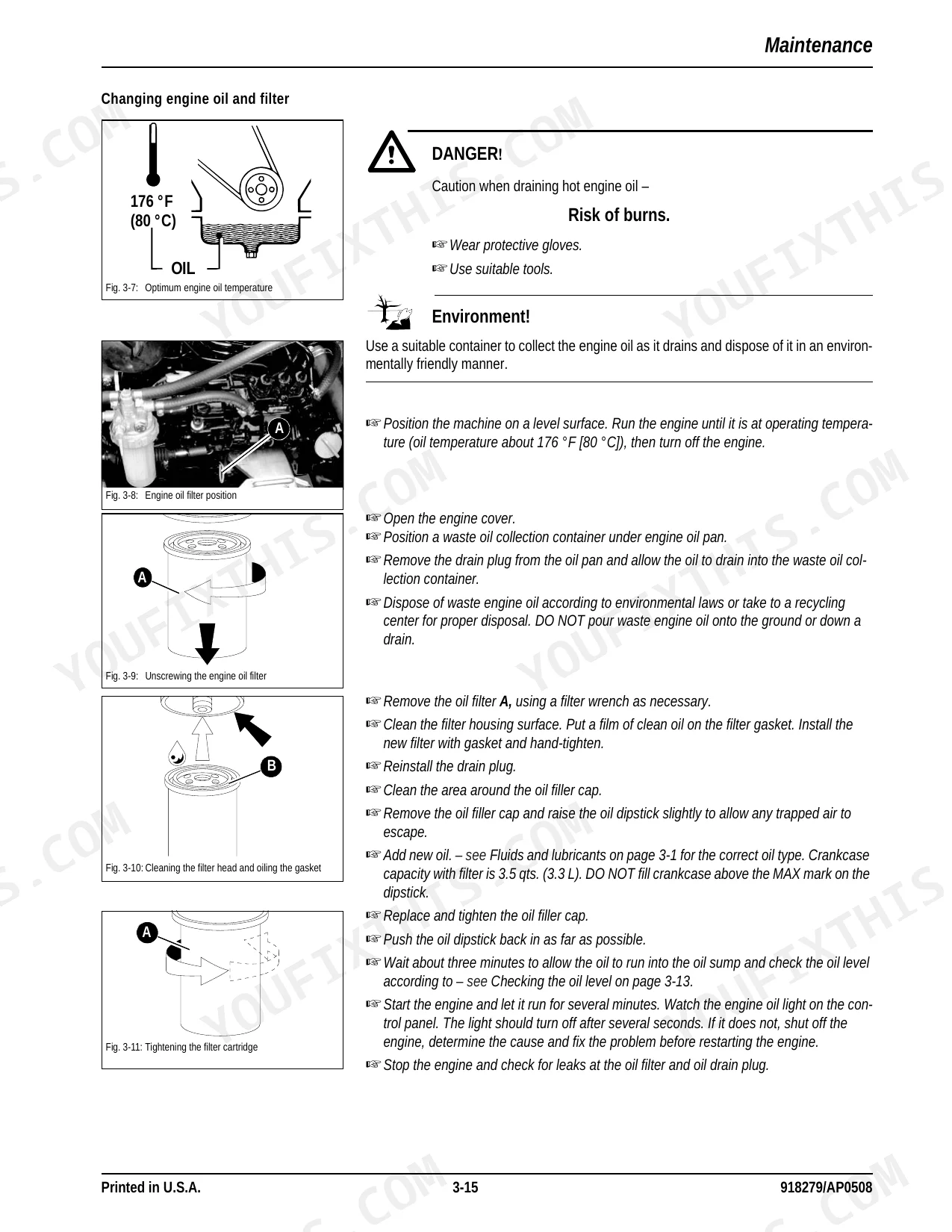

Hoses and seals harden and leak with age and are a common recurring repair. The Maintenance section covers fluid and filter service and lists the hydraulic hose replacement interval at every six years.
Manual Section: 3 Maintenance p. 35Frequently Asked Questions
Which machine does this manual cover?
It covers the Mustang 2803ZT compact excavator with the Yanmar 3TNV76-NNS diesel engine, serial prefix AG. Published as part number 918279.
Does it give the track drive torque?
Yes. The Specifications section lists model-specific torques, including the travelling drive torque of 88 lb.-ft. (120 Nm). p. 23
Does it list the fuse ratings?
Yes. The Specifications section details the fuse box, listing fuses F1 through F10 with ratings such as 40 A, 50 A, 15 A, and 10 A. p. 23
Does it cover the hydraulic pump and valve block?

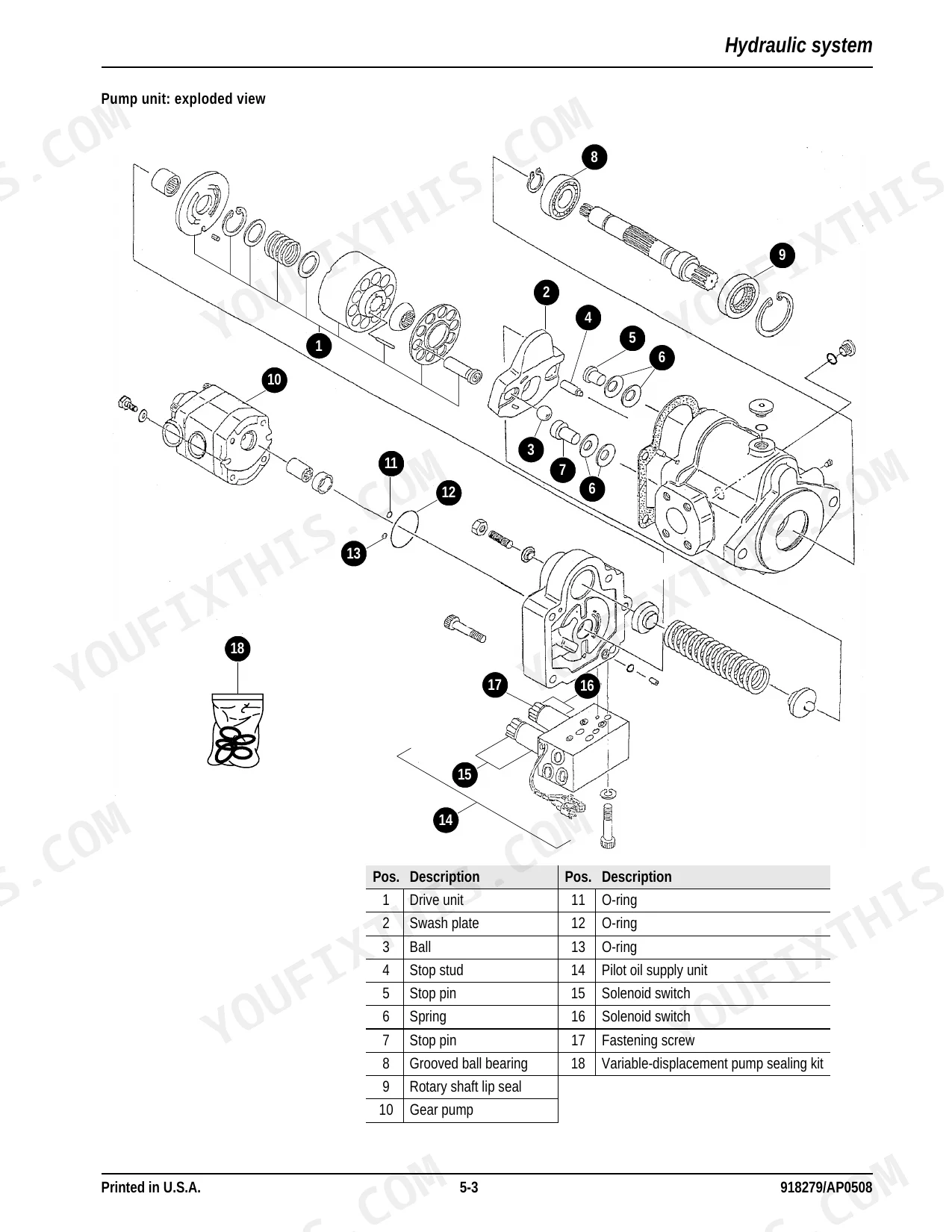

Yes. The Hydraulic system section covers the PVD-0B-23BP-8G3-5083A pump unit and the main valve block, including ports, pressure limiting valves, and pump assignment. p. 97
How quickly can I access this Mustang 2803ZT manual after buying?
Instant PDF download (10 MB). You get the full 154-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Mustang 2803ZT Service Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

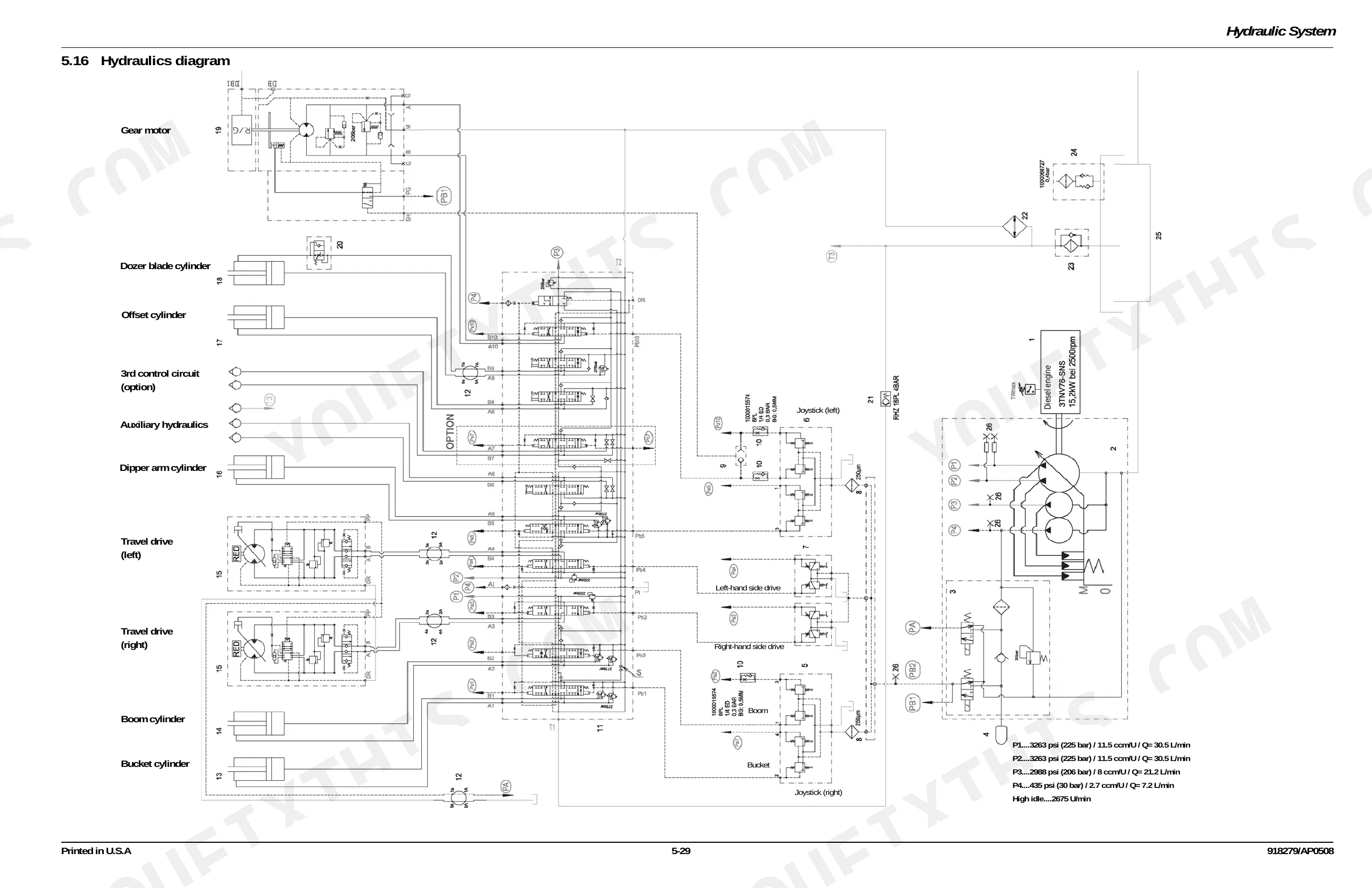

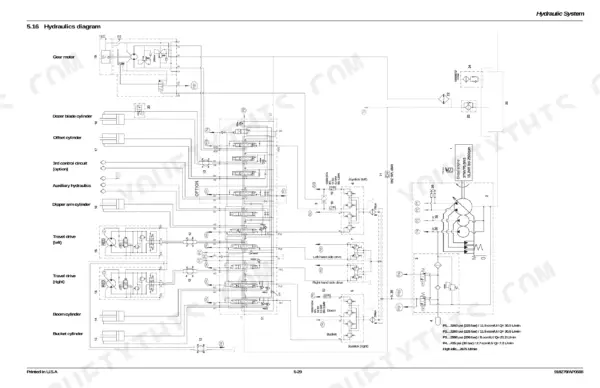

Are hydraulic system diagrams in this Mustang 2803ZT Service Manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
