This Mustang 2040, 2050 Service Manual (OEM #001-49966) runs 128 pages, all aimed at keeping your 1996-1997 skid steer loaders at factory spec. Hydraulic flow schematics are split out for the 2040 and 2050 separately, with wiring diagrams covering the interlock circuit, brake circuit, and instrument panel diagnostic tests. Troubleshooting charts map symptoms to root causes across steering, hydrostatics, chain case, and electrical. Service procedures cover: cylinder seal assembly, gear pump R&R, hydrostatic pump removal, and chain adjustment on both machines. Torque the 2040 drive chain front nut to 325 ft. lbs. (441 Nm); on the 2050, axle housing flanged nuts go to 180 ft. lbs. (244 Nm). Bookmarked and keyword-searchable, it pulls up on any device so downtime stays short.
What's Inside This Mustang 2040, 2050 Manual

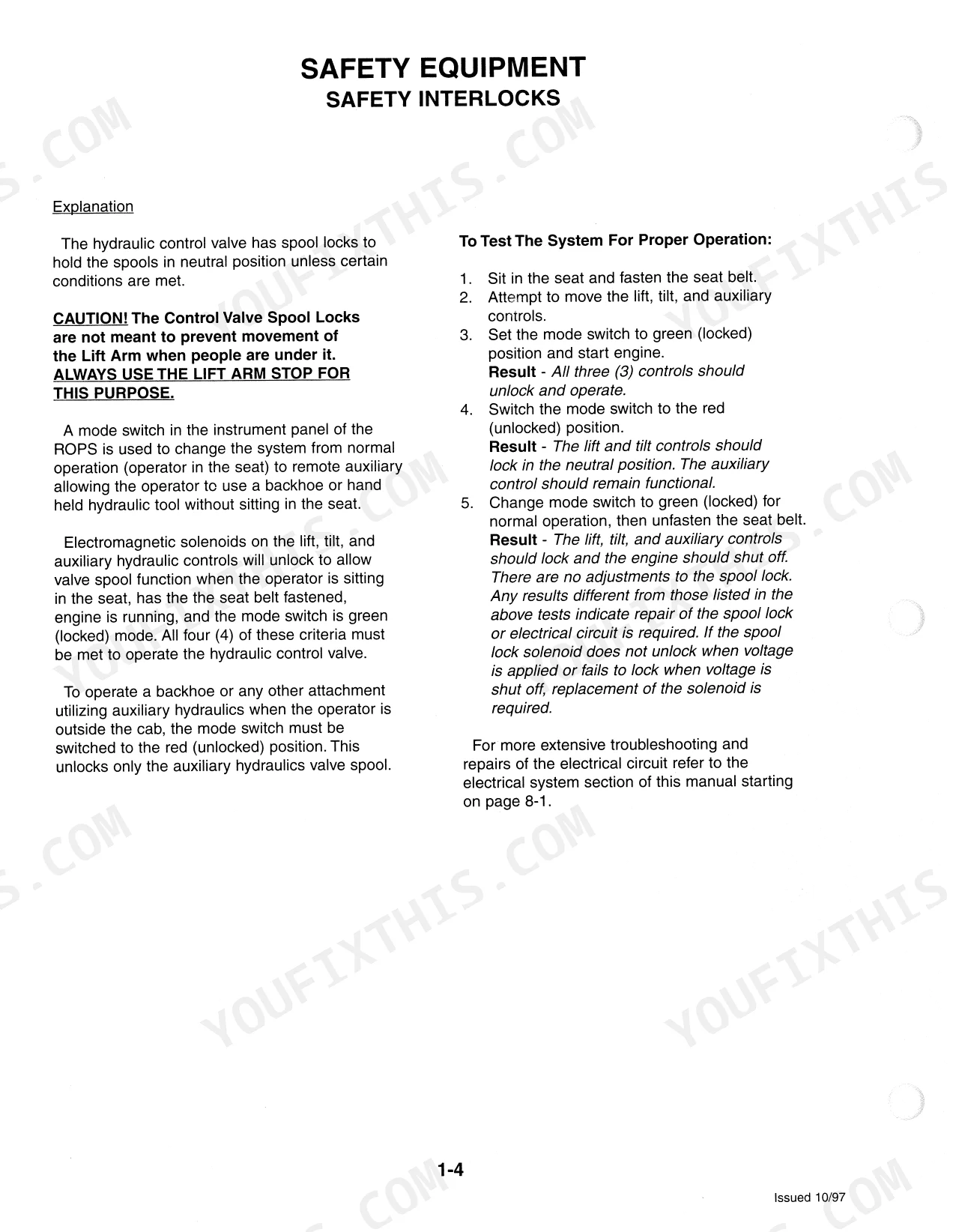

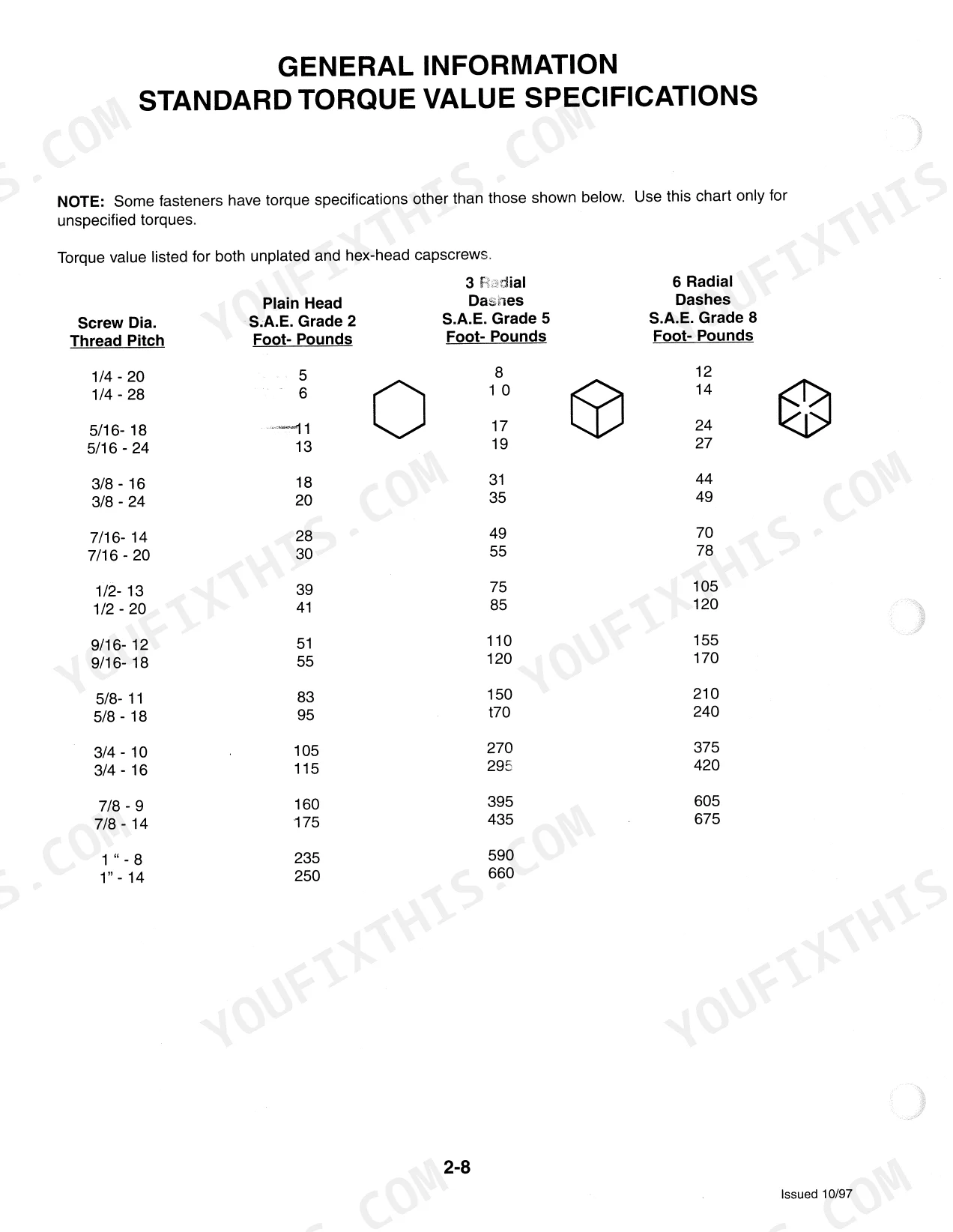

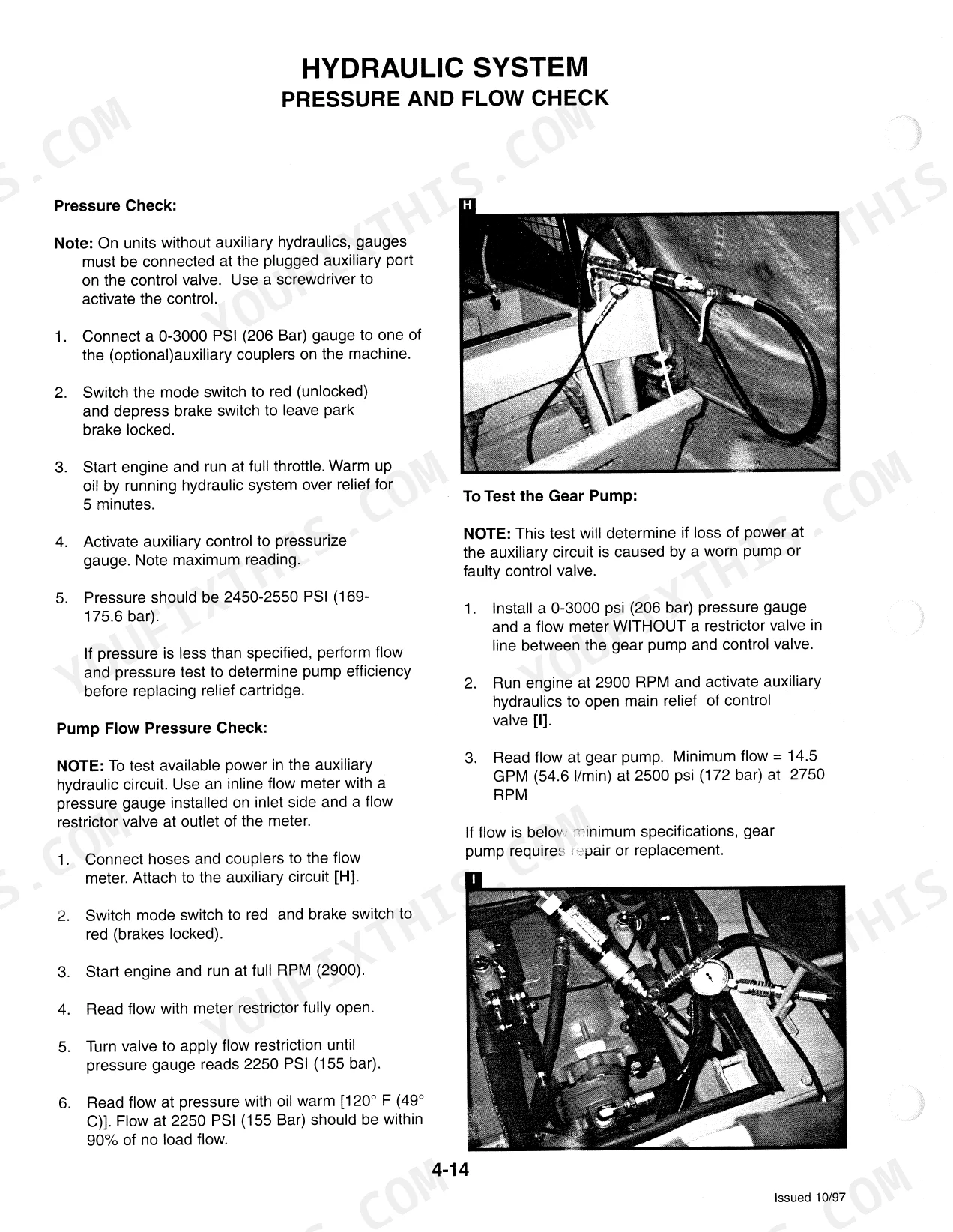

| System | Pages | Key Topics |
|---|---|---|
| Serial Number System | 4-6 | S Skid Loader, F H Model, 96 Year of Manufacture (=: 1996, 1997) |
| Safety Equipment | 9-22 | ROPS - Roll Over Protective Structure, Fops - Falling Object Protective Structure, Lift Arm Stops, Safety Interlock, Parking Brake, Neutral Centering Device, Neutral Start Switches |
| General Information | 23-34 | System Contamination Control, Hydraulic Fluids Fluid for Hydraulic Reservoir and Chain Case, Hydraulic Fluid Level, Ambient Air Temp., Viscosity Rating, Reference |
| Steering Controls | 35-42 | Troubleshooting, Steering Lever Pivots, Neutral Start and Centering Assembly to Hydrostatic Pump Support, Pump Arm to Pump Connection, Neutral Centering Device Adjustments |
| Hydraulic System | 43-60 | Standard, Troubleshooting, Symptom, Possible Cause, Flow Diagram, Controls, Explanation, Foot Pedals (Adjustments, To Adjust at Control Valve) |
| Hydrostatic Drive System | 61-79 | Troubleshooting, Symptom, Possible Cause, Flow Diagram 2040 & 2050, Flow Schematic - 2040, Flow Schematic - 2050, Hydrostatic System Checks, Charge Pressure Check |
| Chain Case | 80-101 | Model 2040 Explanation, Model 2040 Trouble Shooting, Model 2040 Drive Chain Adjustments with Chain Case Covers Removed, To Adjust Chains |
| Engine | 102-113 | Specifications, Troubleshooting, Symptom, Possible Cause, Engine & Hydrostatic Pump Assembly Removal and Installation, Removal |
| Electrical System | 114-128 | Explanation, Trouble Shooting, Complaint, Possible Cause, Correction, Trouble Shooting Continued, Instrument Panel & Accessory Circuits, Diagnosis and Tests |
Quick Reference Specifications

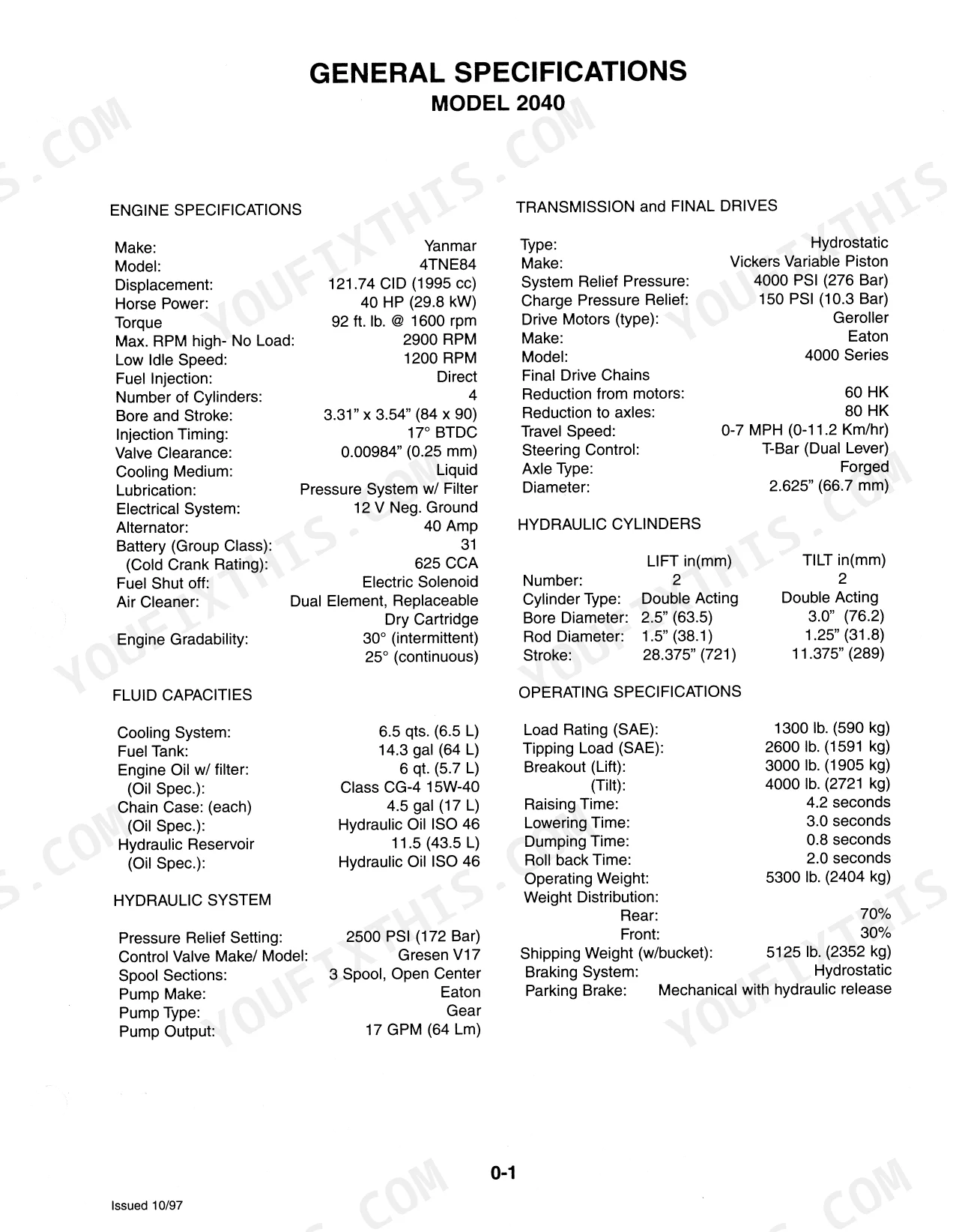

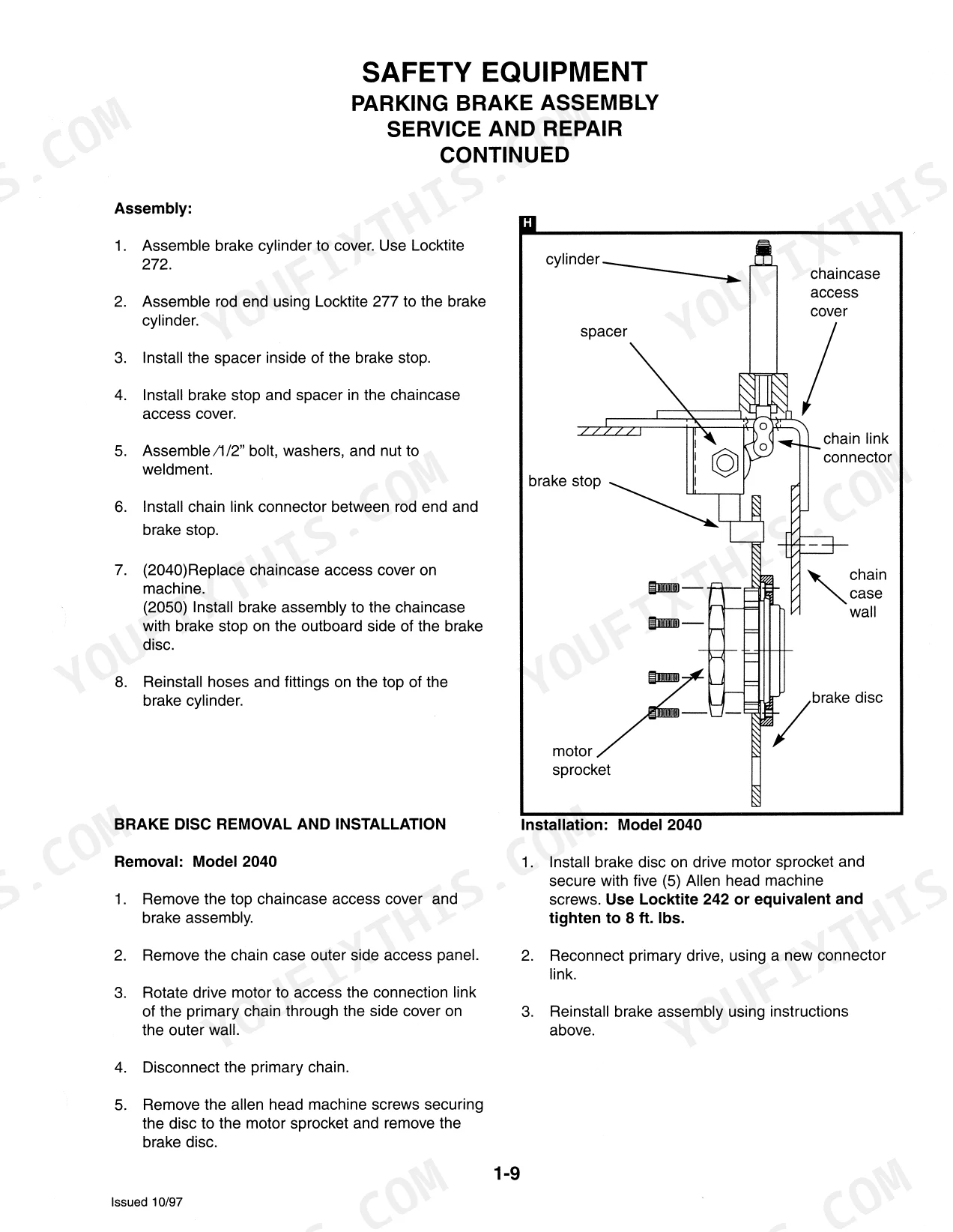

| Specification | Value | Page |
|---|---|---|
| 2040 | ||
| Brake Disc Mounting Screws Torque | 8 ft. lbs. | p. 17 |
| Drive Chain Front Nut Torque | 325 ft. lbs. (441 Nm) | p. 82 |
| Max. RPM High-No Load | 2900 rpm | p. 7 |
| 2050 | ||
| Brake Disc Mounting Nut Torque | 275 ft. lbs. (373 Nm) | p. 17 |
| Axle Housing Flanged Nuts Torque | 180 ft. lbs. (244 Nm) | p. 94 |
| Max. RPM High-No Load | 3200 rpm | p. 8 |
| All Models | ||
| Starter Part Number | 420-33508 | p. 124 |
| Fuel Injection Timing (BTDC) Degrees | 16 degrees | p. 102 |
| Engine Oil Capacity | 6.5 qts (6.1 L) | p. 7 |
| Cooling System Capacity | 14.5 qts (13.7 L) | p. 7 |
| Fuel Tank Capacity | 14.5 gals (54.8 L) | p. 7 |
| Hydraulic Reservoir Capacity | 11.5 gals (43.5 L) | p. 7 |
Mustang 2040, 2050 Common Problems This Manual Covers
Mustang 2040 or 2050 engine cranks but will not continue to run. p. 116
Work through the electrical system section on page 116 (8-3) for the Green Mode (Locked Mode) and Red Mode (Unlocked Mode) steps. Confirm voltage at the fuel solenoid terminal, then check that fuel injection timing is set to 16 degrees BTDC as specified on page 102 (7-1).
Manual Section: Electrical System Trouble ShootingLoader arms lift slowly or experience jerky hydraulic action during heavy bucket operation. p. 44

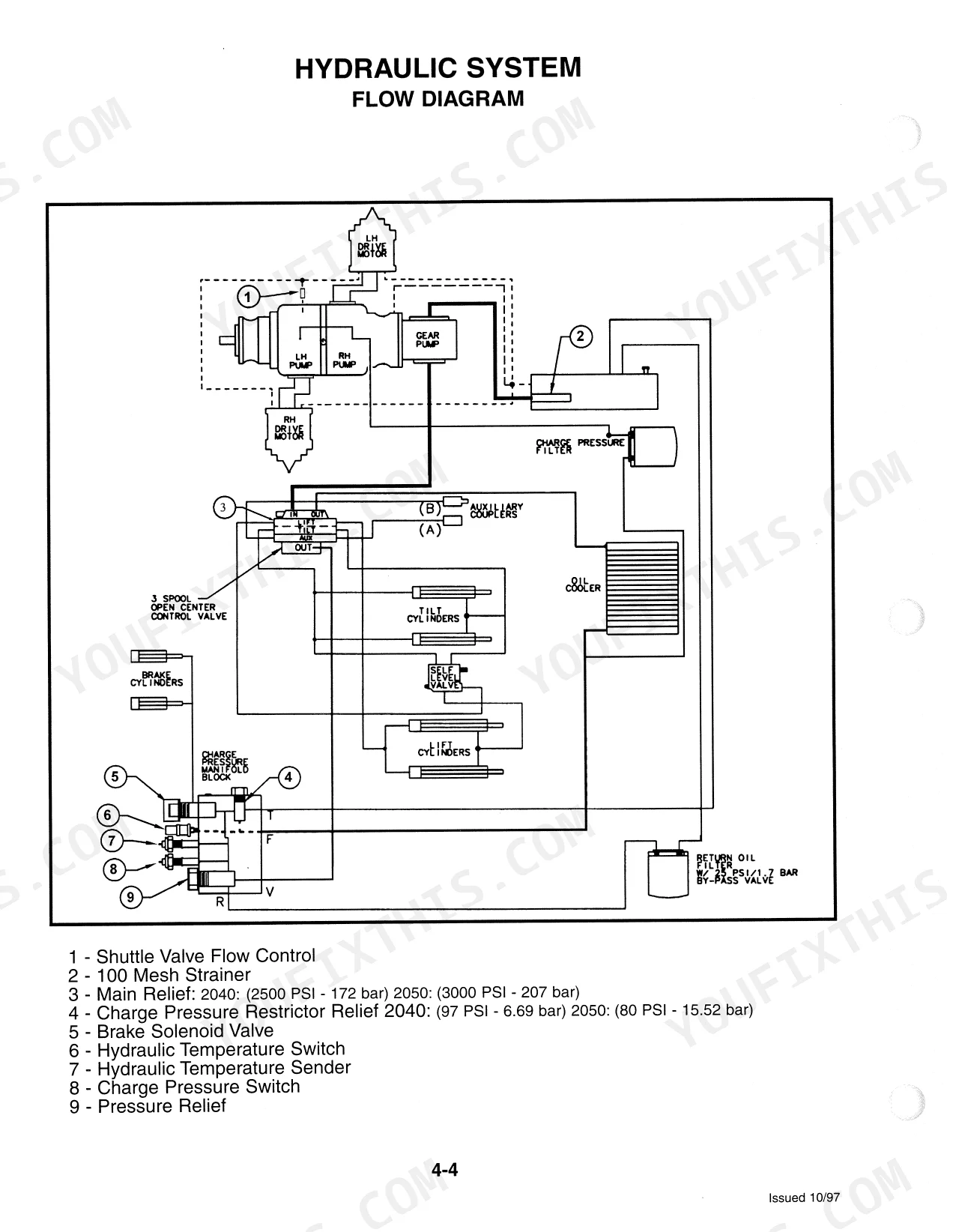

Drain the hydraulic tank and replace the filter if it has passed the 500 hours service interval. Refill the reservoir to the full mark with 11.5 gals (43.5 L) of approved fluid. Review the Hydraulic System Flow Diagram on page 46 (4-4) and check control valve linkage integrity, noted in troubleshooting on page 45 (4-3).
Manual Section: Hydraulic System TroubleshootingWheels stop rotating or drive chain makes a loud slapping noise inside the case. p. 87
Remove the side covers and inspect drive chain tension. Adjust the tensioners and torque the drive chain front nut to 325 ft. lbs. (441 Nm). Secure the cluster sprocket lock nut to 90 ft. lbs. as detailed on page 88 (6-9) for the 2040 configuration.
Manual Section: Chain Case - Model 2040 Trouble ShootingTotal loss of drive power or machine does not move in a straight line. p. 61
Test the hydrostatic system relief pressure with a calibrated gauge at the main test port. Set the main relief valve to 4500 PSI (310 Bar) for the 2050 model. Verify the charge pressure relief functions at 150 PSI (10.3 Bar), and review the overview diagram on page 61.
Manual Section: Hydrostatic Drive System TroubleshootingFrequently Asked Questions
Mustang 2040 start/run issue
Start/run faults on the Mustang 2040 come down to electrical checks. If the starter will not crank, check for 12.6V at the white #22 wire at the starter solenoid with the key switch in the start position. If the engine cranks but will not start, confirm 12.6 volts at the fuel solenoid terminal. See page 8-2 (PDF page 115) for the full electrical troubleshooting sequence.
Mustang 2050 hydraulic leak repair
Leaks on the Mustang 2050 trace to damaged cylinder packings or seepage inside the control valve. Nicks or burrs on the cylinder shaft damage the seal at the gland and cause external leaks, so disassembly and seal replacement follow. Before welding, confirm there is no pressure in the cylinder and disconnect the battery. See page 4-10 (PDF page 51) for cylinder service and repair steps.
Mustang 2040 common problems
Slow or jerky hydraulic action on the 2040 usually traces to cold oil or low engine speed. A "no drive" hydrostatic fault points to low hydraulic fluid, steering linkage problems, or incorrect charge pressure. White smoke paired with low combustion temperature suggests delayed timing or piston issues. The relevant troubleshooting sections begin on page 4-2 (PDF page 44).
Mustang 2050 wiring issue

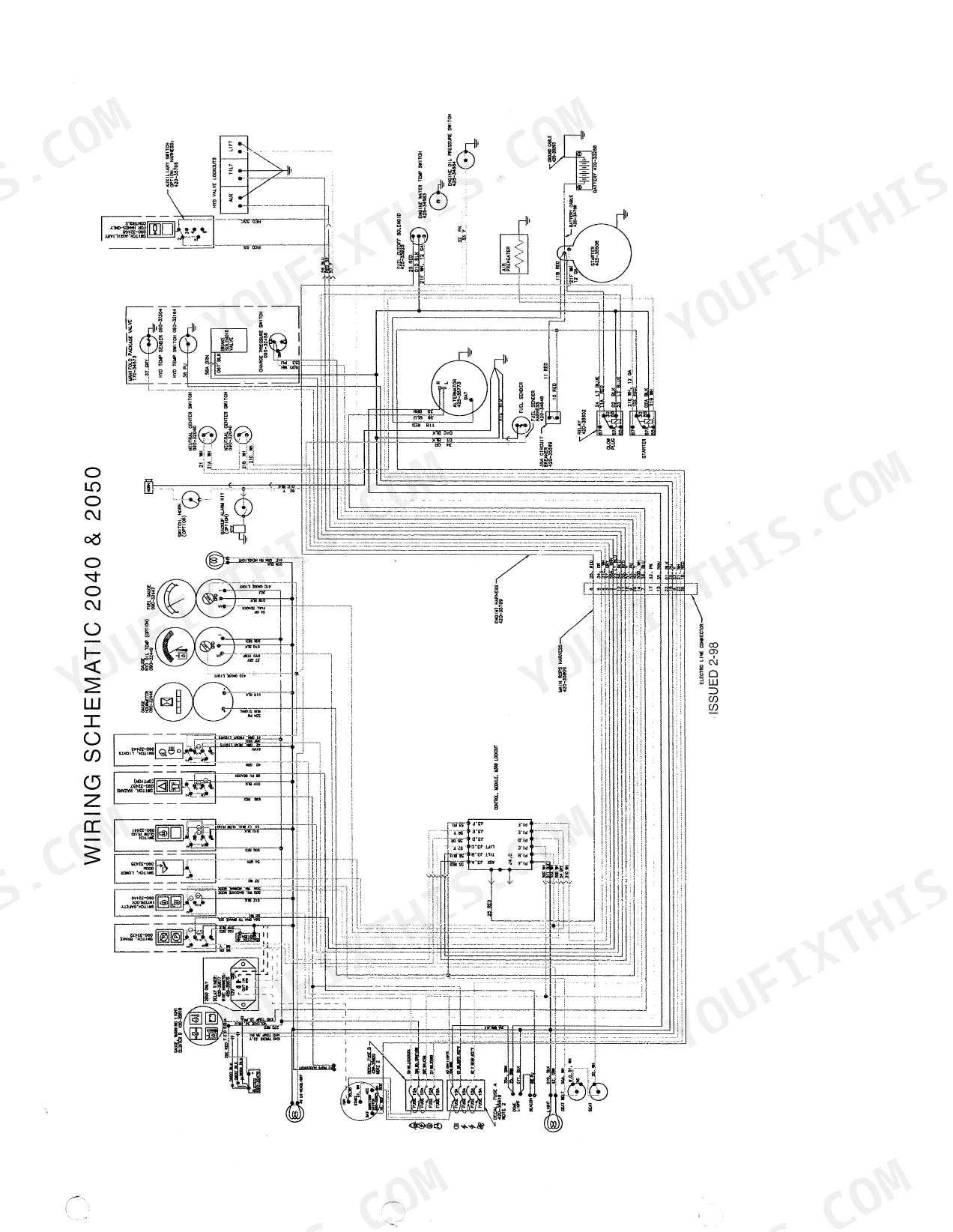

Wiring faults on the 2050 come down to voltage checks at set points. If the starter will not crank, look for 12.6V at the white #22 wire at the starter solenoid with the key in the start position. If it cranks but won't start, confirm voltage at the 21 white wire from the ignition switch during start. The wiring schematic on page 8-8 (PDF page 119) has the diagrams.
How will I receive this Mustang 2040, 2050 Service Manual?
A 128-page service manual in searchable PDF, ready the moment you complete checkout. View it on a computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this Mustang 2040, 2050 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find hydraulic circuit diagrams in this Mustang 2040, 2050 manual?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Mustang 2040, 2050.
Document Quality
This is a scanned document, not a native digital PDF, but it includes an OCR layer, so you can search and copy the full text. The text quality is generally crisp and easy to read throughout the manual. Diagrams and illustrations are raster images, mostly clear, with labels that are readable though some may require zooming. Pages are largely clean with typical minor scan artifacts like faint background variations and occasional skewing, but these do not hinder readability. There are several blank pages interspersed, often serving as section separators or filler.
