Built for the 1995-1997 Mustang 2060 skid steer loader, this manual (OEM #001-16966) follows the machine from hydrostatic drive through the chain case to the electrical interlock. It carries hydraulic and hydrostatic flow schematics with full circuit routing, wiring diagrams for the 12-volt safety interlock module and alternator charging circuit, and troubleshooting charts that cover steering, hydraulics, drive system, engine, and electrical faults. Step-by-step procedures take you through pump R&R, cylinder seal replacement, neutral centering adjustments, and chain case teardown. Specs sit where you need them: 22-gallon (83.3 L) hydraulic system capacity, the 2.8L Isuzu engine, and a full torque table. Tighten the 1/2-inch drive motor lock nuts to spec before you close up the chain case. Search by keyword and read the answer on whatever screen is in the shop.
What's Inside This Mustang 2060 Manual

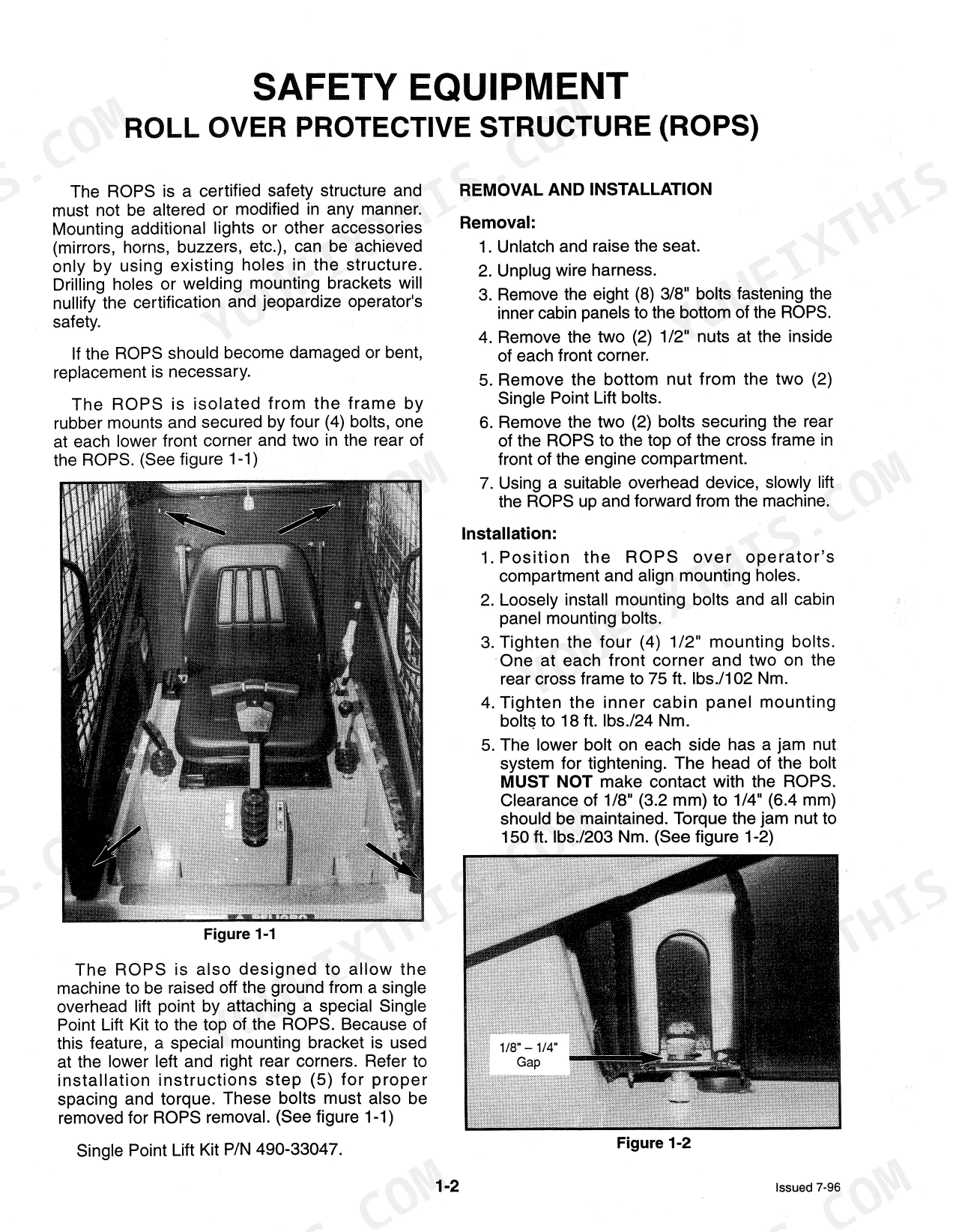

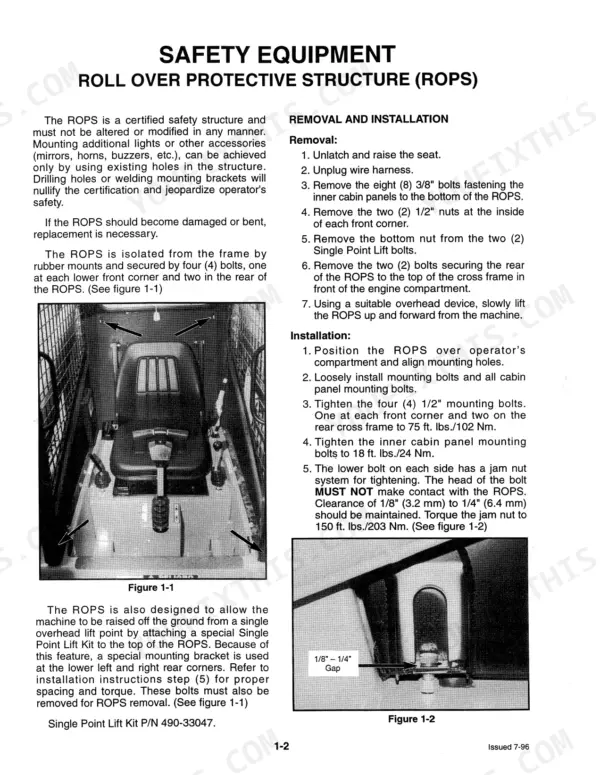

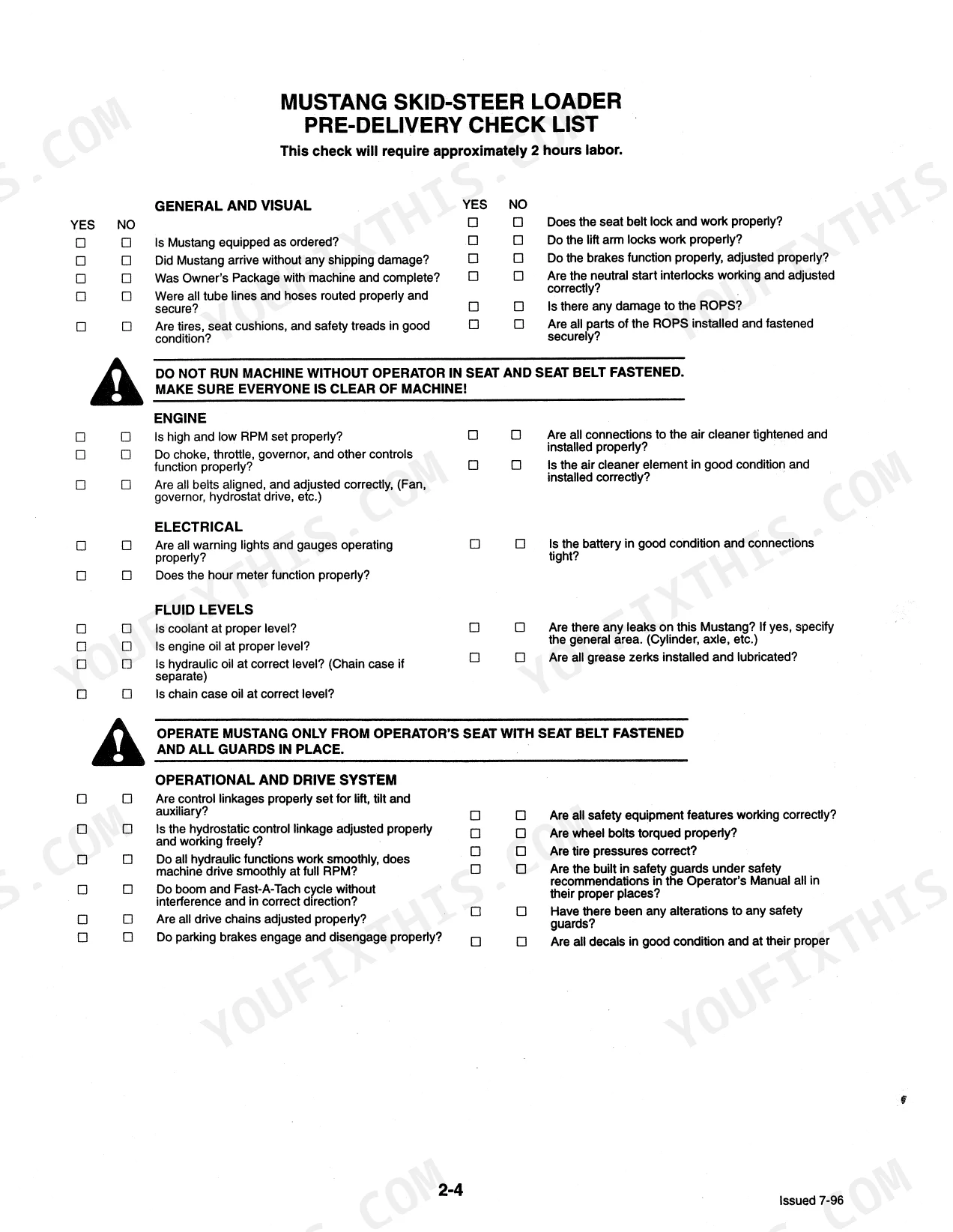

| System | Pages | Key Topics |
|---|---|---|
| Specifications | 6 | Model 2060, Engine Specifications, Transmission and Final Drives, Hydraulic Cylinders, Fluid Capacities, Operating Specifications |
| Safety Equipment | 7-20 | ROPS – Roll Over Protective Structure, Fops – Falling Object Protective Structure, Lift Arm Stops, Safety Interlock, Parking Brake, Neutral Centering Device |
| General Information | 21-34 | System Contamination Control, Contamination Is the Most Frequent Cause of Hydraulic System Failure, It Is Vital That the Area Around a Joint Be Clean |

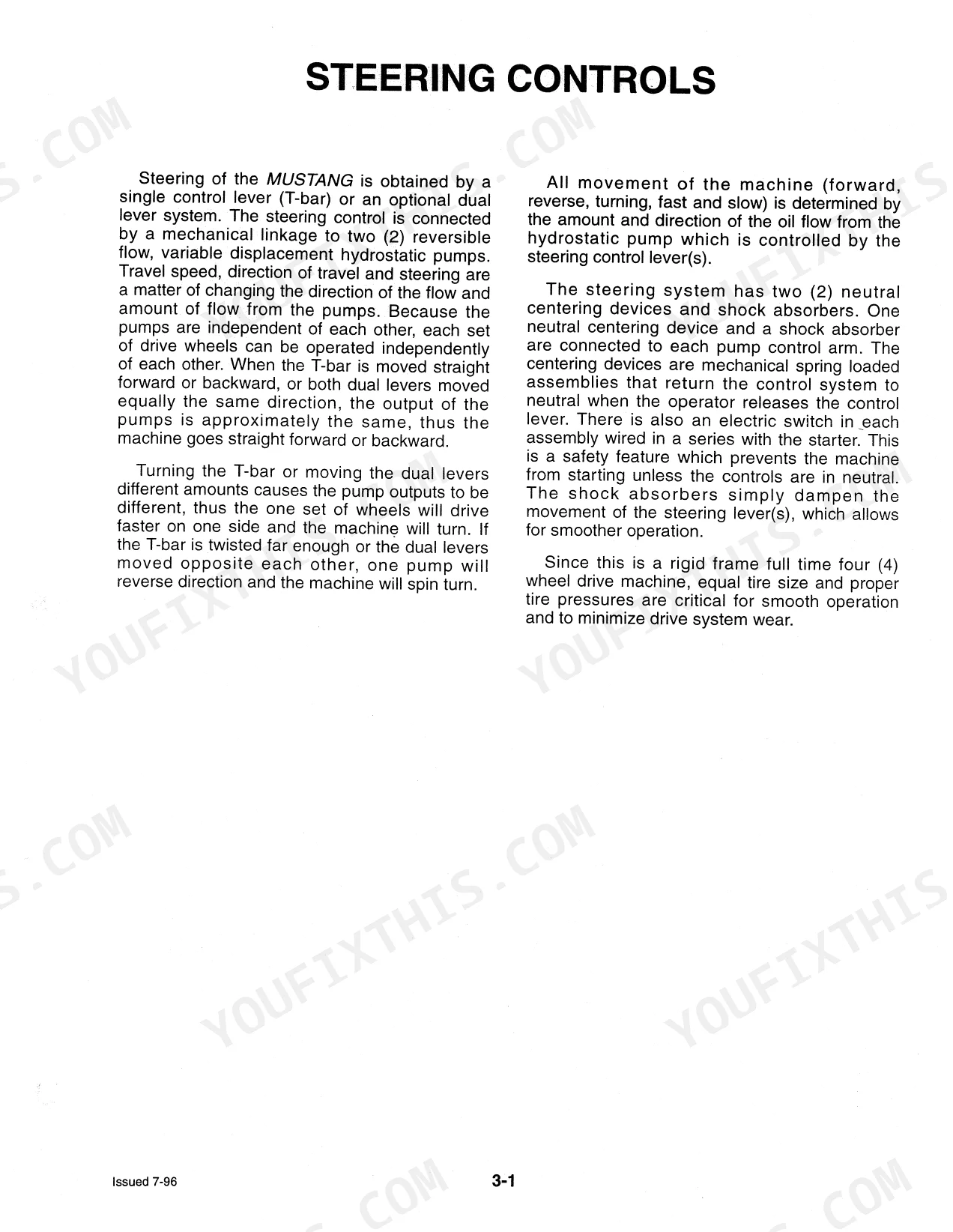

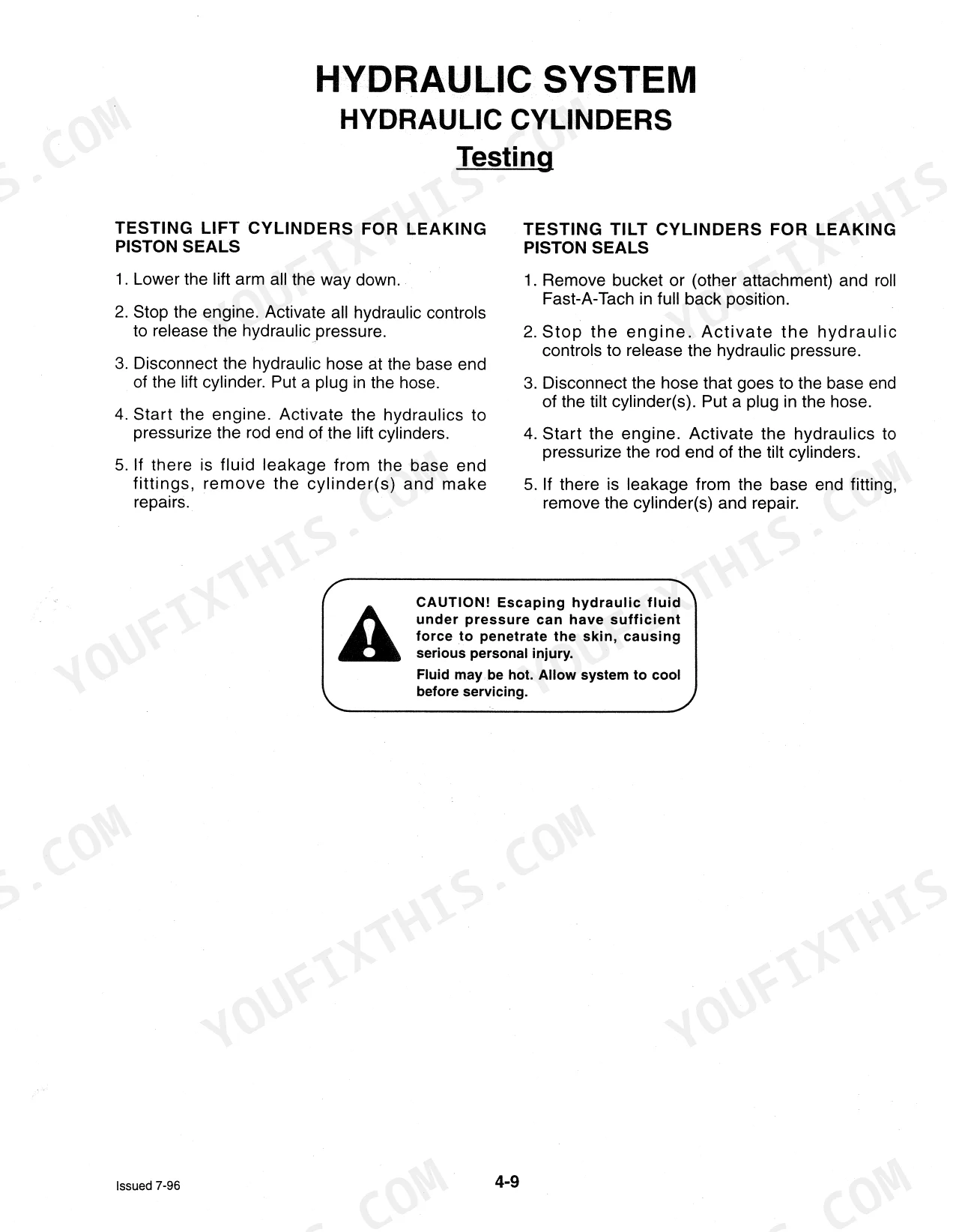

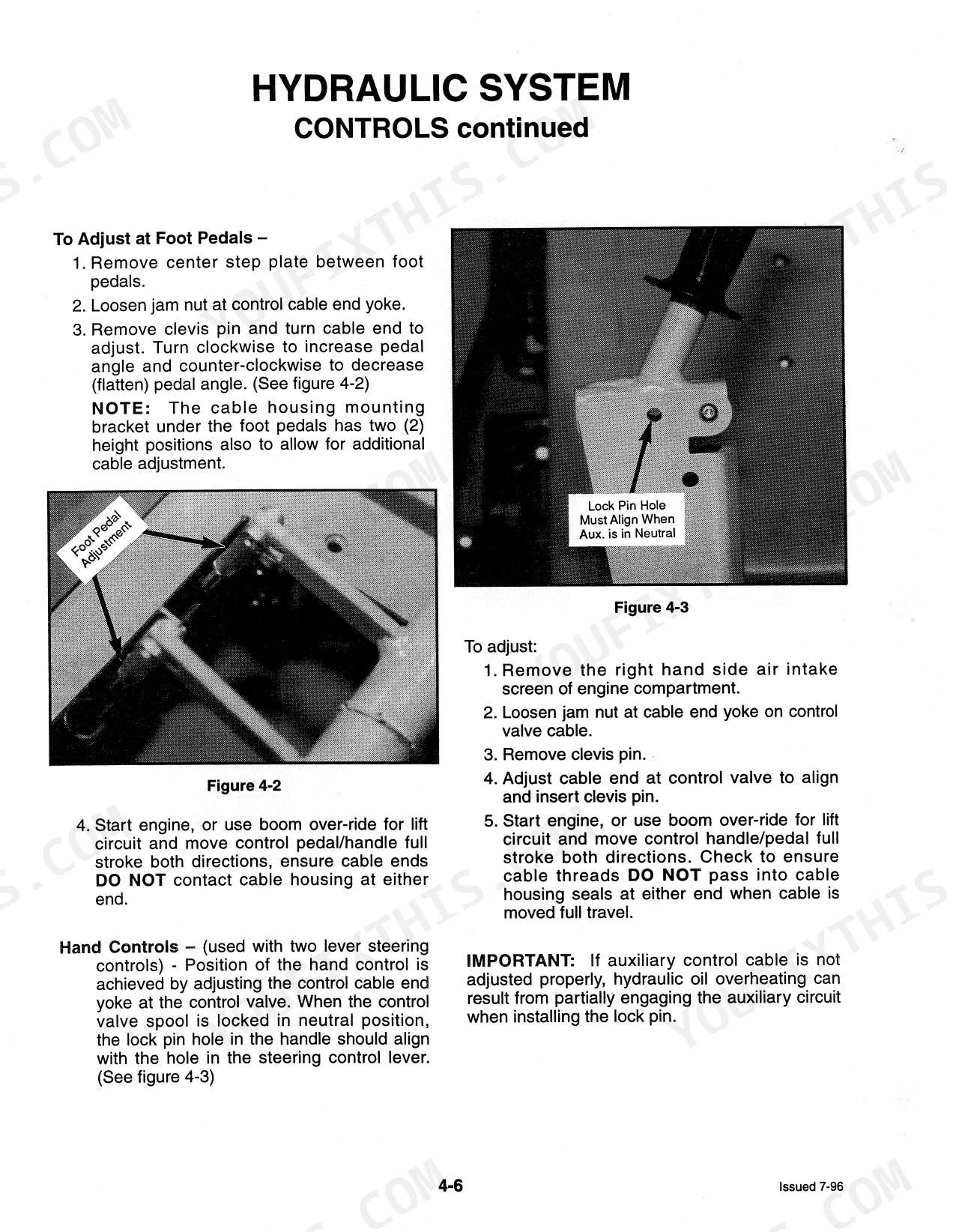

| Steering Controls | 35-42 | Steering of the Mustang Is Obtained by a Single Control Lever, Steering System Has Two Neutral Centering Devices, Turning the T-Bar or Moving the Dual Levers |
| Hydraulic System | 43-64 | Hydraulic System of the Mustang Consists, Oil Is Drawn From the Reservoir Through a 100 Mesh Screen, Control Valve Has a Safety Interlock System |
| Hydrostatic Drive System | 65-79 | Hydrostatic Drive System Propels, Each Pump and Motor Set Is Connected by Two High Pressure Lines, Leakage Oil From the Closed Loop Circuit Is Sent Back |
| Chain Case | 80-88 | Item / Qty / Description Table |
| Engine | 89-98 | This Section Will Cover Information Pertaining to the Air Cleaner, In Depth Troubleshooting Guides and Specific Instructions, Isuzu Workshop Manual - P/N 087-00206 |
| Electrical System | 99-118 | Explanation (Electrical System Is 12 Volt Negative Ground, Electric Hourmeter and the Safety Interlock Control Module, Two Warning Light Cluster Gauges in the Instrument Panel, Brake Engaged, Low Engine Oil Pressure, This Section Is Divided Into Five Segments) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Hose Torque (1/4" diameter) | 8 - 12 ft-lbs | p. 32 |
| Hydraulic Hose Torque (5/16" diameter) | 12 - 17 ft-lbs | p. 32 |
| Engine Displacement | 169 cu. in. (2.8 L) | p. 6 |
| Fuel Tank Capacity | 18 gal. (70 L) | p. 6 |
| Hydraulic System Capacity | 22 gal. (83.3 L) | p. 6 |
| Rated Operating Capacity (SAE) | 1750 lb. (3175 kg) | p. 6 |
| Hydraulic System Pressure Relief Setting | 3000 PSI (207 Bar) | p. 6 |
| Hydraulic Pump Output | 22 GPM (83 L/m) | p. 6 |
| Engine Oil and Filter Service Interval | 50 hours | p. 23 |
| Hydraulic Reservoir Drain and Refill Interval | 1000 hours | p. 23 |
| Torque for 1/4 - 20, S.A.E. Grade 8 | 12 ft-lbs | p. 30 |
| Torque for M6 x 1, Property Grade 10.9 | 10.1 ft-lbs | p. 31 |
Mustang 2060 Common Problems This Manual Covers
Mustang 2060 won't crank at all, ignition key turns but starter stays silent p. 99
Check battery terminals and verify the 12-volt charging circuit is intact per the electrical troubleshooting section at page 99. Test the ignition switch for continuity. Trace the safety interlock module wiring for any opens or corrosion. Inspect the parking brake switch and solenoid connections last before condemning the starter.
Manual Section: Electrical System TroubleshootingParking brake indicator light stays dark at startup, machine won't release to drive p. 13

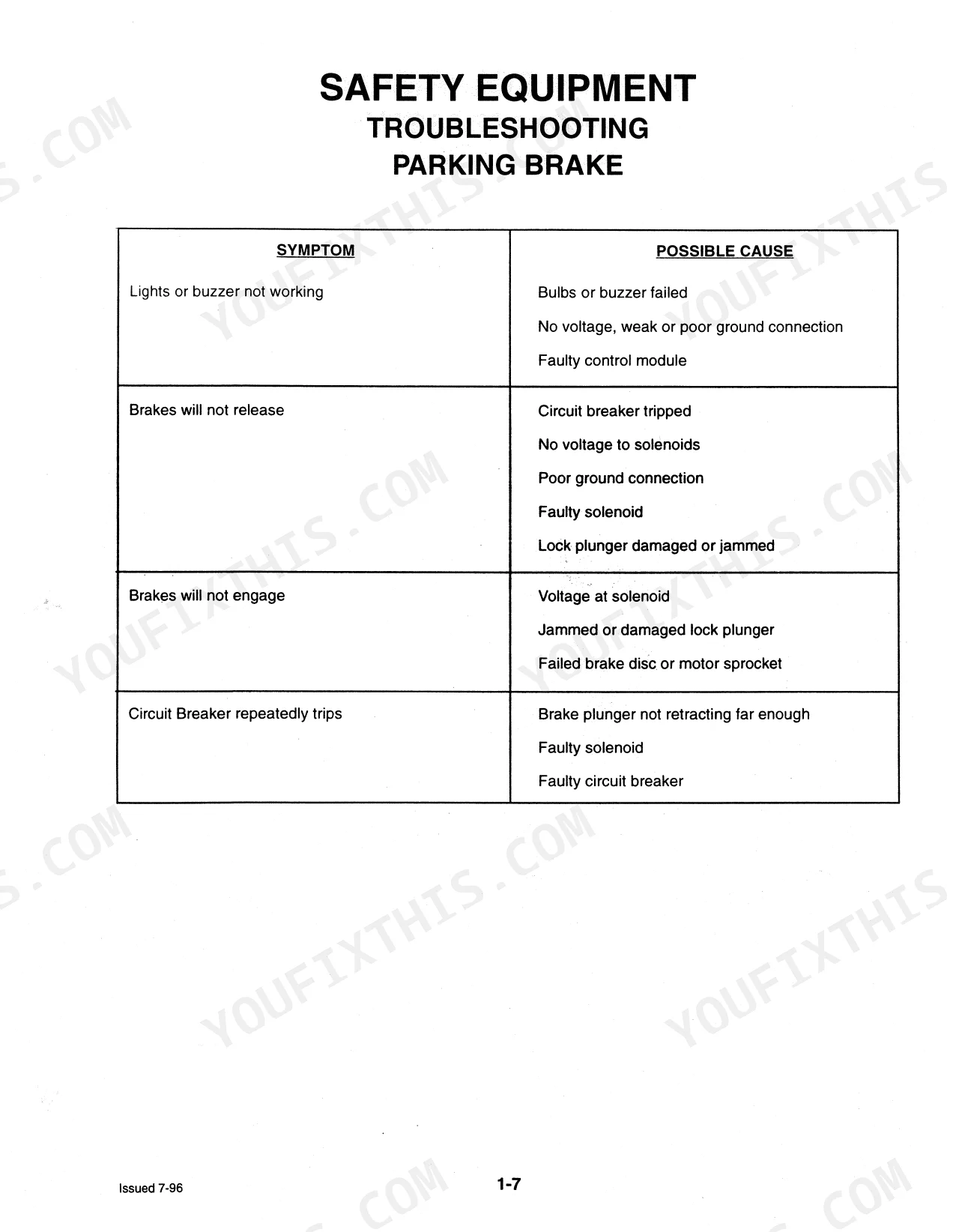

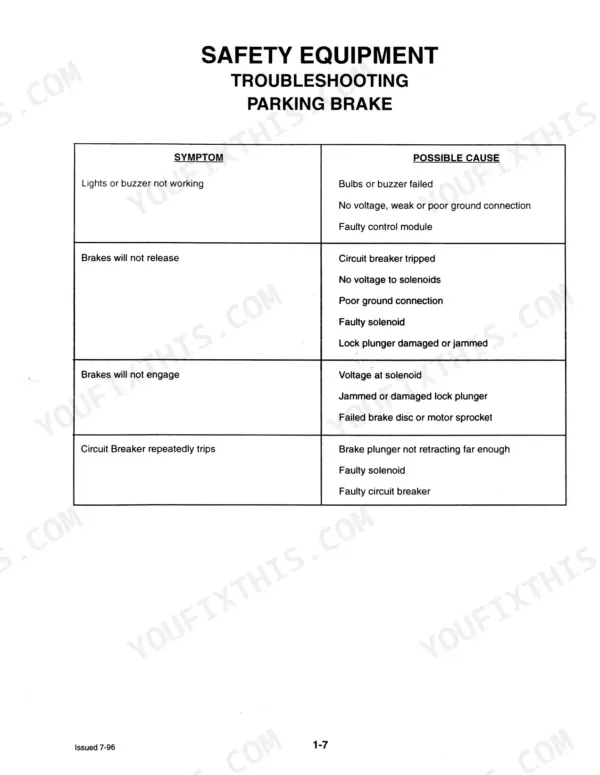

Turn to the parking brake troubleshooting chart on page 13. Verify the brake switch gets 12-volt supply with key on. Check the brake solenoid coil resistance and confirm the circuit breaker has not tripped. If the solenoid pulls in but the brakes stay locked, inspect the mechanical linkage for binding.
Manual Section: Parking Brake TroubleshootingAuxiliary hydraulic quick-couplers stay locked tight, attachment won't disconnect after engine shutdown p. 43
Relieve residual pressure before touching the couplers. Shut down the engine, then cycle the auxiliary hydraulic control lever several times to bleed trapped fluid from the lines. System pressure at relief is 3000 PSI (207 Bar); never force fittings under load. Review the pressure-relief procedure in the hydraulic system section starting at page 43.
Manual Section: Hydraulic SystemOil mist or wet spot on hydraulic hose, suspected high-pressure injection injury hazard p. 8
Stop the machine and keep hands away from the suspected leak. Hydraulic fluid at 3000 PSI (207 Bar) penetrates skin on contact, an injury requiring emergency surgery. Use a piece of cardboard, never bare hands, to trace the source. Review service safety procedures on page 8 before shutting down and replacing the hose or fitting.
Manual Section: Safety EquipmentEngine turns over slowly or fails to start in cold weather conditions
Inspect the air cleaner first; a clogged element kills cold starts fast. Verify fuel supply has not gelled or run low. Confirm engine oil was changed within the last 50 hours (page 23), since degraded oil thickens in freezing temperatures and overloads the starter. If cranking remains sluggish, charge the 12-volt battery fully before further diagnosis.
Manual Section: EngineFrequently Asked Questions
How to reset the parking brake switch on a Mustang 2060?
Press the brake switch in the instrument panel to the green (up) position to disengage the park brake. Pressing it to the amber position re-engages the lock, as the 'Parking Brake' section describes.
What do Mustang 2060 warning lights or error codes mean?
The instrument panel warning lights flag conditions like low alternator output, an unfastened seat belt, engaged park brake, low engine oil pressure, hydraulic oil overheat, and engine coolant overheat. The manual lists no alphanumeric error codes.
How to clear a Mustang 2060 no-start condition?
For an engine that won't crank, start with the main 35 amp circuit breaker in the engine compartment and reset it if it has tripped. If it hasn't tripped, check the voltage at its terminals.
What is the parking brake solenoid location on a Mustang 2060?
The solenoid sits in the brake assembly on top of each chain case. Reach the left side brake through the access cover in the left rear corner of the foot rest area.
Is this Mustang 2060 Service Manual a digital download?
Yes, it's a 118-page searchable PDF available the moment you check out. Pull it up on a phone right at the machine; no shipping, no waiting.
Are there any print restrictions on this Mustang 2060 manual?
None at all. Print single pages, whole chapters, or the full manual. The PDF is completely unlocked.
Does this Mustang 2060 Service Manual cover the hydraulic system?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a high-quality scanned PDF of a service manual. You can search and copy text from most pages, indicating an effective OCR layer. The text is consistently crisp and easy to read, with no blurriness or fading. Diagrams are a mix of sharp vector drawings and clear rasterized photographs, with all labels remaining readable. Pages are clean, free from significant scan artifacts, stains, or skewed content, and there are a few blank pages typically found at section breaks.
