This Mustang 2066, 2076, 2086 Service Manual (OEM #917098) runs 214 pages with one aim: getting your skid-steer back to factory condition instead of forum guesswork. It carries wiring schematics for the chassis, ROPS/FOPS, HVAC, and heater circuits, plus the full hydraulic/hydrostatic schematic with fluid routing split out by model variant. Step-by-step procedures cover every control adjustment, cylinder teardown, and pump swap across all three machines. Troubleshooting sections work through the hydrostatic, hydraulic, electrical, and engine systems, backed by torque tables and exploded views. Replace the hydraulic oil filter (#074830) once the restriction indicator shows red; wheel nuts torque to 180 ft-lbs (244 N•m). Every idle hour costs you. Download it, jump to any bookmarked chapter, and pull the exact spec on the first try.
What's Inside This Mustang 2066, 2076, 2086 Manual
| System | Pages | Key Topics |
|---|---|---|
| Specifications | 7-8 | Tire Options, Buckets & Capacities, Dimensional Specifications, Engine & Hydraulic Specifications, System Pressures |
| Safety & Operation | 9-16 | Signal Words, Mandatory Safety Shutdown Procedure, Liftarm Support Device, ROPS Raising & Lowering, Relieving Hydraulic Pressure, Loader Raising & Lowering |
| Lubrication & Maintenance | 17-20 | Hydraulic Oil Reservoir, Crankcase Oil, Chaincases, Grease Fitting Locations, Cooling System Drain Procedures |

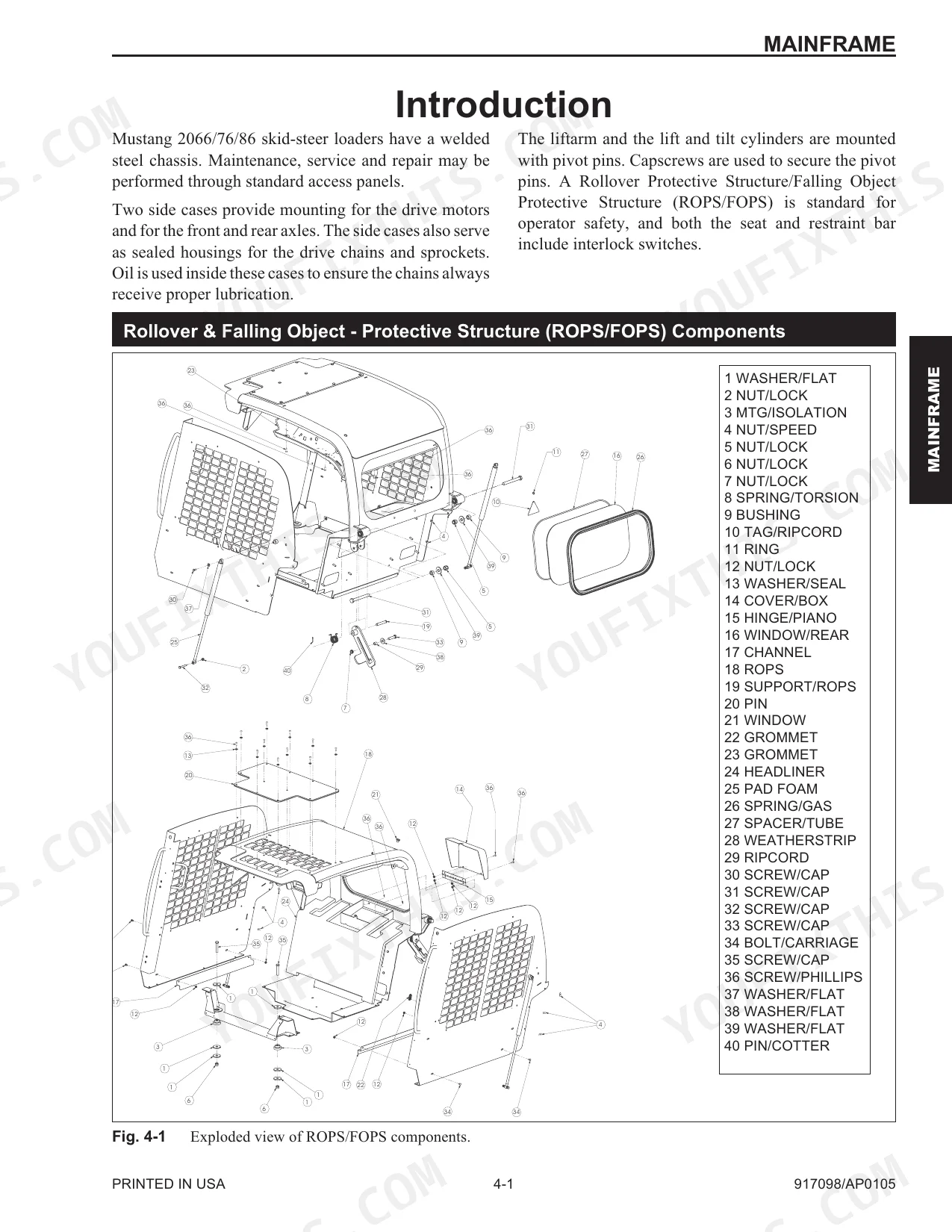

| Main Frame | 21-44 | Engine Access Covers, ROPS Removal & Installation, Seat, Air Duct, All-Tach Hitch Components, Liftarm Removal & Installation, Control & Floor Covers |
| Drive System & Axles | 45-52 | Drive Chain Adjustment & Replacement, Axle Assembly Components, Axle Housing Removal & Installation, Wheel Bearing Disassembly & Assembly |
| Controls | 53-90 | Control Handle Position Adjustment & R&I, Drive Control Tracking, Auxiliary Hydraulics Cables (Hand/Foot, T-Bar & Dual Hand) |
| Hydrostatic Drive | 91-102 | Charge Pressure Test & Adjustment, Drive Pumps, Drive Motors |
| Hydraulic System | 103-154 | Control Valve Components, Removal & Installation, Disassembly & Assembly, Manifold Valve Body |
| Electrical System | 155-182 | Chassis Electrical Components, Control Handle Actuation Buttons, Two-Speed & Ride Control Module, Wiring Schematics |
| Engine | 183-202 | Air Cleaner & Exhaust (2066 Naturally Aspirated / 2076-2086 Turbocharged), Air Filter Element, Battery, Engine Removal & Installation |

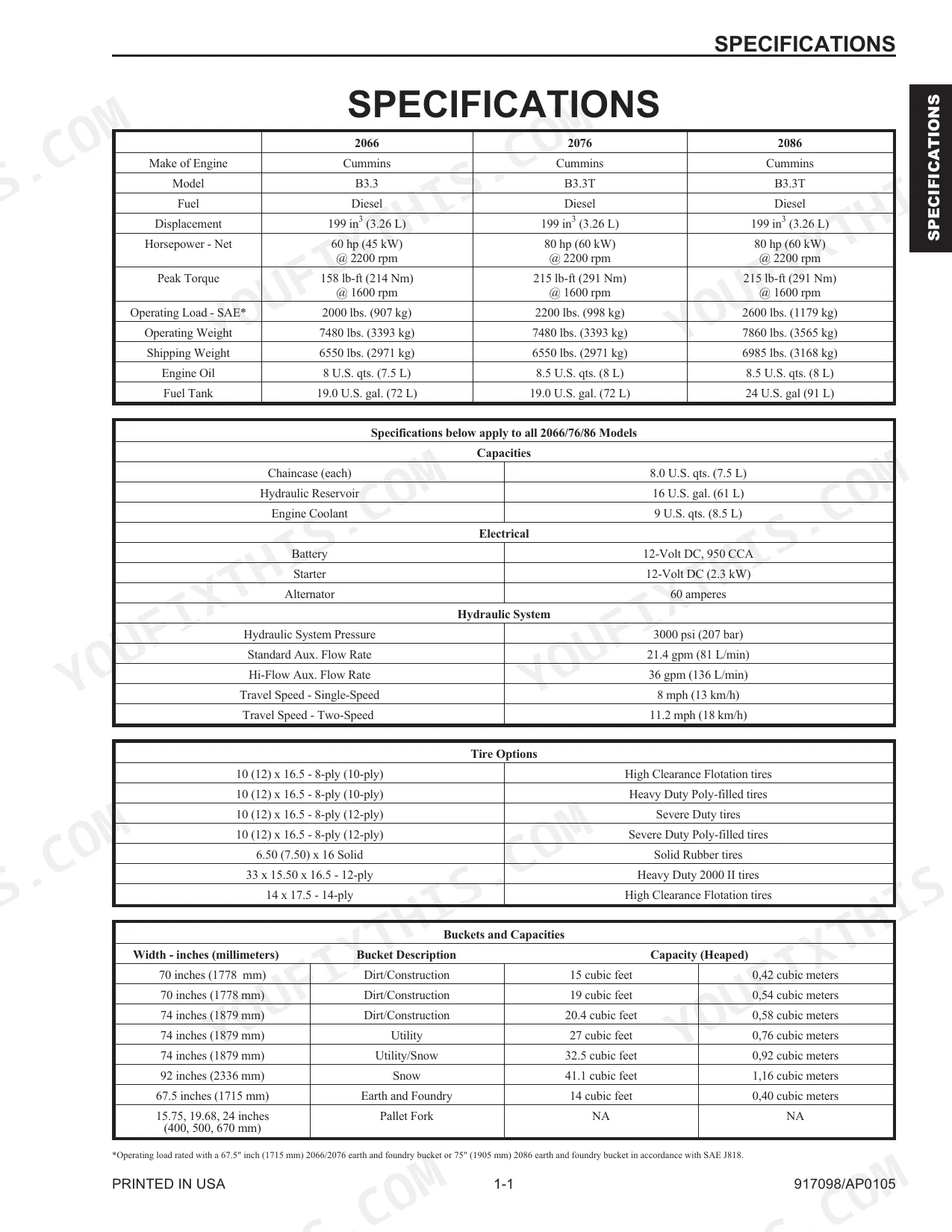

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Axle housing locknuts torque | 280 ft-lbs (380 N•m) | p. 46 |
| Wheel nut torque | 180 ft-lbs (244 N•m) | p. 46 |

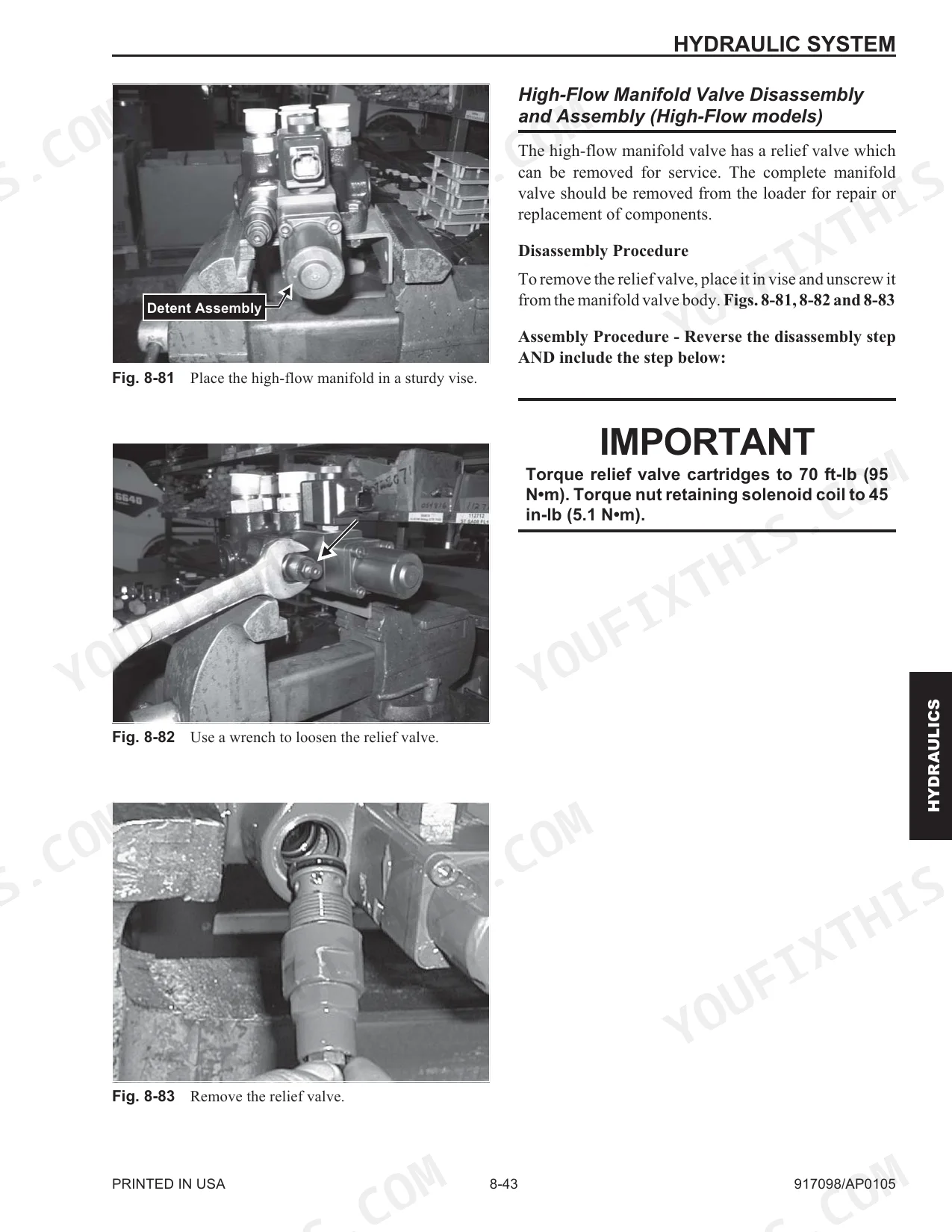

| Spool lock solenoid coil retaining nut torque | 45 in-lb (5.1 N•m) | p. 145 |
| Hydraulic oil filter replacement condition | restriction indicator shows red | p. 123 |
| Hydraulic oil filter part number | #074830 | p. 107 |
| Lift cylinder seal kit | One seal kit per cylinder | p. 129 |
| Tilt cylinder seal kit | One seal kit per cylinder | p. 129 |
| Lift port relief pressure | 3500 PSI | p. 153 |
| Engine Displacement | 199 in³ (3.26 L) | p. 7 |
| Hydraulic Reservoir Capacity | 16 U.S. gal. (61 L) | p. 7 |
| 2066 | ||
| Engine Net Horsepower (2066) | 60 hp (45 kW) @ 2200 rpm | p. 7 |
| 2076, 2086 | ||
| Engine Net Horsepower (2076/2086) | 80 hp (60 kW) @ 2200 rpm | p. 7 |
Mustang 2066, 2076, 2086 Common Problems This Manual Covers
Mustang 2066 lift arms going up slow, bucket tilt weak or intermittent
Check hydraulic oil level; reservoir capacity is 16 U.S. gal. (61 L). Replace filter part #074830 (page 107) when the restriction indicator shows red (page 123). Test system pressure at full throttle: below 2700 PSI (186 bar, page 116) points to a worn pump or stuck relief. If pressure holds, pull the aux control valve spool and inspect for scoring or contamination.
Manual Section: Hydraulic System Troubleshooting GuideHydrostatic drive sluggish or one side won't drive, machine won't track straight

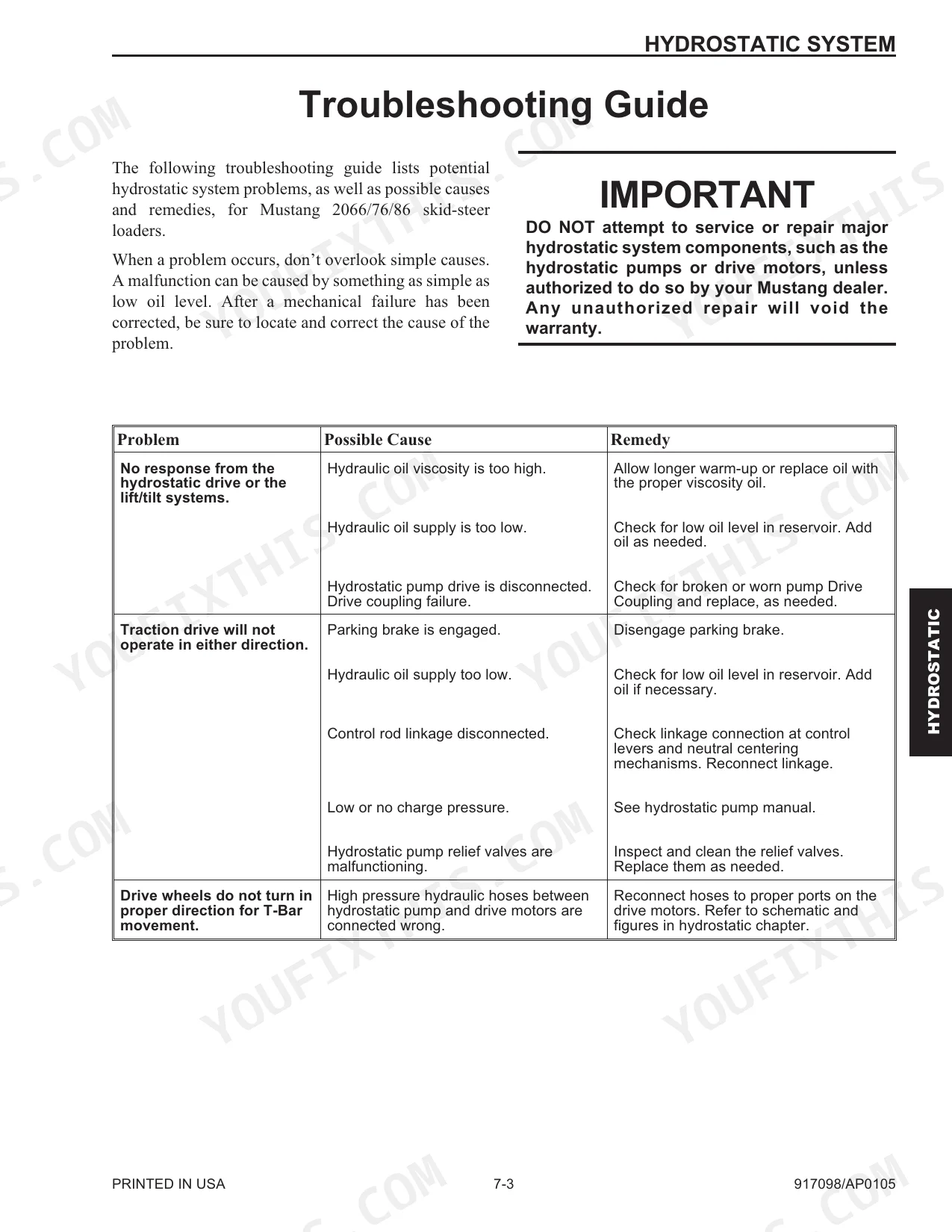

Verify charge pressure at operating temperature; spec is 250-300 PSI (17-21 bar) per page 97. Low charge pressure starves the hydrostatic loop and kills drive response on one or both sides. Inspect all hydrostatic hoses for leaks and check filter condition. If charge pressure is good but one side still won't drive, follow the isolation steps in the troubleshooting guide starting.
Manual Section: Hydrostatic System Troubleshooting GuideRaised bucket slowly drifts down, tilt cylinder won't hold load position
Inspect tilt cylinder seals; a drifting bucket almost always means internal bypass past a worn seal. Allowable settling is 0.4 in. (10 mm) of cylinder extension in 15 minutes (page 117). If it exceeds that, rebuild the cylinder using one seal kit per cylinder (page 129). Torque the head gland locknut to 350 ft-lbs (474 N.m, page 130) on reassembly.
Manual Section: Hydraulic System Troubleshooting GuideLiftarm won't raise under heavy load, lifts empty but stalls with material

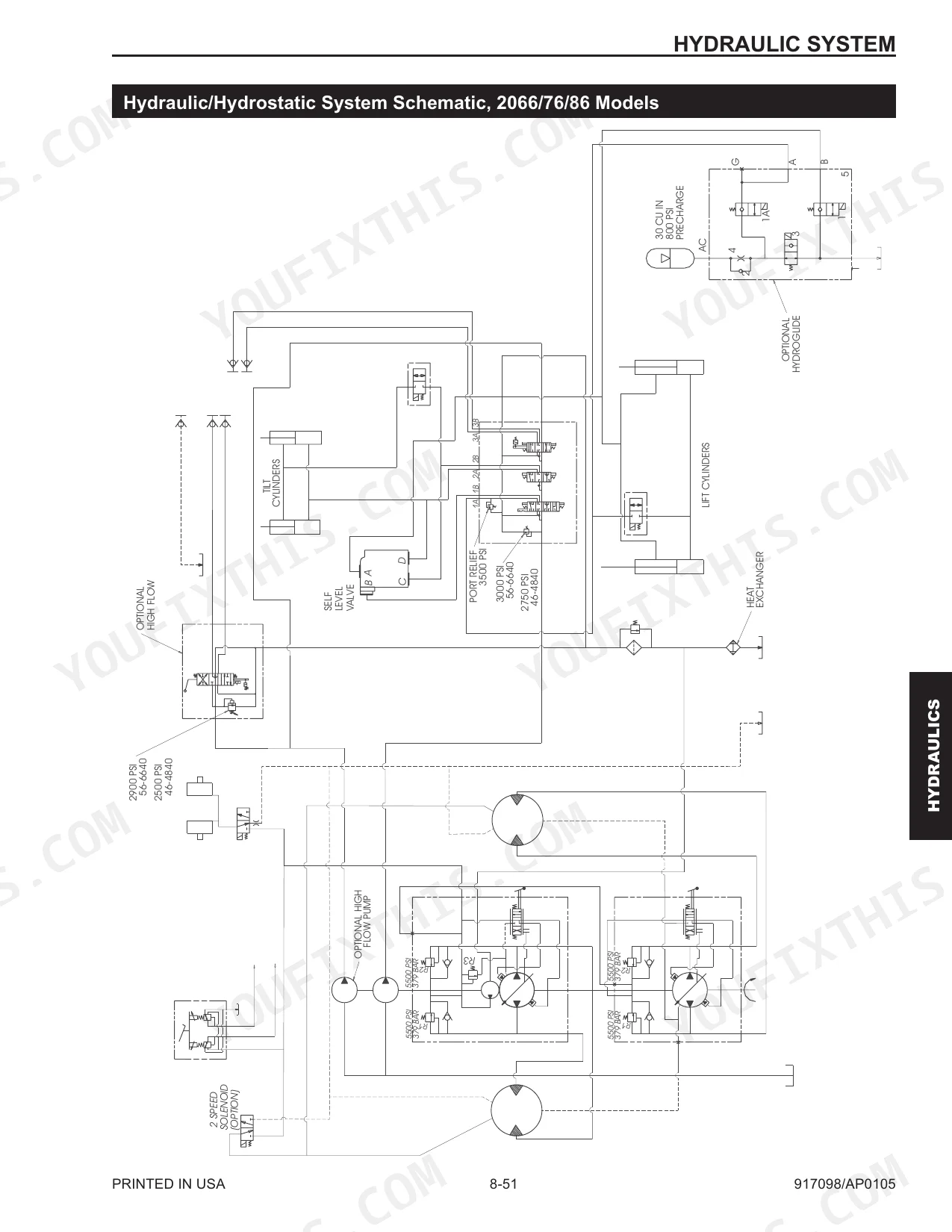

Test system pressure under full lift load; spec is 3000 psi (207 bar). If pressure falls, inspect the lift port relief valve, set at 3500 PSI per the hydraulic schematic (page 153). A prematurely opening relief bleeds flow before the arms move the load. Confirm the filter is not restricted; replace when the indicator shows red (page 123).
Manual Section: Hydraulic System Troubleshooting GuideEngine turns over but won't start, or starter not engaging at all
Begin at the battery: clean any corrosion off the terminals and confirm the charge is adequate. Confirm all interlock conditions are met: seat occupied, lap bar down, seat belt buckled. If the starter won't engage, test the starter solenoid and interlock relay. This is a 3.26 L (199 in3) diesel; also inspect the fuel shutoff valve position and the fuel filter before pulling electrical components.
Manual Section: Engine Troubleshooting GuideFrequently Asked Questions
What are the torque specs for Mustang 2066/2076/2086 wheel nuts, hydraulic fittings, or engine bolts?
For Mustang 2066/2076/2086 models, wheel nuts should be torqued to 180 ft-lbs (244 N•m), and axle housing locknuts to 280 ft-lbs (380 N•m). When installing the flywheel housing to the engine, torque capscrews to 28 ft-lbs (37 N•m), and hydrostatic pump to flywheel housing capscrews to 55 ft-lbs (73 N•m). The tilt cylinder capscrew requires a torque of 80 ft-lbs (108 N•m), and the piston on the cylinder rod locknut should be torqued to 350 ft-lbs (474 N•m). Engine mounts capscrews/hex nuts are 110 ft-lbs (149 N•m).
How do I troubleshoot starting problems on a Mustang 2066/2076/2086?
To troubleshoot starting problems, first check if the seat or restraint bar switch is malfunctioning or not activated. Verify battery terminals and cables for looseness or corrosion, and ensure the battery is not discharged or defective. Inspect the starter solenoid and ignition wiring for proper connections, and check for any faults in the starter or pinion. If the engine turns over but doesn't start, check for slow cranking speed, an empty fuel tank, or a malfunctioning glow module below 81°F (27°C).
How will I receive this Mustang 2066, 2076, 2086 Service Manual?
Immediate download of the complete 214-page searchable Service Manual. Open it on any device: laptop at your desk or phone in the field.
Can I print specific sections of this Mustang 2066, 2076, 2086 Service Manual?
Yes. The PDF carries no DRM restrictions, so print any page or section your shop needs. Works with any standard printer.

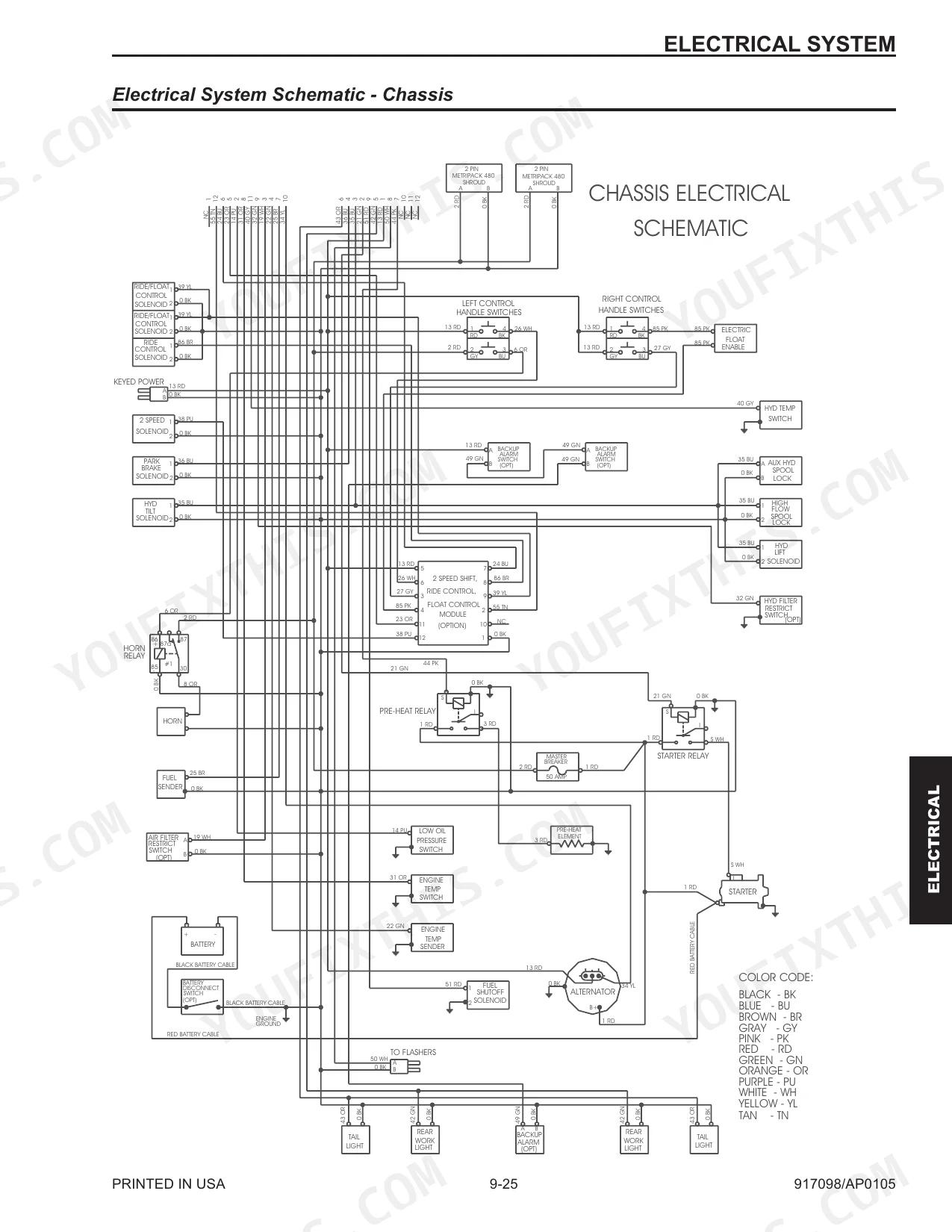

Does this Mustang 2066, 2076, 2086 Service Manual have electrical diagrams?
It does. The manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This document is a scanned PDF, not a native digital file, but it includes an OCR layer so you can search the full text and copy content. The text throughout is crisp and easy to read, with no blurriness or fading. Diagrams and illustrations, including exploded views and schematics, are raster images or photos; most labels are readable, though some smaller text on complex diagrams may require zooming. Pages are generally clean with no significant scan artifacts, stains, or skewed content, and there are several blank "NOTES" pages and one "PAGE LEFT INTENTIONALLY BLANK" page.
