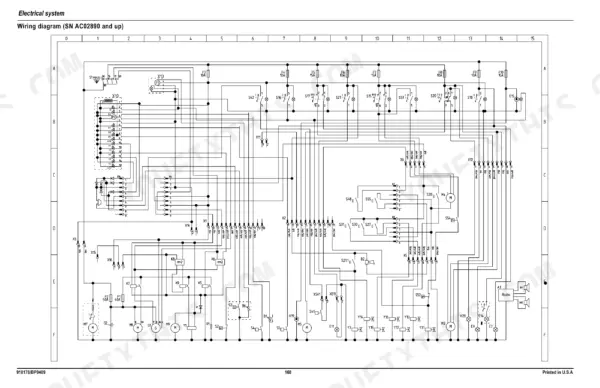

Built around a single machine, this 206-page Mustang 5003ZT Service Manual (OEM #918178) tracks your 2009 compact excavator from serial number plate to final torque spec. Hydraulic schematics map the PVD-2B pump, main valve block, drive counterbalancing, and swivel unit. Engine work splits cleanly between the 4TNV88-BPNS and 4TNV88-PNS variants, with step-by-step valve clearance and injection timing for each. Wiring diagrams follow several serial number breaks and lay out separate harnesses for the cab roof, armrest, and boom working light circuits. Before you button up the undercarriage, torque the track rollers to 203 lb-ft (275 Nm) and the swivel joint to 47 lb-ft (64 Nm). Download is one click, bookmarked by section and searchable by keyword, so it opens on a tablet right at the bench.
What's Inside This Mustang 5003ZT Manual
| System | Pages | Key Topics |
|---|---|---|
| Operation | 7-24 | Serial Number Location, Identification of Warnings and Hazards, Type Decals and Component Numbers, Machine: Overview, Cab: Overview, Cab: Legend, Instrument Panel |
| Engine (Sn AH00579 and Up) | 97-108 | Engine Marked 4TNV88-Bpns: Overview, Fuel System, Preparing for Cylinder Head Removal, Checking and Adjusting Valve Tip Clearance, Removing/Tightening Order for Cylinder Head Bolts |
| Engine (Sn AD07125 and Before) | 109-120 | Engine Marked 4TNV88-Pns: Overview, Fuel System, Checking and Adjusting Valve Tip Clearance, Removing/Tightening Order for Cylinder Head Bolts, Checking the Injection Nozzles |
| Engine Troubleshooting | 121-122 | Engine Does Not Start or Is Not Easy to Start, Engine Starts, But Does Not Run Smoothly, Engine Overheats, Temperature Warning System Responds, Insufficient Engine Output |
| Hydraulic System | 123-160 | Hydraulic Pump: Pvd-2B-41BP-16G5-4713F Pvd-2B-44BP-16G5-4713F, Main Valve Block, Drive Counterbalancing System, Regeneration – Dipper Arm Section, Bucket Pre-Tension |
| Electrical System | 161-182 | Ohm's Law, Measuring Equipment and Methods, Cable Color Coding, Relays, Electrical Units, Fuse Box in Instrument Panel, Main Fuse Box with Relays, Socket |
| Options | 183-202 | Air Conditioning, Air-Suspension Seat, Counterweight, Long Dipper Arm, Auxiliary Hydraulics Connections, Proportional Controls, Auto-Idle Feature (Sn AH00579 and Up) |
| Torque Specifications | 203-206 | Hydraulic Fittings with Various Seals. All Torque Values Are in Lb-Ft. Unless Marked Otherwise., With Coarse-Pitch Thread. All Torque Values Are in Lb-Ft. Unless Marked Otherwise. |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Live ring torque | 133 (180)* lb-ft. (Nm) | p. 31 |
| Track roller torque | 203 (275)* lb-ft. (Nm) | p. 31 |
| Hydraulic system troubleshooting guide | Refer to table on page 154 for problems and possible causes. | p. 154 |
| Standard play between sliding block's shoulder and drive pinion | 0.8 – 1.0” (20 – 25 mm) | p. 84 |
| Bucket pin diameter | 1-31/32” (50 mm) | p. 39 |
| Dipper arm width | 7-11/16” (195 mm) | p. 39 |
| Gearbox oil capacity | About 0.3 gal. (1.3 L) each | p. 26 |
| Travel drive torque | 133 (180)* lb-ft. (Nm) | p. 31 |
| Hose fittings for hydraulic applications (light application, DKOL) DN 05, M12X1.5 torque | 11 (15) lb-ft. (Nm) | p. 31 |
| Hydraulic hose replacement interval | every six years | p. 79 |
| Hydraulic oil filter insert replacement (Normal work) | first time after 50 hours, then every 500 hours | p. 42 |
| Hydraulic oil filter insert replacement (20% hammer work) | 300 hours | p. 42 |
Mustang 5003ZT Common Problems This Manual Covers
Mustang 5003ZT hydraulic system slow and jerky, bucket loses lifting power under load p. 154
Check the troubleshooting table on page 154 for hydraulic malfunction causes and flow diagnostics. Verify hydraulic fluid is at the 21.1 gal. (80 L) tank capacity and top off if low. Replace the hydraulic oil filter insert at first 50 hours, then every 500 hours on normal work. If sluggishness continues, inspect all hose connections and fittings for leaks or restriction.
Manual Section: Troubleshooting the hydraulic systemOne track drives weak, machine pulls to one side, final drive makes grinding noise p. 154
Inspect the final drive housing for oil leaks and listen for bearing noise at idle. Verify travel drive mounting bolts are torqued to 133 lb-ft. (180 Nm) per the spec on page 31. Remove the track and clear debris packed into the sprocket teeth and roller path. For uneven travel speed, use the troubleshooting table on page 154 to isolate motor or valve causes.
Manual Section: Troubleshooting the hydraulic systemTrack keeps derailing or wears unevenly, tension adjustment won't hold after re-tensioning p. 84
Measure track sag: standard play between the sliding block's shoulder and drive pinion must be 0.8 to 1.0" (20 to 25 mm), per page 84. Adjust and recheck after the first hour of work. Inspect all four track rollers per side for flat spots or seized bearings. Torque roller mounting bolts to 203 lb-ft. (275 Nm) per the spec on page 31.
Manual Section: Torque specificationsPins and bushings wear rapidly, grease fittings need servicing every shift to stop squeaking p. 41
Pack all grease zerks daily with FINA Energrease L21 M, the specified grease type on page 41. Under-greasing runs metal-to-metal; over-greasing blows the seals. Bucket pin diameter is 1-31/32" (50 mm): visible play beyond that measurement means the pin or bushing needs replacement. Always clean contaminated zerks before pumping grease to avoid forcing abrasives into the bearing surface.
Manual Section: OperationHydraulic performance drops and machine overheats after working in deep mud or frozen ground p. 57
Clear packed dirt and debris from the undercarriage before and after every shift, concentrating on all four track rollers per side and the sprocket teeth. Clean the radiator with compressed air at no more than 29 psi (2 bar), per page 57. Check hydraulic fluid level against the 21.1 gal. (80 L) tank capacity; contaminated or heat-degraded fluid accelerates component wear and raises operating temperatures.
Manual Section: Hydraulic systemFrequently Asked Questions
What are the torque specs for a Mustang 5003ZT track motor or final drive?
The Travel drive (final drive) torques to 133 lb-ft. (180 Nm) on M14 10.9 hardware. The Gear motor (track motor) takes 203 lb-ft. (275 Nm) on M16 10.9 hardware. Both fasteners must get an appropriate thread-locking compound before final tightening.
What are the torque specs for a Mustang 5003ZT slew ring or swing bearing?
The Live ring, also called the slew ring or swing bearing, torques to 133 lb-ft. (180 Nm). This applies to M14 10.9 hardware, and you should apply an appropriate thread-locking compound before tightening.
What are the replacement specifications for track tension components?
When the track stays loose after you inject more grease, replace the track or the cylinder seal. Over-tensioning damages both the cylinder and the track, so tighten only to the 1.0 – 1.2 inch (25 – 30 mm) distance shown in Fig. 12.
What do I get after purchasing this Mustang 5003ZT manual?
A 206-page searchable PDF, available the moment you check out. It runs on any device, so pull it up on your phone right at the machine. No shipping, no waiting.
Can I print this Mustang 5003ZT manual?
None at all. The PDF is DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper works fine.
Are there hydraulic schematics in this Mustang 5003ZT manual?
Yes. Complete hydraulic schematics are included, with flow diagrams, valve configurations, and pressure specifications.
Document Quality
This document is a native digital PDF, allowing you to easily search and copy all text. The text throughout is crisp and clear, ensuring excellent readability. Diagrams and illustrations are a mix; some are sharp, vector-like line drawings with clear labels, while others are raster images or photos where labels are generally readable but may lose some crispness at high zoom. All pages are clean with no scan artifacts, stains, marks, or skewed content. There are a few intentionally blank pages marked "NOTES" or "THIS PAGE INTENTIONALLY BLANK" that serve as filler.
