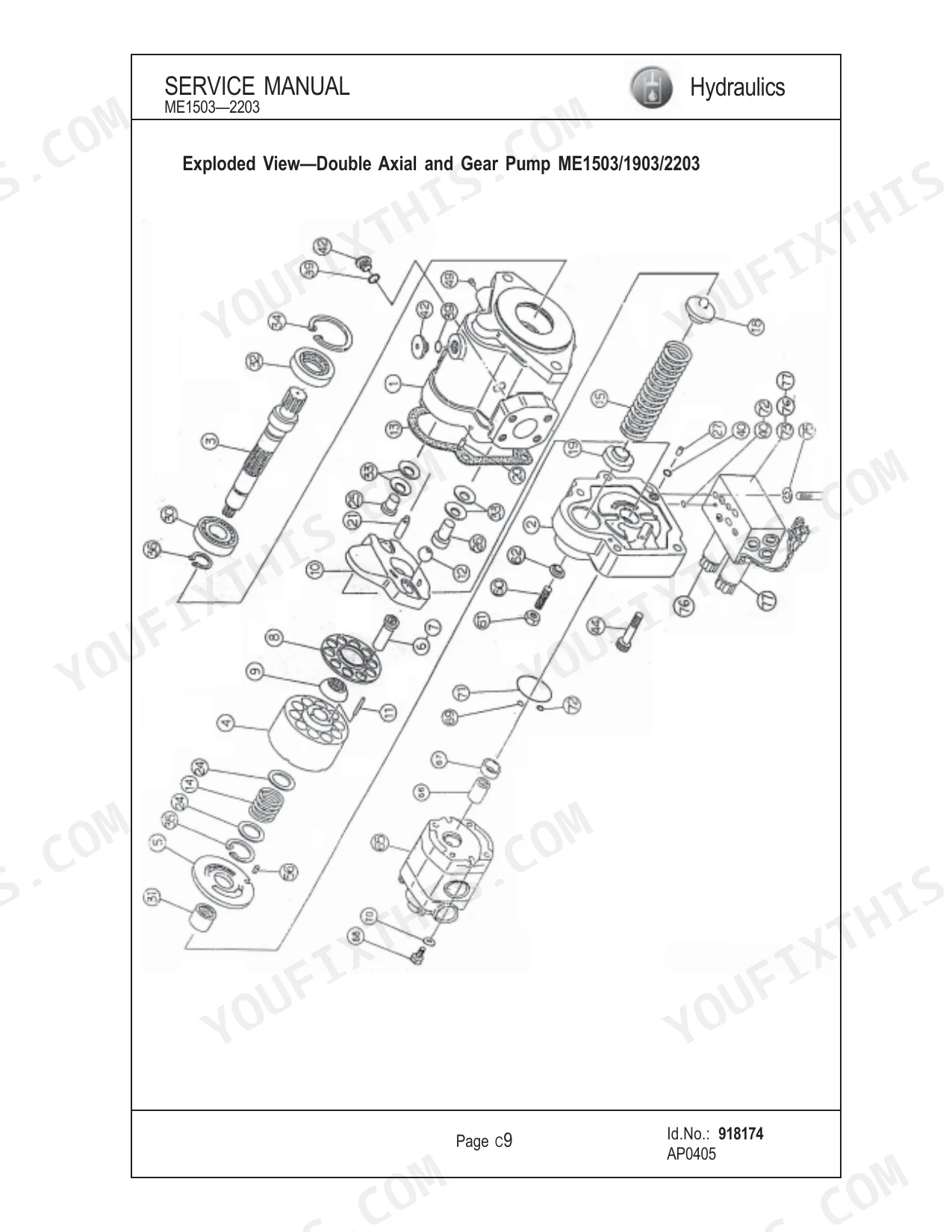

Three machines, one factory reference: the 124-page Mustang ME1503, ME1903, ME2203 Service Manual (OEM #918174) covers hydraulic, electrical, and mechanical systems across all three compact excavators. Hydraulic diagrams trace pilot oil supply, the main valve block, dozer blade valve, swivel joint, and drive unit circuits from port to port. Cab, chassis, and diesel engine wiring diagrams round it out with relay box and fuse box layouts, alongside exploded views of the undercarriage and superstructure. Set your turntable bolts to 88.5 lb-ft (120 Nm), swap the hydraulic filter insert at the 50-hour mark; both numbers live in here. With your excavator down and the dealer quoting a week out, bookmarks by section and keyword search let you pull up the right page on any device and start working the problem.
What's Inside This Mustang ME1503, ME1903, ME2203 Manual
| System | Pages | Key Topics |
|---|---|---|

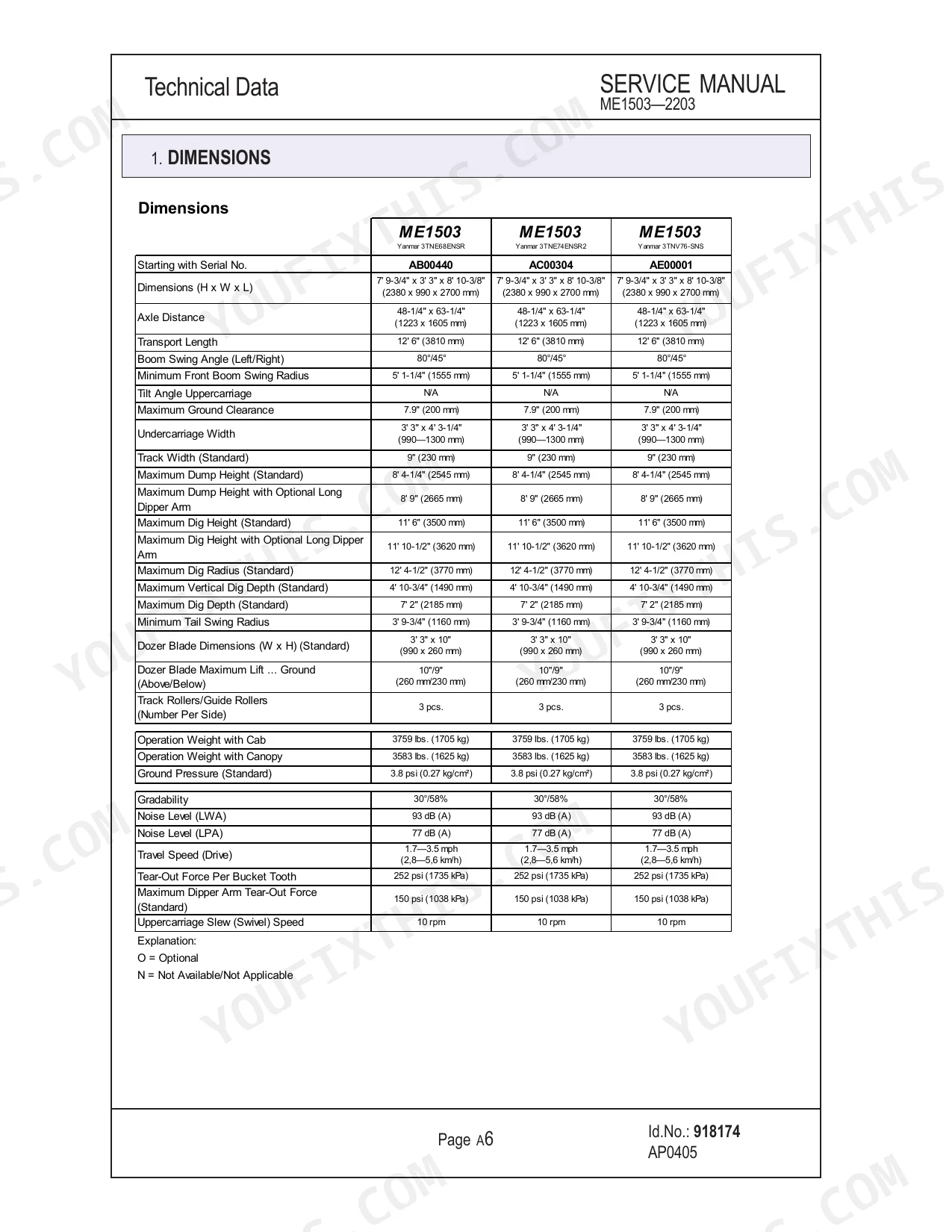

| Technical Data | 5-32 | Primary Dimensions, Bucket & Geometry, Lift Capacity Charts, Hydraulic System, Tightening Torques |

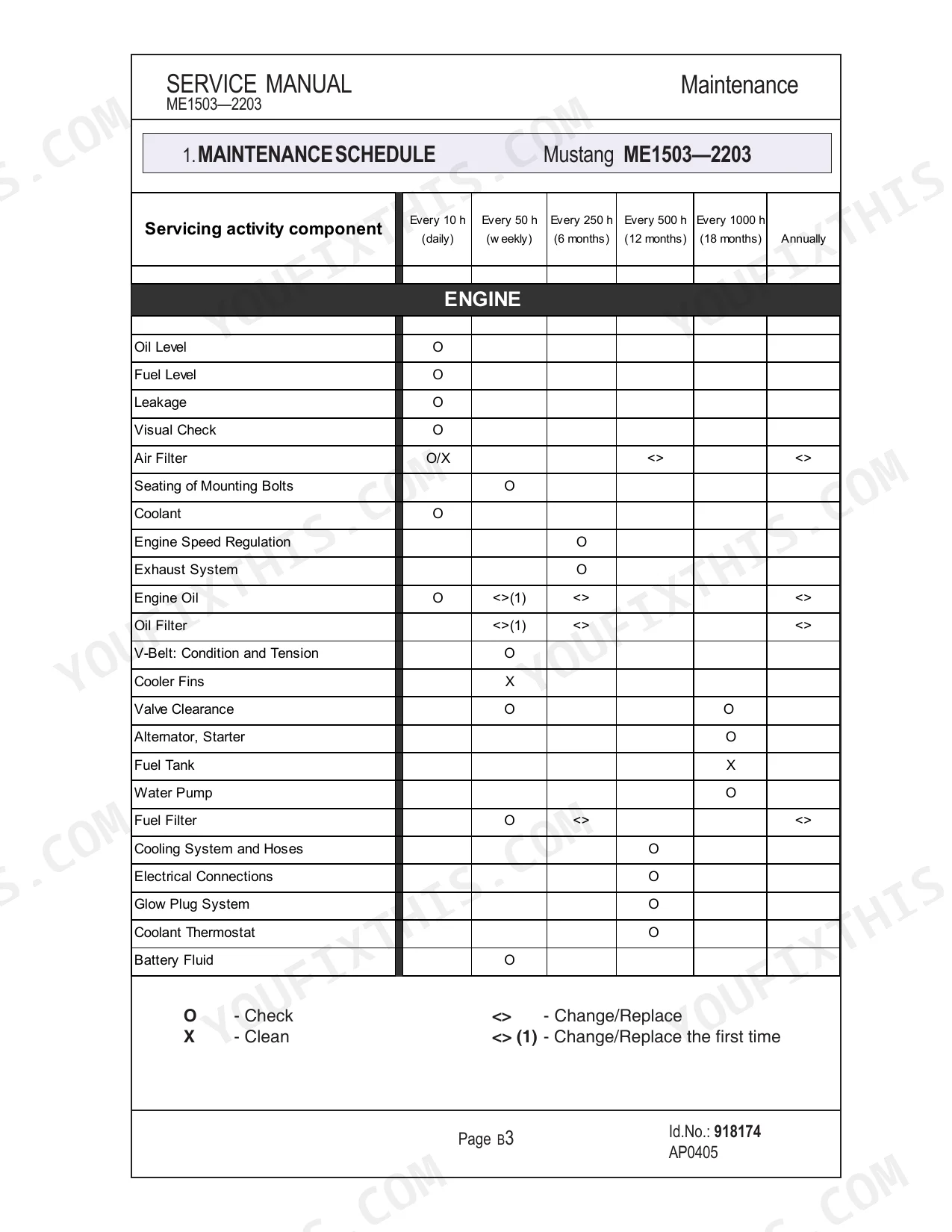

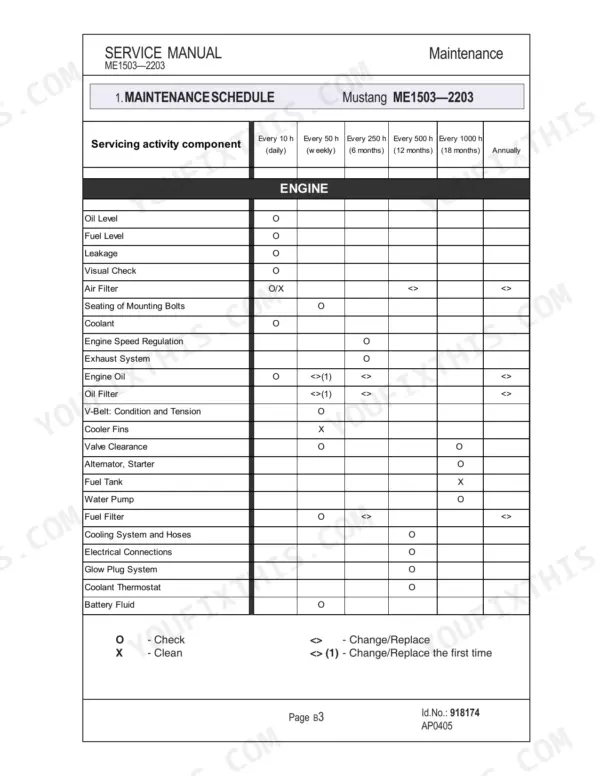

| Maintenance | 33-51 | Maintenance Schedule, Lubricants, Hydraulic System, Hydraulic Pump, Hose Burst Protection, Drive Unit, Swivel Unit, Auxiliary Hydraulic System |

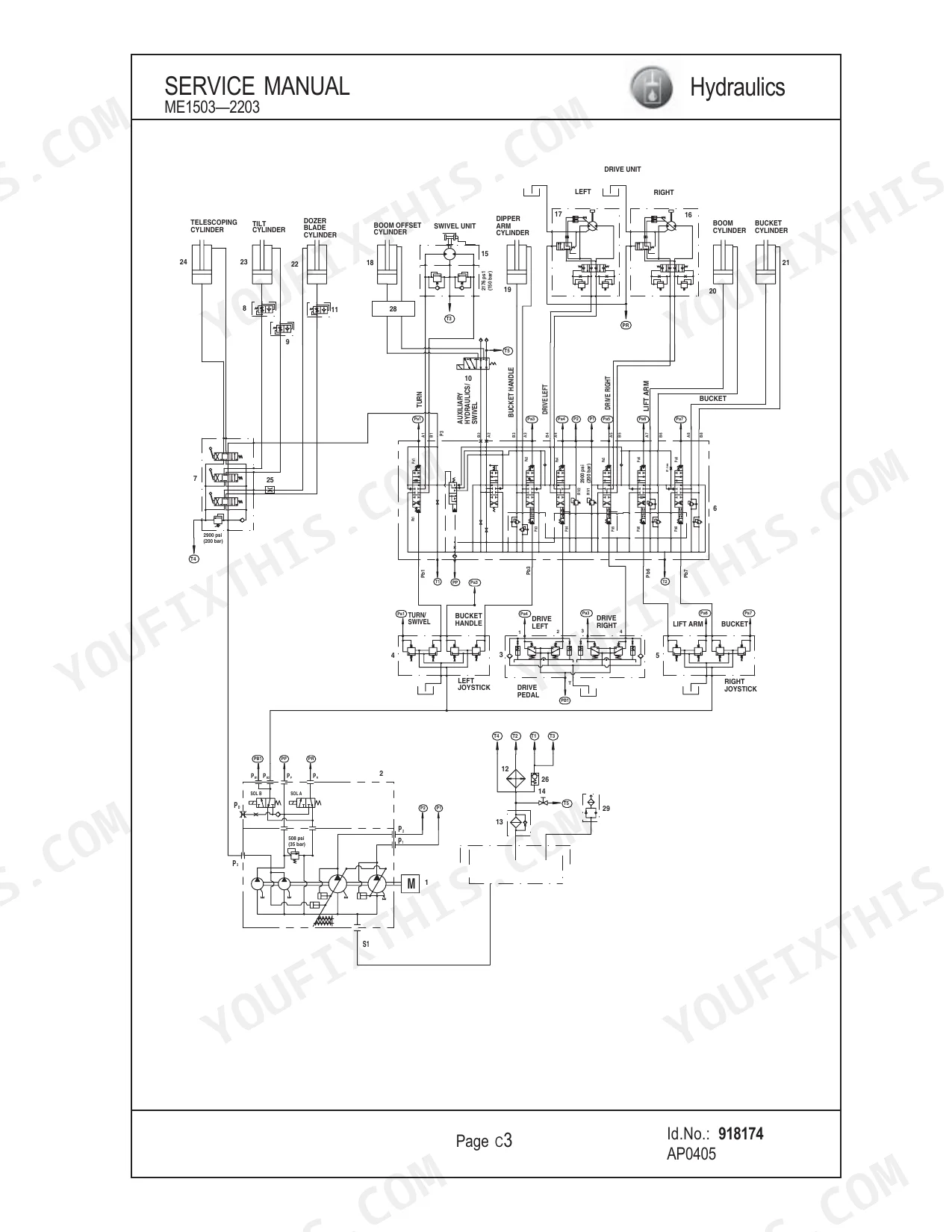

| Hydraulics | 52-97 | Hydraulic Diagram, Hydraulic Pump, Pilot Oil Supply Unit, Main Valve Block, Dozer Blade Valve, Pilot Control Valves, Swivel Unit, Drive Unit |
| Diesel Engine | 98-101 | Diesel Engine Overall, Fuel Supply Line, Radiator (Position Diesel Engine Fan/Air Circulation Guide Cover, Pressing Fan, Sucking Fan) |

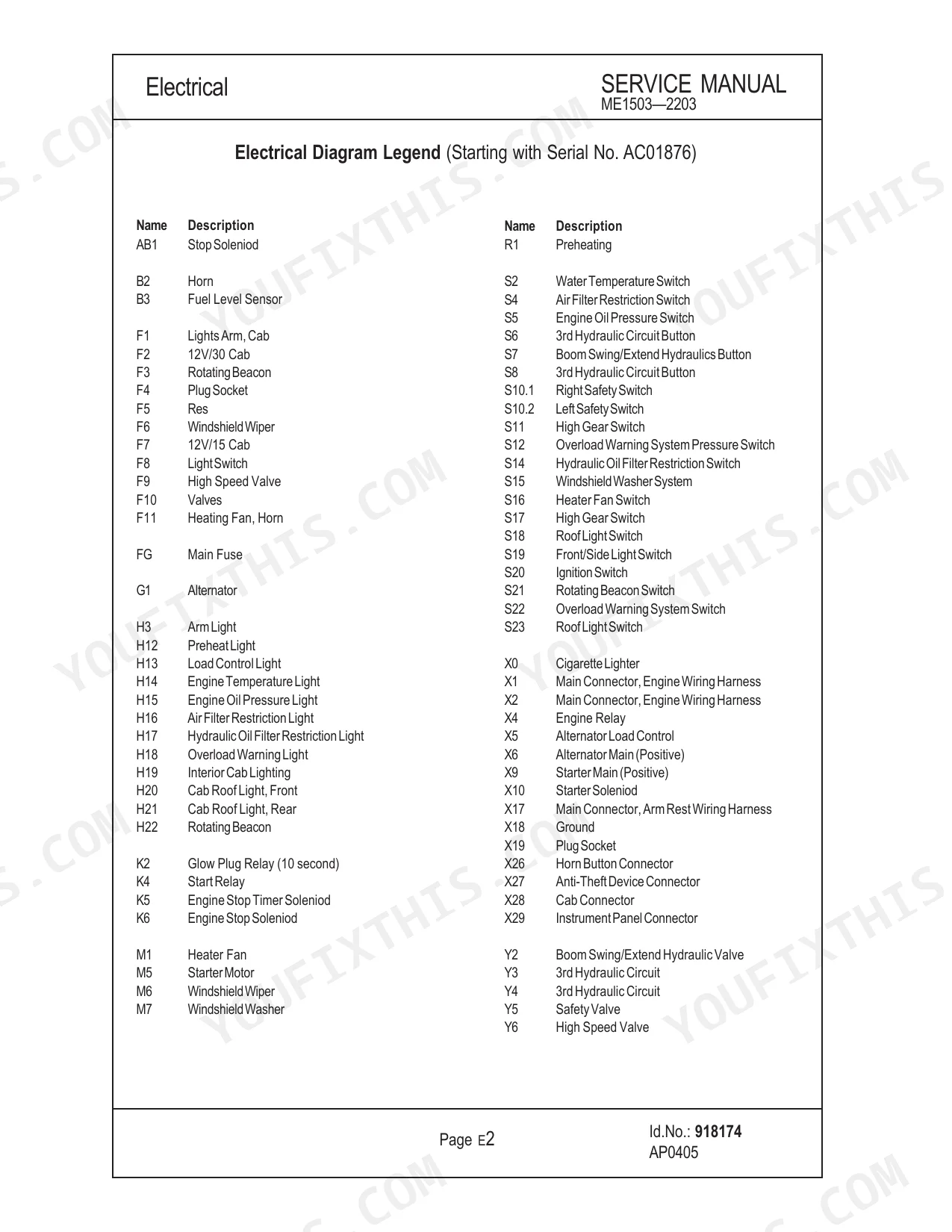

| Electrical | 102-111 | Electrical Diagram Legend, Cab Wiring, Diesel Engine Wiring, Chassis Wiring, Connection Cable Wiring, Relay Box, Relay Arrangement, Fuse Box |
| Operating Elements | 112-120 | Major Components, Cab Equipment and Controls, Instrument Panel, Towing the Compact Excavator, Lifting the Compact Excavator, Tilting the Superstructure, Undercarriage Telescoping |

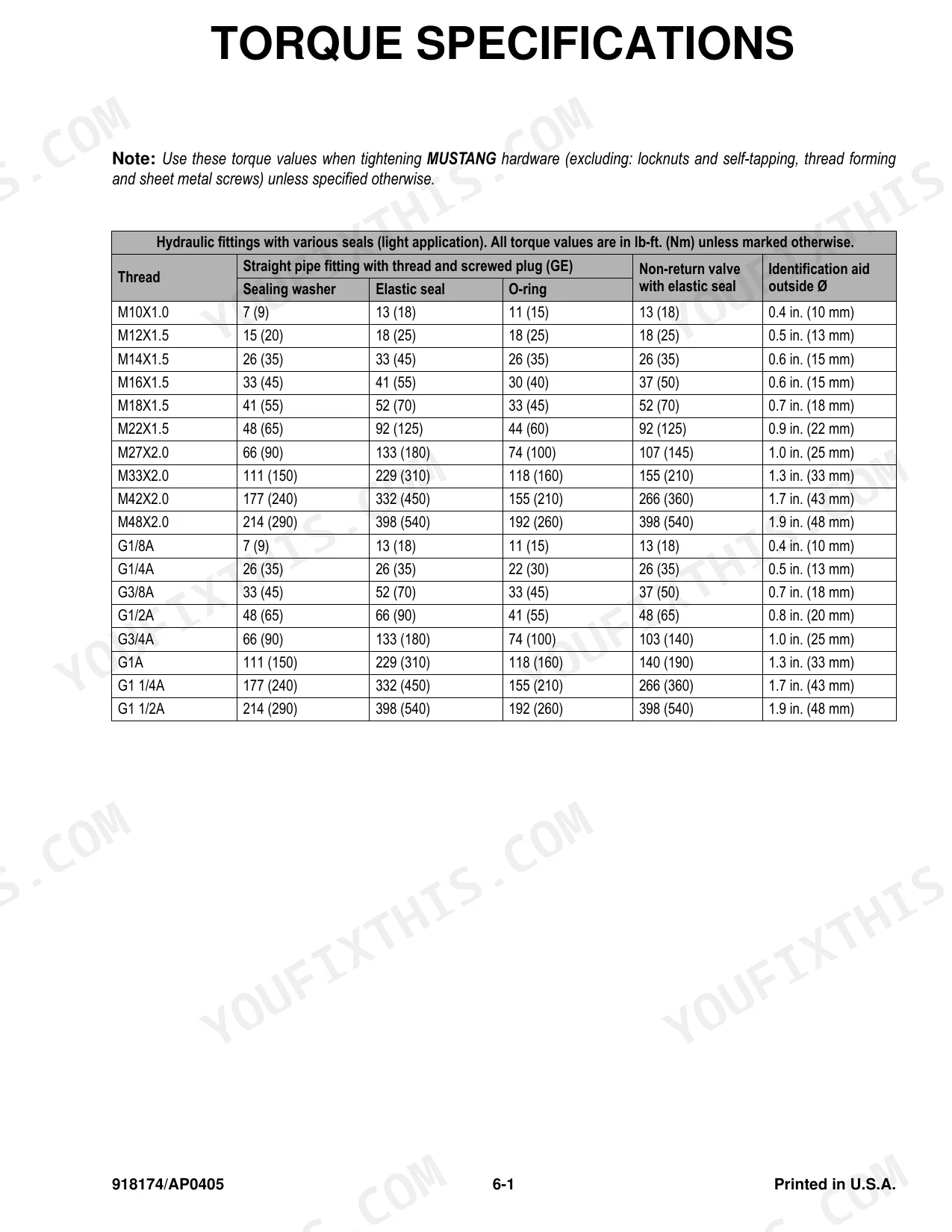

| Torque Specifications | 121-124 | Hydraulic Fittings with Various Seals (Straight Pipe Fitting with Thread and Screwed Plug, Non-Return Valve with Elastic Seal, Identification Aid Outside Ø) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Turntable M12 x 10.9 torque | 88.5 lb-ft. (120 Nm) | p. 31 |
| Hydraulic Filter Insert First Replacement Interval | Every 50 h (weekly) | p. 36 |
| Fuel Filter Replacement Interval | Every 500 h (12 months) | p. 35 |
| Metric hose joints (Light Version DKOL) DN 05 RA 6L M12 x 1.5 torque | 11 lb-ft. (15 Nm) | p. 28 |
| Track Tension Deflection | 0.6—0.8” (15—20 mm) | p. 50 |
| Track Roller M10 x 10.9 torque | 47.2 lb-ft. (64 Nm) | p. 31 |
| Main Pressure Limiting Valve, Pump P1, P2 setting | 2900 ±44 psi (200 ±3 bar) | p. 20 |
| Hydraulic Oil Tank Capacity | 5.5 gal. (21 L) | p. 20 |
| ME1503—2203 | ||
| Hose Burst Protection Valve Clearance S (Dozer Blade Cylinder) | 0.028" (0.7 mm) | p. 22 |
| ME1503 | ||
| ME1503 Maximum Dump Height (Standard) | 8' 4-1/4" (2545 mm) | p. 10 |
| ME1903 | ||
| ME1903 Maximum Dump Height (Standard) | 9' 3/4" (2760 mm) | p. 11 |
| ME2203 | ||
| ME2203 Maximum Dump Height (Standard) | 9' 1-1/2" (2780 mm) | p. 11 |
Mustang ME1503, ME1903, ME2203 Common Problems This Manual Covers
Mustang ME1503 hydraulic output drops, boom lifts slow or won't reach full height p. 39
Check hydraulic oil level first; tank capacity is 5.5 gal. (21 L), and low fluid is the fastest path to cavitation noise. Run the pressure test procedure starting at page 39; pumps P1 and P2 should hold 2900 ±44 psi (200 ±3 bar). Replace the hydraulic filter insert per the page 36 interval (every 50 h) before condemning the pump.
Manual Section: HydraulicsEngine cranks but won't fire, or turns over slowly in cold weather p. 98
Inspect the fuel filter and drain the water separator first; the maintenance schedule at page 35 calls for replacement every 500 h (12 months). Verify the fuel shutoff valve is open and bleed air from the supply line per page 98. Check the relay box at page 108 and fuse arrangement at page 111 if the starter turns but won't fire.
Manual Section: Diesel EngineMachine pulls to one side during travel, one drive clearly weaker than the other p. 50
Verify pilot oil pressure is within spec; correct value is 435 psi (30 +2/-1 bar) per page 20. Check track tension on both sides at page 50; deflection should be 0.6-0.8 in. (15-20 mm). Equal tension with a persistent pull points to the drive unit gear oil level or a restriction in the travel circuit.
Manual Section: MaintenanceBoom or bucket cylinder drifts down under load, no visible external leak at rod seal p. 22
Examine rod seals and barrel fittings for weeping fluid before disassembly. For the dozer blade circuit, check hose burst protection valve clearance at page 22; spec is 0.028 in. (0.7 mm). Test main system pressure per the procedure starting at page 39; P1 and P2 must hold 2900 ±44 psi (200 ±3 bar) to rule out a relief valve bypass.
Manual Section: HydraulicsTrack sags or lifts off rollers, undercarriage vibrates and squeaks at travel speed p. 50
Measure track deflection at the midpoint between the front idler and rear sprocket; target is 0.6-0.8 in. (15-20 mm) per the procedure at page 50. Adjust grease in the tension cylinder until deflection is within spec. Inspect track roller mounting torque against the specification at page 31 if vibration continues after tensioning.
Manual Section: MaintenanceFrequently Asked Questions
What are the hydraulic pressure test procedures for a Mustang ME1503/ME1903/ME2203?

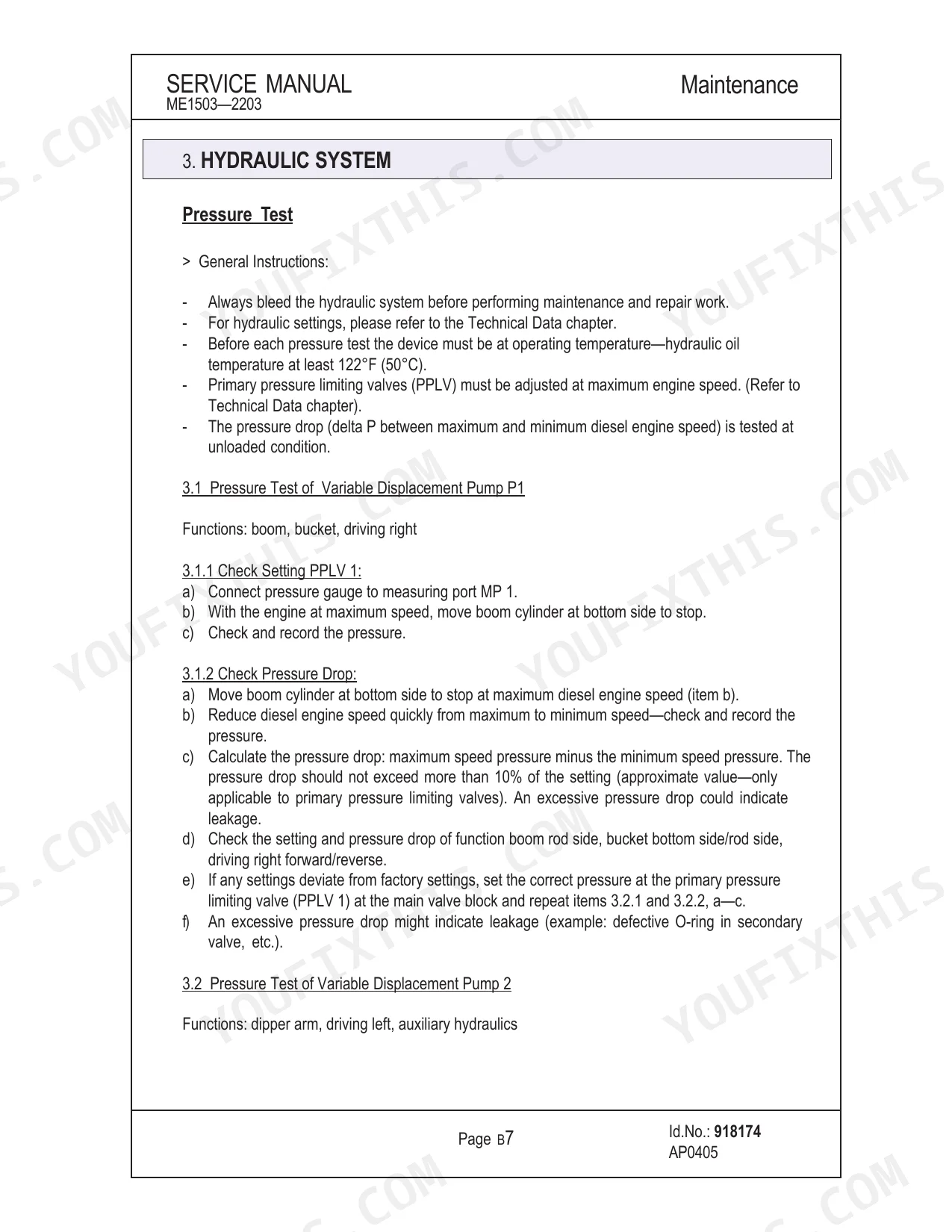

Connect a pressure gauge to the measuring ports (MP 1, MP 2, MP 3, MP 4) and actuate functions at maximum engine speed. For Variable Displacement Pump P1, test the main pressure limiting valve (PPLV 1) by moving the boom cylinder to stop; target is 2900 ±44 psi (200 ±3 bar). The pressure drop (delta P between maximum and minimum diesel engine speed) should not exceed 10% of the setting. Pages 39-40 lay out the procedures for P1, P2, P3, and pilot pressure (PRV 5).
What are the torque specs for track adjusters, swing bolts, and engine fasteners on a Mustang ME1503/ME1903/ME2203?
Torque values run by fastener: Cylinder Head Bolts (M8 x 1.25) at 28-31 lb-ft (38-42 Nm), (M9 x 1.25) at 44-48 lb-ft (60-65 Nm); Connecting Rod Bolts (M7 x 1.0) at 17-21 lb-ft (23-28 Nm); Flywheel Bolts (M10 x 1.25) at 60-65 lb-ft (82-88 Nm) for the ME1503 and 59-66 lb-ft (80-90 Nm) for the ME1903/ME2203. Turntable (swing) bolts (M12 x 10.9) take 88.5 lb-ft (120 Nm), and Track Roller bolts (M10 x 10.9) take 47.2 lb-ft (64 Nm).
How do I bleed the hydraulic system after service on a Mustang ME1503/ME1903/ME2203?
Shut down the device and open the breathing/bleeding filter. Next, open the bleeding hose stopper and drain a little hydraulic oil through the bleeding hose. Lift the hose slightly above the hydraulic pump level, drain a bit more, reseal it, and re-attach it at the rear wall of the engine compartment.
What are the replacement specifications for hydraulic filters?
Replace the hydraulic filter insert for the first time at 50 operating hours. After that, check and change it as needed at 250 hours (6 months), 500 hours (12 months), and 1000 hours (18 months).
What format is this Mustang ME1503, ME1903, ME2203 manual in?
Instant PDF download. The full 124-page searchable Service Manual lands in your hands right after payment. Open it on a laptop, tablet, or phone in the shop.
Can I print specific sections of this Mustang ME1503, ME1903, ME2203 manual?
None at all. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works.
Does this Mustang ME1503, ME1903, ME2203 manual have electrical diagrams?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
