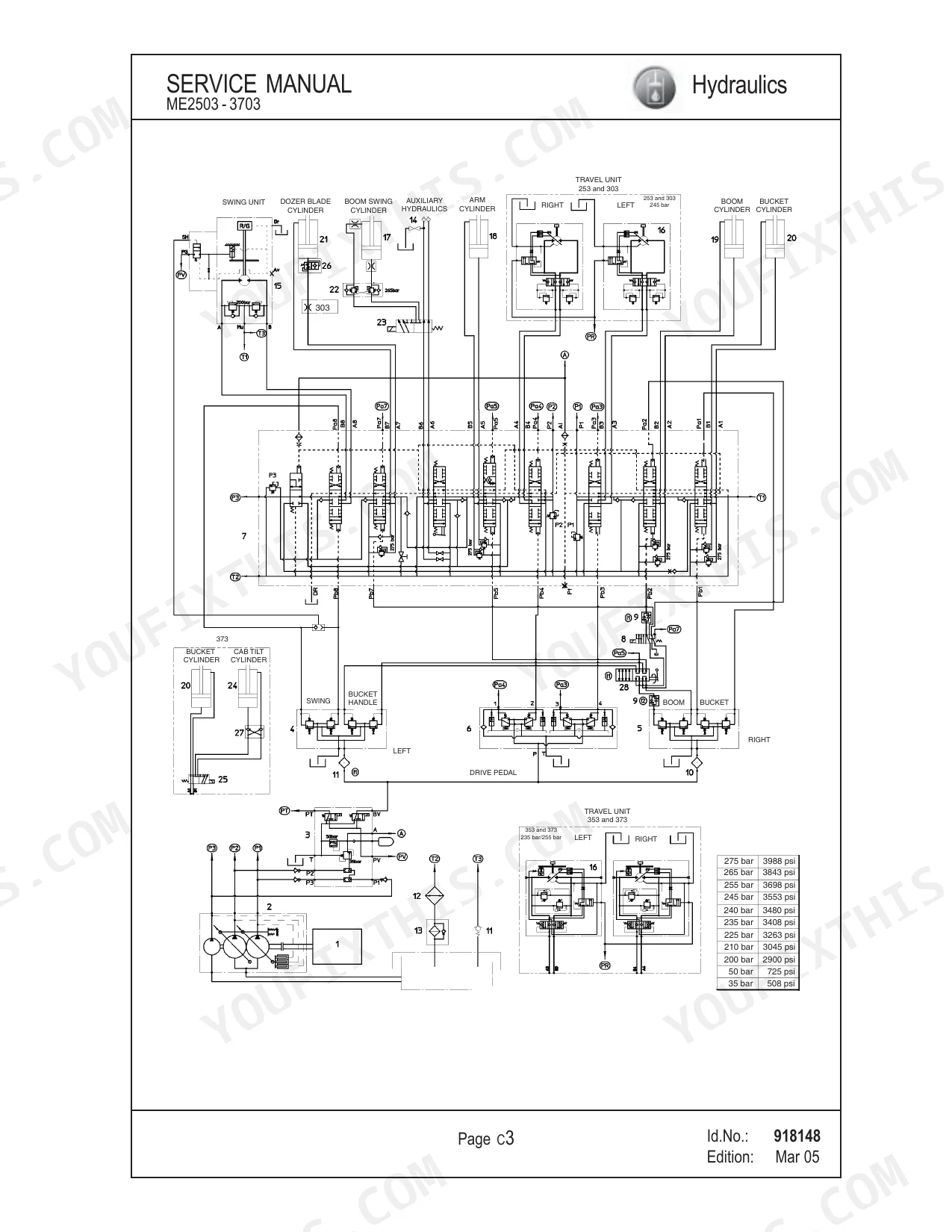

All 138 pages of this Mustang ME2503–ME3703 Series Service Manual (OEM #918149) target one thing: factory-level maintenance and repair for your Mustang compact excavator, covering all four models in the series. You get hydraulic schematics with complete fluid routing through the pilot oil supply unit, main valve block, and swivel joint, plus wiring diagrams for both Kubota and Yanmar diesel engine circuits, cab harness, chassis harness, and fuse box layout. Exploded views detail every major assembly, and the torque section spans metric hose joints through undercarriage fasteners. Torque the turntable bolts to 220.5 lb-ft (299 Nm) and replace the air filter every 250 hours. Both specs are straight from the factory, not a forum post. Your machine is down. Bookmarked by section and keyword-searchable, open it on any device and get the right number before you touch another bolt.
What's Inside This Mustang ME2503–ME3703 Series Manual
| System | Pages | Key Topics |
|---|---|---|

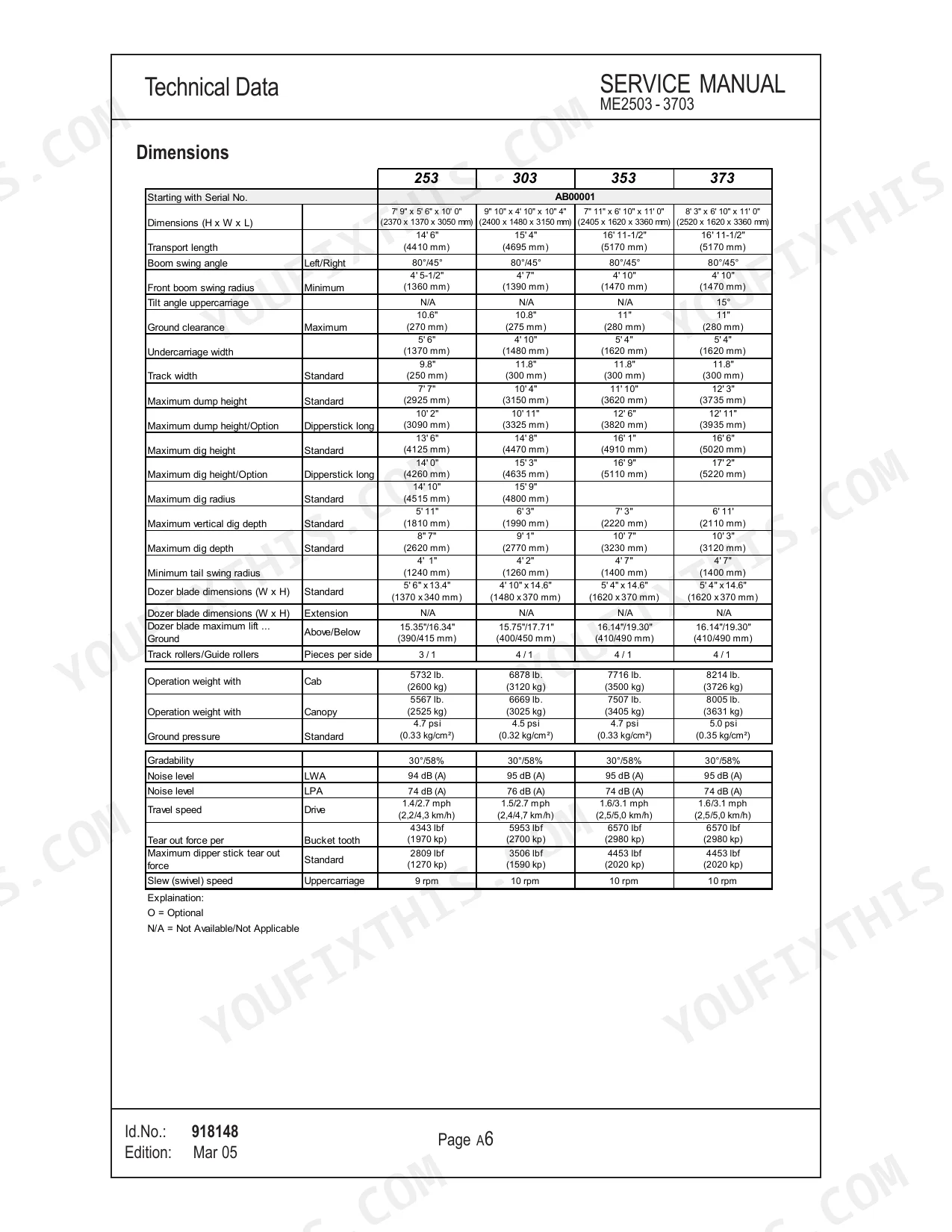

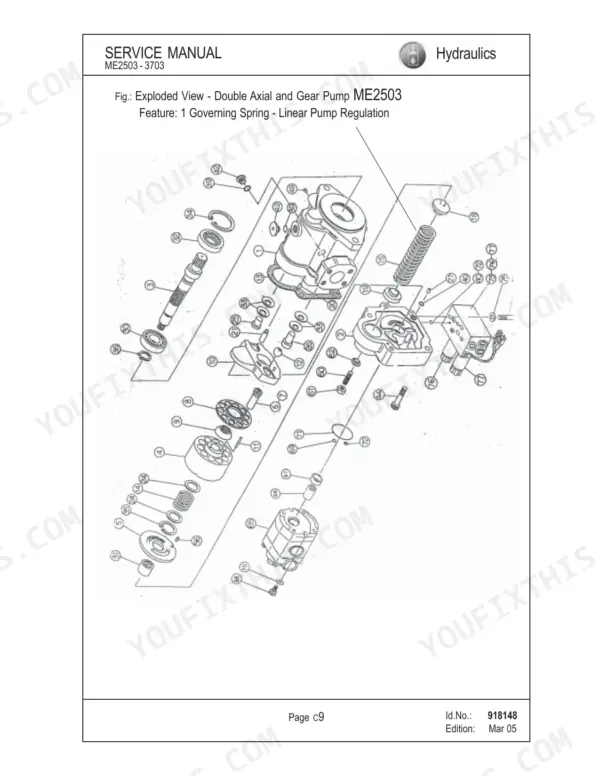

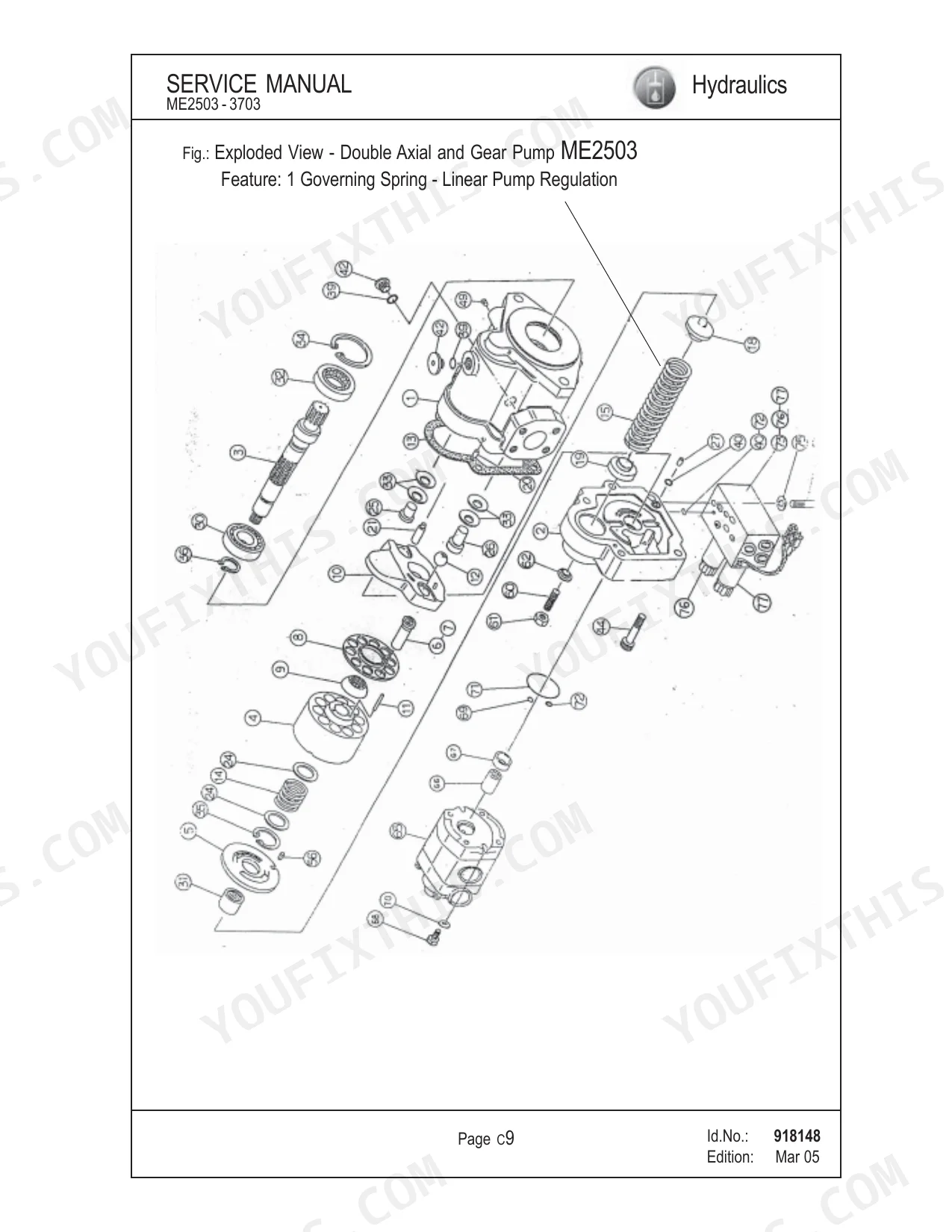

| Technical Data | 9-30 | Dimensions, Bucket and Geometry, Lift Capacities, Hydraulic System, Tighten Torques |
| Maintenance | 31-50 | Maintenance Schedule, Lubricants, Hydraulic System, Auxiliary Hydraulics, Hydraulic Pump, Hose Burst Protection Valve, Drive Unit, Swivel Unit |
| Hydraulic Component Location | 52-55 | Hydraulic System |
| Hydraulic Pump | 56-60 | - |
| Pilot Oil Supply Unit | 61-65 | - |
| Main Valve Block | 66-81 | - |
| Swivel Unit | 82-91 | Pilot Control Valves |
| Drive Unit | 92-101 | - |
| Switch Valves | 102-107 | Swivel Joint |

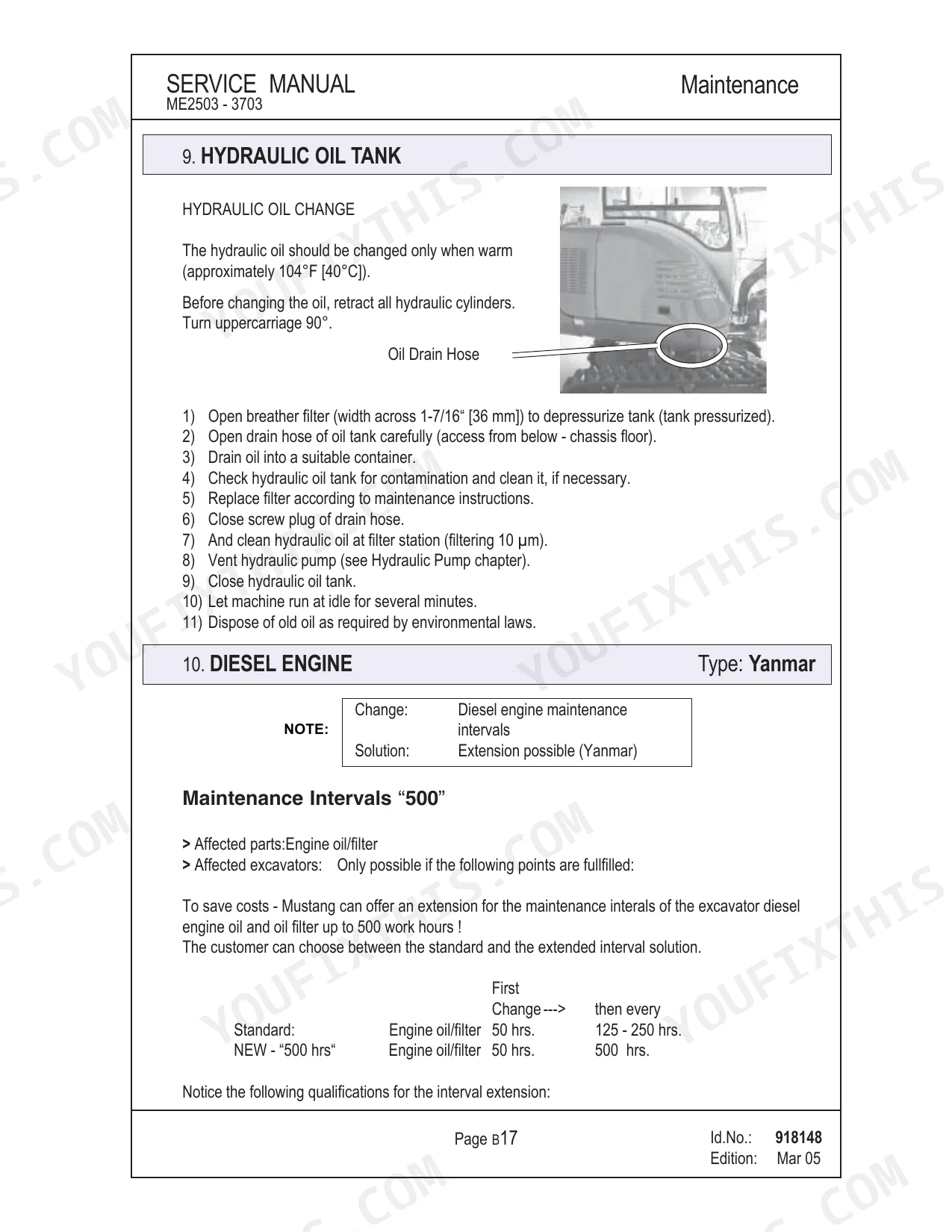

| Hydraulic Oil Tank | 108 | - |
| Diesel Engine | 109-112 | Diesel Engine Overall, Alternator, Starter, Water Cooler |

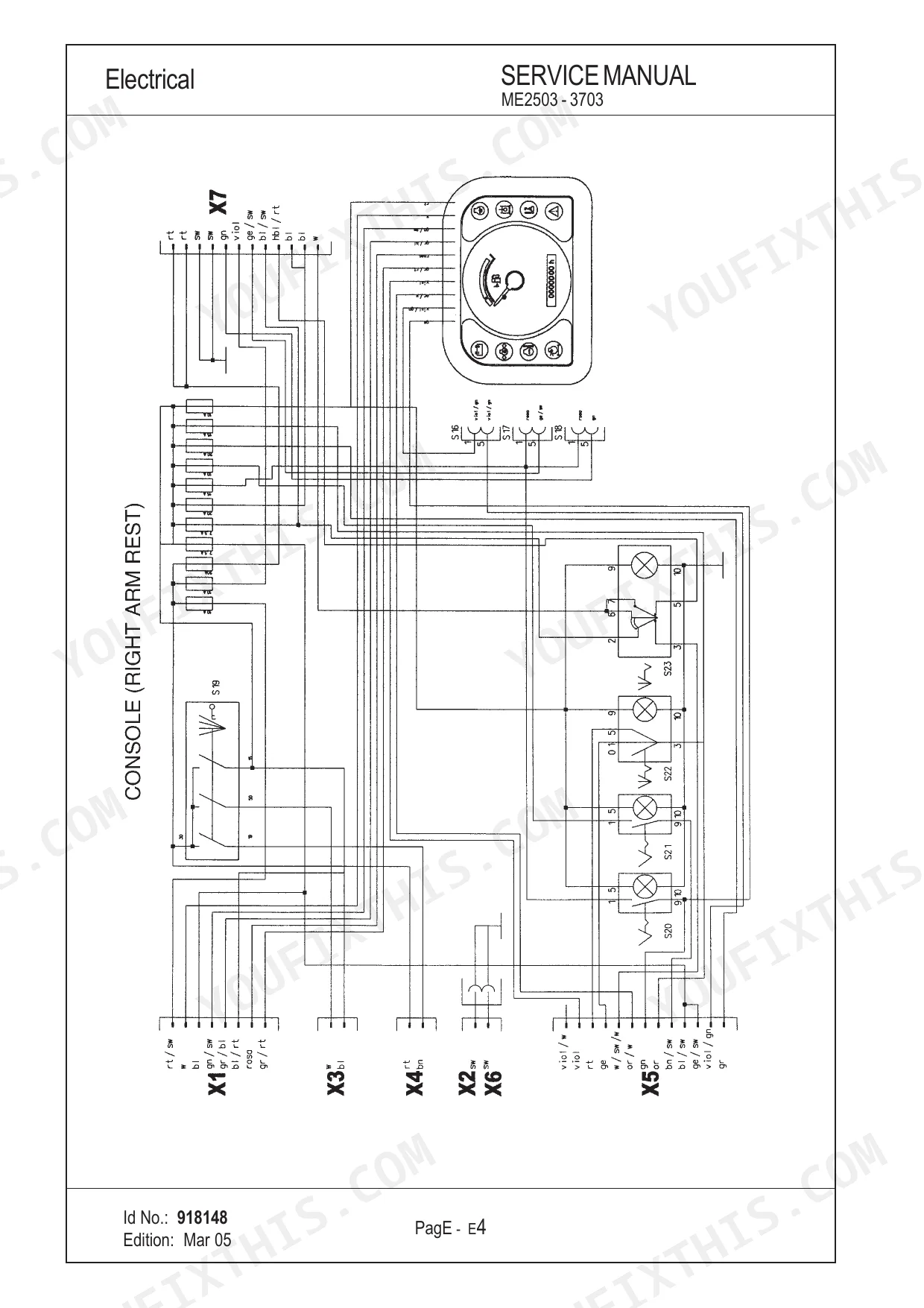

| Electrical | 113-124 | Diagram for Kubota Diesel Engine Starting at Serial No. AB00001 (Name Description), Abbreviation Color, Console Right Arm Rest Electrical Diagram |
| Operation Elements | 125-132 | Major Components, Cab Equipment and Controls, Instrument Panel Functions, Hydraulic Connections for Additional Attachments, Brakes and Swivel Lock Mechanism |

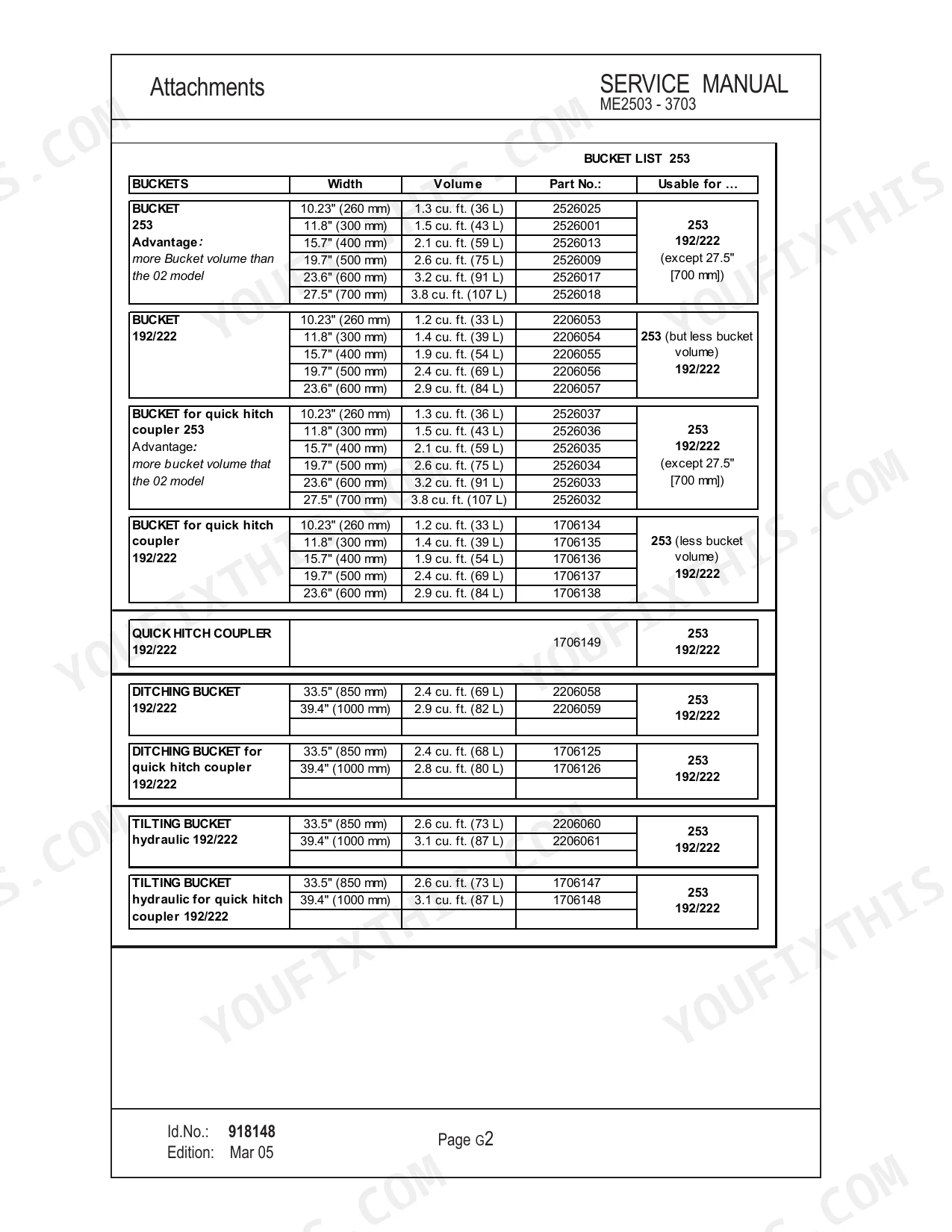

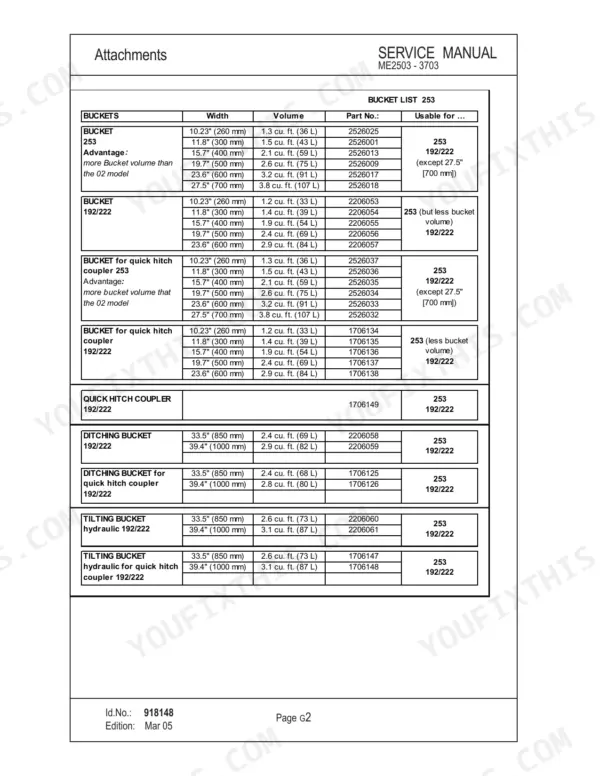

| Attachment | 133-138 | Bucket List 253, Bucket List 303/353/373, Notice (Gehl: 253 Usability, 303/353/373 Usability), Company Information |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| ME3503 | ||
| Turntable torque | 220.5 lb-ft. (299 Nm) | p. 30 |
| Track Roller torque | 132.8 lb-ft. (180 Nm) | p. 30 |
| ME3503, ME3703 | ||
| Hose burst protection valve clearance 'S' | 0.039" (1,0 mm) | p. 22 |
| All Models | ||

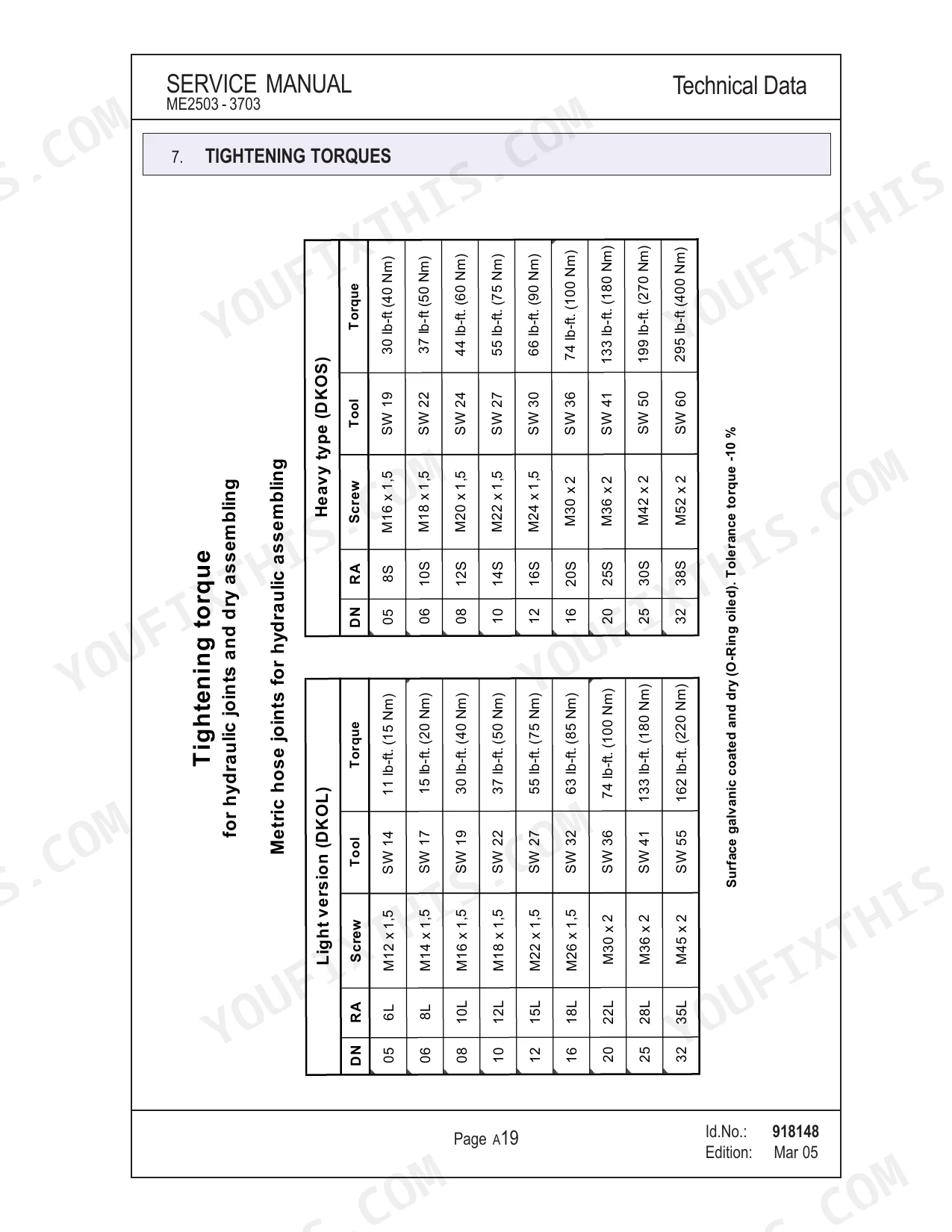

| Metric hose joints (DN 05 RA 6L M12 x 1,5 SW 14) torque | 11 lb-ft. (15 Nm) | p. 27 |
| Air filter replacement interval | every 250h (6 months) or 1000h (18 months) | p. 32 |
| Engine oil filter replacement interval | every 50h (weekly) or 250h (6 months) or 1000h (18 months) | p. 32 |
| Heating seals check interval | every 50h (weekly) | p. 34 |
| Battery capacity (Kubota engine) | 12 / 70 V / Ah | p. 23 |
| Hydraulic oil operating temperature for pressure test | at least 104°F (40°C) | p. 37 |
| Auxiliary hydraulic piston operation | must be operated fully in both directions | p. 44 |
| Kubota engine thermostat opening temperature | 157—163°F (69,5—72,5°C) | p. 23 |
| ME2503, ME3003 | ||
| Battery capacity (Yanmar engine) | 12 volts / 71 amps | p. 25 |
Mustang ME2503–ME3703 Series Common Problems This Manual Covers
Mustang ME2503 engine cranks slowly or refuses to start completely during cold morning operation. p. 23
Inspect the battery connections and verify the Kubota engine battery capacity meets the 12 / 70 V / Ah specification listed on page 23. Test the starter circuit voltage drop. Remove and clean the ground terminals before attempting to jump start.
Manual Section: Technical DataBoom and bucket functions are extremely slow or lack digging power under normal load. p. 37
Warm the hydraulic fluid to at least 104°F (40°C) before conducting pressure tests as detailed on page 37. Check the main pump pressure output. Drain the reservoir and refill the system to its full 7.1 gal (27 L) capacity.
Manual Section: HydraulicsEngine temperature gauge spikes rapidly into the red zone after only brief periods of operation. p. 32
Clean the radiator and cooler fins according to the 50h (weekly) interval maintenance schedule found on page 32. Verify the coolant level is full and inspect the hoses for leaks or collapse. Test the thermostat opening temperature in a hot water bath.
Manual Section: MaintenanceTrack pops off the front idler or the machine pulls heavily to one side. p. 50
Clean the undercarriage completely and measure the sag in the center of the track. Adjust the grease cylinder to achieve a track deflection clearance of 0.6 to 0.8 inches (15 to 20 mm) as shown on page 50. Inspect the lower rollers for excessive wear.
Manual Section: MaintenanceTilt cylinder drifts down rapidly and completely fails to hold its set position. p. 107
Install a release hose and check valve to connect the pressure line directly to the tank as detailed on page 107. Verify the hose burst protection valve clearance is set to 0.039 inches (1.0 mm). Monitor the switch valve for internal bypass.
Manual Section: HydraulicsFrequently Asked Questions
What are the torque specs for the track motor on a Mustang ME3503?
The tightening torque for the driving motor (track motor) on a Mustang ME3503 is 91 lb.-ft. (123 Nm) and should be glued in. This information is found in the Drive Unit section of the Hydraulics chapter.
How to check hydraulic pressure on a Mustang ME3703?
To check hydraulic pressure on a Mustang ME3703, you need to connect a pressure gauge to the respective measuring port (MP1, MP2, MP3, or MP4) for the specific pump or pilot control you want to test. For example, for Pump P1, connect to MP1, move the bucket cylinder to stop, and then check/adjust the pressure at the pressure reducing valve (PRV 1) at the main valve block. Ensure the hydraulic oil temperature is at least 104°F (40°C) before testing.
Mustang ME3503 torque specs
The Mustang ME3503 has various torque specifications depending on the component. General tightening torques for hydraulic joints, dry assembling, hydraulic screw joints, and high-quality screws can be found on pages A19-A22. Specific examples include the driving motor at 91 lb.-ft. (123 Nm) (page C42), cab bolts at 10.9 - 89 lb-ft. (120 Nm) (page B19), and swivel unit components like the M42x1,5 round nut at 553—627 lb.-ft. (750—850 Nm) (page C41).
What are the replacement specifications for filters?
For Yanmar engines, only original equipment filters with Item No.: 2525409 are accepted for engine oil filters, especially when extending maintenance intervals up to 500 hours. The maintenance schedule on page B2 provides general replacement intervals for air, oil, and fuel filters.
What do I get after purchasing this Mustang ME2503–ME3703 Series manual?
A 138-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone — no shipping wait.
Can I print specific sections of this Mustang ME2503–ME3703 Series manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are electrical wiring diagrams included in this Mustang ME2503–ME3703 Series?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a high-quality scanned PDF with an accurate OCR text layer, allowing you to search and copy the full text. All text throughout the manual is crisp and easy to read, with no blurriness or fading. Diagrams and illustrations are a mix of clear raster images and sharp line drawings, and all labels are perfectly readable. The pages are clean and free from scan artifacts, stains, marks, or skewed content. There are a few blank pages present, which appear to be intentional filler pages.
