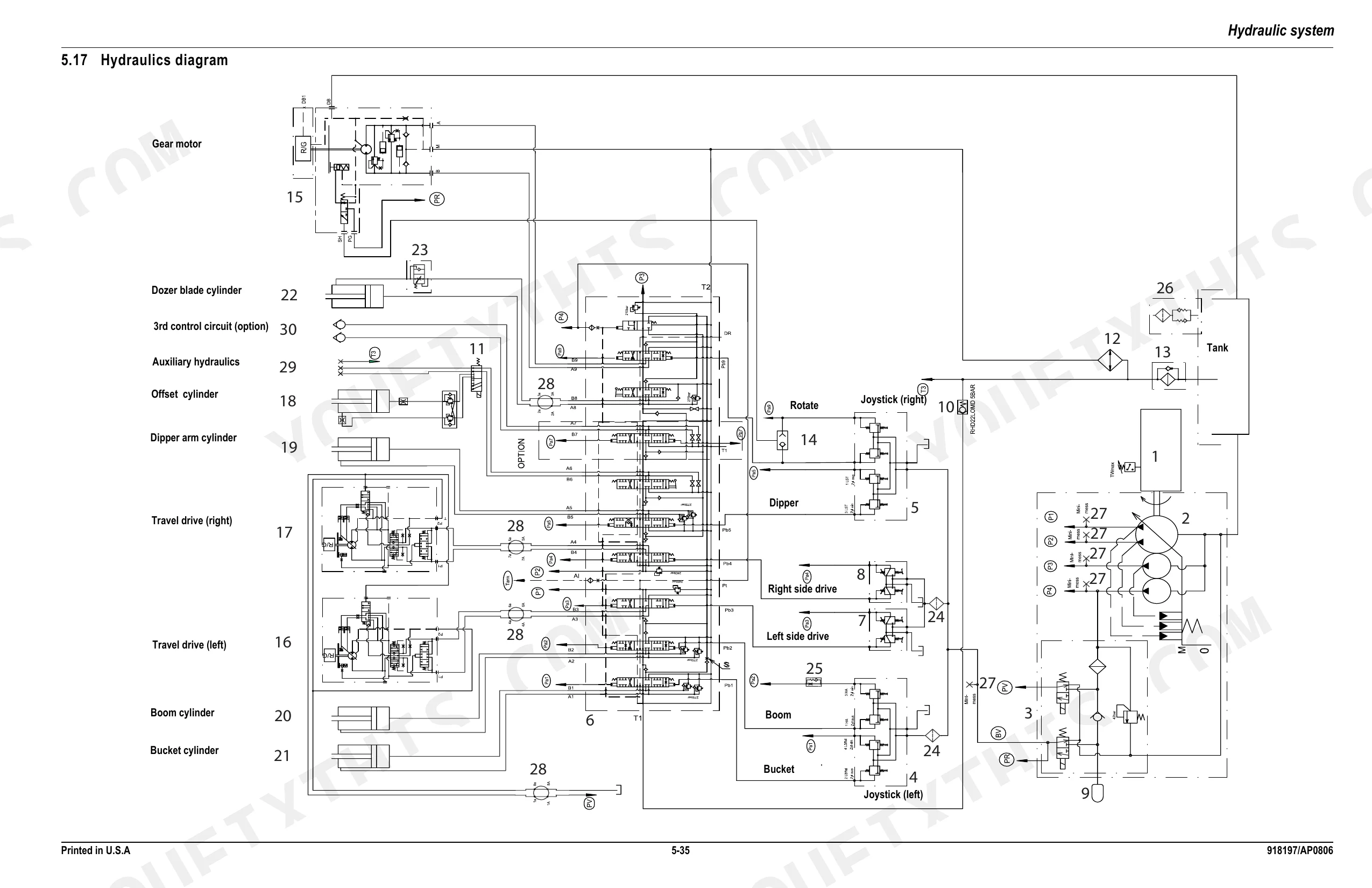

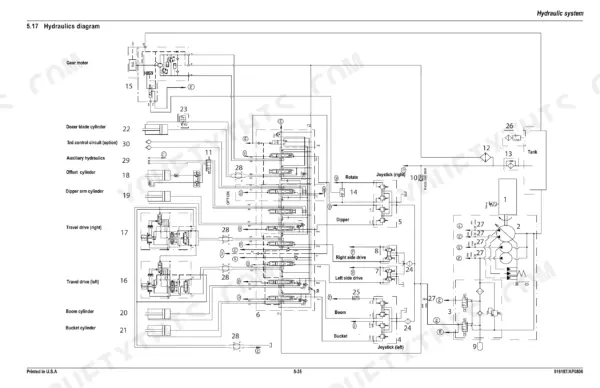

Need the OEM service data for your 2006 Mustang ME3803ZT compact excavator? This manual (OEM #918207) runs 174 pages of factory-spec procedures for the 3TNV88-PNS engine, hydraulic pump assembly, and the full electrical system. It carries wiring diagrams for the cab, engine, and roof harnesses, each with its own legend; hydraulic schematics that trace main valve block routing; plus troubleshooting charts, fault codes, and torque tables for the whole machine. Torque the live ring to 133 lb.-ft. (180 Nm) and stick to the factory six-year hydraulic hose replacement schedule. Your machine is down, so work from real numbers instead of forum guesses. Everything is bookmarked by system and searchable by keyword: open it on a tablet, pull the spec, and get back to digging.
What's Inside This Mustang ME3803ZT Manual

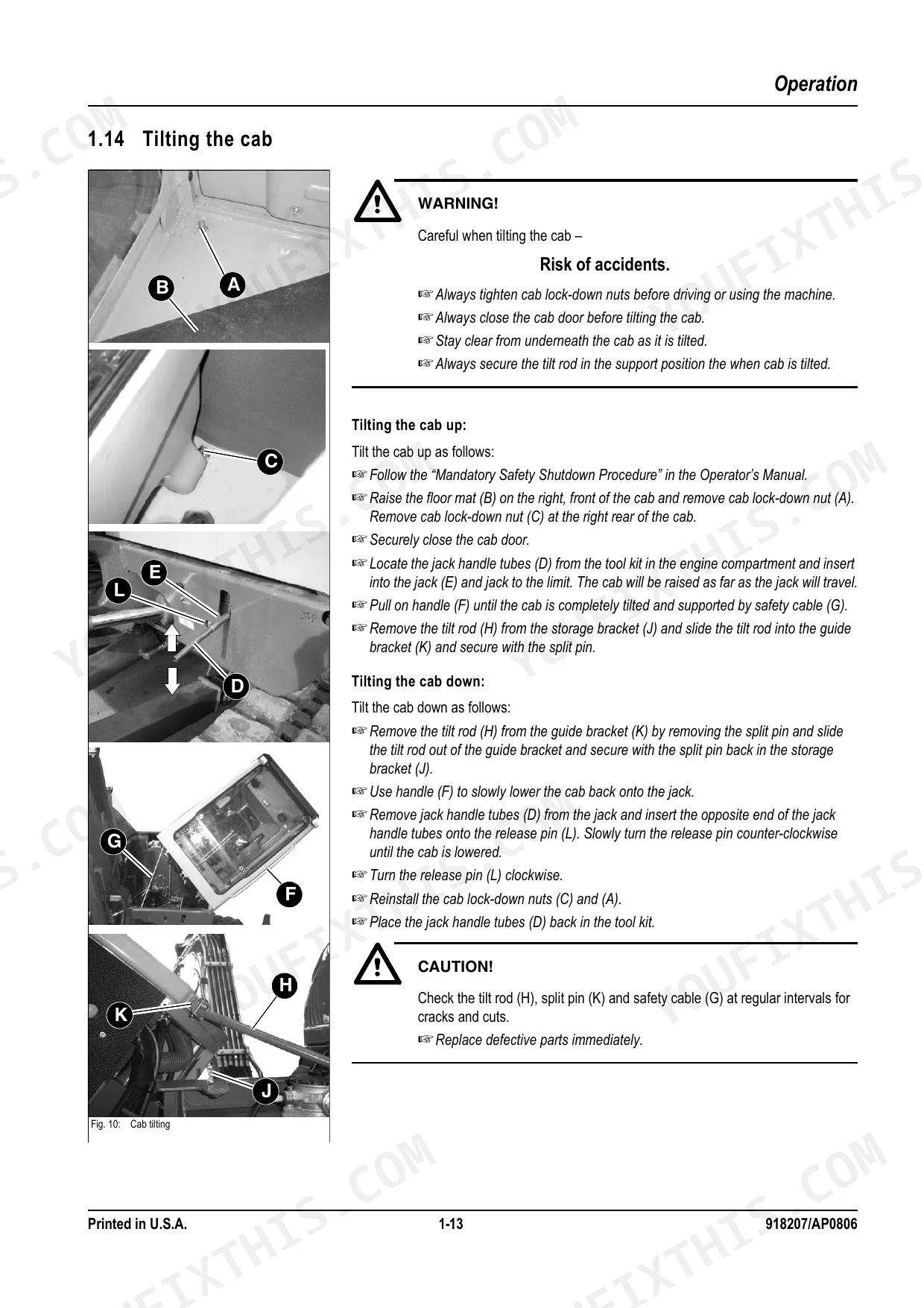

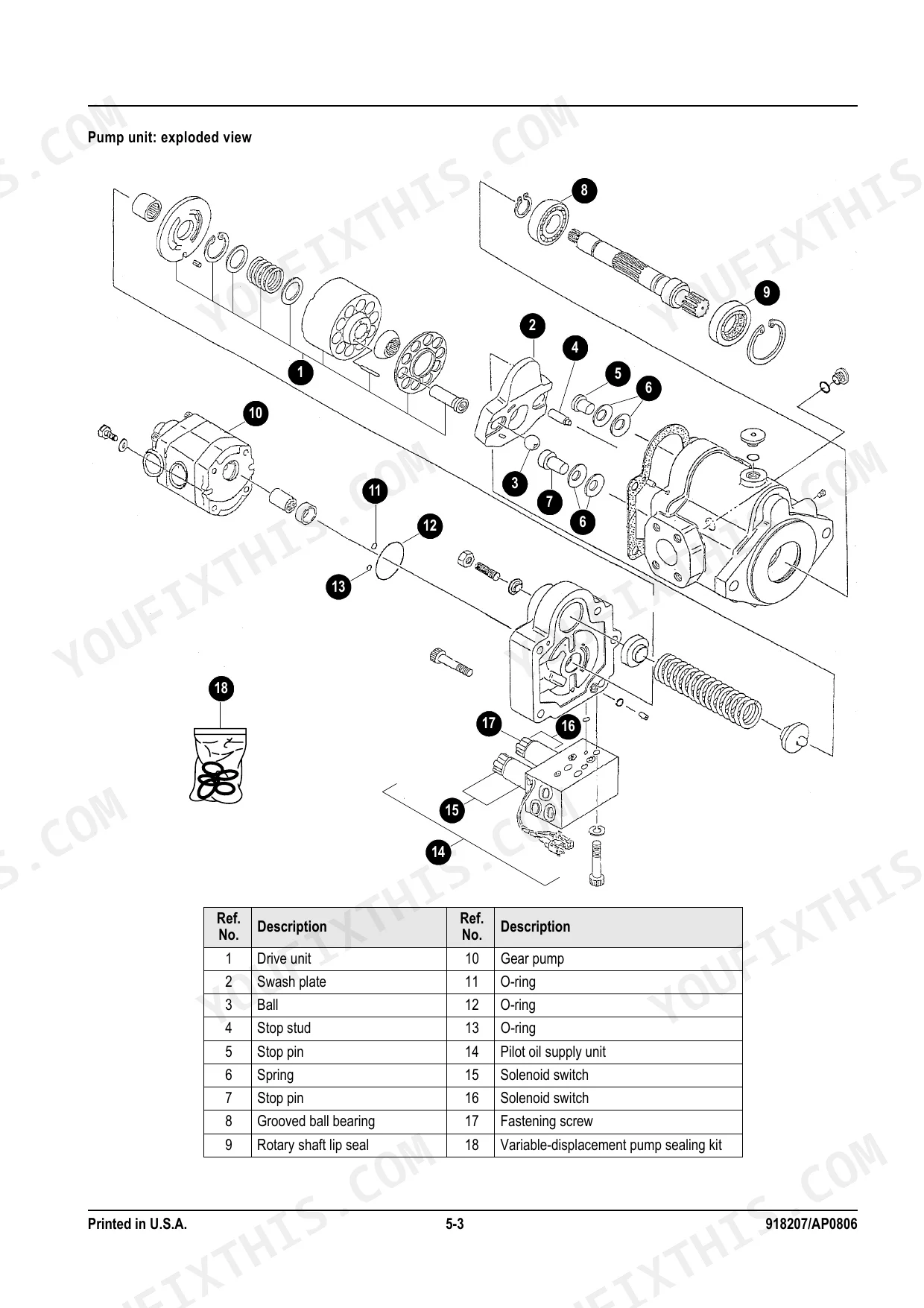

| System | Pages | Key Topics |
|---|---|---|
| 1 Operation | 9-22 | 1.1 General Information, 1.2 Serial Number Location, 1.3 Designated Uses and Exemption From Liability, 1.4 Abbreviations/symbols, 1.5 Identification of Warnings and Dangers |
| 2 Specifications | 23-38 | 2.1 Chassis, 2.2 Engine, 2.3 Hydraulic System, 2.4 Undercarriage and Swivel Unit, 2.5 Dozer Blade, 2.6 Electrical System, 2.7 Noise Levels, 2.8 Coolant Compound Table |
| 3 Maintenance | 39-90 | 3.1 Fluids and Lubricants, 3.2 Maintenance Label, 3.3 Maintenance Schedule, 3.4 Service Packages, 3.5 Introduction, 3.6 Fuel System, 3.7 Engine Lubrication System |
| 4 Engine | 91-104 | 4.1 3TNV88-Pns Engine: Overview, 4.2 Fuel System, 4.3 Checking and Adjusting Valve Tip Clearance, 4.4 Order for loosening/tightening Cylinder Head Bolts |
| 5 Hydraulic System | 105-140 | 5.1 Hydraulic Pump Pvd-2B44BP-16G5-4713F, 5.2 Main Valve Block, 5.3 Drive Counterbalancing System, 5.4 Regeneration - Dipper Arm Section, 5.5 Bucket Pre-Tension |
| 6 Electrical System | 141-154 | 6.1 Ohm's Law (Current, Voltage, Resistance); Power, 6.2 Measuring Equipment and Methods, 6.3 Cable Color Coding, 6.4 Relays, 6.5 Electrical Units, 6.6 Fuse Box in Instrument Panel |
| 7 Options | 155-174 | 7.1 Air Conditioning, 7.2 Counterweight, 7.3 Short Dipper Arm, 7.4 Auxiliary Hydraulics Connections, 7.5 Proportional Controls |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

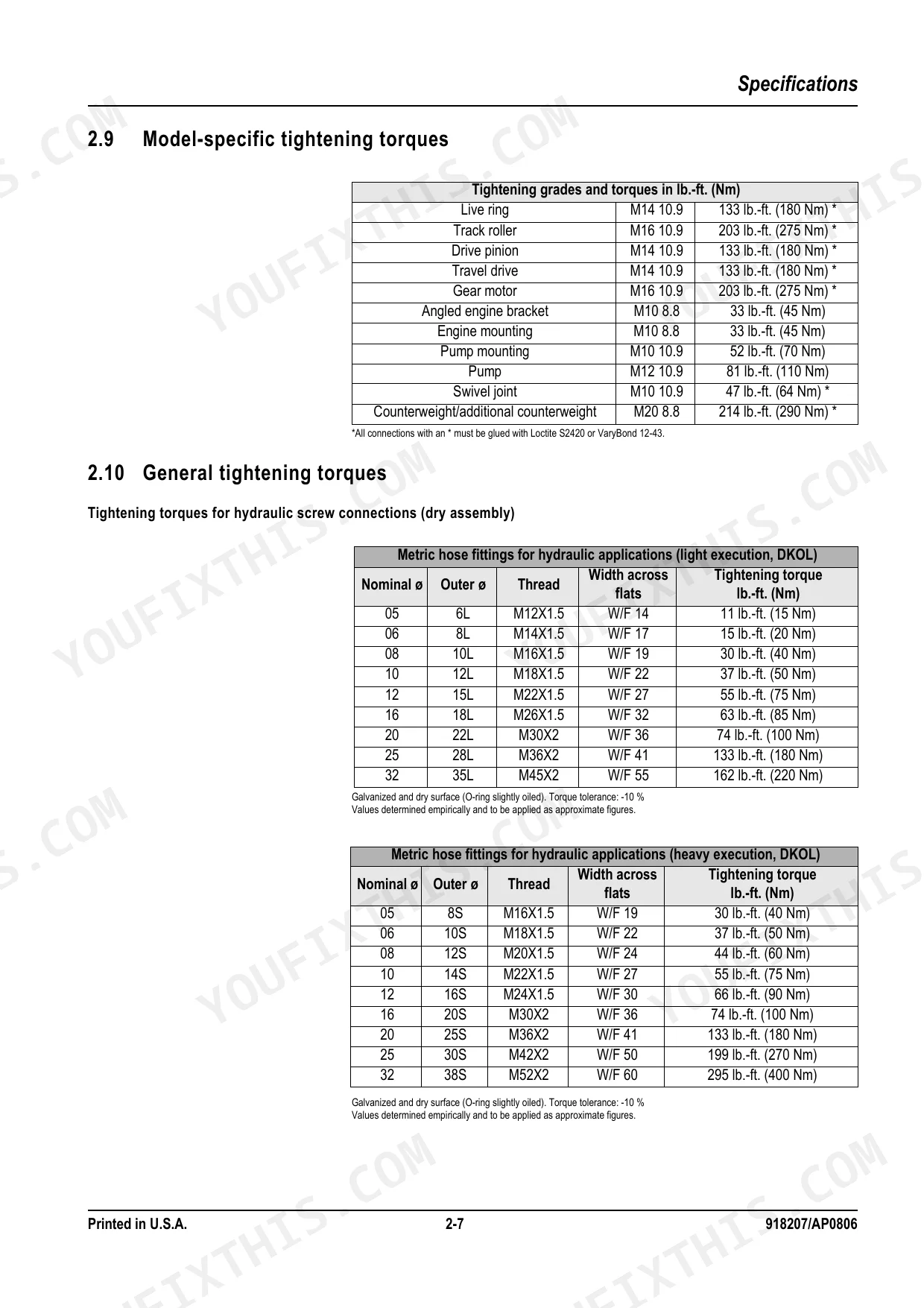

| Model-specific tightening torque for Live ring | 133 lb.-ft. (180 Nm) | p. 29 |
| Tightening torque for Metric hose fittings (light execution, DKOL) - Nominal ø 05 | 11 lb.-ft. (15 Nm) | p. 29 |
| Hydraulic hose replacement interval | every six years | p. 79 |
| Tightening torque for Metric hose fittings (light execution, DKOL) - Nominal ø 05, Outer ø 6L, Thread M12X1.5, Width across flats W/F 14 | 11 lb.-ft. (15 Nm) | p. 29 |
| Hydraulic seals replacement advice | Replace the hose or line if any of the following problems are detected. Damaged or leaking hydraulic seals. | p. 75 |
| Pin diameter (Kinematics) | 1-1/2" (40 mm) | p. 37 |
| Pin distance to bucket mount (Kinematics) | 7" (180 mm) | p. 37 |
| Number of track rollers on either side | 1/4 (top/bottom) | p. 26 |
| Tightening torque for Track roller | 203 lb.-ft. (275 Nm) | p. 29 |
| Cause of hydraulic power loss/overheating (Proportional controls) | Operating the hammer with characteristic Curve 1 does not ensure full throughput, which will cause power loss and system overheating. | p. 165 |
| Cause of hydraulic overheating (Auxiliary hydraulics flow rate adjustment) | Intermediate positions of the set screws cause the hydraulic oil to heat up | p. 116 |

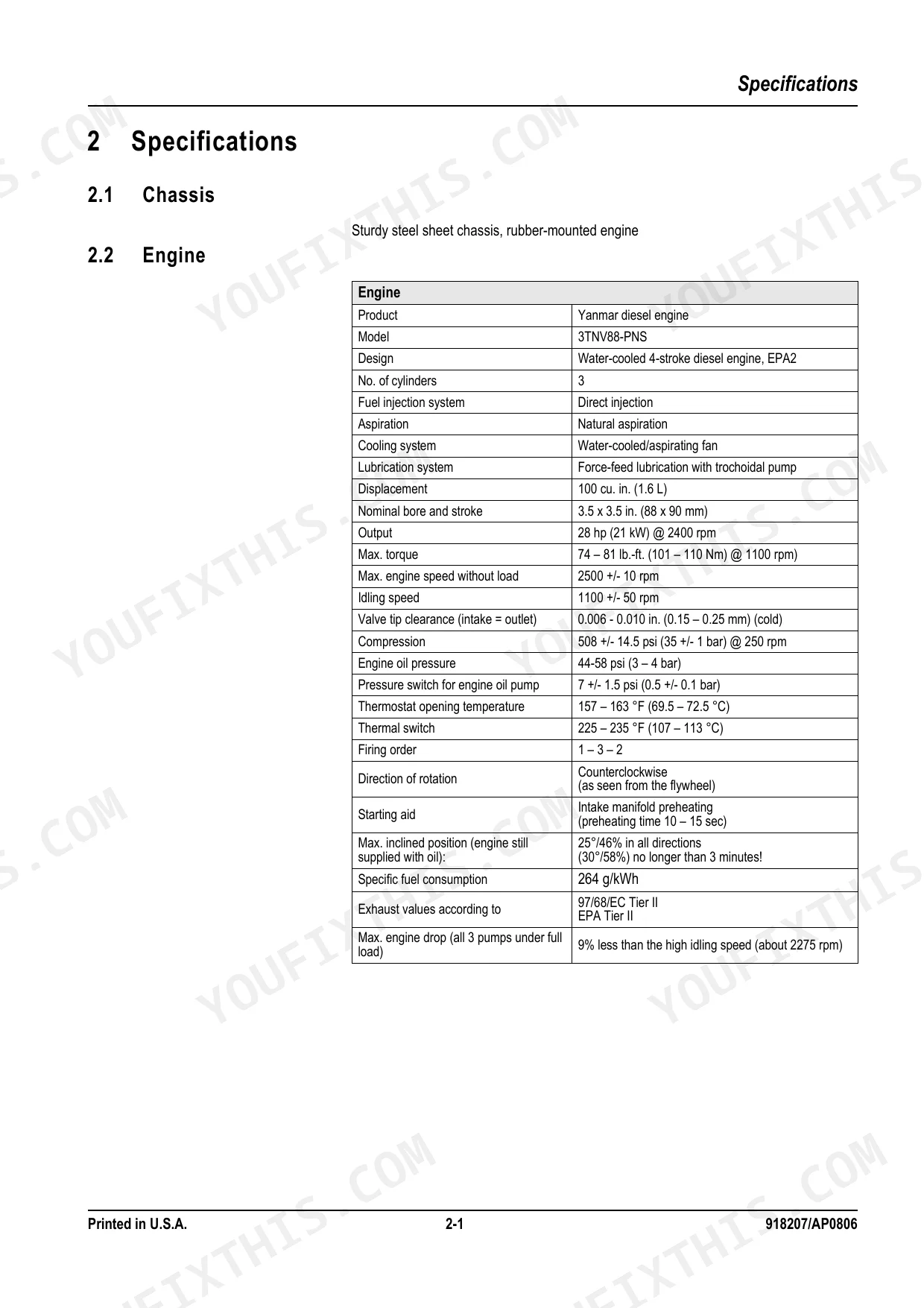

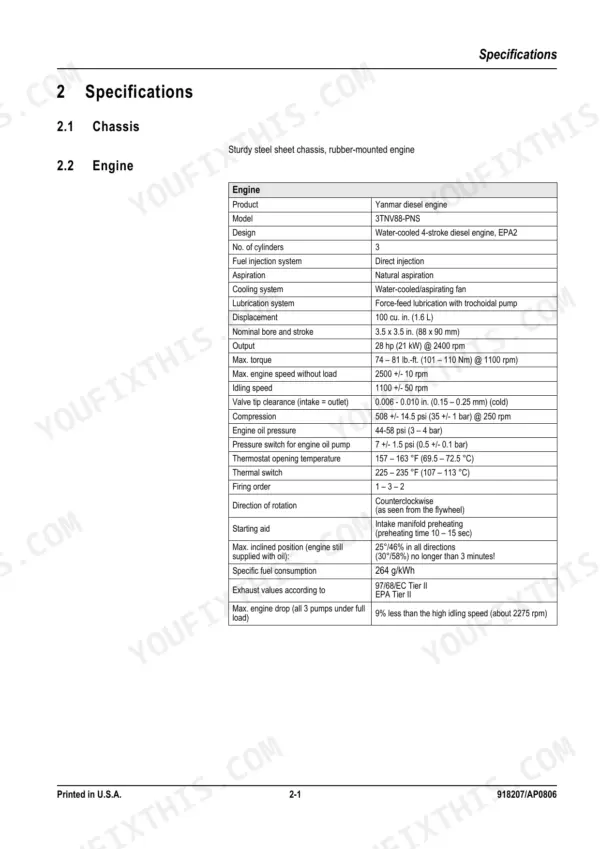

| Engine Output | 28 hp (21 kW) @ 2400 rpm | p. 23 |
Mustang ME3803ZT Common Problems This Manual Covers
Weak hydraulic pump output, with sluggish boom and digging response during operation p. 135
Check hydraulic oil level first; the troubleshooting chart on page 135 lists low fluid as the primary cause of system failure. Tank capacity is 11.8 gal. (45 L). If the level is correct, confirm the auxiliary flow set screws are fully seated or fully out: an intermediate position heats the oil and drops pressure system-wide. Then inspect hoses and seals against the replacement criteria on page 75 for visible leaks.
Manual Section: Hydraulic System TroubleshootingTracks derail or wear unevenly, travel locks in first speed only
Inspect track tension at the start of every shift per the maintenance schedule; both over-tight and slack tracks speed up roller and idler wear and cause derailing. When travel sticks in first speed only, the second-speed shift needs 2611 psi (180 bar) at the drive motor. Wash packed mud off the undercarriage after each shift to keep grit away from the rollers and idlers.
Manual Section: 3 MaintenanceBucket pins and linkage squealing or wearing faster than the service interval suggests
Grease all pivot pins, bucket linkage, and the swing bearing on the daily schedule. Measure pin diameter against the 1-1/2 in. (40 mm) spec on page 37; if clearance has opened past spec, replace the bushing before the bore elongates further. Work each fitting until clean grease shows at the joint, then stop.
Manual Section: 3 MaintenanceEngine stops mid-shift or won't restart after running the fuel tank dry
Bleed the fuel system per the procedure. Air locks after running dry or changing the filter are the usual cause of hard restarts on this engine. Top off the tank (capacity 11.6 gal. / 44 L) and give it about five minutes to bleed itself before cranking. Inspect the fuel filter and replace it on schedule to stop repeat air ingestion.

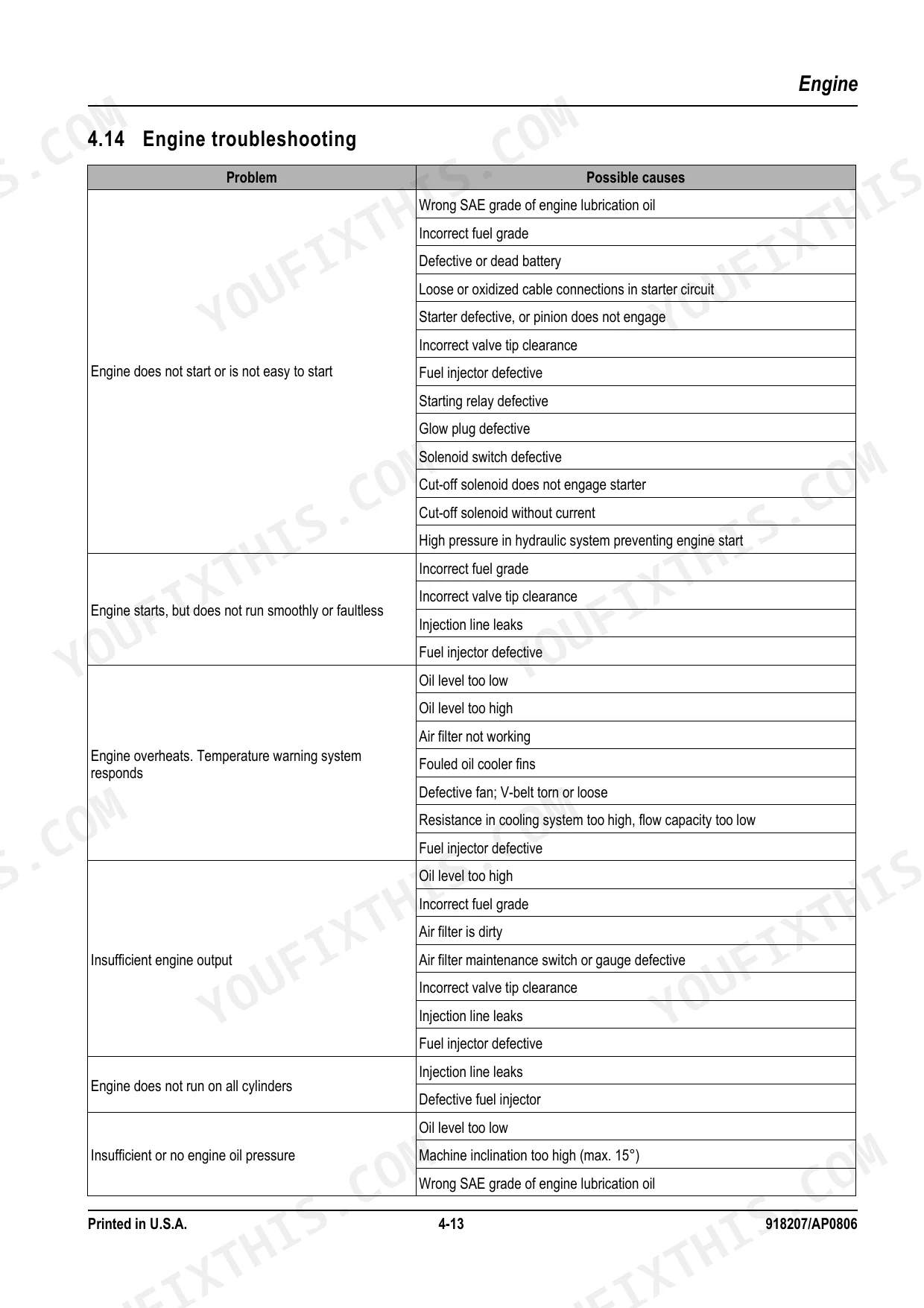

Manual Section: Fuel System BleedingEngine coolant temp climbs into the red, power drops under sustained digging load p. 103
Clear mud from the radiator and oil cooler faces before pulling any components. Compact machines pack the coolers tight together, and debris kills airflow fast. Verify coolant level and check every hose connection for leaks. Then work through the overheating steps in the engine troubleshooting section starting on page 103. The engine makes 28 hp (21 kW) at 2400 rpm, so sustained overload in heavy material spikes temps quickly.
Manual Section: Engine TroubleshootingFrequently Asked Questions
What are the torque specs for Mustang ME3803ZT engine fasteners?
The Mustang ME3803ZT engine fastener torques are: Cylinder-head bolt: 63 – 67 lb.-ft. (85.3 – 91.1 Nm) (M10x1.25); Connecting rod bearing screw: 33 – 40.5 lb.-ft. (45.0 – 55.0 Nm) (M9x1); Main bearing screw: 72.2 – 75.2 lb.-ft. (98.0 – 102.0 Nm) (M12x1.5); Flywheel screw: 63 – 66.3 lb.-ft. (85.0 – 90.0 Nm) (M10x1.25). For other model-specific torques, see page 2-9.
What error codes are common on Mustang ME3803ZT and how do I clear them?
Flashing codes on the control unit status display flag the faults: 'No error', 'overload, overtemp', 'open load', and 'Short circuit on earth'. A critical error shuts the system off automatically. To bring the control unit back, switch the power supply on and off repeatedly. For a detailed read on the output stage, activate the hammer operation input during system start.
How do I run a self-test or diagnostic mode on Mustang ME3803ZT?
For a detailed status of the output stage on channels no. 1 and 2, activate the hammer operation input during system start; with no errors, the display flashes only briefly. The manual also includes a 'Test report' section (pages 71-73) that walks through checking pilot control and hydraulic pump pressures, which doubles as a diagnostic mode.
How to reset Mustang ME3803ZT error codes
A critical error makes the system shut itself off. To bring the control unit back after that, cycle the power supply on and off repeatedly. This resets the unit and lets you keep working, provided the underlying fault has already been addressed.
Is this Mustang ME3803ZT Service Manual a digital download?
Yes. It's a 174-page searchable PDF ready to download right away. It opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Mustang ME3803ZT manual?
There are no restrictions: the PDF is DRM-free. Print whatever sections you want to carry out to the shop. Standard letter or A4 paper both work.

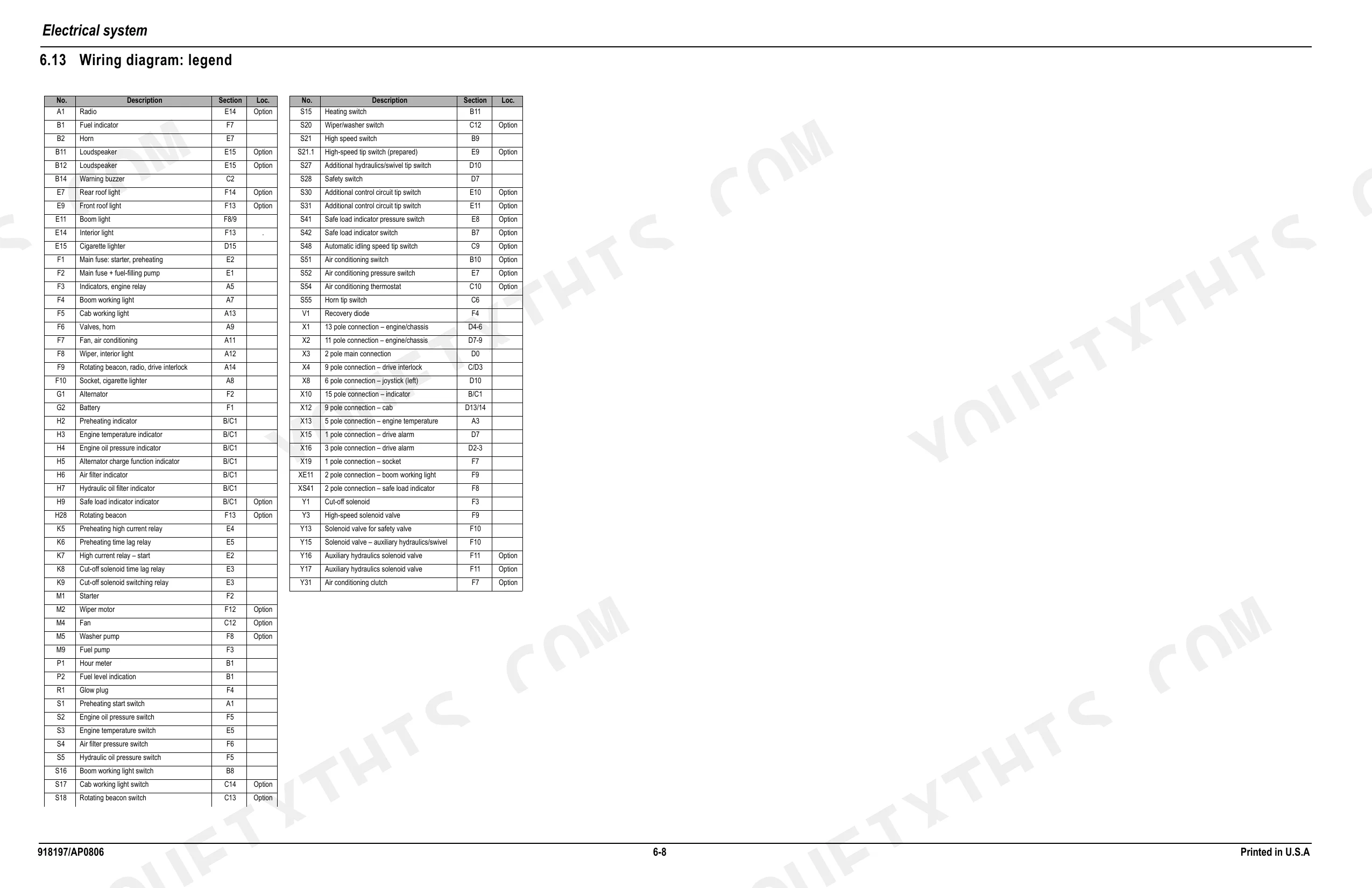

Can I find wiring schematics in this Mustang ME3803ZT manual?
It does. The manual carries the full electrical wiring diagrams, wire routing, and connector pinouts for the ME3803ZT.
Document Quality
This document is a high-quality scanned PDF, offering fully searchable and selectable text throughout, which is consistently crisp and easy to read. Diagrams and illustrations are a mix of sharp vector-like drawings and clear raster images, with all labels remaining perfectly legible. The pages are clean, free from any noticeable scan artifacts, stains, marks, or skewing, presenting a professional appearance. There are a few blank "Notes" pages interspersed, which serve as filler.
