Need the factory reference for your Mustang MTL20 Track Loader? This OEM manual (#917101) runs 502 pages across the complete machine: drive system, travel system, frame, hydraulic units, and engine. Wiring diagrams and hydraulic schematics map the full HST pump, gear pump, and control valve routing. Troubleshooting spans machine travel, lift arms, bucket, and auxiliary hydraulics, backed by step-by-step procedures, torque specifications, and service clearances for the drivetrain. Before chasing an electrical fault, confirm travel hydraulic pressure at 34.3 +4.9 MPa and check rotor coil continuity near 9 ohms. That alone settles most no-move calls without a forum thread. Download the PDF to your phone, walk out to the machine, and get to work.
What's Inside This Mustang MTL20 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 10-23 | Safety Precautions, Cautions During Disassembly & Assembly, Removal & Installation of Hydraulic Units, Piping Removal & Installation Precautions |

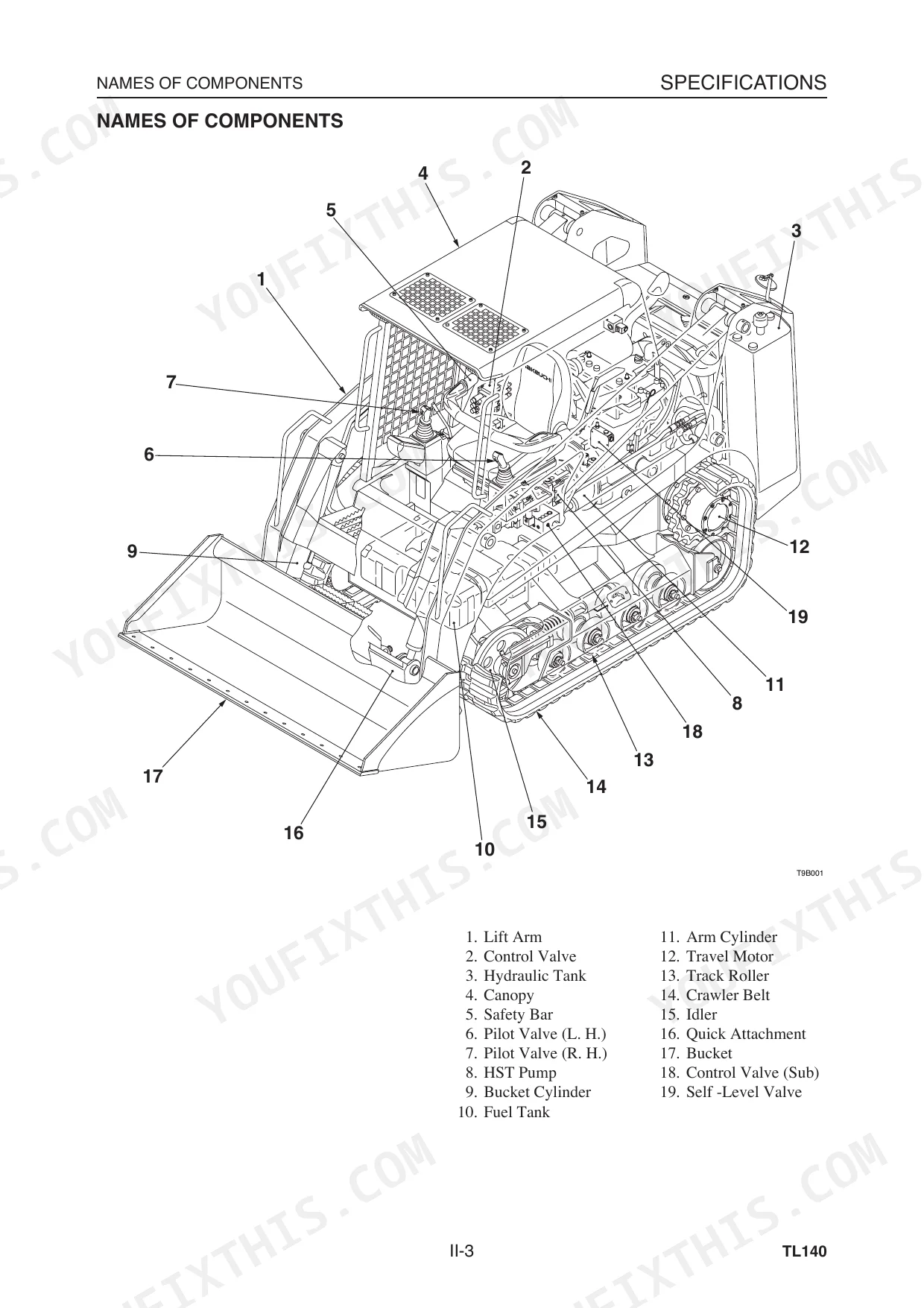

| Specifications | 24-41 | Names of Components, Dimensions, Specification Tables, Mass Tables, Recommended Lubricants, Servicing Standards |
| Machine Configuration | 42-94 | Drive System, Travel System, Frame, Control System, Attachments, Hydraulic System, Electrical System |
| Hydraulic Units | 95-212 | HST Pump, Gear Pump, Control Valve, Pilot Valve, Travel Motor, Proportional Control Solenoid Valve, Self-Level Valve |
| Troubleshooting | 213-244 | Overall Machine, Machine Travel, Lift Arms, Bucket, Auxiliary Hydraulics |
| Engine: General & Maintenance | 245-276 | Isuzu Aa-4JG1T General Information, Maintenance, Servicing Standards |

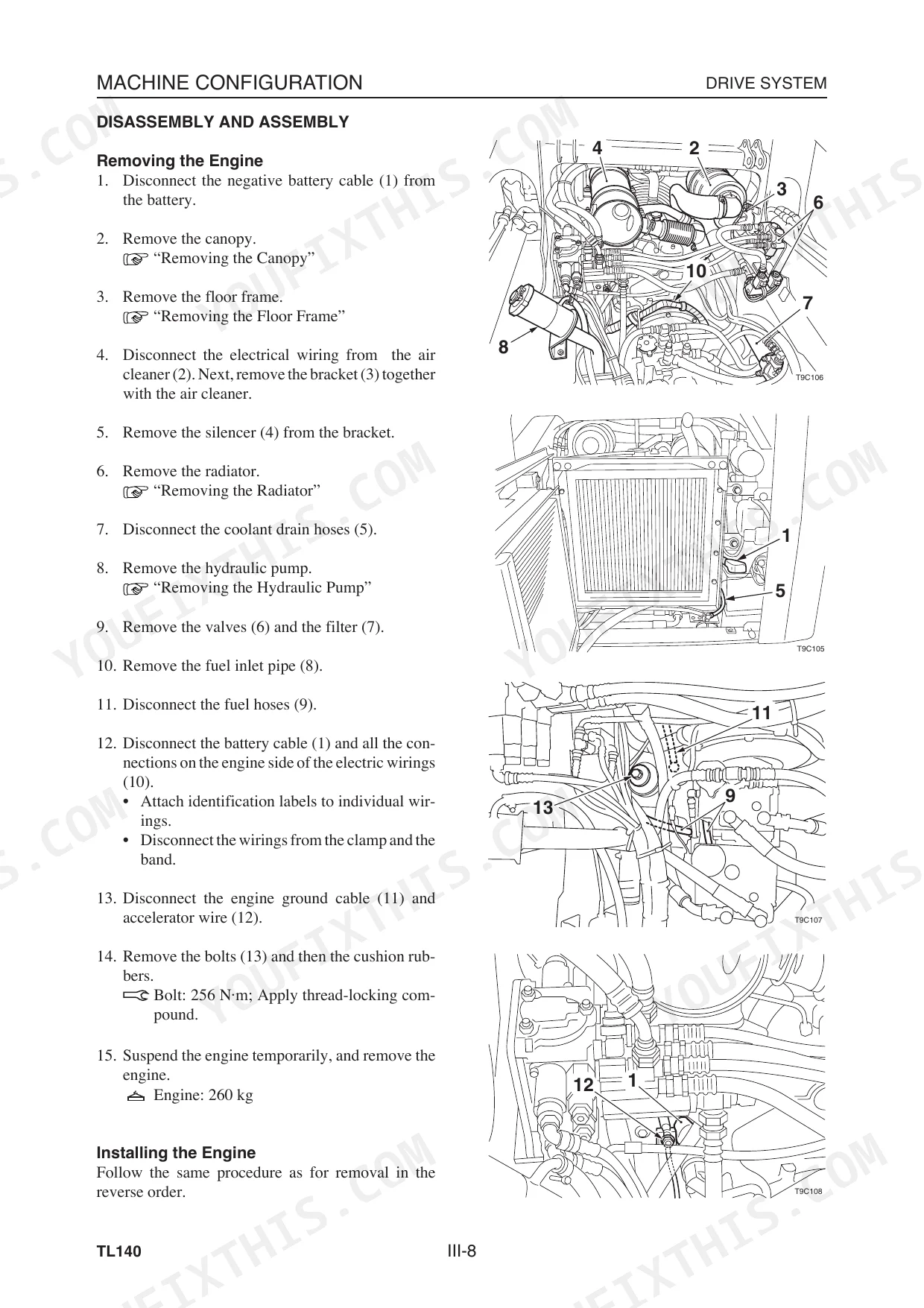

| Engine: Disassembly | 277-294 | Engine Removal & Installation, Disassembly Procedures |
| Engine: Inspection & Repair | 295-328 | Component Inspection, Wear Limits, Repair Procedures |
| Engine: Reassembly | 329-362 | Reassembly Procedures, Tightening Torques |
| Engine: Lubrication, Cooling & Fuel | 363-410 | Lubricating System, Cooling System, Fuel System (Injection Pump, Injectors) |
| Engine: Turbocharger & Electrical | 411-444 | Turbocharger, Glow Plugs, Starter, Alternator |
| Engine: Troubleshooting & Specs | 445-502 | Troubleshooting, Special Tool List, Repair Standards, Conversion Tables |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M6-1 Metric Course Thread, Grade 8.8, Dry Torque | 8 Nm | p. 501 |
| Lever lock relay replacement action | Replace the lever lock relay | p. 216 |

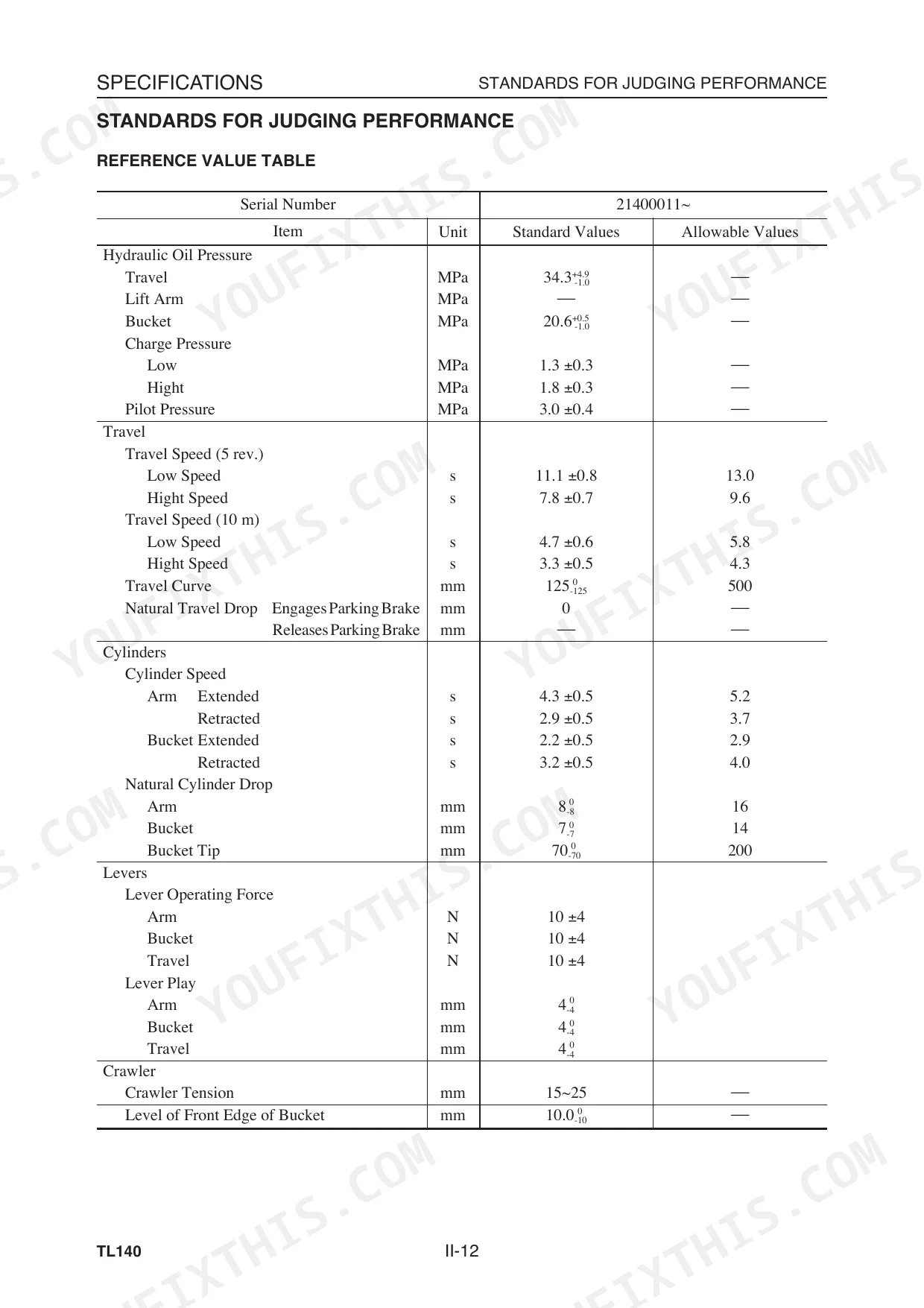

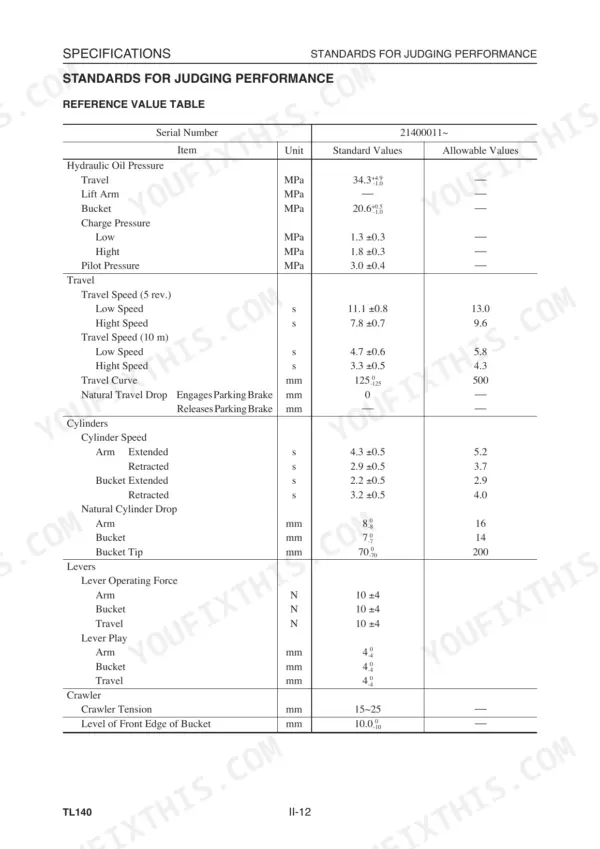

| Hydraulic Oil Pressure - Travel | 34.3 +4.9 MPa | p. 35 |
| Rotor Coil Continuity Test | approximately 9 ohms | p. 195 |

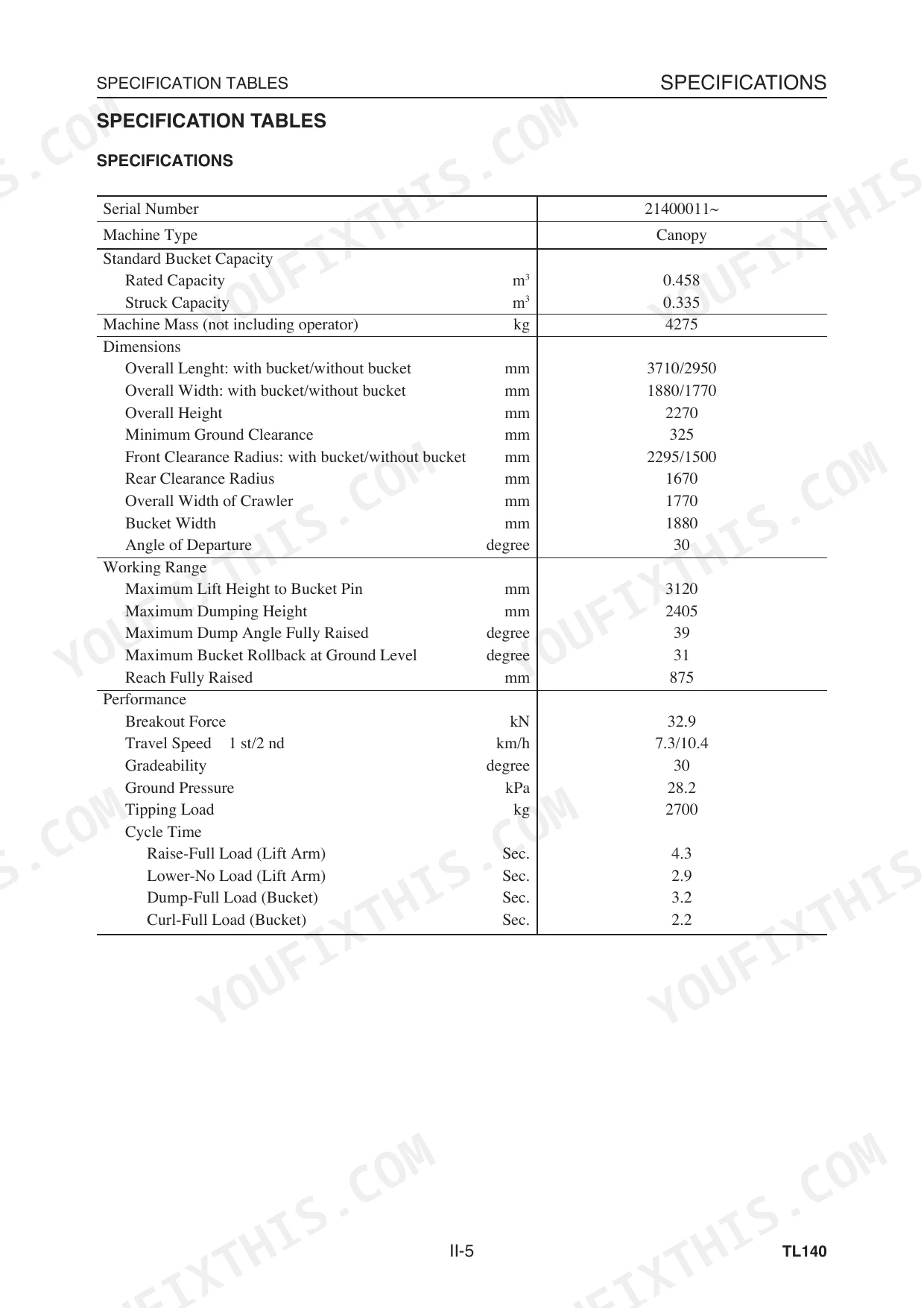

| Machine Mass (not including operator) | 4275 kg | p. 28 |
| Rated Bucket Capacity | 0.458 m³ | p. 28 |
| Engine Total Displacement | 3059 mL | p. 29 |
| Hydraulic Tank Total System Capacity | 83 L | p. 32 |
| Fuel Tank Level Capacity | 90 L | p. 32 |
| Engine Cooling System Coolant Volume | 15 L | p. 32 |
| HST Pump Relief Valve Pressure Setting | 34.5 MPa | p. 29 |
| Travel Motor Reduction Gear Lubricant Amount | 1.1 L | p. 30 |
Mustang MTL20 Common Problems This Manual Covers
Mustang MTL20 runs but won't move or operate hydraulics — all functions dead despite engine running p. 216
Start at the lever lock relay; it is the usual culprit when the engine runs but nothing responds. Pull each relay in the control circuit and test continuity, swapping out any that fail. Put a gauge on the HST pump test port and confirm travel pressure reaches 34.3 +4.9 MPa (page 35). Make sure the hydraulic oil sits at the full mark, since the system holds 83 L (page 32). The troubleshooting chart begins on page 216.
Manual Section: TroubleshootingEngine cranks slowly or won't start in cold conditions
Verify battery voltage under load before anything else. Confirm the 90 L fuel tank actually has fuel and that the shutoff valve is fully open. Inspect the glow plugs for continuity and check that the preheat timer activates. If the starter spins but the engine never fires, look at compression and fuel delivery pressure. The engine hard-starting sequence walks through each step.
Manual Section: TroubleshootingMachine veers to one side or travel speed feels weak and uneven
Compare HST pump output pressure on the left and right circuits; the relief valve is set to 34.5 MPa (page 29), so a reading well under that on one side points to a worn pump or relief valve. Top off the reduction gear oil on the weak side to 1.1 L per motor (page 30). Rule out binding in the track tension and drive sprockets. The machine travel section maps out the rest of this diagnosis.
Manual Section: TroubleshootingLift arm moves slowly, lacks power, or drops under load
Measure hydraulic pressure at the lift arm cylinder ports and check it against the diagnostic values on page 35. Examine the control valve spool for sticking or wear. Confirm the lift arm pin-to-bushing clearance stays within 1.0 mm (page 34); too much play makes the cylinder behave erratically. Top off the hydraulic system to its full 83 L (page 32).
Manual Section: TroubleshootingAuxiliary hydraulics won't switch between 2-way and 1-way flow modes
Test the proportional control solenoid valve for clean actuation by measuring rotor coil resistance, which should read about 9 ohms (page 195). A value well outside that range means the solenoid has failed. Trace the solenoid wiring harness for chafed insulation or corroded connectors. The auxiliary hydraulics section covers flow-direction switching faults like this one.
Manual Section: TroubleshootingEngine overheats or runs rough with white or dark exhaust smoke
Confirm the coolant level first, since the system holds only 15 L (page 32) and running low overheats it quickly. Clear any debris from the radiator core and oil cooler, blowing low-pressure air from the inside out. Dark smoke usually means over-fueling or a clogged air filter; white smoke signals coolant intrusion or incomplete combustion when cold. Read any fault codes, then follow the engine performance troubleshooting sequence.
Manual Section: TroubleshootingFrequently Asked Questions
How do I reset the Mustang MTL20?
No general reset procedure is documented for the Mustang MTL20. For the proportional controller, though, the fault detection function stays latched until power-up resets it, which only happens once the error has been cleared (page 92).
What are the torque specs for the Mustang MTL20?

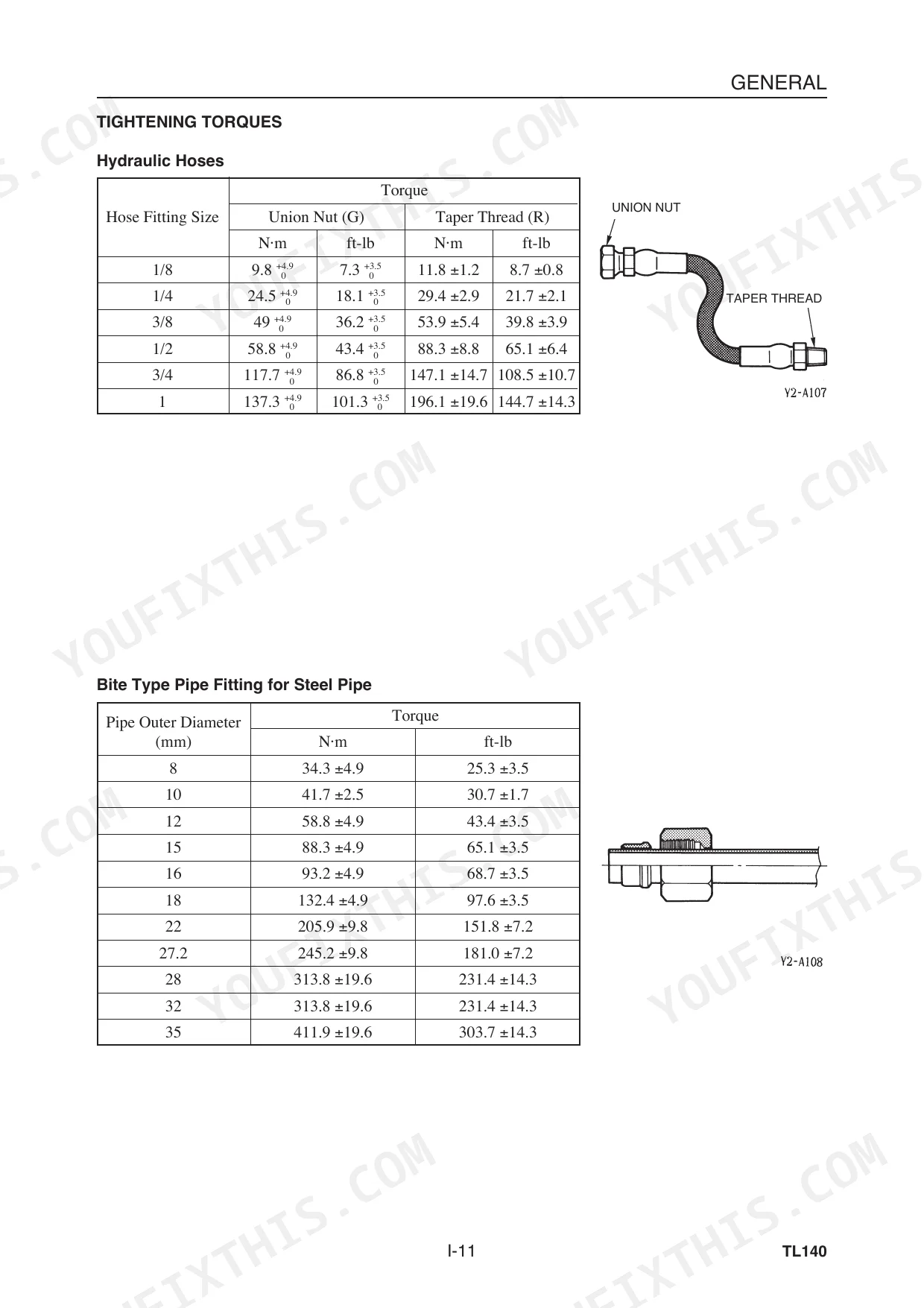

Torque figures are broken out by component. A 1/8 inch Union Nut (G) on the hydraulic hoses takes 9.8 +4.9/-0 N·m (7.3 +3.5/-0 ft-lb), listed in the 'Hydraulic Hoses' table on page 20. For general fasteners, an M6-1 Metric Course Thread bolt (ISO Strength Category 8.8, Dry) tightens to 8 N·m (6 ft-lb) in the 'TORQUE SPECIFICATIONS' table on page 501.
What do error codes on a Mustang MTL20 mean?
The proportional control solenoid valve flags faults through controller LEDs. A 'Sensor error' lights the 'SE' LED, a 'Neutral error' lights the 'NE' LED, and an 'Overcurrent' lights the 'OL' LED, all detailed on pages 92-93 under 'Inspection and Adjustment'.
Why won't my Mustang MTL20 start or operate?

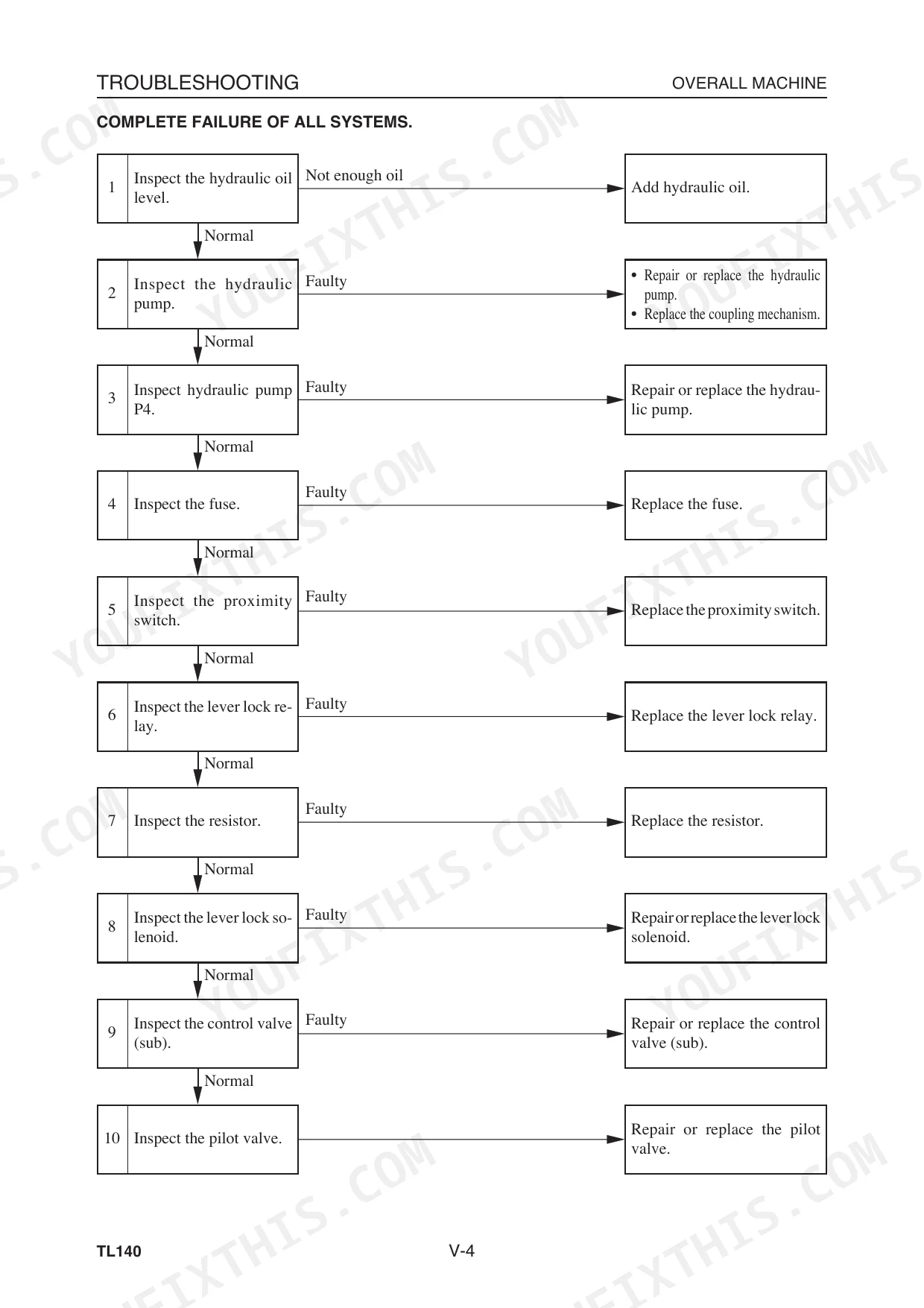

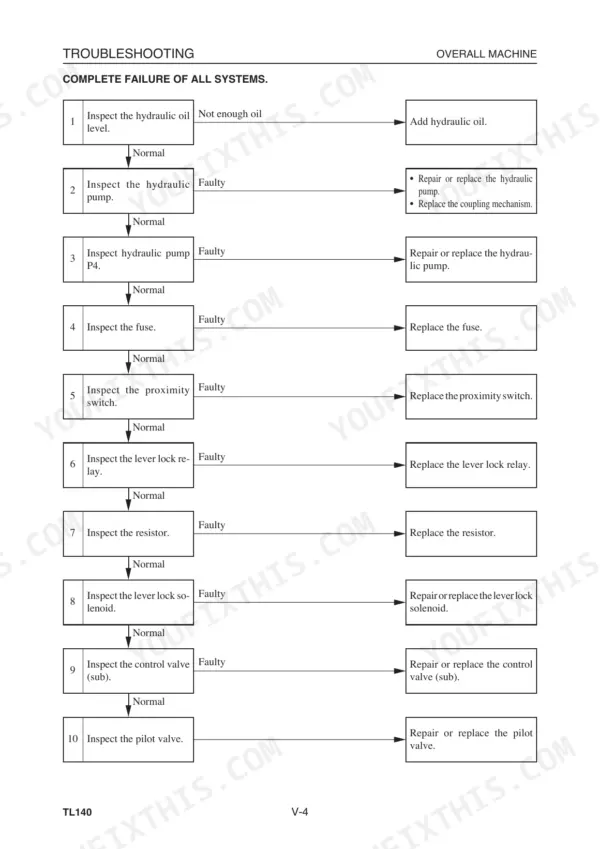

When the MTL20 won't start or operate, work the 'COMPLETE FAILURE OF ALL SYSTEMS' flowchart. It starts with the hydraulic oil level: top it off if low. A faulty hydraulic pump calls for repair or replacement, or replacing the coupling mechanism (page 216).
What format is this Mustang MTL20 manual in?
Delivered as an instant PDF download. The full 502-page searchable Service Manual is yours right after payment, ready to open on a laptop, tablet, or phone out in the shop.
Can I print this Mustang MTL20 manual?
No restrictions whatsoever. Print a single page, a full chapter, or the whole manual; the PDF ships unlocked.

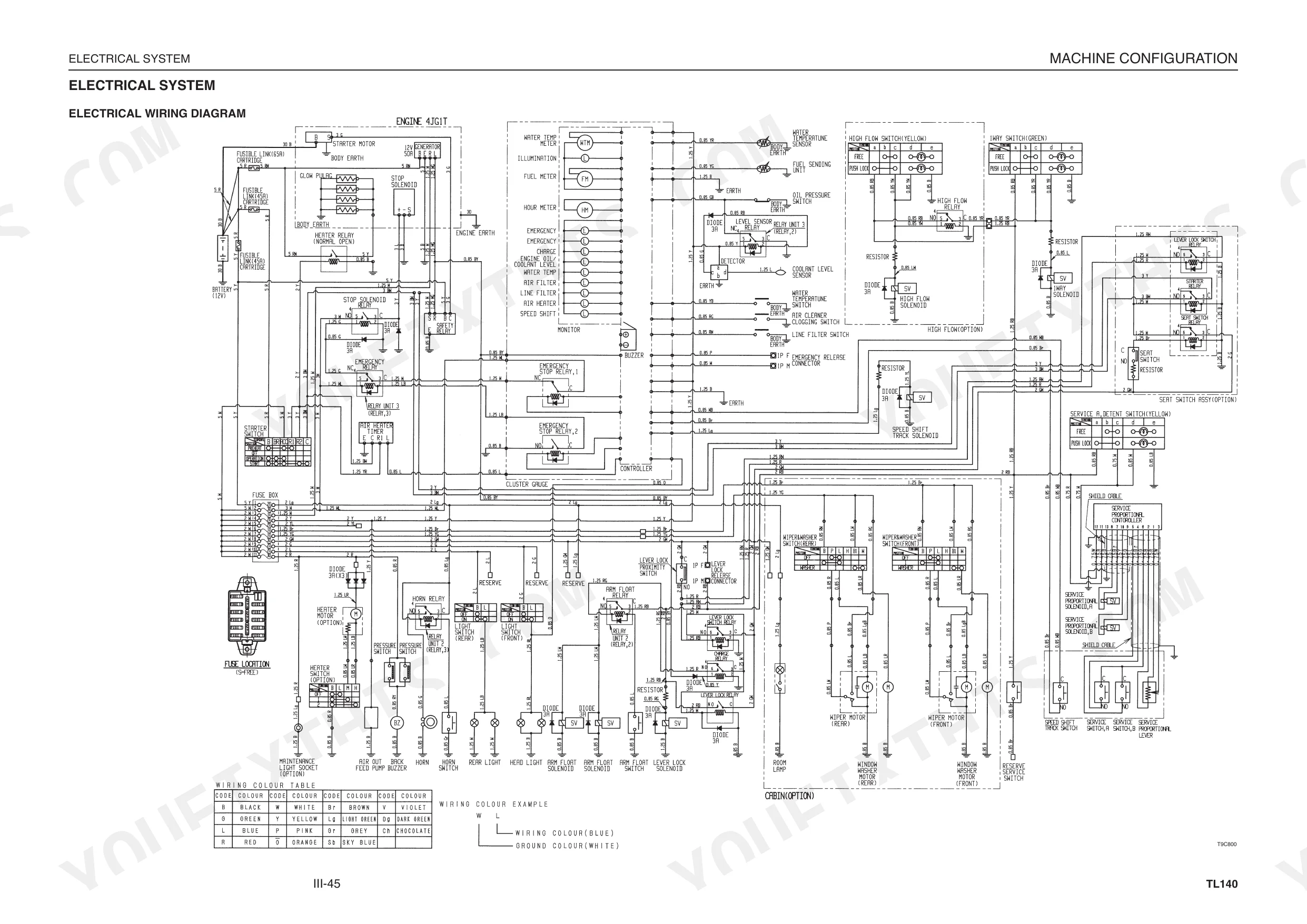

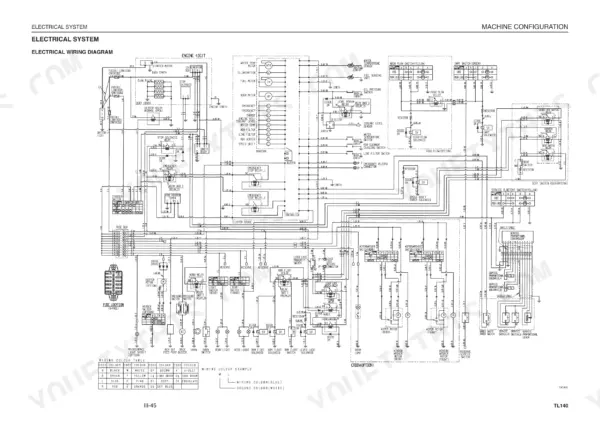

Are electrical wiring diagrams included in this Mustang MTL20 Service Manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a high-quality scanned PDF with an accurate OCR layer, allowing you to search and copy text throughout. All text is crisp and easy to read, and most diagrams and illustrations are vector-based, appearing sharp and clear at any zoom level with readable labels. The pages are clean, free from scan artifacts or marks, and consistently oriented. However, there are a notable number of blank pages present throughout the document.
