Neuson's 214-page service manual, OEM ID 1000081433, takes four compact excavator variants apart system by system: the 2503, 3003, 3503 and 3703. Hydraulics fill the largest share of this Neuson 3503 service manual PDF, with A4 and A3 hydraulic diagrams that trace oil from the pump through the pilot oil supply unit, main valve block and pilot control valves, then out to the swivel unit, drive unit and swivel joint. The wiring diagrams come with their legend and a fuse box layout, and a separate engine chapter covers Kubota and Yanmar settings, including the cylinder head bolt tightening order and injection timing. Set your pilot oil pressure to 35 +4/-0 bar and torque the sprocket to 123 Nm. Get a relief setting wrong and you pay for the travel motor twice. With bookmarked, text-searchable pages and exploded views, you can identify the right component before you order, so the part that arrives is the one your machine needs.
What's Inside This Neuson 2503, 3003, 3503, 3703 Manual
| System | Pages | Key Topics |
|---|---|---|
| Table of Content / Product History | 3-8 | Product History |

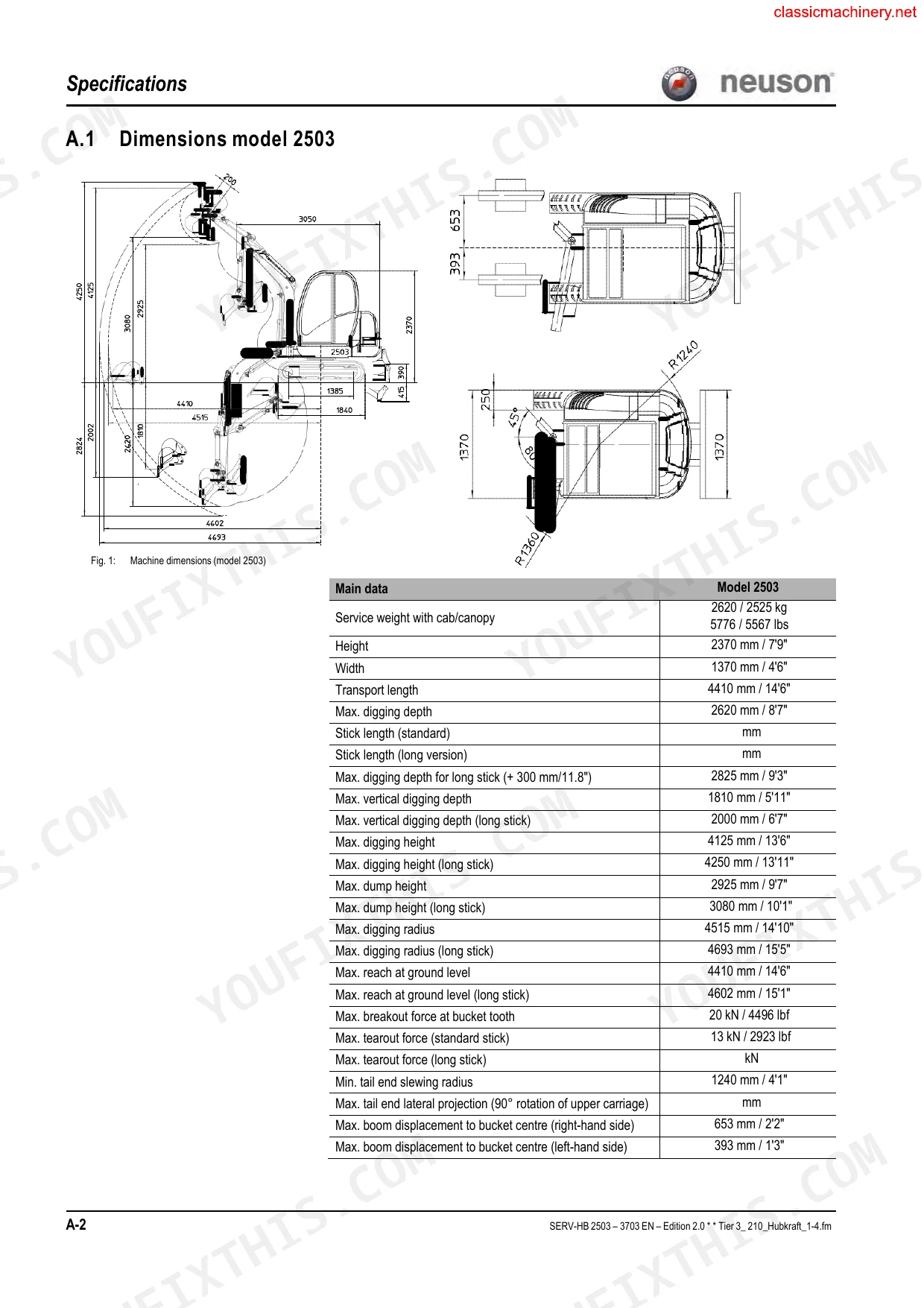

| Technical Data | 9-48 | Dimensions, Kinematic, Lift Capacities, Cycle Courses, Hydraulic Settings, Diesel Engine Settings, Specifications, Tightening Torques |

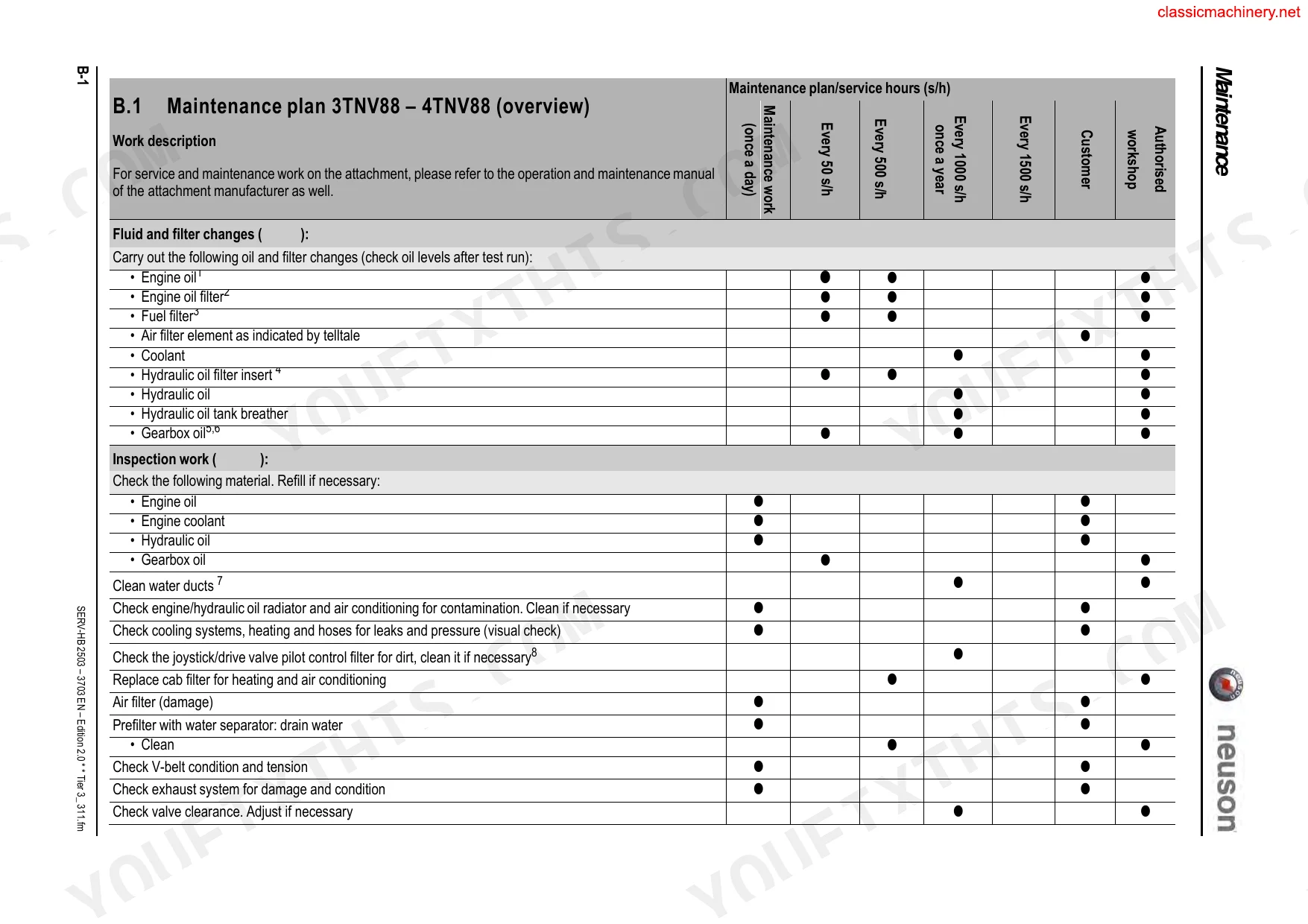

| Maintenance | 49-70 | Maintenance Schedule, Lubricants, Maintenance Label, Hydraulic System, Auxiliary Hydraulics, Hydraulic Pump, Hose Burst Protection Valve, Drive Unit |

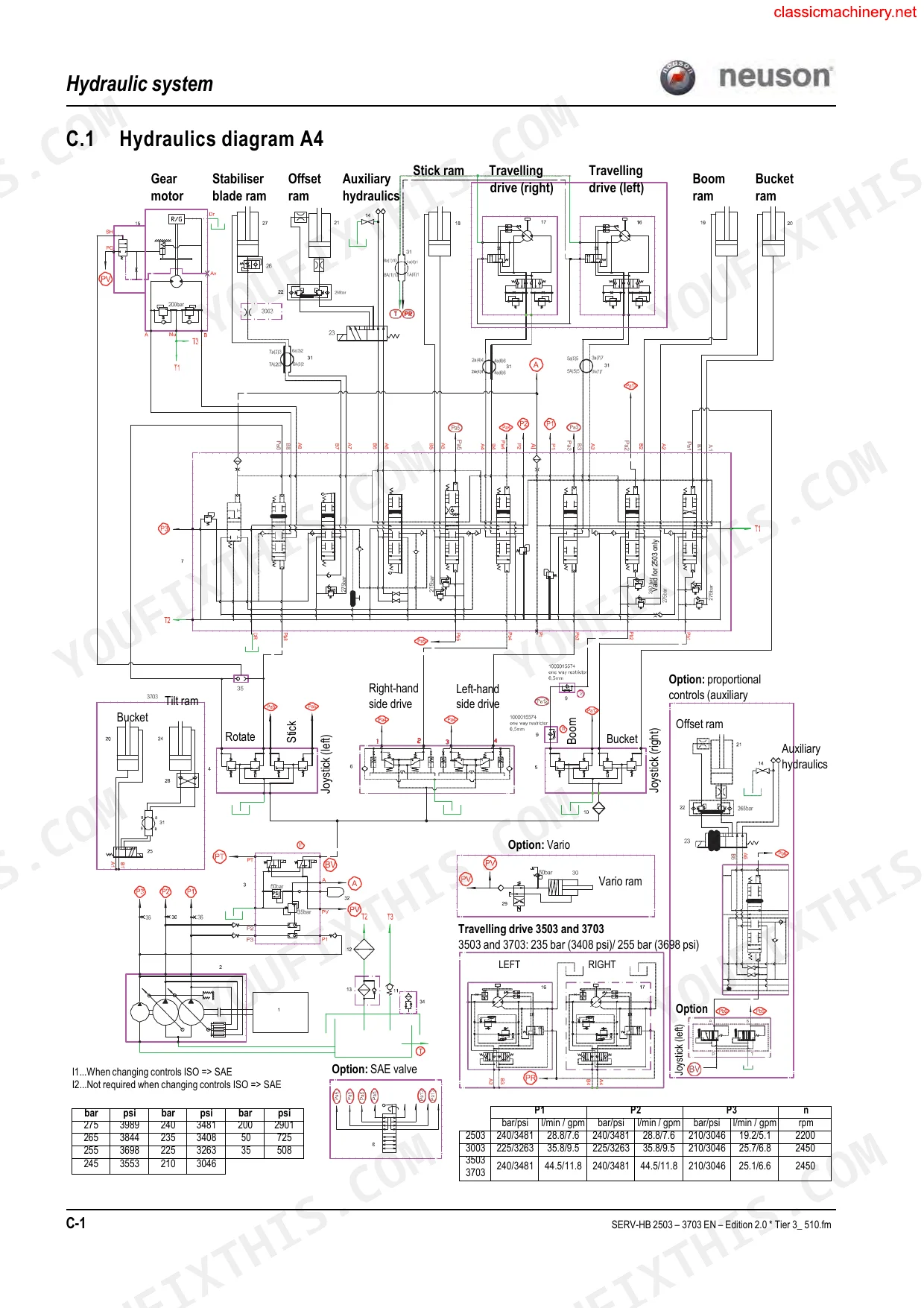

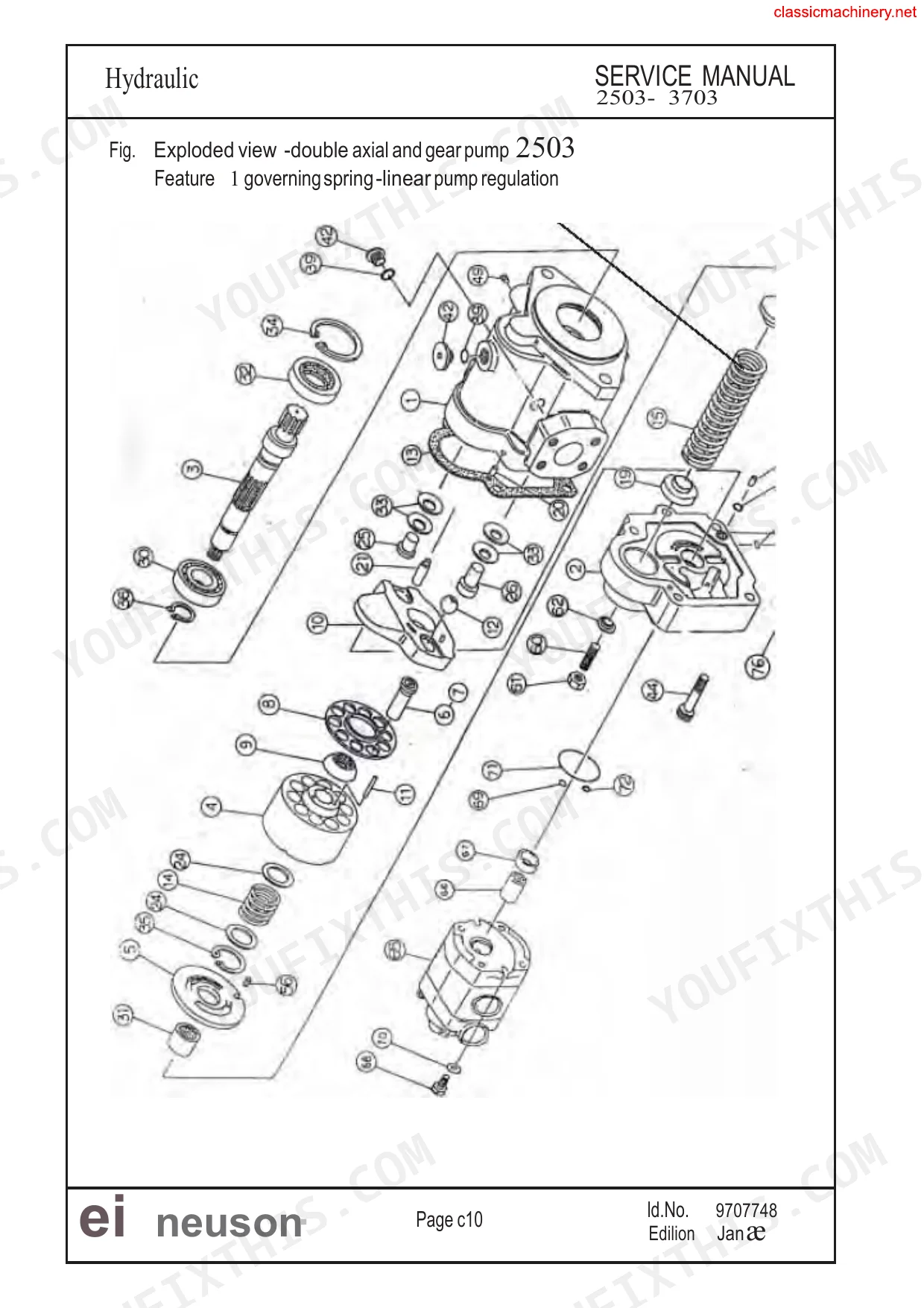

| Hydraulic | 71-134 | Hydraulic Diagram A4, Hydraulic Diagram A3, Component Positions, Hydraulic Pump, Pilot Oil Supply Unit, Main Valve Block, Pilot Control Valves, Swivel Unit |

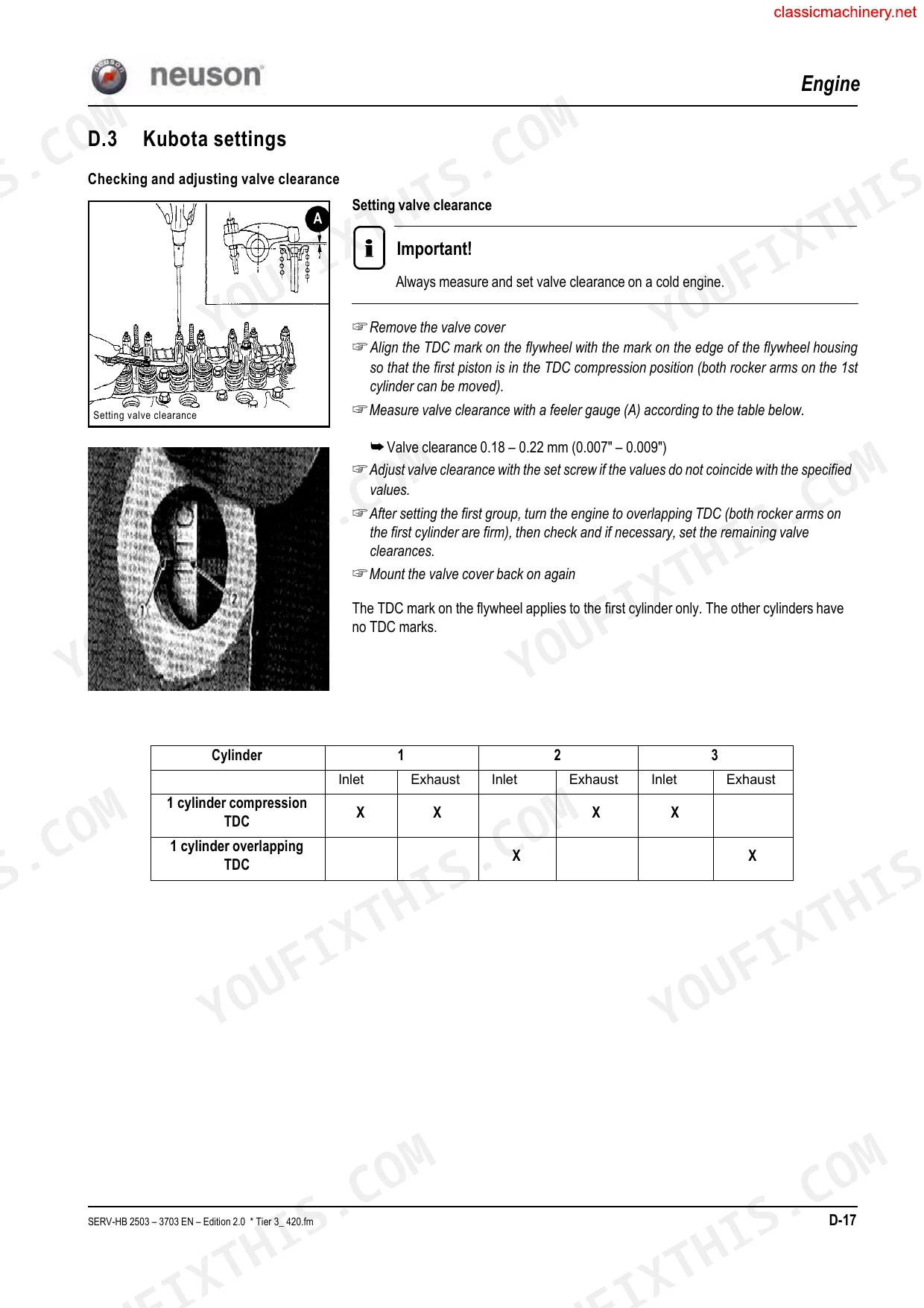

| Diesel Engine | 135-170 | Engine Overview, Generator, Engines, Fuel Supply Systems, Kubota Settings, Yanmar Settings, Tightening Order for Cylinder Head Bolts, Checking the Injection Nozzles |
| Elektric | 171-196 | Wiring Diagram Legend, Wiring Diagrams, Fuse Box |
| Operation Elements | 197-208 | Major Components, Cab Equipment, Instrument Panel |
| Attachment | 209-214 | Bucket List |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Pilot oil pressure | 35 +4/-0 bar | p. 34 |
| Secondary pressure limiting valve Main valve block | 25 +5/-0 bar | p. 34 |
| Cylinder-head bolt | 85.3 – 91.1 Nm | p. 42 |
| Connecting rod bearing screw | 44.1 – 49.0 Nm | p. 38 |
| Sprocket torque | 123 Nm | p. 48 |
| Turn table torque | 299 Nm | p. 48 |
| Tightening torque for swivel unit gear box | 120 Nm | p. 111 |
| Secondary pressure limiting valve for vario cylinder | 50 bar | p. 133 |
| 2503, 3003 | ||
| Hydraulic oil tank capacity | 27L | p. 34 |
| 3503, 3703 | ||
| Hydraulic oil tank capacity | 50L | p. 35 |
| 2503 | ||
| Main pressure limiting valve Pump P1, P2 | 240 +3/-3 bar | p. 34 |
| 3003 | ||
| Main pressure limiting valve Pump P1, P2 | 225 +3/-3 bar | p. 34 |
Neuson 2503, 3003, 3503, 3703 Common Problems This Manual Covers
Neuson 3503 compact excavator hydraulic pressure test shows pumps P1, P2, P3 or pilot pressure low
Test pumps P1, P2 and P3 plus pilot pressure with gauges, working down the pressure checklist. Pilot oil pressure should read 35 +4/-0 bar on page 34. Compare the main pressure limiting valve for P1 and P2 against the value listed for your exact model on page 34 or 35, never a sister model's figure.
Manual Section: Hydraulic System Pressure TestCrawler tracks sagging loose or running too tight on the undercarriage during travel
Measure crawler tension following the tightening and releasing procedure on page 70. Check the crawler tension lift against 15 to 20 mm. If it falls outside that window, tighten or release the crawler as the page shows, then measure again on both sides before putting the machine back to work.
Manual Section: Crawler Tensioning p. 70Diesel engine will not start, runs rough, smokes or has insufficient output
Check the Engine Trouble section for your symptom first, then test the injection nozzles for injection pressure and jet pattern. Verify injection time using the procedure for your engine, Kubota or Yanmar, since the settings differ. Adjust idling engine revs afterwards so the engine idles at the set speed.
Manual Section: Engine Trouble p. 169Engine overheating with suspected coolant thermostat, thermal switch or radiator circuit leak
Test the coolant thermostat first; a thermostat that sticks shut will cook the engine regardless of radiator condition. Check the thermal switch next so you know the warning is real, then inspect the radiator circuit for leaks. Fix any leak before refilling, or you will be chasing the same overheat tomorrow.
Manual Section: Cooling System TestingCrawler drive unit gear oil level low or overdue for a scheduled change
Check the gear oil level in the drive unit and change the oil following the Drive Unit Maintenance procedure. If the driving motor has to come off during the job, torque its bolts to 123 Nm on page 113 when refitting. Verify the level again after refilling, before the machine travels.
Manual Section: Drive Unit MaintenanceHydraulic pump refitted or replaced and air left in the pump before start-up
Torque the pump suction side connection to 55 to 65 Nm on page 79 before anything else, since a loose suction side pulls air. Fill the hydraulic tank to the capacity listed for your model, then bleed the hydraulic pump following the Hydraulic Pump Bleeding procedure before loading any function.
Manual Section: Hydraulic Pump BleedingFrequently Asked Questions
What are the torque specifications for the track rollers on the Wacker Neuson 3503?
The tightening torque for the track rollers on the 3503 RD is 180 Nm, using M14 10.9 bolts. p. 48
What is the cylinder head bolt tightening torque for the Kubota engine in Neuson compact excavators?
The tightening torque for the cylinder head bolts (M11x1.25) on the Kubota engine is 93.1 - 98.0 Nm. p. 38
What is the hydraulic oil tank capacity for the Wacker Neuson 3503?
The hydraulic oil tank capacity for the 3503 model is 50 liters. p. 35
What is the valve clearance spec for the Yanmar 3TNE 88, 3TNV 88 and 4TNV 88 engines in Neuson compact excavators?
The valve clearance for these engines is 0.15 - 0.25 mm (0.006 - 0.01") when measured on a cold engine. p. 155
What is the injection nozzle pressure for the Yanmar 4TNV 88 engine in Neuson compact excavators?
The injection pressure for the injection nozzles on the Yanmar 4TNV 88 engine is 196 - 206 bar (2843 - 2988 psi) for Tier 3 engines. p. 158
How is this Neuson 2503 Service Manual delivered?
Instant PDF download. You get the full 214-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this Neuson 2503 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
