Kneel behind the rear wheel with a torque wrench after shifting the rims for row spacing, and the number you want is on page 281: 310 N·m (228.6 lb ft) on the rear M18 disc to hub nuts. That is the kind of answer this operator manual hands over without a phone call to the dealer.
It runs 368 pages and covers the New Holland TD5.85, TD5.95, TD5.105 and TD5.115 tractors built around the F5DFL413 engine family. Controls and Instruments walks the cluster and cab console, Working Operations covers PTO speeds, the three-point hitch, lower links and remote control valves, Maintenance carries the full service chart with intervals and capacities, and Troubleshooting decodes the fault codes on the dash.
A job stalls fast when one figure is missing. This PDF download sits on the phone or tablet in your pocket, so the book is wherever the tractor is.
What's Inside This New Holland TD5.85, TD5.95, TD5.105, TD5.115 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-16 | Introduction, Diesel Fuel Quality Specifications, Biodiesel Fuel, Engine Cooling System - Basic Instructions, Bodywork Maintenance, Opening the Hood |
| Safety Information | 17-80 | Safety Precautions (Safety Aspects in Accordance with Regulation, Safety Rules, Safety Rules - General Information, Safety Rules - Maintenance, Safety Rules - Wheels and Tires, Safety Rules - Explosions and Fires, Safety Rules - Fire Extinguisher, Safety Rules - Battery, Safety Rules - Instructor Seat, Safety Rules - Passenger Seat, Safety Rules - Operator Presence System, Safety Rules - Power Take-Off, Safety Rules - Reflectors and Warning Lights, Safety Rules - Seat Belts, Safety Rules Operator Protective Structure, Safety Rules - HVAC System, Safety Rules - Personal Protective Equipment, Safety Rules - Do Not Use Sign, Safety Rules - Hazardous Chemicals, Safety Rules - Near Utilities, Safety Rules - in the Event of Electrical Storms, Safety Rules - Mounting and Dismounting the Machine, Safety Rules - Lifting and Overhead Loads, Safety Rules - Front End Loader, Ecology and the Environment, Noise Level, Vibration Levels, Machine Stability, Towing the Tractor for Recovery, Emergency Escape From Cab, Wheel Chocks, Personal Safety, Prevention of Fire or Explosion, Burn Prevention, Getting in and Out of the Machine, Emergency Exit, Intended Use Statement, Safety Decals, Guards, International Symbols, Noise Level Information Sheet, Vibration Level Information Sheet) |
| Controls and Instruments | 81-148 | Access to Operator's Platform (Introduction, Instrument Cluster, Cab Controls and Adjustments, Steering Column, Cab Access/Exit, Adjust the Mirrors, Sun Protection, Control Elements/Side Console, Radio, Temperature Controls, Cab, Cab Air Filters, Air Conditioning System, Air Conditioning) |

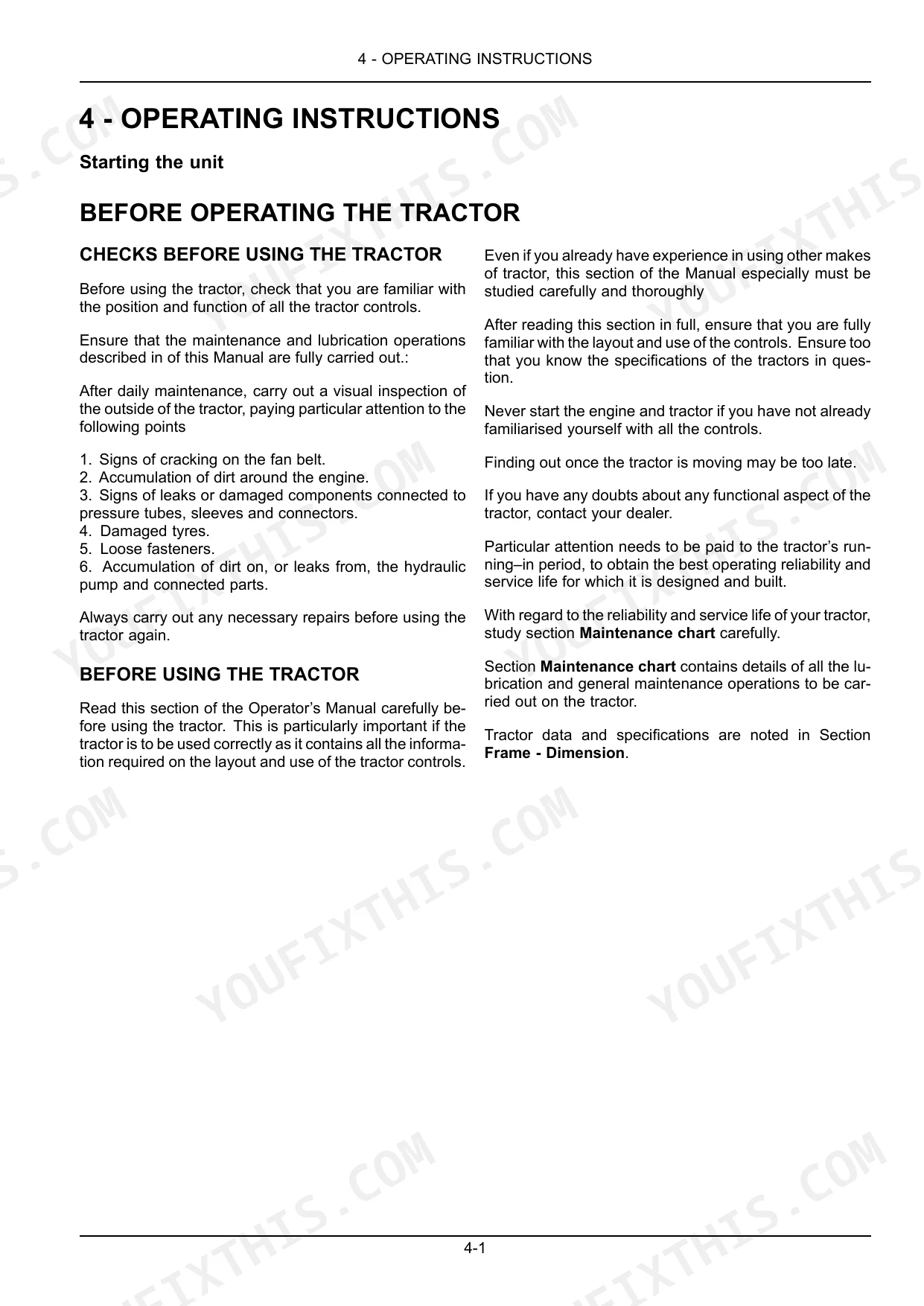

| Operating Instructions | 149-156 | Starting the Unit (Before Operating the Tractor, Boosting the Tractor Battery, Starting the Engine, Glow Plugs - Cold Start Aid), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 157-158 | Preparing for Road Transport (Carrying the Tractor on a Transporter), Recovery Transport (Towing the Tractor) |
| Working Operations | 159-218 | Rear Mechanical Control (P.T.O. Operating Precautions, Independent Power Take Off Power Take-Off Operation, Ground Drive P.T.O., Power Take Off Speeds, Two Speed Power Take-Off Systems, Two Speed PTO Systems, Hydraulic Lift, External Hydraulic Power Lift Controls, Hydraulic Lift -Conditions of Use, Three Point Hitch, Equipment Mounting Points, Lower Links, Remote Control Valves) |

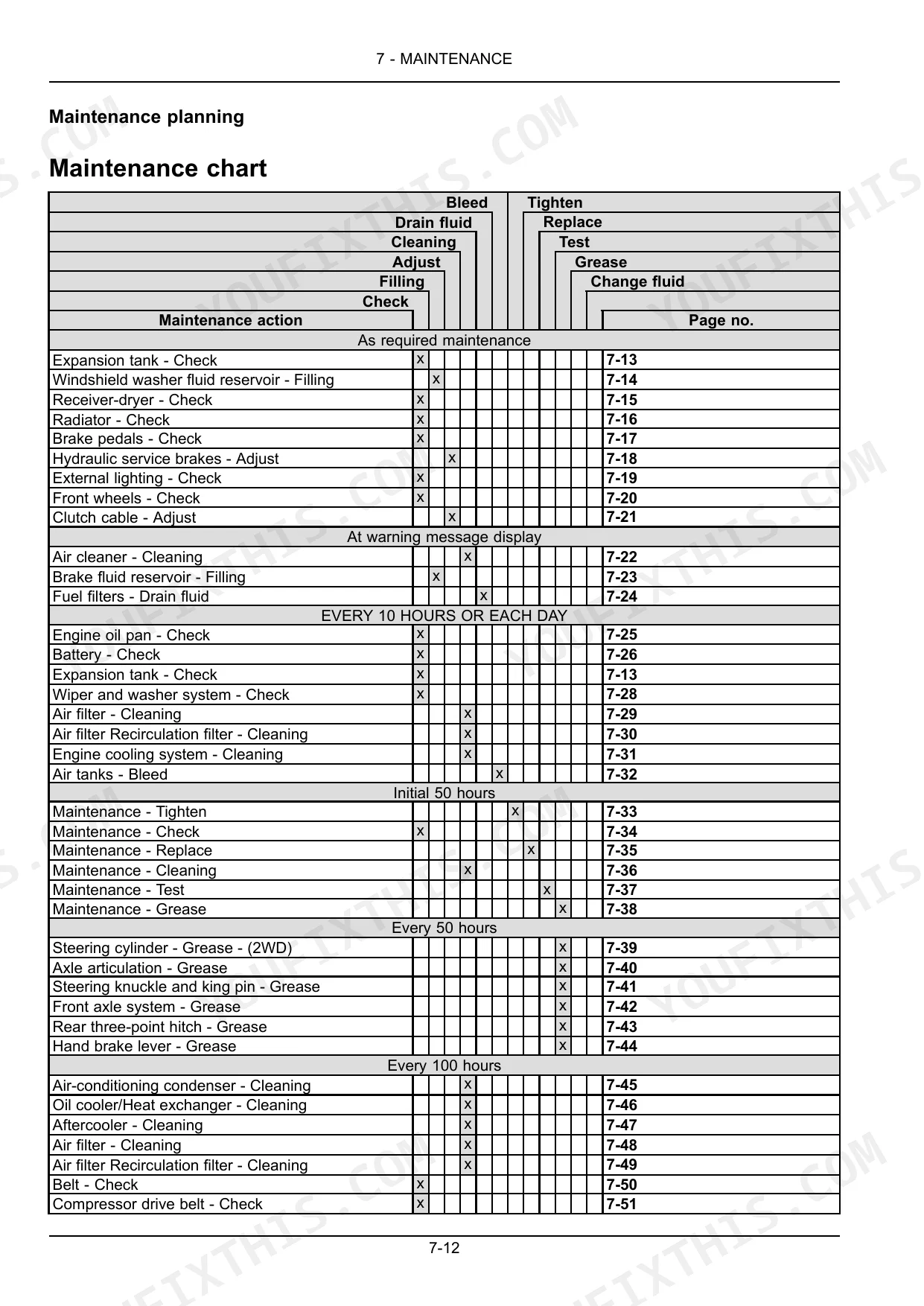

| Maintenance | 219-300 | Maintenance Planning (Maintenance Chart) |

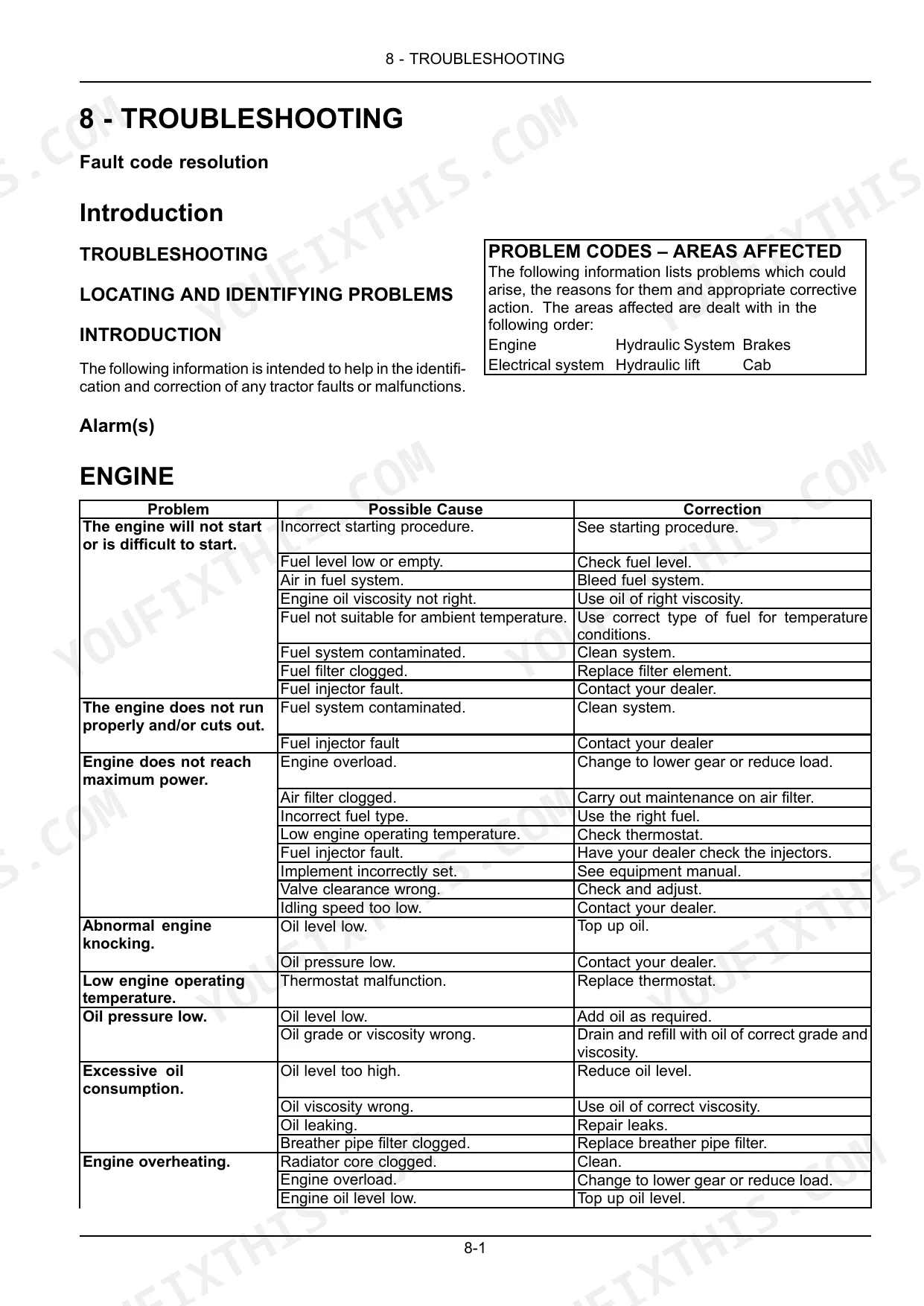

| Troubleshooting | 301-316 | Fault Code Resolution (Introduction) |

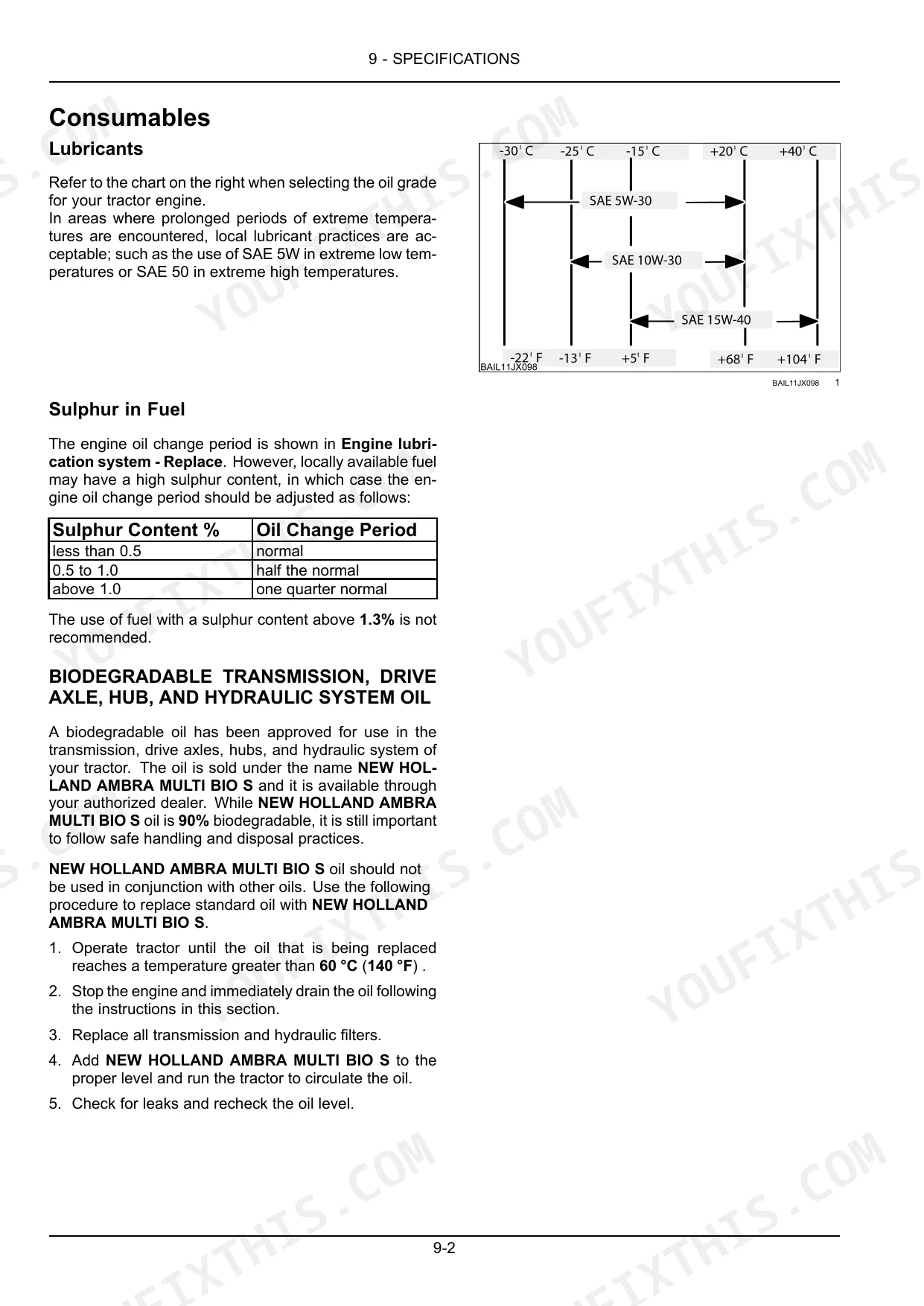

| Specifications | 317-338 | Introduction, Consumables, Weights, Tractor Weights, Engine Specifications, Engine Cooling System, Fuel System, Clutch |
| Accessories | 339-358 | Rotating Beacon, Quick Hitch, Swinging Drawbars, Hydraulically Operated Towing Hitch, Hydraulic Trailer Brakes, Pneumatic Brakes |
| Forms and Declarations | 359-368 | Service Record 1st 50 Hour, Owner Copy, Dealer’s Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cab air filter cleaning - compressed air | less than 6.9 bar (100 psi) | p. 247 |
| Retaining bolts and nuts (1) and (2) tightening torque | 220 N·m - 22.5 kgm | p. 196 |
| Steering rod locking screws (3) tightening torque | 39 N·m - 4 kgm | p. 196 |
| Battery - Check | EVERY 10 HOURS OR EACH DAY | p. 230 |
| Air filter outer cartridge cleaning interval | 300 hours | p. 240 |
| Maximum compressed air pressure for cleaning | 5 bar (72.5 psi) | p. 240 |
| Cab air filter cleaning - water jet | less than 2.7 bar (39 psi) | p. 247 |
| Hydraulic circuit oil filter tightening | 3/4 of a turn by hand | p. 271 |
| Fuel filter tightening | 3/4 of a turn | p. 279 |
| Battery charging current | 5 A | p. 290 |
| Battery voltage for 100% charge | 12,66 V | p. 290 |
| Alternator output | 120 A | p. 337 |
New Holland TD5.85, TD5.95, TD5.105, TD5.115 Common Problems This Manual Covers
Power drops with a dusty air cleaner
In dusty harvest conditions the outer air cleaner cartridge loads up long before the tractor feels wrong, and the engine goes soft under load. The Maintenance section sets outer cartridge cleaning at 300 hours and caps the cleaning air at 5 bar (72.5 psi) so you do not blow through the media.
Manual Section: Maintenance p. 240Slow cranking on a cold morning
Below freezing the engine turns over but will not fire, and the cause is usually the cold start aid or a tired battery rather than the injection system. Operating Instructions covers the glow plug cold start aid, the correct starting sequence and how to boost the battery safely.
Manual Section: Operating Instructions p. 149Three-point hitch lifts slow or drifts
A hitch that creeps down under a mounted implement or lifts lazily when the oil is cold often traces back to a neglected hydraulic filter rather than the lift itself. The Maintenance section covers the hydraulic circuit oil filter change and calls for seating the new filter 3/4 of a turn by hand.
Manual Section: Maintenance p. 271PTO will not engage or stalls implement
Ground drive and independent PTO behave differently, and a shaft that will not engage or an implement that bogs is frequently a selection or speed error rather than a clutch failure. Working Operations covers independent and ground drive PTO operation, the two speed systems and the PTO operating precautions.
Manual Section: Working Operations p. 159Wheel nuts loosen after moving the rims
Changing row spacing or adding ballast puts the wheel hardware through a fresh bedding-in cycle, and nuts run up on guesswork back off within a few hours of field work. The Maintenance section gives 220 N·m (162.3 lb ft) for the front M16 disc to hub nuts and 310 N·m (228.6 lb ft) for the rear M18.
Manual Section: Maintenance p. 281Rough running from water in the fuel
Condensation in a part-full tank and poor quality diesel leave water in the filter, and the engine surges or cuts out under draft. The Maintenance section covers draining and replacing the fuel filter, with the new element tightened 3/4 of a turn once the seal makes contact.
Manual Section: Maintenance p. 279Warning light and a code on the cluster
A fault code on the instrument cluster with no obvious symptom sends most owners straight to the dealer in the middle of a weather window. The Troubleshooting section's fault code table lists each code with its function and whether an audible warning and warning light accompany it, so you can see what the code means before calling the dealer.
Manual Section: Troubleshooting p. 301Frequently Asked Questions
Which tractors does this operator manual cover?
It covers the New Holland TD5.85, TD5.95, TD5.105 and TD5.115 tractors under publication 51559167, with the F5DFL413L, F5DFL413K, F5DFL413J and F5DFL413H engines. The dimensions table on page 319 covers both 2WD and 4WD models. p. 1
How much oil does a full service take?
The Maintenance section lists an engine oil sump capacity of 8.5 L (2.25 US gal) and a transmission and hydraulic oil capacity of 46 L (12.15 US gal), so you can buy the right quantity before you drain anything. p. 229
What power do the four models make?
The Specifications section rates the TD5.85 at 63 kW (86 Hp) at 2300 RPM, the TD5.95 at 73 kW (99 Hp) at 2300 RPM, the TD5.105 at 79 kW (107 Hp) at 2300 RPM and the TD5.115 at 84 kW (114 Hp) at 2300 RPM. p. 323
What battery and alternator are fitted?
The Specifications section lists a 100 A·h battery and a 120 A alternator, which is what you need when you are chasing a charging fault or working out what a loader light kit will draw. p. 337
Is this New Holland TD5.85-TD5.115 manual a download or a disc?
Delivery is instant: a 368-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Is printing allowed for this New Holland TD5.85-TD5.115 Operator Manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
