Part of the New Holland Operator Manuals.
Flip to the title block and you will find 42027610, the publication number New Holland printed on the operator manual issued with the 276 II Bidirectional Tractor. This is that book, 136 pages, as a PDF download.
It covers the 276 II with either the Ford or the Cummins engine, written for the person who runs the tractor and keeps it alive. Serial number location, control layout and fuel requirements sit up front. Operation walks engine break-in, start-up and cold weather work. Lubrication gives the maintenance chart and brand equivalency. Maintenance covers the air cleaner, brakes and cooling system. Troubleshooting carries charts for the engine, the three-point hitch and the hydrostatic system, and Specifications lists capacities for both engines.
Use it to service between seasons, set the PTO clutch, confirm capacities before you top anything off, and follow the factory lubrication and maintenance chart instead of guessing at intervals.
What's Inside This New Holland 276 II Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 6-12 | Personal Safety, General Safety, Maintenance Safety |
| General Information | 13-20 | Serial Number Location, Controls and Instrumentation, Fuel Requirements |

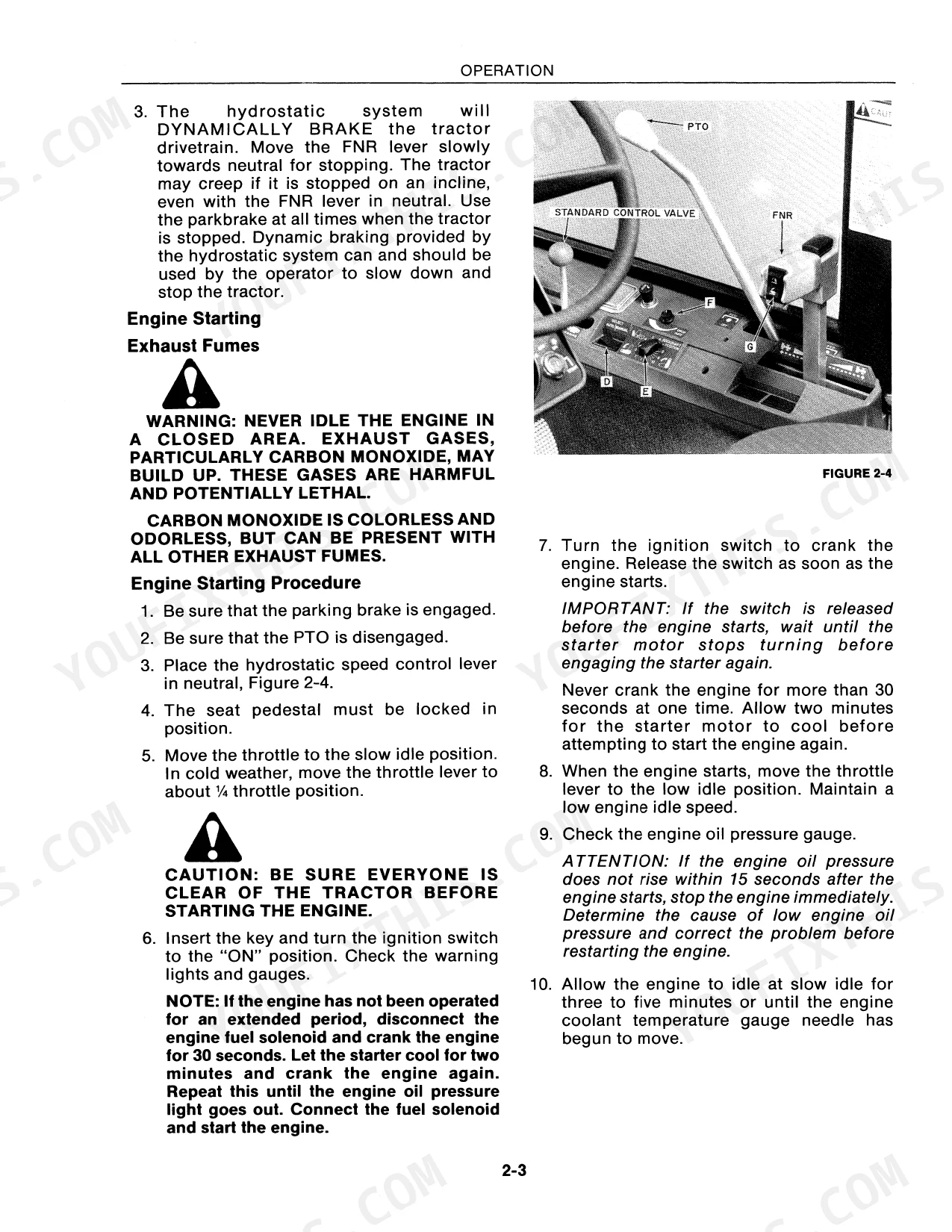

| Operation | 21-50 | Engine Break-In, Tractor Start-Up, Cold Weather Operation |

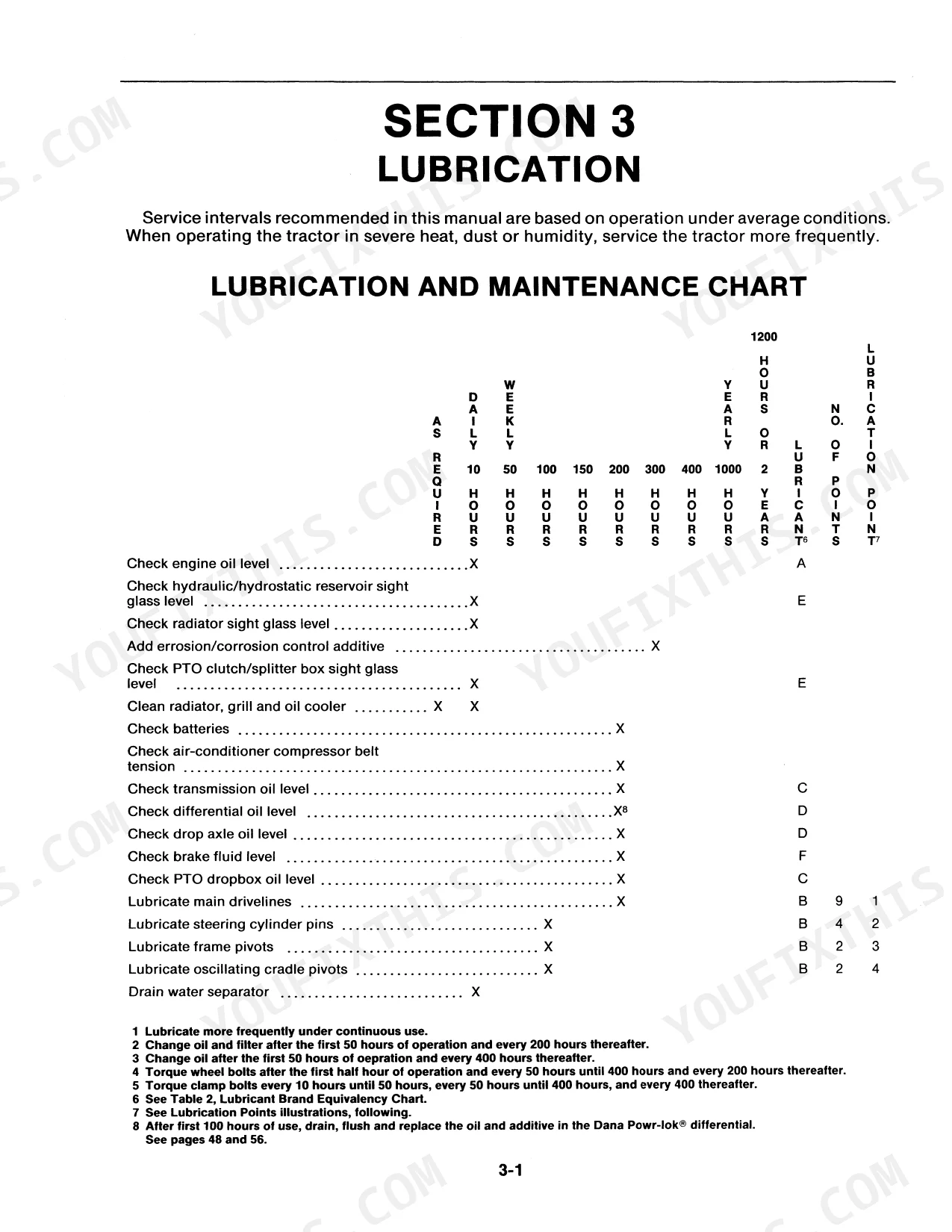

| Lubrication | 51-56 | Lubrication and Maintenance Chart, Lubricant Brand Equivalency Chart |
| Maintenance | 57-98 | Air Cleaner, Brakes, Cooling System |

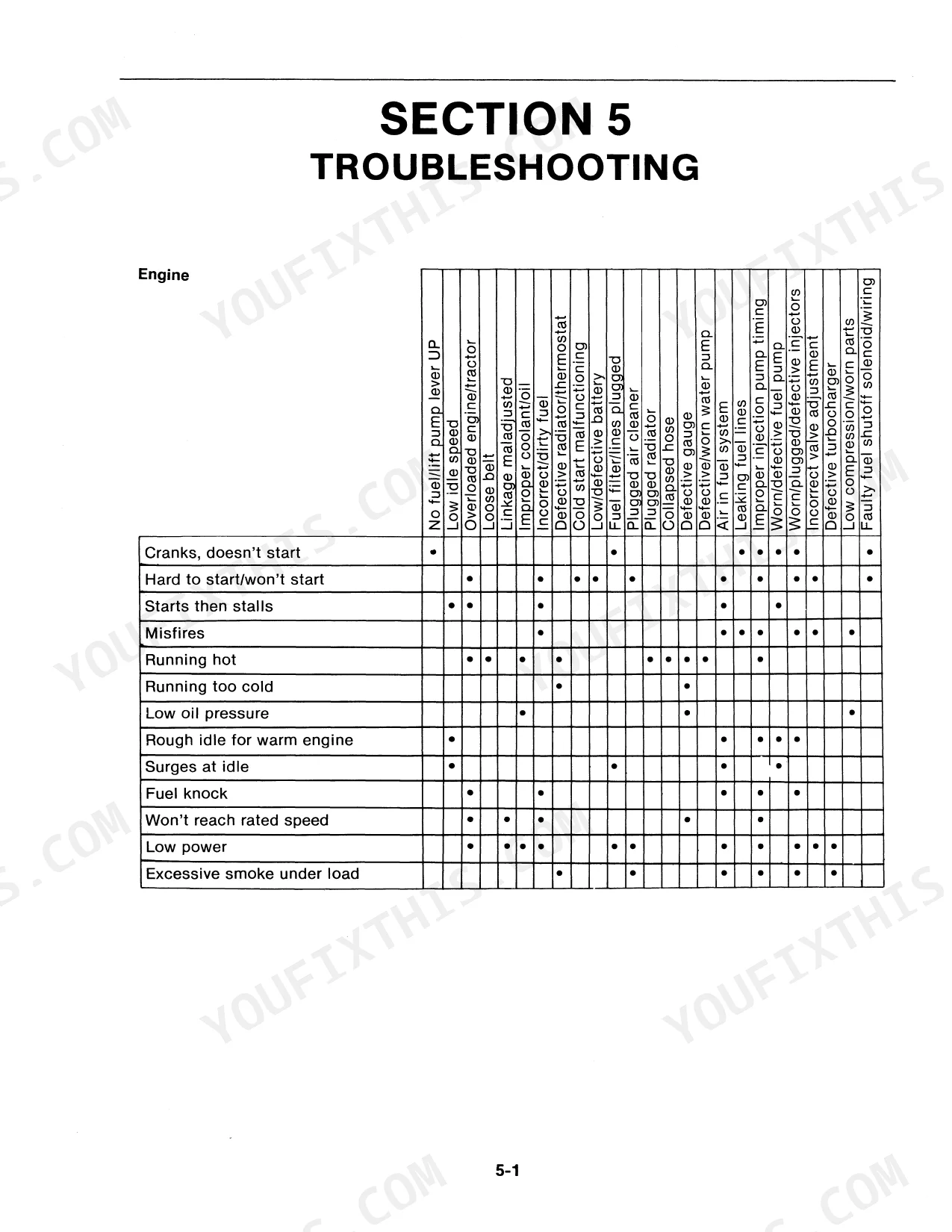

| Troubleshooting | 99-104 | Engine Troubleshooting, Three-Point Hitch Troubleshooting, Hydrostatic System Troubleshooting |

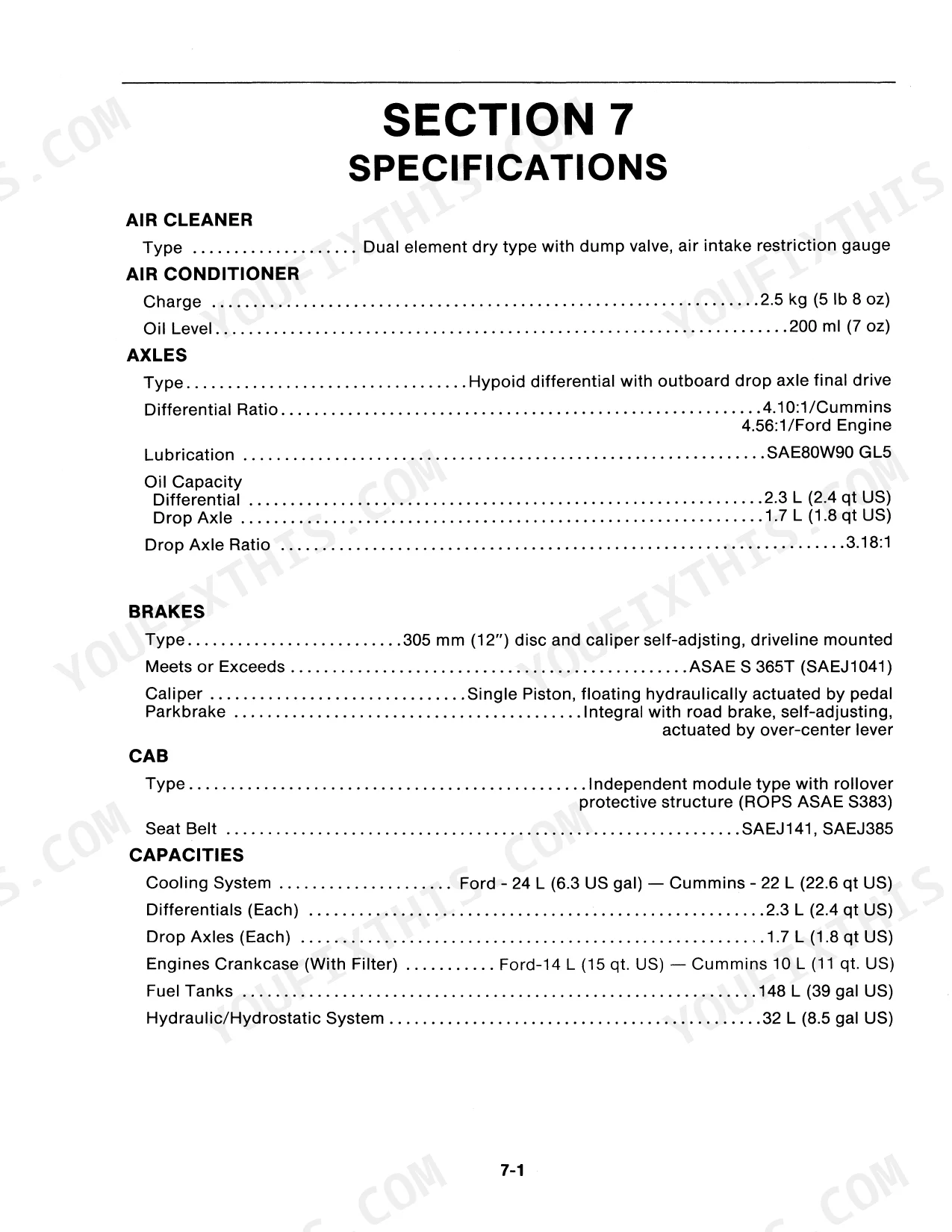

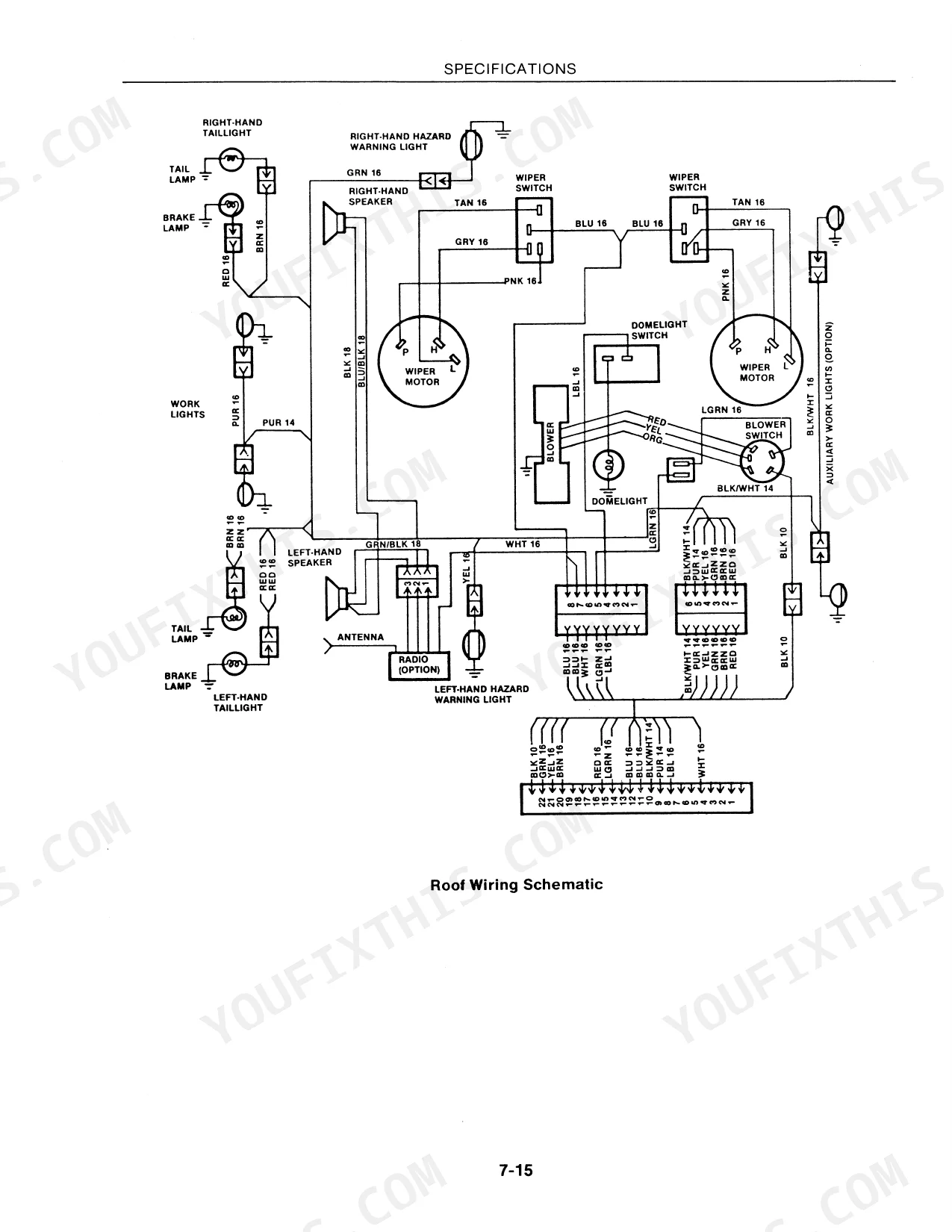

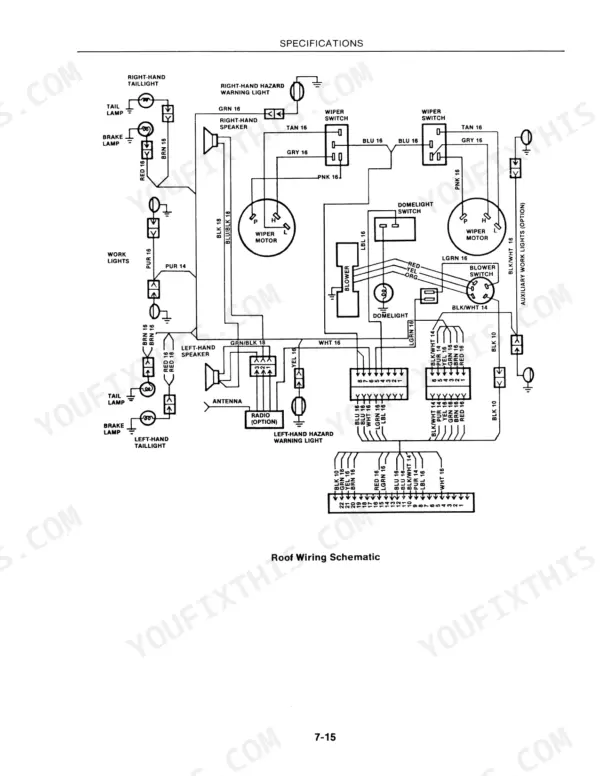

| Specifications | 105-127 | Capacities, Engine Ford, Engine Cummins |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front hitch extension flange nut torque | 185 N·m (135 ft. lbs.) | p. 32 |
| M6 x 1.0 Class 9.8 Plain | 10 N·m (7 ft. lbs.) | p. 96 |
| Hydraulic motor hose ID | 12.7 mm (1/2 inch) | p. 42 |
| PTO clutch engagement torque | 57-68 N·m (42-50 ft. lbs.) | p. 60 |
| PTO clutch brake disc face distance from thrust collar | 18 mm (0.70 in.) | p. 65 |
| Drop axle oil change interval | 400 hrs | p. 62 |
| PTO drop box oil change interval | 400 hrs | p. 59 |
| Engine oil pressure (Ford engine) | 96 kPa (14 PSI) idle, 345 kPa (50 PSI) rated speed | p. 107 |
| Cooling system capacity (Cummins engine) | 22 L (22.6 qt US) | p. 72 |
| Transmission oil capacity | 8.7 L (9 qt US) | p. 89 |
| Hydraulic system capacity | 32 L (8.5 gal US) | p. 87 |
| PTO clutch adjustment torque | 57-68 N·m (42-50 ft. lbs.) | p. 64 |
New Holland 276 II Common Problems This Manual Covers
Hydraulic leaks drain the system fast
Owners of these bidirectionals report that a weeping fitting or a chafed hose can pull the level down faster than expected, and the hydrostatic drive is unforgiving about running low. The Maintenance section gives the hydraulic system capacity as 32 L (8.5 gal US), so you can refill correctly after chasing down a leak.
Manual Section: Maintenance p. 87PTO clutch slips under load
A PTO driven implement that stalls or chatters in heavy crop usually means the clutch has drifted out of adjustment rather than worn out. The Maintenance section has you put a torque wrench on the cap screw at the yoke shaft and check for 57-68 N·m (42-50 ft. lbs.); if the reading is off, it walks you through the clutch adjustment.
Manual Section: Maintenance p. 64Drop axles and differentials run dry
The drop boxes and differentials are easy to forget until one starts whining on a headland turn. Maintenance calls for the drop axle oil to be changed every 400 hrs, and lists 1.7 L (1.8 qt US) per drop axle and 2.3 L (2.4 qt US) per differential so you fill each one to the right level.
Manual Section: Maintenance p. 62Oil pressure gauge sags at idle
A low reading at idle sends people chasing an oil pump that is fine. Specifications gives the Ford engine oil pressure as 96 kPa (14 PSI) at idle and 345 kPa (50 PSI) at rated speed, which tells you in a minute whether you have a real problem or a normal one.
Manual Section: Specifications p. 107Overheating during hot, dusty work
Chaff and dust pack the core and the temperature climbs before the gauge gets your attention. The Maintenance section covers the cooling system and lists a cooling system capacity of 22 L (22.6 qt US) for the Cummins engine, so refilling after a flush is not guesswork.
Manual Section: Maintenance p. 72Hard starting in cold weather
Below freezing, a tractor that cranks but will not catch usually comes down to fuel condition, battery state or a start-up step done out of order. The Operation section covers cold weather operation and tractor start-up in the sequence the factory intended.
Manual Section: Operation p. 21Hydrostatic drive feels sluggish or creeps
Weak response under load or creep with the lever centered is a common complaint on the 276 II, and it can trace back to linkage, charge pressure or contaminated oil. The Troubleshooting section runs a hydrostatic system chart alongside the engine and three-point hitch charts.
Manual Section: Troubleshooting p. 99Frequently Asked Questions
Which tractor and engines does this manual cover?
The New Holland 276 II Bidirectional Tractor, publication 42027610, with either the Ford or the Cummins engine. It is the operator manual: safety, general information, operation, lubrication, maintenance, troubleshooting and specifications, across 136 pages. It is not a component overhaul manual.
Will it help me diagnose a problem, or only list service intervals?
Both. The Troubleshooting section carries charts for the engine, the three-point hitch and the hydrostatic system, and the Maintenance section covers the air cleaner, brakes and cooling system with the adjustment procedures that go with them. p. 99
Does it include torque specifications?
Yes. The Maintenance section includes a metric fastener torque chart, for example M8 x 1.25 Class 10.9 plain at 35 N·m (25 ft. lbs.), plus specific values called out in the procedures themselves, such as the PTO clutch engagement torque. p. 96
Are fluid capacities listed?
Yes. Capacities appear with the maintenance procedures and again in the Specifications section, covering the crankcase for both engines, transmission, hydraulics, differentials and drop axles. The fuel tank, for instance, is listed at 148 L (39 gal US). p. 83
Will this New Holland 276 II Operator Manual download right away?
You download the Operator Manual yourself: 136 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Is this New Holland 276 II manual print-friendly?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
