An articulated tractor that binds through a shift, or a hinge joint that has started to knock, is not something you diagnose from memory. Factory book 37-190, the 754 page Steiger Cougar CR, Cougar KR, Panther CP, Panther KP, Panther 1000 service manual PDF, carries all five machines from axle teardown through range powershift reassembly. Main wiring schematics trace the CR and KR harnesses circuit by circuit, and the closed center hydraulic section explains system principles before you put a wrench on the charge pump or piston pump. Transmission work fills the largest share of the book, from disassembly to final buildup. Check standby against the 2500 psi (172.4 bar) spec, and pull the lower vertical hinge pin to 1200 lb ft (1627 N.m). One made-up torque figure and that joint works loose mid-field. Bookmarked with a live text layer, this PDF reads as well in the cab as on the bench, and the weather window stays yours.
What's Inside This Steiger Cougar CR/KR and Panther CP/KP/1000 Manual

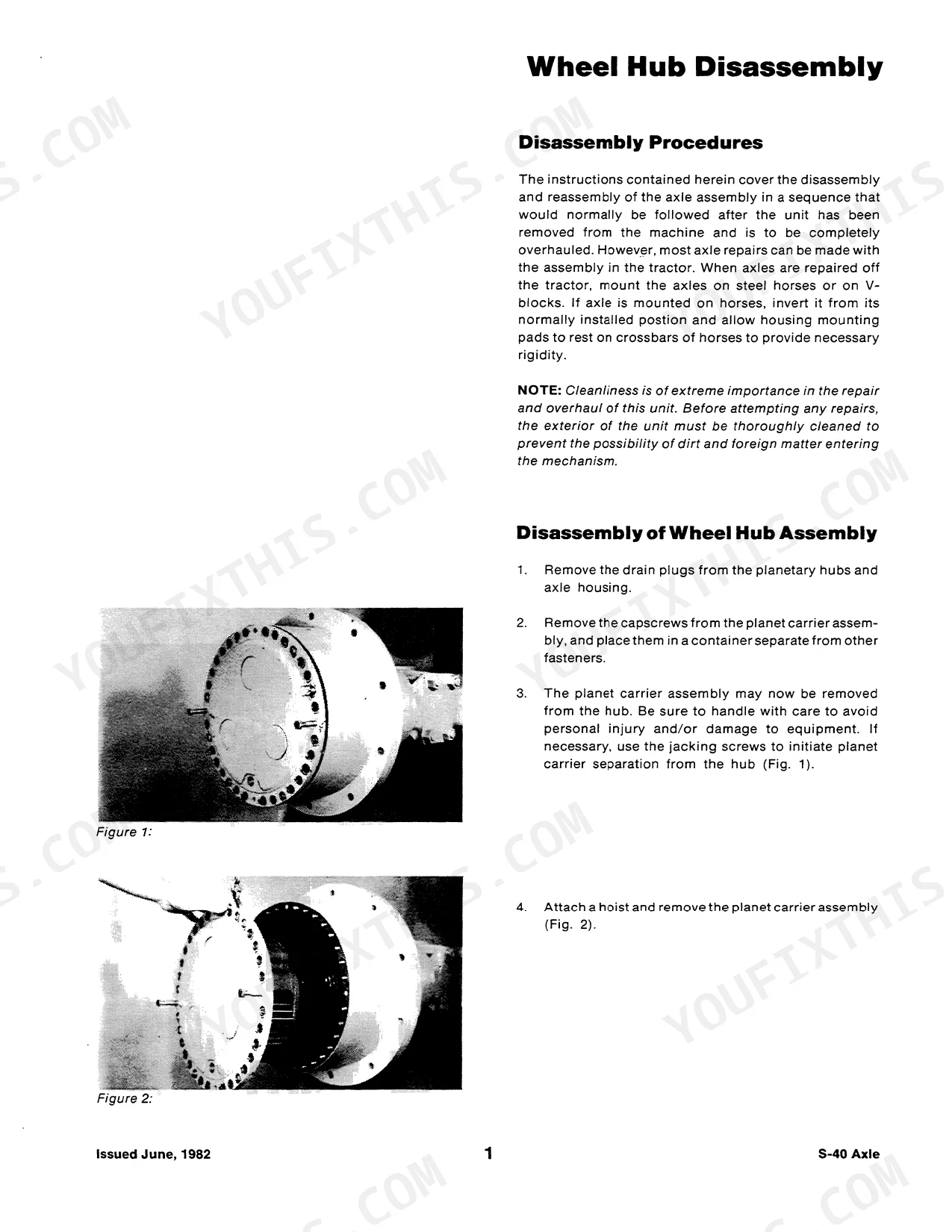

| System | Pages | Key Topics |
|---|---|---|
| Safety | 2-5 | Hand Signals, Safety Suggestions |
| Specifications | 6-23 | General Specifications |
| Axle | 24-221 | Wheel Hub Disassembly, Differential Disassembly, Differential Reassembly, Controlled Traction Differential, Controlled Traction Electric Shift, Wheel Hub Reassembly |
| Brakes | 222-235 | Caliper Disc Brakes, Replacing Friction Pads |
| Chassis | 236-281 | Metric Conversion, Torque Values, Steering Column |
| Climate Control | 282-417 | Chemical Instability and Refrigerating System Failures, Moisture in a Refrigerant System, Primary Causes of System Failures, Basic System Design and Operation |
| Electrical | 418-562 | Main Wiring Schematics, Electronic Dash Calibration, Secc Electronics, Oil Cooled Delcotron Integral Charging System, Niehoff Model N1056 Alternator |
| Hydraulics | 563-636 | Service and Maintenance, System Principles and Operation, Charge Pump Repair, Piston Pump Repair, Remote Hydraulic Valves, Closed Center Control Valve |
| Transmission | 637-754 | Operating Tips for Shifting the Range Transmission, Range Powershift Hydraulic Circuit, Transmission Disassembly, Transmission Subassemblies, Transmission Assembly |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| CP-1325 | ||
| Engine Oil Capacity (CP-1325) | 9 gal. (34.0L) | p. 12 |
| KP-1325 | ||
| Engine Oil Capacity (KP-1325) | 10.5 gal. (39.8L) | p. 12 |
| All Models | ||
| Hydraulic System Operating Pressure | 2500 psi (172.4 bar) | p. 15 |
| Transmission Oil Capacity (w/o PTO) | 10 gal. (37.9L) | p. 15 |
| Lower Vertical Hinge Pin Torque | 1200 lb ft (1627 N.m) | p. 22 |
| Transmission Regulated Pressure | 200-240 psi | p. 656 |
| Main Pump Low Pressure Standby | 300 psi | p. 584 |
| Steering Pressure | 2350 psi | p. 584 |
| Alternator Output | 100 amps | p. 542 |
Steiger Cougar CR/KR and Panther CP/KP/1000 Common Problems This Manual Covers
Steiger articulation joint loose, front frame clunks and steering feels unstable over rough ground
Raise and support the front frame, then pry the articulation joint vertically to check bearing play. Replace worn uniball bearings before they egg out the bores. On reassembly, torque the lower vertical hinge pin to 1200 lb ft (1627 N.m), the spec listed on page 22, and grease both joints until clean grease purges.
Manual Section: Chassis p. 236Tractor loses forward and reverse drive, steering and hydraulics quit at the same time
Check transmission oil level first; the system holds 10 gal. (37.9L) without PTO. Test regulated pressure against the 200 to 240 psi spec on page 656. If pressure is good and nothing moves, pull the cab floor plates and inspect the splined coupler gear in the gearbox for stripped splines from lost lubrication.
Manual Section: Transmission p. 656Steering gets slow and heavy after a few hours of fieldwork, wanders on the road
Verify hydraulic reservoir level and check every coupler for a half-seated sleeve before condemning the pump. Test main pump low pressure standby at 300 psi and steering pressure at 2350 psi, both specs shown on page 584. If standby is low, suspect a restricted suction line or worn charge pump before pulling the steering unit.
Manual Section: Hydraulics p. 584Remote hydraulics slow to raise implements, oil runs hot by mid afternoon
Fill the reservoir to the mark and clean the suction screen before anything else. Test system pressure; it should build to 2500 psi (172.4 bar) with a remote held over relief. Trace the circuit on the hydraulic schematic on page 15 to isolate a restricted line or loose coupler half before harvest traffic stacks up.
Manual Section: Hydraulics p. 563Engine cranks slowly on cold mornings, batteries go dead after a long day of lights
Load test both batteries and clean the ground straps at the frame before blaming the alternator. Run the engine at rated speed and measure charging output; the alternator should produce 100 amps, the spec listed on page 542. Replace corroded cable ends and check belt tension so the system keeps up through night tillage.
Manual Section: Electrical p. 542Frequently Asked Questions
How do I reset an error code on a Steiger Panther CP or KP tractor?
To reset an error code on a Steiger Panther CP or KP tractor, turn the key switch to the "off" position and then turn the switch back on to the "run" position. p. 470
What are the torque specifications for the axle to frame mount bolts on a Steiger Panther 1000 series tractor?
The axle to frame mount bolts for the Panther 1000 series tractor must be tightened to 1400 ft-lbs (1890 N.m). p. 23
What is the recommended oil capacity for the differential section of a Steiger Panther 1000 series tractor?
The differential section of a Steiger Panther 1000 series tractor has an oil capacity of 40 quarts (38.0L). p. 10
What is the procedure for checking the oil level in the wheel hubs of a Steiger Panther 1000 series tractor?
To check the oil level, turn the hub until the lower edge of the drain plug is 1-1/2 inches below the horizontal centerline of the axle. The oil should be level with the lower edge of the hole in this position. p. 71
What is the torque specification for the wheel lug bolts on a Steiger Panther 1000 series tractor?
The wheel lug bolts should be tightened to 600 lb-ft (814 N.m) if they are clean and dry. If the bolts are clean and dipped in SAE 30 oil, they should be tightened to 450 lb-ft (610 N.m). p. 21
What exactly do I receive with this Steiger Cougar CR Service Manual?
One searchable PDF covering 754 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Does this Steiger Cougar CR manual allow printing?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
