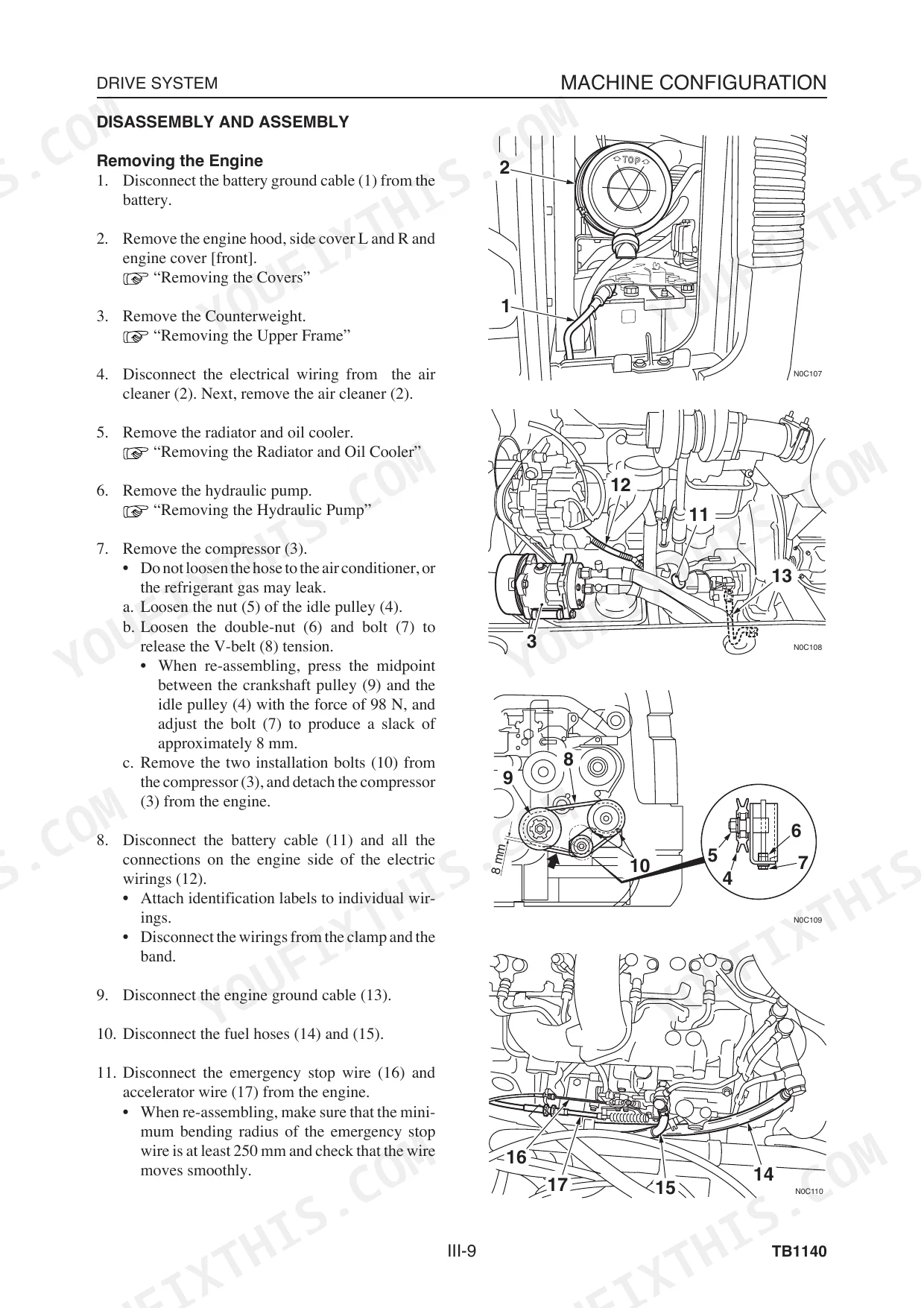

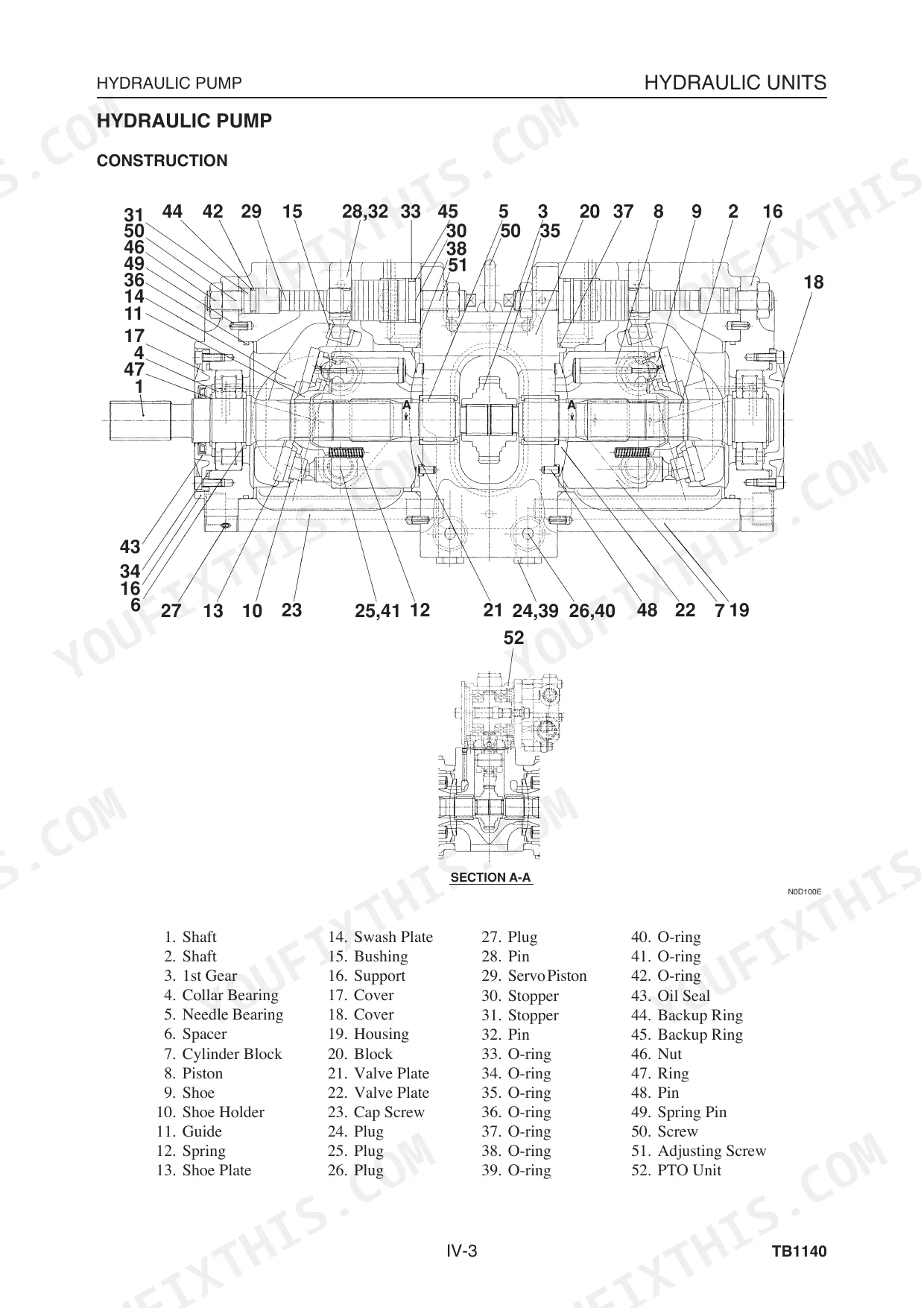

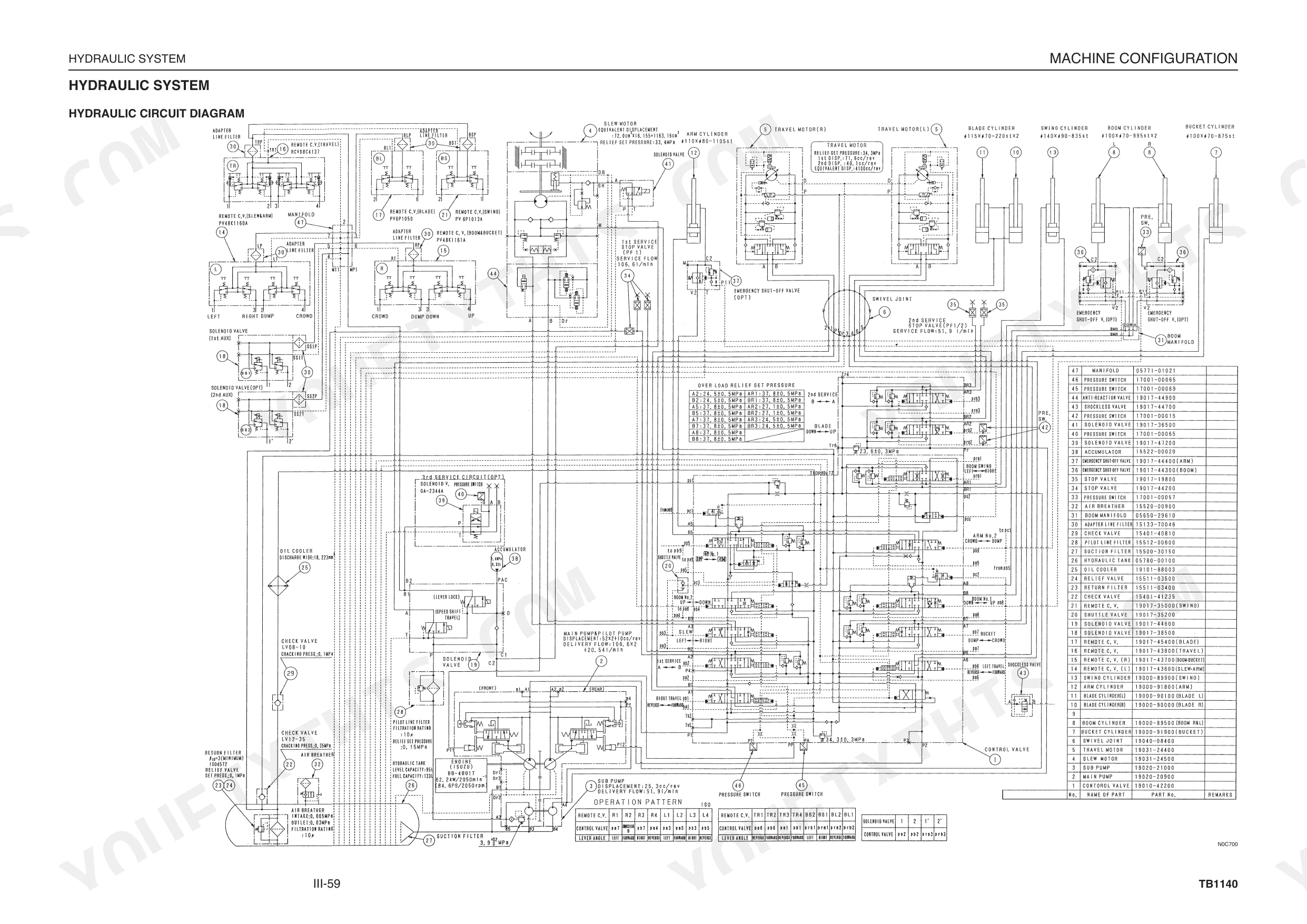

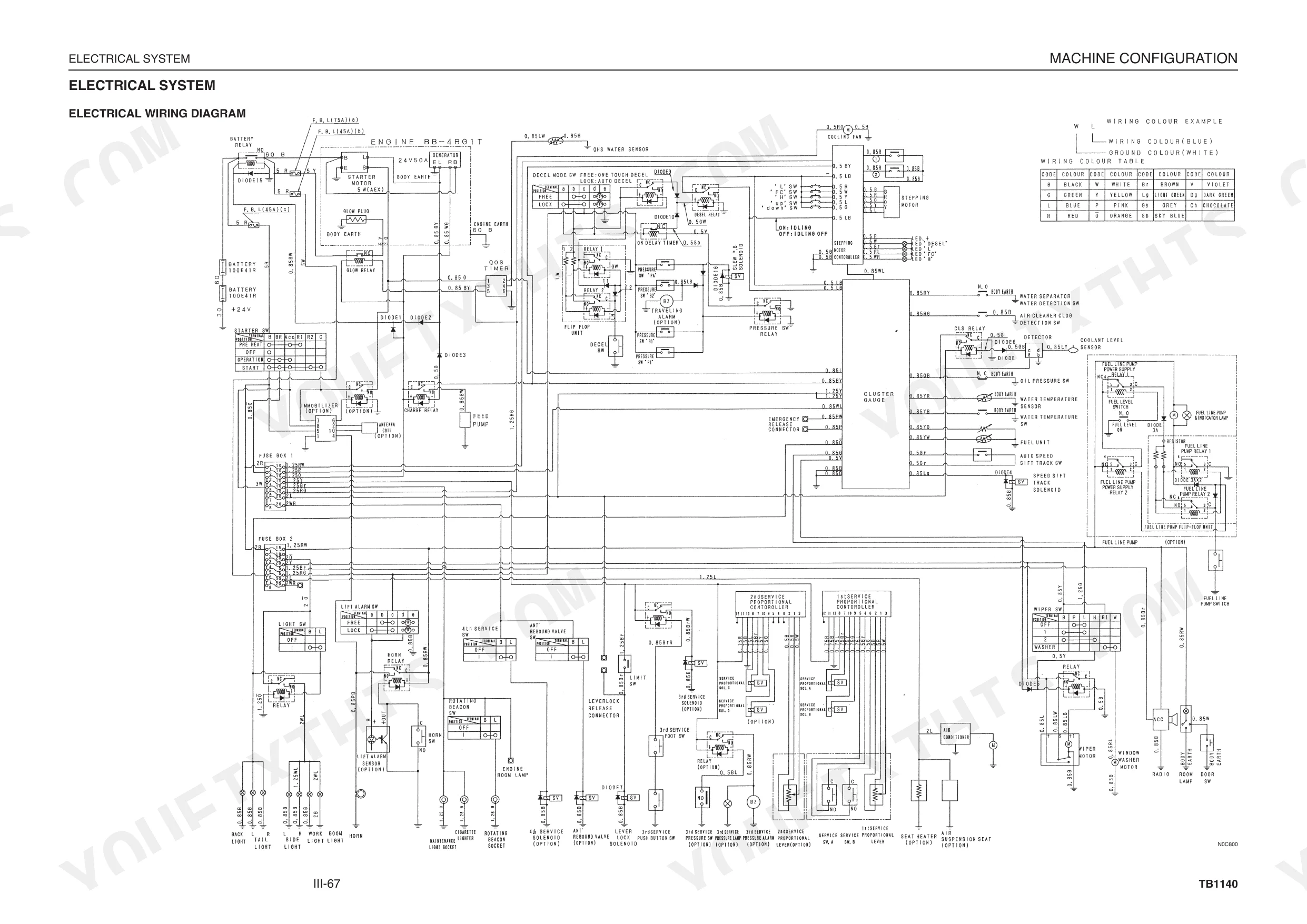

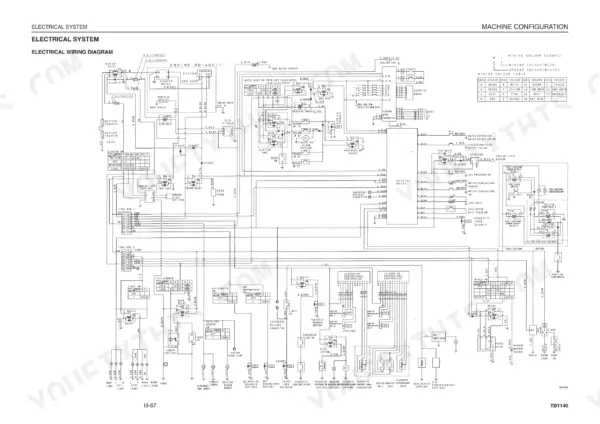

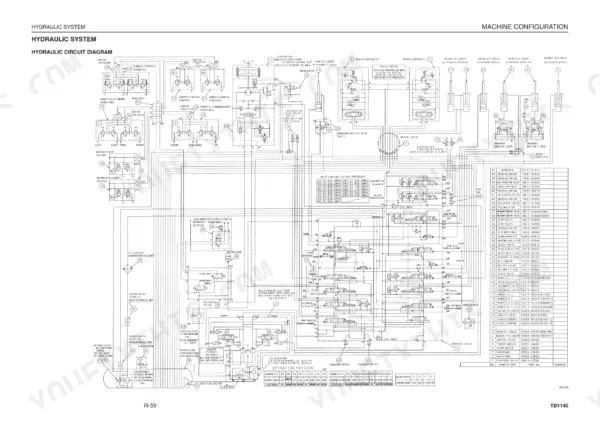

Every one of the 652 pages in this Takeuchi TB1140 Service Manual PDF (OEM #CN0E000) points at one machine: the TB1140 hydraulic excavator, from the main pump to the turbocharger. Inside this factory shop manual you get full hydraulic schematics and wiring diagrams, exploded views of the piston pump, control valve, pilot valve, and travel and slew motors, plus a dedicated troubleshooting section that chases boom, arm, bucket, travel, and slewing faults down to the failed component. The engine chapters cover the fuel system, cooling, lubrication, and air compressor in the same detail. Set main relief pressure to 34.3 MPa, pilot pressure to 3.9 MPa, and torque 1/2-inch hose union nuts to 58.8 Nm. No more chasing hydraulic faults on forum hearsay. Bookmarked and keyword-searchable; pull it up on your tablet and walk straight to the machine.
What's Inside This Takeuchi TB1140 Manual
| System | Pages | Key Topics |
|---|---|---|
| Front Matter & How to Read This Manual | 5-8 | How to Read This Manual, Page Number and Revision Convention, Model Identification, Section Index |
| General | 9-22 | Safety Precautions, Disassembly and Assembly, Hydraulic Unit Removal and Installation, Piping Removal and Installation, Handling of Seals, Tightening Torques |

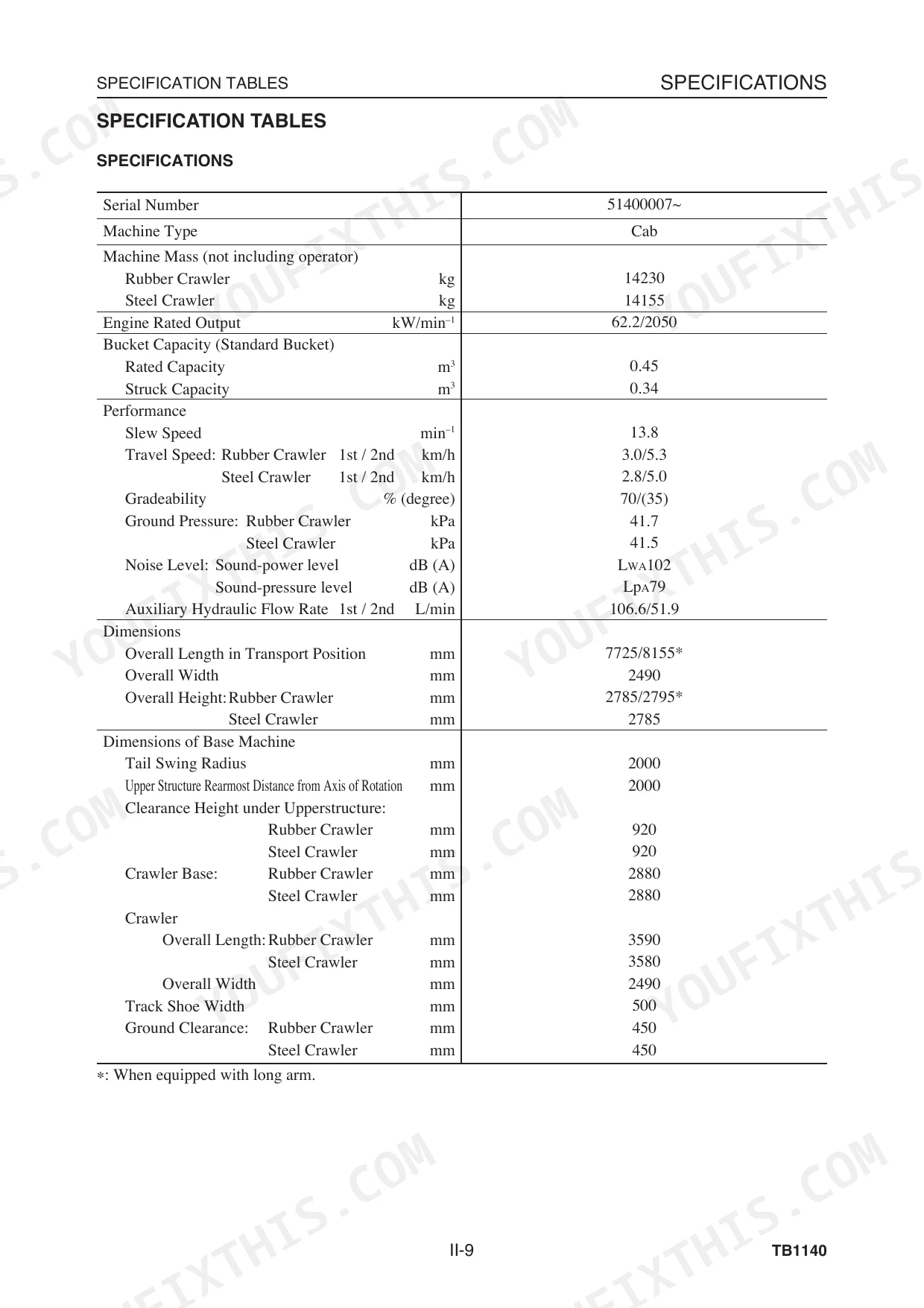

| Specifications | 23-58 | Component Names, Dimensions, Lifting Capacities, Specification Tables, Mass Tables, Recommended Lubricants |
| Machine Configuration | 59-198 | Drive System, Slew System, Travel System, Upper Frame, Control System, Attachments |
| Hydraulic Units | 199-386 | Hydraulic Pump, Gear Pump, Control Valve, Solenoid Valve, Pilot Valve, Travel Motor |

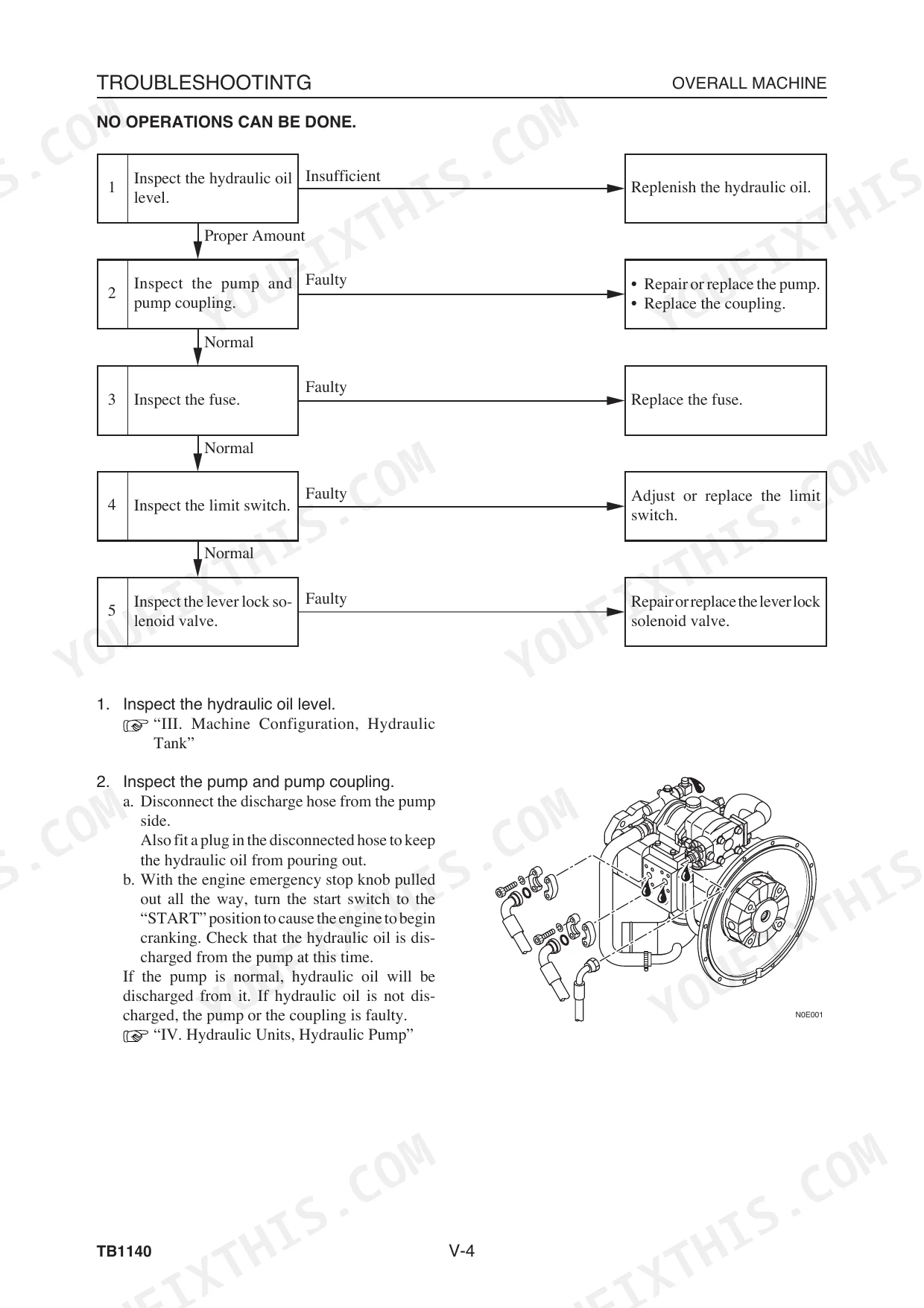

| Troubleshooting | 387-432 | Overall Machine, Machine Travel, Slewing, Boom, Arm, Bucket |
| Engine (Isuzu 4BG1T) | 433-652 | Lubricating System, Cooling System, Fuel System, Turbocharger, Air Compressor, Engine Electricals |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

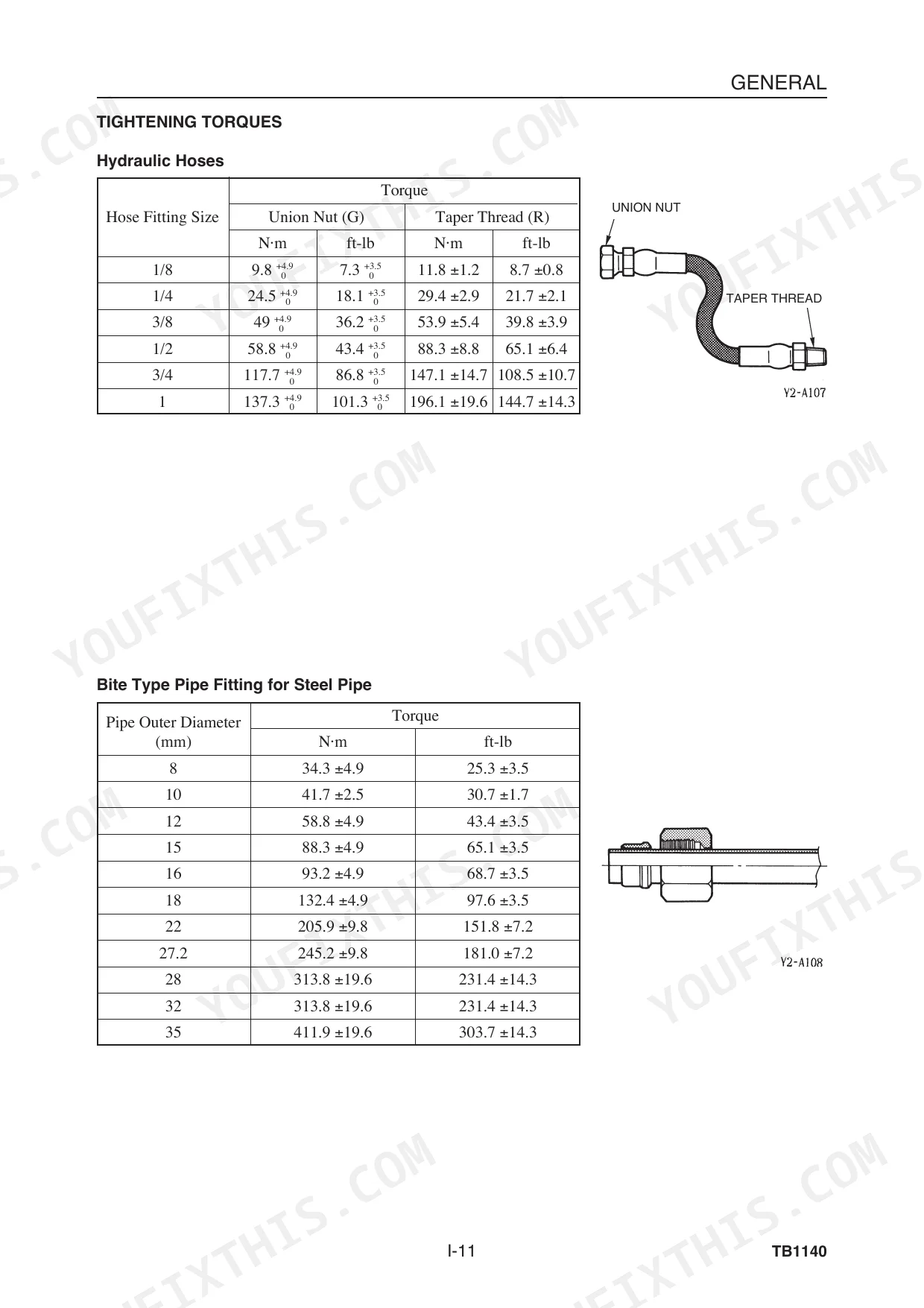

| Hydraulic Hose Fitting Size 1/8 Union Nut (G) Torque | 9.8 Nm (7.3 ft-lb) | p. 19 |
| Hydraulic Hose Fitting Size 1/4 Union Nut (G) Torque | 24.5 Nm (18.1 ft-lb) | p. 19 |
| Main Relief Valve Set Pressure (Boom / Arm) | 34.3 +1.5/-0.5 MPa | p. 47 |
| Pilot Relief Valve Set Pressure | 3.9 +0.5/-0.2 MPa | p. 47 |
| Hydraulic tank replacement interval | Every 2000 hrs. | p. 39 |
| Hydraulic Oil, Total System Capacity | 215 L | p. 39 |
| Hydraulic Oil, Tank Level Capacity | 95 L | p. 39 |
| Slew Relief Valve Set Pressure | 33.3 +1.5/-1.0 MPa | p. 47 |
| Travel reduction gear replacement interval | Every 2000 hrs. | p. 39 |
| Travel reduction gear capacity | 4.2 L | p. 39 |
| Pump Coupling Fastener Torque (point B) | 210~230 N·m | p. 63 |
| Pump Coupling Fastener Torque (point C) | 47.1 N·m | p. 63 |
| Engine Rated Output | 62.2 kW @ 2050 rpm | p. 31 |
| Travel Speed (Rubber Crawler) | 3.0 / 5.3 km/h | p. 31 |
Takeuchi TB1140 Common Problems This Manual Covers
Takeuchi TB1140 digging power weak, arm and bucket slow after warm-up, sluggish hydraulic response
Check hydraulic tank level first; the system holds 215 L total with 95 L at tank level. Test main relief pressure at the boom and arm ports, the reference-value setting is 34.3 MPa on page 47, and verify pilot pressure reaches 3.9 MPa. If readings are low, replace the return filter and suction strainer before condemning the pump.
Manual Section: Overall Machine Troubleshooting p. 390Hydraulic pump whining or knocking at operating temperature, noise gets worse under load
Check oil level and inspect the suction strainer for sludge; a starved inlet cavitates and sounds like gravel in the pump. Tighten suction line clamps and fittings to stop air ingress, then watch the tank for foaming. If you pull the pump for inspection, torque the pump coupling fasteners at point B to 210~230 N·m on reassembly per page 63.
Manual Section: Machine Configuration / Drive System p. 63Machine slews slowly in one direction, swing overruns or won't stop where aimed
Measure pilot pressure at the slew spool while stroking the lever; anywhere in the 0~3.9 MPa range is normal depending on operating angle, per page 404. Then check supply pressure at the slew control valve, which should read 33.3 MPa. Low pilot readings point to the pilot circuit, not the slew motor, so test upstream before pulling components.
Manual Section: Slewing Troubleshooting p. 404Boom drifts down under load with controls in neutral, arm creeps the same way
Check spool pressure at the control valve; the boom and arm circuits should hold 34.3 MPa, and pages 413 and 418 walk through the test sequence. If pressure bleeds off with the spool centered, pull the cylinder and inspect piston seals for scoring. Cycle new seals slowly after assembly to purge air before load testing.
Manual Section: Boom Troubleshooting p. 413Oil weeping at hose fittings and cylinder rod seals, wet spots under the tank
Wipe everything dry, run the machine to operating pressure, and find the true source before replacing parts. Retorque union nuts to the specs on page 19: 58.8 Nm for 1/2 inch fittings, 117.7 Nm for 3/4 inch. Replace any hose with a cracked or bulging cover. If the tank seeps at its mounts, torque the fixing bolts to 97.0 ±4.9 N·m.
Manual Section: General p. 19Frequently Asked Questions
How do I reset the immobilizer on a Takeuchi TB1140?
To register or de-register an immobilizer key, you must use the Registration Key (gray grip). The procedure involves inserting the Registration Key, waiting 10 seconds, turning it to OFF, then inserting the Immobilizer Keys one by one, waiting 10 seconds for each, and finally re-inserting the Registration Key to complete the process. If the registration is unsuccessful, wait at least 30 seconds before restarting the procedure from the first step. p. 196
What are the replacement specifications for hydraulic oil?
The hydraulic tank has a total system capacity of 215 L and a tank level capacity of 95 L. The recommended oil is antiwear hydraulic oil, which should be replaced every 2000 hours. p. 39
What is the tightening torque for the cylinder head bolts on the Isuzu BG1 engine?
The cylinder head bolts are tightened by the Angular Tightening Method in three steps: 69 N·m (51 lb.ft), then 88 N·m (65 lb.ft), then a further 90°-120°. The same sequence covers the 4B series (the TB1140's own 4BG1T) and the 6B series that the bundled Isuzu engine manual also documents; only the bolt count at the injection-pump side differs (4 vs 6 short bolts). p. 543
What is the standard valve clearance for the engine?
The standard intake and exhaust valve clearance on the TB1140's Isuzu 4BG1T is 0.40 mm (0.016 in) with the engine cold. p. 468
What is the standard cooling fan drive belt deflection?
The TB1140 runs an Isuzu 4BG1T, so use the 4BG1 column: 8.0-12.0 mm (0.3-0.47 in) of deflection under a 98 N (22 lb) push midway between the fan and alternator pulleys. The bundled Isuzu engine manual also tabulates the 6-cylinder 6BG1 at 7.0-10.0 mm (0.28-0.39 in), but that column does not apply to this machine. p. 467
What format is this Takeuchi TB1140 manual in?
Delivery is instant: a 652-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Is this Takeuchi TB1140 manual print-friendly?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
