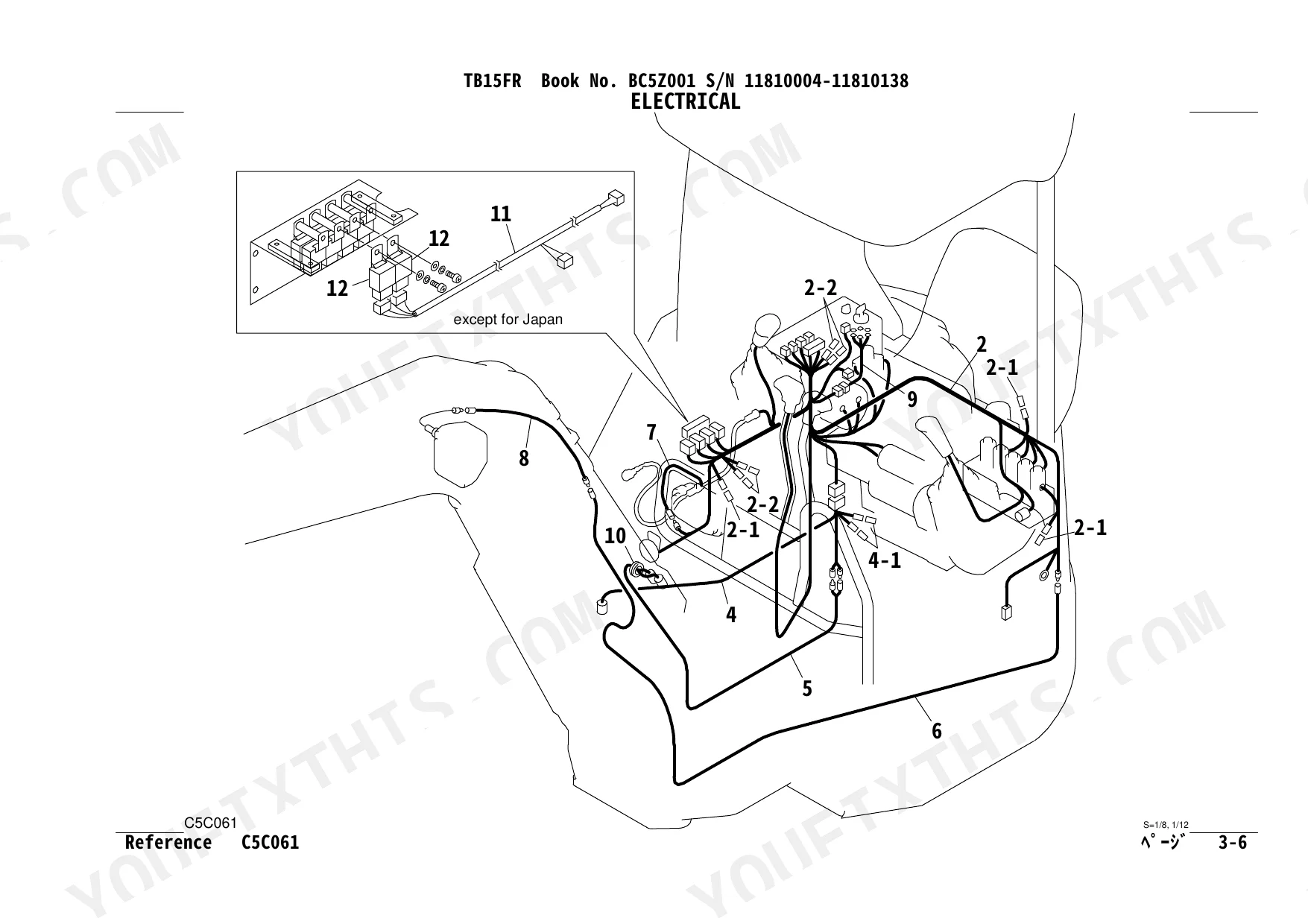

Need the right part number for your Takeuchi TB15FR? This 238-page Takeuchi TB15FR parts catalog PDF (OEM #BC5Z001) maps every component on the hydraulic excavator, from crawler belt to boom cylinder. Inside: exploded views of the full undercarriage, slewing device, boom offset assembly, and hydraulic devices, each keyed to factory part numbers. You get the electrical assembly and wiring-harness drawings (pages 90-91) plus complete parts lists for the control valve, pilot valve, travel motor, slew motor, and hydraulic pump. Serial breaks are called out too: front idler and track adjuster listings split at machine 11810067, and boom offset pages change at 11810112, so you order the version that actually fits your serial number. No more squinting at a worn housing hoping to guess the casting number. Bookmarked and text-searchable; type the part name, land on the diagram, place the order.
What's Inside This Takeuchi TB15FR Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Undercarriage | 16-41 | Lower Frame, Crawler Belt, Track Roller, Front Idler (11810004-11810066), Front Idler (11810067-), Track Adjuster (11810004-11810066), Track Adjuster (11810067-), Travel Device |

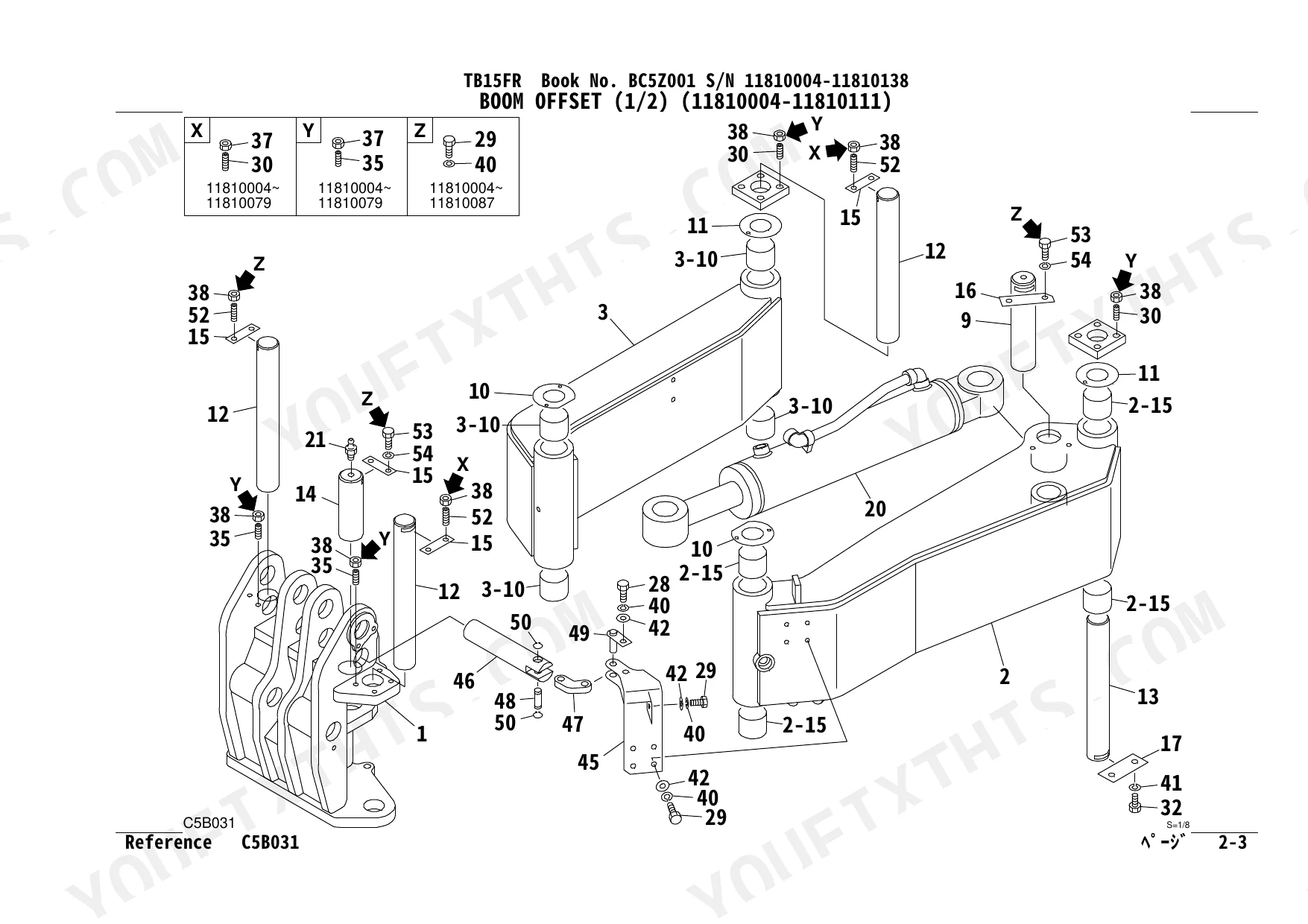

| Turntable & Control Lever | 42-77 | Slewing Device, Turntable, Boom Offset (11810004-11810111), Boom Offset (11810112-), Offset Switch |
| Engine & Electrical System | 78-97 | Drain Plug, Control Box, Engine Control, Electrical, Travel Alarm, Battery |

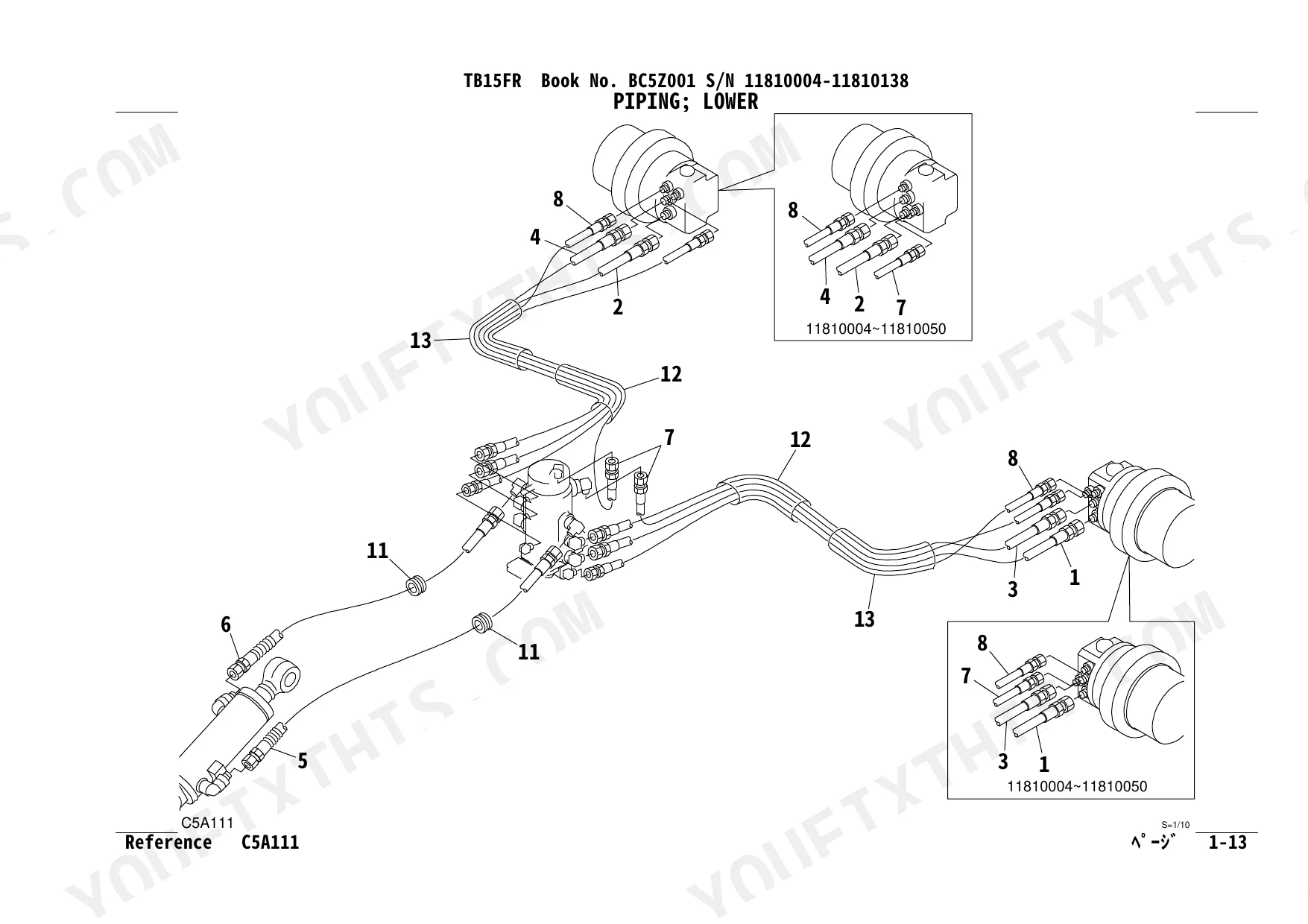

| Hydraulic Piping & Tank | 98-109 | Valve & Accessories, Piping; Upper, Pump Drive, Hydraulic Tank, Fuel Tank & Fuel Piping |
| Cover & Cab | 110-125 | Cover, Cover (Engine Hood), Floor Frame, Seat, Seat Belt, Canopy, Manual Storage |
| Hoe Attachment | 126-139 | Boom, Interference Sensor, Arm, Bucket, Auxiliary Line |
| Decal & Tool | 140-155 | Japanese, Decal, Decal (Selector Valve), Tool & Accessories, Painted Color (for Japan) |
| Hydraulic Device | 156-227 | Swivel Joint, Control Valve, Solenoid Valve, Pilot Valve, Selector Valve, Rotary Valve, Stop Valve, Boom Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse ratings (control box) | 10A / 15A / 25A / 30A | p. 87 |
| Battery fuse | 45A | p. 95 |
| Bulb rating (cluster gauge) | 14V, 1.4W | p. 87 |
| Diode ratings (electrical assembly) | 1A and 3A | p. 91 |
Takeuchi TB15FR Common Problems This Manual Covers
Takeuchi TB15FR boom cylinder leaking, need correct seal kit part number for my serial range
Check the Hydraulic Device section starting on page 200, where boom cylinder assemblies and seal kits are listed. Find the boom cylinder exploded view, match each seal to its callout number, and pull the kit part number from the parts list. Verify your serial number range first, since TB15FR listings split at breaks like serial 11810112.
Manual Section: Hydraulic Device p. 200Front idler and track adjuster part numbers differ between serial ranges, unsure which listing applies
Check the Undercarriage chassis parts diagram on page 16. Two separate listings exist: serials 11810004 through 11810066 use one front idler and track adjuster assembly, and serials 11810067 and later use another. Read the serial number off your machine plate, then pull part numbers only from the matching exploded view and its list.
Manual Section: Undercarriage p. 16Need part numbers for upper hydraulic piping hoses and fittings that keep weeping at the boom base
Check the Hydraulic Pipng & Tank section starting on page 98, which splits the upper piping into exploded views. Trace the leaking hose from its port to the diagram callout, note the item number, and read the part number from the list. Order the O-rings and fittings shown on the same listing so seal sizes match.
Manual Section: Hydraulic Pipng & Tank p. 98Bucket teeth and pin part numbers unknown, teeth worn down and pin bores sloppy
Check the Hoe Attachment section starting on page 126 for the bucket exploded view. Identify the tooth, adapter, pin, and pin seal item numbers on the diagram, then match each callout to its part number in the list. Order pin seals together with the pins, and count the teeth on your bucket so you order a full matched set.
Manual Section: Hoe Attachment p. 126Hydraulic return filter and air cleaner element part numbers needed before scheduled service
Check the hydraulic tank exploded view in the section beginning on page 98 for the return filter element and its cover O-ring part numbers. Find the air cleaner element in the Engine & Accessories listing starting on page 78. Verify both part numbers against your serial number range before ordering, since filter listings can change at serial breaks.
Manual Section: Engine & Accessories (1/2) p. 78Frequently Asked Questions
What is the part number for the rubber crawler belt?
The part number for the rubber crawler belt is 19140-80300. This part is listed in the undercarriage section of the manual. p. 19
What is the part number for the engine used in the TB15FR?
The engine used in the TB15FR is the 3TNE68-TBZ, with part number 19101-37001 for serial numbers 11810004-11810048. p. 79
What is the part number for the pilot valve seal kit?
The part number for the pilot valve seal kit is 19017-30499. p. 189
What is the part number for the travel motor assembly?
The travel motor assembly part number is 19031-18100 for machines with serial numbers 11810004-11810050, and 19031-21400 for serial numbers 11810051 and higher. p. 31
What is the part number for the battery fuse?
The part number for the 45A battery fuse is 17013-30045. p. 95
What do I get after purchasing this Takeuchi TB15FR manual?
Instant PDF download. You get the full 238-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this Takeuchi TB15FR manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
