Need to identify the exact part on your Takeuchi TL26? This 162-page Takeuchi TL26 parts manual PDF (OEM #PT5-101Z5) is the complete factory parts catalog for the TL26 Compact Track Loader. You get exploded views with OEM part numbers for every system: track rollers, idlers, and travel devices; the Isuzu 4JB1 engine and electrical group; control valves, hydraulic piping, and tank; cab, doors, and seat; arm, quick attachment, and bucket; even decals in four languages. A numerical index at the back lets you work backward from any part number to its assembly. Serial breaks are called out to the digit: track roller listings split at serial 2620710 and valve groups at 2620835, so you order the right revision the first time. Your loader is down and the dealer counter is guessing. Skip that. Bookmarked and keyword-searchable; find the part number, place the order, get back to work.
What's Inside This Takeuchi TL26 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

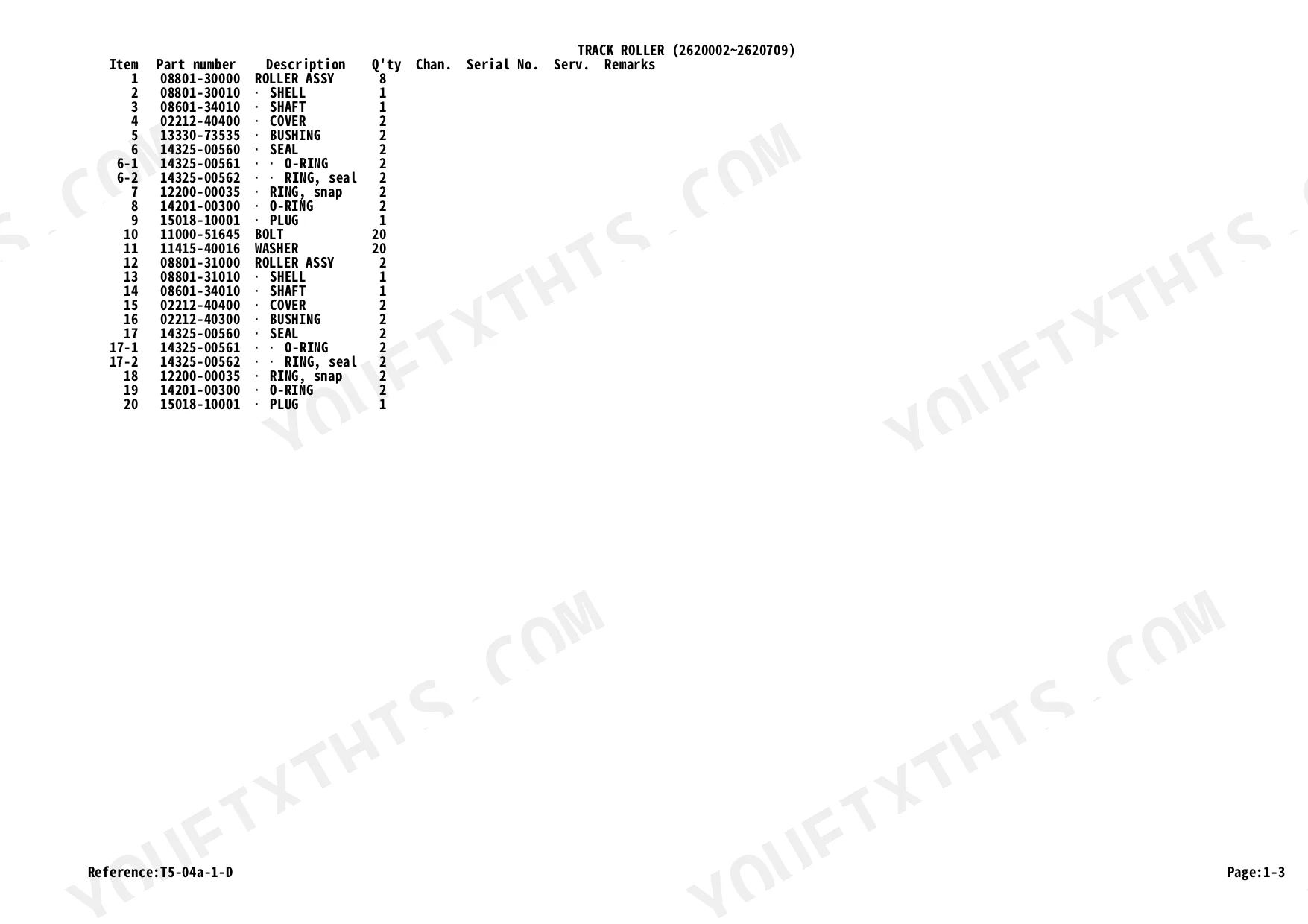

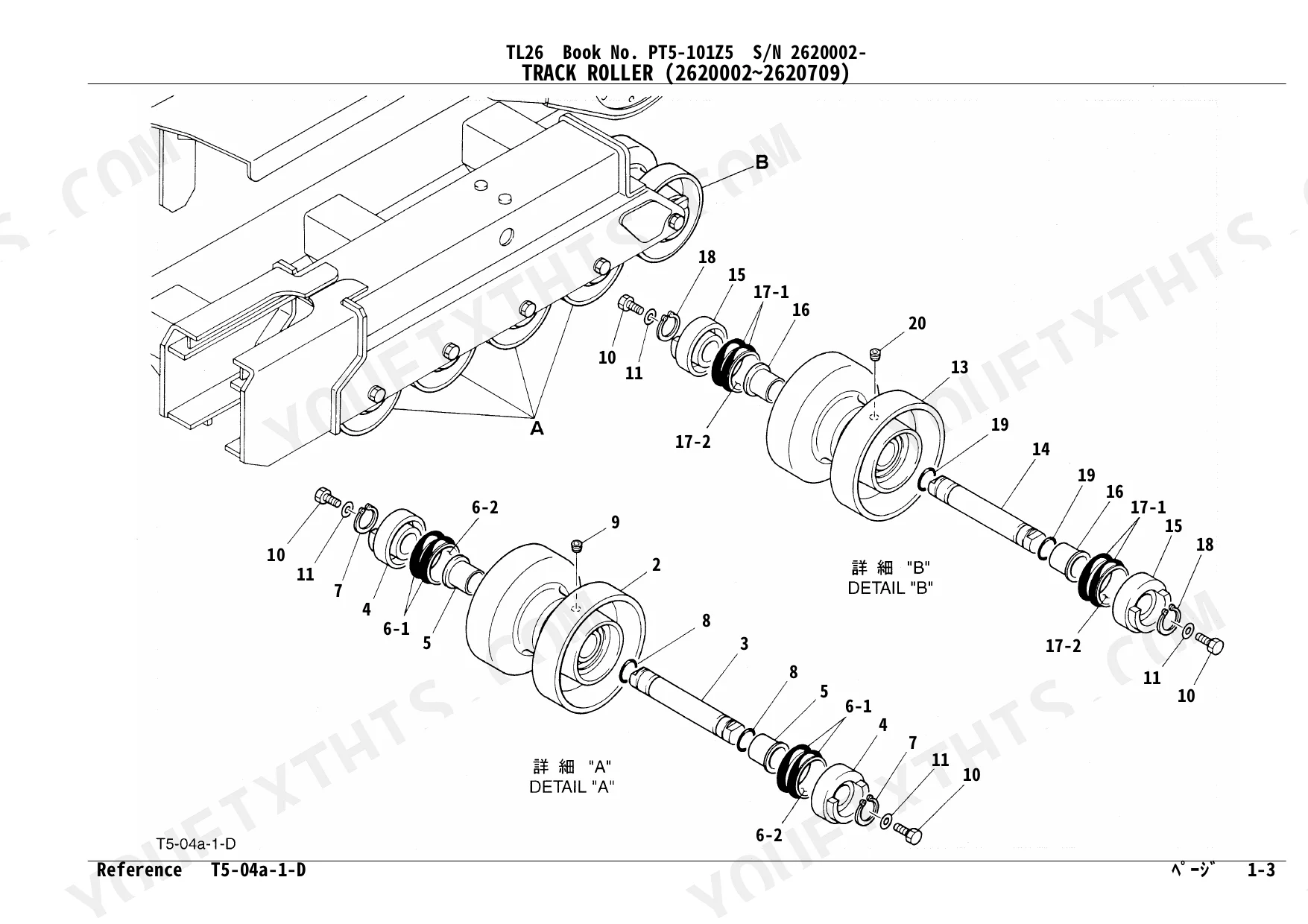

| Undercarriage | 12-21 | Track Roller (2620002~2620709), Track Roller (2620710~2621060), Front Idler, Track Adjuster, Travel Device |
| Main Frame & Control Lever | 22-31 | Frame, Piping; Operation Lever (2620002~2620148), Piping; Operation Lever (2620149~2620809), Piping; Operation Lever (2620810~2621060), Pedal |

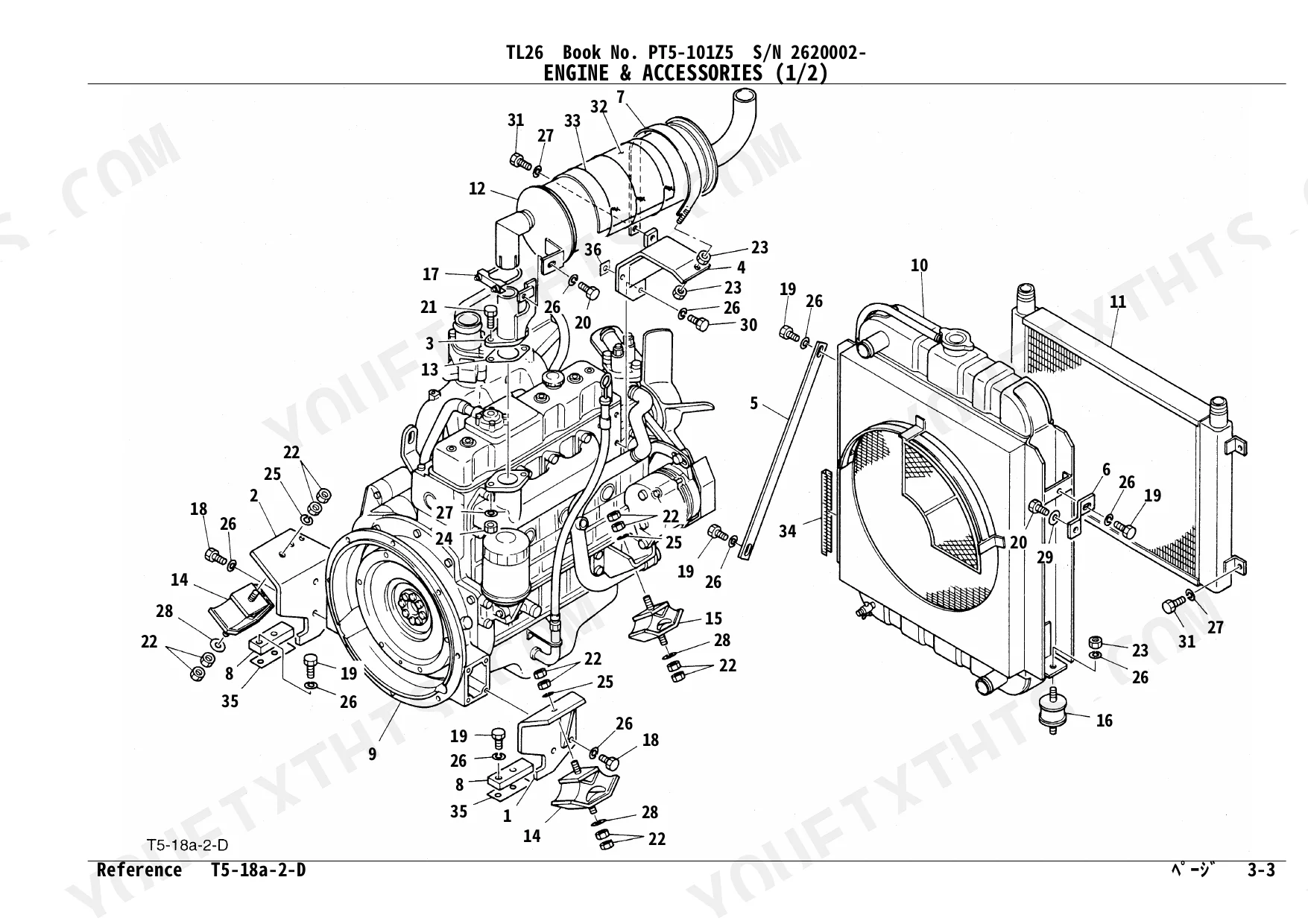

| Engine & Electrical System | 32-47 | Engine & Accessories, Drain Plug, Control Box, Engine Control, Electrical, Battery |

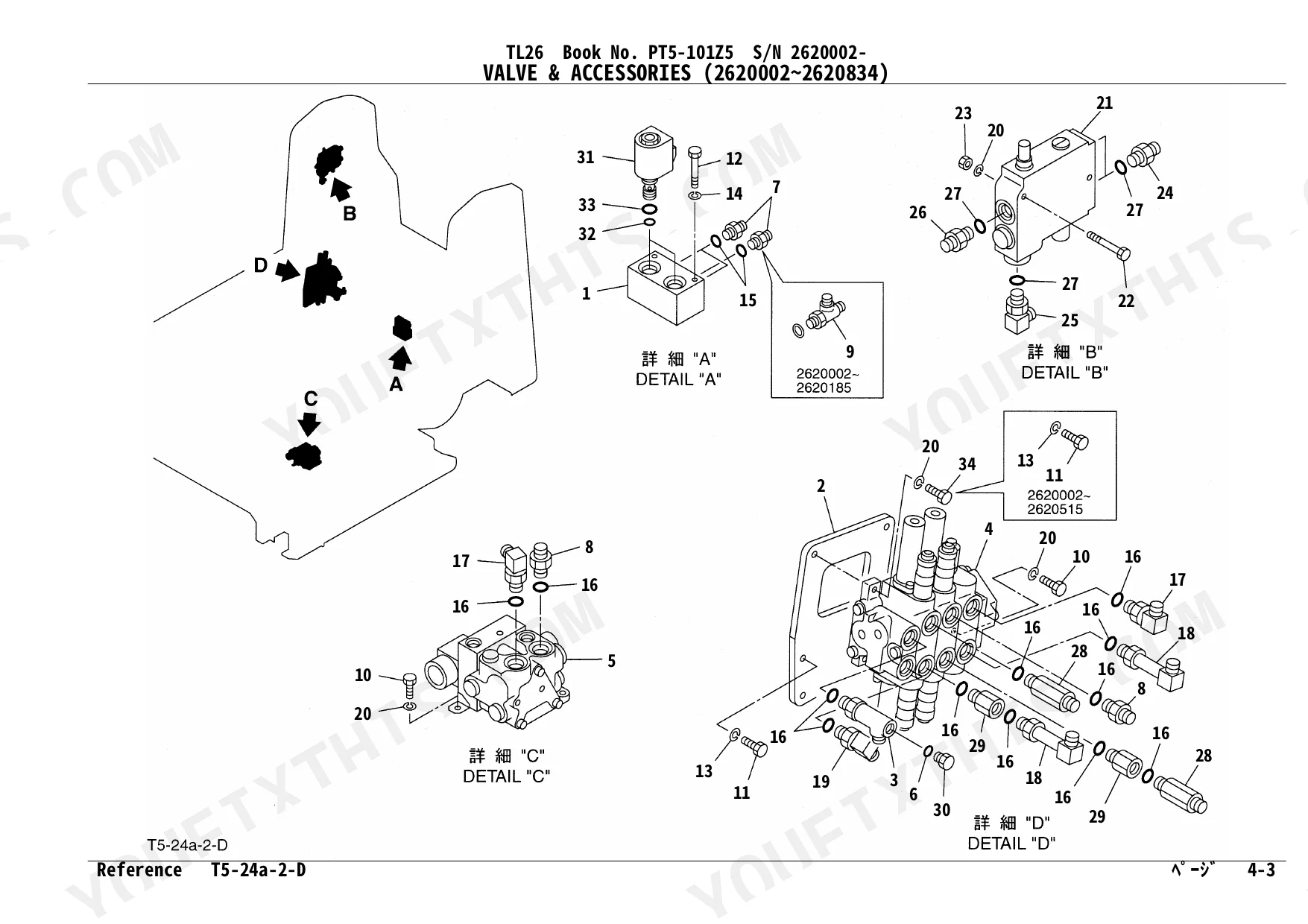

| Hydraulic Pipng & Tank | 48-71 | Valve & Accessories (2620002~2620834), Valve & Accessories (2620835~2621060), Piping (2620002~2620809), Piping (2620810~2621060), Piping |

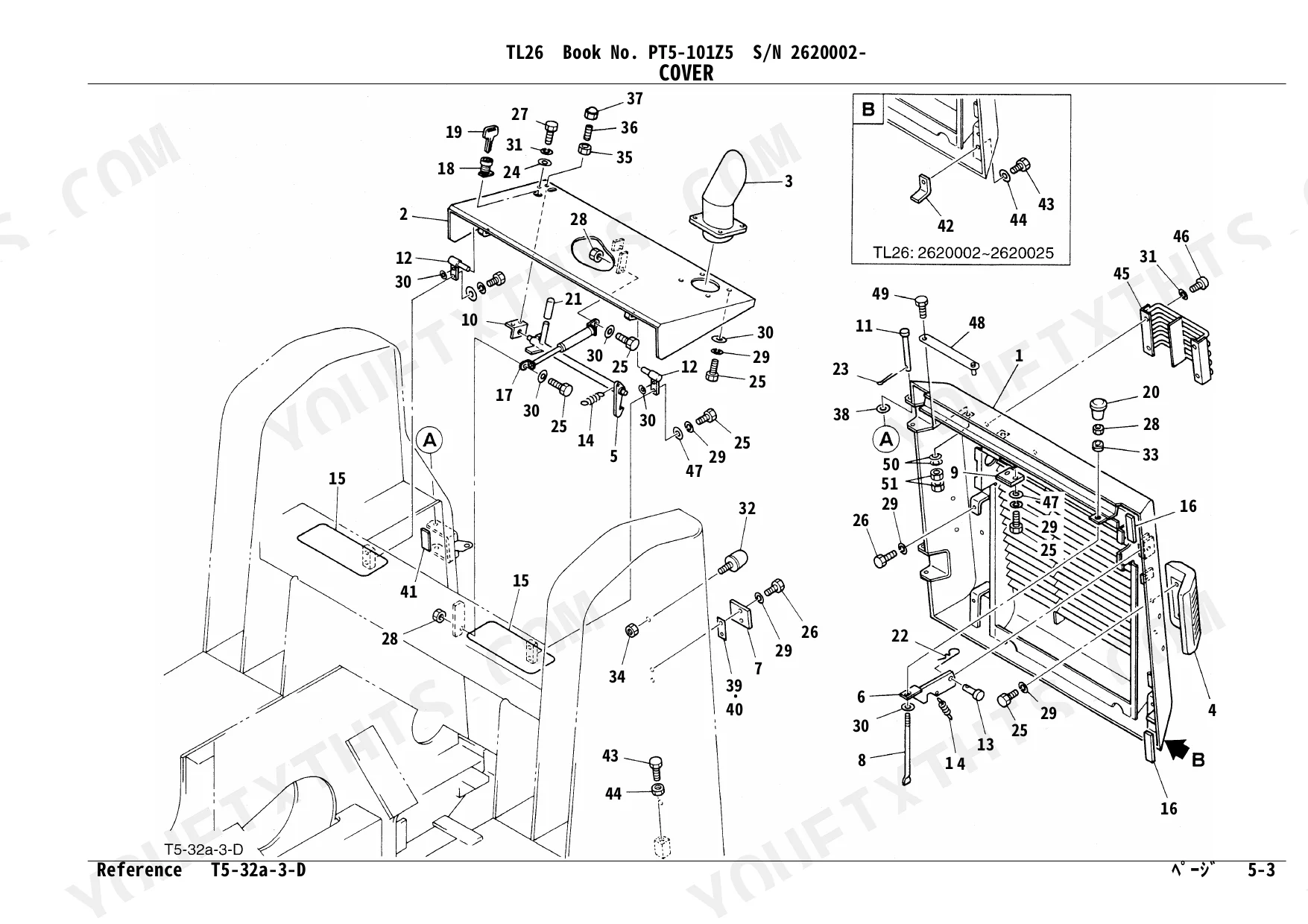

| Cover & Cab | 72-89 | Cover, Floor Frame, Seat, Seat (with Switch), Front Door, Side Window, Canopy, Heater |
| Attachment | 90-99 | Arm, Quick Attachment (2620002~2620201), Quick Attachment (2620202~2621060), Bucket, Piping; Arm |
| Decal & Tool | 100-115 | Decal (English), Decal (German), Decal (Japanese), Decal (for Eu), Noise Absorbent, Painted Color |
| Hydraulic Device | 116-153 | Control Valve, Block Assy; No. 1, Block Assy; No. 2, Block Assy; No. 3 (2620002~2620128), Block Assy; No. 3 (2620129~2621060), Self Level Valve, Pilot Valve; Right |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse Rating | 20A | p. 43 |
Takeuchi TL26 Common Problems This Manual Covers
Takeuchi TL26 rubber tracks worn out, cannot find track roller and front idler part numbers
Check the chassis exploded view on page 12 and match the callout numbers to the parts list on page 13. Note your serial number first: track roller listings changed at serial 2620710, so ranges 2620002~2620709 and 2620710~2621060 carry different part numbers. Order rollers, idlers, and track adjuster parts from the matching range only.
Manual Section: Undercarriage p. 12Machine will not crank, need part numbers for fuses, battery hardware, and wiring harness
Check the engine and electrical exploded view starting on page 32 for the harness, control box, and battery mounting hardware. Verify you order the correct 20A fuse rating listed on page 43 before replacing blown fuses. Match each callout to the parts list, then confirm cable and terminal part numbers against your serial range.
Manual Section: Engine & Electrical System p. 32Hydraulic hose burst under the belly pan, replacement hose and fitting numbers unclear
Check the hydraulic piping exploded view on page 48 and trace the failed hose by circuit before ordering anything. Valve and accessories listings split at serial 2620835: machines 2620002~2620834 use different part numbers than 2620835~2621060. Verify fitting callouts from the parts list rather than trying to read sizes off a blown, swollen hose.
Manual Section: Hydraulic Pipng & Tank p. 48Arm and bucket cylinders weeping oil, correct seal kit part numbers hard to pin down
Check the Hydraulic Device section beginning on page 116 and find the arm and bucket cylinder exploded views. Match every seal, bushing, and pin to its callout in the parts list, then verify the kit against your serial range 2620002~2621060 before ordering. Add the bushings to the order; worn bushings chew up fresh seals fast.
Manual Section: Hydraulic Device p. 116Quick coupler pins and latch worn loose, unsure which quick attachment assembly fits
Check the Attachment section starting on page 90 for the quick attachment exploded view. Assemblies changed at serial 2620202: machines 2620002~2620201 take a different unit than 2620202~2621060, so read your serial plate before ordering. Cross-reference pin, bushing, and latch callouts in the parts list, and use the index if a callout is missing.
Manual Section: Attachment p. 90Frequently Asked Questions
What is the replacement part number for the crawler belt on the TL26?
The replacement part number for the crawler belt depends on the serial number range. For serial numbers 0002~#, the part number is 19140-60400. For serial numbers #~0263, the part number is 19140-60500. p. 21
What is the part number for the engine oil filter element?
The engine oil filter element part number is 15511-01001. p. 57
What is the part number for the starter switch?
The part number for the starter switch is 17001-00023. p. 39
What is the part number for the engine foot (L.H.)?
The part number for the left-hand engine foot is 08804-00010. p. 33
What is the part number for the seat belt?
The part number for the seat belt is 19141-00048. p. 79
Is this Takeuchi TL26 Parts Manual a digital download?
You get a 162-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Takeuchi TL26 Parts Manual printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
