Looking for a Versatile 835 service manual PDF? This 424-page factory manual (OEM PU4020) covers the whole 1977-1980 tractor family: 835, 855, 875, 895, 935, and 950. You get wiring diagrams for the charging, starting, automatic shutdown, and lighting circuits, plus hydraulic schematics that trace fluid from the pump through the steering and implement control valves. Inside: a full troubleshooting guide, clutch and transmission teardown procedures, axle and planetary gear service, and cab air conditioning repair down to the compressor. Fill the hydraulic system with 84 US quarts (80 L), and torque the alternator bracket to the block at 75 lb ft (100 N·m). These tractors outlived their dealer support; your specs shouldn't depend on forum guesses. Bookmarked and keyword-searchable, this PDF opens on any device, so bring your tablet to the shop and get wrenching.
What's Inside This Versatile 835-950 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-10 | Foreword, Revisions and Additions, General Safety, Towing and Transport Safety, Hoist Safety, Maintenance Safety, Fuel and Fluid Safety |

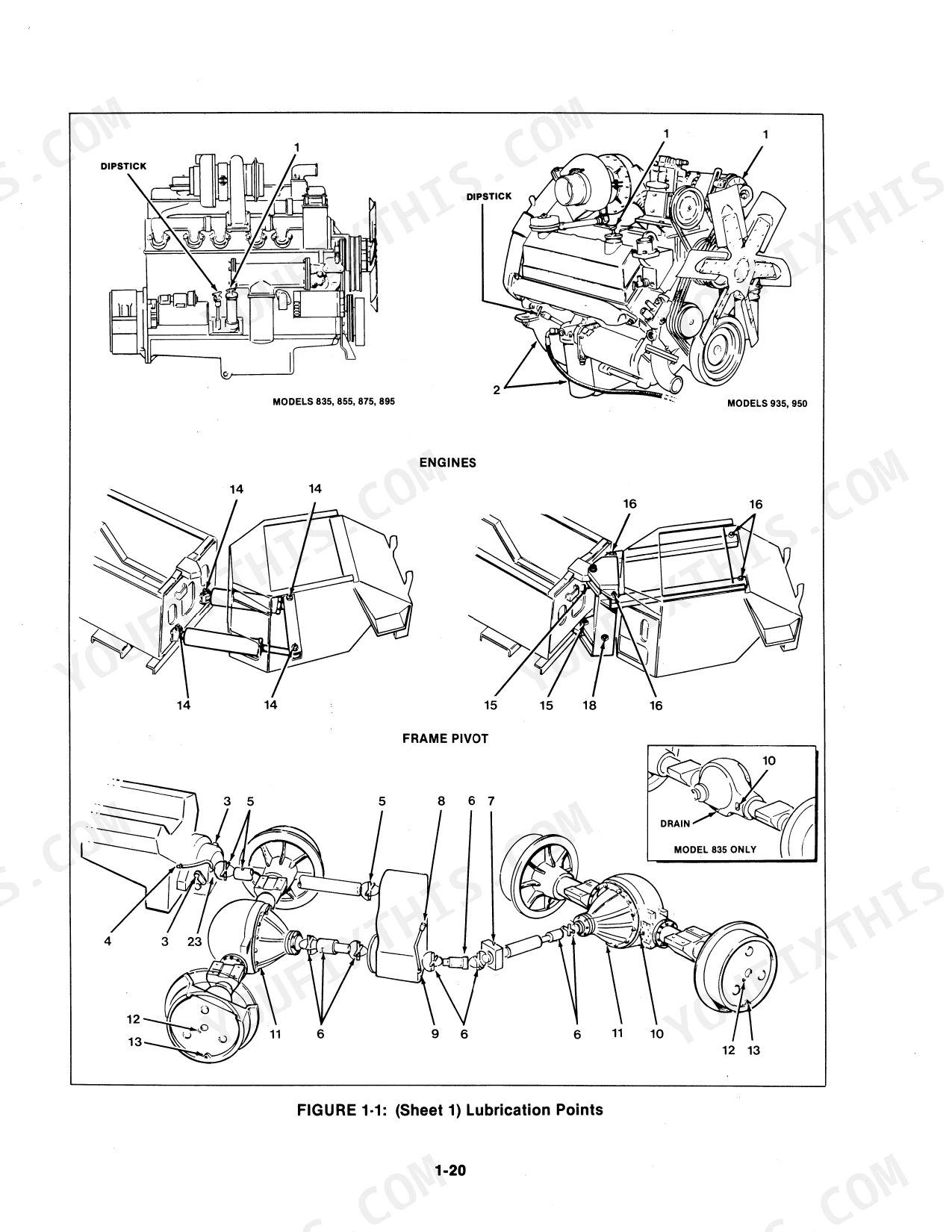

| Servicing | 11-48 | TOWING/TRANSPORTING, Hoists and Jacks, Specifications and Capacities, Fuels, Fluids and Lubricants, Lubrication, Belts and Filters |
| Engine Systems | 49-94 | Fuel System, Cooling System, Air Intake System, Exhaust System, Engine Lubrication System, Cold Start System |

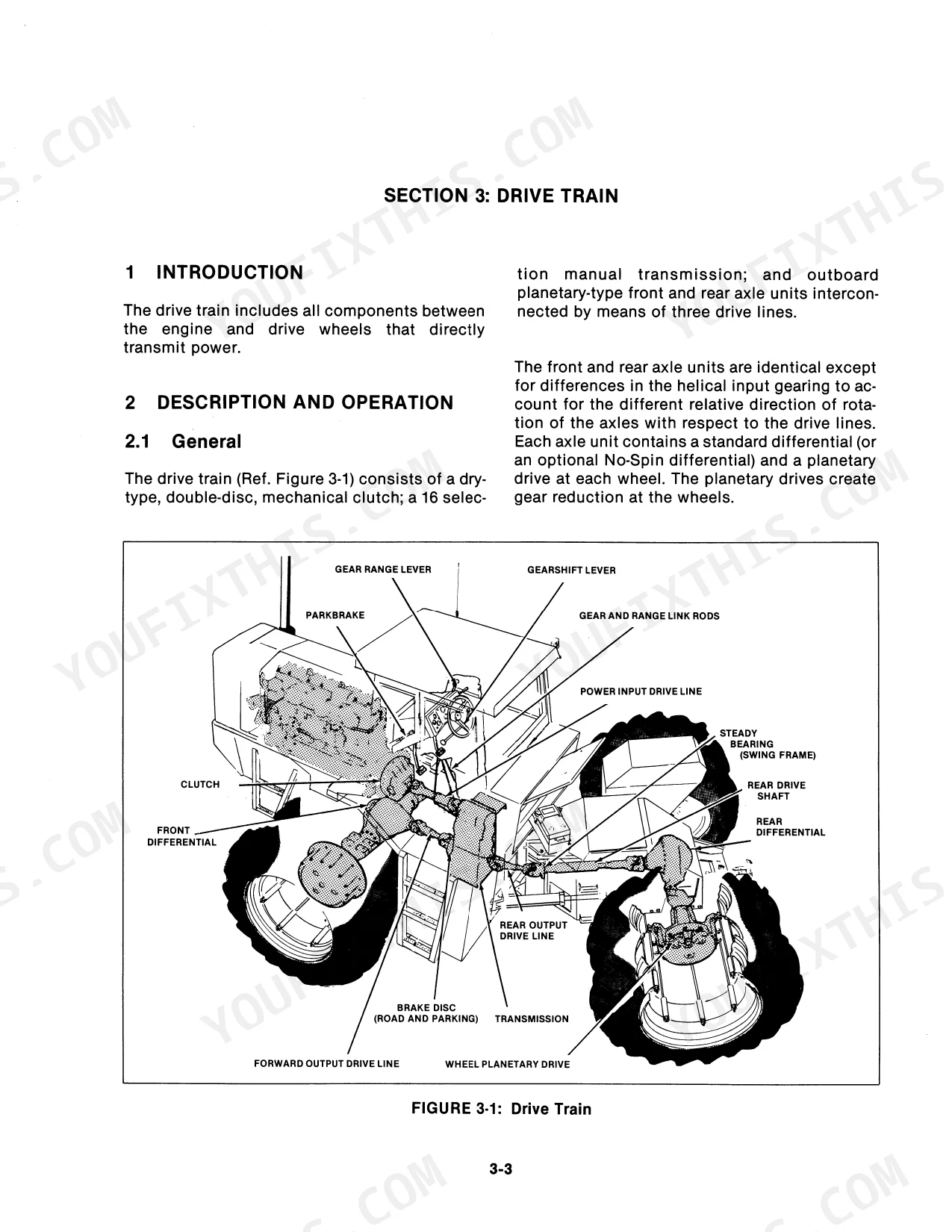

| Drive Train | 95-210 | Clutch Removal, Transmission Servicing, Axles and Planetary Gears, Differential Carrier, Drivelines Servicing, Clutch Clearance Adjustment |

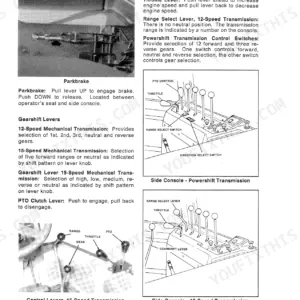

| Controls | 211-240 | Operator’s Controls and Instruments, Linkages, Throttle Linkage Adjustments, Clutch Pedal Linkage Adjustments, Transmission Linkage Adjustments, Brake Pad Replacement |
| Hydraulic System | 241-288 | Steering Control Valve, Implement Control Valve, Hydraulic Pump, Steering Cylinders, Hydraulic Fluid Filters, Hydraulic Fluid Cooler |
| Electrical System | 289-324 | Charging/Storage Circuit, Engine Starting Circuit, Automatic Engine Shutdown Circuit, Indication and Warning Circuits, Lighting Circuits, Battery Testing |
| Environmental Systems | 325-366 | Cab Pressurizing System, Cab Heating System, Air Conditioning System, System Leak Detection, Compressor, Heater/Evaporator |
| Structures | 367-398 | Front and Rear Frames, Engine Hood Assembly, Operator's Cab, Drawbar and Three-Point Hitch, Replacement of Engine Mounts, Replacement of Cab Mounts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine Crankcase Oil Type (Above 40°F (-4°C)) | SAE 30 CD or SE/CD | p. 27 |
| Engine Crankcase Oil Type (20°F to 60°F (-7°C to 16°C)) | SAE 20-20W CD or SE/CD | p. 27 |
| Hydraulic System Capacity | 84 qt US (80 L) | p. 27 |
| Incorrect valve clearance | Correct to proper valve clearance | p. 37 |

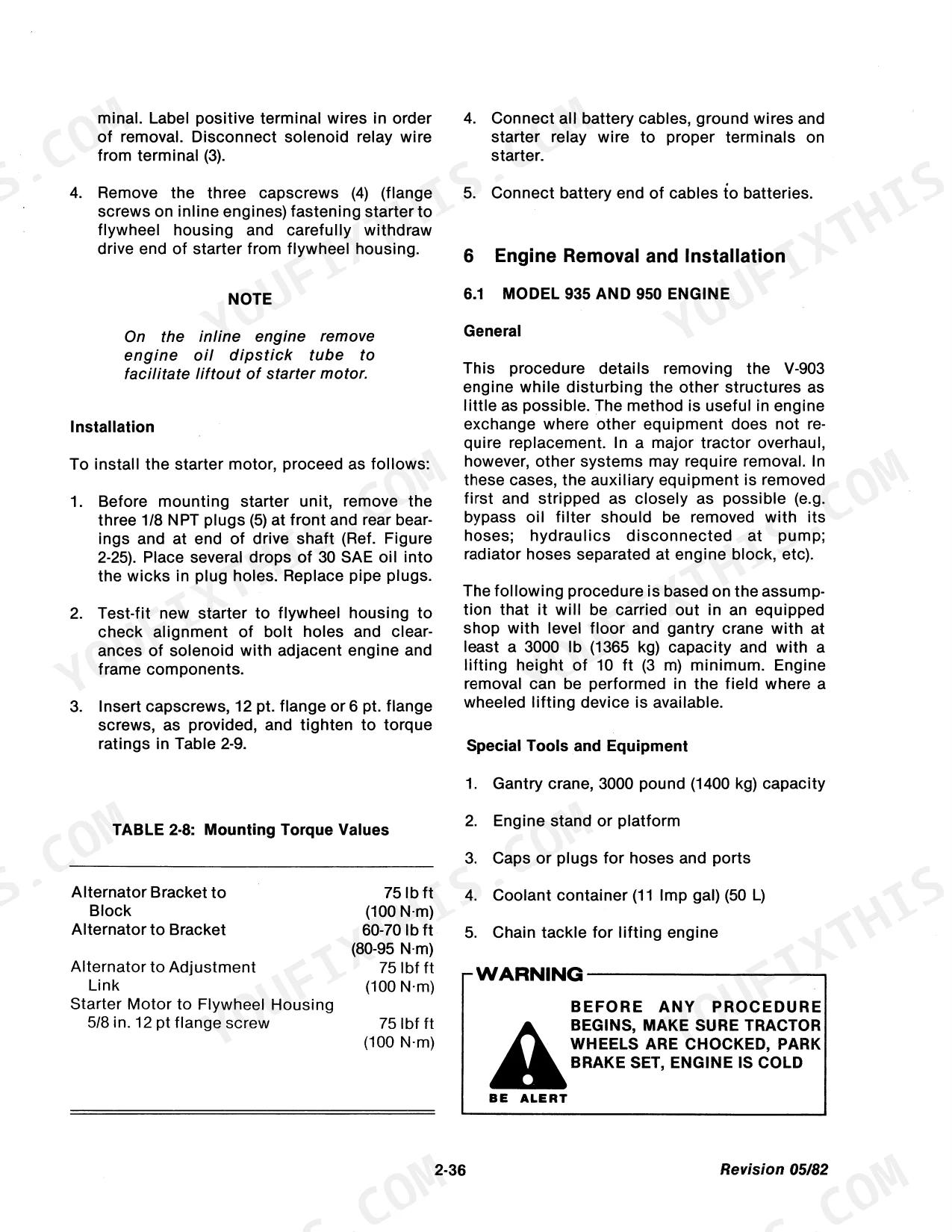

| Alternator Bracket to Block | 75 lb ft (100 N·m) | p. 84 |
| Alternator to Bracket | 60-70 lb ft (80-95 N-m) | p. 84 |
| Coolant container | 11 Imp gal (50 L) | p. 84 |
| Wheelbase | 130 in. (3 300 mm) | p. 15 |
| Overall length without three-point hitch | 253 in. (6426 mm) | p. 15 |
| 835 | ||
| Cab height with 20.8 x 38 single tires | 126 in. (3200 mm) | p. 15 |
| 855, 875, 895, 935, 950 | ||
| Cab height with 20.8 x 38 single tires | 126-3/4 in. (3220 mm) | p. 15 |
| 835, 855 | ||

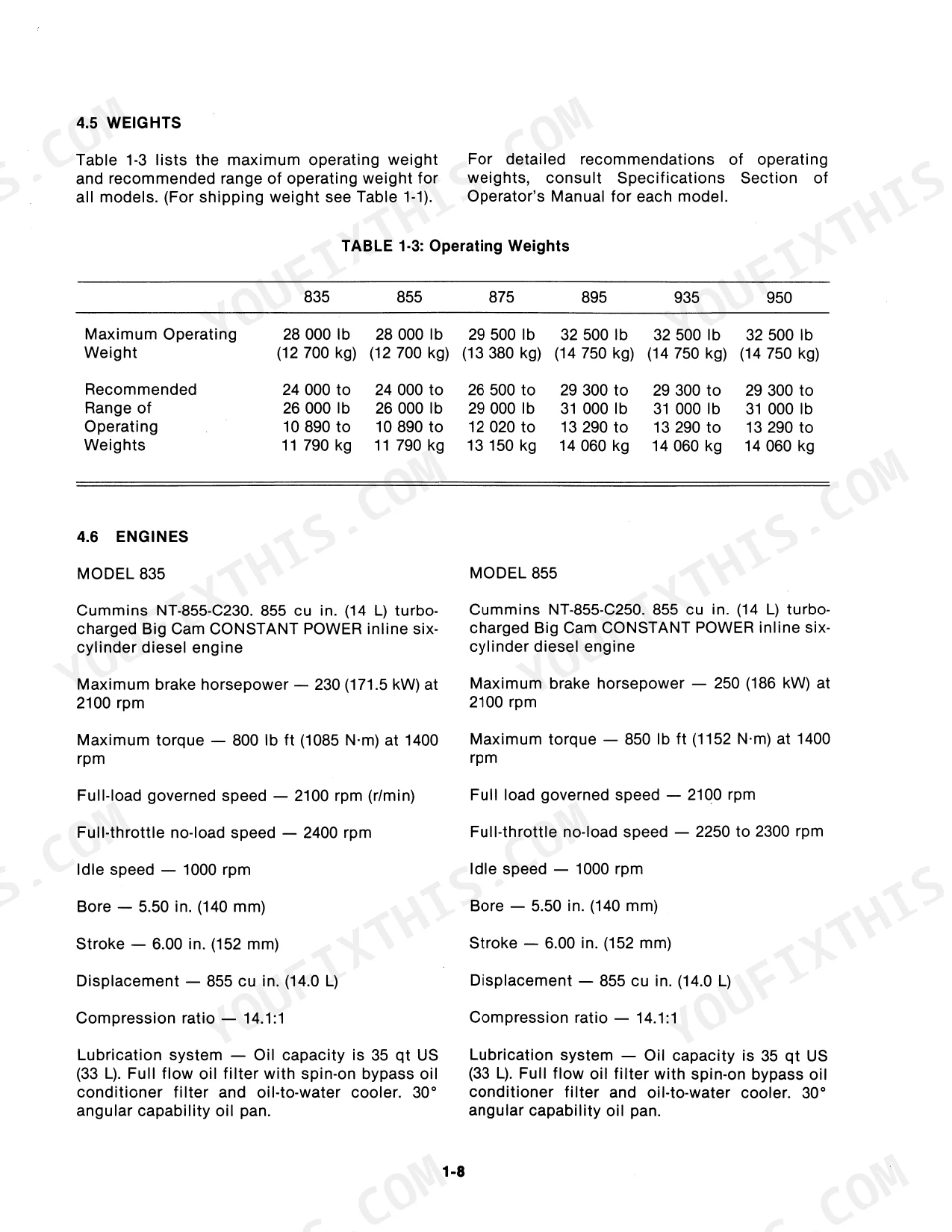

| Maximum Operating Weight | 28 000 lb (12 700 kg) | p. 18 |
Versatile 835-950 Common Problems This Manual Covers
Versatile 895 clutch clunks and vibrates when pedal is cycled, loose center pins suspected
Check the drive train troubleshooting steps starting on page 36, then pull the transmission inspection covers following the Drive Train procedures beginning on page 95. Inspect the center pins for play and replace any that show wear. Refill the transmission with 21.5 qt US (20.3 L) of clean oil after buttoning it back up.
Manual Section: Drive Train p. 95Engine cranks slowly and refuses to start in cold weather below freezing
Verify crankcase oil viscosity against the chart on page 27; run 10W CD or SE/CD between -10°F and 30°F (-23°C to -1°C). Load-test the battery and clean the starter cable connections using the Electrical System procedures starting on page 289. Torque the starter motor flange screws to 75 lbf ft (100 N·m) if they have backed off.
Manual Section: Engine Systems p. 27Hydraulic implement lifts slowly and settles under load with valve in neutral

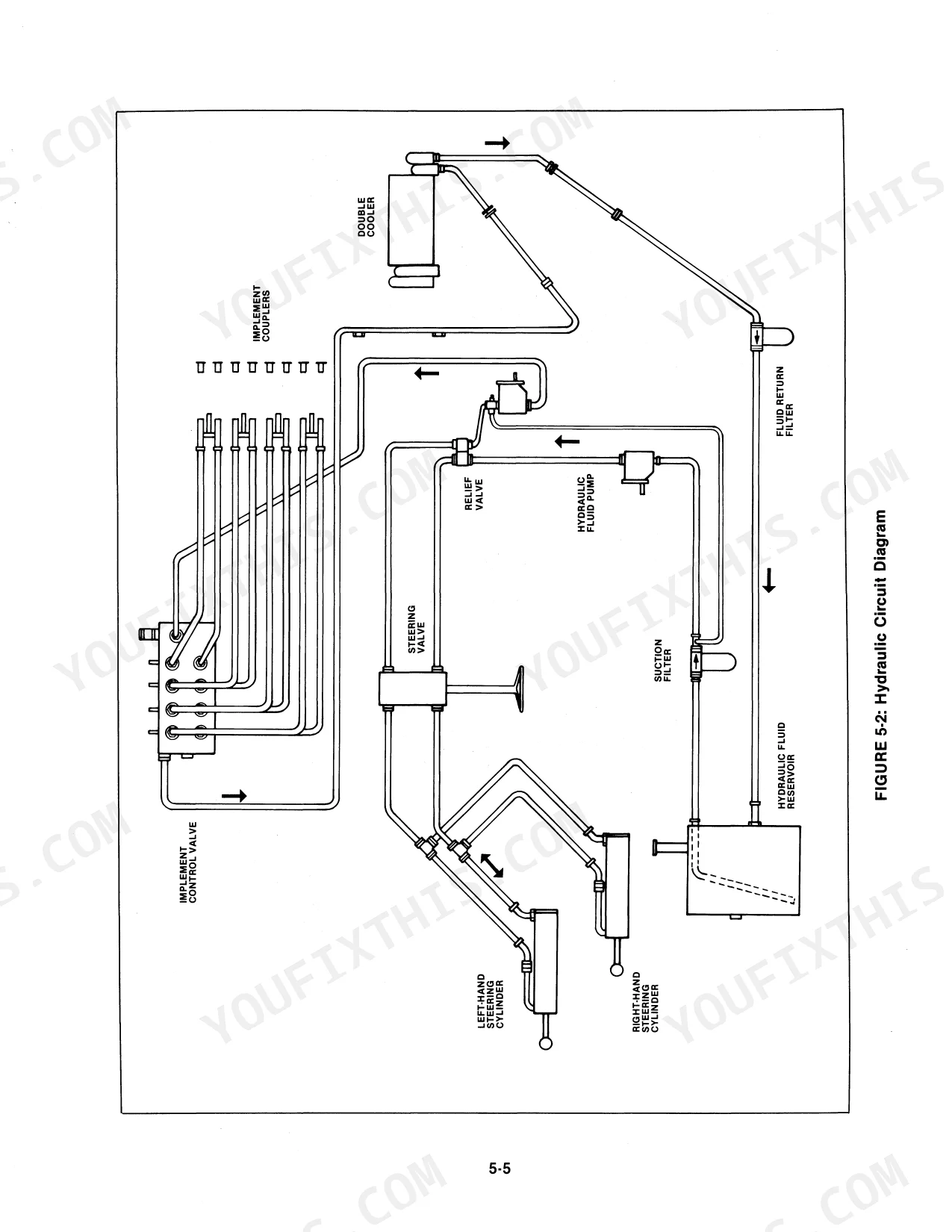

Check the reservoir level first; the system holds 84 qt US (80 L) and a low reservoir starves the pump and pulls in air. Trace the circuit on the hydraulic schematic on page 245, then test the implement control valve and cylinder seals per the Hydraulic System procedures starting on page 241. Replace scored spools instead of lapping them.
Manual Section: Hydraulic System p. 241Battery light glows dimly and alternator squeals under load at high idle

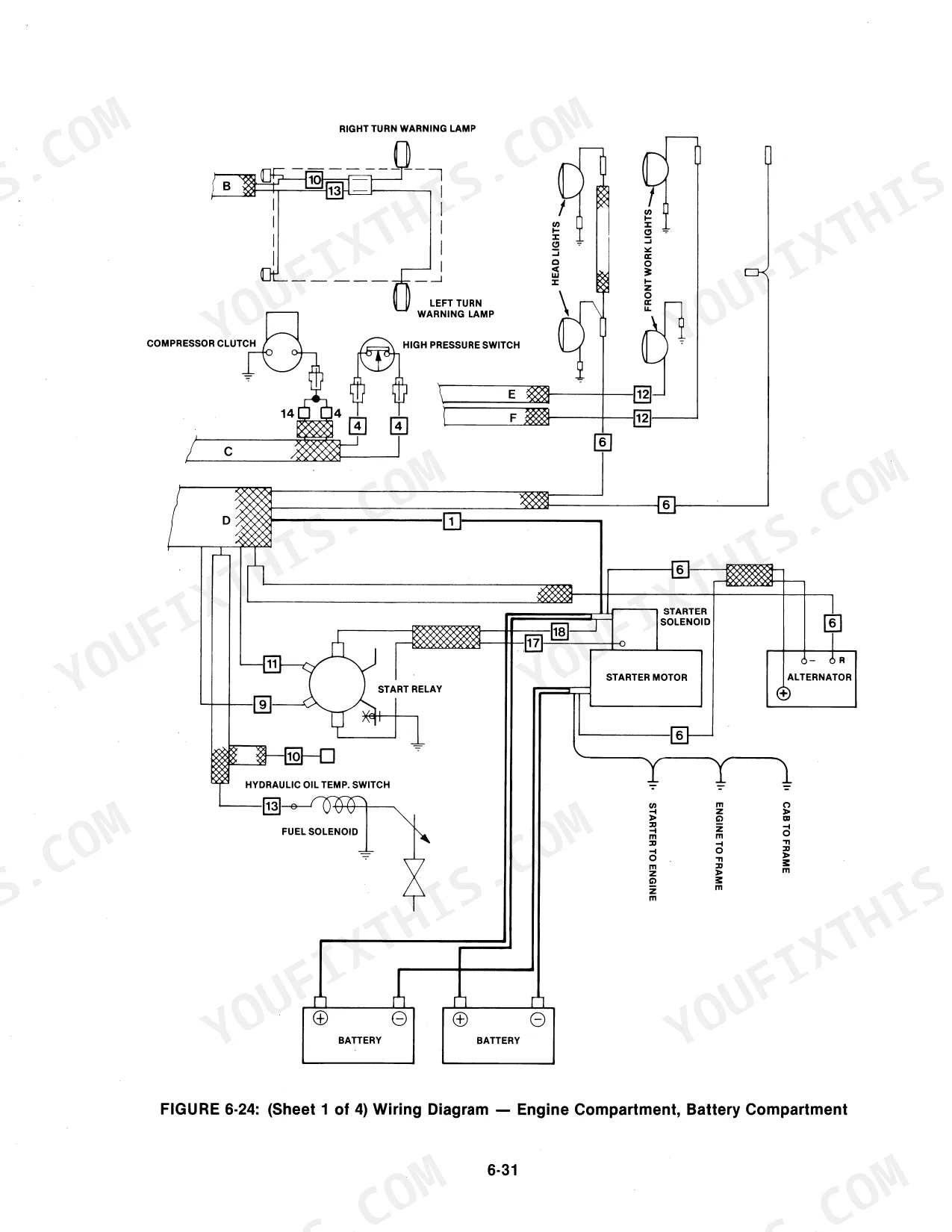

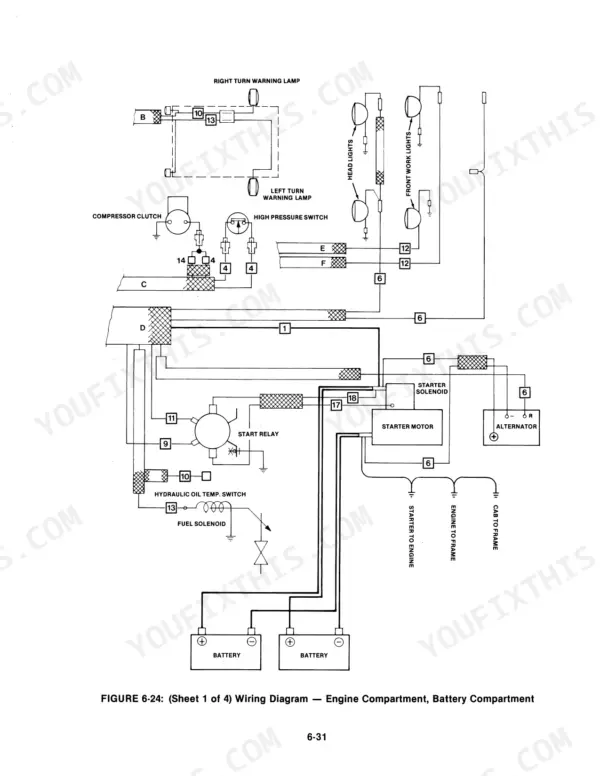

Inspect the belt for glazing and correct tension before condemning the alternator. Retorque the bracket to block bolts to 75 lb ft (100 N·m) and the alternator to bracket bolts to 60-70 lb ft (80-95 N·m) per the specs on page 84. Test charging output against the wiring diagram on page 319 to isolate a shorted lead.
Manual Section: Electrical System p. 289PTO clutch slips under heavy load and output shaft seals weep oil steadily
Test PTO clutch engagement and inspect the valve assembly and lubrication pump following the Drive Train procedures starting on page 95. Replace the output shaft seals rather than snugging the retainer. Verify fluid level while you are in there; the transmission holds 21.5 qt US (20.3 L), and running low accelerates clutch wear.
Manual Section: PTO Clutch TroubleshootingFrequently Asked Questions
What are the recommended service intervals for maintenance procedures?
Inspection of the frame pivot points should be carried out at six-month intervals to check for wear of the pivot pins and grease seals. A thorough brake check should be made every 60 days under normal conditions. p. 248
What fluids and capacities does this machine require?
The machine requires No. 2 diesel fuel, commercial grade ethylene glycol base coolant, and SAE 85W90 MIL-L-2105 gear oil for axles. Engine oil capacity varies by model, for example, Models 835, 855, 875 require 35 qt US (33 L). The transmission oil capacity is 21.5 qt US (20.3 L), and the fuel tank capacity is 185 gal US (700 L) for all models. p. 18
How can I troubleshoot an engine that won't start?
If the engine won't start, check for no fuel in the tank, improper or dirty fuel, or air in the fuel system. Remedies include filling tanks with proper fuel, draining and refilling with clean fuel, or bleeding the fuel system. Also, check for a faulty fuel solenoid valve or restricted fuel lines, filters, and hoses, referring to Table 2-3 for specific remedies. p. 58
What are the valve clearance specifications?
The manual indicates that if there is incorrect valve clearance, the remedy is to correct it to the proper valve clearance. However, the specific valve clearance specifications are not provided in this manual and require consulting the Cummins Operation and Maintenance Manual. p. 37
What are the common electrical problems and their remedies?
Common electrical problems include a starter that does not crank (due to discharged battery, defective keyswitch, or poor connection) and a sluggish starter (due to high resistance or a defective starter). Remedies involve charging the battery, replacing the keyswitch or starter, checking wiring, or referring to specific test procedures like the High Resistance Test on page 6-25. p. 298
Is this Versatile 835 & variants Service Manual a digital download?
This is a 424-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Versatile 835 & variants manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
