Looking for the factory procedures for your Designation 6 tractor? This 600-page Versatile Designation 6 Series Service Manual PDF (OEM #40075691) breaks down the complete drive train, hydraulics, and engine systems for the 756, 836, 856, 876, 936, 956, and 976 models. You get full electrical wiring diagrams, complete hydraulic schematics, and a massive troubleshooting section covering the 12-speed, 15-speed, and powershift transmissions. Open to detailed teardown instructions with complete torque tables to rebuild your clutch packs and differential carriers right the first time. Verify your clutch apply pressure is holding between 150 and 185 psi, then lock down the PTO manifold capscrews to exactly 100 N-m. Stop tearing down assemblies blind. Grab this bookmarked download, open it on your shop tablet, and get your machine pulling hard again.
What's Inside This Versatile 756, 836, 856, 876, 936, 956, 976 Manual
| System | Pages | Key Topics |
|---|---|---|

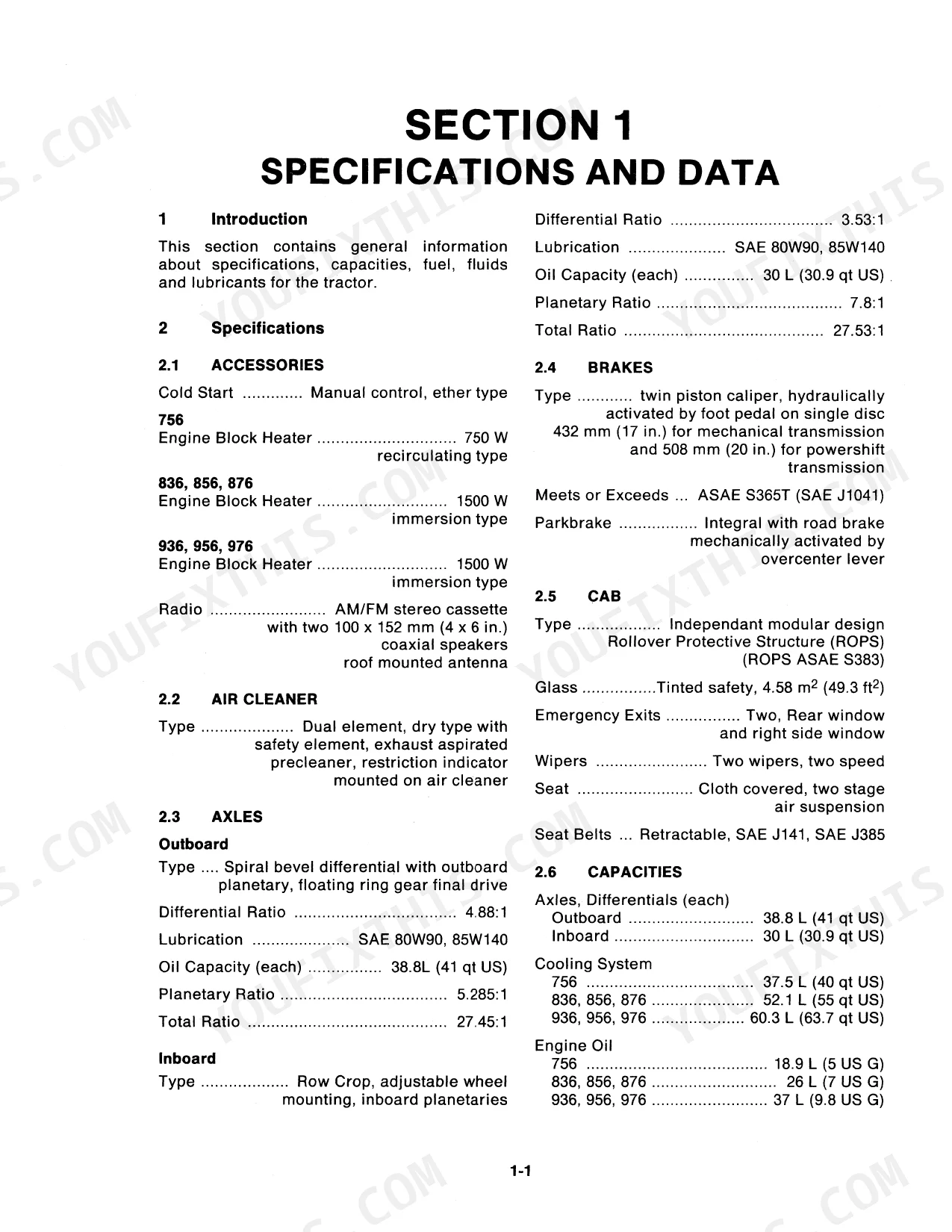

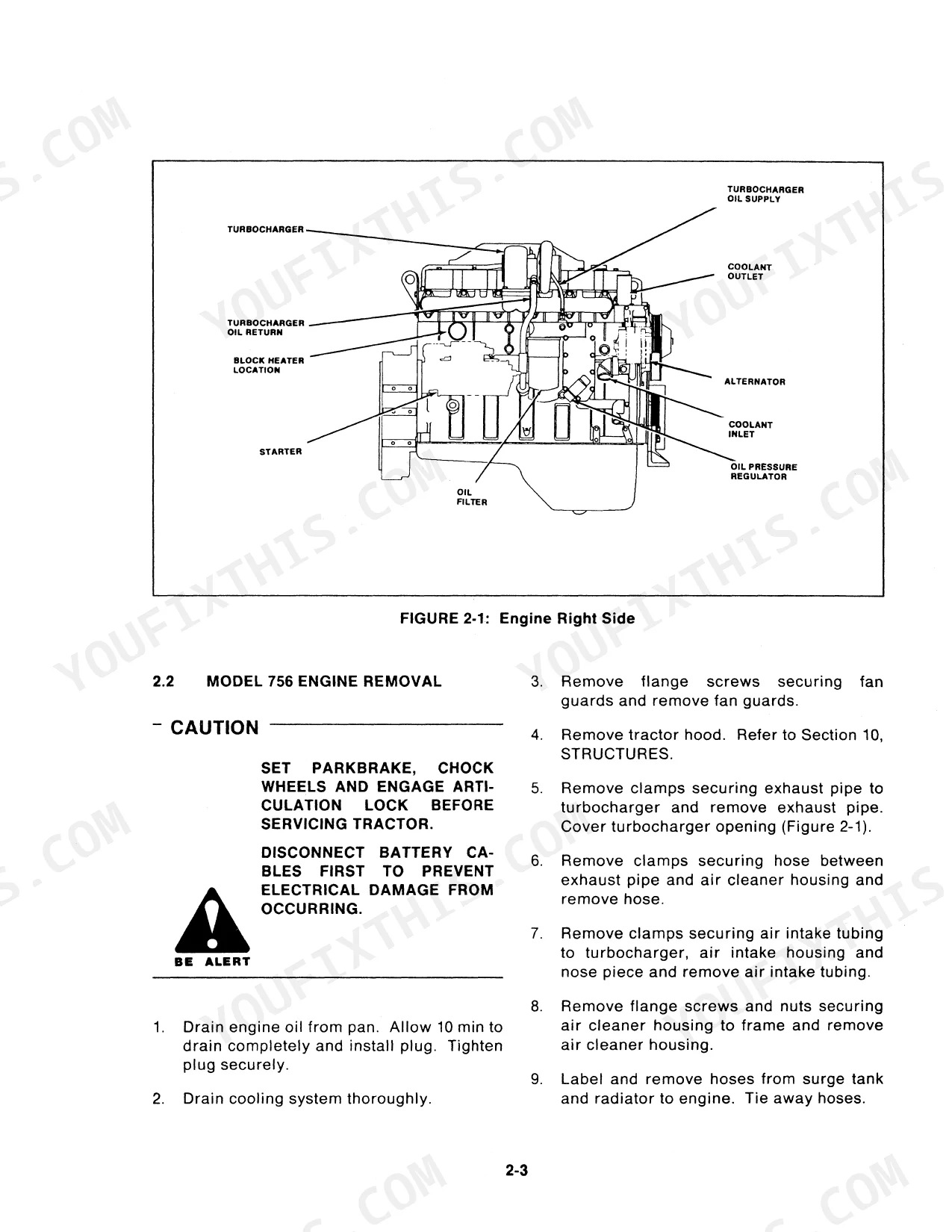

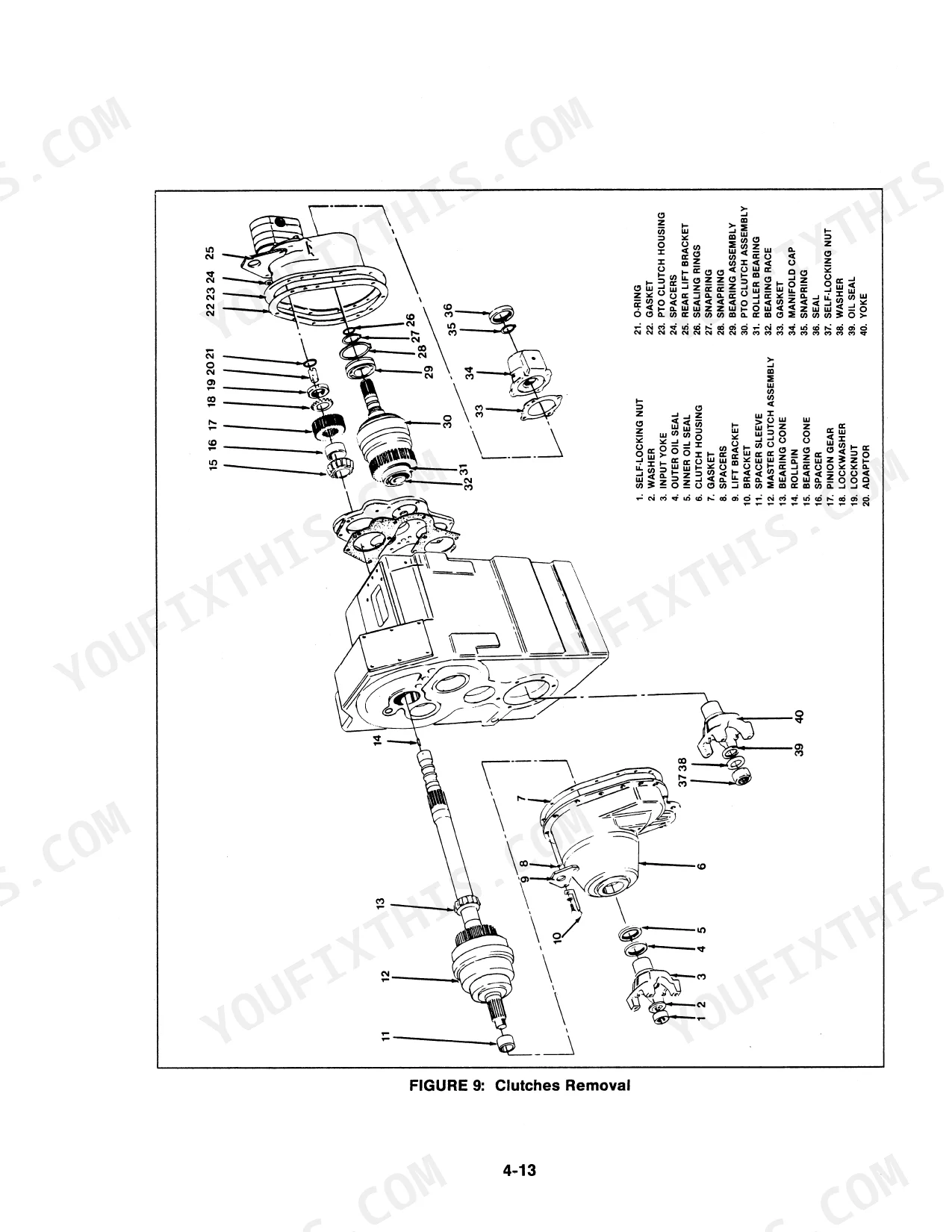

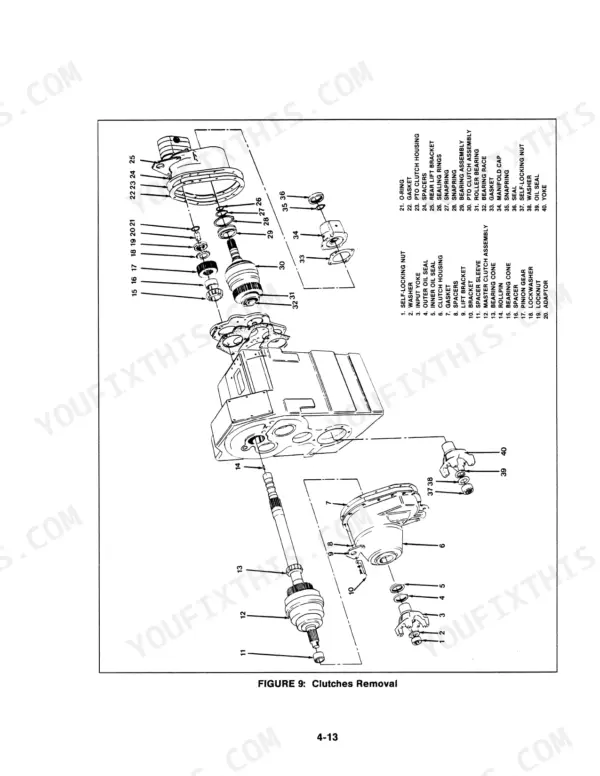

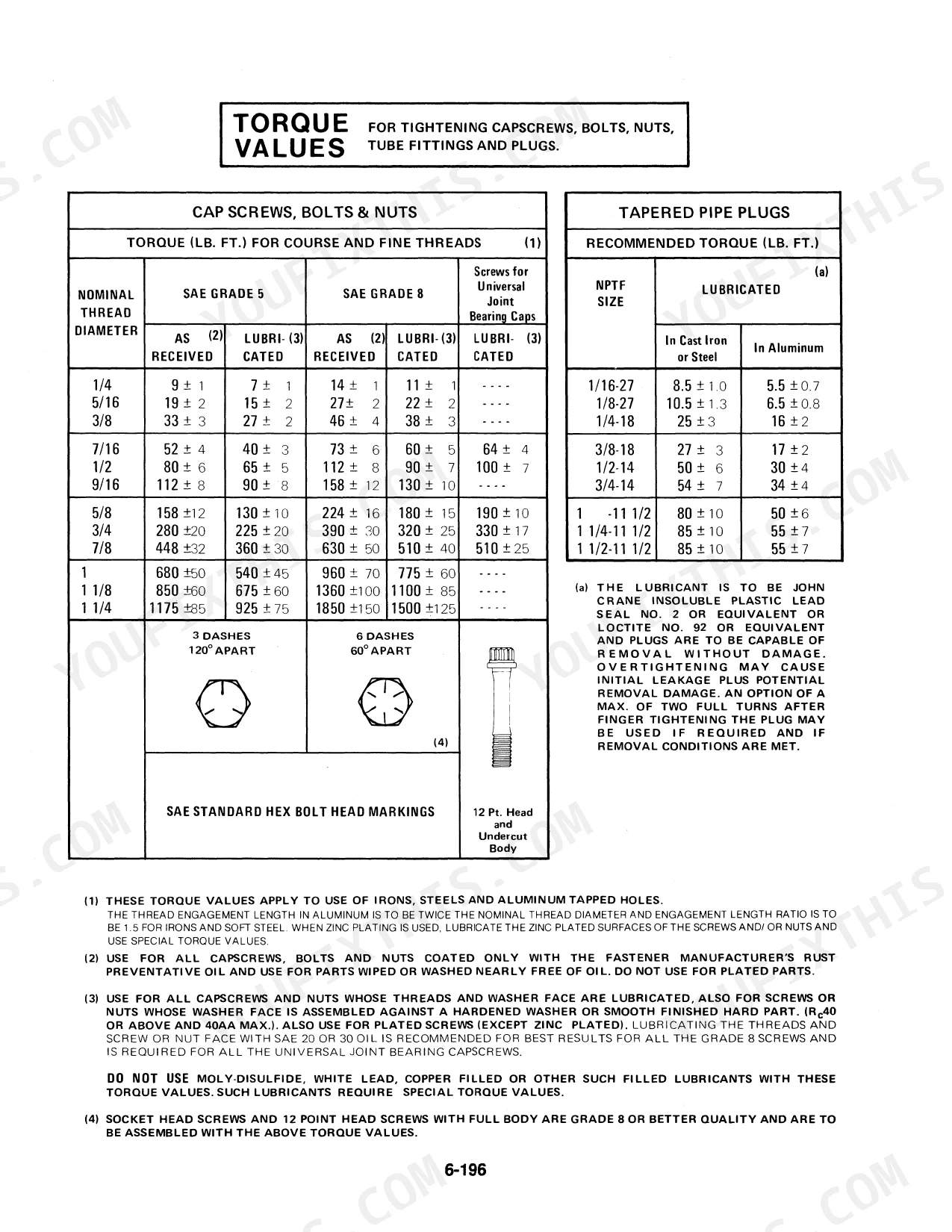

| Section 1, Specifications and Data | 7-24 | Accessories, Axles, Brakes, Capacities, Cooling System, Electrical System |
| Section 2, Engine Systems | 25-52 | Specifications and Data, Engine Replacement, Fuel System, Cold Start, Cooling System, Air Intake and Exhaust Systems |
| Section 3, 12-Speed Mechanical Transmission | 53-72 | Specifications, How the System Works, Transmission Servicing, Transmission Overhaul, Shift Linkages, Hydraulic Transmission Brake |
| Section 4, 15-Speed Mechanical Transmission | 73-136 | How the System Works, Transmission Servicing, Transmission Overhaul, Clutches, Troubleshooting, Regulator Valve |
| Section 5, Drive Train | 137-192 | Description and Operation, Clutch, Troubleshooting, Axle Assemblies, Differential Carrier, Drivelines |
| Section 6, Powershift Transmission | 193-432 | Description and Specifications, Operation, Preventive Maintenance, Trouble Shooting, Removal and Unit Disassembly, Subassemblies |
| Section 7, Hydraulics | 433-470 | Specifications, How the System Works, Testing, Troubleshooting, Overhaul, Hydraulic Reservoir |
| Section 8, Electrical Systems | 471-520 | Introduction, Specifications, Batteries, Alternator, Starter, Instrumentation |
| Section 9, Environmental Systems | 521-542 | Specifications and Data, Torque Values, How the System Works, System Performance Test, Compressor Overhaul, Evaporator/Heater Core |
| Section 10, Structures | 543-556 | Specifications, Torque Values, Cab Mount Replacement, Cab Roof Assembly, Operator’s Seat, Frame Pivot Pin Bushing Replacement |
| Section 11, Three-Point Hitch | 557-582 | Specifications, Torque Values, Hydraulic Components, Electrical Components, Three-Point Hitch Adjustments, Hydraulic Testing |
| Section 12, Brakes | 583-594 | Replacing Friction Pads, Removal and Installation of Brake Caliper, Removal and Installation of Brake Master Cylinder, Removal and Installation of Brake Disc |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Escaping hydraulic oil under pressure | can penetrate the skin causing severe personal injury | p. 5 |
| Clutch apply pressure | 150 to 185 psi | p. 107 |
| Transmission lubrication pressure | 140 to 200 kPa, 20 to 30 psi | p. 107 |
| Shaft end seal | Replace seal | p. 448 |
| Blown O-rings | Replace O-rings | p. 448 |
| System not developing adequate pressure (Implement will not lift) | See 3C | p. 449 |
| 12-Speed Mechanical Transmission Capacity | 20.3 L (21.5 qt US) | p. 8 |
| 15-Speed Mechanical Transmission Capacity | 23.6 L (25 qt US) | p. 8 |
| Powershift Transmission (1050 P/S) Capacity | 28.5 L (30 qt US) | p. 8 |
| 756 | ||
| Engine Oil Capacity | 18.9 L (5 US G) | p. 7 |
| 836, 856, 876 | ||
| Engine Oil Capacity | 26 L (7 US G) | p. 7 |
| 936, 956, 976 | ||
| Engine Oil Capacity | 37 L (9.8 US G) | p. 7 |
Versatile 756, 836, 856, 876, 936, 956, 976 Common Problems This Manual Covers

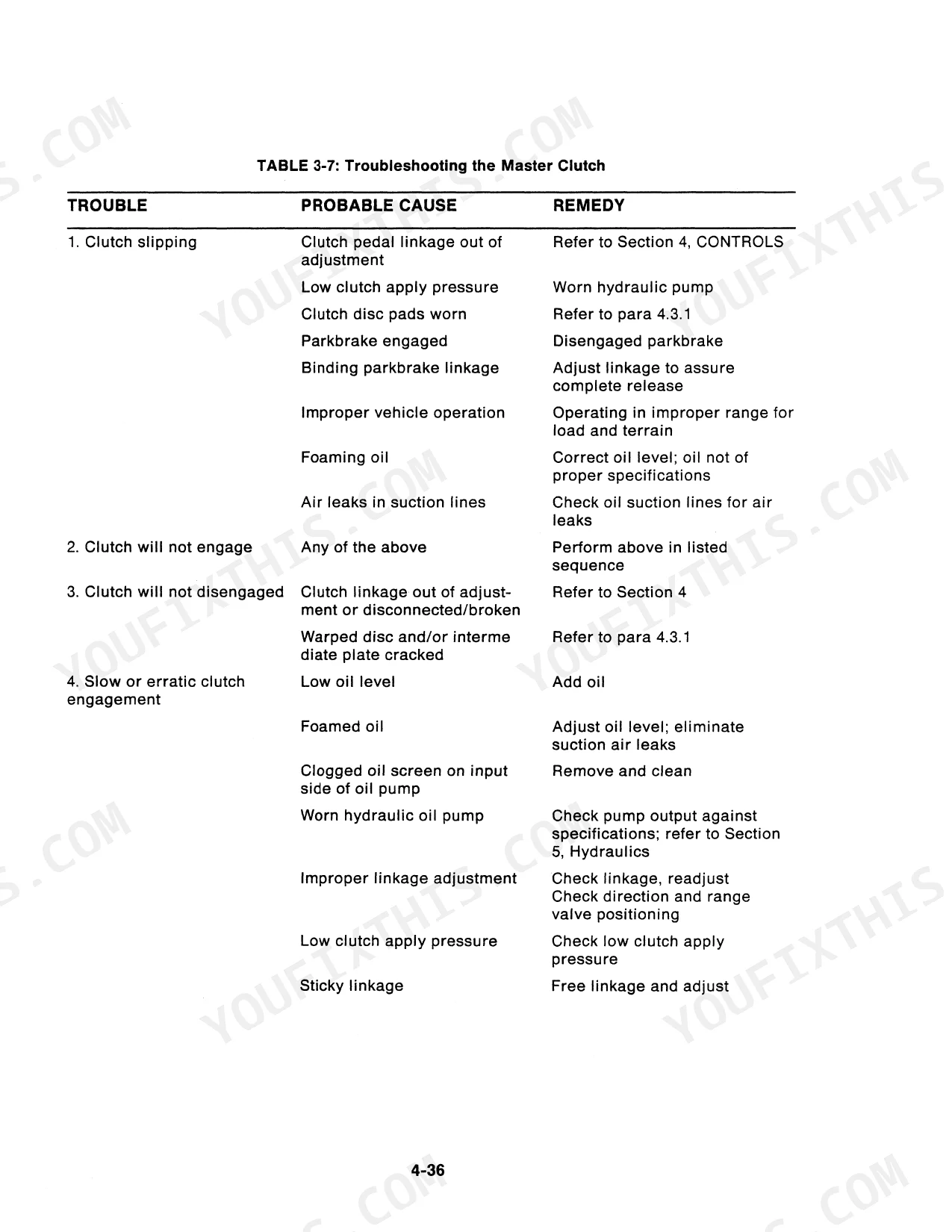

Versatile 756 Powershift transmission grinding noise, won't engage gears under field load
Check clutch apply pressure per the spec on page 107; it should read 150 to 185 psi. If pressure is low, inspect the clutch pack for wear and confirm lube pressure sits between 20 and 30 psi (140 to 200 kPa). Work through the troubleshooting procedures to isolate worn friction plates from input shaft damage before pulling the transmission apart.
Manual Section: 15-Speed Mechanical Transmission TroubleshootingHydraulic implement lift fails to raise despite fluid checks after 200 hours p. 449
Pull the pump and check the shaft end seal and O-rings called out on page 448; replace both if you find weeping or blown seals. If lift still won't develop pressure, run the no-lift troubleshooting on page 449. When reassembling, torque the pump mounting capscrews to 55 N.m (40 lbf ft) per the spec on page 464.
Manual Section: Hydraulic System TroubleshootingEngine cranks slowly or fails to start in cold weather despite battery charge p. 471

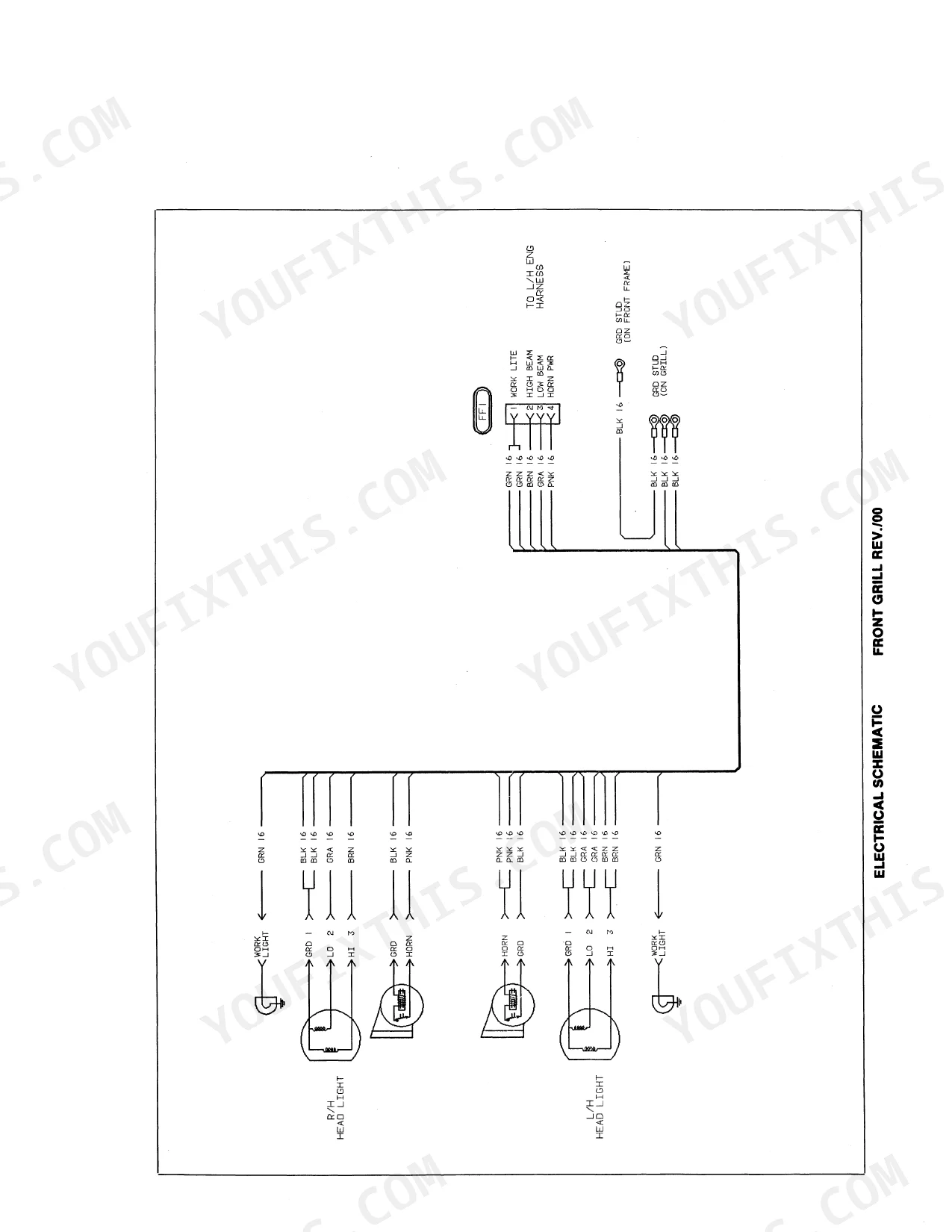

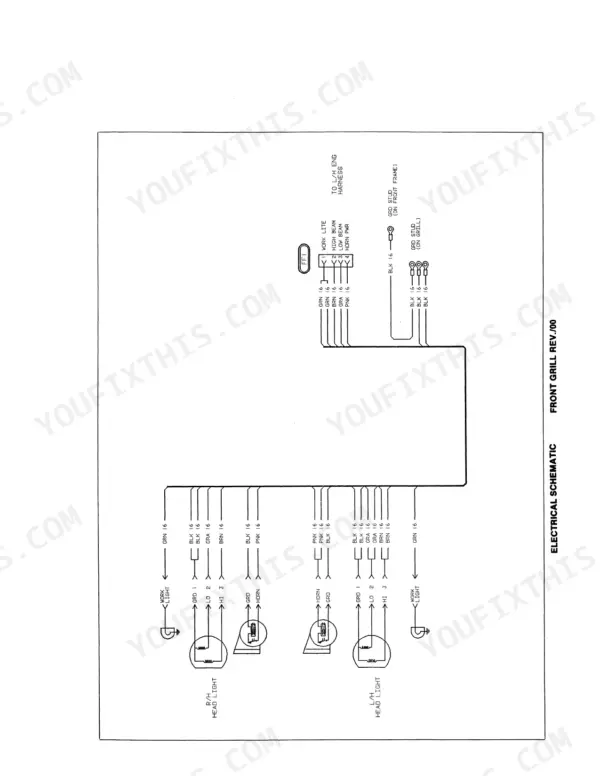

Test battery voltage and alternator output against the wiring diagram on page 479. The manual specifies one alternator for the series: 12 V, 90 A, negative ground. Replace the alternator if it's under spec, then check the Section 2 cold start procedures beginning on page 25 for the ether cold-start aid (the spec sheet lists 'Cold Start: manual control, ether type'; the book has an ETHER CYLINDER REPLACEMENT procedure) before condemning the starter.
Manual Section: Electrical SystemsBrake pedal soft or spongy, stopping power reduced after friction pad wear p. 583
Inspect friction pad thickness using the replacement procedure on page 583; swap pads before they glaze or thin out unevenly. If pedal feel stays soft after new pads, bleed the system and torque the brake caliper to 203 N-m (150 ft. lbs.) per the spec on page 592 to rule out a loose caliper mount as the cause of pedal travel.
Manual Section: BrakesThree-point hitch won't lift a full load or drops unexpectedly under implement weight p. 557
Verify you're within rated capacity first; the hitch specification lists a lift capacity of 9 840 kg (21 700 lb), measured 610 mm (24 in.) behind the hitch points. If a lighter load still won't hold, check the hydraulic and electrical components covered in Section 11 starting on page 557 for a leaking lift cylinder or worn control valve before adjusting draft settings.
Manual Section: Three-Point HitchFrequently Asked Questions
How to reset the Versatile 756 error code display?
The manual does not provide a general "reset" procedure for the Versatile 756 error code display. Instead, it lists specific corrective actions for each error code, such as repairing a solenoid lead for error code 'E' or adjusting a proximity switch for error code 'C' (Page 214/600).
Torque specs for Versatile 836 transmission bolts?
For the 12-speed mechanical transmission on the Versatile 836, capscrews securing the side cover should be torqued to 75 N.m (55 lbf ft), and upper transmission mounting brace capscrews to 270 N.m (200 lbf ft) (Page 56/600). For the 15-speed mechanical transmission, capscrews securing the transmission to the cross member should be torqued to 360 N.m (265 lbf ft) (Page 126/600).
What are the error codes for Versatile 956 engine failure?
The manual's troubleshooting chart for the powershift transmission (TD-123-1050 and TD-124-1400 series) lists error codes related to engine sensors, such as "EX" for "Engine speed sensor leads shorted or open" or "Damaged engine speed sensor" (Page 214/600). Corrective actions include repairing leads or replacing the sensor. The manual does not provide a list of specific "engine failure" error codes for the 956 model.
How to reset Versatile 876 power shift calibration?
The manual states that the TD-123-1050 powershift transmission section, which applies to the Versatile 876, should be used as reference only and not for rebuilding. It directs users to consult the Ford New Holland Service Department for the latest information on internal repairs, implying that specific calibration reset procedures are not provided in this manual (Page 193/600).
What format is this Versatile Designation 6 Series manual in?
A 600-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this Versatile Designation 6 Series manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Versatile Designation 6 Series Service Manual cover the hydraulic system?

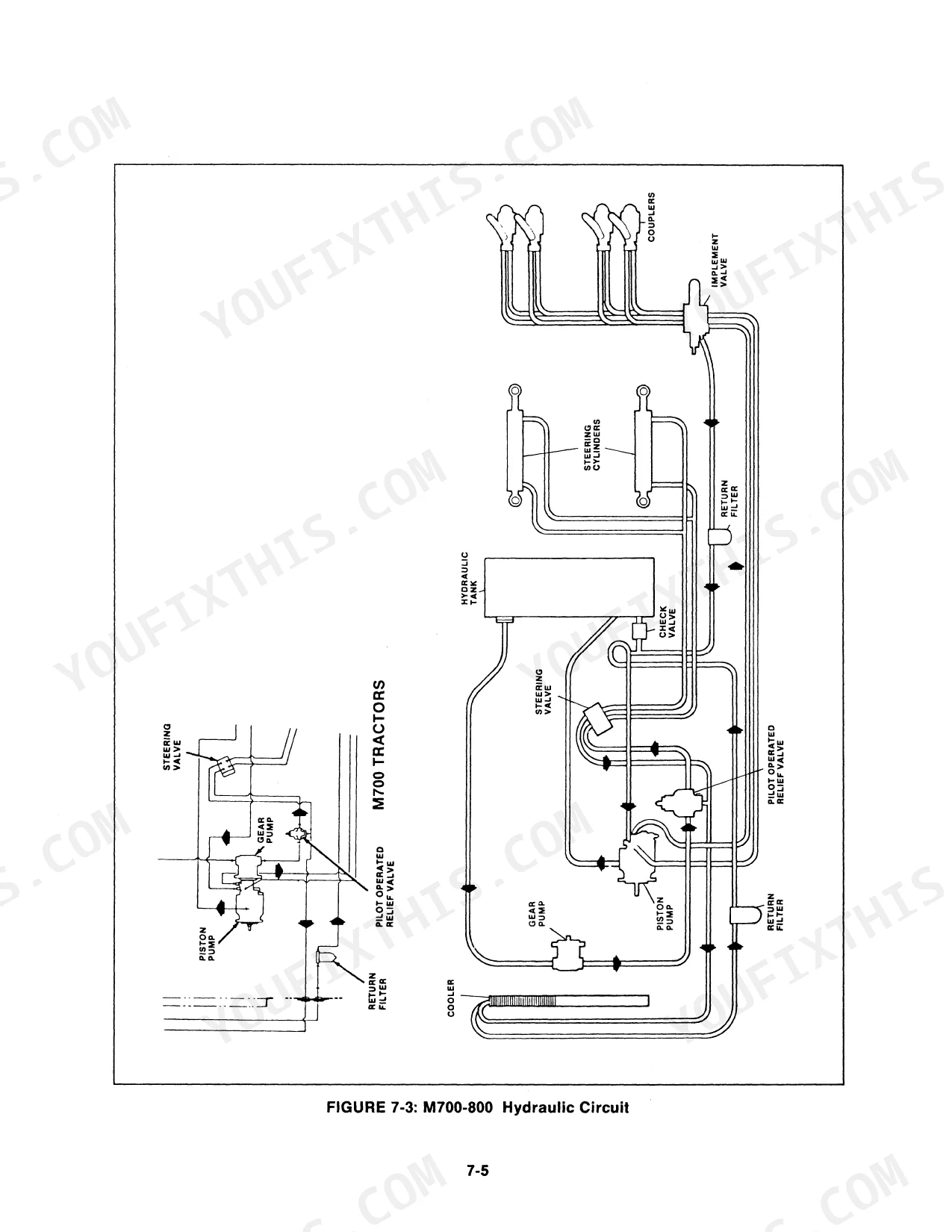

Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Versatile Designation 6 Series.
