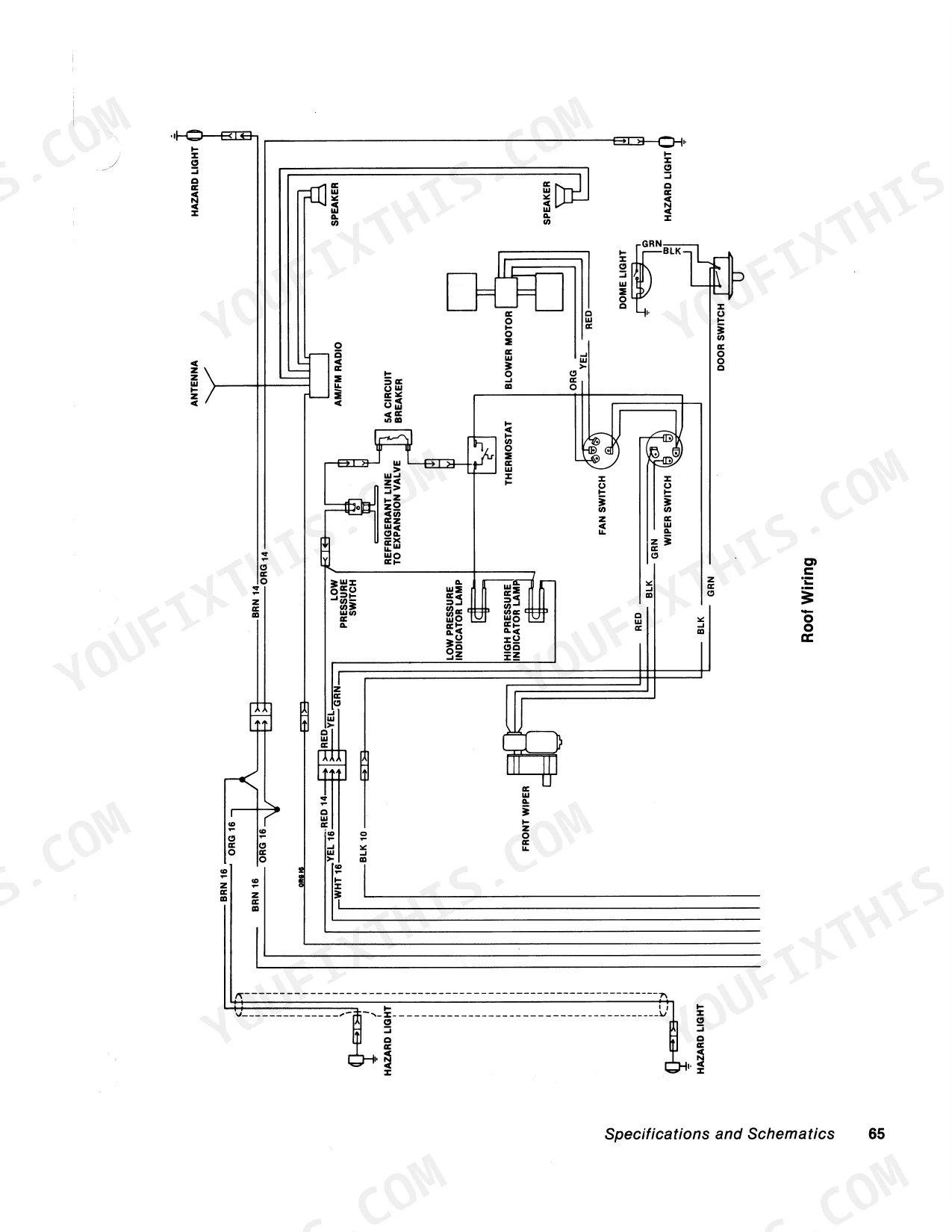

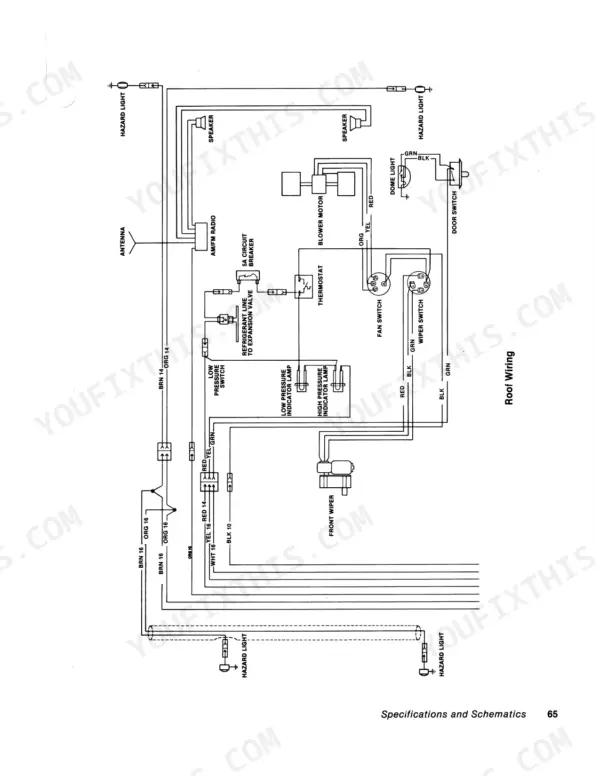

The Versatile 835 operator manual PDF walks a four-wheel drive tractor from engine break-in through winter storage in 83 factory pages, issued under OEM ID 42083542 and written for four models in the family. Wiring diagrams and hydraulic schematics anchor the specifications section at the back, while troubleshooting tables trace drive train, engine, and steering complaints to their causes. Lubrication and maintenance takes up close to a third of the book, laying out service intervals, air cleaner care, and the fluid capacities your 855, 875, or 895 shares with the 835. Set clutch pedal free play at 37 mm (1-1/2 in.), and plan fuel stops around the 700 L tank. Guess at an interval and you buy the bearing twice. Bookmarked and keyword searchable, this PDF downloads in a minute and puts the tractor back in the field.
What's Inside This Versatile 835, 855, 875, 895 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-11 | General Safety, Maintenance Safety |

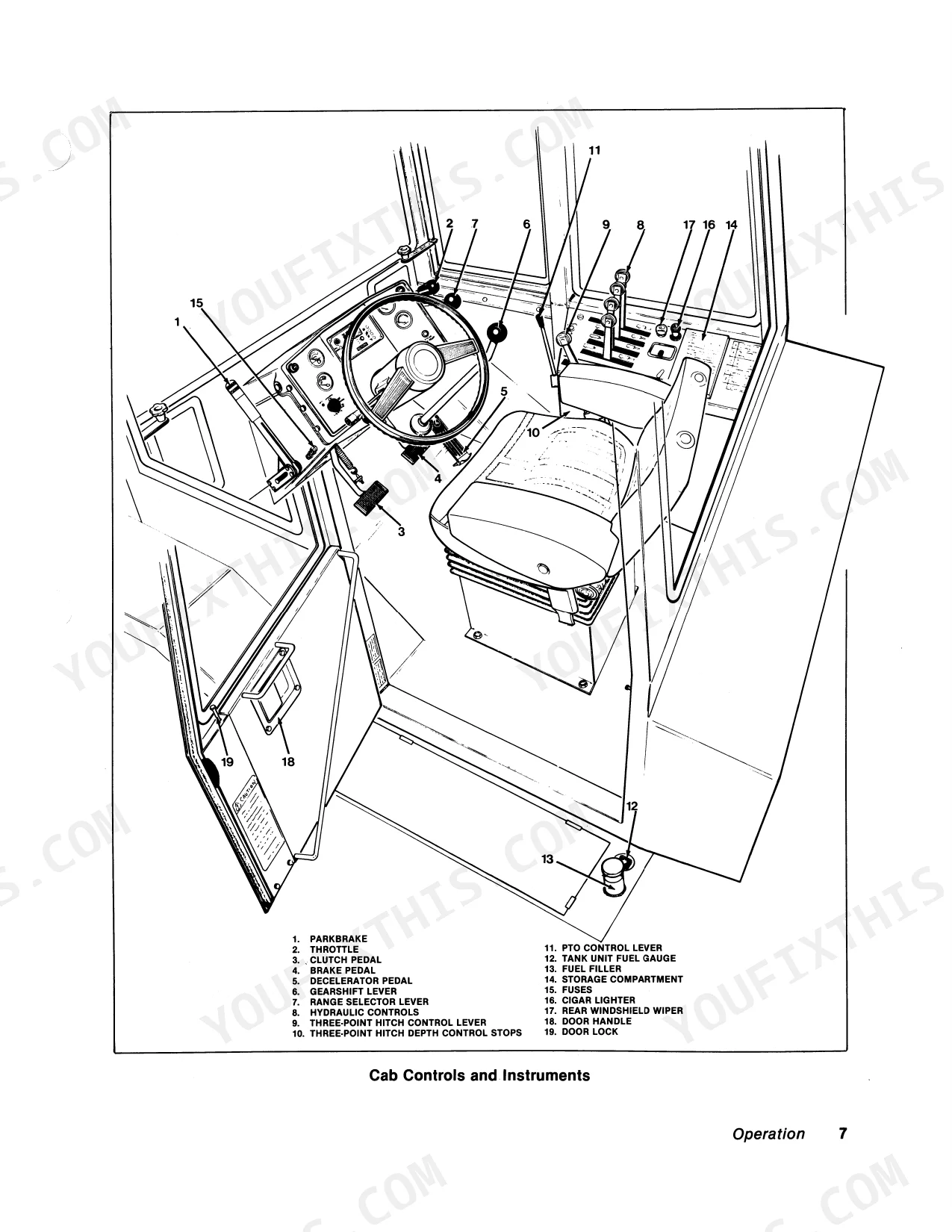

| Operation | 12-30 | Engine Break-In, Engine Starting, Shifting Gears |

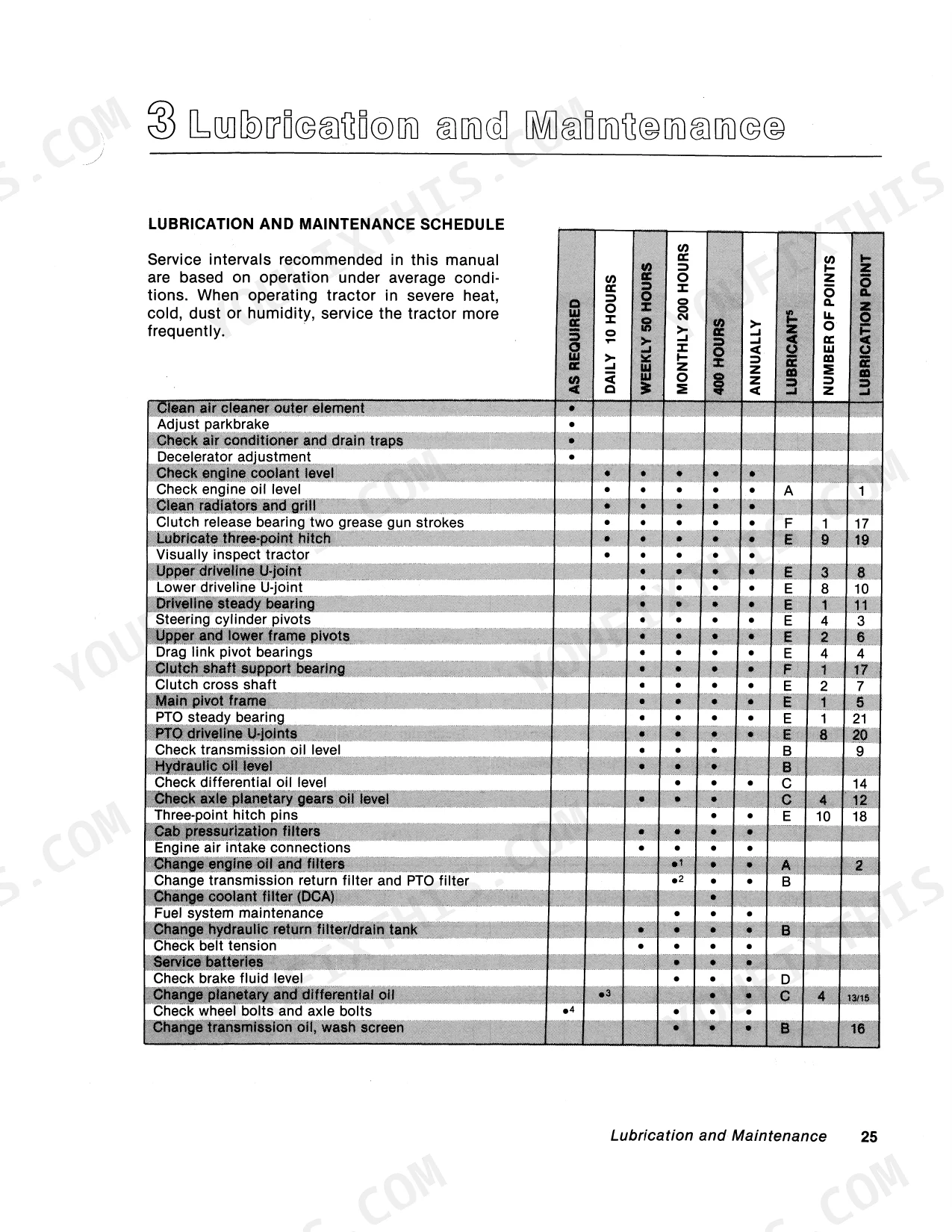

| Lubrication and Maintenance | 31-57 | Lubrication and Maintenance Schedule, Air Cleaner, Air Conditioner |

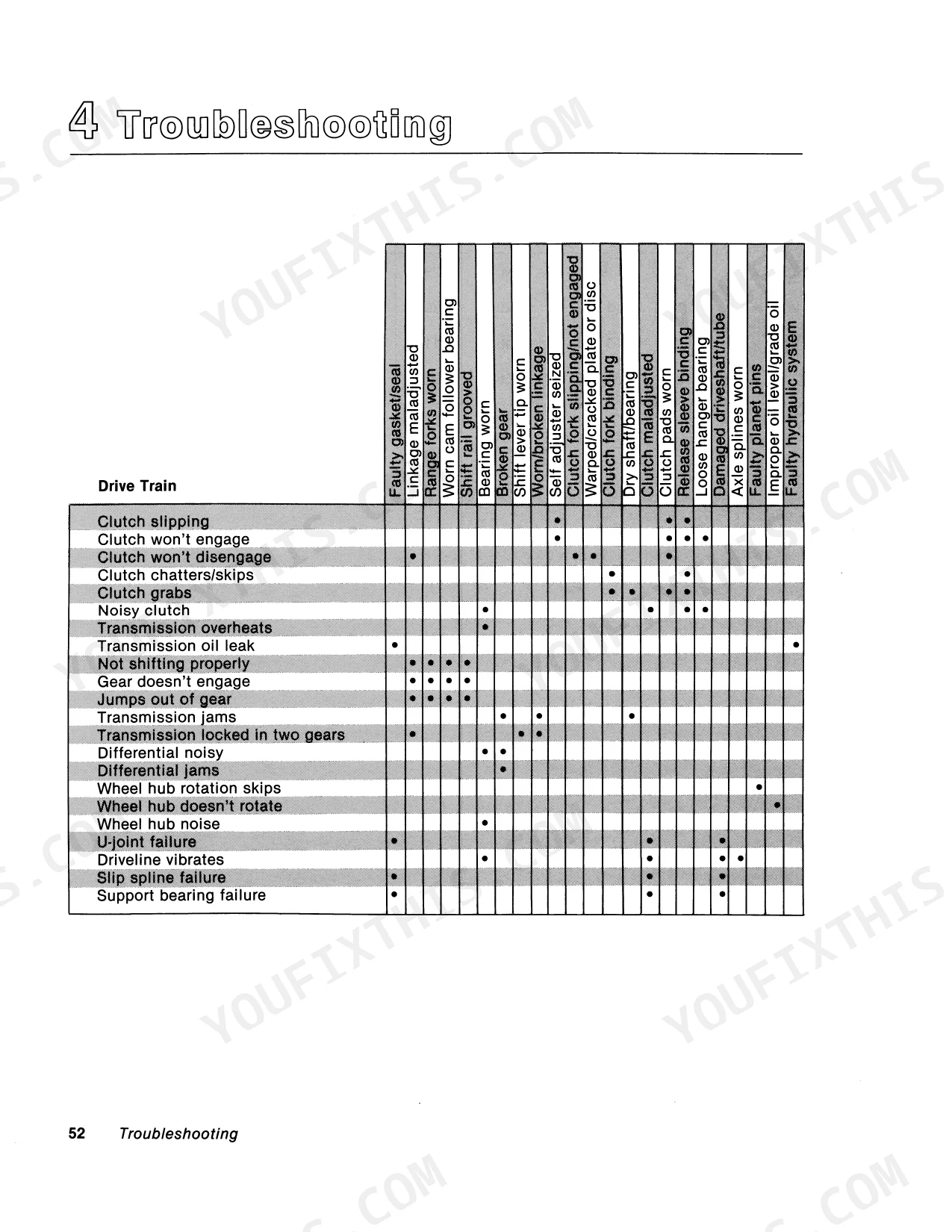

| Troubleshooting | 58-60 | Drive Train, Engine, Hydraulic Steering System |
| Storage | 61-62 | Storing the Tractor |

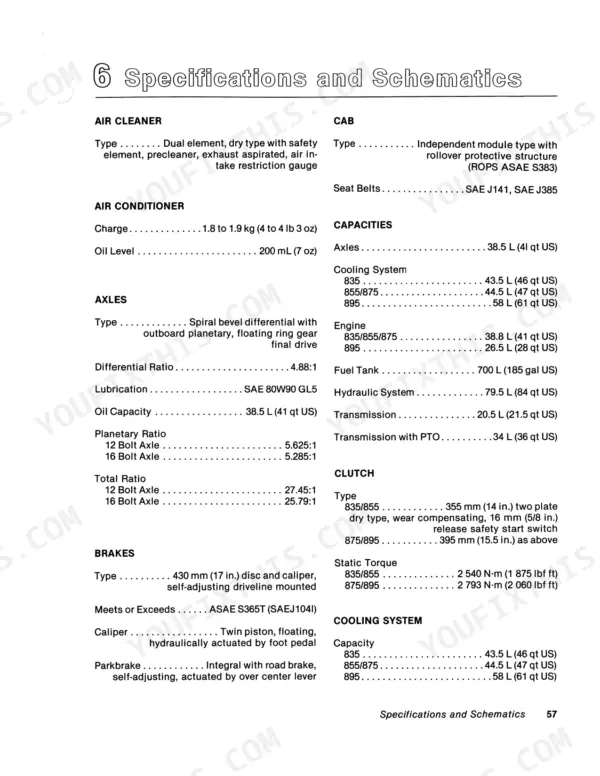

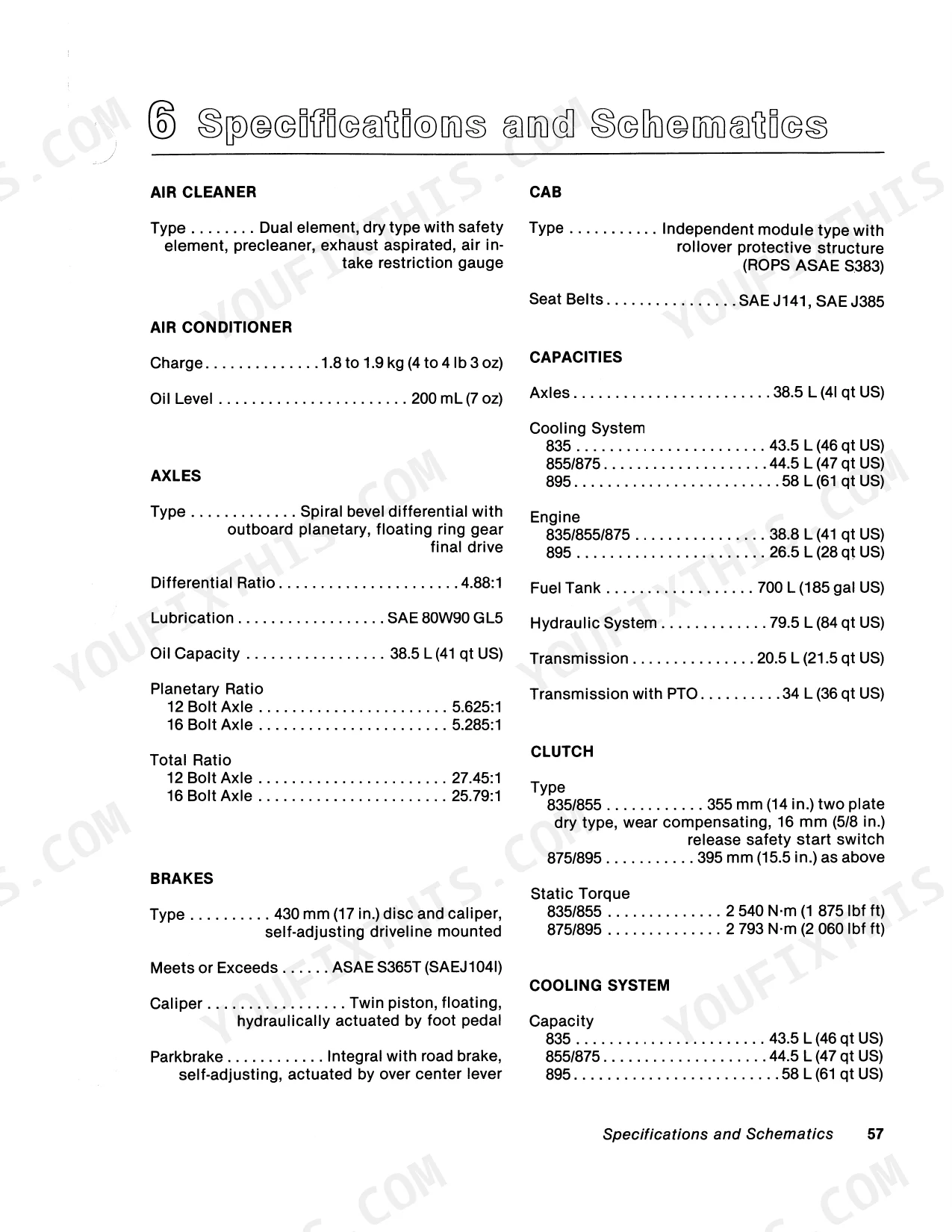

| Specifications and Schematics | 63-75 | Capacities, Dimensions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Clutch pedal free play | 37 mm (1-1/2 in.) | p. 42 |
| Fuel Tank Capacity | 700 L | p. 47 |
| Hydraulic System Capacity | 79.5 L | p. 48 |
| Transmission Oil Capacity (Without PTO) | 20.5 L | p. 50 |
| Transmission Oil Capacity (With PTO) | 34 L | p. 50 |
| 835/855 | ||
| Clutch Type | 355 mm (14 in.) two plate dry type, wear compensating, 16 mm (5/8 in.) release safety start switch | p. 63 |
| 835/855/875 | ||
| Engine Oil Capacity (835/855/875) | 38.8 L | p. 47 |
| 895 | ||
| Engine Oil Capacity (895) | 26.5 L | p. 47 |
| Cooling System Capacity (895) | 58 L | p. 42 |
| 835 | ||
| Cooling System Capacity (835) | 43.5 L | p. 42 |
| 855/875 | ||
| Cooling System Capacity (855/875) | 44.5 L | p. 42 |
Versatile 835, 855, 875, 895 Common Problems This Manual Covers
Versatile 835 hard shifting, gears clash going into range, transmission jams between gears
Check clutch pedal free play first: the wear compensating clutch should maintain 37 mm (1-1/2 in.) of free pedal, and less than 19 mm (3/4 in.) may need an internal check by your Versatile dealer (page 42). All gears are constantly in mesh and shifting collars do the engaging, so stop the tractor, reduce engine speed to 1 000 r/min, depress the clutch fully, release it about 25 mm (one in.) from the floor and, if a lever does not mesh immediately, turn the steering wheel left or right to rotate the transmission slightly (page 15). The drive train troubleshooting chart on page 58 covers gears that don't engage.
Manual Section: Drive Train Troubleshooting p. 15Steering feels jerky and slow, hydraulic oil foaming, remotes barely lift the implement
The steering and implement circuits share one reservoir and pump, so check the hydraulic oil level every 50 hours, with a three-point hitch attached check it with the hitch cylinders in the lowest position, drain condensation from the tank at 200 hour intervals and top up, and change the hydraulic oil every 400 hours; capacity is 79.5 L (84 qt US) (page 48). Then work the troubleshooting charts on pages 58 through 60.
Manual Section: Hydraulic/Steering System Troubleshooting p. 48Transmission runs hot and gear shifts get stiff halfway through a long tillage day
Check the transmission oil level: the transmission and PTO circuits both use the transmission as a reservoir, 20.5 L (21.5 qt US) without PTO and 34 L (36 qt US) with PTO (page 50). Change the transmission return filter and PTO filter at the interval in the lubrication and maintenance schedule on page 31. On the three-point hitch, cylinders extended beyond 324 mm (12-3/4 in.) make the hydraulic oil operate over relief, overheat and damage hydraulic components (page 50).
Manual Section: Drive Train Troubleshooting p. 50Engine cranks slowly or starter clicks after tractor sat through winter storage
Work the electrical system chart on page 59 for a starter that doesn't operate, and remember the clutch safety switch permits starting only with the clutch pedal depressed (page 15). Before storage, check battery charge and charge the batteries if they are not at 1.270 specific gravity, then remove them and store them in a dry, weatherproof area; low maintenance batteries keep about 12 months before recharging (page 61).
Manual Section: Electrical System Troubleshooting p. 61Frequently Asked Questions
What are the torque specifications for the wheel bolts on a Versatile 855 tractor?
For a single wheel, the torque specification is 440 N-m (325 lbf ft). For dual wheels, the inner wheel torque is also 440 N-m (325 lbf ft), while the tie rod nuts for 18.4 x 38 and 20.8 x 38 tires are 295 N-m (220 lbf ft). p. 54
What is the engine oil capacity for the Versatile 835, 855, and 875 tractors?
The engine oil capacity for the 835, 855, and 875 models is 38.8 L (41 qt US). p. 47
How often should the transmission oil filter be changed on these tractors?
The transmission oil filter is a spin-on, throw-away type that should be changed after the first 50 hours of operation and every 200 hours thereafter. p. 52
What is the correct procedure for bleeding the brake system?
After filling the reservoir, pump the brake pedal until fluid runs through the line, then open both bleeder valves. Attach a flexible tube to the bleeder valve closest to the transmission wall, submerge the other end in a jar of clean brake fluid, and operate the pedal until air bubbles stop rising. p. 41
What is the recommended tension for a new alternator drive belt?
The recommended tension for a new alternator drive belt is 625 N (140 lb). After the belt is installed, check the tension for the first three days to ensure it is properly seated. p. 39
How quickly can I access this Versatile 835 manual after buying?
You get a 83-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print a copy of this Versatile 835 Operator Manual for the shop?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
