Engine and drive train, axle planetaries and differential carriers, steering linkage and the implement control valve, then lighting circuits, cab pressurizing and air conditioning: this Versatile 500 service manual PDF (OEM ID 40050010) walks the tractor through each of those systems across 458 pages. Electrical work fills the closing stretch of the book, with wiring diagrams that trace the lighting circuits wire by wire, while hydraulic schematics follow oil from the pump to the implement control valve. A troubleshooting guide sorts faults into drive train, hydraulics, electrical and environmental, so your symptom leads to a cause before a single fitting comes loose. Set the relief valve at 2300 ± 50 psi (15 860 ± 340 kPa) and tension the alternator belt to 80 to 100 pounds. Chasing a weak lift with harvest waiting wears thin fast. The file is bookmarked and text-searchable, and once you buy it, it stays yours for as long as this 500 keeps working your fields.
What's Inside This Versatile 500 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-8 | Specifications, Capacities, Troubleshooting, Maintenance Procedures, Repair Procedures, Overhaul Procedures |
| Towing/Transporting | 9 | General, Towing, Transporting |

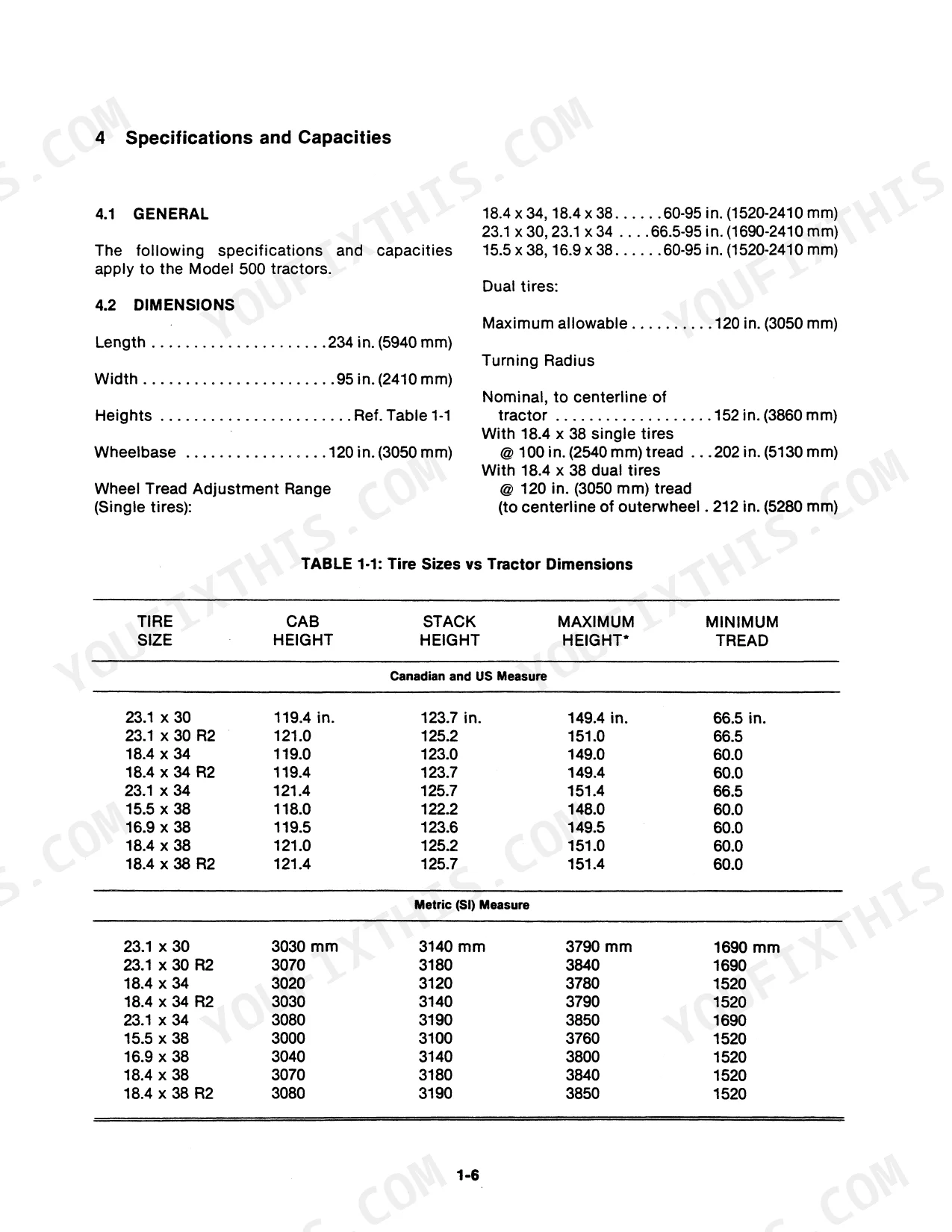

| Servicing and General Specifications | 10-18 | Towing, Transporting, Hoists, Jacks, Specifications, Capacities |

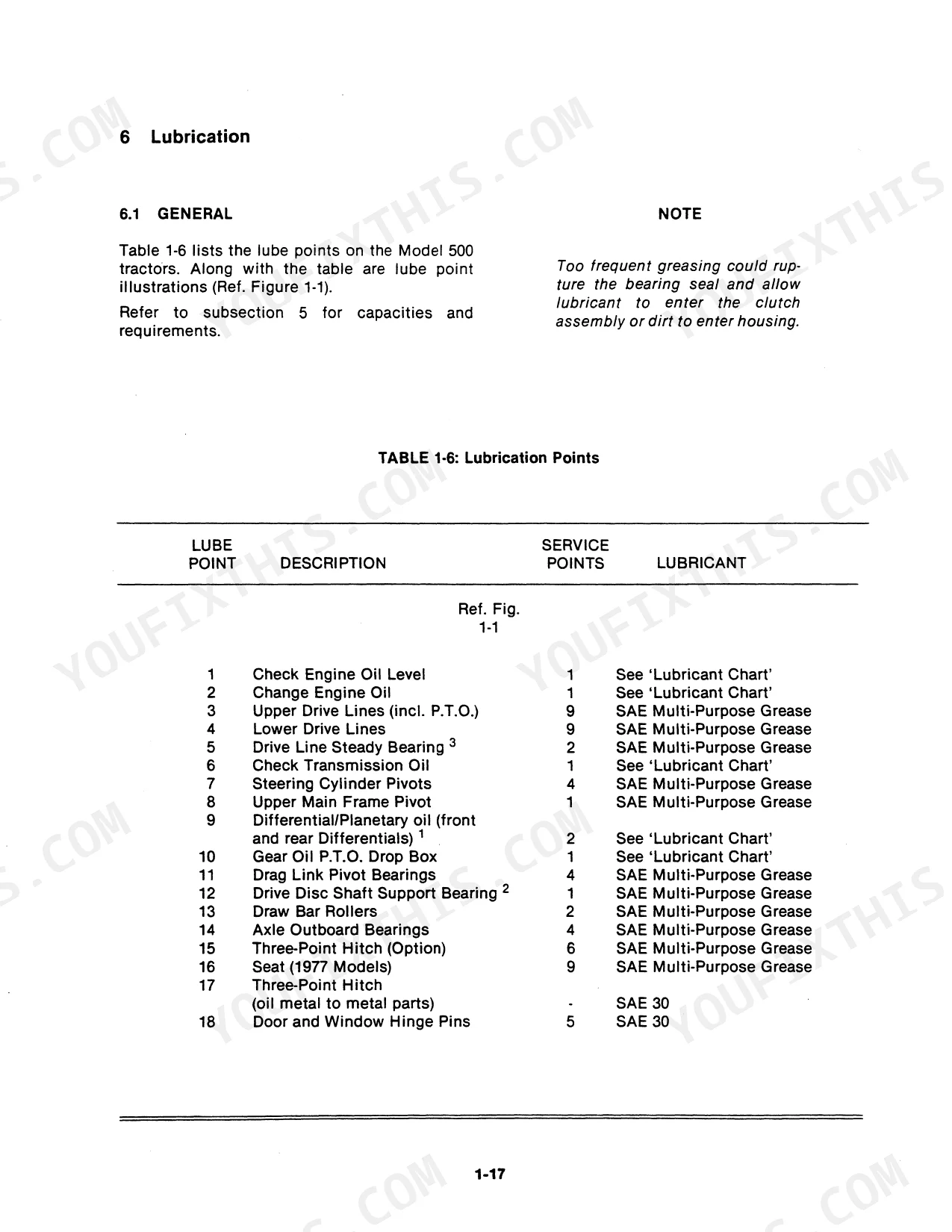

| Fuels, Fluids, Lubricants, and Storage | 19-29 | Fuel Specifications, Coolant Mixture, Lubricant Chart, Tractor Storage, Engine Startup |
| Troubleshooting and Engine Systems | 30-113 | Troubleshooting Guide, Engine Systems, Drive Train, Transmission, Clutch |
| Axle Assemblies and Drivelines | 114-228 | Axle Assemblies, Planetary Gears, Differential Carrier, Drivelines, Steady Bearings |

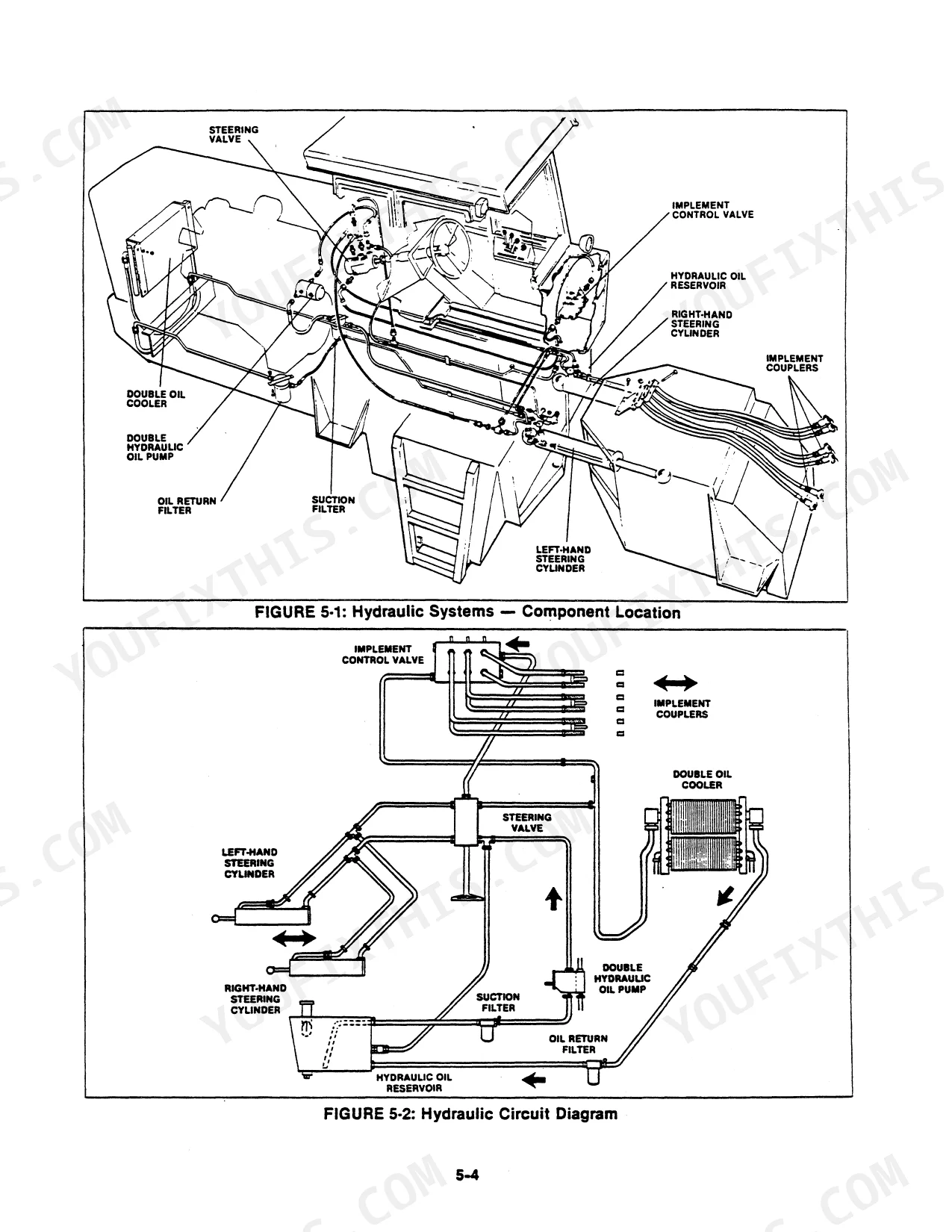

| Controls and Hydraulic Systems | 229-324 | Operator Controls, Steering Linkage, Throttle Linkage, Hydraulic System, Implement Control Valve |

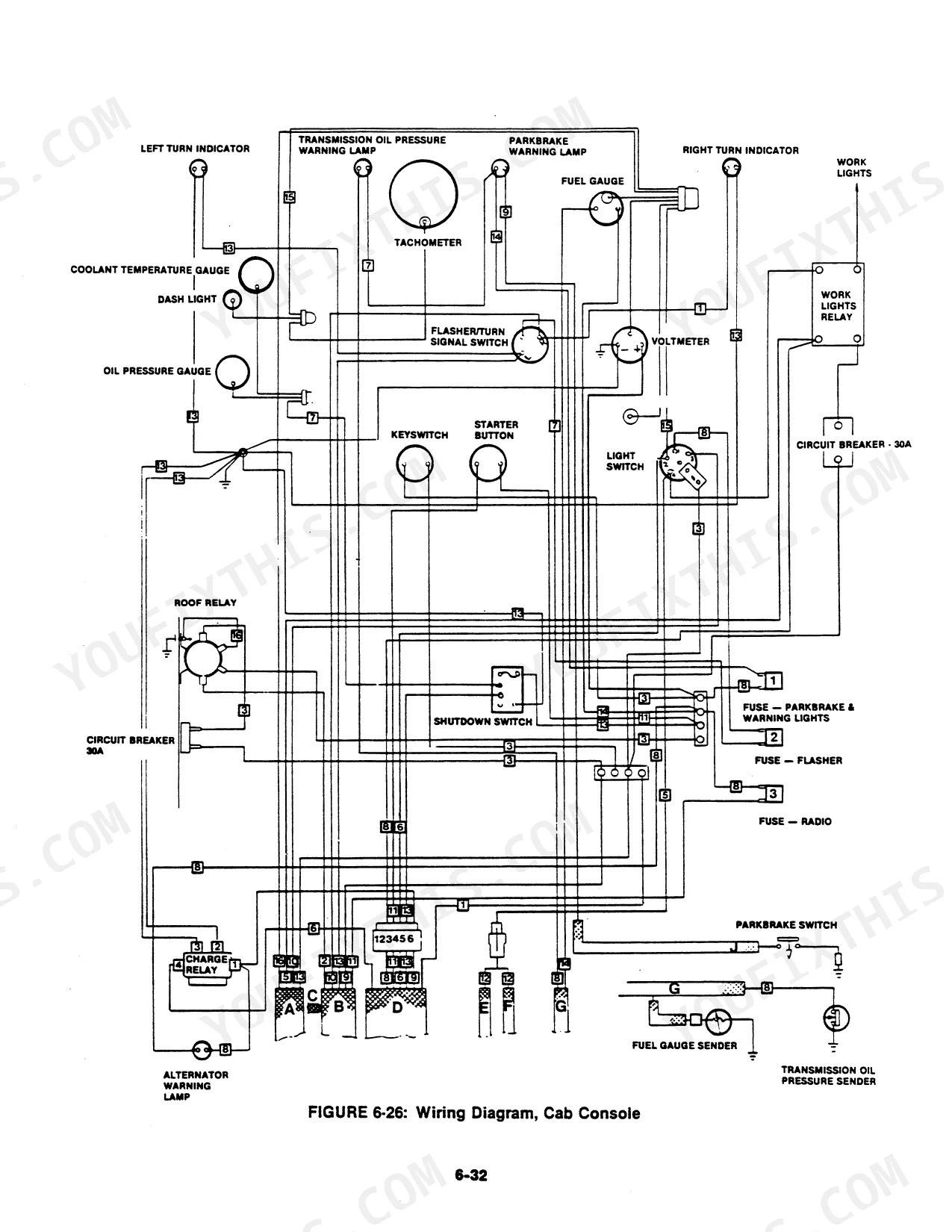

| Electrical and Environmental Systems | 325-458 | Electrical System, Lighting Circuits, Cab Pressurizing, Heating System, Air Conditioning |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cooling system pressure cap temperature limit | less than 165°F (74°C) | p. 6 |
| Relief valve setting | 2300 ± 50 psi (15 860 ± 340 kPa) | p. 17 |
| Air cleaner diameter | 10 in. (254 mm) | p. 16 |
| Batteries | Two 8D, 12 volts, 900 amperes | p. 17 |
| Alternator belt tension | 80 to 100 pounds | p. 83 |
| Air cleaner restriction gauge reading | greater than 20 inches | p. 54 |
| Coolant depth in surge tank (hot) | 6 in. | p. 65 |
| Radiator fin cleaning air pressure | 100 psi | p. 64 |

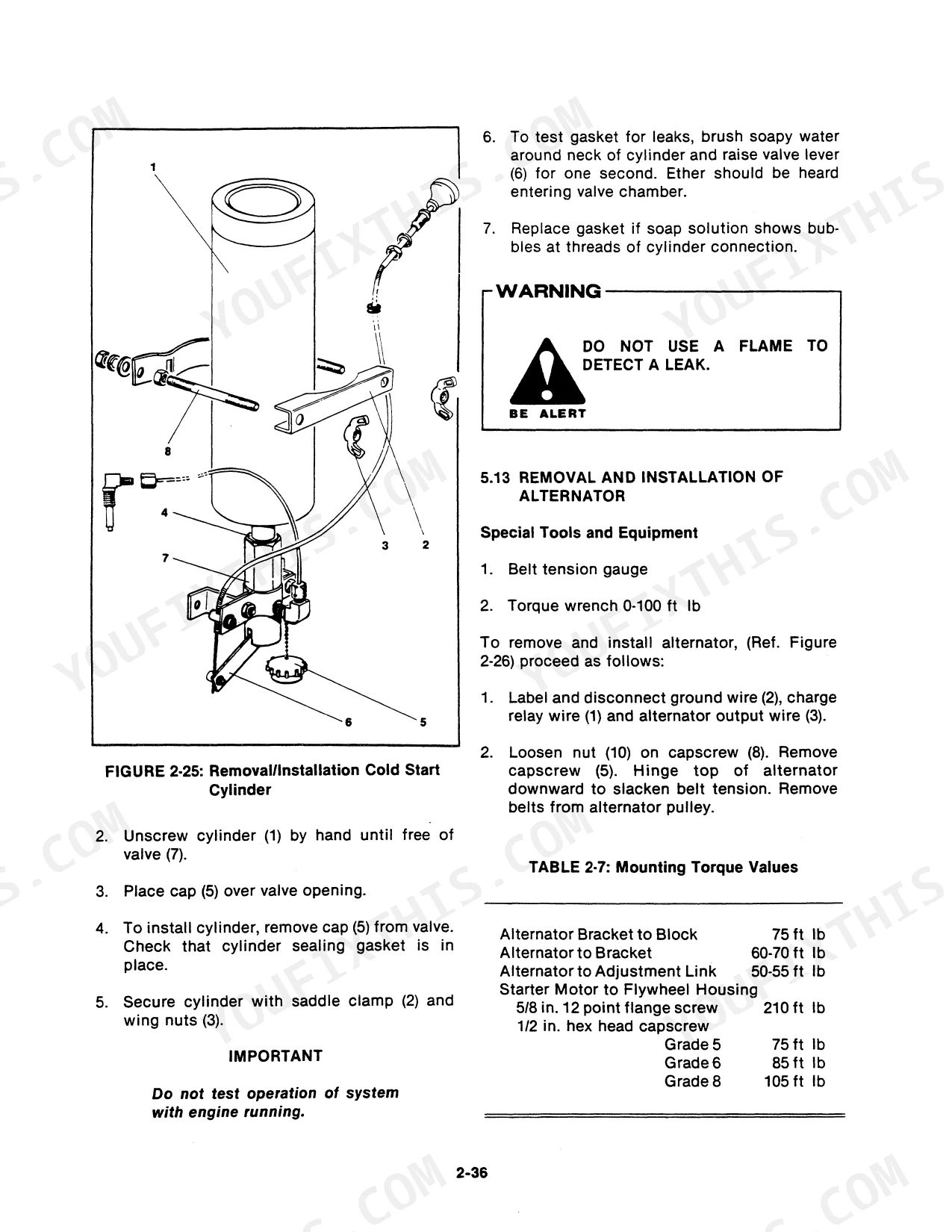

| Alternator to Adjustment Link torque | 50-55 ft lb | p. 82 |

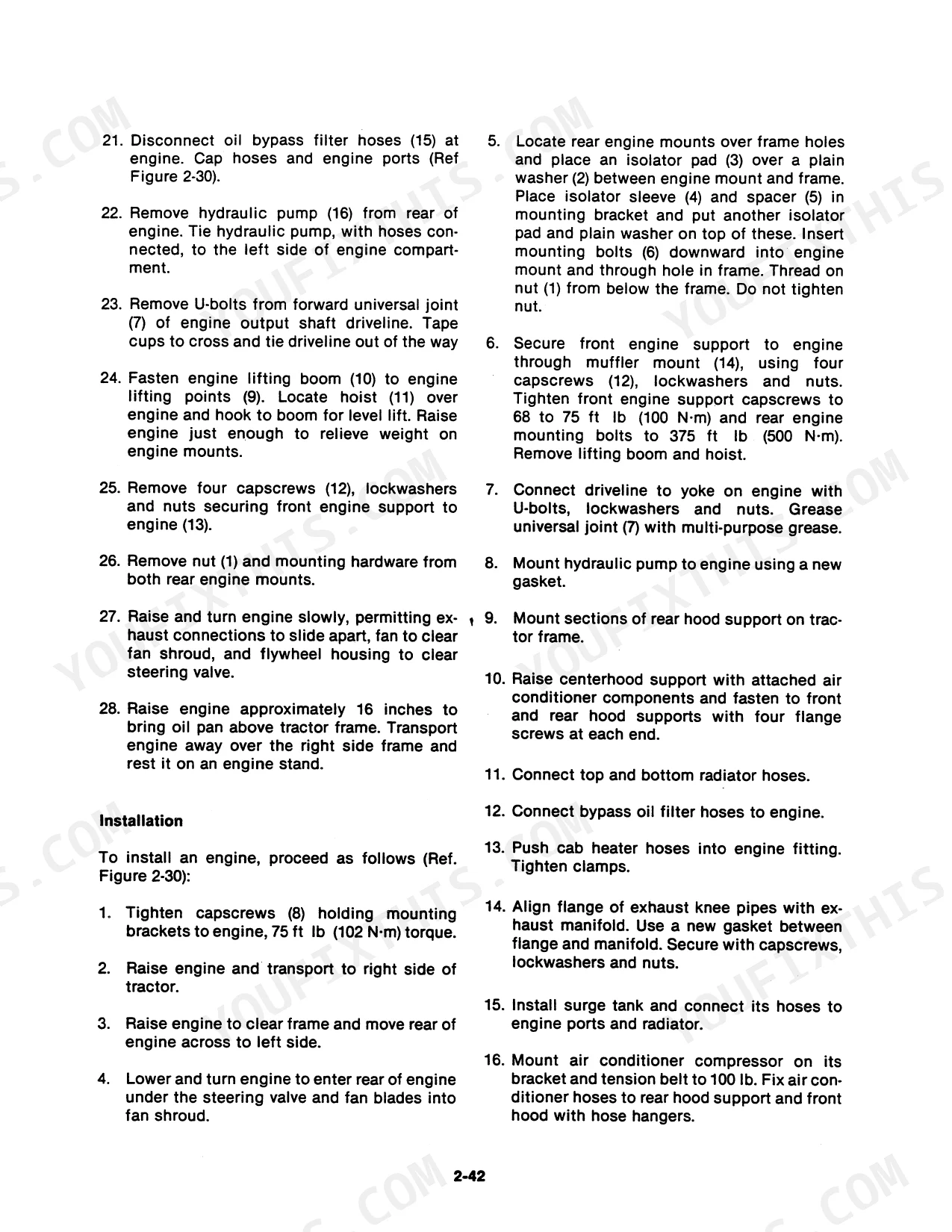

| Front engine support capscrews torque | 68 to 75 ft lb (100 N·m) | p. 88 |
| Rear engine mounting bolts torque | 375 ft lb (500 N·m) | p. 88 |
| System Pressure | 2300 ± 50 psi | p. 277 |
Versatile 500 Common Problems This Manual Covers
Versatile 500 engine overheats under drawbar load with the coolant temperature gauge reading high
Check coolant depth in the surge tank against 6 in. hot following page 65, but only open the pressure cap below 165°F (74°C) per page 6. Clean radiator fins with forced air at 100 psi max (page 64). Test the thermostat at 205°F and replace it if it opens 10°F colder or hotter.

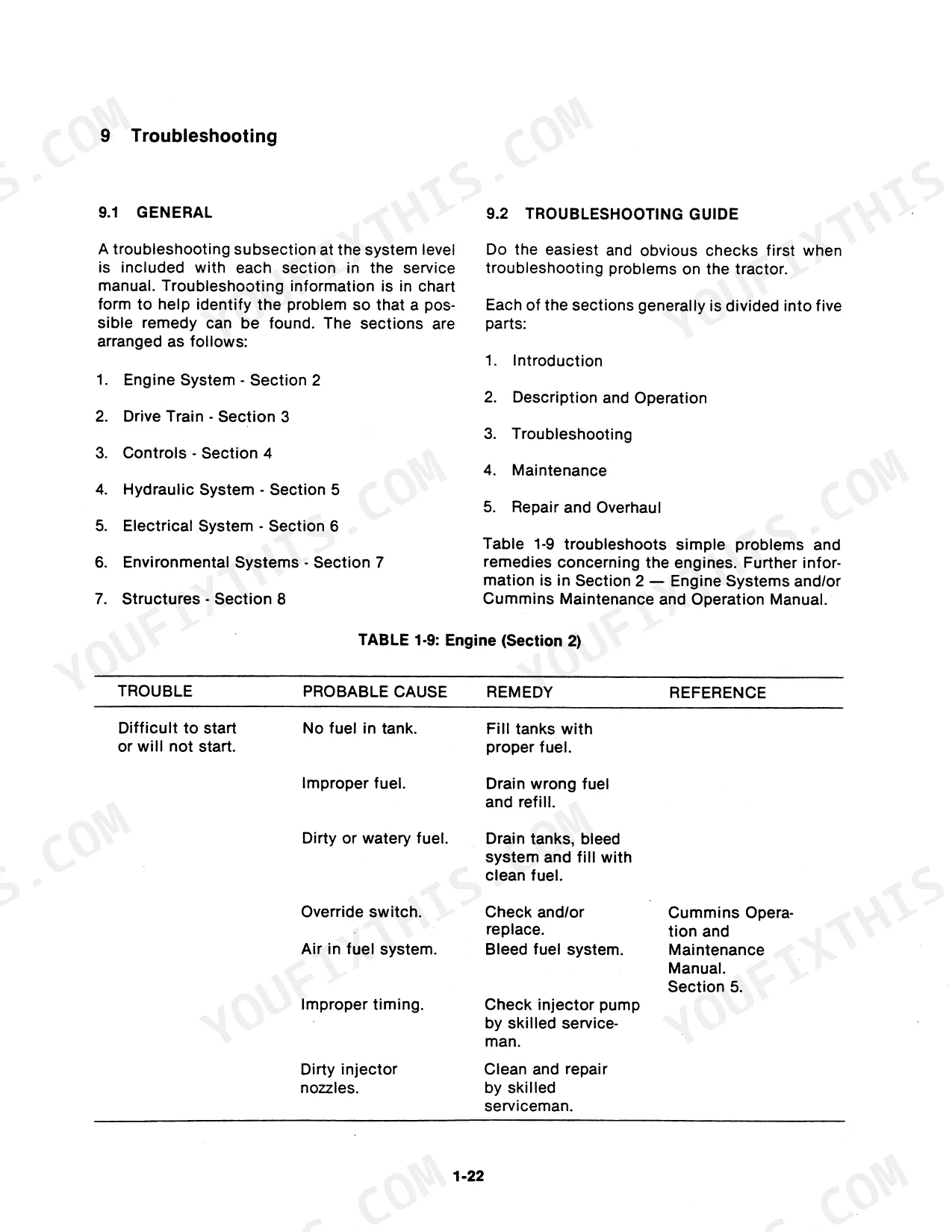

Manual Section: Engine Troubleshooting p. 30Engine lacks power and blows gray or black smoke when pulling hard
Check the air cleaner restriction gauge first; a choked element is the cheapest fix to rule out. Service the 10 in. (254 mm) air cleaner when the gauge reads greater than 20 inches, following page 54. If power and smoke do not improve, work through the lack of power and smoke charts on page 30.
Manual Section: Engine Troubleshooting p. 30Batteries run low on charge, starting is sluggish, and the alternator light glows
Check alternator belt tension against 80 to 100 pounds following page 83, then torque the alternator to adjustment link at 50 to 55 ft lb and alternator to bracket at 60 to 70 ft lb (page 82). Test charging output against the rated 75 amperes, and verify both 8D 12 volt, 900 ampere batteries listed on page 17.
Manual Section: Electrical System TroubleshootingHydraulic implement circuit has low lift force and the raised load drops
Check hydraulic oil level first; the system holds 48 qt US (45.5 L) per page 17. Test relief valve pressure against 2300 ± 50 psi (15 860 ± 340 kPa), also listed on page 17. Inspect the 33 micron return filter on page 277, then work the low lift force chart.
Manual Section: Hydraulics TroubleshootingWhen the tractor is moving, the axle differential or planetary wheel hub makes a rumbling noise
Check axle differential oil level first; the housing takes 19 qt US (18 L) per page 16. If the oil level is correct and the rumble stays, measure ring gear backlash against .016 in. (.4 mm) on page 222 and work the differential and planetaries troubleshooting chart before you tear down the hub.
Manual Section: Differential and Planetaries TroubleshootingDuring a long field day, the transmission runs noisy, overheats, or sticks in gear
Check transmission oil level before anything else; the case holds 24 qt US (22.7 L) per page 16. Work the noisy, overheating and sticking charts in drive train troubleshooting. On teardown, measure transmission shaft end play against .003 to .005 in. (.07 to .12 mm) and torque mounting bolts to 160 lb ft (page 222).
Manual Section: Drive Train TroubleshootingFrequently Asked Questions
What are the hydraulic pressure and flow specifications for a Versatile 500?
The hydraulic system operates at a nominal pressure of 2300 ± 50 psi (15 860 ± 340 kPa). The steering system provides a nominal flow of 24 gpm US (20 gpm Cdn), while the implement control valve provides a flow of 8 to 24 gpm US (6.7 to 20 gpm Cdn). p. 17
How do you troubleshoot Versatile 500 remote hydraulic valves that work intermittently?
If implement control is erratic, check for low oil level, cold oil, or low engine rpm (set to 1000 rpm). Also, check for a plugged filter, ruptured hose, or faulty hydraulic component, which may require repair or replacement as detailed in Section 5. p. 38
What is the engine oil capacity for the Versatile 500?
The engine oil capacity for the Cummins V504-C210 engine is 28 quarts US (26.5 liters) or 22.4 quarts Cdn. p. 15
What is the correct procedure for bleeding the road brake system on a 1977 model?
Bleeding requires two people. Attach a flexible tube to the bleeder valve nipple and submerge the other end in a container of clean fluid. Pump the brake pedal on the down stroke, close the bleed fitting before the up stroke, and repeat until no air bubbles appear in the fluid. p. 258
What is the torque specification for the transmission mounting bolts on the Versatile 500 tractor?
The transmission mounting bolts should be torqued to 160 lb ft (220 N-m). p. 222
What format is this Versatile 500 manual in?
Delivery is instant: a 458-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Is this Versatile 500 manual print-friendly?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
