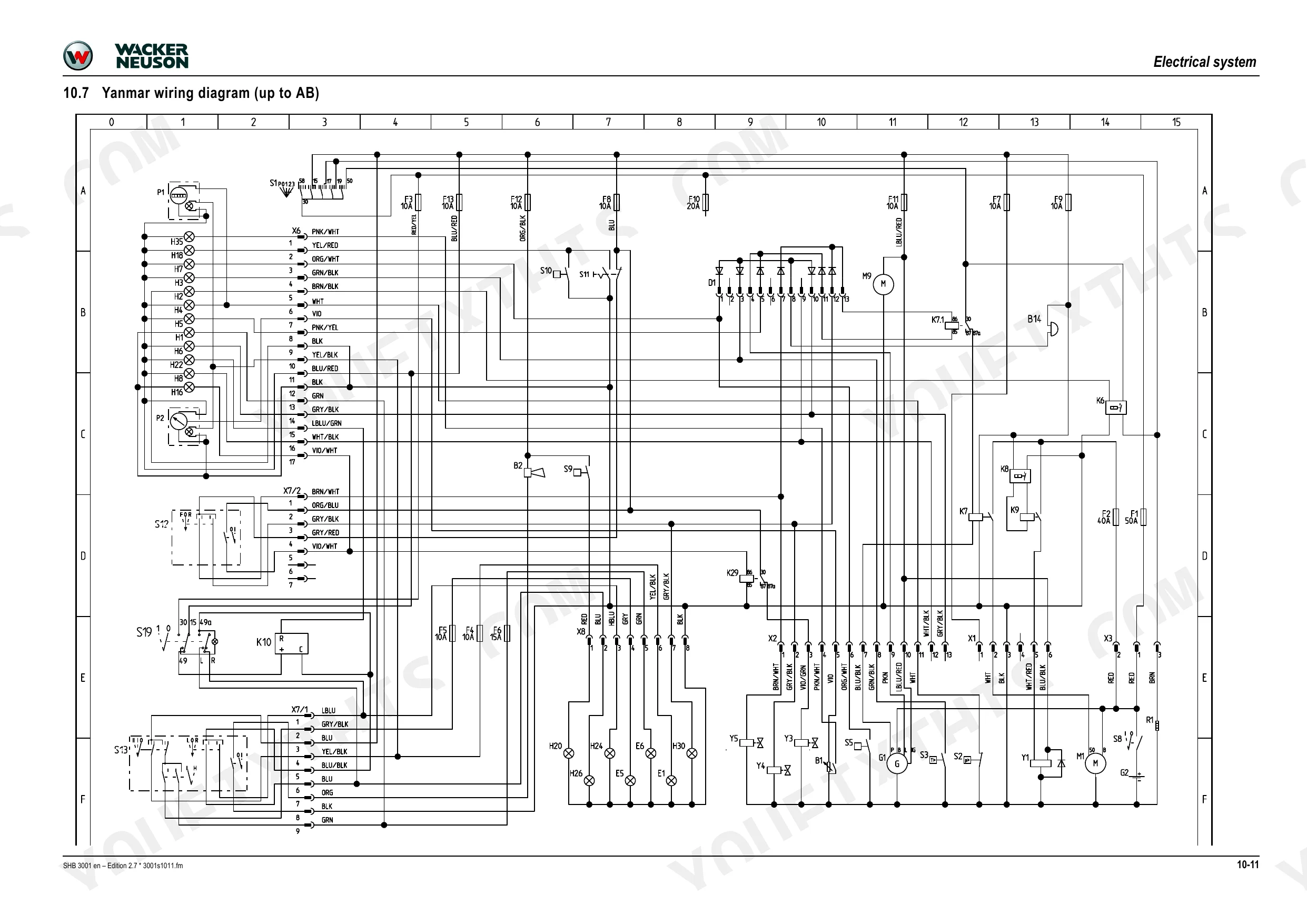

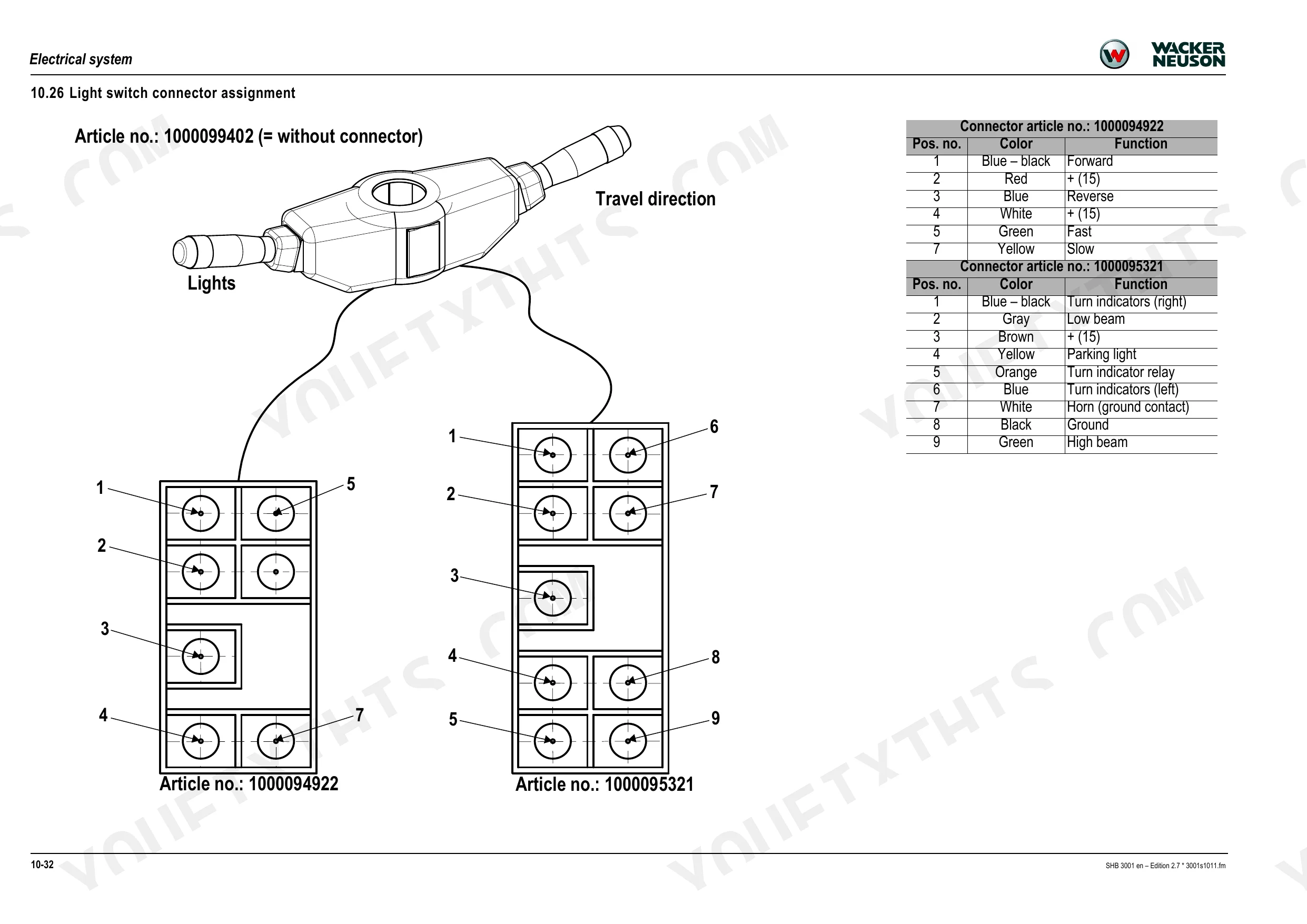

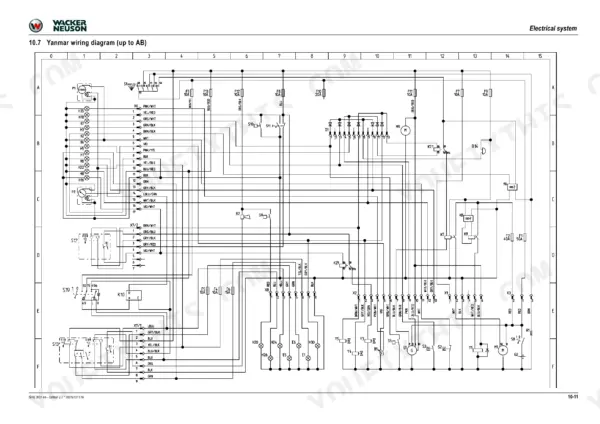

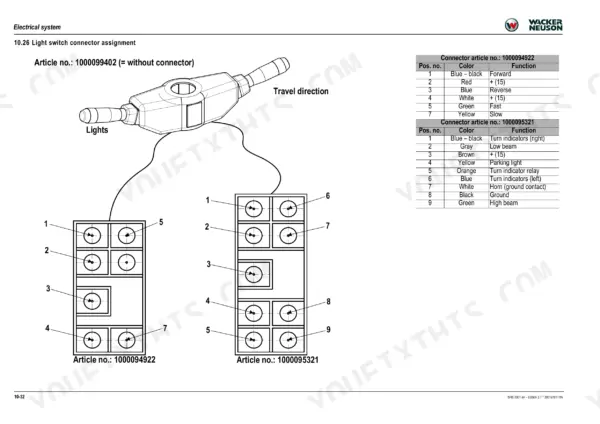

Need factory specs for your Wacker Neuson 3001 dumper? This 294-page Wacker Neuson 3001 service manual PDF (OEM #1000156004) covers both Yanmar and Perkins engine versions, from the A10VG45DA variable displacement pump to the articulated joint and transfer gearbox. Inside: full wiring diagrams with connector pinouts, hydraulic schematics for the skip tilt and differential lock circuits, error code tables, and a maintenance plan for every service interval. You also get axle tightening torques plus steering circuit diagrams for both early and late serial ranges. Check your fluids against the factory numbers: the fuel tank holds 45 liters (11.9 gallons), and the plan flags the extra hydraulic oil and filter change that heavy use requires. No more chasing wiring faults with a multimeter and a prayer. Bookmarked and keyword-searchable; jump straight to the right circuit and get wrenching.
What's Inside This Wacker Neuson 3001 Manual

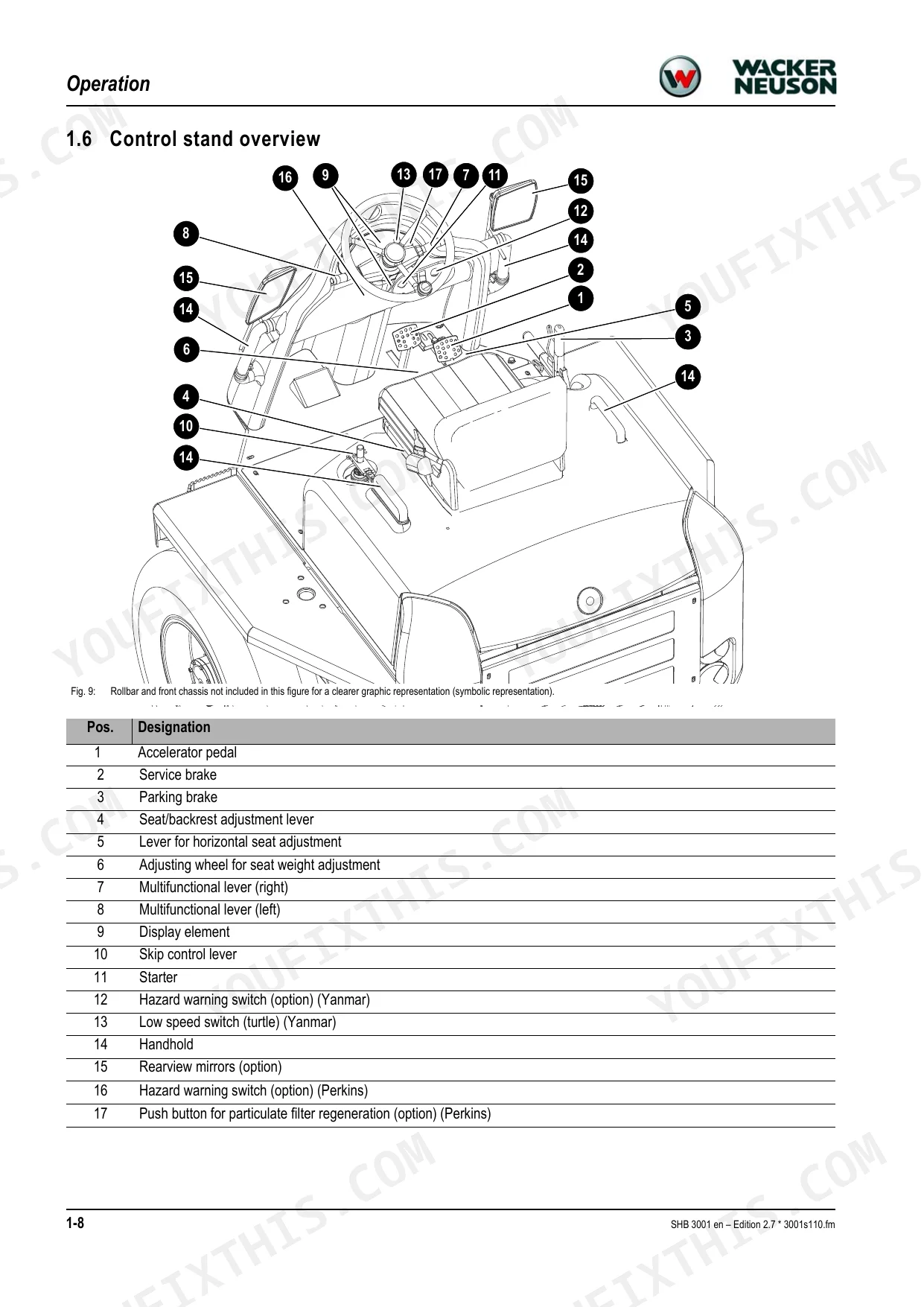

| System | Pages | Key Topics |
|---|---|---|
| Documentation | 1 | Title, Language, Order No., Issue, Issued |
| Legend | 2-12 | F, I, M, N, O, S, T |
| Operation | 13-38 | Notices on This Service Manual, Identification of Warnings and Dangers, Designated Use and Exemption From Liability, Type Labels and Component Numbers, Machine Overview |
| Technical Data | 39-62 | Chassis, Engine (Yanmar), Engine (Perkins), Work Hydraulics, Travel Drive, Machine Travel Specifications, Brakes, Steering System |
| Maintenance | 63-134 | Introduction, Safety-Relevant Parts, Fluids and Lubricants (Yanmar), Fluids and Lubricants (Perkins), Maintenance Label, Maintenance Plan (Overview – Yanmar) |
| Engine | 135-172 | 4.1 3TNV88-Knsv Engine (Overview), Fuel System (Up to Ab), Fuel System (From AC), Checking the Injection Nozzles, Adjusting Engine Speed, Compression |
| Traveling Drive | 173-186 | Variable Displacement Pump A10VG45DA, Hydraulic Motor A6VM80EZ, Traveling Drive Overview (Up to Ab), Traveling Drive Overview (From AC), Towing and Transporting the Machine |

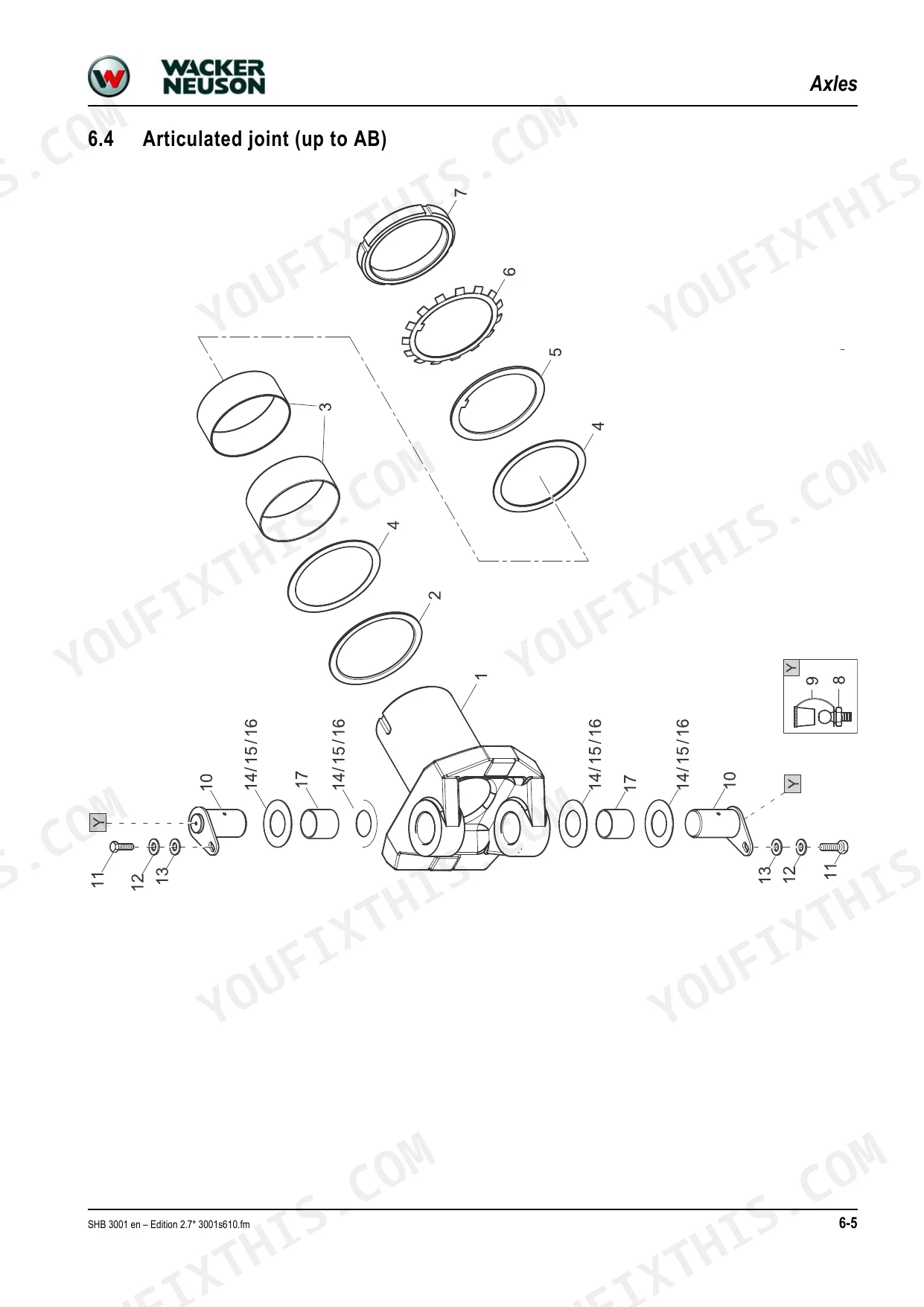

| Axles | 187-222 | Axle Type Label, Drain, Fill and Check Plug, Tightening Torques, Articulated Joint (Up to Ab), Articulated Joint (From AC), Transfer Gearbox (Up to Ad) |
| Brakes | 223-228 | Brake Circuit (Up to Ab), Brake Circuit |
| Steering System | 229-238 | Steering Circuit (Up to Ab), Steering Circuit (From AC), Steering Unit: Diagram, Steering Unit Connections, Steering Unit Overview |

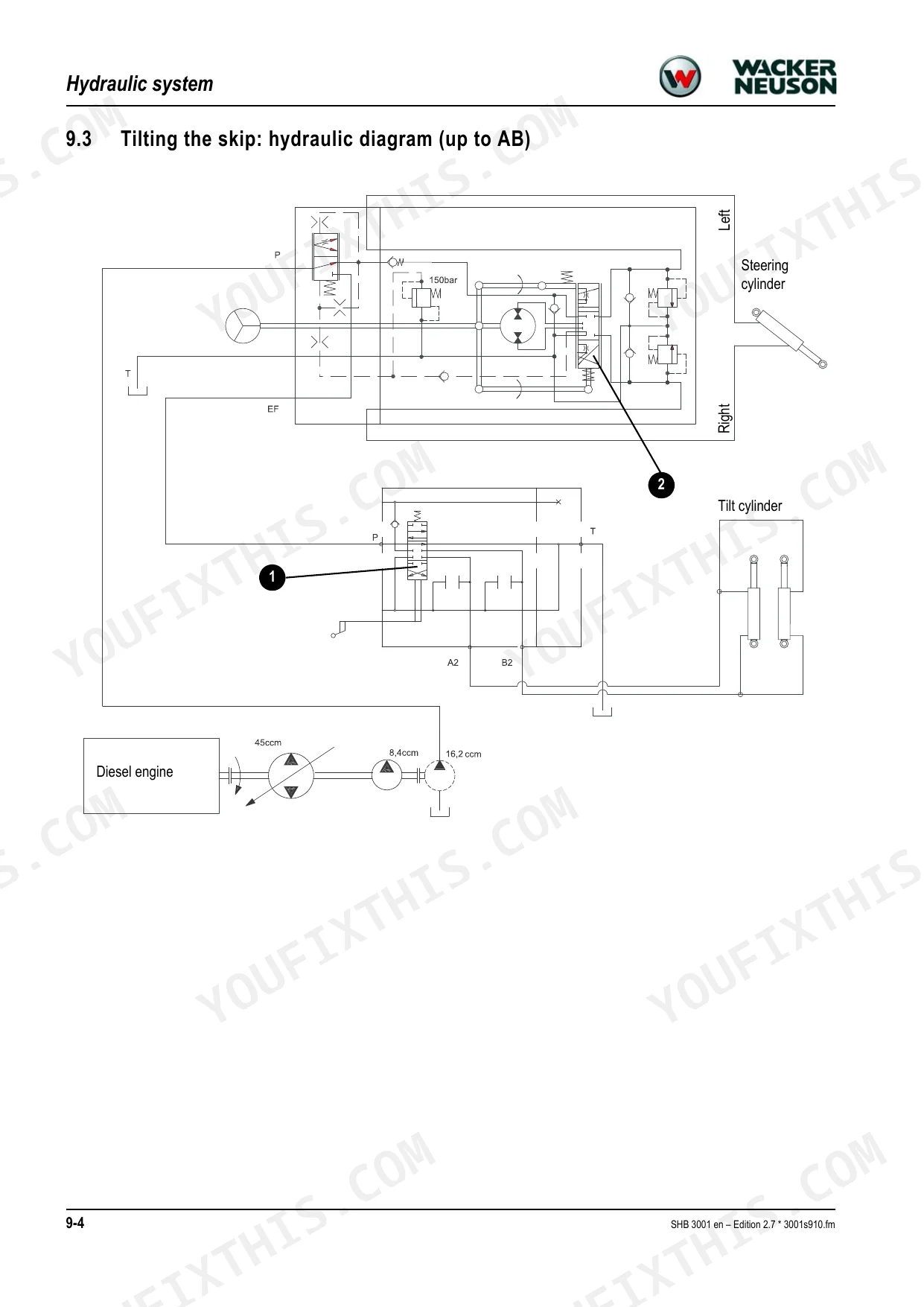

| Hydraulic System | 239-252 | Control Valve, Valves – Differential Lock (Up to Ab), Tilting the Skip: Hydraulic Diagram (Up to Ab), Tilting the Skip: Hydraulic Diagram (From AC) |
| Electrical System | 253-294 | Ohmic Law (Current, Voltage, Resistance); Power, Measuring Equipment, Measuring Methods, Relays, Electric Units, Telematic |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Replace the hydraulic oil | 3-49 | p. 6 |
| Replacing the hydraulic oil filter element | 3-50 | p. 6 |
| Replacing the filter | 3-38 | p. 5 |
| Fuel tank | 45 l (11.9 gal) | p. 64 |
| Grease zerks | As required | p. 64 |
| Air filter replacement interval (acidic air) | every 50 operating hours | p. 99 |
| Glow plug torque | 17 Nm (12.5 ft.lbs.) | p. 107 |
| Cable B torque | 1.5 Nm (1.1 ft.lbs.) | p. 107 |
| Bowden cable | 15 | p. 225 |

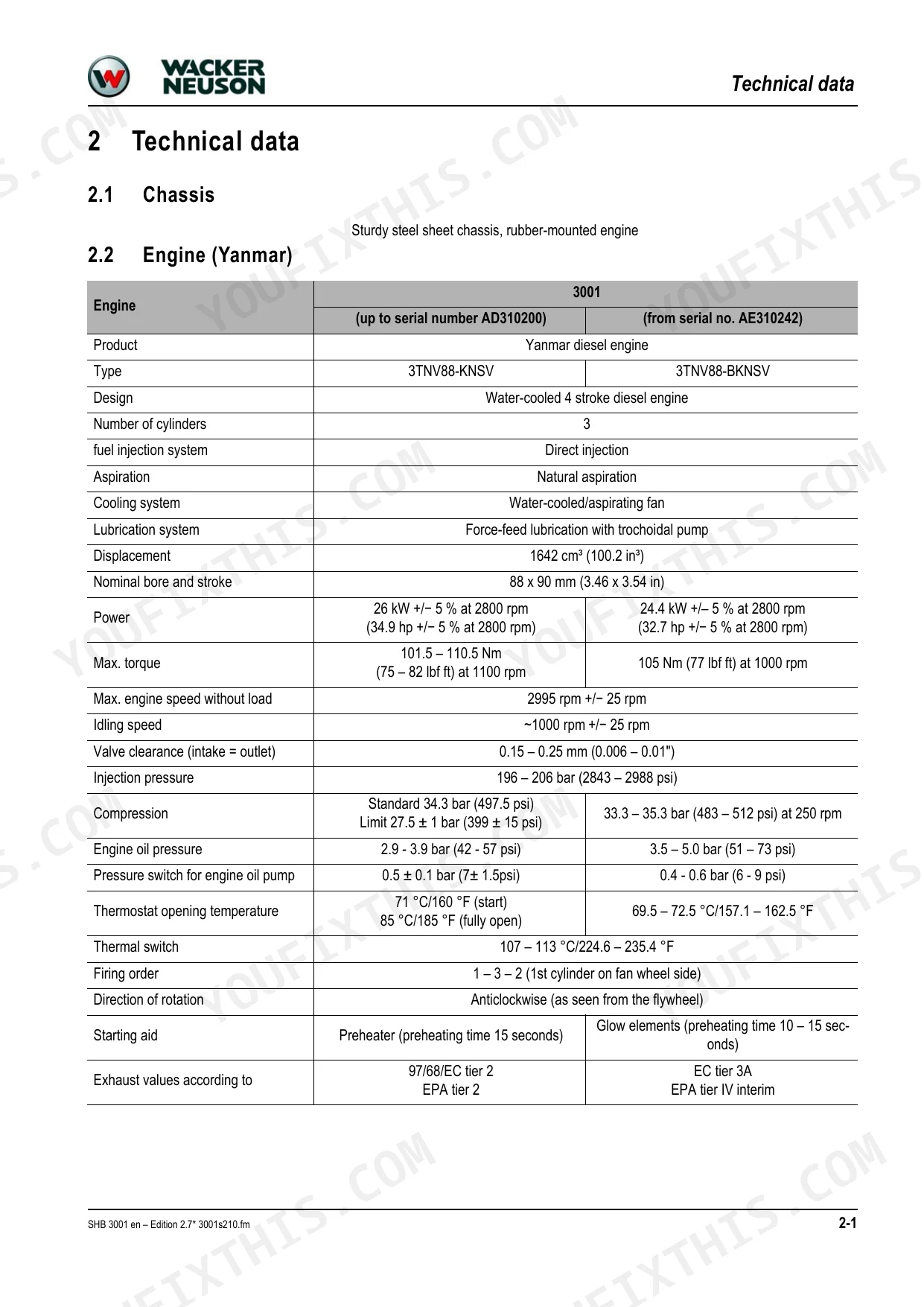

| Engine (Yanmar) Displacement | 1642 cm³ | p. 39 |
| Engine (Perkins) Max. Torque | 112 Nm | p. 41 |
| Engine (Yanmar) Valve Clearance (intake = outlet) | 0.15 – 0.25 mm | p. 39 |
Wacker Neuson 3001 Common Problems This Manual Covers
Wacker Neuson 3001 engine cranks but will not start after fuel filter change or running the tank dry
Check the fuel level first; the 45 l tank uncovers the pickup on slopes when it runs low. Drain condensation, replace the fuel filter, then bleed the system: on the Yanmar, switch the ignition on and wait about 5 minutes while the fuel system bleeds itself automatically, page 83.
Manual Section: Fuel System Maintenance p. 83Engine hard starting in cold weather, long cranking and white smoke before it finally fires
Test each glow plug for continuity and replace any open units. Torque replacement glow plugs to 17 Nm (12.5 ft.lbs.) and the supply cable to 1.5 Nm, page 107. Load-test the battery as well; a tired 12 V 88 Ah unit cranks too slowly to build heat in cold weather.
Manual Section: Maintenance p. 107Black exhaust smoke and power loss under load, fuel consumption noticeably higher than normal
Remove the air filter cartridge and hold it against a light; a plugged element starves the engine of air and dumps black smoke. Replace the cartridge, every 50 operating hours in dusty or acidic conditions per page 99, and check that the intake ducting seals tight when you reinstall it.
Manual Section: Maintenance p. 99Skip tilts slowly or will not lift a full load, hydraulics feel weak and run hot
Check the hydraulic oil level with the skip lowered, then verify pump pressure; the system runs a maximum of 220 bar. Replace the hydraulic oil filter using the page 112 procedure: stop the engine, open the cover about 2 turns, wait for the level to drop, swap the element, and hand-tighten the cover.
Manual Section: Hydraulic System Maintenance and Safety p. 112Clunking from front axle and wheel wobble at travel speed after tire or wheel service

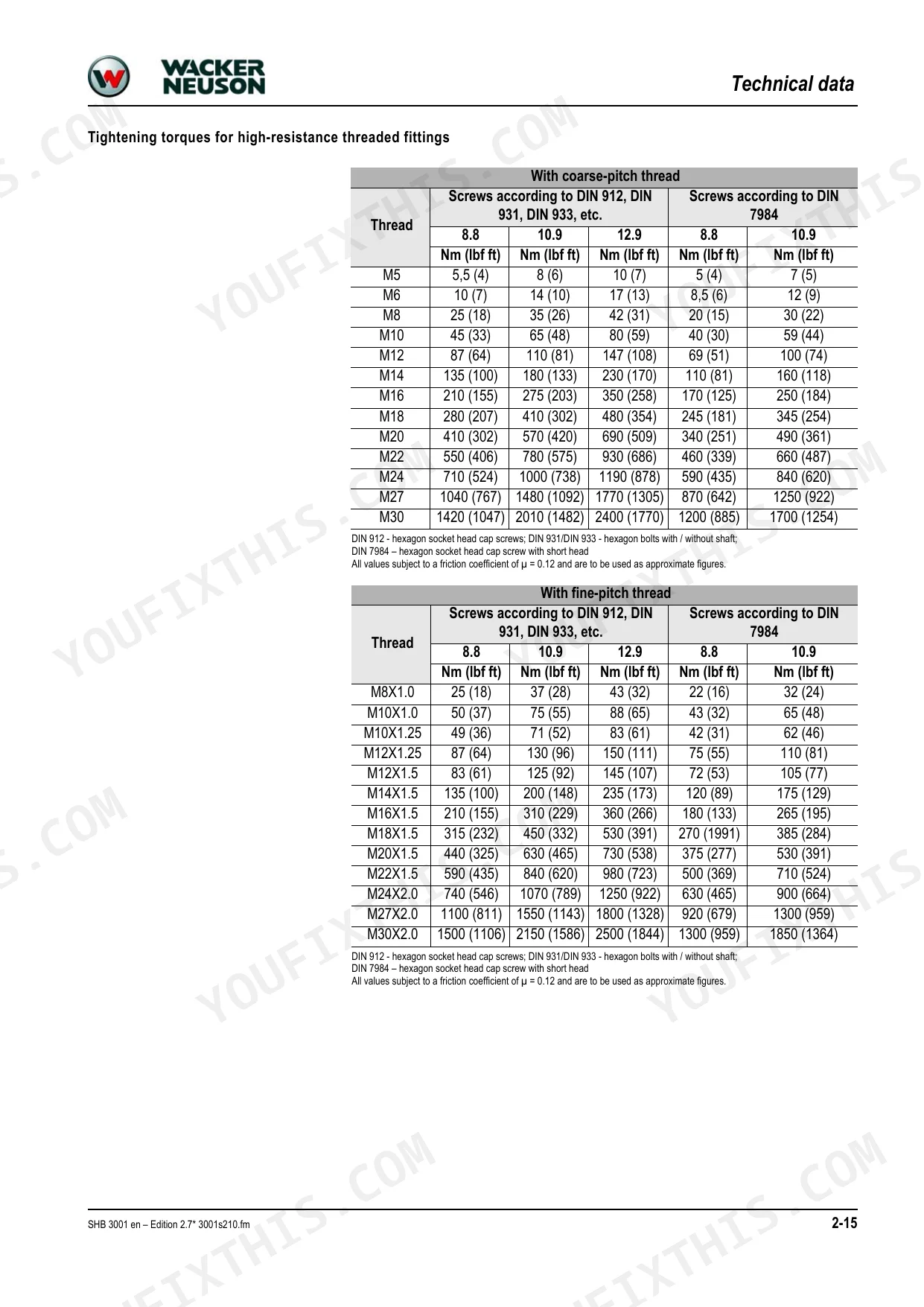

This manual gives two torque figures for the same wheel nut: the general Changing Wheels procedure (page 119) says 210 Nm, but the axle builder's own tightening-torque table (section 6.3, page 188) specifies 300-350 Nm (221-258 lbf ft) for the taper-seat M18x1.5 wheel nut. Follow the axle-specific 300-350 Nm spec, since it names the exact fastener thread, and recheck after 10 operating hours. If the clunk remains, verify the axle fastening screws at 490 Nm per page 122, then inspect the articulated joint for play with the machine steered to full lock.
Manual Section: Axles p. 119Frequently Asked Questions
What are the torque specifications for Wacker Neuson 3001 wheel bolts?
The axle manufacturer's own tightening-torque table (section 6.3, page 188) specifies 300 – 350 Nm (221 – 258 lbf ft) for the taper-seat wheel nut (M18x1.5). Note: the general “Changing Wheels” maintenance procedure elsewhere in this manual (page 119) gives a lower generic figure of 210 Nm for the same wheel nuts — follow the axle-specific 300 – 350 Nm spec, since it names the exact fastener thread and is the manufacturer's dedicated torque-table value. Check the wheel nuts for tightness every 50 operating hours. p. 188
How can I reset the hydraulic pressure on the Wacker Neuson 3001?
To restore the hydraulic system after opening the high-pressure circuit for towing, loosen locknuts C on either side with half a revolution to the left, turn each screw B to the right with an allen key until a firmer resistance is felt, then screw in a further half revolution to the right, and finally tighten locknuts C to 22 Nm (16 ft.lbs). The setting pressure for control initiation can be readjusted with adjusting screw A. p. 33
Where is the service reset button on the Wacker Neuson 3001?
The manual indicates a task for "Resetting the maintenance meter" as part of general maintenance. The maintenance meter starts at 500.0 hours and counts down, with a wrench symbol flashing when it reaches 0.0 hours. However, a specific physical "service reset button" location is not provided. p. 78
What are the replacement specifications for the Air filter cartridge?
The air filter cartridge should be replaced when the indicator light illuminates, or according to the maintenance plan. For Yanmar engines, this is every 500 operating hours. For Perkins engines, it's every 1000 operating hours or once a year, or every 50 operating hours in extensive use in acidic air environments. p. 99
What are the replacement specifications for the Spark plug?
The manual refers to "fuel-burner glow plug" rather than "spark plug". The fuel-burner glow plug should be replaced every 3000 operating hours or every 3 years. When replacing, install a new glow plug and tighten it to 17 Nm (12.5 ft.lbs.), and install cable B and tighten it to 1.5 Nm (1.1 ft.lbs.). p. 78
What do I get after purchasing this Wacker Neuson 3001 manual?
You get a 294-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Wacker Neuson 3001 Service Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
