The Wacker Neuson DT10 service manual PDF, factory document 1000312298, takes the track dumper apart on paper: 136 pages that run from valve clearance checks through travel pump testing to a straight-tracking machine. Hydraulic diagrams with full legends map the circuits for every skip variant, from the standard tip skip through the high-tip, swivel, and front skips, plus the loader unit and hydraulic PTO option. Wiring gets the same treatment: a full DT10 schematic, engine and instrument panel harness drawings, and a conductor table so you can trace any circuit by wire number. Set travel pressure to the 235 ± 5 bar rating, hold boost between 12 and 13 bar, and pull M12 8.8 hardware to 87 Nm. Sometimes it's just you and the machine. No dealer on the line, no one to ask; this bookmarked, text-searchable file has the answer. Download it and have the DT10 hauling again.
What's Inside This Wacker Neuson DT10 Manual
| System | Pages | Key Topics |
|---|---|---|
| Operation | 9-26 | Identification of Warnings and Dangers, Designated Use and Exemption From Liability, Overall View of Vehicle |
| Technical Data | 27-44 | Diesel Engine, Hydraulic System, Travel Gear |

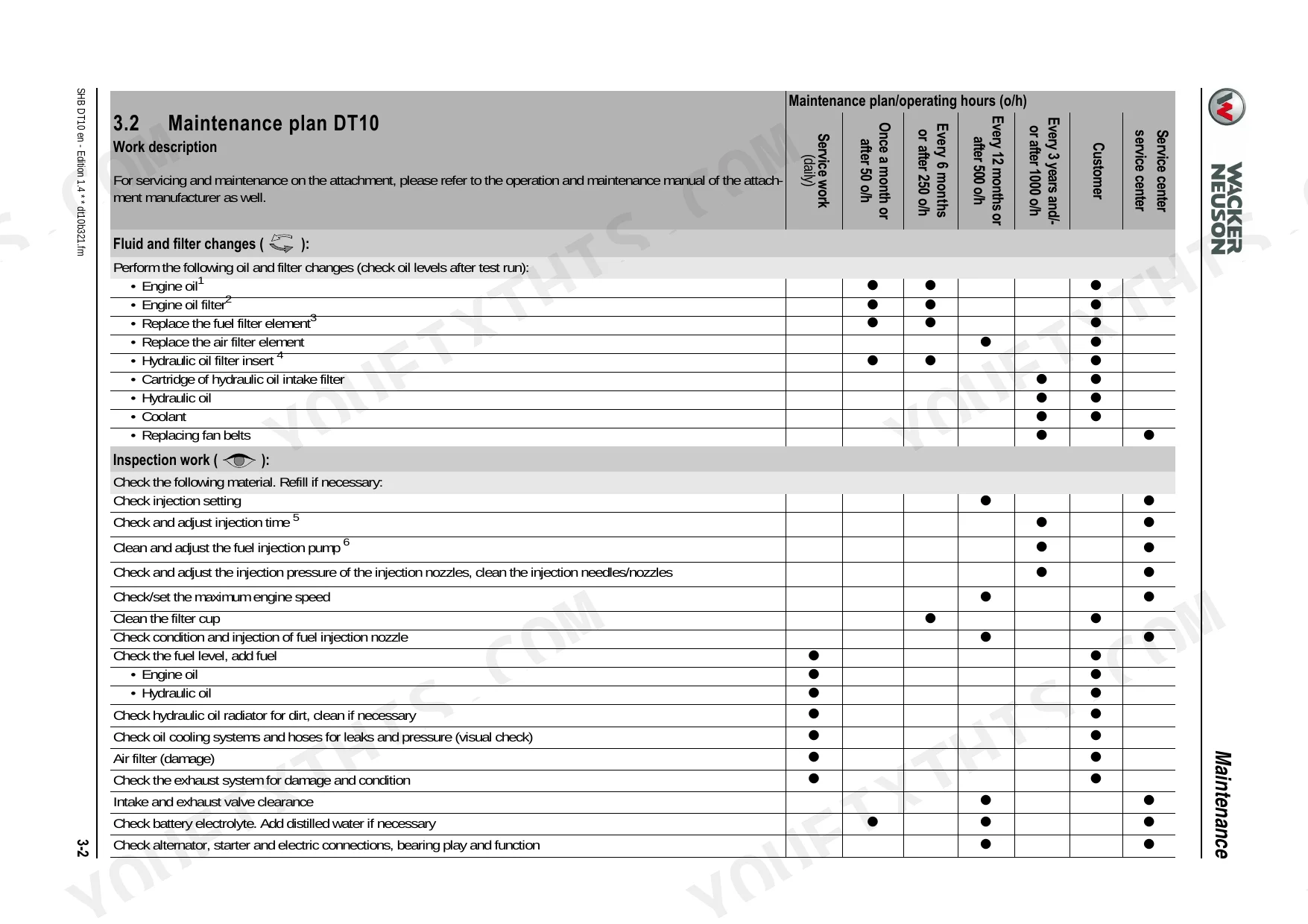

| Maintenance | 45-86 | Fluids and Lubricants, Maintenance Plan, Fuel System |
| Engine | 87-96 | Engine Overview, Checking and Adjusting Valve Clearance, Engine Malfunctions |
| Traveling Drive | 97-106 | Traveling Drive Pump, Test Instructions, Checking Straight-Ahead Vehicle Travel |
| Hydraulic System | 107-124 | Gear Pump for Functions, Hydraulic Distributor, Test Instructions |
| Electrical System | 125-136 | Measuring Equipment and Methods, DT10 Diagram, Table of Conductors |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M5 8.8 grade screw torque | 5.5 Nm | p. 41 |
| M6 8.8 grade screw torque | 10 Nm | p. 39 |
| Rated travel pressure | 235 ± 5 bar | p. 100 |
| Rated boost pressure | 12 – 13 bar | p. 101 |
| Starter fuse | 5 A | p. 126 |
| Engine stop fuse | 15 A | p. 126 |
| Engine Oil Sump Capacity | 2.50 liters | p. 27 |
| Hydraulic Reservoir Capacity | 22.1 liters | p. 28 |
| Max. Travel Speed | 4.0 km/h | p. 29 |
| Operating Pressure for Operating Hydraulics | 160 bar | p. 28 |
| Operating Pressure for Drive Hydraulics | 235 bar | p. 28 |
| Valve Clearance | 0.165 ± 0.02 mm | p. 27 |
Wacker Neuson DT10 Common Problems This Manual Covers
Wacker Neuson DT10 skip lift cylinder leaks or cracks at base, ram binds on pivot pin
Check the skip ram pivot pins for binding before condemning the cylinder. Remove each pin, clean it, and confirm grease reaches the full pin surface; dry spots mean the fitting or drilling is blocked. Inspect the cylinder base for cracks. Test the operating hydraulics on page 113; rated pressure is 160 ± 5 bar.
Manual Section: Hydraulic System p. 113Hydrostatic drive weak or loses movement under load, machine slows on grades
Check travel pressure using the test instructions on page 100; rated pressure is 235 ± 5 bar. Verify boost pressure holds 12 to 13 bar per page 101. If boost is low, replace the hydraulic oil filter and intake filter before condemning the pump. Confirm the drive pinion turns 80 ± 1 rpm at rated engine speed.
Manual Section: Traveling Drive Test Instructions p. 100Engine cranks slowly or will not turn over, dash lights dim when keyed
Check the battery first: it should be 12 V 55 Ah and fully charged, since the starter draws 0.8 kW and drops fast on weak cells. Clean and tighten both battery terminals. Test the 5 A starter fuse and the 10 A preheating fuse listed on page 126, then check the starter circuit wiring for corrosion.
Manual Section: Electrical System p. 126Engine starts then stalls out, runs roughly at idle, or loses power under load

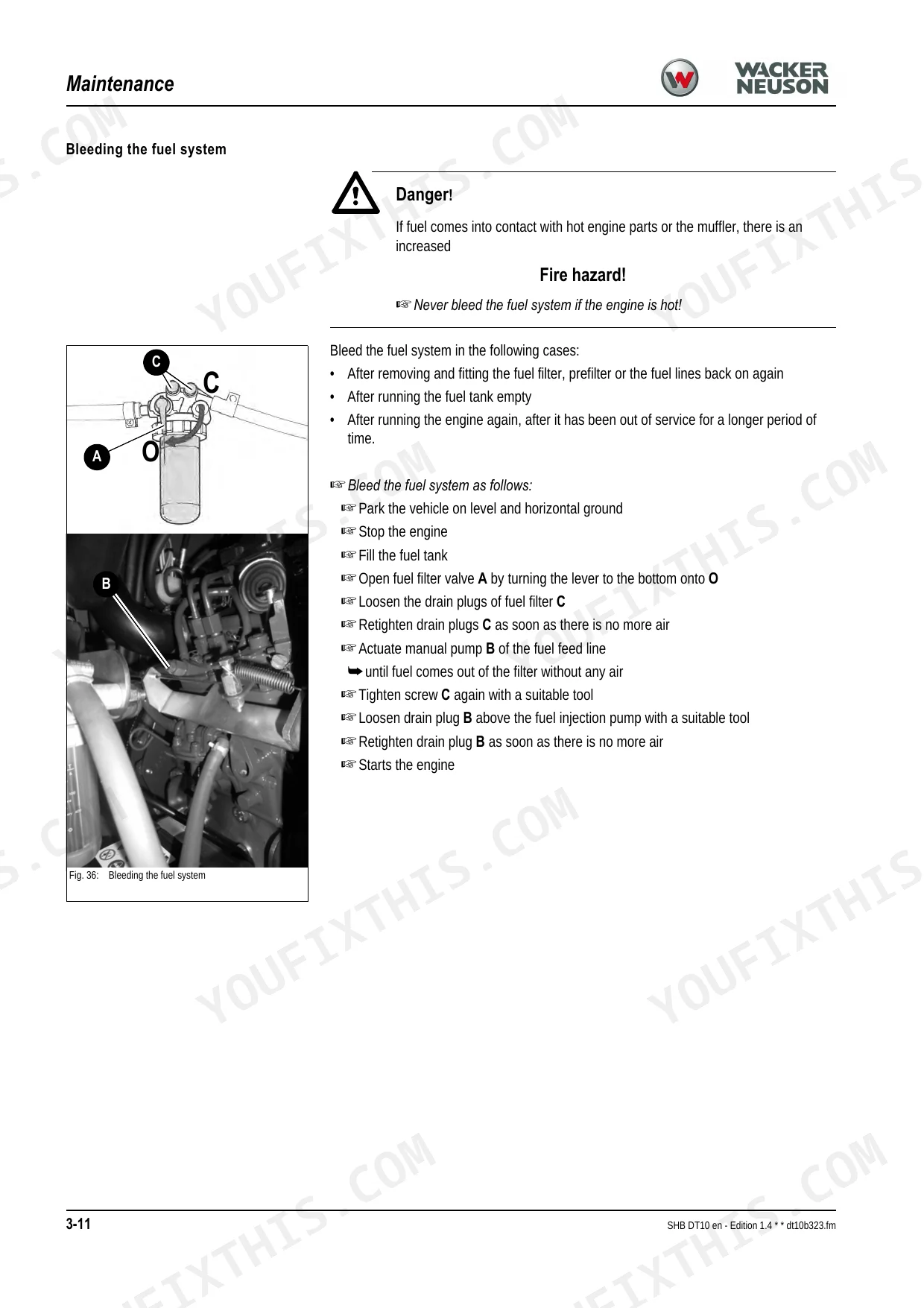

Drain and clean the fuel filter cup, then bleed the fuel system following the procedure on page 54. Refill with clean diesel and check for water in the cup; drain the tank if you find any. If rough running continues, check valve clearance against the 0.165 ± 0.02 mm spec on page 27 and confirm maximum speed reaches 3600 rpm.
Manual Section: Fuel System Maintenance p. 54Tracks loosen, jump the sprocket, or the machine pulls to one side
Measure track sag at the middle of the track run; adjust until clearance is 15 mm per the spec on page 71. Tighten through the tensioner grease fitting and inspect the sprocket teeth and rollers for hooking or flat spots. If the machine still pulls to one side, run the straight-ahead travel check in the Traveling Drive section.
Manual Section: Track Maintenance p. 71Frequently Asked Questions
What is the torque specification for high-resistance threaded fittings on the DT10?
The torque specifications for high-resistance threaded fittings depend on the bolt grade and thread type. For example, an M10 bolt (grade 8.8) with an adjustment thread requires 45 Nm, while an M10x1.0 fine-pitch thread (grade 8.8) requires 50 Nm. Detailed tables for various sizes and grades are provided on page 41. p. 41
What is the valve clearance specification for the DT10 engine?
The valve clearance for the DT10 engine is 0.165 ± 0.02 mm. This adjustment should be performed on a cold engine as described in the engine maintenance section. p. 88
What is the required fan belt slack for the DT10?
The slack for the fan belt on the DT10 is 8 ± 1 mm. This is measured by applying a load of 98 N (10 kgf) to the belt between the drive shaft and the alternator. p. 90
What is the engine oil sump capacity for the DT10?
The engine oil sump capacity for the DT10 is 2.50 liters. The oil should be changed according to the maintenance plan, with the first change occurring after 50 operating hours. p. 27
What is the rated operating pressure for the hydraulic PTO shaft on the Wacker Neuson DT10?
The rated operating pressure for the hydraulic PTO shaft is 155 ± 5 bar. This can be checked using a 200 bar pressure gauge at the designated measuring port. p. 114
How will I receive this Wacker Neuson DT10 Service Manual?
This is a 136-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Wacker Neuson DT10 Service Manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
