It takes 382 pages to cover a mobile excavator properly, and that is what this Wacker Neuson EW100 service manual PDF (OEM 1000324385) gives you: engine, travel drive, steering, hydraulics, and electrics in one factory document. Full hydraulic and wiring diagrams fill their own chapter, so you can trace a circuit from the main valve block through the swivel joint or follow a harness from relay to starter. An SPN diagnosis code list decodes faults across sensors, drives, and solenoids, while pressure-check procedures walk you through the pilot and work hydraulic circuits. Torque the live ring to 270 Nm, the swivel unit to 320 Nm, and flag a fuel supply fault when the 24 V system reads under 22 V. A guessed torque on a live ring costs you a swing bearing later. Print what you need; these bookmarked, text-searchable pages can take grease on the bench.

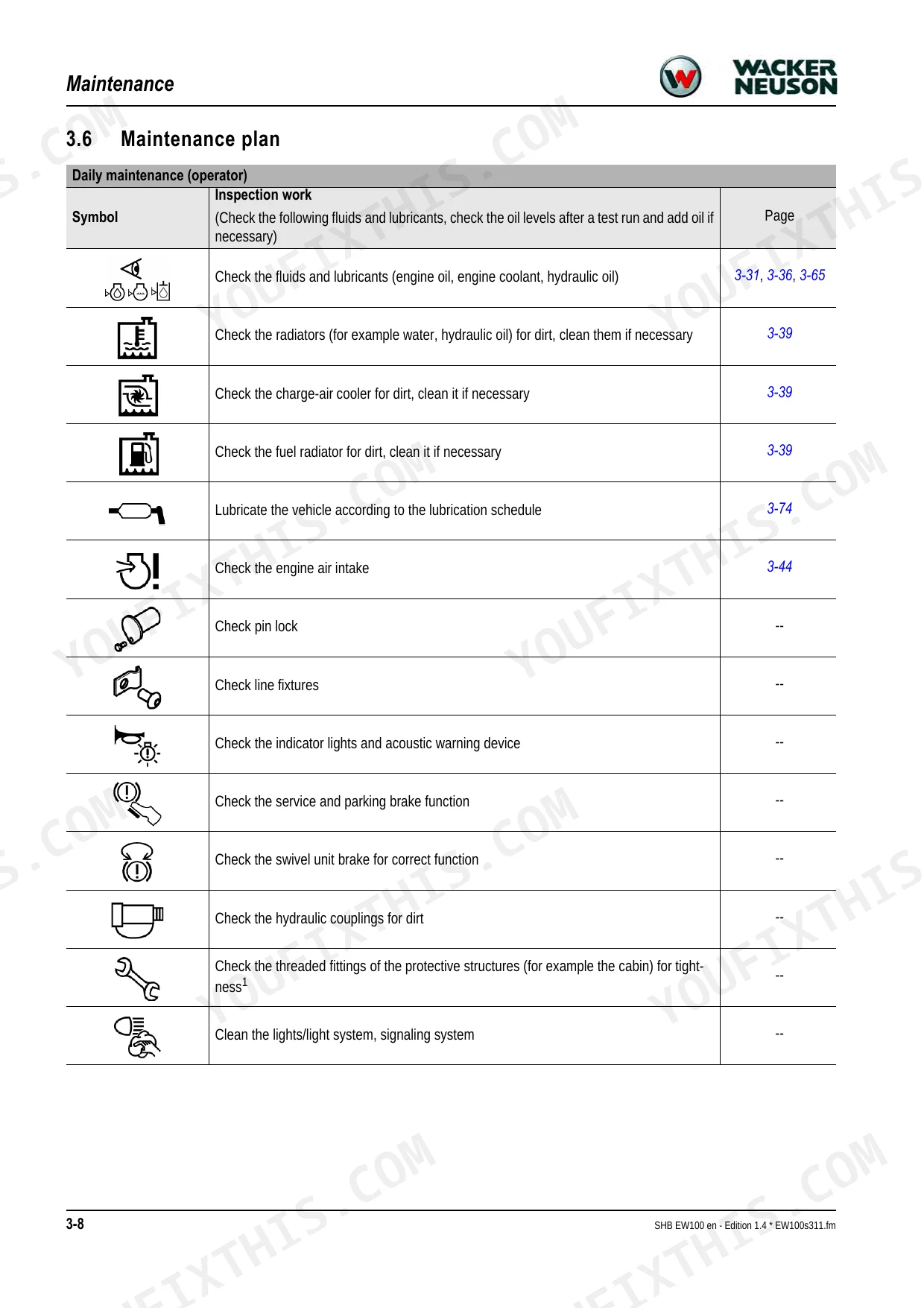

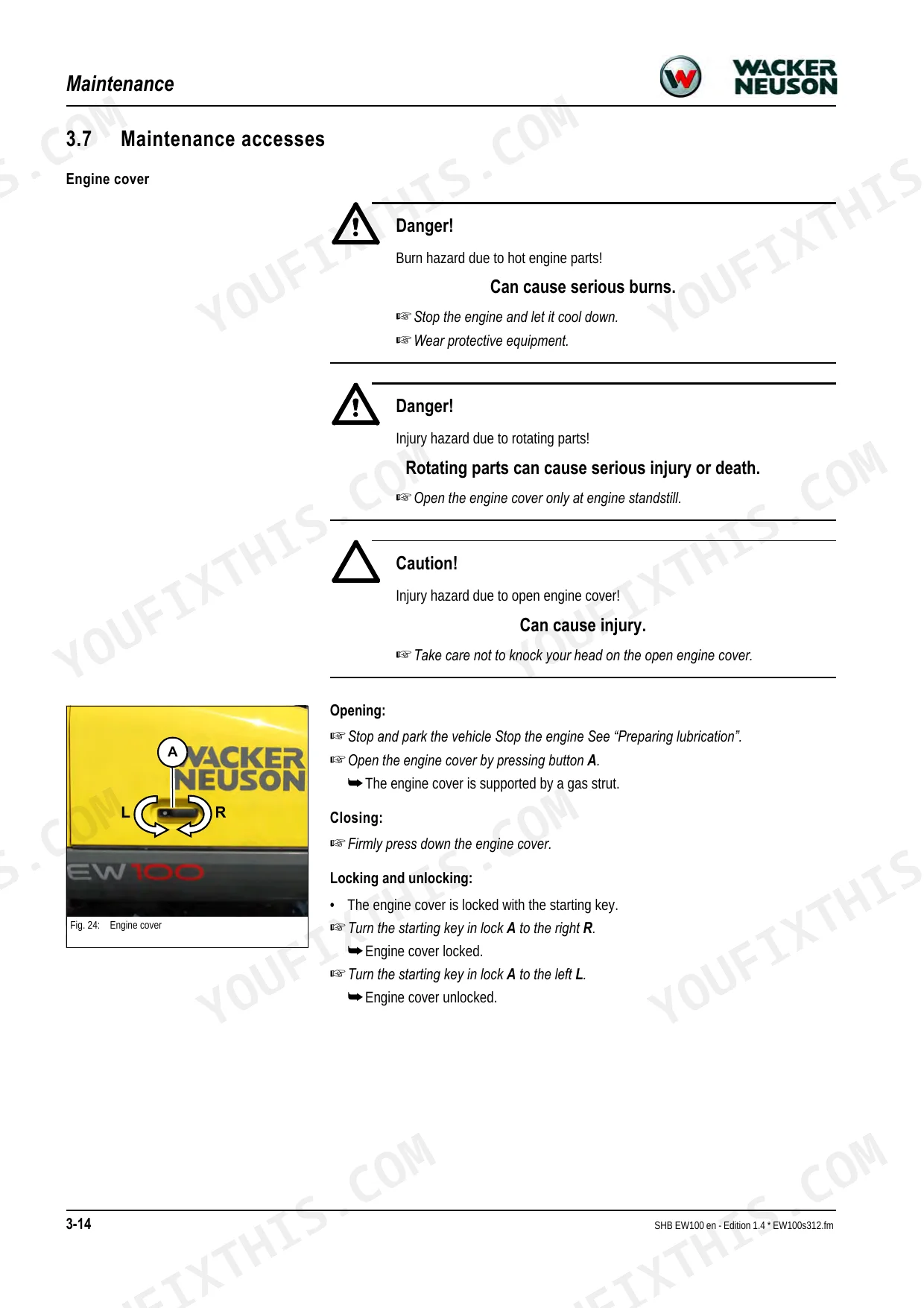

What's Inside This Wacker Neuson EW100 Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine | 139-152 | Engine Overview, Wall-Flow Filter Aftertreatment System, Engine Block Overview, Turbocharger, Diesel Particulate Filter, Engine Malfunctions |
| Travel Drive | 153-170 | Traveling Drive Overview, Traveling Drive Hydraulics Diagram, Inching Valve, Towing the Machine, Emergency Unlocking of Parking Brake, Loading the Vehicle |
| Steering System | 175-178 | Front Axle Steering, Wheel Steering, Steering Unit, Steering Mode Valve, Steering Column Wiring Harness |
| Hydraulic System | 179-232 | Pump Unit, Hydraulic Pump, Main Valve Block, Gear Motor, Pilot Valves, Swivel Joint |
| Electrical System | 233-284 | Alternator, Relays, Starter, Emergency Unlocking of Parking Brake, Enabling the Bypass Function, Excavator Forces, FOPS Type Label, Fuses |
| Diagrams | 285-330 | Hydraulics Diagram, Wiring Diagram, Wiring Diagram Change Directory |
| Options | 331-346 | Air Conditioning, Air-Suspension Seat, Dehumidifier, Long Stick, Service Valve, Powertilt, Preparing Lubrication, Pressure Check |
| Diagnosis Code List | 347-382 | Sensors, Relays, Drives, Electronics, Resistors, Solenoids |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Live ring torque | 270 Nm (199 ft.lbs.) | p. 33 |
| Swivel unit torque | 320 Nm (236 ft.lbs.) | p. 33 |
| Metric hose fittings (light execution, Dkol) 05 nominal torque | 15 Nm (11 ft.lbs.) | p. 33 |
| Metric hose fittings (light execution, Dkol) 06 nominal torque | 20 Nm (14.7 ft.lbs.) | p. 33 |
| Voltage threshold value for 24 V fuel supply | 22 V | p. 244 |
| Voltage threshold value for 12 V fuel supply | 10 V | p. 244 |
| Engine Oil Capacity | 7.2 liters | p. 49 |
| Hydraulic Oil Reservoir Capacity | 136 liters | p. 49 |
| Live Ring Tightening Torque | 270 Nm | p. 33 |
| Engine Oil Pressure | 2 bar | p. 26 |
| Travel Operating Pressure | 440 bar | p. 27 |
| Hydraulic System Pilot Control Pressure | 30 bar | p. 29 |
Wacker Neuson EW100 Common Problems This Manual Covers
Wacker Neuson EW100 throws SPN 517048 during work, bucket and attachment functions cut out until restart

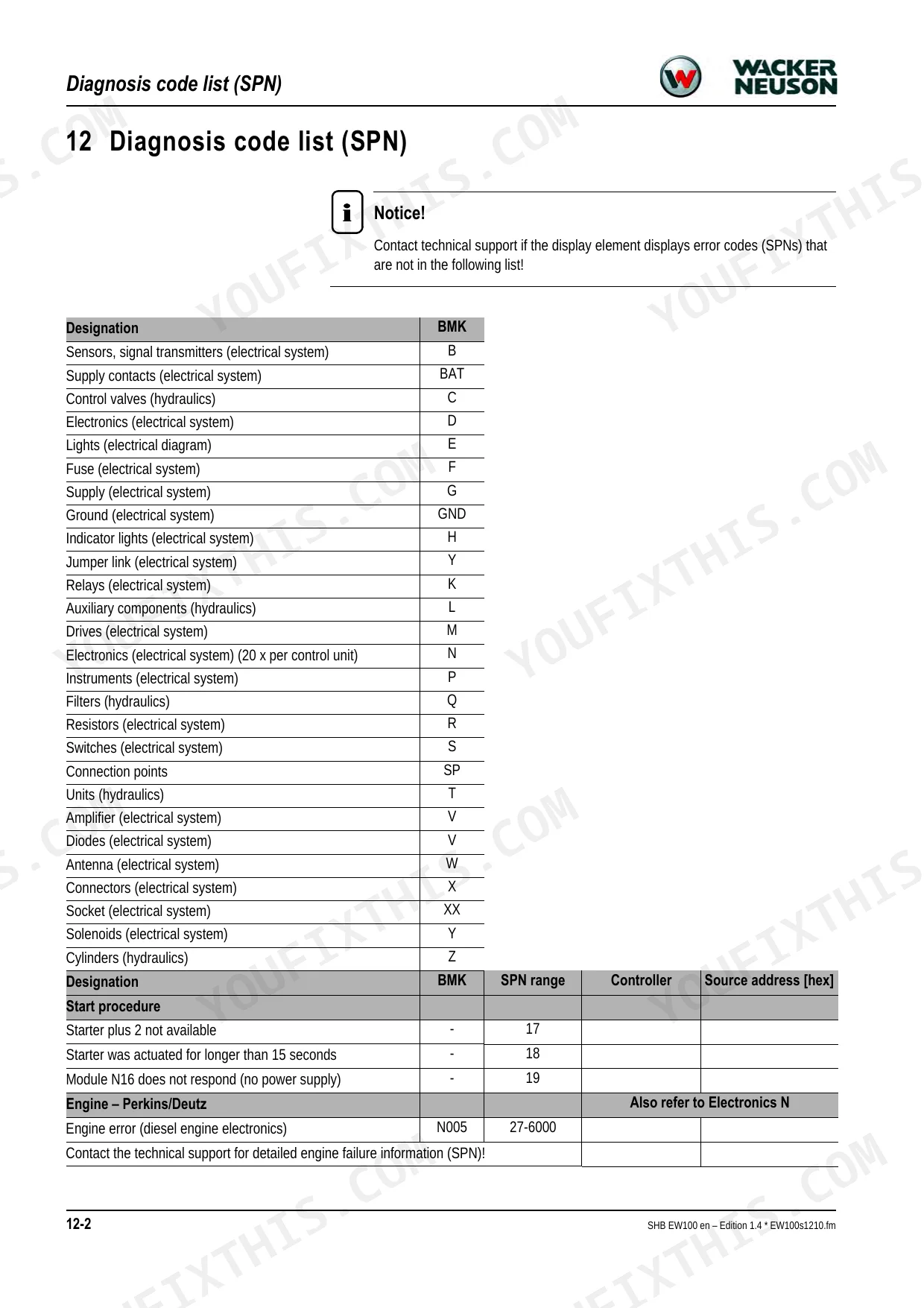

Check the diagnosis code list starting on page 348 and look up SPN 517048 before swapping parts. Inspect CAN bus connectors at the controller for corrosion, backed-out pins, and chafed harness sections, using the wiring diagram on page 301. Verify supply voltage; a 24 V circuit alarming below 22 V points to power, not the sensor.
Manual Section: Diagnosis Code List p. 348Operator display freezes or shows wrong machine data, touch panel not responding
Check battery and ignition supply first; low voltage crashes the display before it fails outright. Test grounds and connector seating behind the panel using the wiring diagram on page 301. On a 12 V circuit, anything below 10 V trips the insufficient voltage alarm (page 244). If supply checks good, replace the touch kit before the CPU board.
Manual Section: Electrical System p. 233Boom and arm movement weak or erratic after warning message on the display
Test pilot control pressure first; the circuit should hold 30 bar (page 29). Low pilot pressure makes every lever feel dead or jumpy. Check hydraulic oil level and top up the 136 liter reservoir with clean oil, then inspect the pilot valves and main valve block, covered starting on page 179, for sticking spools.
Manual Section: Hydraulic System p. 179Engine turns over but will not start, excessive smoke when it finally fires
Drain the water separator and bleed the fuel system before chasing anything else; air in the lines is the usual culprit after a filter change. Inspect the fuel prefilter for restriction. Once running, verify oil pressure reaches 2 bar (page 26), and work the engine malfunction charts in the engine section starting on page 139.
Manual Section: Engine p. 139Machine slows unpredictably when traveling, automatic braking feels abnormal on the road
Verify normal brake release before condemning the travel drive; the EW100 brakes automatically when you lift off the pedal, so confirm the complaint is not operator technique. Test travel circuit pressure against the 440 bar operating spec on page 27, then check travel drive oil level and the inching valve in the travel drive section starting on page 153.
Manual Section: Travel Drive p. 153Frequently Asked Questions
How do I reset the maintenance meter on the Wacker Neuson EW100?
The maintenance meter is reset using the WANDA diagnostic tool. You must select "Maintenance" in the "Hour meter" menu and confirm the maintenance interval of "500" with "OK". The display will show "Value saved successfully" once the reset is complete. p. 137
What is the torque specification for the live ring bolts on the EW100?
The torque specification for the live ring bolts (M16 10.9) is 270 Nm (199 ft.lbs). Note that all connections marked with an asterisk (*) must be glued with Loctite S2420 or VaryBond 12-43. p. 33
What does SPN 517048 mean on the Wacker Neuson EW100?
SPN 517048 corresponds to the 'Position sensor spool VII' component, which is part of the sensors and signal transmitters category (BMK: B). p. 350
What is the engine oil capacity for the Perkins engine in the EW100?
The engine oil capacity for the Perkins engine is 7.2 liters (1.9 gal). p. 49
How do I check the V-belt tension on the EW100?
To check the V-belt tension, press with your thumb on the belt between the crankshaft disk and the fan wheel. A new V-belt should have a deflection of 6 to 8 mm (0.2" – 0.3"), while a used V-belt (after 5 minutes of running) should have a deflection of 7 to 9 mm (0.3" – 0.35"). p. 92
Is this Wacker Neuson EW100 manual a download or a disc?
This is a 382-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is printing allowed for this Wacker Neuson EW100 Service Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
