When a WL60 starts creeping into gear too early, or a WL70 will not reach travel speed, the fault hides in the hydrostatic drive, and you can only pin it down with factory pressure values. This Wacker Neuson WL60, WL70 service manual PDF, factory document 1000352039, packs 412 pages of exactly that for both wheel loaders. Wiring diagrams map every fuse, travel function and hydraulic control circuit, while hydraulic schematics cover the loader valve, pilot control and telescopic boom across each build variant. Travel drive troubleshooting runs from no forward travel through severe engine droop to weak traction, each symptom traced to test ports on the variable displacement pump. Check boost pressure at those ports, hold your brake fluid 1.5 to 2.0 cm below the lid, and torque M14 x 1.5 wheel nuts to 150 Nm. Adjusting inching by feel never ends well. Pay once and the bookmarked, keyword-searchable file stays yours for the life of the loader.
What's Inside This Wacker Neuson WL60, WL70 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 9-48 | Notice on This Service Manual (Use of the Service Manual, Explanation of Symbols and Abbreviations, Repair Instructions) |
| Operation | 49-64 | Machine Outside View |

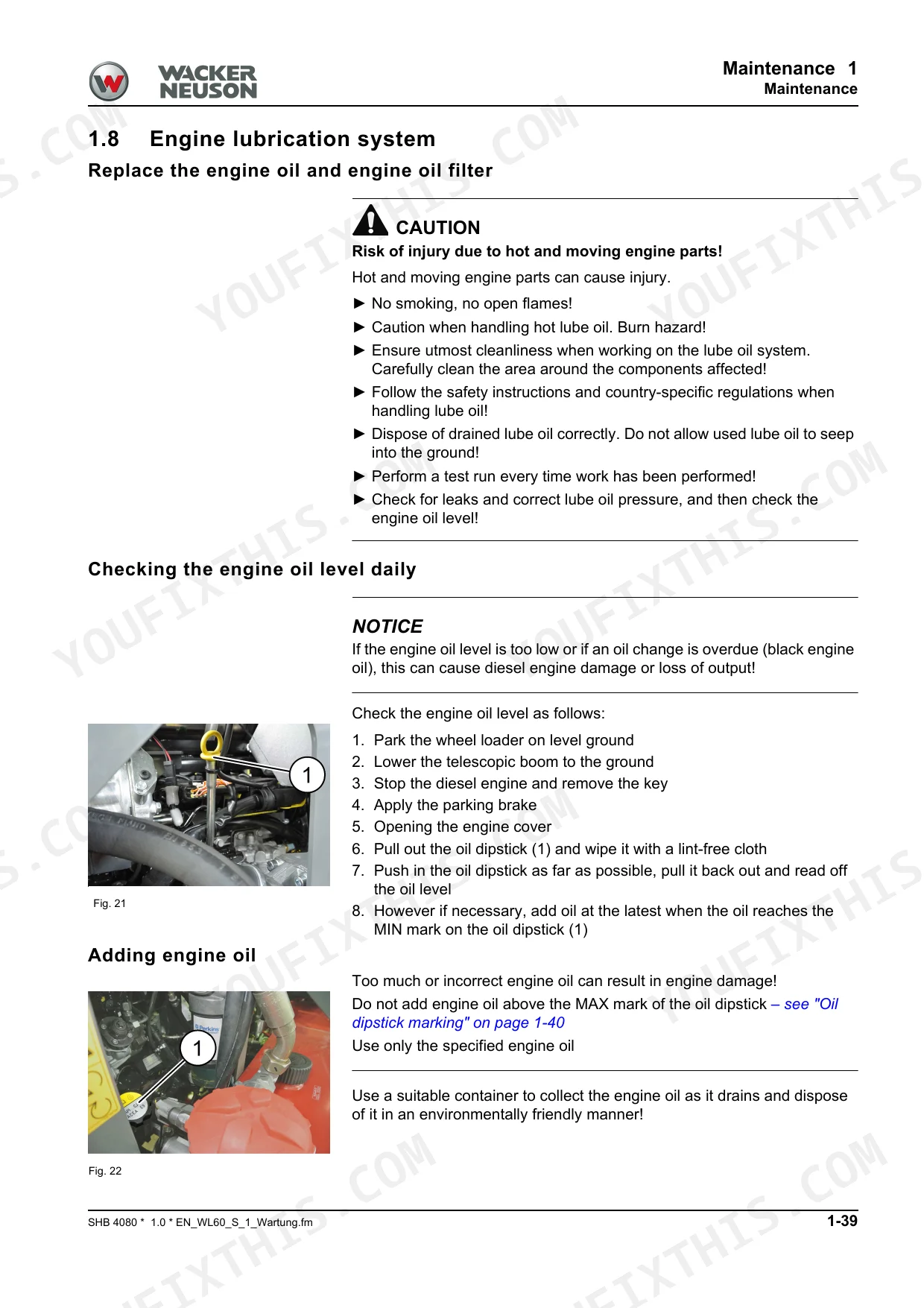

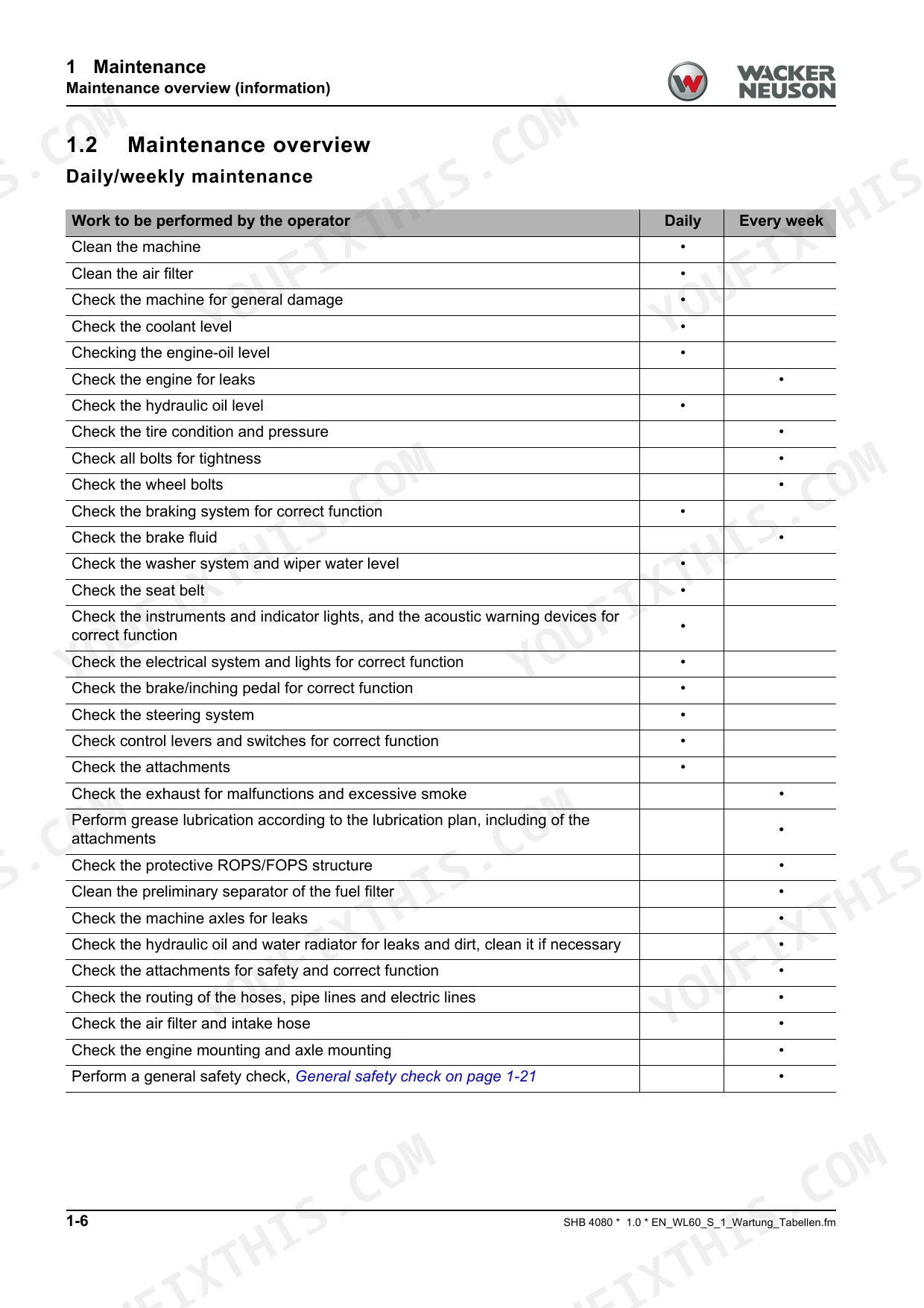

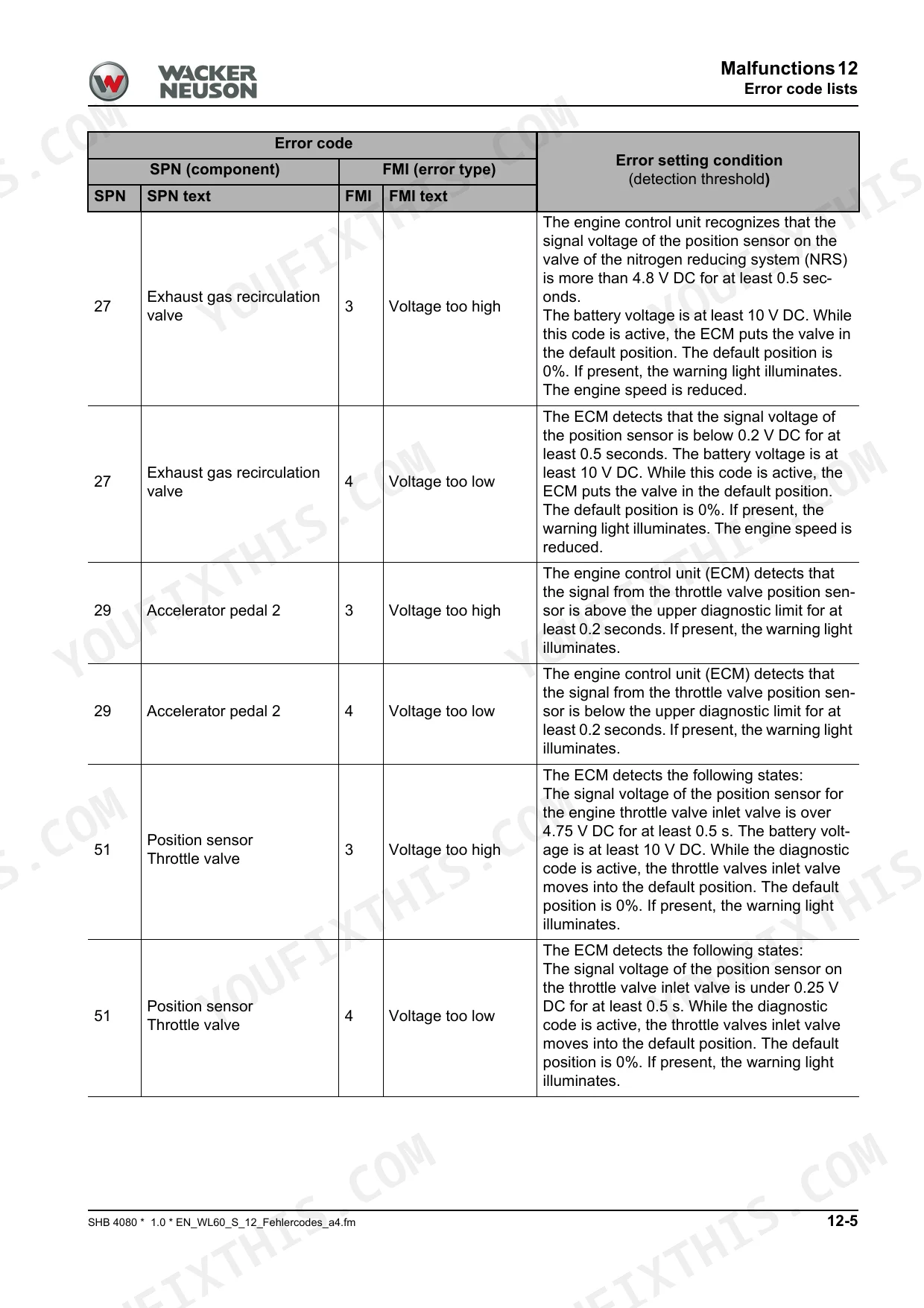

| Maintenance | 65-152 | Information on Maintenance, Maintenance Overview, Lubrication Plan, Fluids and Lubricants, Cleaning and Maintenance, Lubrication Work, Fuel System, Engine Lubrication System |
| Engine | 153-208 | Engine Designation, Requirements for the Diesel Fuel, Requirements for the Coolant, Motor Oil Specifications |
| Cooling | 209-212 | Cooling System Overview, Radiator (Removing the Radiator) |
| Travel Drive | 213-240 | Traveling Drive Hose Routing, Manifold Hose Routing, Variable Displacement Pump Hose Routing, Rear Hydraulic Connection, Overview: Test Ports and HP Valves of the Drive |
| Brakes | 241-264 | Service and Parking Brake, Parking Brake (Overview of the Parking Brake), Service Brake, Brake Pad Change (Basic Setting) |
| Work Hydraulics | 265-306 | Overview (Setup of the Load Arm, Setup of the Telescopic Boom, Setup of the Pilot Control, Instructions for the Restrictor), Gear Pump (Overview, Checking the Gear Pump) |
| Electrical System | 307-412 | Fuses, Functional Groups, Indicating Instruments, Travel Functions, Lights, Hydraulic Control Circuits, Hydraulics 2 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel nut M14 x 1.5 | 150 Nm | p. 23 |
| High-pressure limiting valve M8 | 22 Nm | p. 23 |
| Brake fluid level | 2.0 - 1.5 cm below the lid level | p. 141 |
| Operating Voltage | 12 V | p. 15 |
| Battery Capacity | 95 Ah | p. 15 |
| Alternator Output | 120 A | p. 15 |
| Engine Oil Capacity (with filter) | 8.0 L | p. 83 |
| Fuel Tank Capacity | 70 L | p. 83 |
| Cooling System Capacity | 16.0 L | p. 83 |
| DEF Tank Capacity | 19.0 L | p. 83 |
| WL60 | ||
| Engine Output (WL60) | 75 kW | p. 13 |
| WL70 | ||
| Engine Output (WL70) | 86 kW | p. 14 |
Wacker Neuson WL60, WL70 Common Problems This Manual Covers
Wacker Neuson WL60/WL70 loader won't travel forward or reverse, engine bogs down hard under load
Check the drive test ports before pulling anything apart; the travel drive chapter starting on page 213 maps every test port and high-pressure valve on the variable displacement pump. Measure charge and high pressure at those ports, inspect the manifold hose routing for kinks, and torque any replaced M8 high-pressure limiting valve to 22 Nm.
Manual Section: Travel Drive p. 213Engine cranks slowly or won't start on cold mornings, dash lights dim while cranking
Test battery voltage under load; the 12 V system runs a 95 Ah battery and it must hold voltage while cranking. Clean and tighten both ground straps, then verify charging output with the engine running: the alternator is rated 120 A in the electrical specs on page 15. Replace the battery if it fails a load test.
Manual Section: Electrical System p. 15Steering wheel vibration and clunking from the axles after tire service or transport
Torque every wheel nut with a torque wrench, never a bar: M14 x 1.5 nuts to 150 Nm, M18 x 1.5 to 285 Nm, and M20 x 1.5 to 400 Nm, per the table on page 23. Recheck after a short work cycle and inspect stud threads and rim contact faces before refitting any wheel.
Manual Section: Introduction p. 23Brake pedal feels spongy and parking brake barely holds on a grade
Check the brake fluid level first: it should sit 2.0 to 1.5 cm below the lid level, as specified on page 141. Top up with clean fluid and bleed the service brake if the pedal stays soft. Inspect pad thickness and follow the brake pad basic setting procedure in the brakes chapter starting on page 241.
Manual Section: Brakes p. 241Low engine oil pressure warning flickers at idle when the engine is hot
Check the oil level on level ground with the engine off. If a change is due, drain the sump hot, replace the filter, and fill with 8.0 L of oil including the filter, per the capacity table on page 83. Follow the maintenance schedule and use only the approved motor oil specification from the engine chapter.
