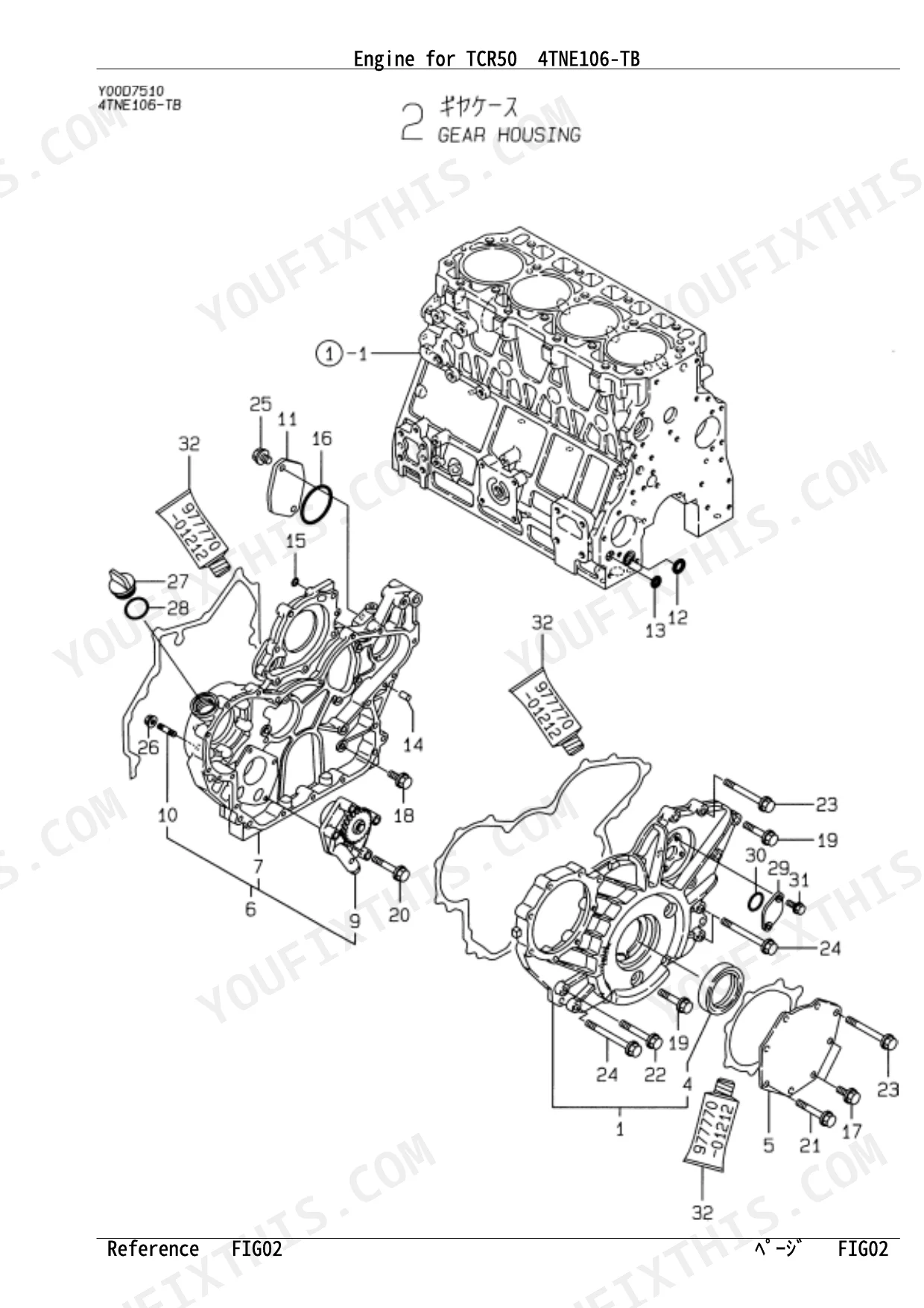

Track down the exact factory numbers for your diesel engine rebuild using this 92-page Yanmar 4TNE106-TB, TCR50 4TNE106-TB Parts Catalog PDF. You get crisp exploded views mapping out the complete fuel injection pump, gear housing, and camshaft assemblies. Open up the factory parts lists to quickly cross-reference every main bearing, cylinder head bolt, and gasket set required to put your TCR50 or 4TNV106-NTB machine back to work. Match your order to the factory 82°C thermostat and verify you are buying the correct 35A generator before parts arrive at the shop. Waiting on the wrong components wastes valuable time. Download the file directly to your phone, search the bookmarks for your exact component, and place your parts order with complete confidence.
What's Inside This Yanmar 4TNE106-TB, TCR50 4TNE106-TB Parts Manual
| System | Pages | Key Topics |
|---|---|---|

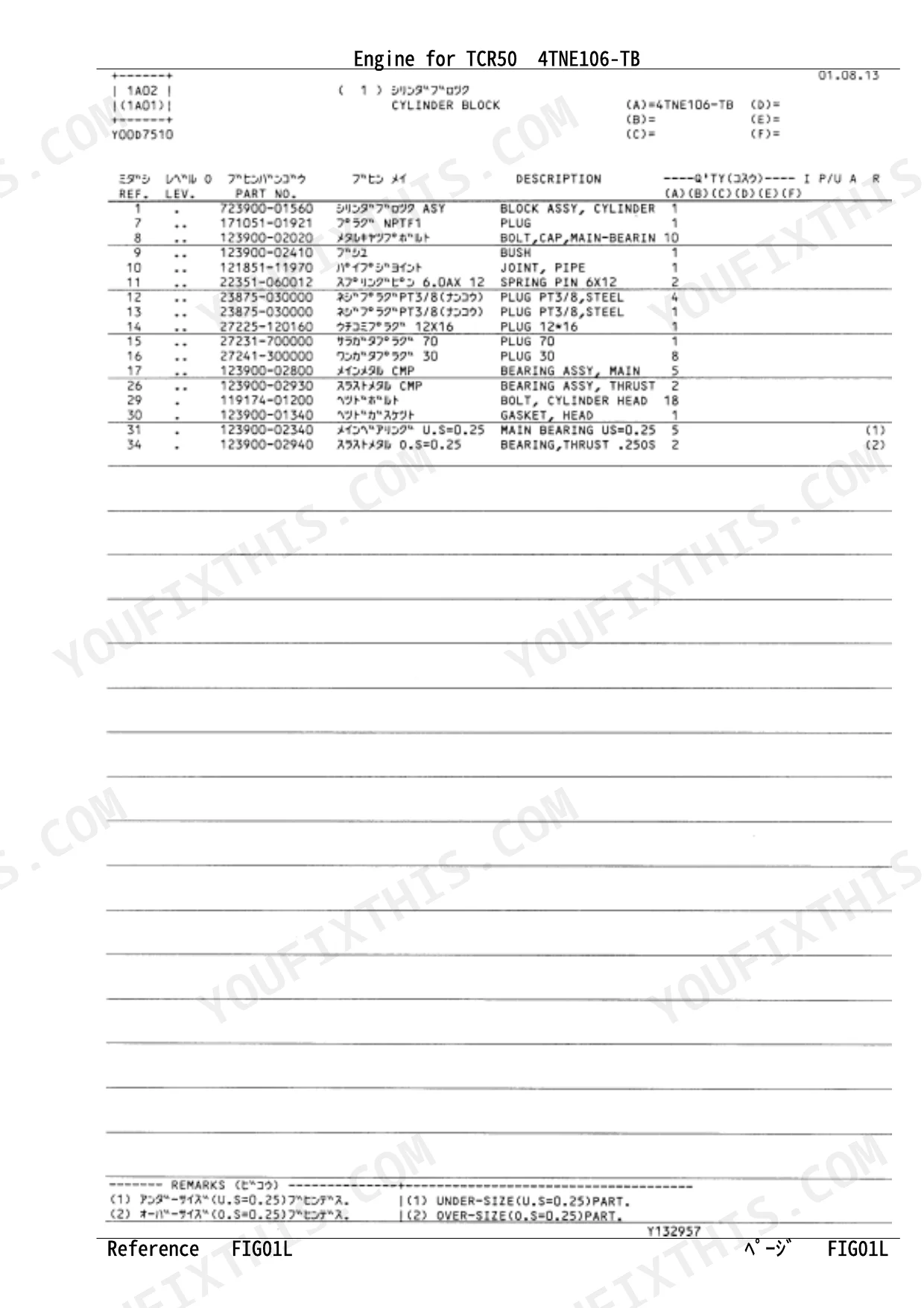

| Engine for TCR50 4TNV106-Ntb Cylinder Block | - | Cylinder Block Assy, Cylinder Gasket, Cylinder Head, Head Bolt, Main Bearing Assy |
| TNE106-Tb | - | Contents, Parts Index |
| TNV106-Ntb | - | Contents, Parts Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Air Heater Voltage | 24V | p. 13 |
| Generator Amperage | 35A | p. 39 |
| Oil Pressure Switch Setting | 0.5KG | p. 23 |
| Thermostat Opening Temperature | 82°C | p. 25 |
| Thermo Switch Activation Temperature | 110°C | p. 25 |
| Radiator Cap Pressure | 0.9KG/CM2 | p. 27 |
| Sub Reservoir Capacity | 1.7L | p. 27 |
| Filter Wrench Size | 80 | p. 41 |
| Wrench Size 1 | 10x12 | p. 41 |
| Wrench Size 2 | 14x17 | p. 41 |
Yanmar 4TNE106-TB, TCR50 4TNE106-TB Common Problems This Manual Covers
Yanmar 4TNE106-TB engine cranks but won't start due to a stuck plunger in the fuel injection pump
Check the fuel injection pump exploded view to find the correct plunger assembly part number. Match the components to your specific serial number block. Verify the air heater voltage rating matches the 24V specification before ordering replacement electrical parts.
Manual Section: Fuel System Repair (Injection Pump)Engine overheats under load and shuts down automatically with coolant pushing past the radiator cap p. 25
Inspect the cooling system parts breakdown to locate the water pump and thermostat. Check page 25 for the exact part number corresponding to the 82°C opening temperature thermostat. Order a replacement 0.9KG/CM2 radiator cap if the existing one fails to hold pressure.
Manual Section: Cooling System RepairLow oil pressure warning light stays illuminated after start or flickers during normal operation p. 23
Review the lubrication system diagram to find the correct oil pump components. Locate the part number for the 0.5KG oil pressure switch on page 23. Order a replacement filter and confirm you have an 80 size filter wrench for installation.
Manual Section: Lubrication System RepairBatteries fail to charge during operation or electrical system voltage drops overnight p. 39
Examine the generator exploded view to identify worn brackets or pulleys. Retrieve the correct replacement part numbers for the 35A generator assembly listed on page 39. Match the new unit to your engine serial number before placing the parts order.
Manual Section: Generator RepairFrequently Asked Questions
How do you fix yanmar 4TNE106-TB engine cranks but won't start due to a stuck plunger in the fuel injection pump?
Check the fuel injection pump exploded view to find the correct plunger assembly part number. Match the components to your specific serial number block. Verify the air heater voltage rating matches the 24V specification before ordering replacement electrical parts.
How do you fix engine overheats under load and shuts down automatically with coolant pushing past the radiator cap?
Inspect the cooling system parts breakdown to locate the water pump and thermostat. Check page 25 for the exact part number corresponding to the 82°C opening temperature thermostat. Order a replacement 0.9KG/CM2 radiator cap if the existing one fails to hold pressure.
How do you fix low oil pressure warning light stays illuminated after start or flickers during normal operation?
Review the lubrication system diagram to find the correct oil pump components. Locate the part number for the 0.5KG oil pressure switch on page 23. Order a replacement filter and confirm you have an 80 size filter wrench for installation.
How do you fix batteries fail to charge during operation or electrical system voltage drops overnight?
Examine the generator exploded view to identify worn brackets or pulleys. Retrieve the correct replacement part numbers for the 35A generator assembly listed on page 39. Match the new unit to your engine serial number before placing the parts order.
What format is this manual in?
A 92-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
