Need the factory part numbers for your Yanmar 4TNE88-EBVC industrial diesel, S4140-60 variant included? This 36-page parts catalog (OEM #Y00B6520) has every assembly drawn out and cataloged. You get exploded-view diagrams for all major engine groups: cylinder block and head, gear housing, flywheel, crankshaft, lube oil and cooling water systems, full fuel system from injection pump through fuel pipe, governor, starting motor, and generator. Each figure pairs directly with an itemized parts list so you can visually identify the component, confirm the catalog number, and order the right part without a call to the dealer. Repair parts are listed by size: 0.25mm oversize piston rings and pin metals are called out directly, and the cooling water system V-belt is spec'd at 37.5 inches. Done chasing wrong part numbers across three websites. Bookmarked by assembly group; open the PDF, click the section, and get your order placed.
What's Inside This Yanmar 4TNE88-EBVC Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine Y00B6520 Overview | 1-2 | Vertical Multi Cyl Diesel, Info |

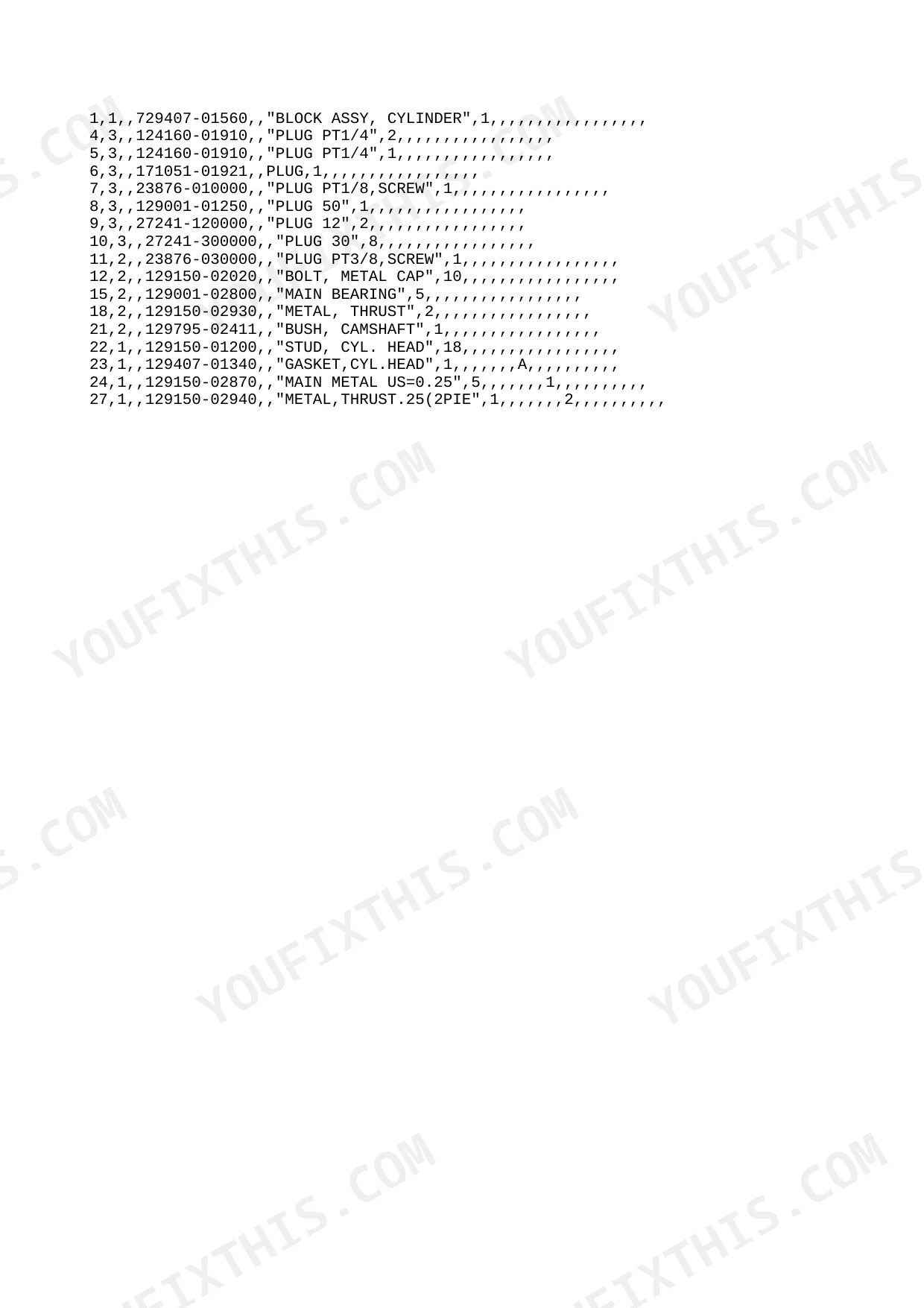

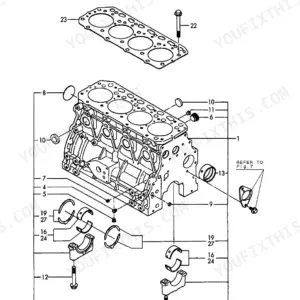

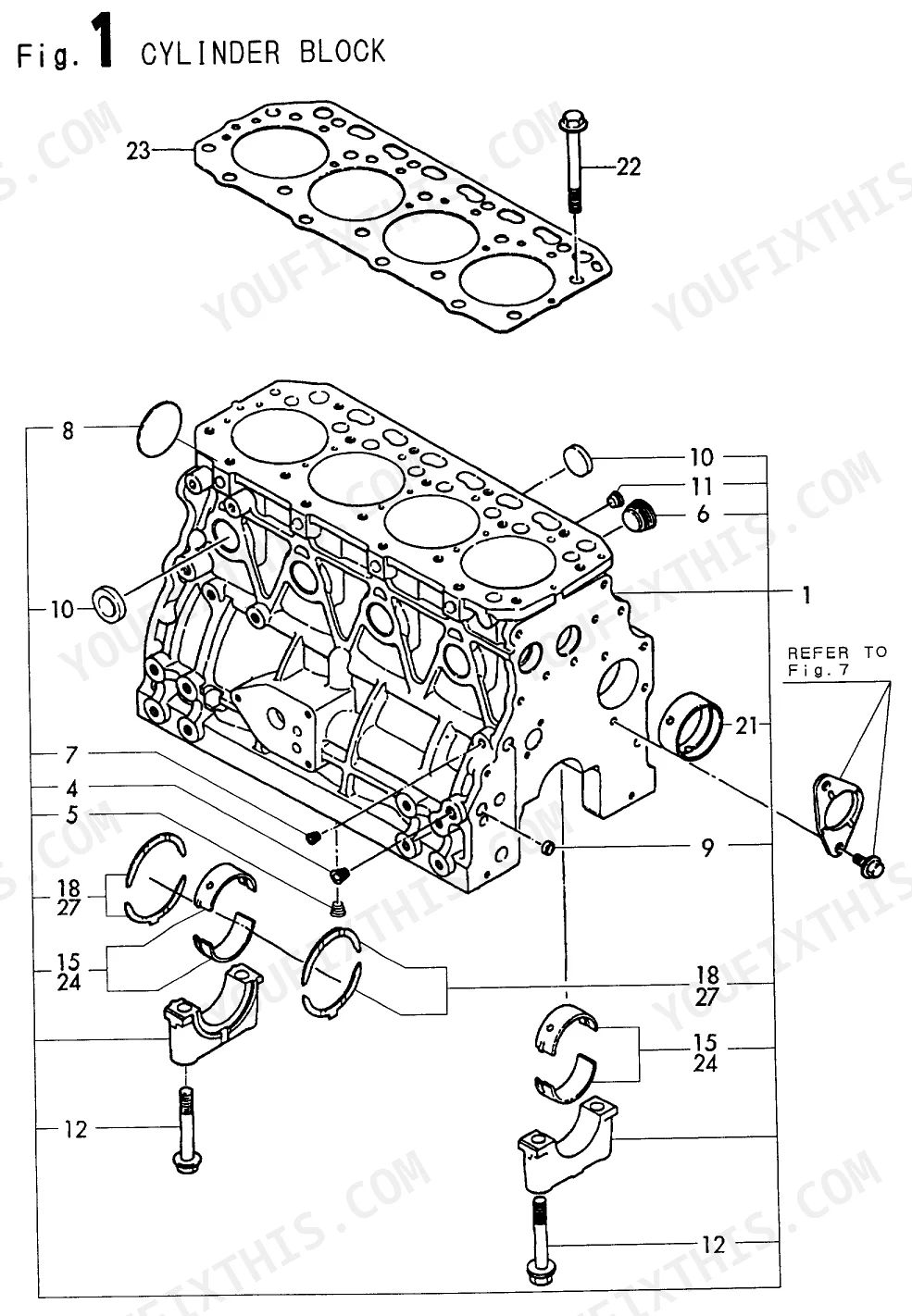

| Cylinder Block | 3-4 | Figure 1 Cylinder Block |

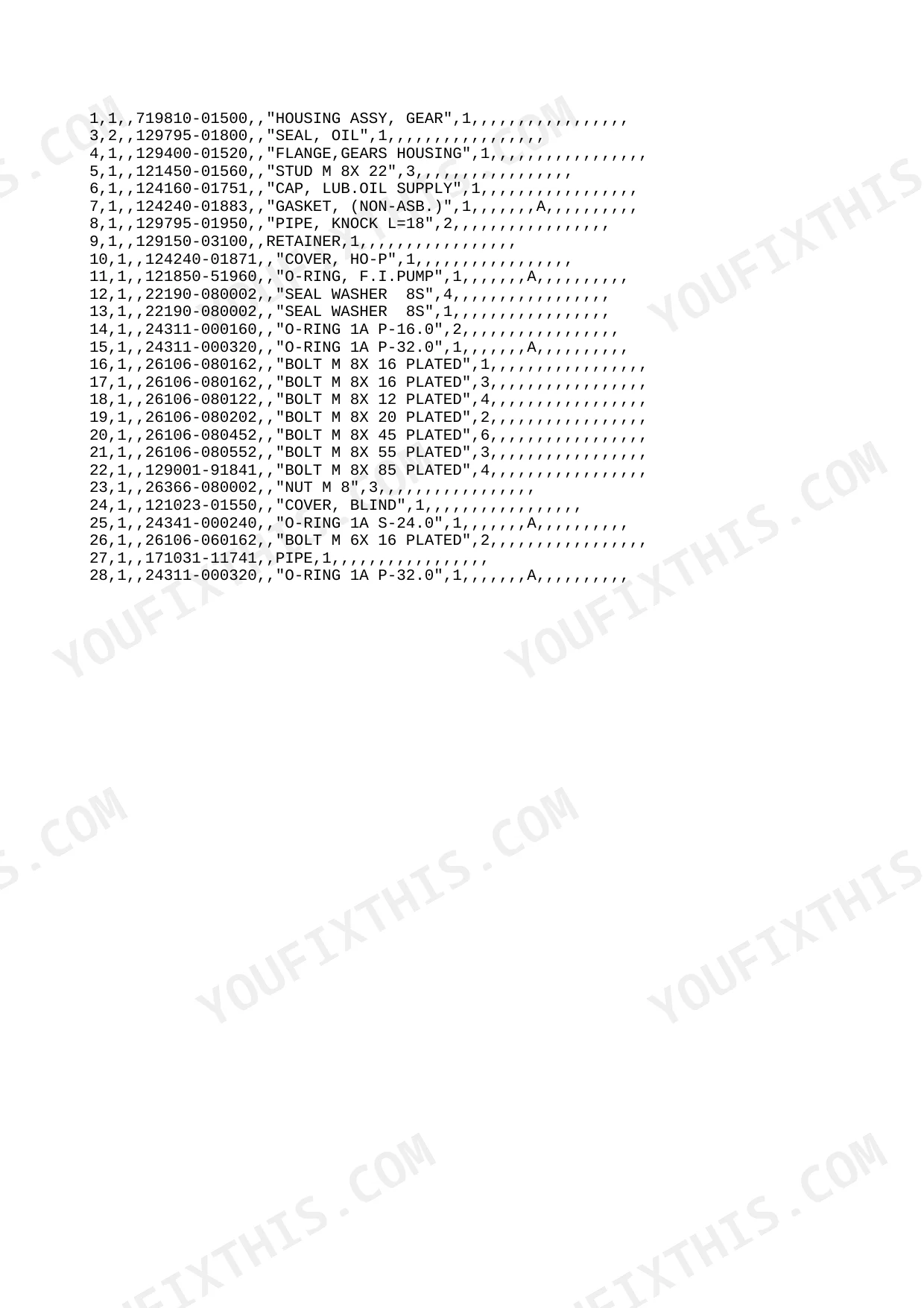

| Gear Housing | 5-6 | Figure 2 Gear Housing |
| Flywheel Housing & Lub.Oil Sump | 7-8 | Figure 3 Flywheel Housing & Lub.Oil Sump |

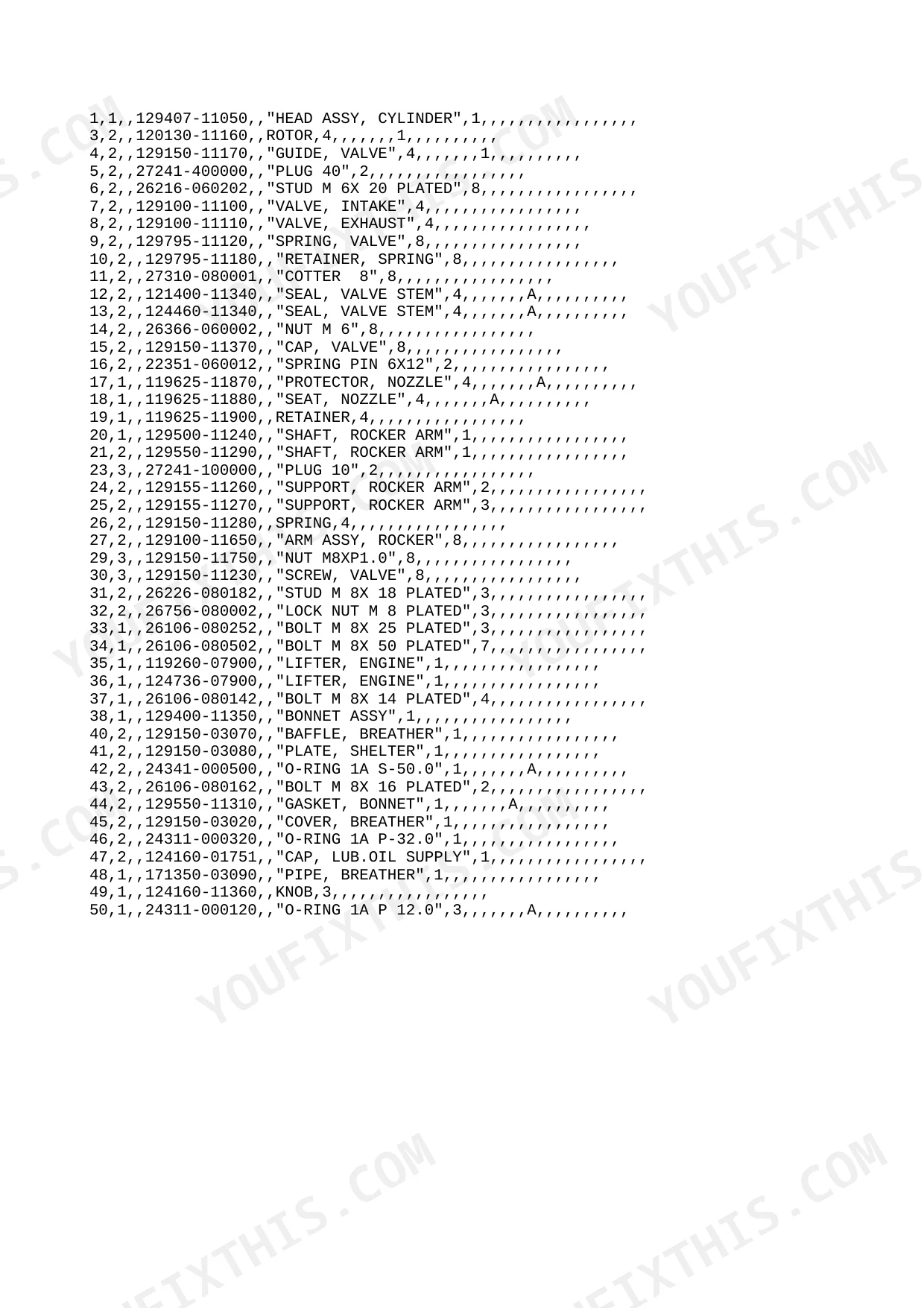

| Cylinder Head & Bonnet | 9-10 | Figure 4 Cylinder Head & Bonnet |
| Suc. Manifold | 11-12 | Figure 5 Suc. Manifold |
| Exh. Manifold | 13-14 | Figure 6 Exh. Manifold |
| Camshaft & Driving Gear | 15-16 | Figure 7 Camshaft & Driving Gear |
| Crankshaft & Piston | 17-18 | Figure 8 Crankshaft & Piston (Repair Part) |
| Lub.Oil System | 19-20 | Figure 9 Lub.Oil System |
| Cooling Water System | 21-22 | Figure 10 Cooling Water System |
| Fuel Injection Pump | 23-24 | Figure 11 Fuel Injection Pump |
| Fuel Injection Pipe | 25-26 | Figure 12 Fuel Injection Pipe |
| Fuel Pipe | 27-28 | Figure 13 Fuel Pipe |
| Governor | 29-30 | Figure 14 Governor |
| Starting Motor | 31-32 | Figure 15 Starting Motor |
| Generator | 33-34 | Figure 16 Generator |
| Gasket Set (Optional) & Tools | 35-36 | Figure 17 Gasket Set & Tools |
Every system also includes a parts list.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Piston Ring Oversize | 0.25 | p. 16 |
| Ring Set Oversize | 0.25 | p. 16 |
| Metal Pin Undersize | 0.25 | p. 16 |
| V-Belt Length | 37.5 | p. 20 |
| V-Belt Length (Cooling Water System) | 37.5 | p. 20 |
| O-Ring 1A P-12.0 | 12.0 | p. 34 |
| O-Ring 1A P-16.0 | 16.0 | p. 34 |
| O-Ring 1A S-24.0 | 24.0 | p. 34 |
| O-Ring 1A P-32.0 | 32.0 | p. 34 |
| O-Ring 1A S-50.0 | 50.0 | p. 34 |
Yanmar 4TNE88-EBVC Common Problems This Manual Covers
Yanmar 4TNE88-EBVC fuel injection pump plunger part number for engine stalling and hard start p. 23
Open the Fuel Injection Pump exploded view on page 23. Locate the plunger assembly in the parts list and record the part number exactly as shown. Cross-reference against your engine serial number to confirm the correct plunger variant. The pump diagram covers all sub-components including the plunger groove and delivery valve , identify each item by its balloon number before ordering.
Manual Section: Fuel Injection PumpCan't identify correct oil filter part number after metal contamination and bearing damage p. 19
Check the Lub.Oil System exploded view on page 19. Find the oil filter in the labeled parts list and note the exact part number. Verify the filter assembly includes all sub-components listed for your serial number range. If the bearing or pin components also need replacement, cross-reference the Crankshaft & Piston diagram on page 17 for metal pin undersize specs (0.25 mm undersize available, page 16).
Manual Section: Lub.Oil SystemWater pump impeller and cooling hose part numbers needed after overheating shutdown p. 21
Pull the Cooling Water System diagram on page 21. Identify the water pump, impeller, and all coolant hose connections by their balloon numbers, then match each to the adjacent parts list. The V-belt driving the water pump is listed at page 20 with a length of 37.5 units , confirm you order the correct belt alongside the pump parts. Note each hose connection part number separately, as they are listed as individual line items.
Manual Section: Cooling Water SystemExhaust elbow part number for corrosion replacement and wet exhaust diagnosis p. 13
Locate the Exh. Manifold exploded view on page 13. Find the exhaust elbow in the parts list by its balloon reference and record the full part number, including any associated gaskets shown in the same diagram. Also check the Gasket Set on page 35 , replacement gaskets for the exhaust manifold may be listed there as optional kit components.
Manual Section: Exh. ManifoldFuel filter and fuel pipe fitting part numbers for engine dying mid-run p. 27
Check the Fuel Pipe diagram on page 27 for pipe assemblies, banjo fittings, and inline filter components. The Fuel Injection Pipe section on page 25 covers high-pressure lines between pump and injectors , identify each line by cylinder position using the balloon callouts. Record part numbers for any pipe sealing washers or unions shown, as loose joints are a known cause of air ingestion and fuel cutoff.
Manual Section: Fuel PipeGenerator O-ring part numbers for electrical system reassembly p. 33
Open the Generator parts list on page 33. O-ring sizes used in this assembly are verified at page 34: P-12.0, P-16.0, S-24.0, P-32.0, and S-50.0 (all 1A-series). Match each O-ring to its balloon callout in the exploded view before ordering , multiple sizes are used in the same assembly and substituting the wrong diameter will cause seal failure.
Manual Section: GeneratorFrequently Asked Questions
What are the replacement specifications for Fuel Filter?
The manual identifies the fuel filter element with part number 129100-55650. This part is listed under the 'Fuel Pipe' section.
What are the replacement specifications for Oil Filter?
The manual specifies the oil filter with part number 129150-35151, identified as 'FILTER 80X80L'. This part is found in the 'Lub.Oil System' section.
How do you fix yanmar 4TNE88-EBVC fuel injection pump plunger part number for engine stalling and hard start?
Open the Fuel Injection Pump exploded view on page 23. Locate the plunger assembly in the parts list and record the part number exactly as shown. Cross-reference against your engine serial number to confirm the correct plunger variant. The pump diagram covers all sub-components including the plunger groove and delivery valve , identify each item by its balloon number before ordering.
How do you fix can't identify correct oil filter part number after metal contamination and bearing damage?
Check the Lub.Oil System exploded view on page 19. Find the oil filter in the labeled parts list and note the exact part number. Verify the filter assembly includes all sub-components listed for your serial number range. If the bearing or pin components also need replacement, cross-reference the Crankshaft & Piston diagram on page 17 for metal pin undersize specs (0.25 mm undersize available, page 16).
How quickly can I access this Yanmar 4TNE88-EBVC, 4TNE88-EBVC(S4140, 60)?
Instant PDF download. You get the full 36-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a mix of native digital text pages and high-quality scanned image pages. You can search and copy text from all the descriptive parts of the document, as these pages have a clear OCR layer. The text throughout is crisp and easy to read. All diagrams and illustrations are sharp, vector-based line drawings, ensuring labels and details are perfectly readable at any zoom. The pages are clean, free from scan artifacts, stains, or skewing, and there are no notable blank or filler pages.
