Forty-six pages into this Yanmar 4TNV106T-XTBL, P-TL150EBB Parts Catalog (OEM #YOOF2161), you have the factory part number for every component in this turbocharged diesel, from cylinder block internals to the complete gasket set. Inside: exploded-view assemblies spanning gear housing broken out across two serial number ranges (S/N 21500628-21503359 and 21503360-), crankshaft and piston, fuel injection pump and valve, starting motor, generator, lube oil system, and cooling water. Each diagram gives you factory part numbers, assembly relationships, and cross-reference data down to individual bearings, seals, and fasteners. The generator assembly is rated at 12V-60A; the lube oil pressure switch is spec'd at 0.5 KG. Ordering the wrong part costs time and freight charges you don't need. Bookmarked by assembly, this PDF opens on any device and puts your exact part number one click away.
What's Inside This Yanmar 4TNV106T-XTBL, P-TL150EBB Parts Manual
| System | Pages | Key Topics |
|---|---|---|

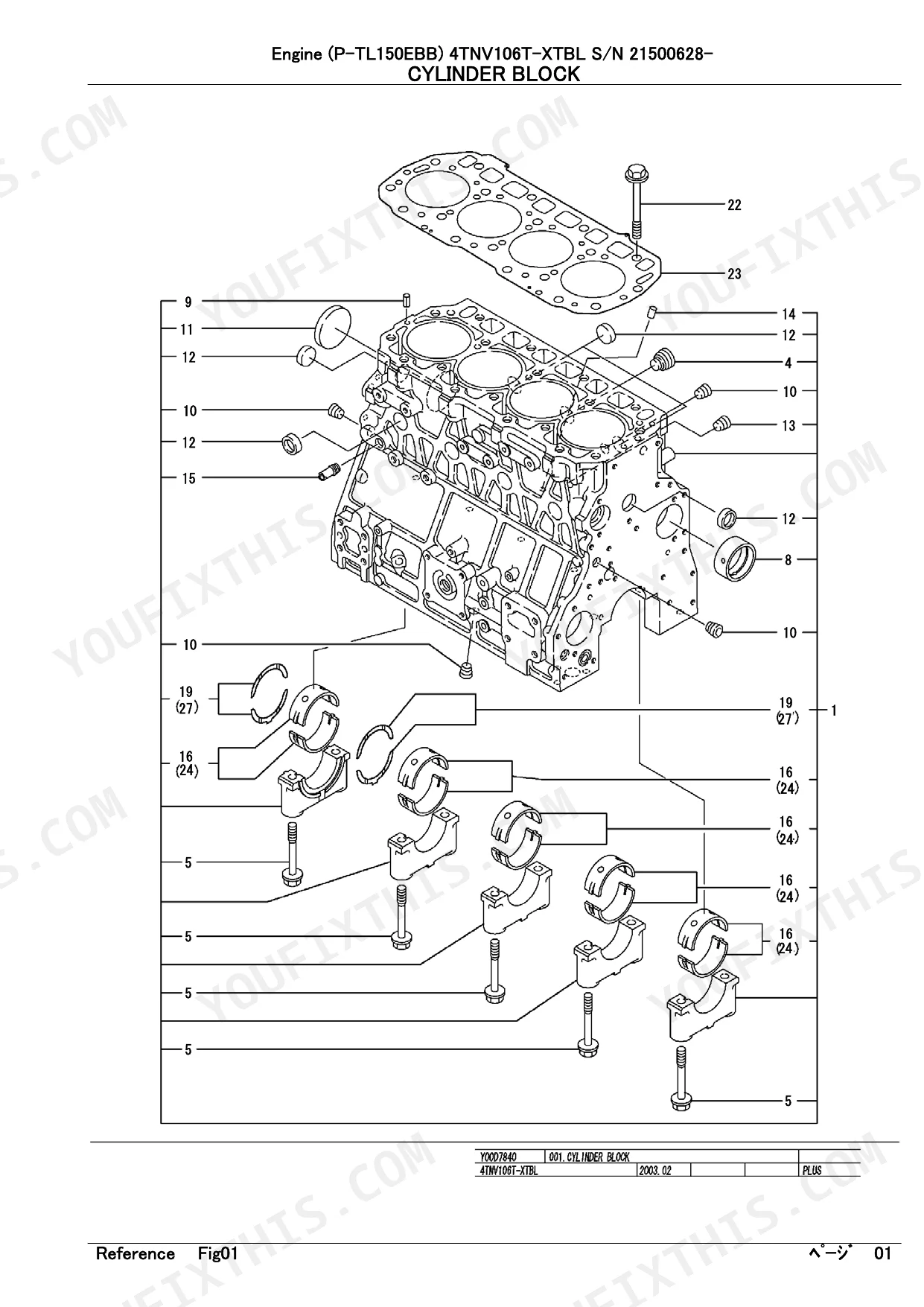

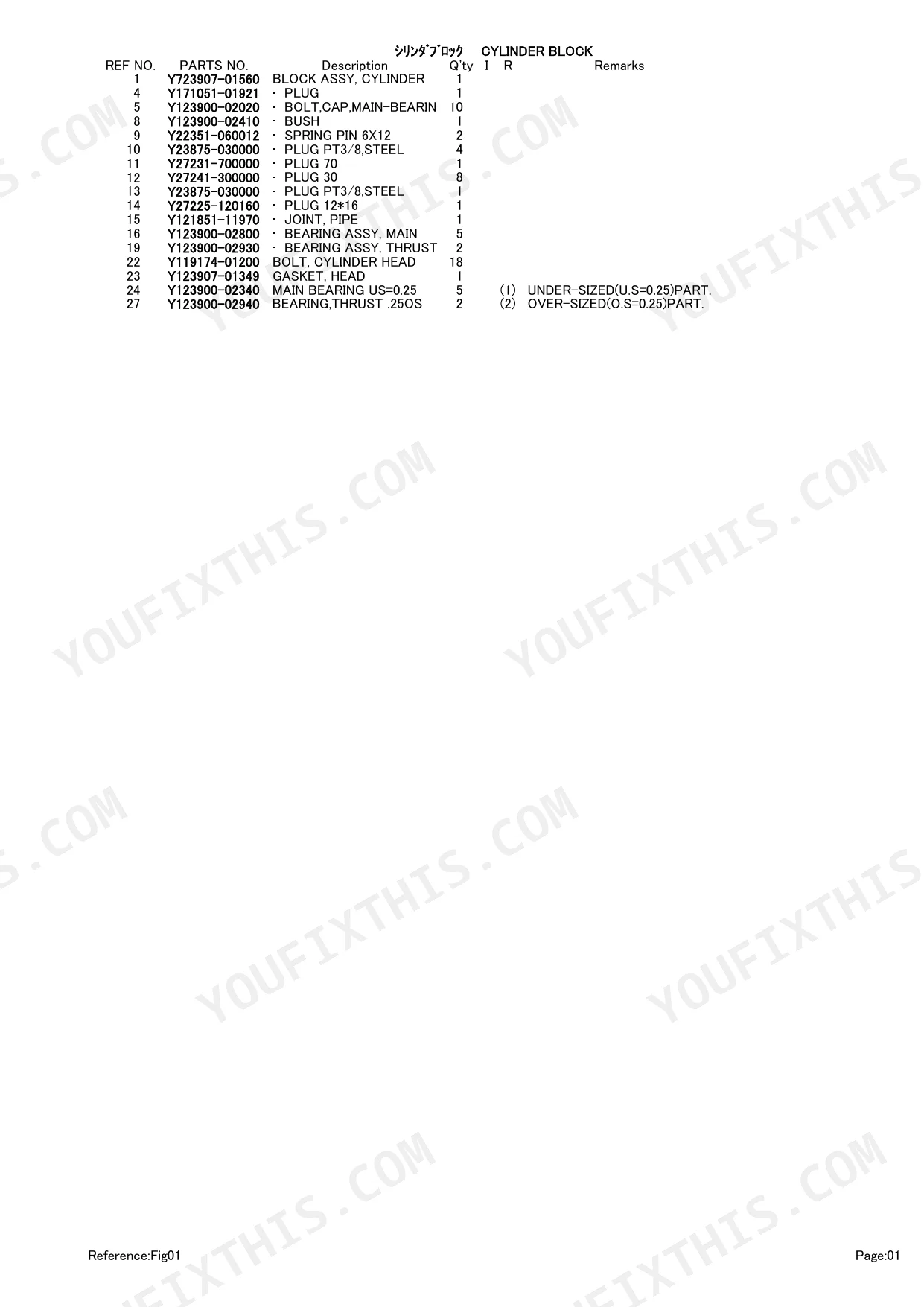

| Cylinder Block | 6-7 | Cylinder Block Assy, Bush, Pipe Joint, Main Bearing Assy, Thrust Bearing Assy, Head Gasket, Main Bearing Under-Sized Part, Thrust . Over-Sized Part Bearing |
| Gear Housing (S/N 21500628-21503359) | 8-9 | Oil Seal, Fip Cover, Gear Case Assy, Lub. Oil Pump Assy, Filler Cover, Bearing, Hydraulic Oil Pump Cover, Packing |
| Gear Housing (S/N 21503360-) | 10-11 | Cover, G Housing Assy, Oil Seal, Fip Cover, Gear Case, Lub. Oil Pump Assy, Filler Cover, Bearing, Hydraulic Oil Pump Cover |
| Flywheel Housing & Oil Sump | 12-13 | Flywheel Cover Assy, Cap, Oil Seal, Lub. Oil Pan Comp, Liquid Optional Part Gasket |
| Cylinder Head & Bonnet | 14-15 | Engine Lifter, Valve Bridge Seat a, Cylinder Head Assy, Valve Guide, Valve Bridge Guide, Valve, Valve Spring, Spring Retainer |
| Suction Manifold & Air Cleaner | 16-17 | Air Intake Manifold, Packing, Rubber Hose, Bend, Air Heater Gasket, Heater Air, Air Cleaner Assy, Cover |
| Exhaust Manifold & Silencer | 18-19 | Air Exhaust Manifold, Air Exhaust S Manifold, Gasket, Gasket S, Silencer, Stay, Stay S, Pk Out |

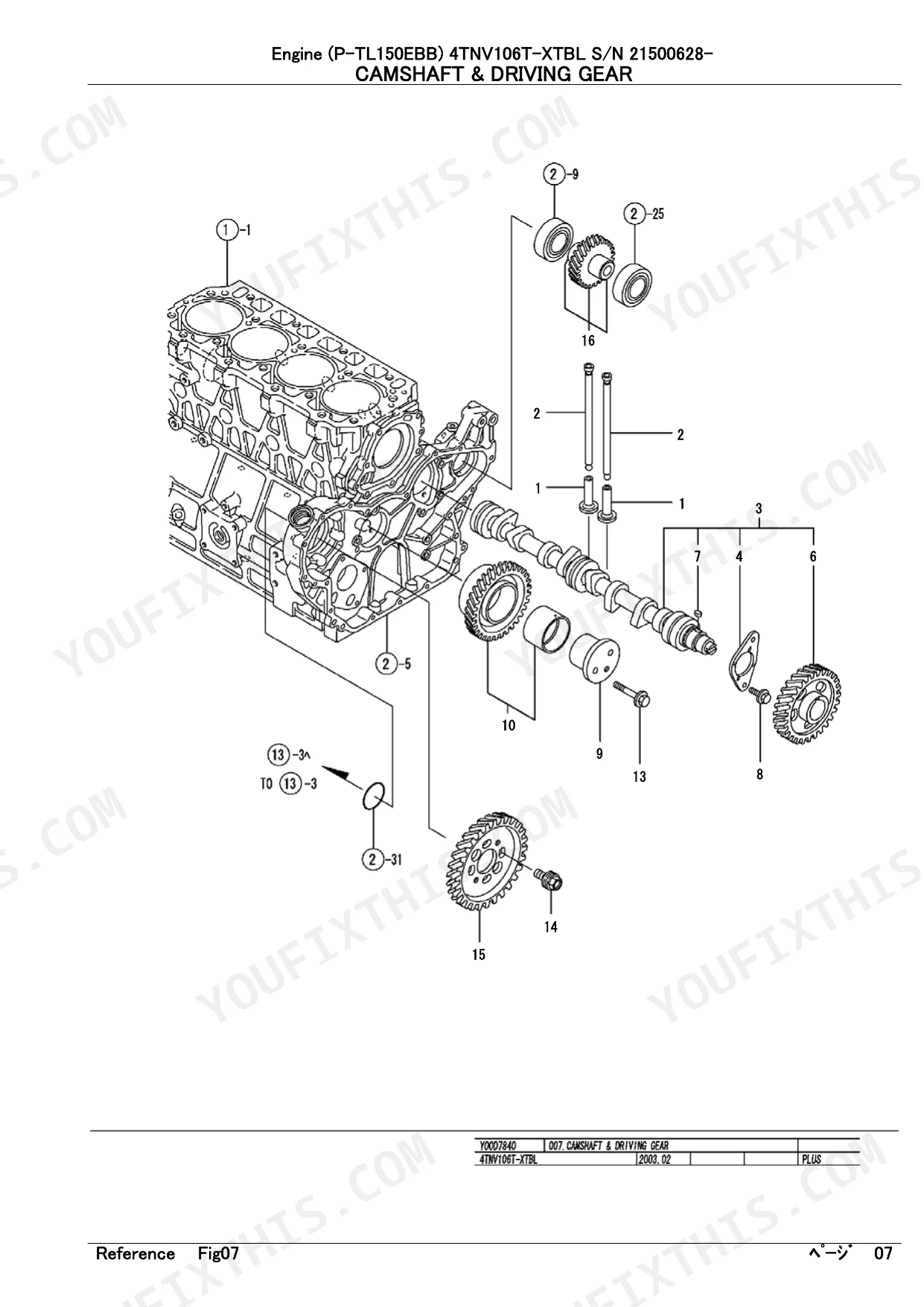

| Camshaft & Driving Gear | 20-21 | Tappet, Push Rod, Camshft Assy, Thrust Metal, Camshaft Gear, Shaft, Idle Cmp Gear, Fuel Injection Pump Gear |
| Turbine | 22-23 | Pk in, Turbo Cmp, Washer, Nut |
| Crankshaft & Piston | 24-25 | Crankshaft Assy, Crankshaft Gear, V-Pully, Flywheel Assy, Ring Gear, Piston W/ Ring, Piston Ring Set, Connecting Rod Assy |
| Lub.Oil System | 26-27 | Lub. Oil Cooler Assy, Cooler Bracket Comp, Packing, Joint PT1, Dipstick Guide, Lub. Oil Dipstick, Dip Stick Guide, Lo Strainer 80X100L |
| Lub.Oil Line | 28-29 | Lub. Oil Switch, Lo-T Cmp, Pipe Support, Round Gasket, Lub. Oil Pipe Assy, Retainer, Elbow, Hose |
| Cooling Water System | 30-31 | Elbow R3, Water Pump Assy, Cooling Water Pipe, Packing, V-Pulley, V-Belt, Cooling Water Fan, Spacer |

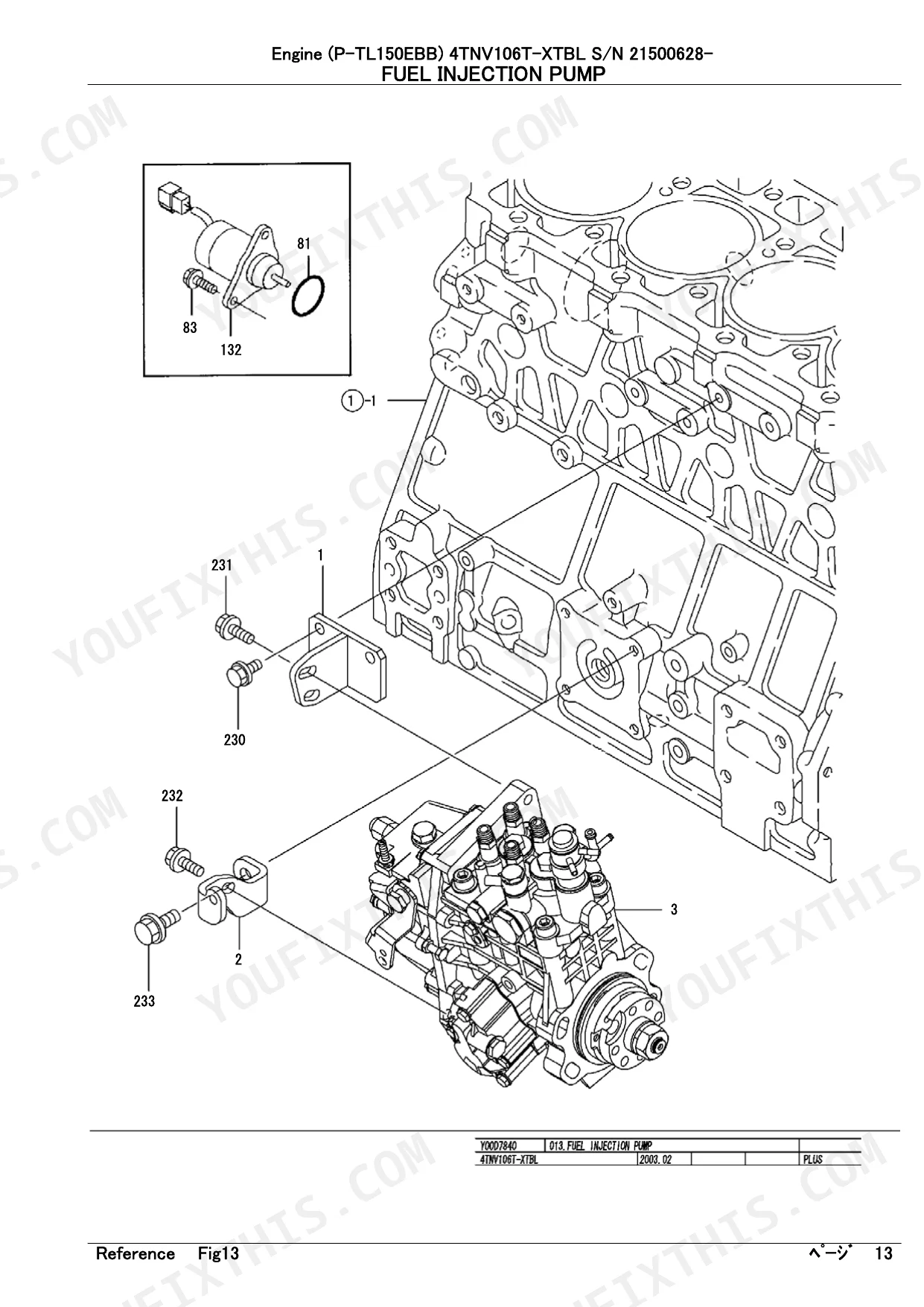

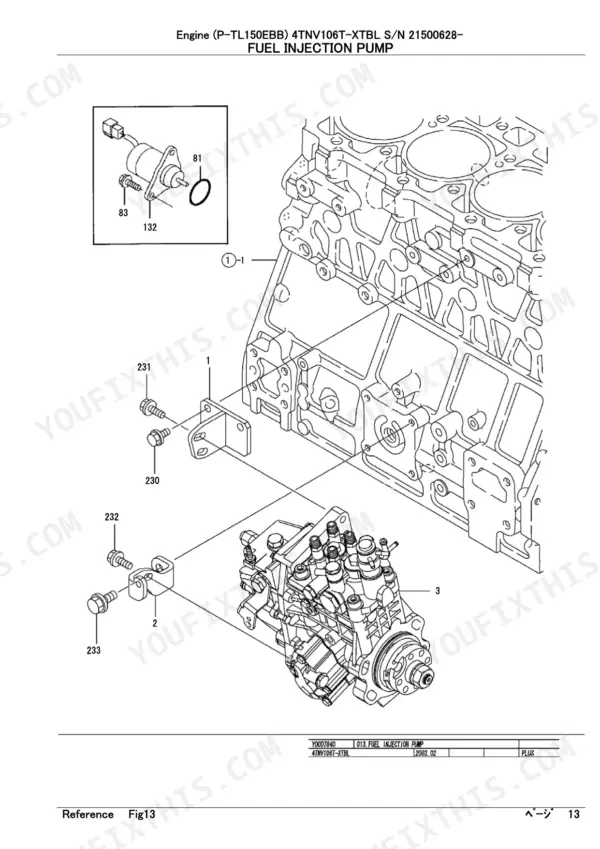

| Fuel Injection Pump | 32-33 | MP4 Retainer, Fuel Injection Pump Assy, Stop Solenoid, O-Ring |
| Fuel Injection Valve | 34-35 | Fuel Injection Valve Assy, Nozzle Assy, Nozzle Holder Assy, Nozzle Spring, Nozzle Spring Seat, Stop Plate, Pipe Seal, Retainer |
| Fuel Line | 36-37 | Filter Bracket, Fuel Oil Filter, Fuel Oil Pipe Assy, Tube, Fuel Pipe, Fuel Pipe Protector, F.o.return Pipe Assy, Fuel Return Packing |

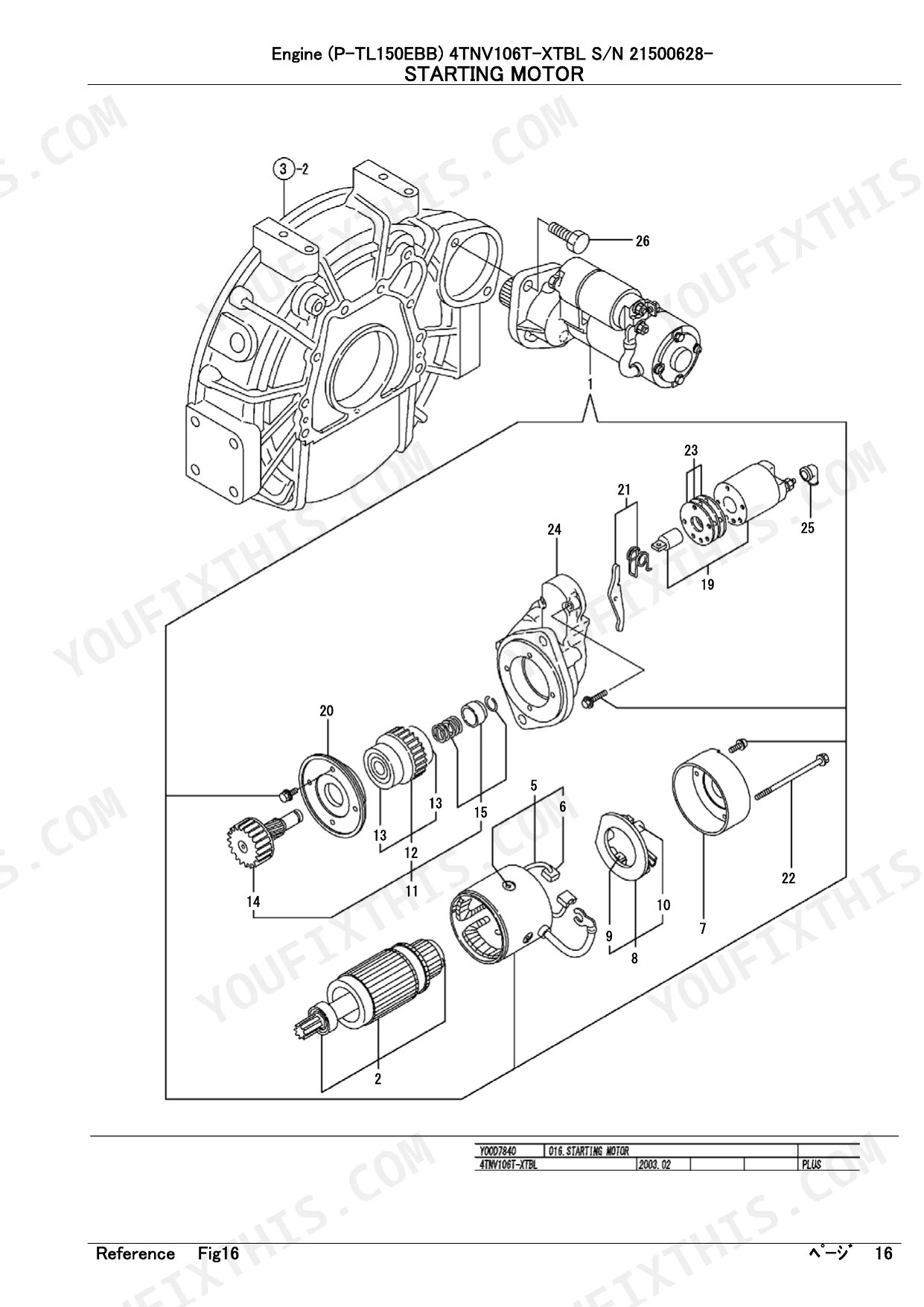

| Starting Motor | 38-39 | Starter, Armature Assy, Field Coil Assy, Brush, Rear Cover, Brush Holder, Brush Spring, Pinion Assy |
| Generator | 40-41 | Distance Piece, Adjuster, Rotor Assy, Rear Bracket Assy, Front Bracket Assy, Pulley, Safety Relay |
| Gasket Set | 42-46 | Head Gasket, Gasket, Valve Stem Seal, Nozzle Protector, Nozzle Seat, Packing, Bonnet Packing, Air Heater Gasket |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Pressure Switch Setting | 0.5 KG | p. 29 |
| Generator Output | 12V-60A | p. 41 |
Yanmar 4TNV106T-XTBL, P-TL150EBB Common Problems This Manual Covers
Yanmar 4TNV106T-XTBL fuel filter and fuel line part numbers for no-start diagnosis p. 36
Open the Fuel Line exploded view on page 36. Locate the fuel oil filter part number in the parts list on page 37, then cross-reference the fuel pipe assemblies and F.O. return line components. Verify the banjo bolt mesh screen parts are listed separately. Match part numbers against your serial number range before ordering.
Manual Section: Fuel LineGlow plug part numbers needed for hard cold-start troubleshooting p. 16
Check the Suction Manifold & Air Cleaner section starting on page 16. The air heater (glow plug) components are listed with part numbers in the exploded view. Identify the correct element part number for your unit and confirm the inner and outer air cleaner element part numbers while you are there.
Manual Section: Suction Manifold & Air CleanerWater pump impeller and thermostat part numbers for overheating repair p. 30
Pull the Cooling Water System diagram on page 30. The water pump assembly, cooling water pipes, thermostat, and fan components are all itemized on pages 30-31. Note the pump assembly part number and any sub-components listed separately. Cross-reference the parts list to confirm radiator assembly compatibility with your serial number.
Manual Section: Cooling Water SystemExhaust manifold gasket and seal kit part numbers for water intrusion repair p. 18
Go to the Exhaust Manifold & Silencer section on page 18. Identify the exhaust manifold gasket (packing) part number and stud bolt sizes in the parts list on page 19. For a complete reseal, also pull the Gasket Set index on page 44, which lists all engine gaskets, O-rings, and valve stem seals in one place to build a full order.
Manual Section: Exhaust Manifold & SilencerOil leak: seal and gasket part numbers for flywheel housing and oil sump p. 12
Reference the Flywheel Housing & Oil Sump diagram on page 12. The oil seal, pan comp (oil sump), drain plug, and gasket part numbers are all listed on pages 12-13. For valve stem seals and additional engine seals, check the Gasket Set section starting on page 42, which consolidates all seal and O-ring part numbers across the engine.
Manual Section: Flywheel Housing & Oil SumpGear housing oil seal part numbers differ by serial number, can't confirm correct parts p. 8
Identify your engine serial number first. For S/N 21500628 through 21503359, use the Gear Housing diagram on page 8. For S/N 21503360 and later, use the separate diagram on page 10. Each section lists its own oil seal, ball bearing, and gear case assembly part numbers. Ordering from the wrong section is the most common parts mismatch on this engine.
Manual Section: Gear Housing (S/N 21500628-21503359)Frequently Asked Questions
What are the replacement specifications for Fuel filter?
The replacement specification for the fuel filter is part number Y123907-55800, identified as 'FILTER, FUEL OIL'. This part is listed with a quantity of 1.
What are the replacement specifications for Fuel-water separator?
The replacement specification for the fuel-water separator is part number Y129906-55700, identified as 'SEPARATOR ASSY'. This part is listed with a quantity of 1.
How do you fix yanmar 4TNV106T-XTBL fuel filter and fuel line part numbers for no-start diagnosis?
Open the Fuel Line exploded view on page 36. Locate the fuel oil filter part number in the parts list on page 37, then cross-reference the fuel pipe assemblies and F.O. return line components. Verify the banjo bolt mesh screen parts are listed separately. Match part numbers against your serial number range before ordering.
How do you fix glow plug part numbers needed for hard cold-start troubleshooting?
Check the Suction Manifold & Air Cleaner section starting on page 16. The air heater (glow plug) components are listed with part numbers in the exploded view. Identify the correct element part number for your unit and confirm the inner and outer air cleaner element part numbers while you are there.
How will I receive this Yanmar 4TNV106T-XTBL, P-TL150EBB Parts Catalog?
You get a 46-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this Yanmar 4TNV106T-XTBL, P-TL150EBB?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text content. The text is crisp and clear throughout, making it easy to read all part numbers and descriptions. Diagrams and illustrations are clear raster images with readable labels, though they are not vector graphics. Pages are generally clean with minimal scan artifacts, but note that pages 2 and 4 are largely blank, containing only headers and footers.
