Trying to track down the exact fuel injection pump assembly for your engine? This 130-page Yanmar 4tnv106t-xtbl parts catalog pdf breaks down every single component for the TL150, 4TNE106T-TBL, and 4TNV106T-XTBL1 variants. You get complete exploded diagrams of the cylinder block, gear housing, and turbine assemblies to help you identify exactly what is broken. Open to any section and find complete factory part numbers, hardware sizes, and component cross-references for the entire cooling water system and lubrication lines. Verify the correct fuel injection valve for the high-flow XTBL1 variant, or cross-reference the suction manifold hardware for serial numbers starting at 21500628. Stop ordering the wrong replacement parts. Grab this digital download, use the built-in bookmarks to jump straight to the flywheel housing, and get your machine back to work.
What's Inside This Yanmar 4TNV106T-XTBL Parts Manual

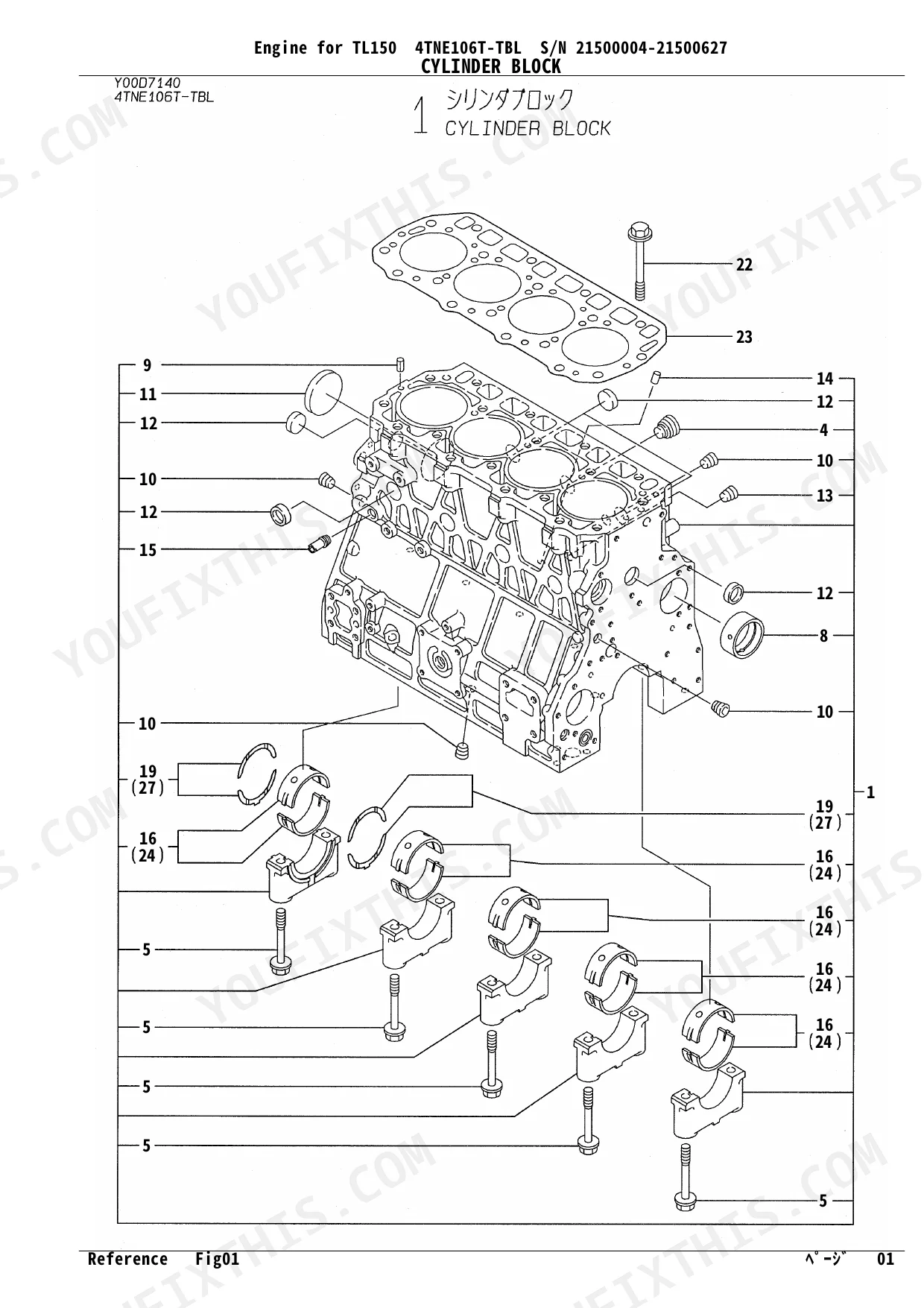

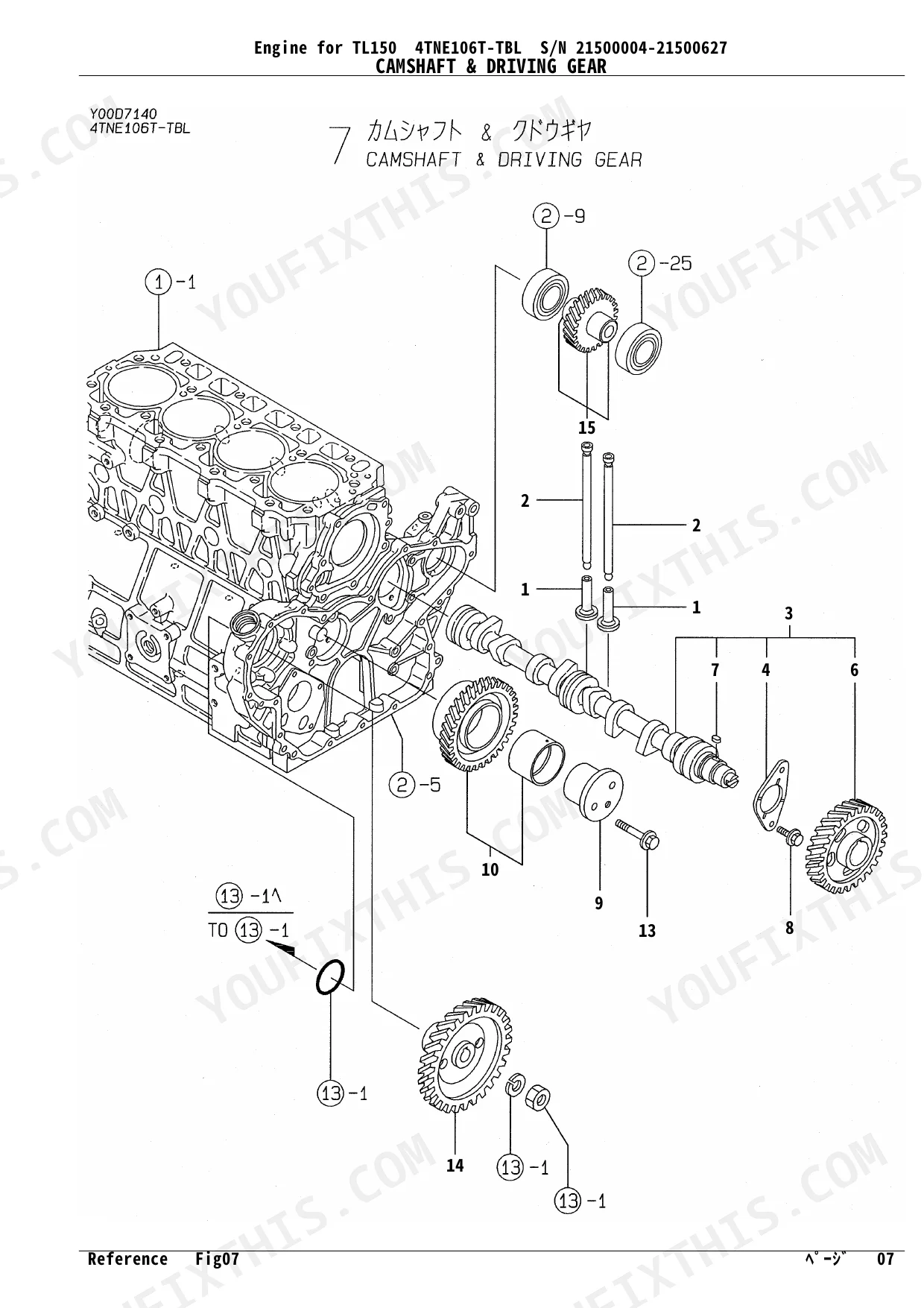

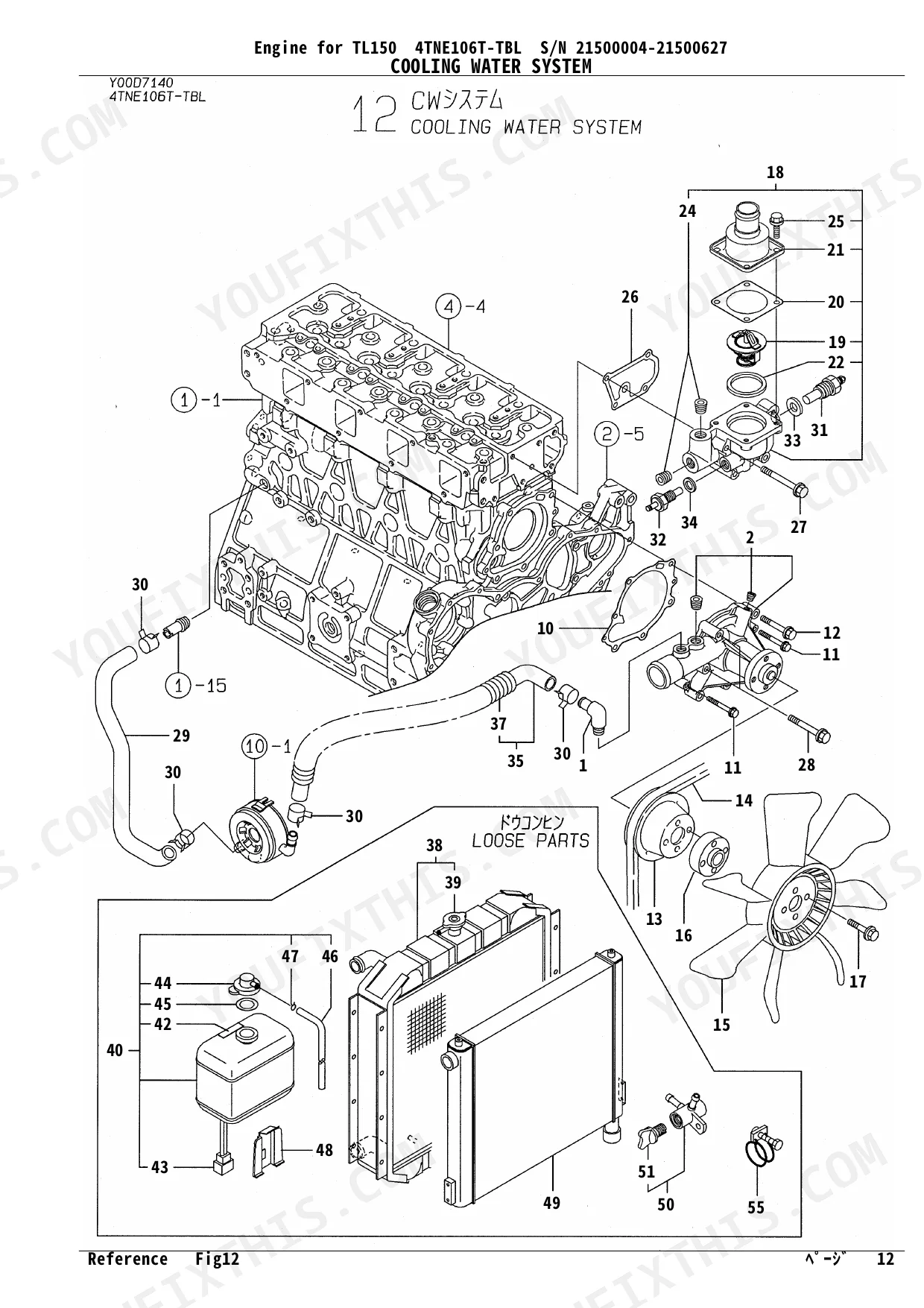

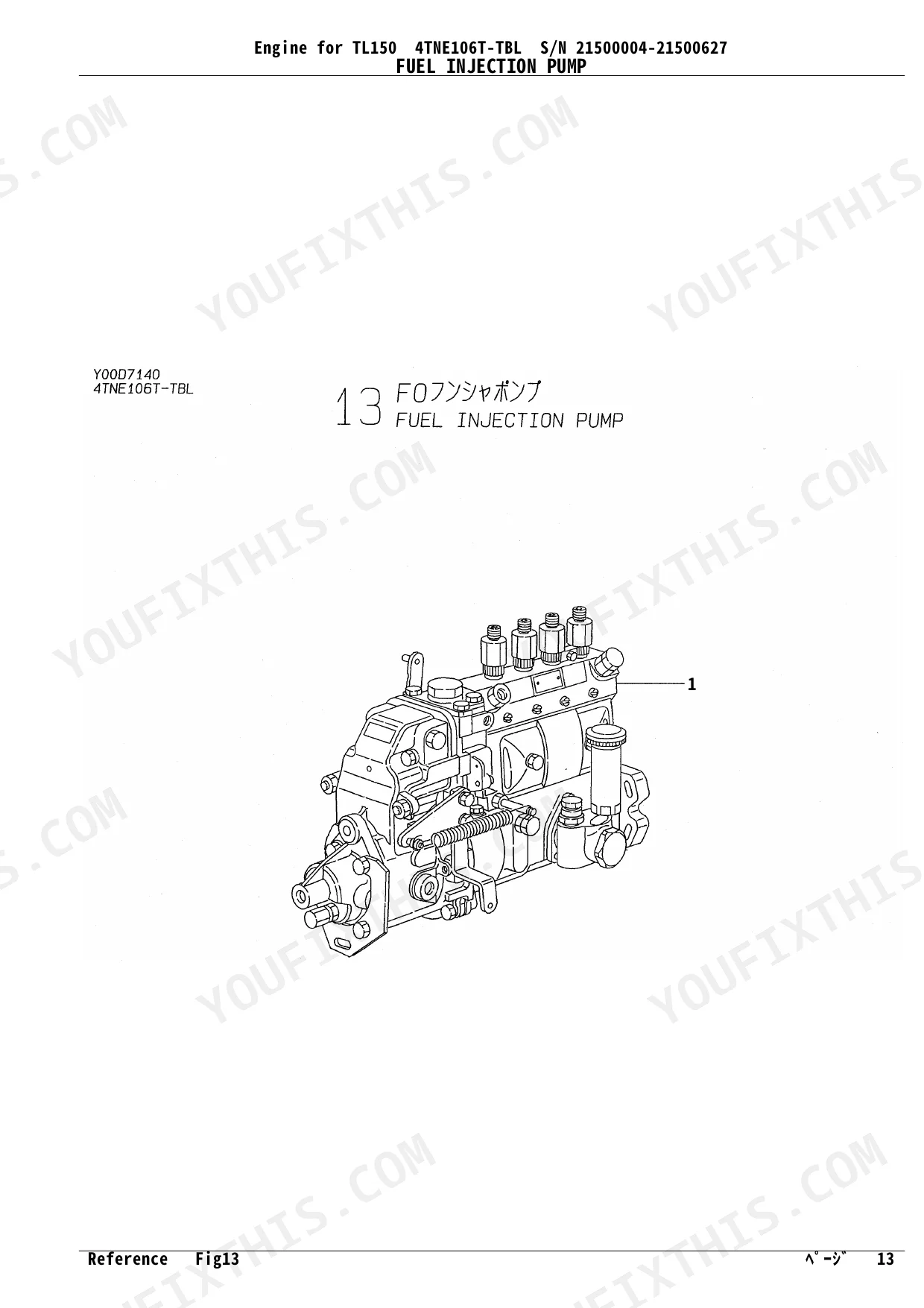

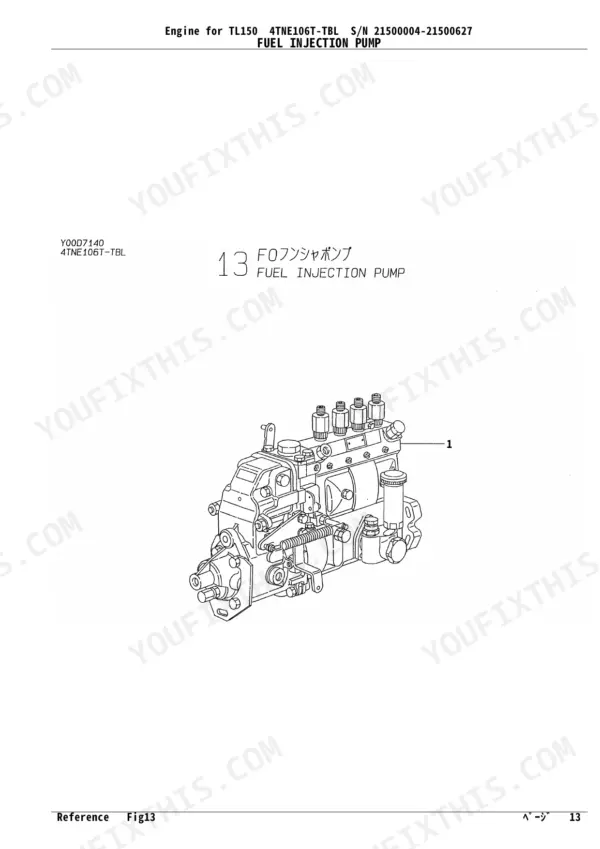

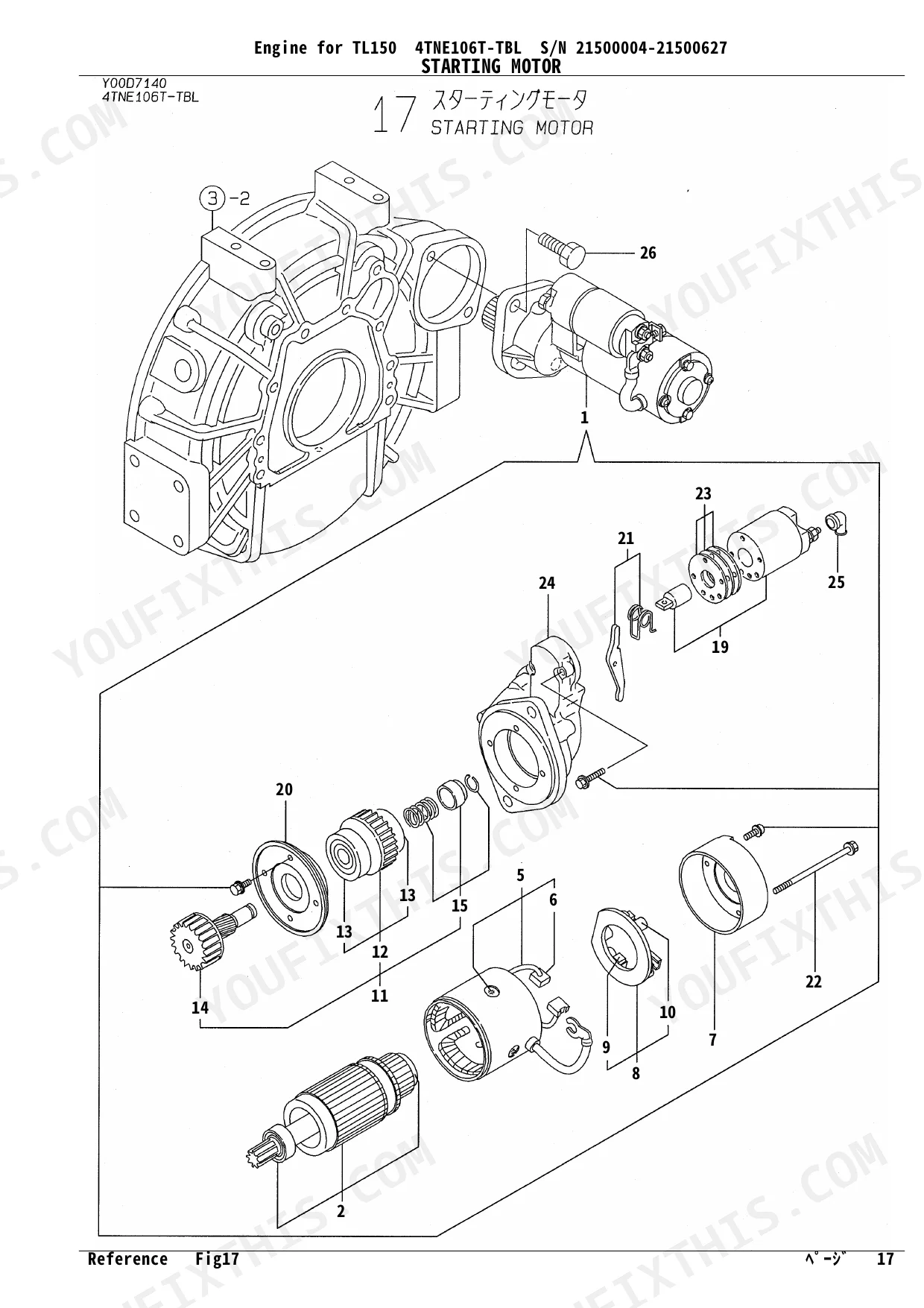

| System | Pages |
|---|---|
| Cylinder Block | - |
| Gear Housing | - |
| Flywheel Housing & Oil Sump | - |
| Cylinder Head & Bonnet | - |
| Suction Manifold & Air Cleaner | - |
| Exhaust Manifold & Silencer | - |
| Camshaft & Driving Gear | - |
| Turbine | - |
| Crankshaft & Piston | - |
| Lub.Oil System | - |
| Lub.Oil Line | - |
| Cooling Water System | - |
| Fuel Injection Pump | - |
| Fuel Injection Valve | - |
| Fuel Line | - |
| Engine Stop Device | - |
| Starting Motor | - |
| Generator | - |
| Gasket Set | - |
Yanmar 4TNV106T-XTBL Common Problems This Manual Covers
Yanmar TL150 4TNE106T-TBL injector retainer clip orientation interferes with the valve cover during installation p. 28
Inspect the fuel parts diagram on page 28. Verify the exact retainer part number for your engine block. Cross-reference your machine against S/N 21500004-21500627 to ensure you order the correct clip revision. Confirm the required quantity is 1 piece per injector before finalizing your parts order.
Manual Section: Engine for TL150 4TNE106T-Tbl S/N 21500004-21500627Cannot find complete top end gasket kit part numbers for white smoke and abnormal combustion noise p. 40
Check the gasket set parts diagram on page 40. Match the cylinder head gasket and associated seals to your specific serial number block. Confirm compatibility with S/N 21500004-21500627 before ordering your rebuild components. Verify the exact kit contains the 1 piece required for the cylinder head.
Manual Section: Engine for TL150 4TNE106T-Tbl S/N 21500004-21500627Cannot find correct crankshaft bearings and oil pump part numbers for a seized engine rebuild p. 4

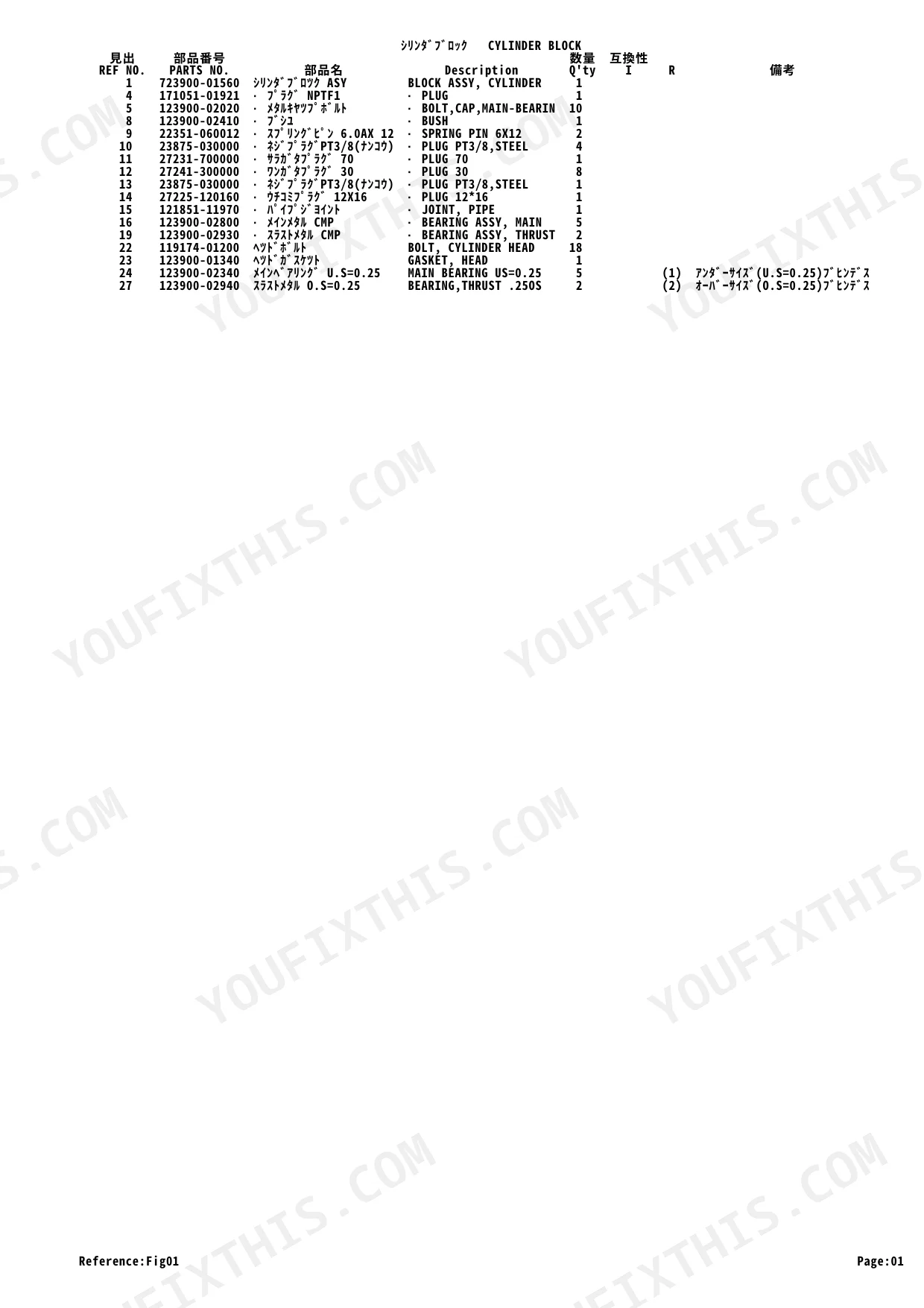

Review the engine parts diagram on page 4. Identify the reference numbers for the standard and oversized crankshaft bearings. Use the parts number list on page 5 to find the exact part numbers required for S/N 21500004-21500627. Confirm you are ordering the correct 1 piece assembly for the oil pump.

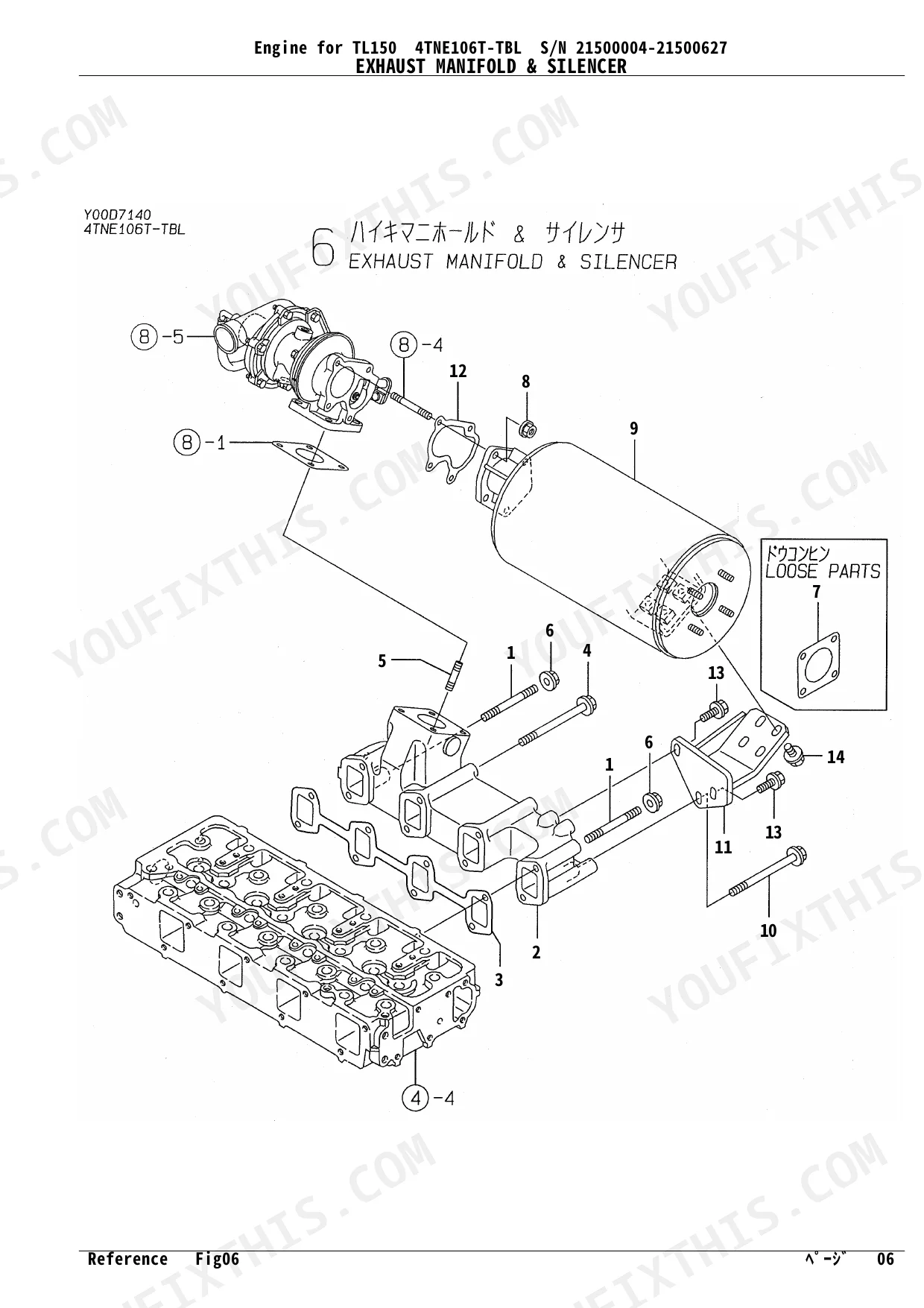

Manual Section: Engine for TL150 4TNE106T-Tbl S/N 21500004-21500627Cannot identify replacement turbine and exhaust manifold part numbers for heavy black smoke p. 14
Inspect the exhaust manifold parts on page 14 and turbine parts on page 18. Match the exploded view reference numbers to the corresponding parts list. Verify your machine falls within S/N 21500004-21500627 before ordering replacement components. Check the index on page 42 to verify the 1 piece hardware quantities.
Manual Section: Engine for TL150 4TNE106T-Tbl S/N 21500004-21500627Frequently Asked Questions
What are the fuel injector replacement part numbers for the Yanmar 4TNE106T-TBL / 4TNV106T-XTBL engines?
The fuel injector replacement specification for the Yanmar 4TNE106T-TBL engine is part number 723900-53200 (VALVE COMP, FUEL). For both 4TNV106T-XTBL and 4TNV106T-XTBL1 (for high flow) models, the specification is part number 723908-53100 (VALVE ASSY, F.INJECT).
Which diagram and part numbers cover this issue: Yanmar TL150 4TNE106T-TBL injector retainer clip orientation interferes with the valve cover during installation?
Inspect the fuel parts diagram on page 28. Verify the exact retainer part number for your engine block. Cross-reference your machine against S/N 21500004-21500627 to ensure you order the correct clip revision. Confirm the required quantity is 1 piece per injector before finalizing your parts order.
Which diagram and part numbers cover this issue: Cannot find complete top end gasket kit part numbers for white smoke and abnormal combustion noise?
Check the gasket set parts diagram on page 40. Match the cylinder head gasket and associated seals to your specific serial number block. Confirm compatibility with S/N 21500004-21500627 before ordering your rebuild components. Verify the exact kit contains the 1 piece required for the cylinder head.
Which diagram and part numbers cover this issue: Cannot find correct crankshaft bearings and oil pump part numbers for a seized engine rebuild?

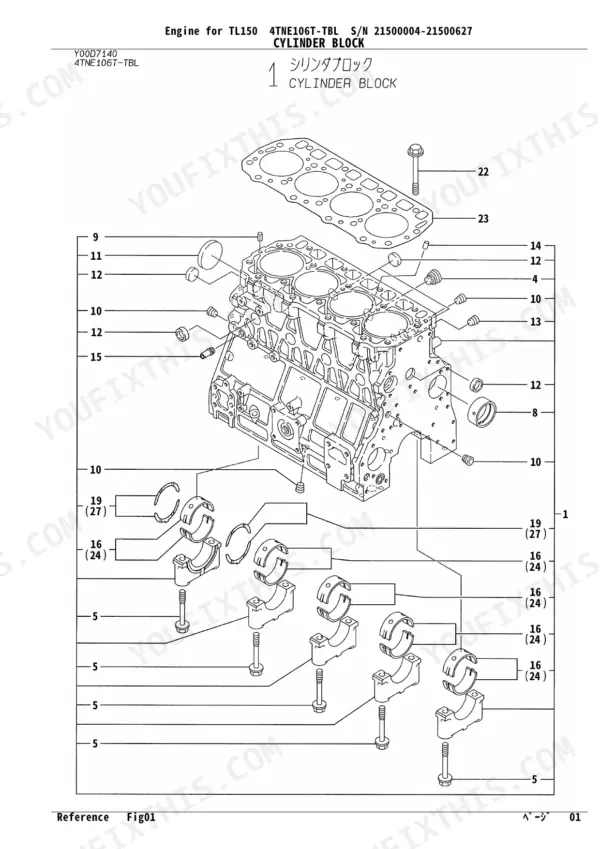

Review the engine parts diagram on page 4. Identify the reference numbers for the standard and oversized crankshaft bearings. Use the parts number list on page 5 to find the exact part numbers required for S/N 21500004-21500627. Confirm you are ordering the correct 1 piece assembly for the oil pump.
Which diagram and part numbers cover this issue: Cannot identify replacement turbine and exhaust manifold part numbers for heavy black smoke?
Inspect the exhaust manifold parts on page 14 and turbine parts on page 18. Match the exploded view reference numbers to the corresponding parts list. Verify your machine falls within S/N 21500004-21500627 before ordering replacement components. Check the index on page 42 to verify the 1 piece hardware quantities.
How will I receive this Yanmar TL150 Engine Parts Catalog?
You get a searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
No. The PDF is DRM-free, so print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
