Need the exact part numbers for your Yanmar engine? This 44-page Yanmar TL150, 4TNE106T-TBL parts catalog pdf breaks down the entire block, fuel system, and starting motor for your machine. Inside, you get highly detailed exploded views of the cylinder head, turbine assembly, and gear housing showing exactly how every component fits together. Look up replacement numbers for full gasket sets, trace the cooling water system routing, and identify the exact shim pack needed for your fuel injection valve. Confirm whether the camshaft key is a 7X14 or check the M22 drain plug size on the oil pan before making a parts run. Ordering the wrong part wastes days of shop time. Download this file right to your phone, jump to any bookmarked section, find the component number, and get your engine running again.
What's Inside This Yanmar TL150, 4TNE106T-TBL Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| How to Read This Parts Catalog | 1-2 | Parts Catalog Structure, Part Changes, List Format, Interchangeability Marks, Effective Machine Numbers |
| Table of Contents | 3 | - |

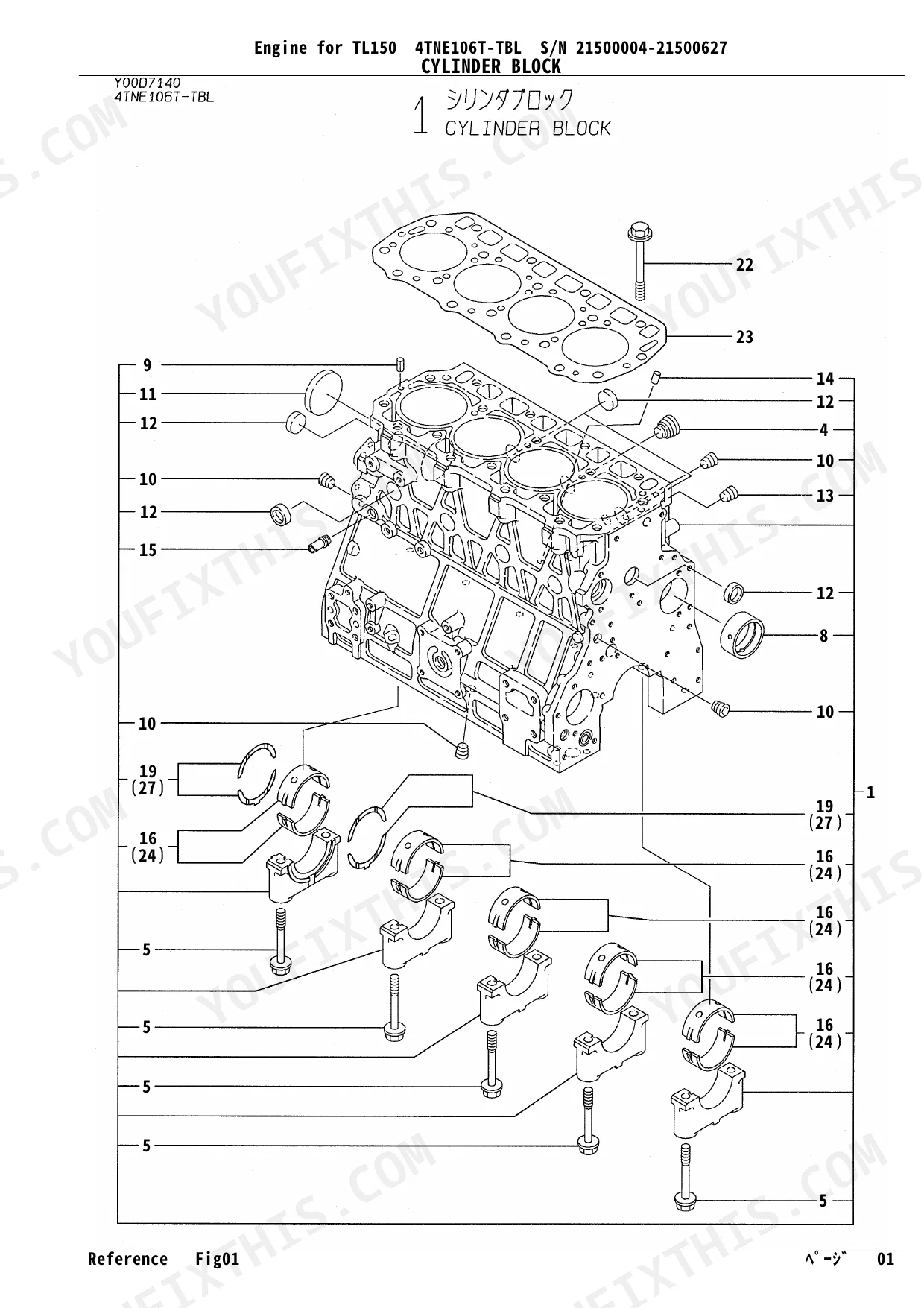

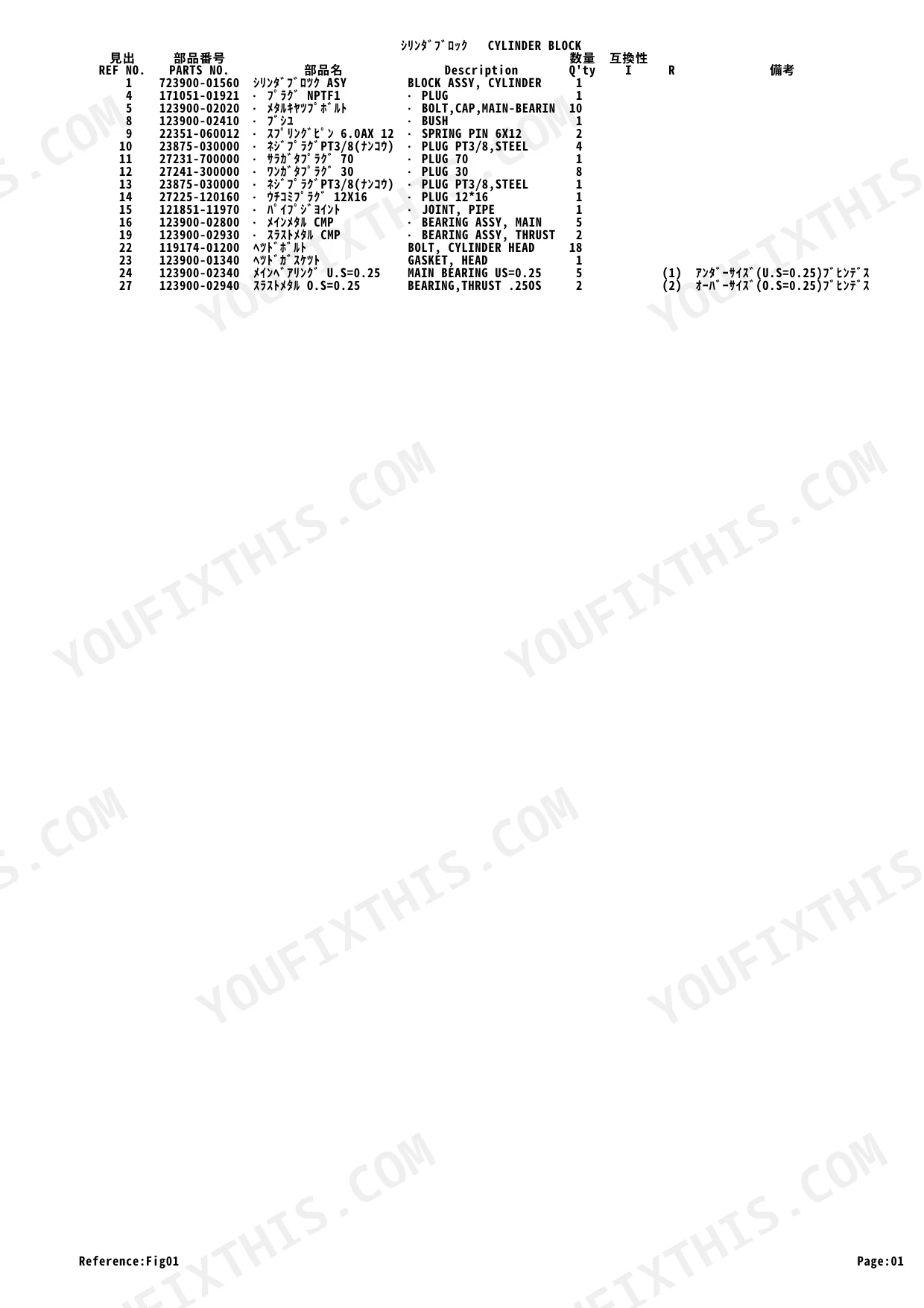

| Cylinder Block | 4-5 | Block Assembly, Plugs, Main Bearings, Thrust Bearings, Cylinder Head Bolts |
| Gear Housing | 6-7 | Housing Cover, Oil Seal, Gear Case Assembly, Ball Bearings, O-Rings |

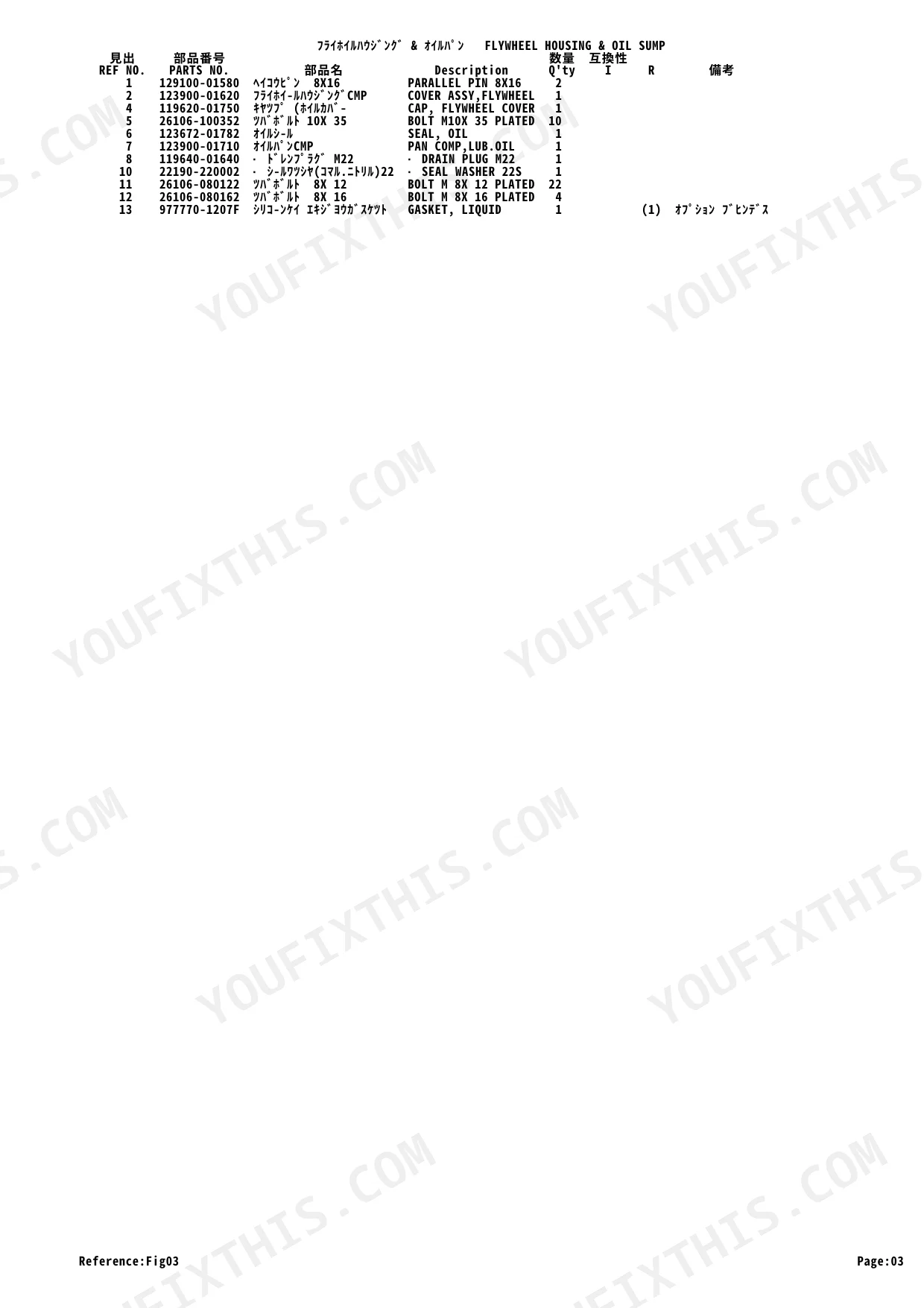

| Flywheel Housing & Oil Sump | 8-9 | Flywheel Housing, Oil Seal, Oil Pan, Drain Plug, Seal Washers |
| Cylinder Head & Bonnet | 10-11 | Cylinder Head Assembly, Valves, Valve Springs, Rocker Arm Assembly, Breather Assembly |
| Suction Manifold & Air Cleaner | 12-13 | Air Intake Manifold, Gaskets, Air Heater, Air Cleaner Assembly, Air Filter Elements |

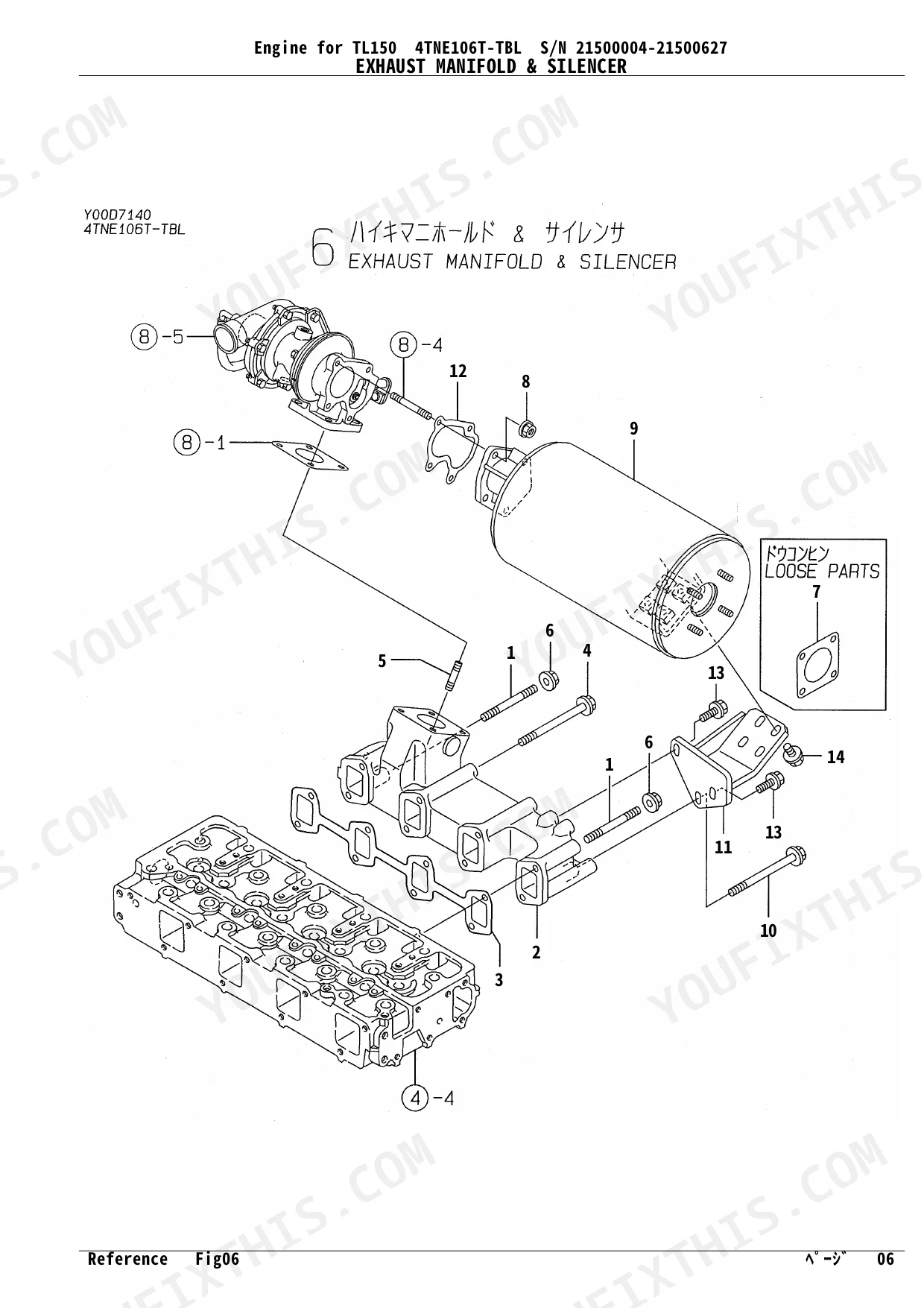

| Exhaust Manifold & Silencer | 14-15 | Exhaust Manifold, Gaskets, Silencer, Stud Bolts, Nuts |
| Camshaft & Driving Gear | 16-17 | Camshaft Assembly, Tappets, Push Rods, Cam Gear, Idle Gear |
| Turbine | 18-19 | Assembly, Gaskets, Washers, Stud Bolts |
| Crankshaft & Piston | 20-21 | Crankshaft Assembly, Piston Assembly, Piston Rings, Connecting Rods, Main Bearings, Crankpin Bearings |
| Lub.Oil System | 22-23 | Oil Cooler, Dipstick, Oil Strainer, Oil Inlet Pipe, O-Rings |
| Lub.Oil Line | 24-25 | Oil Pressure Switch, Oil Pipes, Pipe Joints, Check Valve, O-Rings |
| Cooling Water System | 26-27 | Water Pump, V-Pulley, V-Belt, Cooling Fan, Thermostat, Radiator, Reserve Tank |
| Fuel Injection Pump | 28-29 | Assembly |
| Fuel Injection Valve | 30-31 | Assembly, Nozzle Assembly, Injection Pipes, Shim Pack |
| Fuel Line | 32-33 | Fuel Filter, Fuel Pipes, Water Separator, Overflow Valve, Clamps |
| Engine Stop Device | 34-35 | Stop Solenoid, Linkage, Brackets, Washers |
| Starting Motor | 36-37 | Starter Assembly, Armature, Field Coil, Brushes, Pinion Clutch, Magnetic Switch |
| Generator | 38-39 | Assembly, Belt Adjuster, Relays, Timer, Feed Pump |
| Gasket Set | 40-41 | Head Gasket, O-Rings, Valve Stem Seals, Liquid Gasket |
| Numerical Index | 42-44 | Part Number Lookup, Page Reference, Item Reference |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main Bearing Undersize | 0.25 | p. 5 |
| Thrust Bearing Oversize | 0.25 | p. 5 |
| Drain Plug Size | M22 | p. 9 |
| Valve Guide Plug Size | PT 1/16 | p. 11 |
| Camshaft Key Size | 7X14 | p. 17 |
| Ring Gear Tooth Count | Z=129 | p. 21 |
| Oil Pressure Switch Setting | 0.5KG | p. 25 |
| Fuel Line Pipe Size/Length | 13/7.5X700 | p. 33 |
| Generator Electrical Output | 12V-60A | p. 39 |
| Timer Setting | 1 SEC. | p. 39 |
Yanmar TL150, 4TNE106T-TBL Common Problems This Manual Covers
Yanmar TL150 4TNE106T-TBL hard starting with heavy black smoke and suspected plugged fuel lines p. 32
Open page 32 to view the exploded diagram of the fuel system. Identify the correct part numbers for the water separator and filter elements. Verify the main fuel line matches the required 13/7.5X700 dimensions shown on page 33 before ordering replacements.
Manual Section: Fuel LineLow oil pressure warning light stays on after cold start or during heavy load operation p. 24
Inspect the oil line diagram on page 24 to locate the pressure switch assembly. Check the parts list on page 25 to secure the exact part number for the 0.5KG setting switch. Cross-reference your machine serial number using the interchangeability marks.
Manual Section: Lub.Oil LineBattery drains quickly during operation and requires frequent jump starts in cold weather p. 38
Look at page 38 to find the complete breakdown of the charging system components. Locate the part number for the factory 12V-60A generator listed on page 39. Confirm the belt adjuster bracket and relay part numbers match your specific engine block configuration.
Manual Section: GeneratorCrankshaft knocking noise under load indicating spun bearings or severe bottom end wear p. 4
Check the engine parts diagram on page 4 to identify the main and thrust bearings. Review the parts number list on page 5 to find the correct 0.25 undersize main bearing kit. Confirm all block assembly components match your production run.
Manual Section: Cylinder BlockFrequently Asked Questions
What are the replacement specifications for fuel filters?
For fuel filter replacement, use part number 119000-55601 for the fuel filter cartridge. Additionally, the fuel system includes a water separator, part number 129335-55700, which may also require replacement.
What are the replacement specifications for air filter?
For air filter replacement, the outer element specification is part number 119117-12560 (ELEMENT ASSY OUTER). The inner element specification is part number 119117-12570 (ELEMENT, INNER).
How do you fix yanmar TL150 4TNE106T-TBL hard starting with heavy black smoke and suspected plugged fuel lines?
Open page 32 to view the exploded diagram of the fuel system. Identify the correct part numbers for the water separator and filter elements. Verify the main fuel line matches the required 13/7.5X700 dimensions shown on page 33 before ordering replacements.
How do you fix low oil pressure warning light stays on after cold start or during heavy load operation?
Inspect the oil line diagram on page 24 to locate the pressure switch assembly. Check the parts list on page 25 to secure the exact part number for the 0.5KG setting switch. Cross-reference your machine serial number using the interchangeability marks.
What format is this manual in?
You get a 44-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Yanmar TL150, 4TNE106T-TBL Parts Catalog?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
