Need the exact part number for your Yanmar 4TNV98-ZNMS or 4TNV98-ZNGT? This 78-page parts catalog (OEM #917304) covers all seven engine variants running in Mustang 2056 Series II, 2066, 2076, 2086, and 2700V loaders. Inside, you get exploded-view sections spanning every major assembly: cylinder block, gear housing, flywheel housing, oil sump, cylinder head, both intake and exhaust manifolds, camshaft, crankshaft, piston assemblies, the full lubrication and cooling systems, fuel injection pump, governor, injectors, fuel lines, starter motor, and electric parts. Each section pairs a detailed diagram with a numbered parts list so you can match the component on the machine to its exact Yanmar part number. Turbocharged variants (T-ZNMS, T-ZXNMS, T-ZXNMS2) get dedicated turbine and lubrication line sections, separate from the naturally-aspirated content. Wrong part ordered is a day wasted. Bookmarked and keyword-searchable; pull up the exploded view before you call the parts counter.
What's Inside This Yanmar 4TNV98-ZNMS / ZNGT / ZNTBL (Mustang / Gehl / Manitou) Parts Manual
| System | Pages | Key Topics |
|---|---|---|

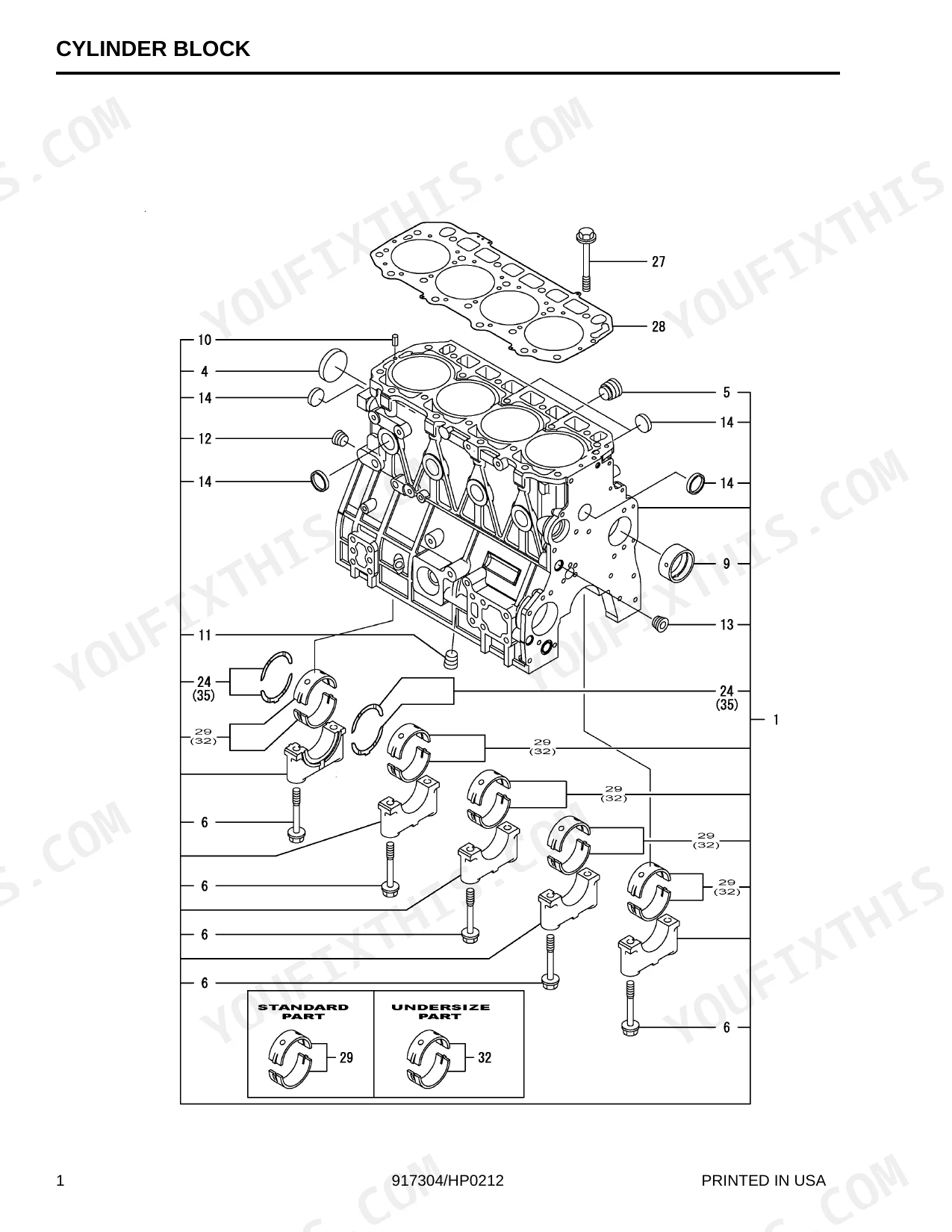

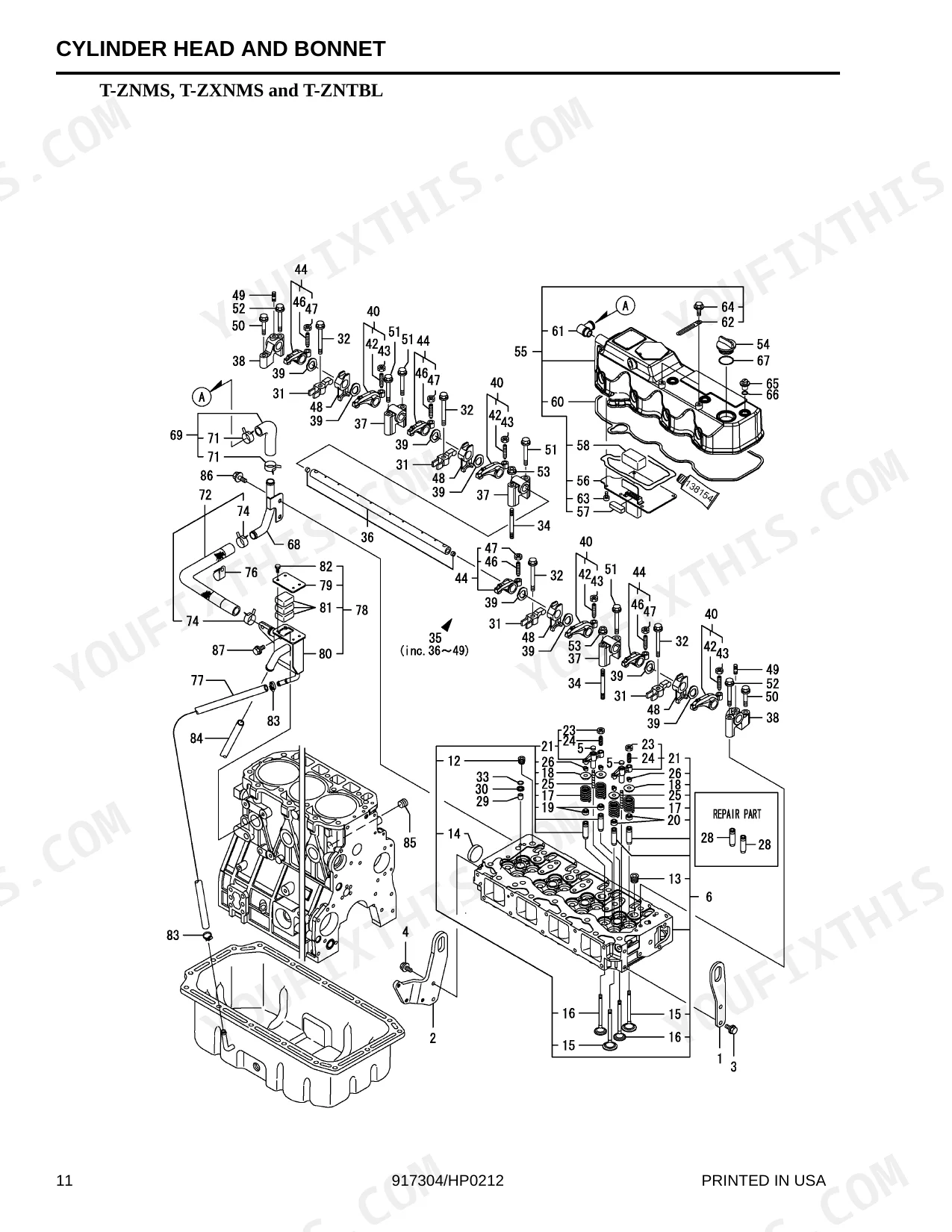

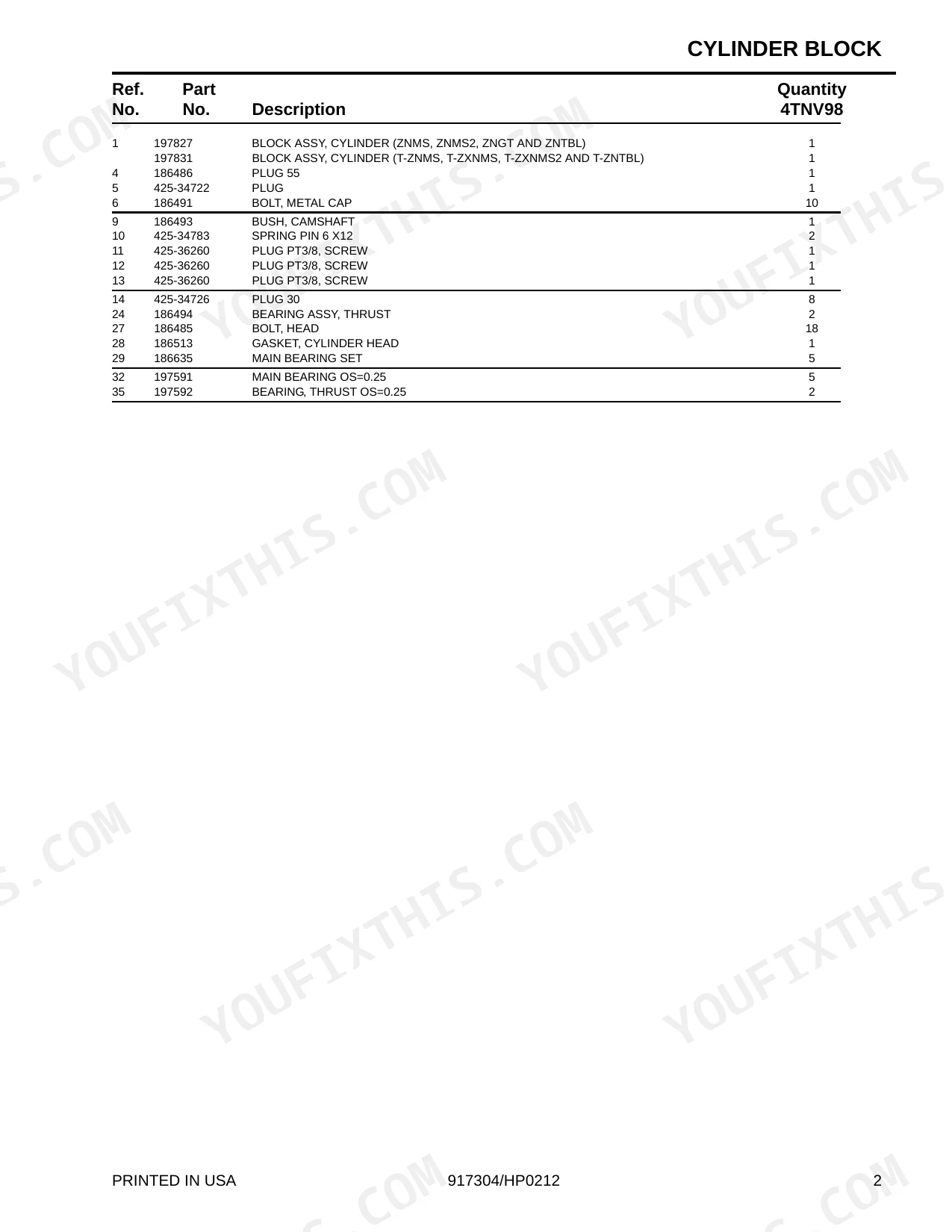

| Engine Service Parts | 3-12 | Cylinder Block, Gear Housing, Flywheel Housing and Oil Sump, Cylinder Head and Bonnet, Suction Manifold, Exhaust Manifold and Silencer, Camshaft and Driving Gear |
| Parts Listing Continued on Next Page | 13 | Fuel Injection Pump, Governor, Fuel Injection Valve, Fuel Line, Starting Motor, Cylinder Head and Bonnet, T-Znms, T-Zxnms and T-Zntbl |
| Section Notes | 12-14 | - |
| Suction Manifold | 15-18 | Packing, Manifold, Stud, Bolt, Gasket, Heater |

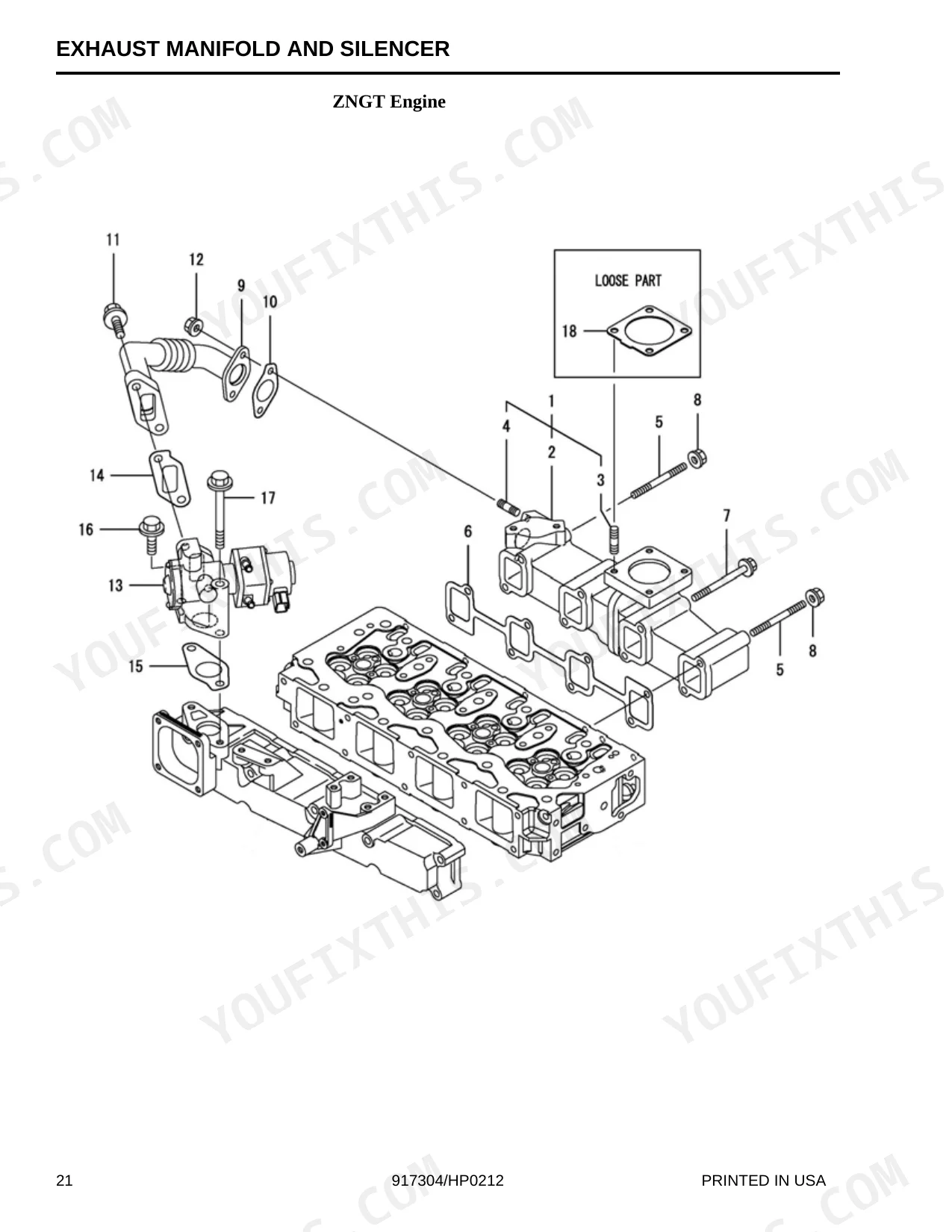

| Exhaust Manifold and Silencer | 19-24 | Manifold, Stud, Bolt, Gasket, EGR Pipe, Silencer |
| Camshaft and Driving Gear | 25-26 | Tappet, Push Rod, Camshaft Assy, Gear, Key, Bolt |
| Crankshaft and Piston | 27-28 | Crankshaft Complete, Gear, Piston Assy, Ring Set, Piston Pin, Connecting Rod |
| Lubrication Oil System | 29-36 | Oil Cooler, Dipstick, Oil Filter, Oil Pipe, Oil Pressure Sender, Seal Washer |
| Cooling Water System | 37-42 | Water Pump, Thermostat, Pulley, V-Belt, Subtank, Clamp |
| Fuel Injection Pump | 43-46 | Injection Pump Assy, Delivery Valve, Timer, Solenoid Valve, Piston, Seal Washer |
| Governor | 47-48 | Packing, Case, Nut, Weight, Sensor, Speed, Gear |
| Fuel Injection Valve | 49-50 | Fuel Injector, Nozzle Assy, Nut, Nozzle Case, Holder Assy, Nozzle, Spring |
| Fuel Line | 51-52 | Bracket, Fuel Filter, Filter, Fuel Oil, Pipe Assy, Fuel, Clamp, Pump Assy |
| Starting Motor | 53-54 | Starter, Armature Assy, Coil Assy, Field, Brush, Switch Assy, Magnetic, Pinion Assy |
| Electric Parts | 55-56 | ECU Assy, Relay, Accel Sensor Assy, Sensor Assy, Accel, Gasket, Support, Timer |
| Tool and Gasket Set | 57-60 | Gasket Set, Gasket, Cylinder Head, O-Ring, Packing, Seal, Valve Stem |
| Turbine (Turbocharged) | 61-62 | Gasket, Nut, Bolt |
| Lubrication Oil Line (Turbocharged) | 63-64 | Sender, Oil Pressure, Pipe Assy, Lub Oil, Retainer, Bolt, Pipe Joint, Seal Washer |
| Generator | 65-78 | Alternator, Rotor Assy, Bearing, Pulley, Regulator, Adjuster, Belt |
