Getting your marine engine ready for the water is straightforward with this 104-page Yanmar 6LPA Series Operation Manual PDF (OEM #0A6LP-G00101) covering the 6LPA-STP2 and 6LPA-STZP2 variants. Open the file to find a massive periodic maintenance schedule detailing everything from the initial 50-hour break-in checks to the heavy 1250-hour service intervals. You get full factory wiring diagrams, complete piping schematics, and detailed troubleshooting charts for diagnosing start-up failures or poor acceleration. Set your alternator V-belt deflection strictly to 8-10 mm (3/8 inch), and verify the exhaust water mixing elbow gets replaced every 500 hours or two years. A dead engine miles off the coast is every captain’s worst nightmare. Grab this bookmarked download, open it on your tablet right in the engine room, and fix the problem fast.
What's Inside This Yanmar 6LPA-STP2, 6LPA-STZP2 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-8 | Record of Ownership |
| Safety | 9-14 | Safety Precautions (Before You Operate, During Operation and Maintenance), Location of Safety Decals |

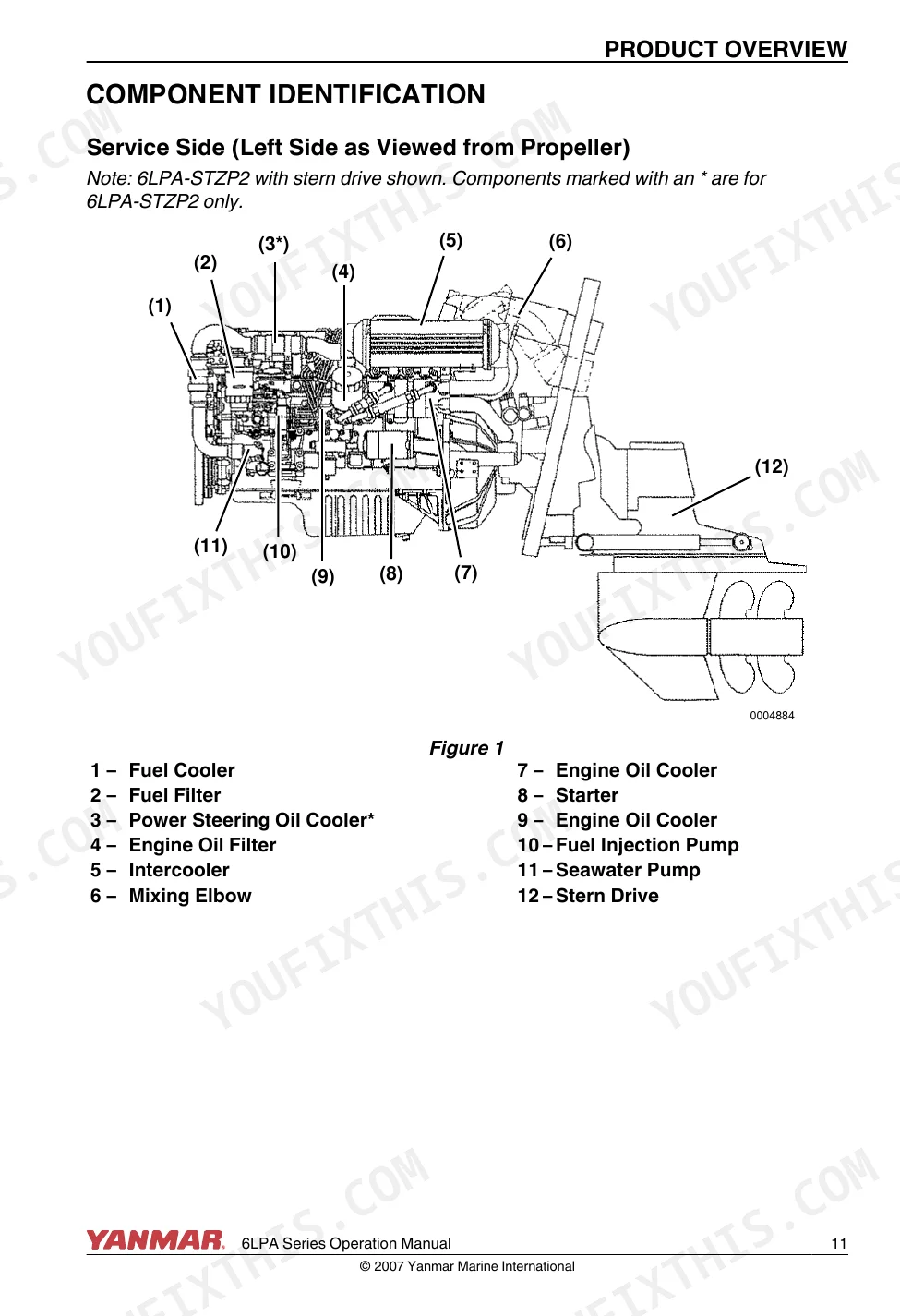

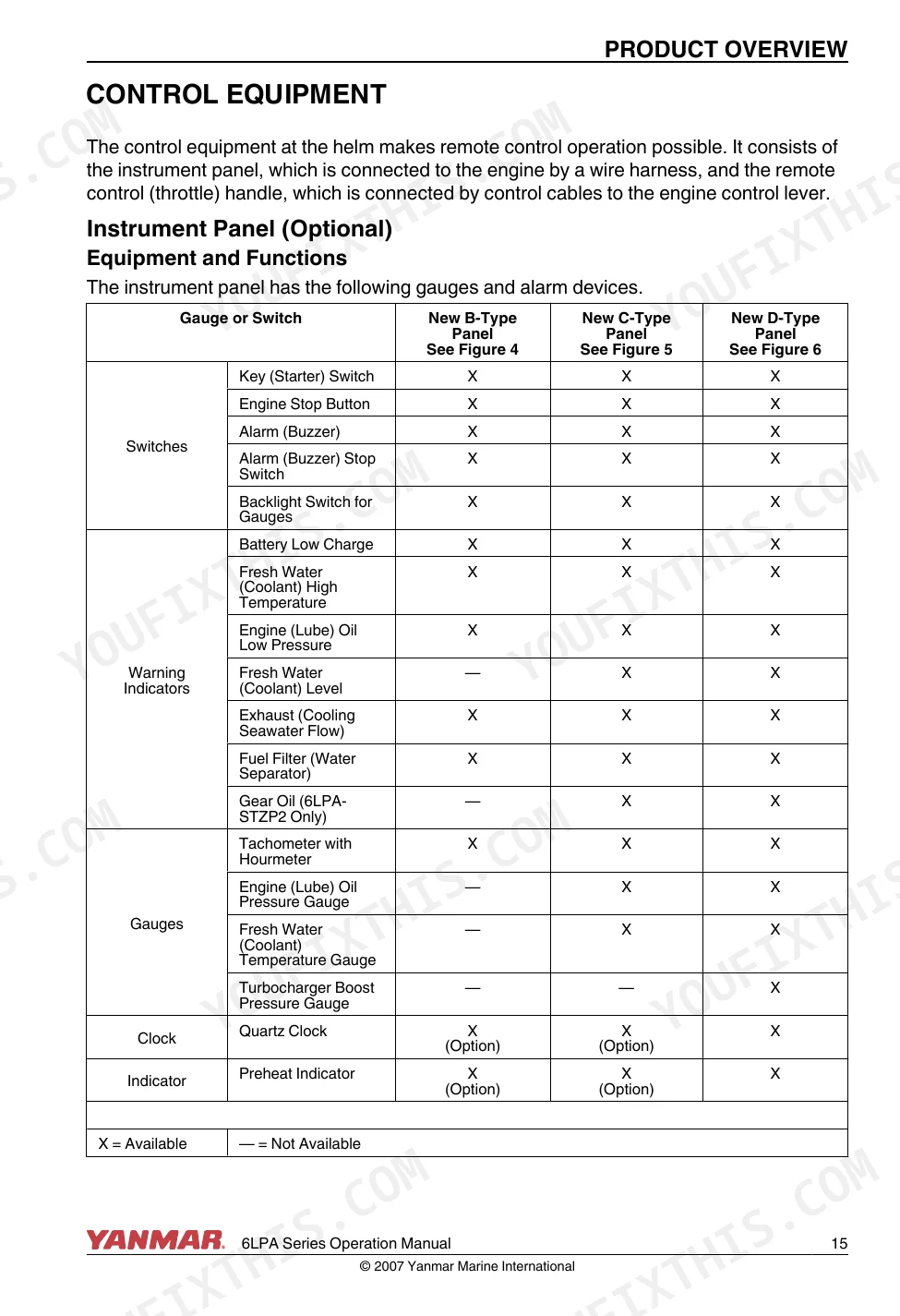

| Product Overview | 15-32 | Yanmar 6LPA Features and Applications, New Engine Break-In, Component Identification (Service Side, Non-Service Side), Engine Nameplate, Function of Major Components |
| Before You Operate | 33-44 | Diesel Fuel (Specifications, Filling the Fuel Tank, Bleeding the Fuel System), Engine Oil (Specifications, Viscosity, Checking the Engine Oil, Adding Engine Oil) |

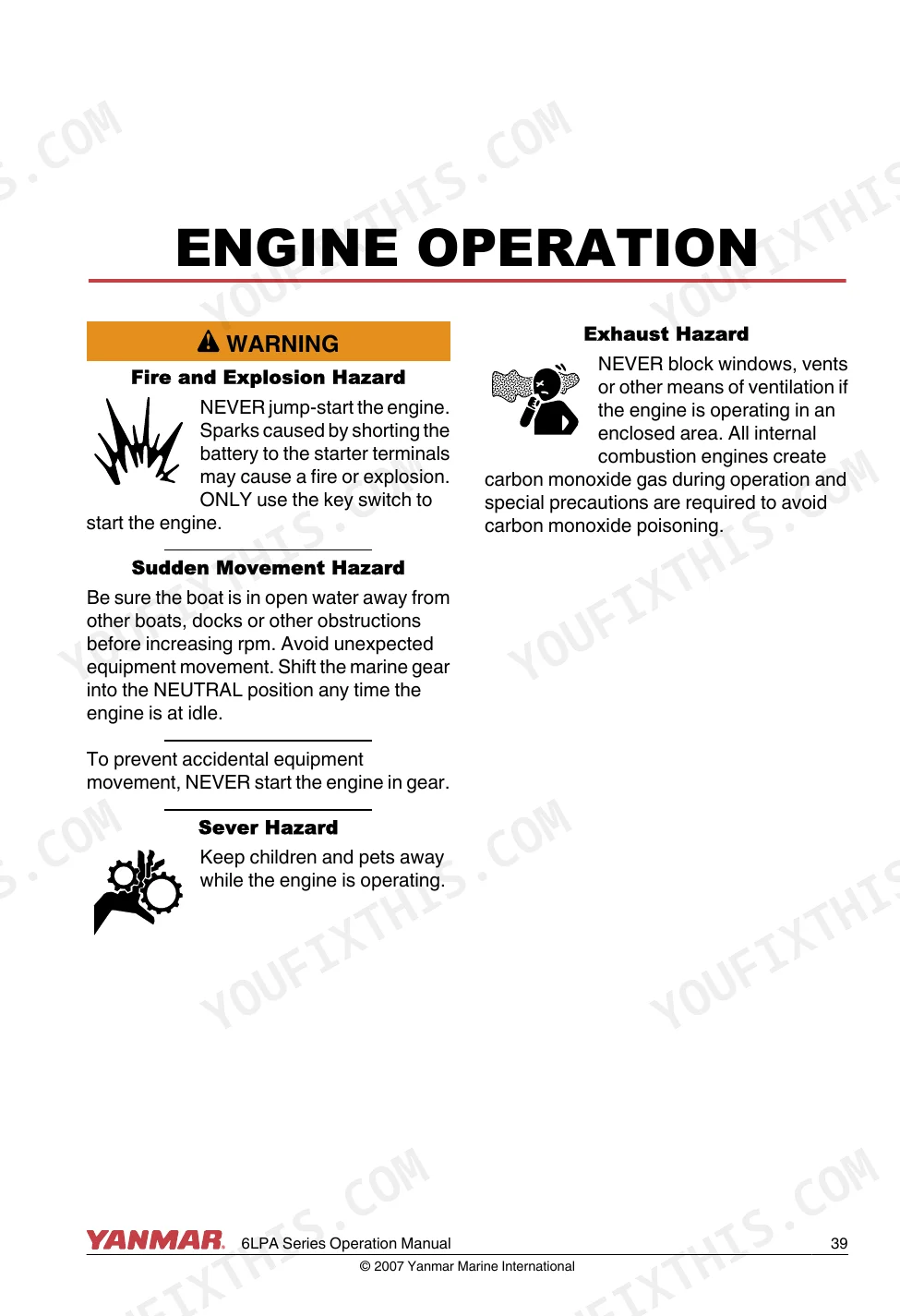

| Engine Operation | 45-52 | Starting the Engine (Starting at Low Temperatures, Restarting After Starting Failure, After the Engine Has Started) |
| Periodic Maintenance | 53-76 | Safety Precautions |
| Troubleshooting | 77-84 | Troubleshooting After Starting, Troubleshooting Chart, Troubleshooting Information |
| Long-Term Storage | 85-88 | Prepare Engine for Long-Term Storage, Draining the Fresh Water and Seawater Cooling System, Removing the Engine From Long-Term Storage |

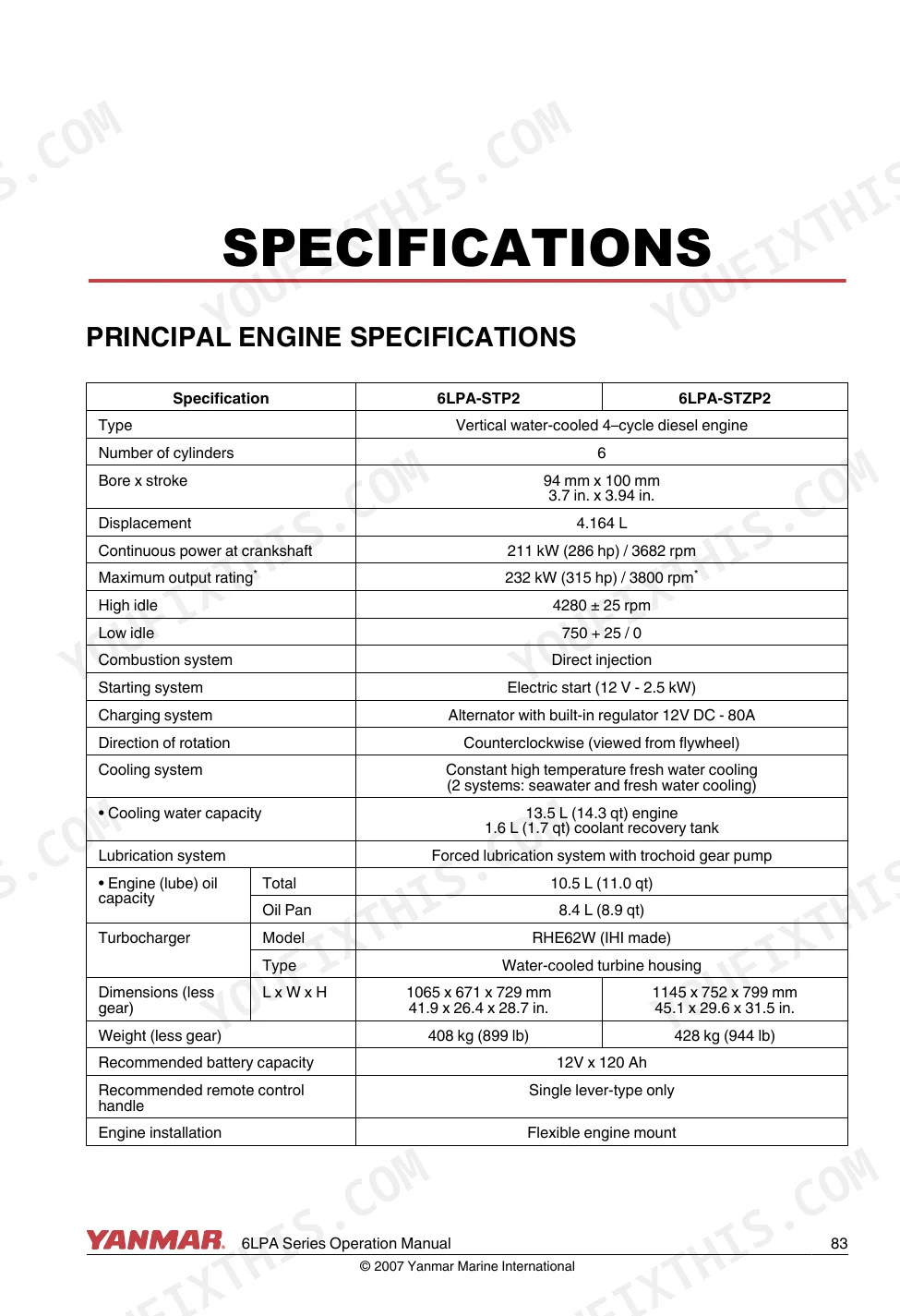

| Specifications | 89-92 | Principal Engine Specifications, Marine Drive Specifications |
| System Diagrams | 93-98 | Piping Diagrams, Wiring Diagrams |
| Epa Warranty Usa Only | 99-104 | Yanmar Co., Ltd. Limited Emission Control System Warranty - Usa Only |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Exhaust / Water Mixing Elbow replacement interval | Every 500 hours or 2 years | p. 60 |
| Engine installation type | Flexible engine mount | p. 89 |
| Fuel line and rubber hoses replacement interval | Every 500 hours or 2 years | p. 72 |
| Air cleaner cleaning interval | Every 250 hours or one year | p. 60 |
| Alternator V-Belt deflection | 8 - 10 mm (3/8 in.) | p. 73 |
| Fuel cetane number (related to white smoke) | 45 or higher | p. 34 |
| Maximum allowable coolant temperature (alarm threshold) | 95˚C (203˚F) or higher | p. 26 |
| Engine (Lube) Oil Capacity (Total) | 10.5 L | p. 89 |
| Recommended SAE Engine Oil Viscosity | 10W30 or 15W40 | p. 36 |
| Fresh Water (Coolant) High Temperature Alarm | 95˚C | p. 26 |
| Alternator V-Belt Tension Deflection | 8 - 10 mm | p. 73 |
| Fuel Filter Element Initial Replacement Interval | 50 hours | p. 60 |
Yanmar 6LPA-STP2, 6LPA-STZP2 Common Problems This Manual Covers
Yanmar 6LPA progressive inability to start and noticeable loss of engine compression. p. 77
Inspect the exhaust mixing elbow for internal corrosion and replace it every 500 hours or 2 years as outlined on page 60. Check the engine oil level and verify it holds the specified 10.5 L capacity on page 89 to rule out water intrusion damage.
Manual Section: TroubleshootingEngine triggers high temperature alarm under load and exhibits repeated overheating symptoms. p. 77
Drain and flush the cooling system to remove scale buildup. Refill with fresh coolant, maintaining an LLC concentration of 30% to 60% as specified on page 39. Verify the fresh water high temperature alarm activates correctly at 95˚C (page 26) to prevent thermal damage under load.
Manual Section: Troubleshooting After StartingExcessive white smoke from the exhaust at startup and persistent rough running. p. 33
Drain the fuel filter water separator to remove accumulated moisture. Replace the fuel filter element if it exceeds the 50 hours initial replacement interval noted on page 60. Ensure your fuel meets specifications with a cetane number of 45 or higher found on page 34.
Manual Section: Before You OperateBattery low charge indicator stays illuminated and belt squeals during high RPM operation. p. 53

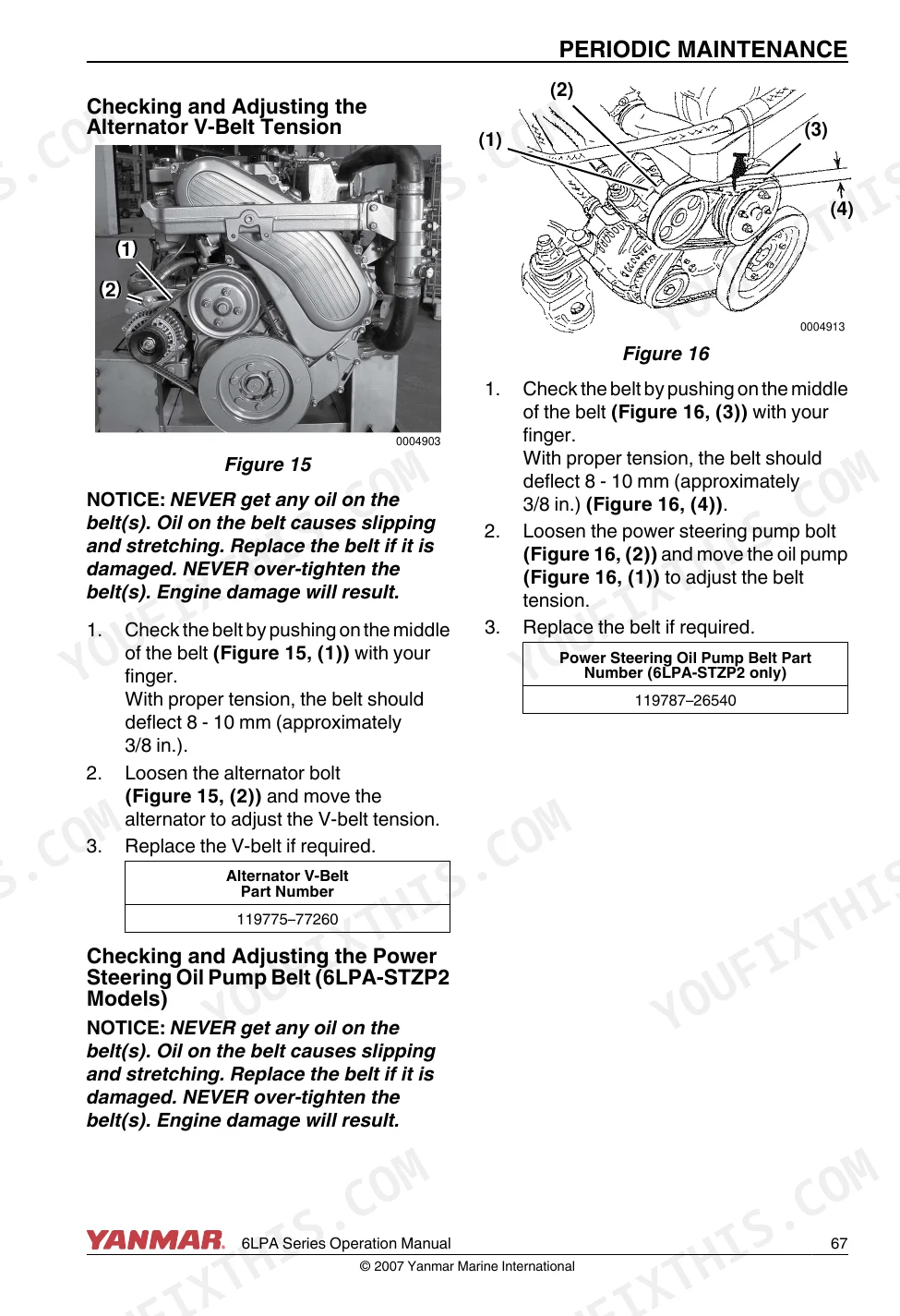

Check the alternator V-belt tension deflection and adjust it to 8 - 10 mm as detailed on page 73. Inspect the belt for glazing or cracking. Retorque the mounting hardware using the standard M10 x 1.5 bolt tightening torque of 50.0 ± 5.0 N·m from page 57.
Manual Section: Periodic MaintenanceFrequently Asked Questions

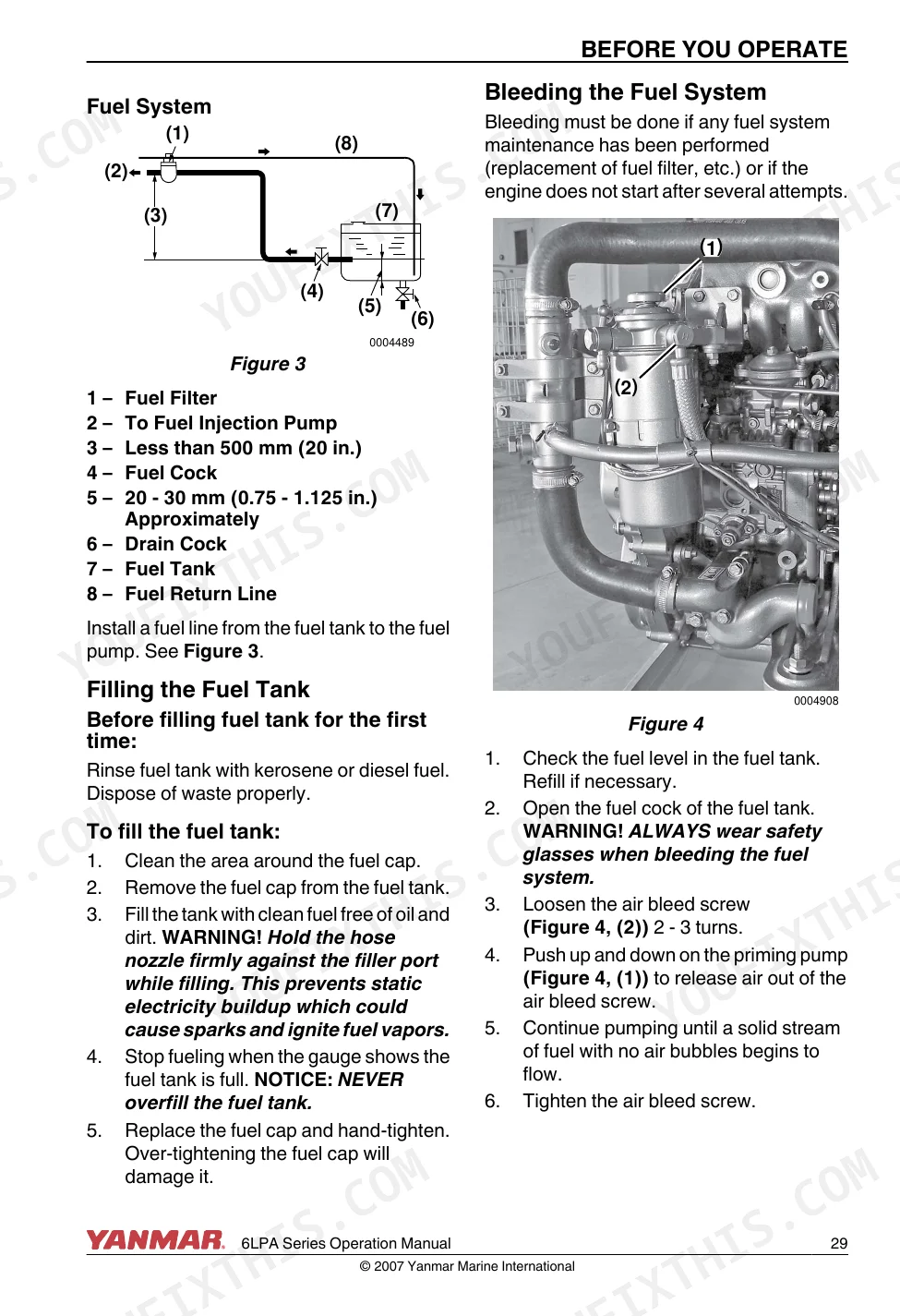

How do I bleed the fuel system on a YANMAR 6LPA engine?
To bleed the fuel system, first check the fuel level and refill if necessary, then open the fuel cock. Loosen the air bleed screw (Figure 4, (2)) 2-3 turns, and push the priming pump (Figure 4, (1)) up and down until a solid stream of fuel with no air bubbles begins to flow. Finally, tighten the air bleed screw.
What causes a YANMAR 6LPA-STP2 to crank but not start?
If the starter turns but the engine does not start, probable causes include no fuel, air in the fuel line, a clogged fuel filter, improper fuel, a problem with fuel injection, or compression leakage from the intake/exhaust valve. Each of these issues requires specific corrective actions, such as adding fuel, bleeding the fuel system (page 29), or replacing the fuel filter element (page 60).
How do I reset the shutdown alarm on a YANMAR 6LPA?
The alarm (buzzer) stop switch is used to temporarily shut off the alarm. To reset or turn off the alarm, press the Alarm (Buzzer) Stop Switch when inspecting for the cause of the abnormality. It is crucial to inspect and repair the abnormality immediately after silencing the alarm.
How do you fix yanmar 6LPA progressive inability to start and noticeable loss of engine compression?
Inspect the exhaust mixing elbow for internal corrosion and replace it every 500 hours or 2 years as outlined on page 60. Check the engine oil level and verify it holds the specified 10.5 L capacity on page 89 to rule out water intrusion damage.
How quickly can I access this manual after buying?
This is a 104-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Yanmar 6LPA series Operation Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

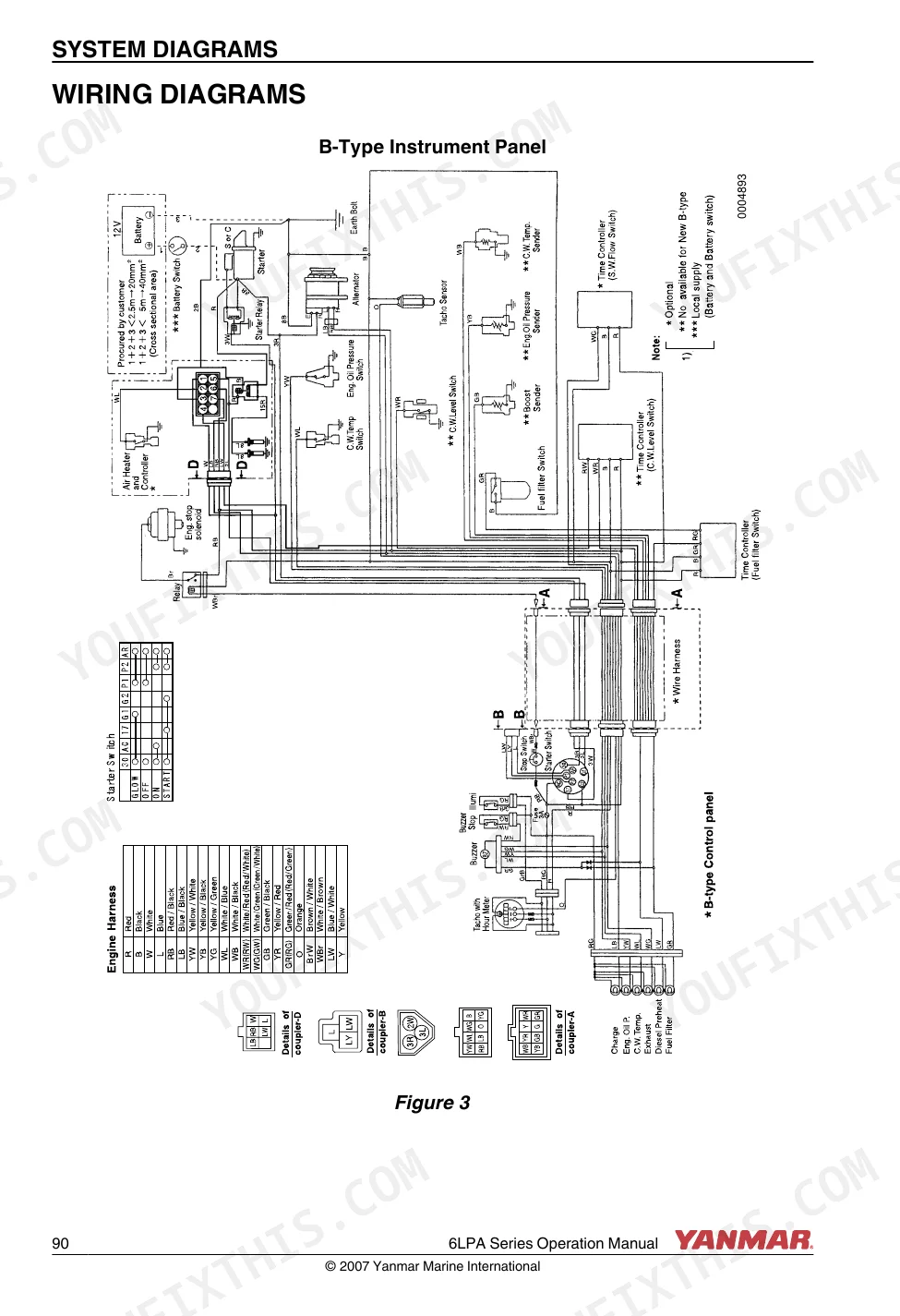

Are there wiring harness diagrams in this Yanmar 6LPA series manual?
Yes. You'll find an electrical wiring diagram covering the main wiring layout.
