Master the controls of your compact tractor with this 168-page Yanmar LX410, LX450, LX490 Operator Manual PDF (OEM #0A042-U00400), detailing every instrument panel function, safety warning, and daily check. Open to the periodic service section for a complete checklist of fluid capacities, grease points, and strict replacement intervals. You get step-by-step instructions for operating the 3-point hitch, engaging the PTO safely under load, and adjusting your wheel weights for maximum traction in rough terrain. Swap out the engine oil filter at the 50-hour mark, then torque your R1 wheel bolts to 101.17-108.34 ft-lbs to prevent lug failure in the field. Stop risking your equipment with unverified forum advice. Download this cleanly bookmarked file straight to your tablet, walk out to the tractor, and get back to work.
What's Inside This Yanmar LX410, LX450, LX490 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | Welcome to the World of Yanmar Tractor |
| Pictographs | 4-10 | Safety Alert Symbol, Instrument Panel, Starter Key Switch, Levers and Knobs |
| Safety Precautions | 11-26 | About the Operator’s Manual, Safety Alert Symbol, Precautions Before Operating the Tractor, Safe Practices for Operating the Tractor, Operate the Tractor on Slopes |
| Service the Tractor | 27-28 | Tractor Serial Number, Engine Serial Number, Roll-Over Protective Structure (ROPS) Serial Number |

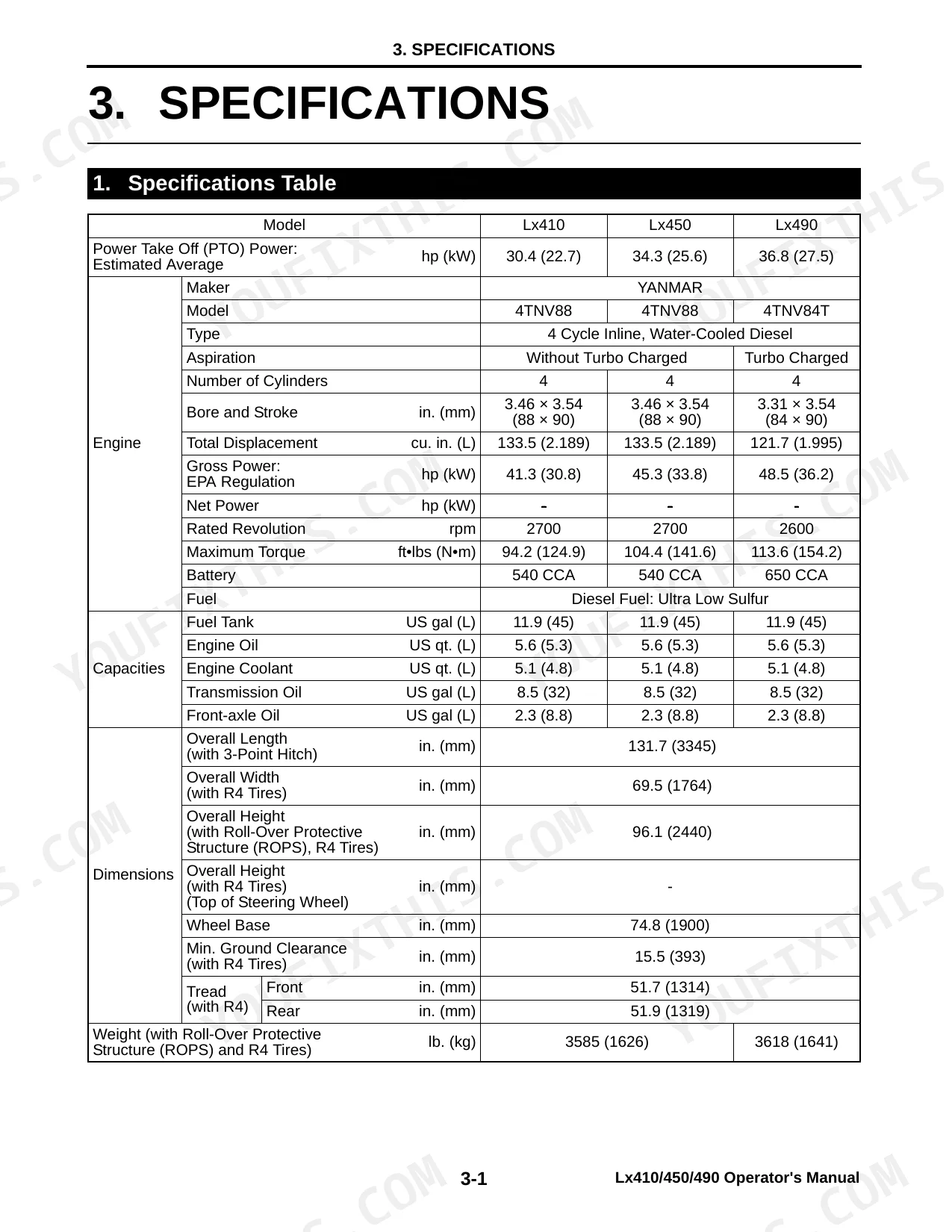

| Specifications | 29-32 | Specifications Table, Traveling Speeds |
| Implement Capacities | 33-34 | Lower Link End Maximum Lifting Capacity, Implement Weight, Maximum Drawbar Load, Trailer Loading Weight Maximum Capacity |

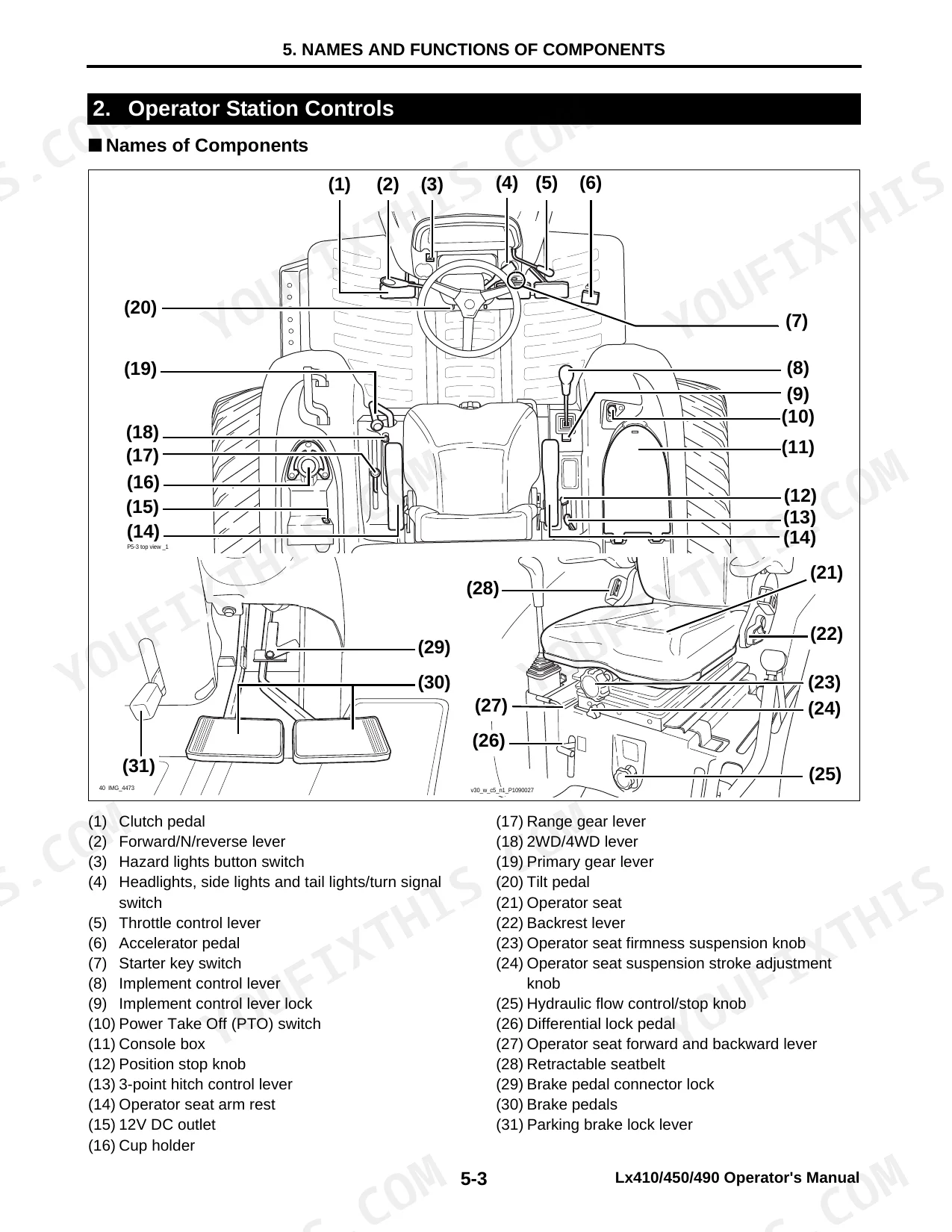

| Names and Functions of Components | 35-48 | Operator Station Controls, Instrument Panel |
| Pre-Operation Check | 49 | Precautions Before Operation, Routine Checks, Prevent Damage to Plastic Surfaces and Painted Surfaces |
| Operate the Engine | 50-59 | Start the Engine, Start the Engine in Cold Weather, Shut Off the Engine, Restart a Stalled Engine, Start When the Engine Runs Out of Fuel |

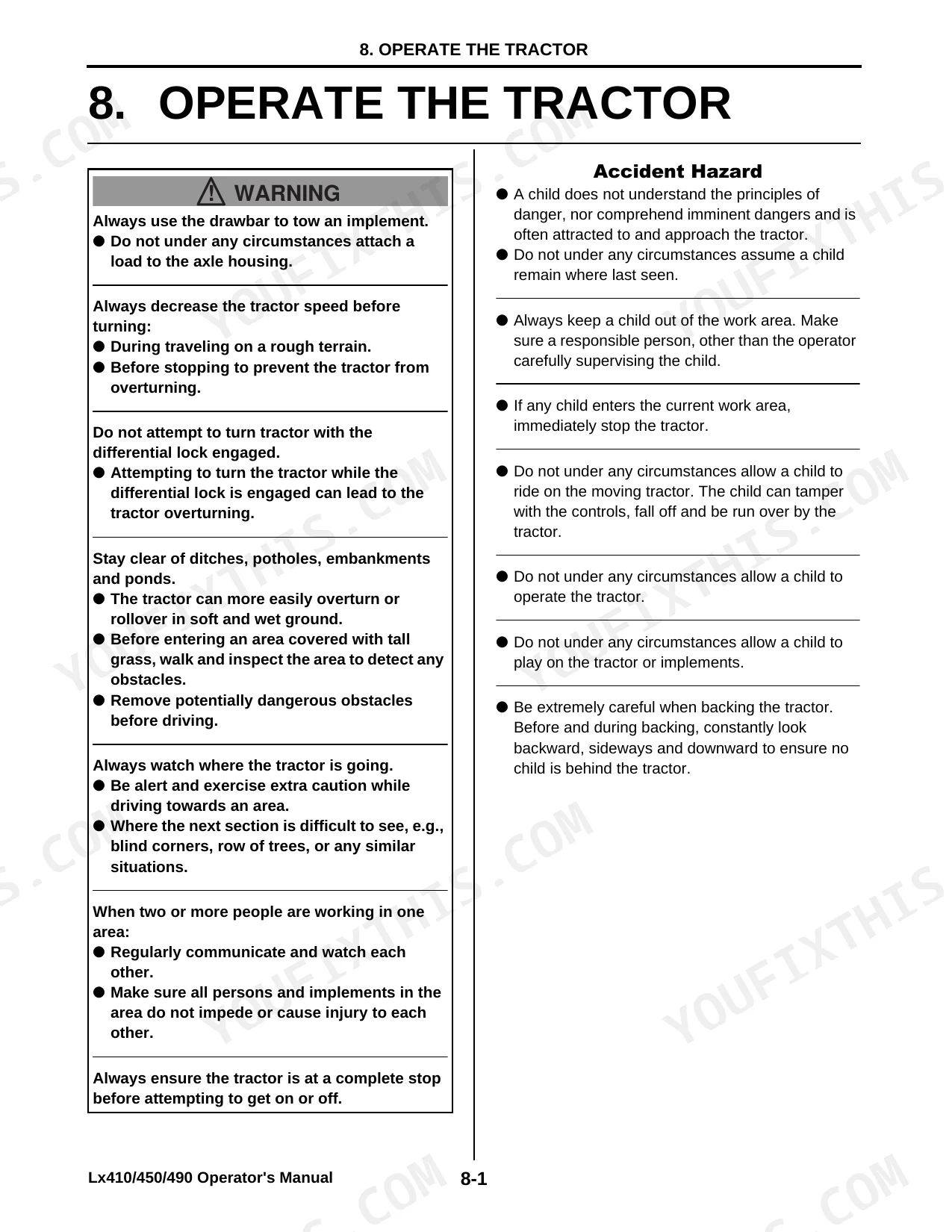

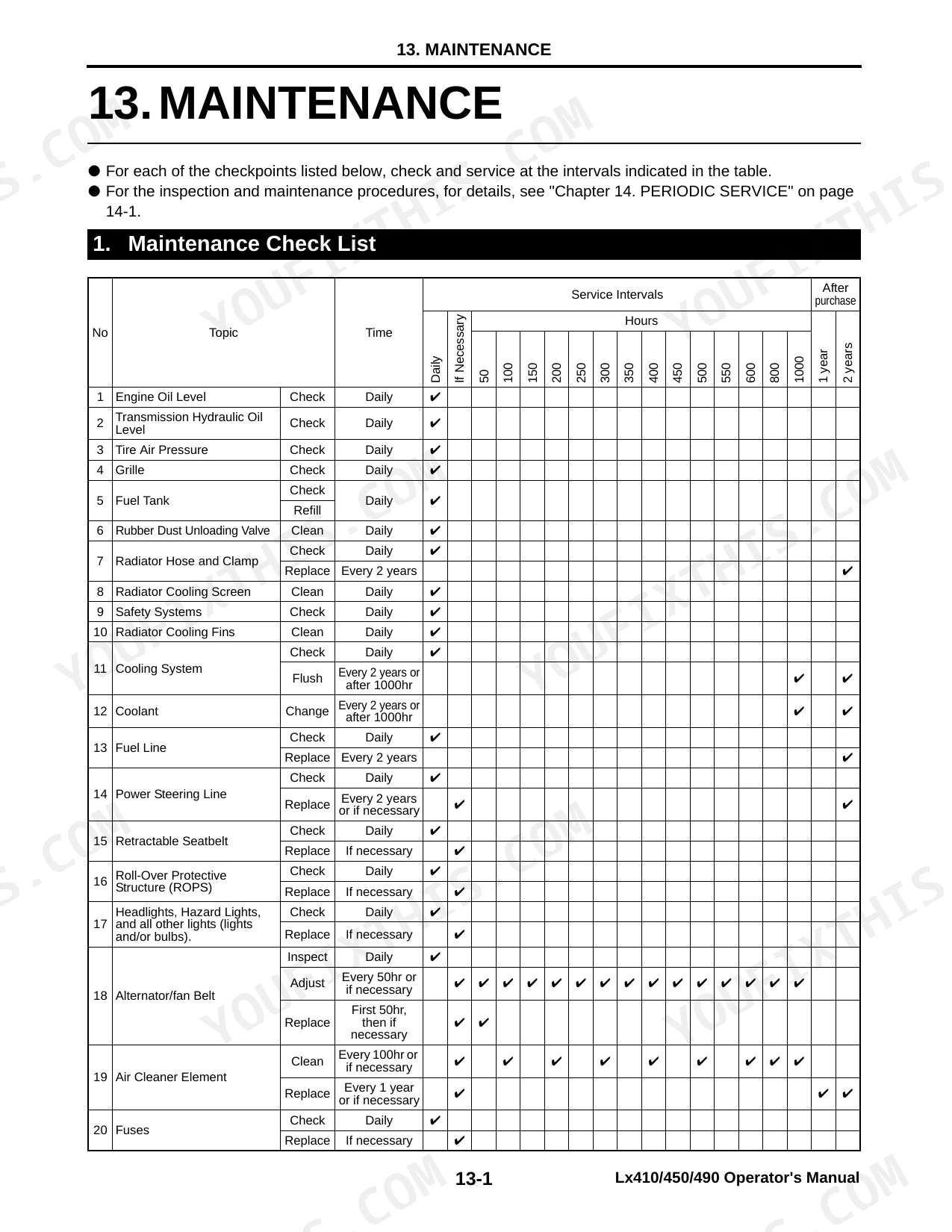

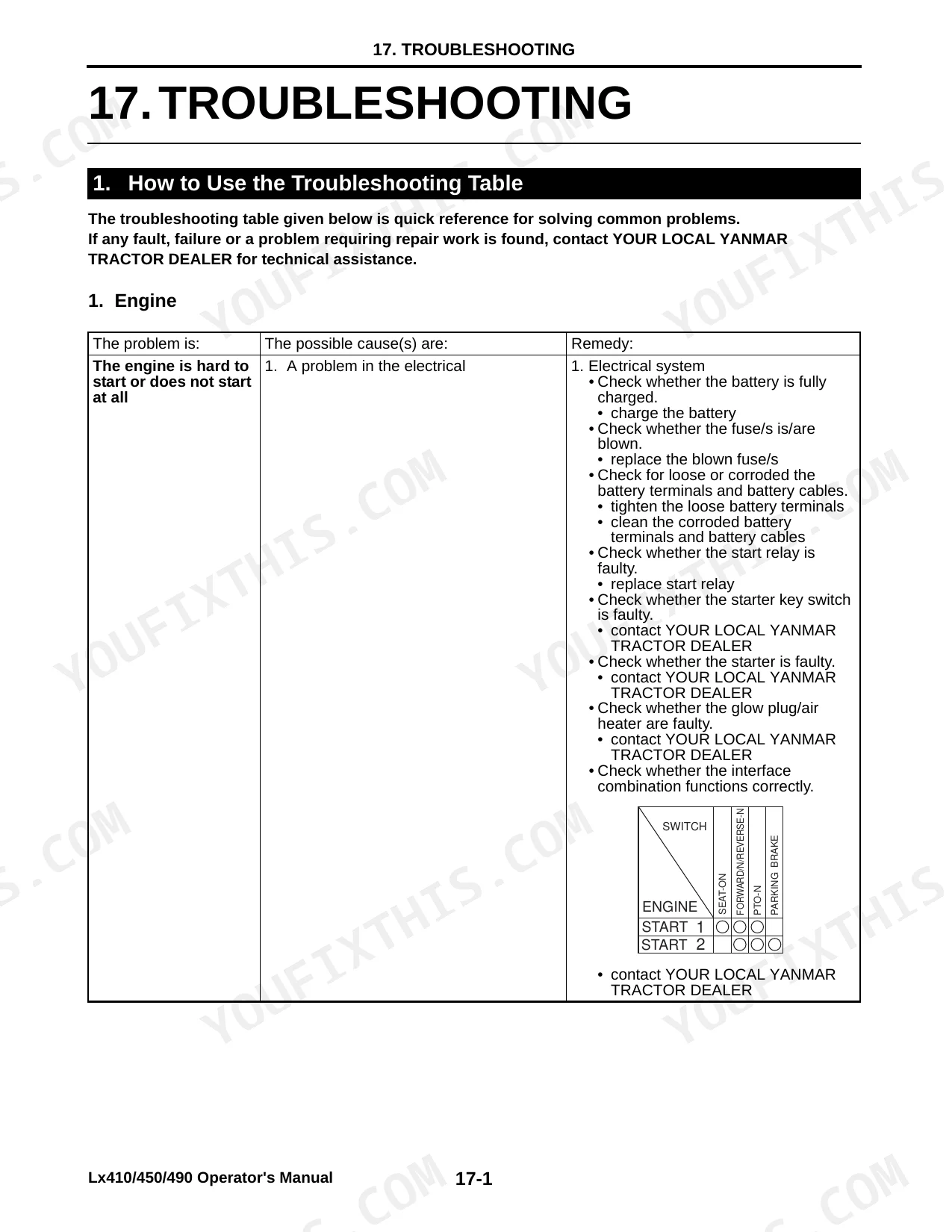

| Operate the Tractor | 60-78 | Operate a New Tractor, Raise and Lower the Roll-Over Protective Structure (ROPS), Stop the Tractor, Use the Brake, Practices for Safe Operation |
| Power Take Off (PTO) System | 79-82 | Operate the Power Take Off (PTO) System, Use Power Take Off (PTO) Safely, Install an Implement to Power Take Off (PTO) Driveline |
| 10. 3-Point Hitch and Drawbar | 83-89 | 3-Point Hitch, Drawbar, Use the Safety Chain |
| Hydraulic System | 90-94 | 3-Point Hitch Control System, Operate the Implement Control Valve |
| Tires, Wheels and Weights | 95-102 | Tires, Adjust the Wheels, Remove/Install the Wheels, Weights (Option) |
| Maintenance | 103-107 | Maintenance Check List, Diesel Fuel Specifications, Lubricants, Replacement Parts |
| Periodic Service | 108-141 | N Service the Tractor, N Warranty and Repair of the Engine, Open/Close the Hood, Daily Checks, Check and Replace As Necessary, First 50 Hours, Every 50 Hours, Every 100 Hours |
| Service the Electrical System | 142-149 | Battery, Fuses, Bulb, Headlights |
| Storage | 150-151 | Safe Practices for Storage, Prepare the Stored Tractor for Operation |
| Troubleshooting | 152-162 | How to Use the Troubleshooting Table |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Bolt Tightening Torque (R1 tires) | 101.17 to 108.34 ft•lbs (137.2 to 147 N•m) | p. 96 |
| Wheel Bolt Tightening Torque (R3 tires) | 101.17 to 108.34 ft•lbs (137.2 to 147 N•m) | p. 96 |
| Engine Oil Filter Replacement Interval | 50/200hr and every 200hr after | p. 104 |
| Engine Oil Filter Installation Torque Procedure | Until the gasket is seated against the engine oil filter base. Turn the engine oil filter an additional half turn. | p. 133 |
| Transmission Hydraulic Oil Filter Replacement Interval | 50/300hr and every 300hr after | p. 104 |
| Transmission Hydraulic Oil Filter Installation Torque Procedure | Continue turning until the gasket is seated against the transmission hydraulic oil filter base. Turn the transmission hydraulic oil filter an additional of approximately 1/2 turn. | p. 135 |
| Fuel Filter Replacement Interval | Every 500hr or if necessary | p. 104 |
| Fuel Filter Installation Torque Procedure | hand tighten until the gasket is seated against the fuel filter base. Turn the fuel filter an additional of approximately 1/2 turn. | p. 136 |
| Overall Width (with R4 Tires) | 69.5 in. (1764 mm) | p. 29 |
| Minimum Ground Clearance (with R4 Tires) | 15.5 in. (393 mm) | p. 29 |
| Lx410, Lx450 | ||
| Battery Cold Cranking Amps (CCA) | 540 CCA | p. 29 |
| Lx490 | ||
| Battery Cold Cranking Amps (CCA) | 650 CCA | p. 29 |
Yanmar LX410, LX450, LX490 Common Problems This Manual Covers
Yanmar Lx410 engine cranks slowly but will not start in cold weather p. 152
Test the battery voltage with a multimeter. Verify the reading is above 11V. If the reading is 11V or lower, replace the battery with a new 12V unit as instructed on page 143. Clean the battery terminals and ensure all connections are tight before attempting to restart.
Manual Section: Engine No-Start/Hard Start3-point hitch lifts slowly or fails to raise implements to full height p. 162
Check the transmission hydraulic oil level on the dipstick. Fill the reservoir to maintain the required 8.5 US gal (32 L) capacity found on page 29. If the fluid level is correct, replace the transmission hydraulic oil filter, which is mandated at the 50-hour mark and every 300 hours thereafter.
Manual Section: 3-Point Hitch Hydraulic System IssuesTractor pulls to one side and front wheels feel sluggish during steering operations p. 161
Inspect the front tires for uneven wear and verify correct inflation. Inflate R1 front tires to exactly 28 psi (0.19 MPa) as specified on page 95. If pulling continues, verify the wheel bolts are secure and torque R1 tire bolts to between 101.17 and 108.34 ft-lbs (137.2 to 147 N-m).
Manual Section: Steering System MalfunctionsEngine stalls intermittently during operation or idles roughly under heavy drawbar load p. 154
Inspect the fuel lines and replace the fuel filter if clogged. Install the new filter as described on page 136 by hand tightening until the gasket is seated against the base. Turn the fuel filter an additional 1/2 turn to ensure a proper seal and prevent air leaks.
Manual Section: Engine Running Issues (Roughly/Stalls)Frequently Asked Questions
What do the warning lights and error codes mean on a YANMAR LX490?
The instrument panel on the YANMAR LX490 displays various indicator lights, including Forward/N/reverse lever N (neutral), Turn signal/hazard, Power Take Off (PTO), and Parking brake indicator lights. It also features a Coolant temperature gauge, Hour meter, Tachometer, Fuel gauge, Glow plug indicator light, Alternator/Battery charging light, and Engine oil pressure warning light. The manual provides detailed descriptions for each, along with important actions to take if warning lights like the coolant temperature, alternator/battery charging, or engine oil pressure illuminate, often directing to specific troubleshooting sections or to contact a dealer for issues like engine hard starting, rough running, or loss of power.
How do I troubleshoot a no-start condition on a YANMAR LX410?
To troubleshoot a no-start condition on a YANMAR LX410, first check the electrical system. Ensure the battery is fully charged, replace blown fuses if any, tighten loose or corroded battery terminals and cables, and check the start relay and starter key switch. If the issue persists, investigate the fuel system by verifying the fuel shut-off valve is in the ON position, ensuring sufficient fuel level and correct fuel specification, removing any water from the sediment bowl, replacing a clogged fuel filter, bleeding air from the fuel system, and checking for leaks or bends in the fuel line. For any persistent electrical or fuel injection pump issues, contact your local YANMAR TRACTOR DEALER.
What are the hydraulic lift and PTO troubleshooting steps for a YANMAR LX450?
For hydraulic lift issues on a YANMAR LX450, if the 3-point hitch does not rise, check if the transmission hydraulic oil level is too low and add oil if necessary. Also, ensure the hydraulic flow control/stop knob is not closed (OFF) and open it, reduce excessive load on the hitch, and replace a clogged transmission hydraulic oil filter. If the hitch lowers too slowly or not at all, check the hydraulic flow control/stop valve and adjust the rate of drop. If it lowers too quickly, adjust the hydraulic flow control/stop knob to the specified rate and reduce excessive load. For PTO, ensure the PTO switch is in the OFF position before servicing, and refer to the safety interlock system chart on page 118 for starting conditions related to PTO.
how to reset YANMAR LX410 after battery disconnect
When disconnecting the battery on a YANMAR LX410, always disconnect the negative (–) battery terminal first, and when installing, connect the positive (+) battery terminal first. After installation, apply petroleum jelly or silicon spray to the battery terminals to protect against corrosion. The manual does not specify any additional 'reset' procedure after reconnecting the battery, implying normal operation should resume once the battery is properly installed and connected.
What are the replacement specifications for battery?
For the YANMAR LX410/LX450, the battery specification is 540 CCA, with a part number of 1A8160 - 51500. For the YANMAR LX490, the battery specification is 650 CCA, with a part number of 1A8275 - 51500. If the battery voltage reads 11V or lower, it should be replaced.
What format is this manual in?
This is a 168-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
