Need the factory part numbers for your Yanmar S165R skid-steer loader? This 100-page Yanmar S165R Parts Catalog PDF (OEM #0CS10-M56500EN) maps every component from mainframe and wheel drives through engine, fuel, exhaust, and brake systems, with exploded views and part numbers your dealer or supplier actually recognizes. Hydraulic coverage runs especially wide: tandem M44 pump, gear high-flow pump, lift and tilt cylinders, auxiliary circuit, self-leveling valve, and all control valve subassemblies, each broken out with its own exploded view and numbered parts list. Cross-check your engine configuration before ordering: low idle is 1200 ±50 RPM, high idle 3150 ±25 RPM. Ordering the wrong part kills a day or more. Bookmarked by system so you jump straight to hydraulic plumbing, any cab kit, or the full OEM accessory lineup in seconds.
What's Inside This Yanmar S165R Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-3 | - |

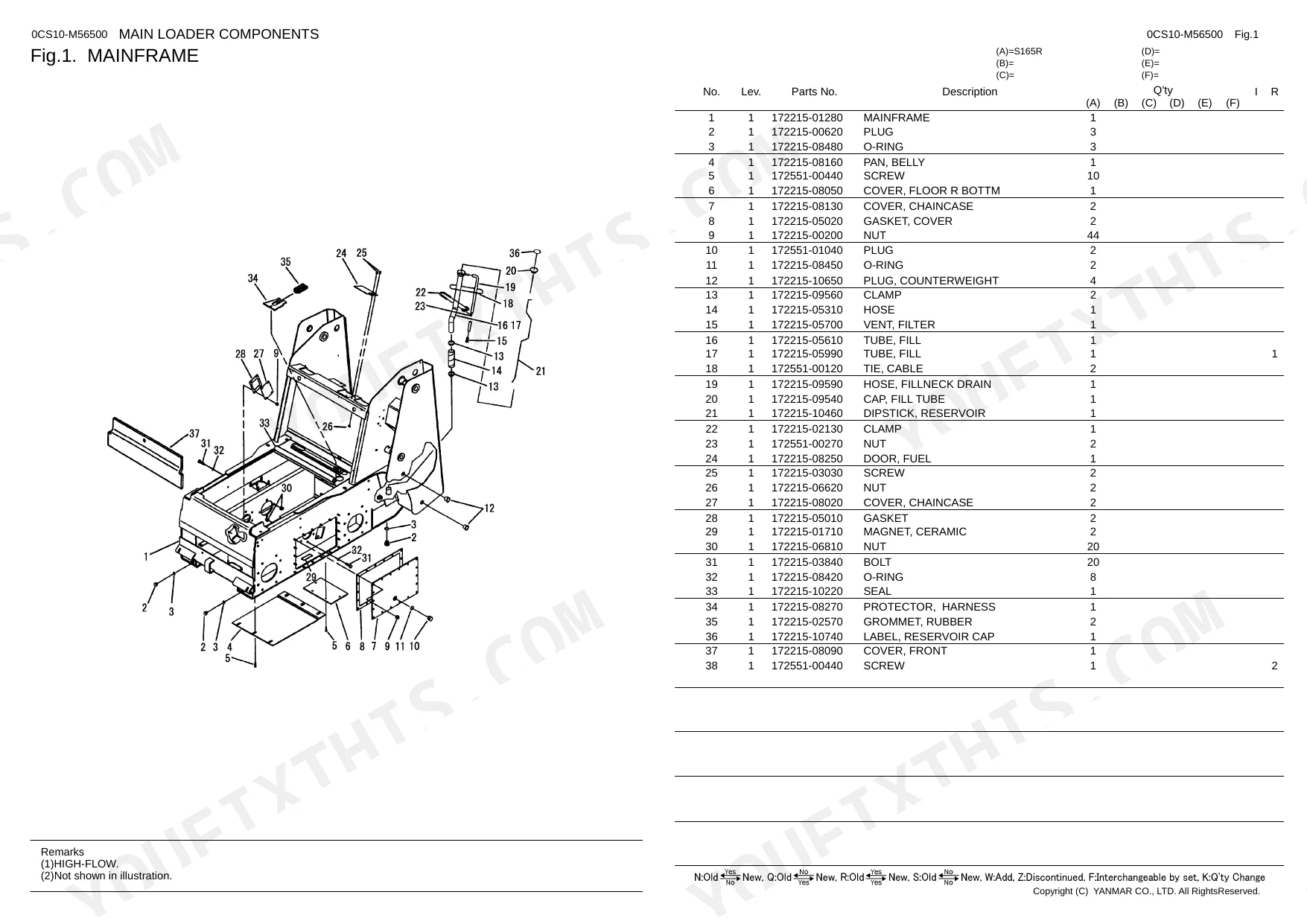

| Mainframe | 6 | - |

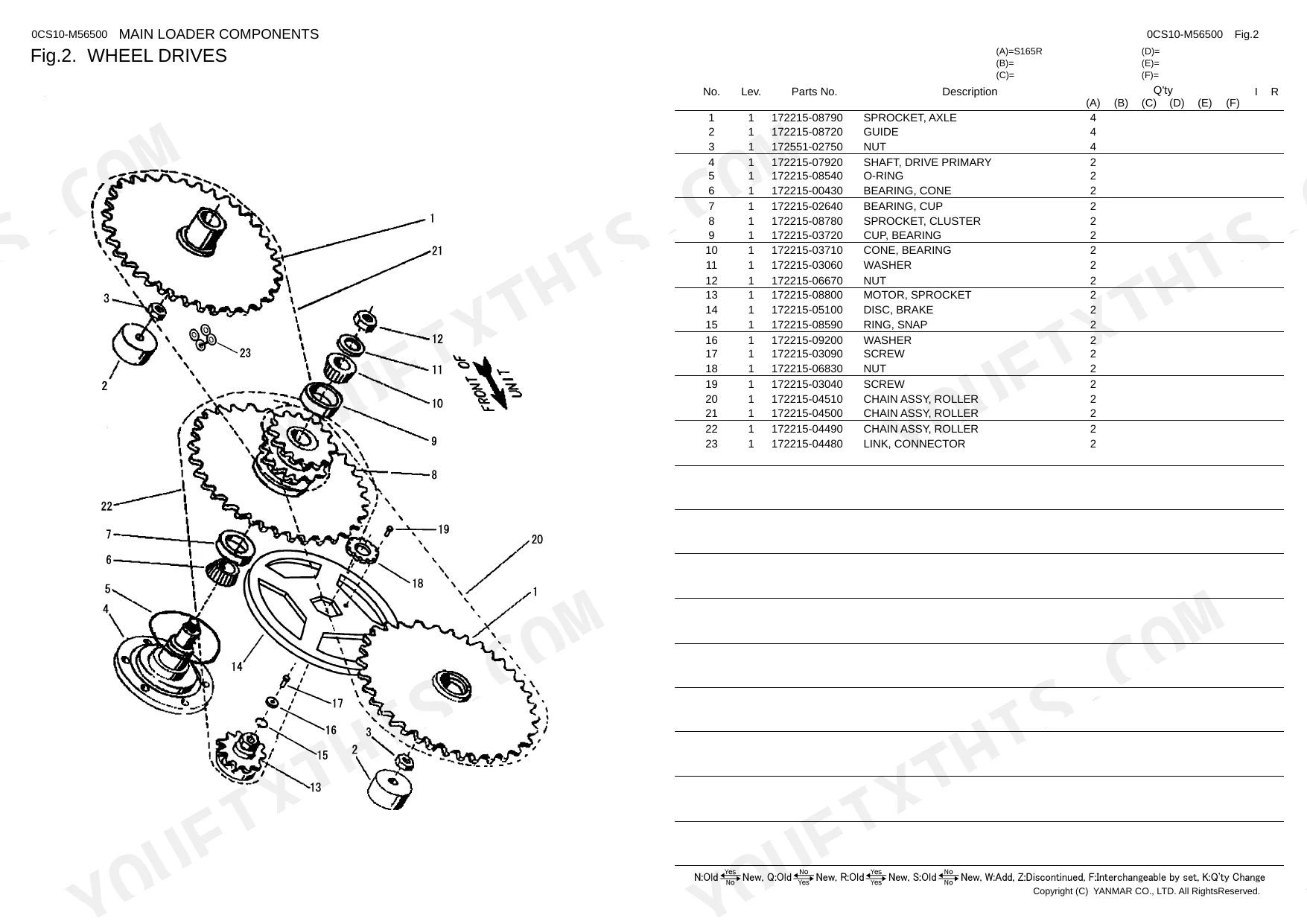

| Wheel Drives | 7 | - |
| Wheel Drives | 8 | - |

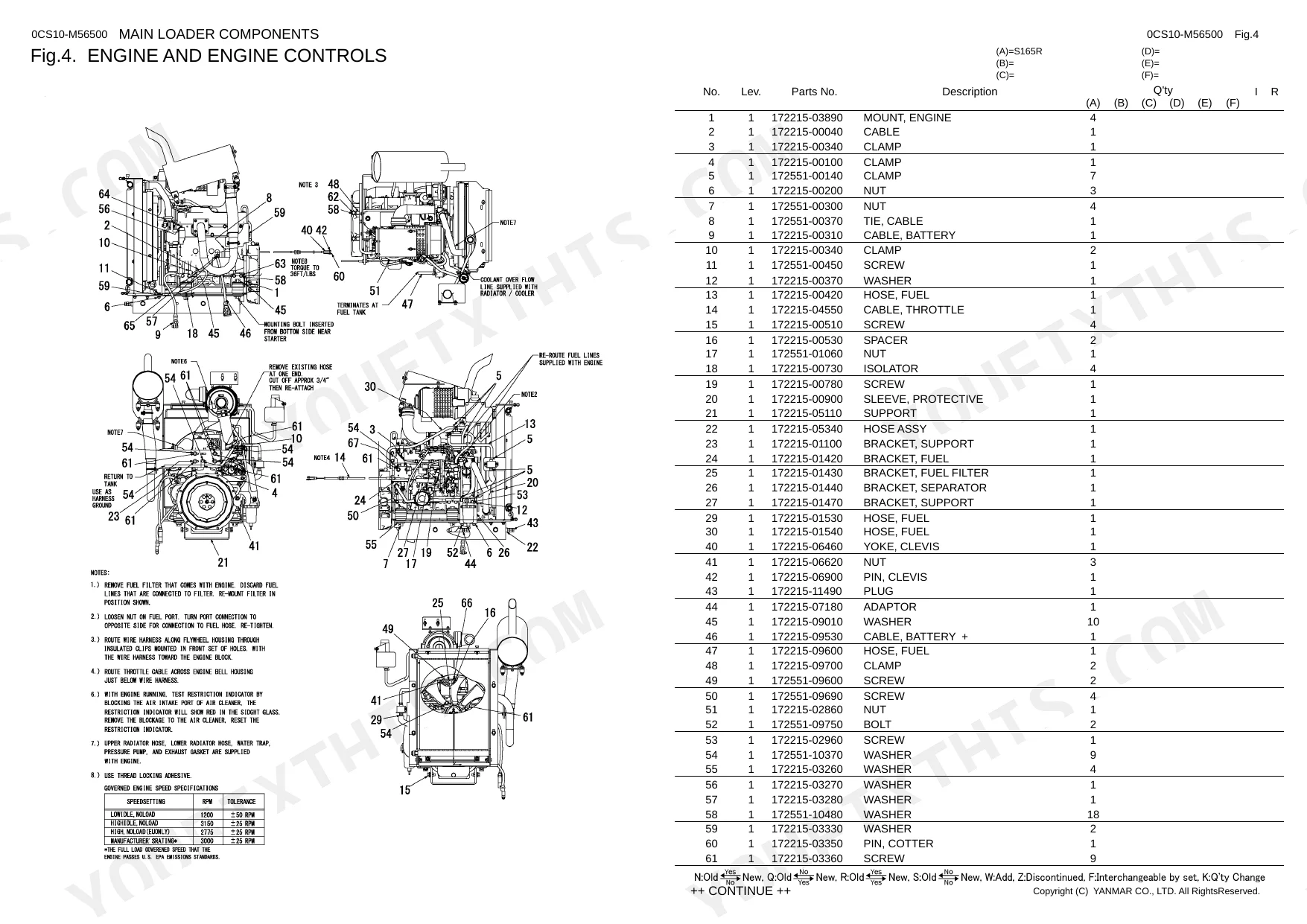

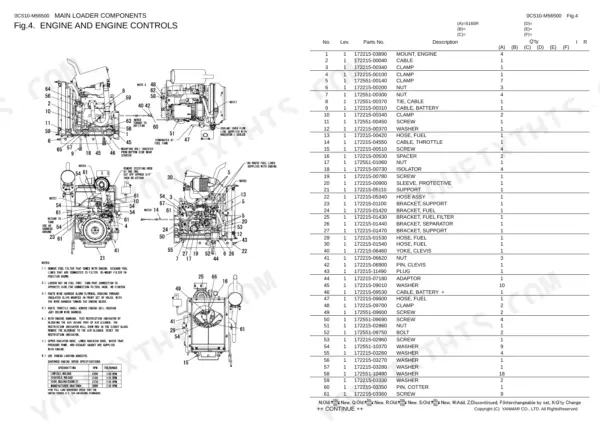

| Engine and Engine Controls | 9-10 | - |
| Fuel System | 11 | - |
| Air Cleaner and Muffler/Exhaust | 12 | - |
| Water Bottle | 13 | - |
| Cooler Water System(Oil Cooler Assembly)(1) | 14 | Cooler, Oil Standard, Oil, Radiator, Shroud, Fan |
| Cooler Water System(Oil Cooler Assembly)(2) | 15 | Mount, Engine, Rubber, Bracket, Support |
| Cooler Water System(Radiator Assembly) | 16 | Radiator, Cap, Pipe, Water, Clamp |
| Brake System | 17 | Mount, Brake, Stop, Cylinder, Hose Assy, Link |
| Hydrostatic Mount and Linkage | 18 | Bracket, Support, Mount, Shock, Rod End, Pump, Mounting Plate, Absorber |
| Hydrostatic Mount and Linkage(Neutral Centering Device) | 19 | Neutral Start Assy, Housing, Centering, Rod, Switch, Neutral, Seal, Wiper Rod |

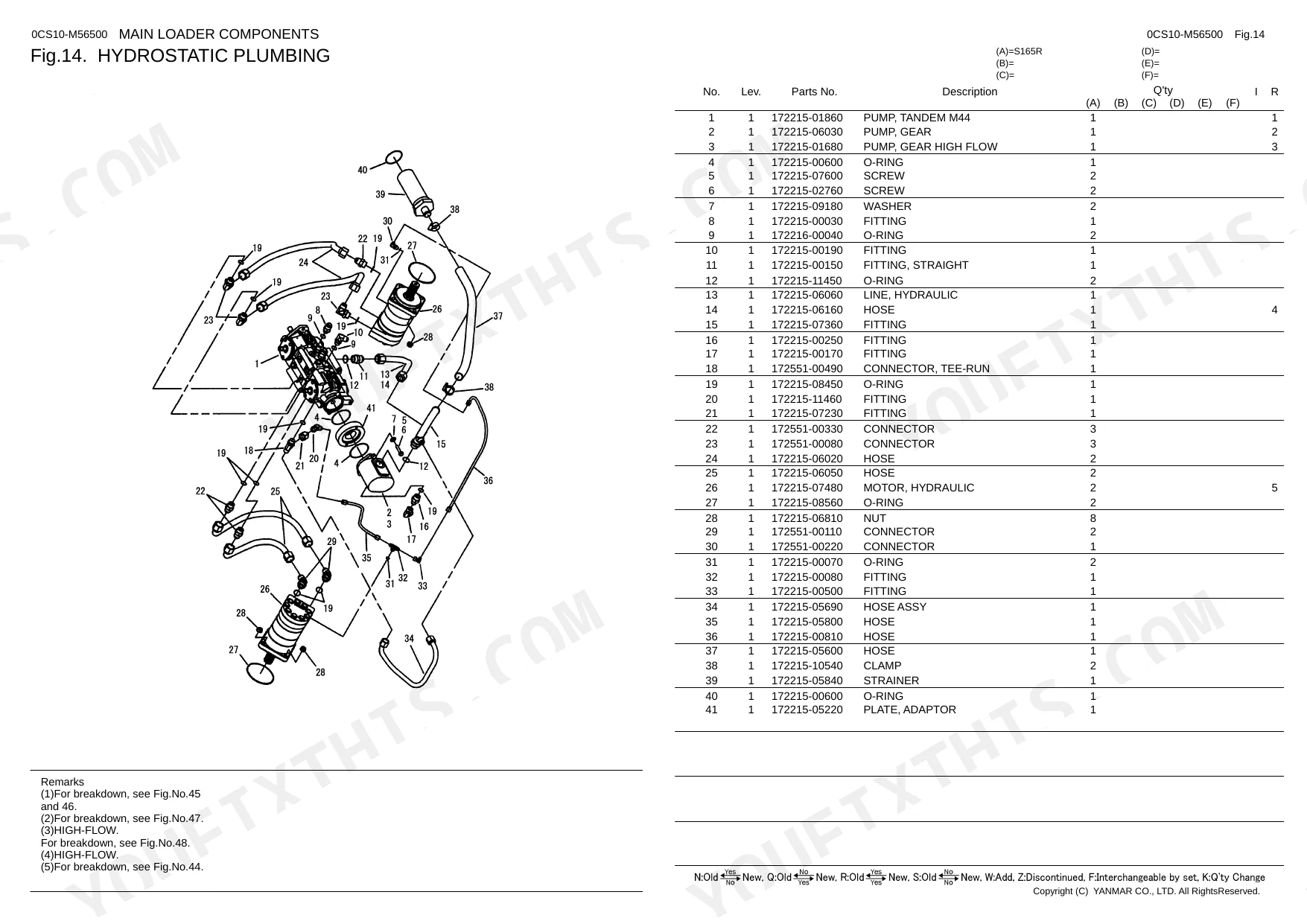

| Hydrostatic Plumbing | 20 | Pump, Tandem M44, Gear High Flow, Motor, Hydraulic, Line |
| Charge, Cooler and Return Filter Plumbing | 21 | Base, Filter, Bracket, Mount, Hose Assy, Switch, Pressure, Strainer |
| Auxiliary Circuit Plumbing | 22 | Coupler, Fitting, Hydraulic Line, Clamp, Hose, Valve |
| Tilt Circuit Plumbing | 23 | Connector, Fitting, Hydraulic Line, Hose, Tilt Cylinder, Valve |
| Lift Circuit Plumbing | 24 | Lift Cylinder, Fitting, O-Ring, Hydraulic Line, Hose, Valve |
| High-Flow Plumbing(Chassis-High-Flow Models) | 25 | Gear Pump, Seal Kit, Fitting, Hose, Valve, O-Ring, Switch |
| High-Flow Plumbing(Lift Arm-High-Flow Models) | 26 | Hydraulic Line, Clamp, Fitting, O-Ring, Coupler, Bracket |
| Self-Leveling Valve Plumbing | 27 | Self-Leveling Valve, Connector, Fitting, Hose, O-Ring |

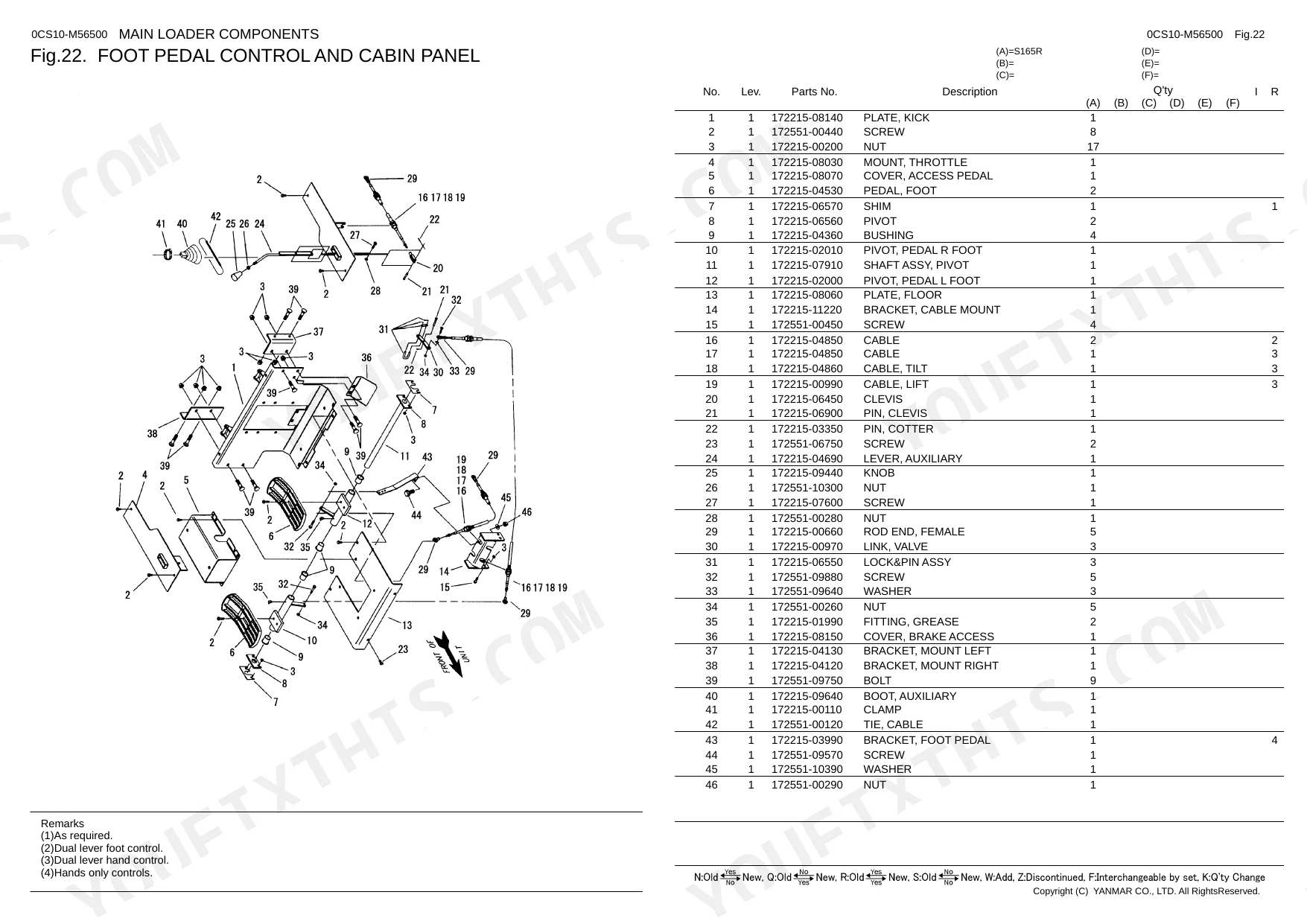

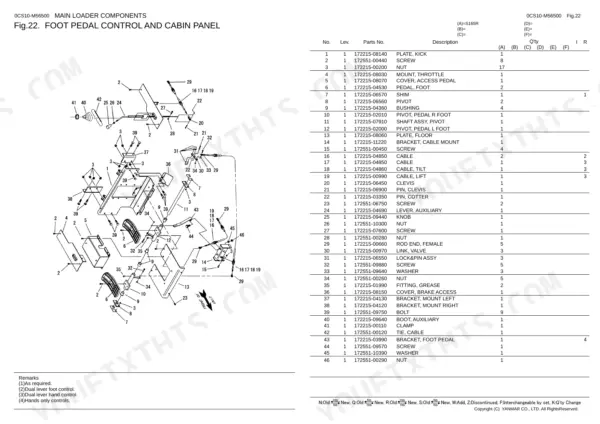

| Foot Pedal Control and Cabin Panel | 28 | Pedal, Pivot, Bushing, Cable, Clevis, Knob, Bracket |
| Steering Controls(Dual Lever Steering) | 29 | Handle, Cable, Fitting, Pivot, Bushing, Switch |

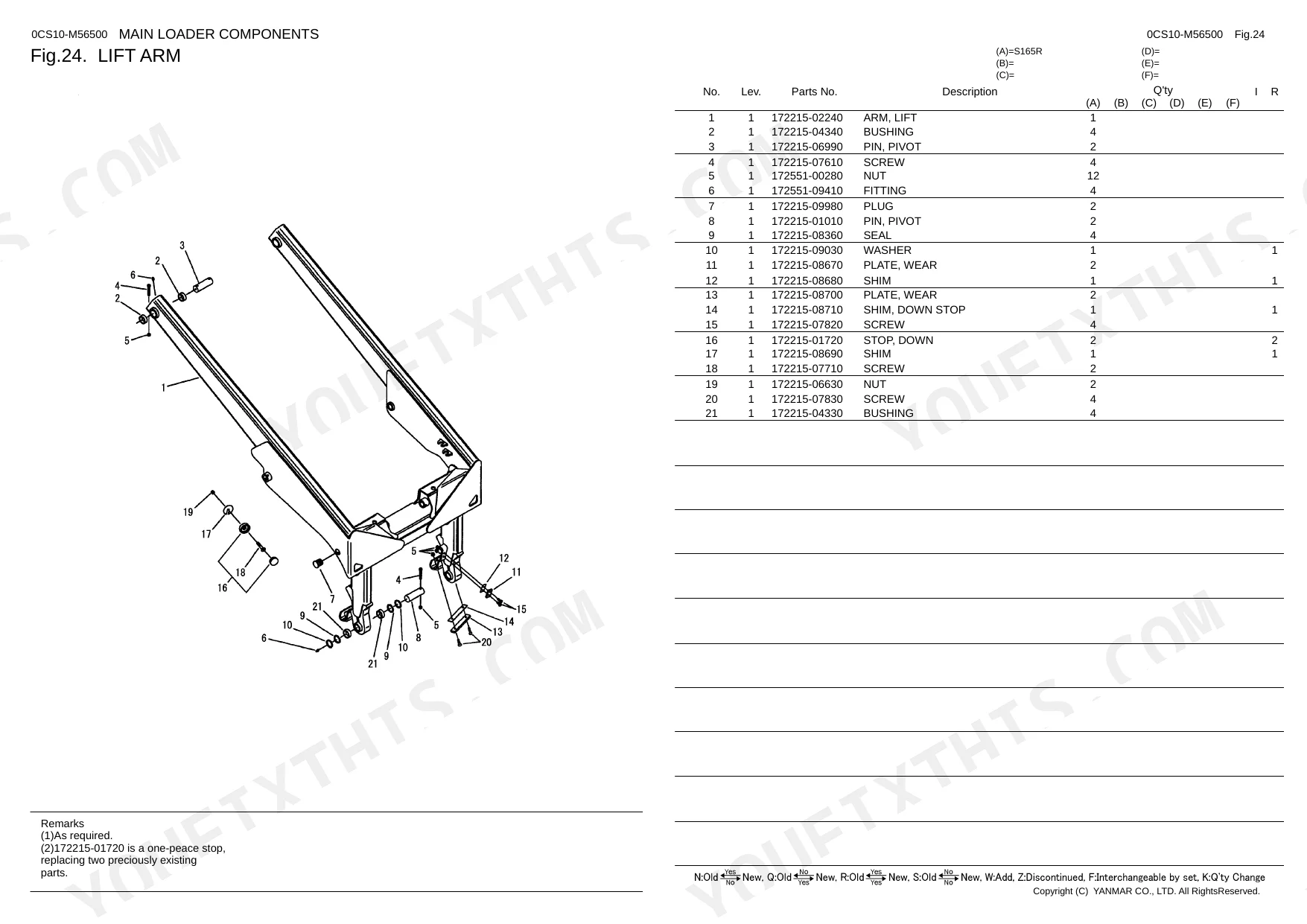

| Lift Arm | 30 | - |
| Attachment System | 31 | - |
| Rops/FOPS | 32 | - |
| Seat, Seat Mounting and Restraint Bar | 33-34 | - |
| Seat, Seat Mounting and Restraint Bar(Restraint Bar) | 35 | - |
| Rear Door and Engine Cover | 36 | - |
| Electrical-Tail Lights(Rear Work Light) | 37 | - |
| Electrical-Tail Lights | 38 | - |
| Electrical-Instrument Panel | 39 | Wire Harness, Module, Gauge, Switch, Fuse |
| Electrical-Instrument Panel(Accessory Hookup) | 40 | Harness, Power, Plug, Socket |
| Tires | 41 | Wheel Assy HD10X16.5, Wheel, Wheel Assy 10X16.5 |
| Sound Suppression | 42 | Weldment, Pad, Seal, Foam |
| Decals(1) | 43 | Label, Pedal, No Riders, Steering, Reflector |
| Decals(2) | 44 | Label, Warning, Oil Level, Aux Port, Breaker |
| Decals(3) | 45 | Label, Warning, Hydraulic, Diesel Fuel, Tag, Rip-Cord |
| Decals(4) | 46 | Label, Manual, Warning, Fuse Box, Boom Lock |
| Decals(5) | 47 | - |
| Decals(6) | 48 | - |
| Lift Cylinder | 49 | - |
| Tilt Cylinder | 50 | - |
| Drive Motor and Parking Brake(Hydraulic Drive Motor) | 51 | - |
| Tandem Pump(Gear Pump End) | 52 | - |
| Tandem Pump(Engine End) | 53 | - |
| Gear Pump | 54 | - |
| Gear Pump(High-Flow Gear Pump) | 55 | Pump, Gear High Flow, Seal Kit, Shaft Seal, Seal Ring, Wear Plate |
| Main Control Valve(Control Valve) | 56 | Valve, Control, Positioner Float, Cartridge, Relief, Lock Kit, Spool, Seal Kit |
| Main Control Valve(Main Relief Valve) | 57 | - |
| Main Control Valve(Auxiliary Detent Positioner) | 58 | - |
| Main Control Valve(List Float Positioner) | 59 | - |
| Main Control Valve(Tilt Spool Positioner) | 60 | - |
| Main Control Valve(Load Check Plug) | 61 | - |
| Main Control Valve(Tilt Relief Cartridge) | 62 | - |
| Main Control Valve(Spool Lock Kit) | 63 | Lock Kit, Spool, Solenoid, Wiper, Spacer, O-Ring |
| Self-Leveling Valve | 64 | Valve, Self Leveling, Load Check, Spring, Pin, Seal Kit |
| Brake Solenoid Valve | 65 | Valve, Solenoid, Plug, Hollow Hex, Seal Kit, Coil |
| High-Flow Solenoid Valve | 66 | Valve, Element, Logic, Seal Kit, Check, Orifice |
| Cab Door and Side Windows Kit | 67-68 | Door Kit, Window Sliding Kit, Door Assy, Cab, Glass, Seal, LOCK&HANDLE Assy |
| Windshield Wiper Motor and Washer Kit | 69 | Motor, Wiper, Link, Adaptor, Wire, Switch |
| Cab Heater Kit | 70 | Heater Kit, Hose, Heater, Pad, Foam, Filter |
| Backup Alarm Kit(Dual Lever Controls) | 71 | Alarm, Harness, Wire, Switch, Plate, Mounting |
| Side Window Half-Glass Kit | 72 | - |
| Interior Dome Light | 73 | - |
| Pre-Cleaner Kit | 74 | - |
| Strobe Light Kit | 75 | - |
| Cab Door Lift Arm Interlock Kit | 76 | - |
| Rearview Mirror Kit | 77 | - |
| Engine Auto-Shutdown Kit | 78 | - |
| Impact-Resistant Door Kit | 79 | - |
| Single-Point Lift Kit | 80 | Single-Point Lift, Tube, Locking, Lift Eye Assy, Weldment, Plate, Name |
| Four-Point Lift Kit | 81 | 4-Point Lift, Label, Lift Point, Bracket, Lift |
| Full-Sliding Glass Kit | 82 | Window Sliding Kit, Glass, Anti-Rattler, Knob, Pull Handle, Wiper |
| Self-Leveling Valve Kit | 83 | Valve, Self Leveling, Hose Assy, Fitting, Load Check, Ring, Retaining |
| High-Flow Hydraulics Kits(Dual Lever)(1) | 84 | Pump, High Flow, Hose Assy, Valve, Package Line, Screen, In-Line, Harness |
| High-Flow Hydraulics Kits(Dual Lever)(2) | 85 | Line, Hyd. Inner, Hyd. Outer, Coupler, Female, Male |
| Cab Door Kit | 86 | Door Kit, Cab, Door Assy, Hinge, Plate, Strike, Wire Harness, Weather Strip |
| Manual Quick Coupler Kit | 87 | Two-Pin Attach. Kit, Bushing, Pin, Spring, Handle, Lever, Weldment, Two-Pin |
| Sound Suppression Kit | 88 | - |
| Universal Radio Kit | 89 | - |
| Rear Wiper Kit(1) | 90 | - |
| Rear Wiper Kit(2) | 91 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Low idle, no load engine speed | 1200 ±50 RPM | p. 9 |
| High idle, no load engine speed | 3150 ±25 RPM | p. 9 |
| Low idle engine speed (no load) | 1200 RPM ±50 RPM | p. 9 |
| High idle engine speed (no load) | 3150 RPM ±25 RPM | p. 9 |
| High idle engine speed (no load, EU only) | 2775 RPM ±25 RPM | p. 9 |
| Manufacturer's rating engine speed | 3000 RPM ±25 RPM | p. 9 |
| Tail light replacement bulb | GE862-12V | p. 37 |
| Instrument panel replacement bulb | GE 53 | p. 39 |
| Wheel assembly (heavy duty) tire size | HD10X16.5 8PLY | p. 41 |
| Wheel assembly (standard) tire size | 10X16.5 6PLY STD | p. 41 |
| Wheel assembly (SD) tire size | 10X16.5 SD | p. 41 |
Yanmar S165R Common Problems This Manual Covers
Yanmar S165R lift cylinder leaking oil, need correct seal kit part number p. 49
Turn to the Lift Cylinder exploded view on page 49. Identify the seal kit part number from the parts list — cross-reference your serial number range using the Reference Materials on page 2 to confirm compatibility. Order the seal kit listed, not individual seals, to get all O-rings and wipers sized for the 49mm bore.
Manual Section: Lift CylinderHydraulic hose blew on lift circuit, can't match the correct replacement fitting and hose assembly p. 24
Check the Lift Circuit Plumbing diagram on page 24. Each hose assembly and O-ring fitting is itemized separately — match the line call-out number to the parts list. Verify O-ring face seal (ORFS) versus JIC thread type before ordering; the diagram distinguishes them by fitting symbol. Cross-check with the Hydrostatic Plumbing overview on page 20 if the failed line runs near the pump.
Manual Section: Lift Circuit PlumbingDrive motor leaking or making noise, need part numbers for seals and motor assembly p. 51
Locate the Drive Motor and Parking Brake exploded view on page 51. The hydraulic drive motor seal kit is listed as a separate line item — order by that part number rather than individual seals. If the motor itself needs replacement, record the full assembly part number from page 51 and bring your serial number; the Reference Materials on page 2 confirm which serial range your motor assembly applies to.
Manual Section: Drive Motor and Parking Brake(Hydraulic Drive Motor)Engine won't start in cold weather, need glow plug and fuel filter part numbers p. 11
Find glow plug and fuel system component part numbers in the Engine and Engine Controls diagram on page 9 and the Fuel System parts list on page 11. The fuel filter is a separate line item on page 11 — note the part number and confirm thread pitch before ordering. The Air Cleaner diagram on page 12 lists the filter element separately if restricted airflow is also suspected.
Manual Section: Fuel SystemControl valve spool seals worn, bucket tilt slow or drifting, need seal kit part number p. 56
Go to the Main Control Valve diagram on page 56. The seal kit for the control valve spool is a listed line item — record that part number. If the tilt circuit specifically is drifting, also check the Tilt Relief Cartridge on page 62 and the Tilt Spool Positioner on page 60; each sub-assembly has its own seal kit listed separately. Cross-reference with Tilt Circuit Plumbing on page 23 to identify any hose or fitting parts also needed.
Manual Section: Main Control Valve(Control Valve)Tires worn unevenly or need replacement, can't find correct wheel assembly part number p. 41
Check the Tires parts list on page 41. Three wheel assembly configurations are listed: HD10X16.5 8PLY heavy duty, 10X16.5 6PLY standard, and 10X16.5 SD. Match your existing tire sidewall marking to the correct assembly line item before ordering — the part numbers differ between these three specs and are not interchangeable.
Manual Section: TiresFrequently Asked Questions
How do you fix yanmar S165R lift cylinder leaking oil, need correct seal kit part number?
Turn to the Lift Cylinder exploded view on page 49. Identify the seal kit part number from the parts list — cross-reference your serial number range using the Reference Materials on page 2 to confirm compatibility. Order the seal kit listed, not individual seals, to get all O-rings and wipers sized for the 49mm bore.
How do you fix hydraulic hose blew on lift circuit, can't match the correct replacement fitting and hose assembly?
Check the Lift Circuit Plumbing diagram on page 24. Each hose assembly and O-ring fitting is itemized separately — match the line call-out number to the parts list. Verify O-ring face seal (ORFS) versus JIC thread type before ordering; the diagram distinguishes them by fitting symbol. Cross-check with the Hydrostatic Plumbing overview on page 20 if the failed line runs near the pump.
How do you fix drive motor leaking or making noise, need part numbers for seals and motor assembly?
Locate the Drive Motor and Parking Brake exploded view on page 51. The hydraulic drive motor seal kit is listed as a separate line item — order by that part number rather than individual seals. If the motor itself needs replacement, record the full assembly part number from page 51 and bring your serial number; the Reference Materials on page 2 confirm which serial range your motor assembly applies to.
How do you fix engine won't start in cold weather, need glow plug and fuel filter part numbers?
Find glow plug and fuel system component part numbers in the Engine and Engine Controls diagram on page 9 and the Fuel System parts list on page 11. The fuel filter is a separate line item on page 11 — note the part number and confirm thread pitch before ordering. The Air Cleaner diagram on page 12 lists the filter element separately if restricted airflow is also suspected.
How quickly can I access this manual after buying?
Immediate download of the complete 100-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a scanned PDF, not a native digital file, but it includes an OCR layer, so you can search and copy the full text. The text quality is consistently crisp and easy to read throughout the catalog. All diagrams and illustrations are raster images, but their labels are clear and legible, even when zoomed in. The pages are clean with no noticeable scan artifacts, stains, or skewed content. There are no blank or filler pages present in this document.
