Part of the Yanmar Parts Manuals.

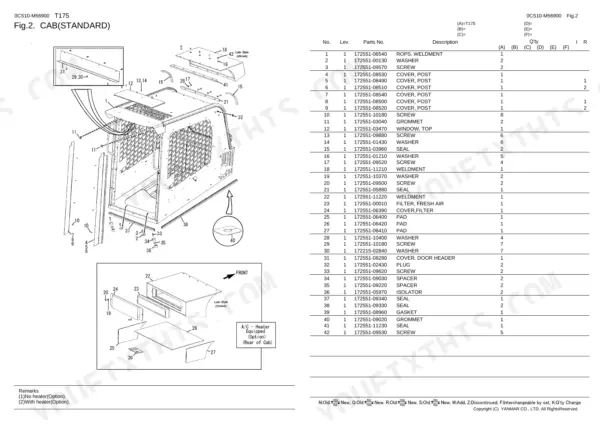

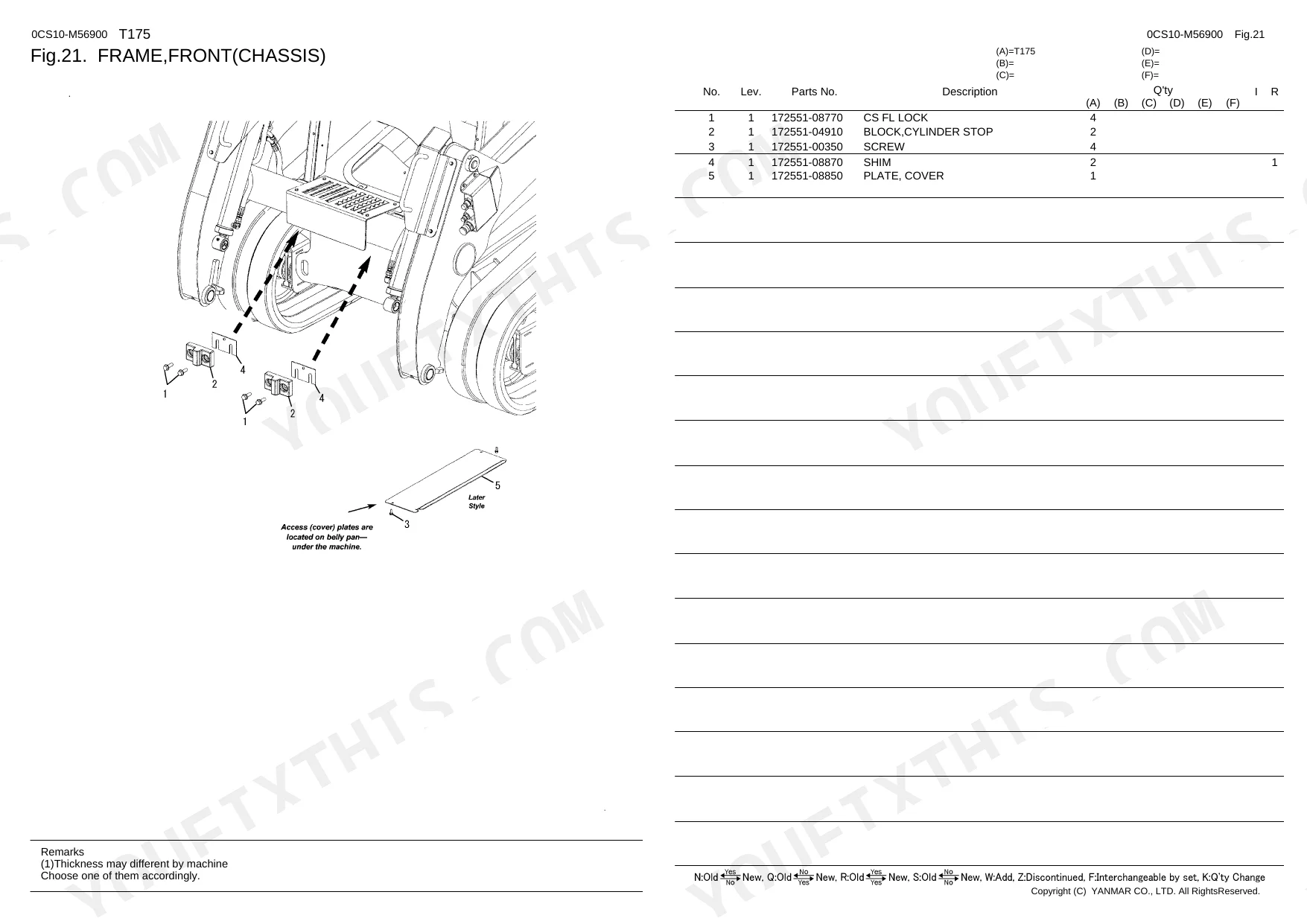

Need the exact factory part numbers for your compact track loader? This 95-page Yanmar t175 parts manual pdf (OEM #0CS10-M56900EN) breaks down every component of your machine into crystal-clear exploded views. You get page after page of detailed diagrams covering the entire chassis, drivetrain, and boom assemblies. Open this parts catalog to find complete hardware lists for the high-flow hydraulic circuit, the hydrostatic drive pump, and the cab tilt mechanism. Match up your damaged components to the exact 3-spool hydraulic main valve, the track tension cylinder head gland, or the specific ride control manifold cartridge before calling the dealer. Ordering the wrong hardware keeps your loader sitting in the bay. Grab this bookmarked download instantly, pull it up on your tablet, and get the right parts on the way today.
What's Inside This Yanmar T175 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Clutch & Transmission | Hydrostatic Drive Pump Circuit, Hydrostatic Drive Pump | |
| Fuel System | Floor Pod, Accelerator Pedal, Fuel Circuit, Fuel Tank | |
| Cooling System | Radiator, Hydraulic Cooler | |

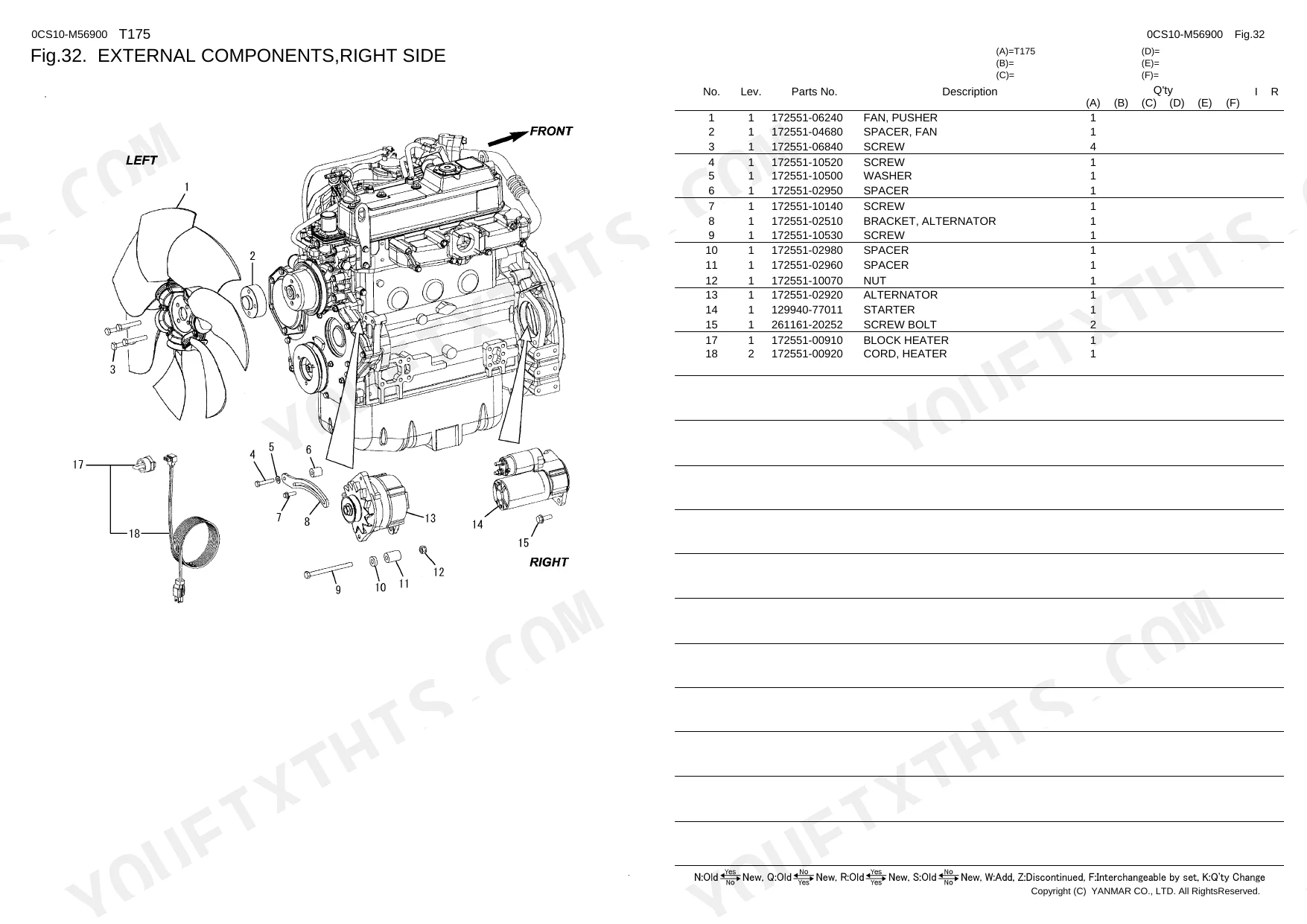

| Engine | Ext. Comp., Flywheel Housing, Engine Compartment, Decals | |
| Electrical System | Chassis, Wire Harness, Component, Fuse Boxes, Fuses, Relays, Battery Circuit, Operator Wire Harness, Work Lights Cab | |

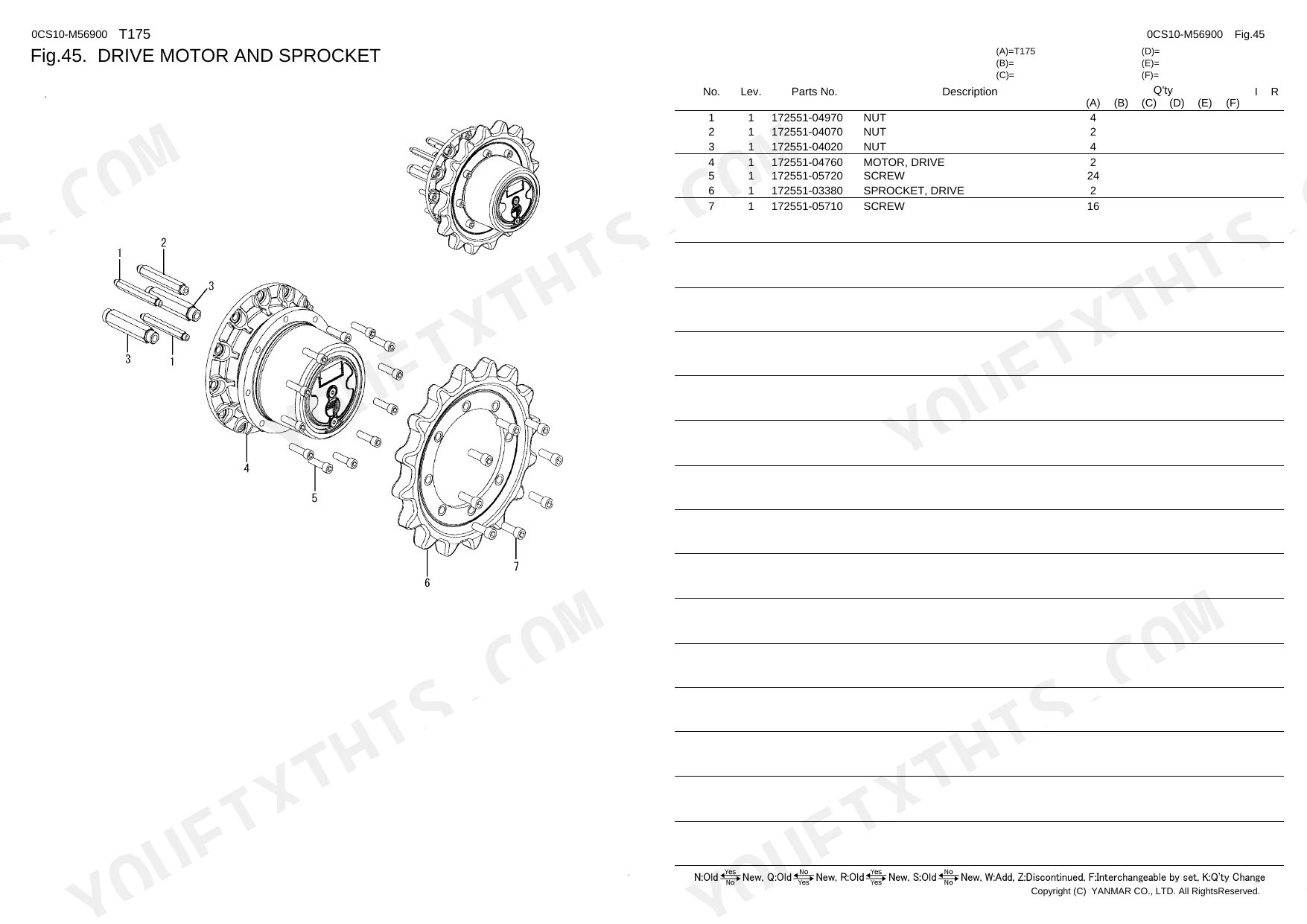

| Undercarriage & Travel | Dual Flange Idler Assembly, Front Idler Assembly, Drive Motor and Sprocket | |

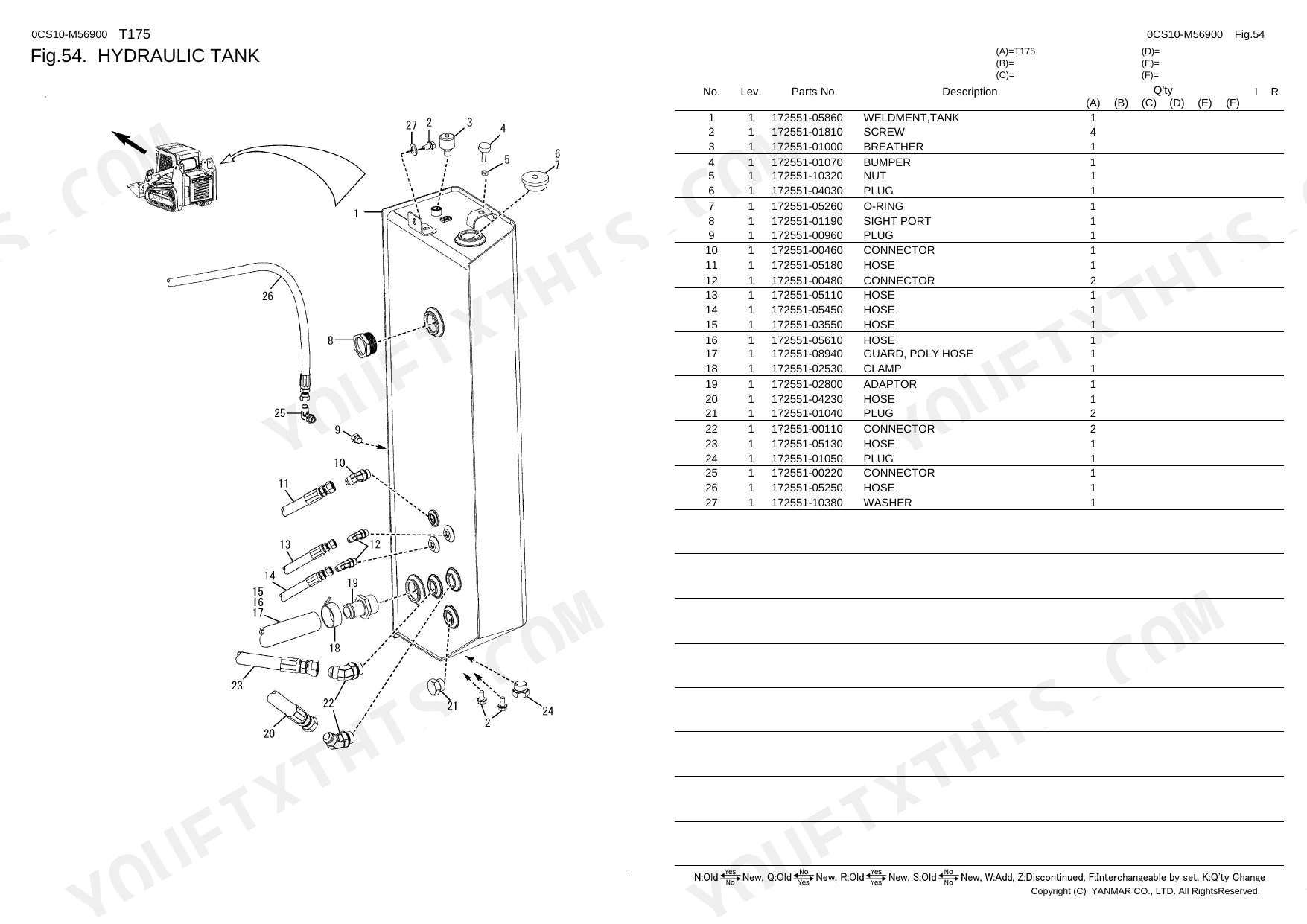

| Hydraulics & 3-Point Hitch | Attachment Bracket, Manual Quick Coupler, Loader Arm Hydraulics Tilt, Loader Arm Hydraulics Lift, High Flow Hydraulics Circuit, Hydraulic Tank, Hydraulic Filter Assembly, Hydraulic Pump Circuit, Hydraulic Pump Circuit High, Self Level Valve Circuit, Lift, Auxiliary High Flow Hydraulics, Hydraulic Pump, Standard, High Flow, Hydraulic Main Valve, Hydraulic Main Valve High Flow, Self Level Valve, Track Tension Cylinder | |
| Loader, Backhoe & Attachments | Cab Door, Swing Out, Attachment Bracket, Manual | |

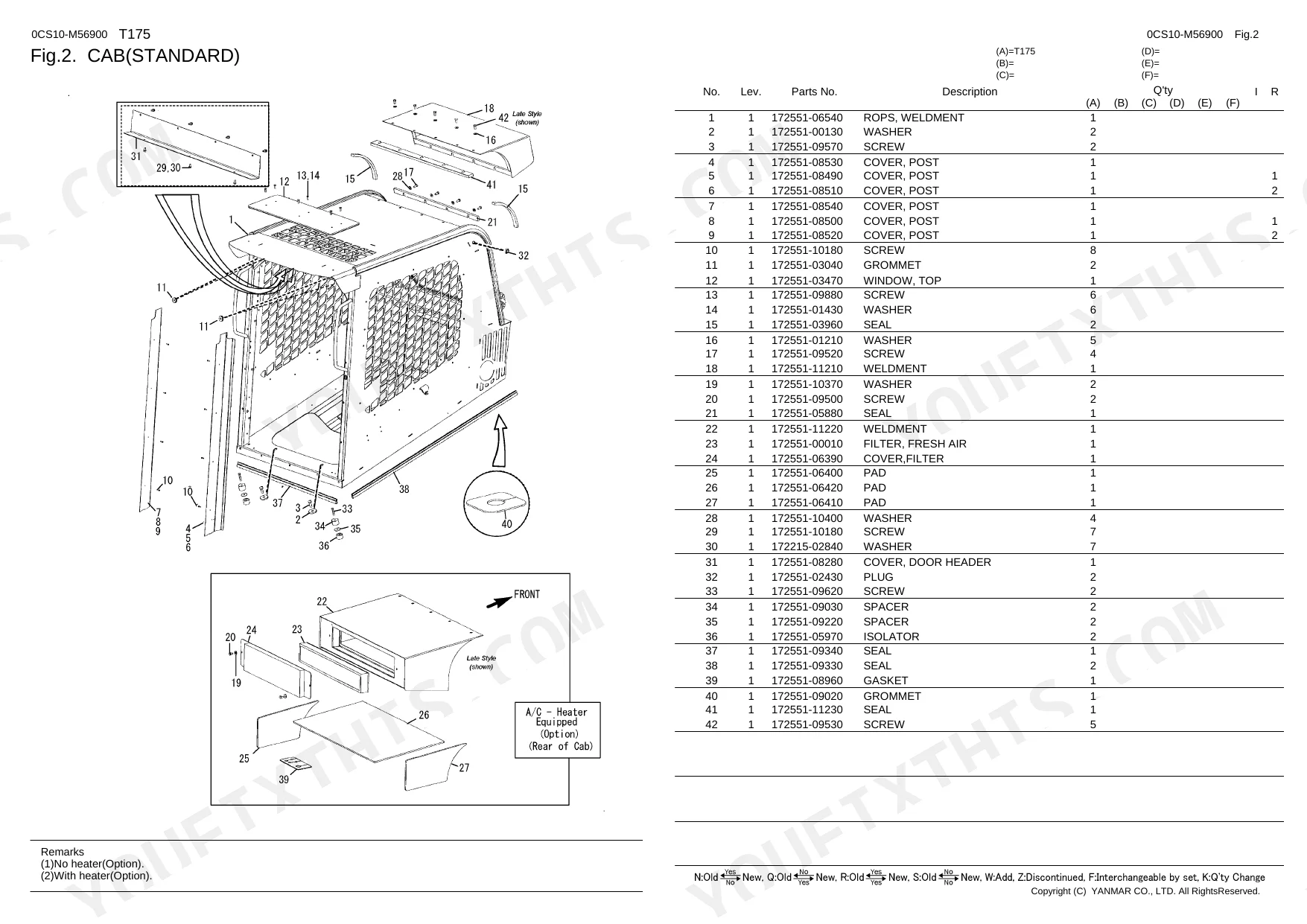

| Body & Operator Station | Cab, Side Windows, Cab Tilt and Rear Window, Rear Window, Wiper Assembly, Window, Washer, Interior Covers, Headliner, Heat A.C. Ducts, Console Controls, Left Side, Right Side, Console, Seat, Mirror, Radio, Heater Hose Circuit, Heater, Air Conditioning Blower | |

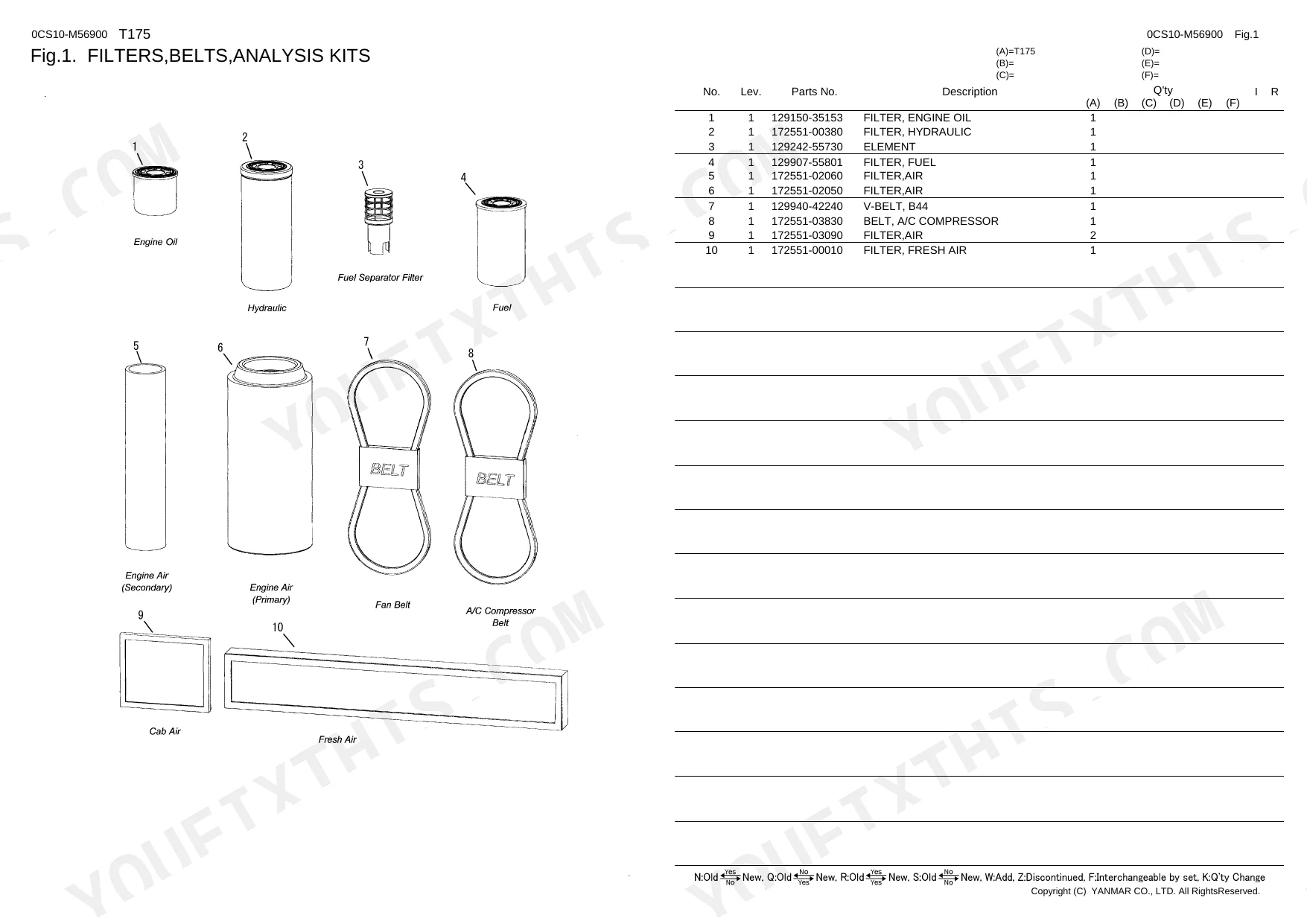

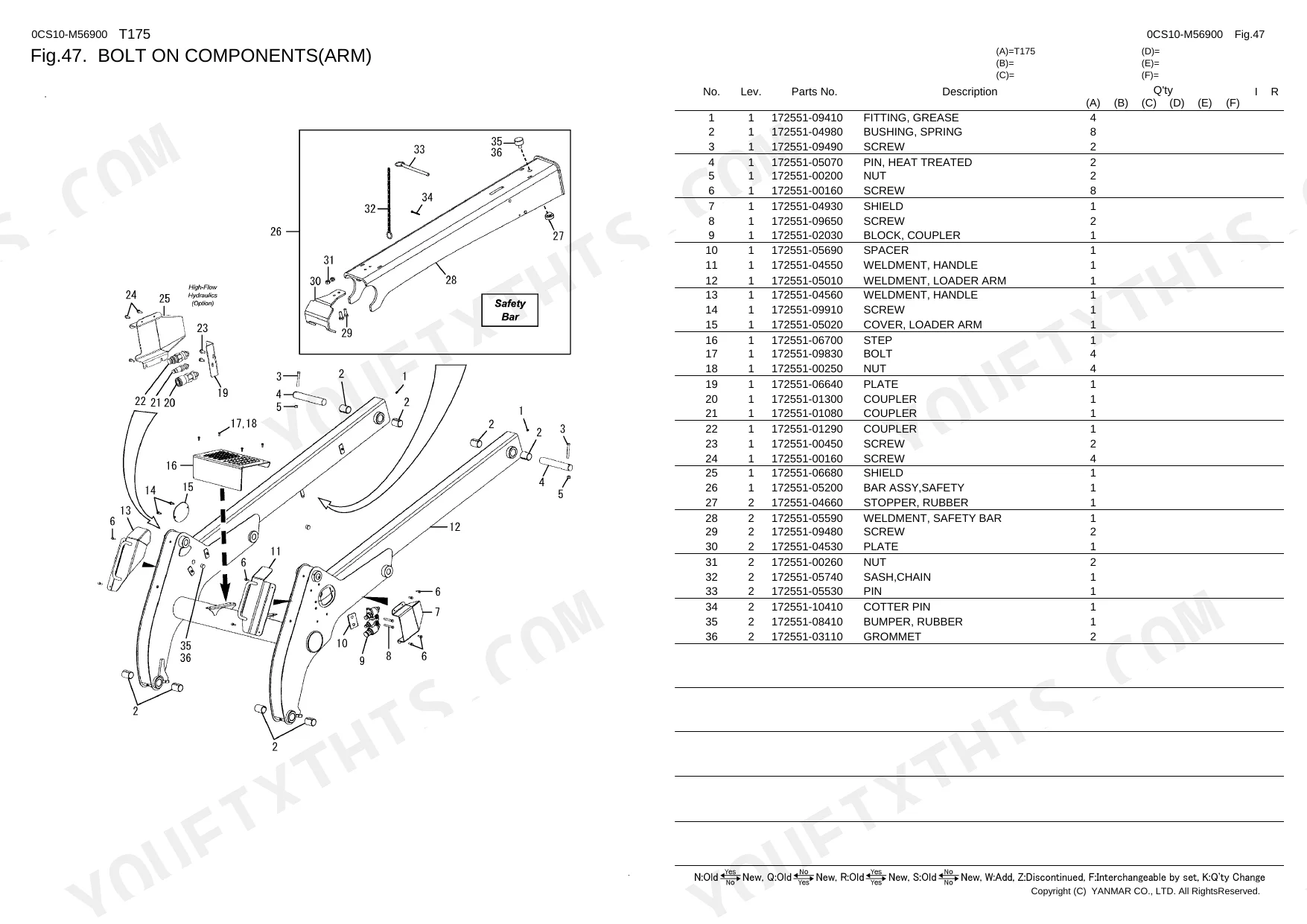

| Decals & Accessories | Filters, Belts, Analysis Kits, Front, Decals, Right Side, Left Side, Rear | |
| Other Components | Air Conditioning Circuit, Rear Door, Rear Access Doors, Air Conditioning Condens Assy, External Components, Right Side, Left Side, Mounts, Air Intake, Exhaust, Air Conditioning Compressor, Track Assembly, Dual Flange Bogie Wheel Assy, Track Drive Motor Components, Bolt on Components, Auxiliary Circuit Arm, Track Drive Circuit |
