Need the factory part numbers for your Yanmar Compact Track Loader? This 174-page Yanmar T210 Parts Catalog PDF (OEM #0CK50-M01410EN) breaks down the complete chassis, hydraulic system, and cab assembly. Inside, you get detailed exploded views showing exact component orientation, complete with full parts lists and hardware cross-references. Open up the hydraulic section to find clear fluid routing schematics, making it easy to identify specific fittings, lift cylinders, and hydrostatic drive pumps. Verify you are ordering the correct 17T drive sprocket and match your replacement rubber tracks to the exact 450X86X56 factory dimensions before calling the dealer. Waiting on the wrong part keeps your loader parked and costs you money. Grab this bookmarked file, pull it up on your tablet in the parts room, and order the right components the first time.
What's Inside This Yanmar T210 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Circuit, Fuel Tank, Air Cleaner Assembly | |
| Cooling System | Radiator / Hydraulic Cooler | |

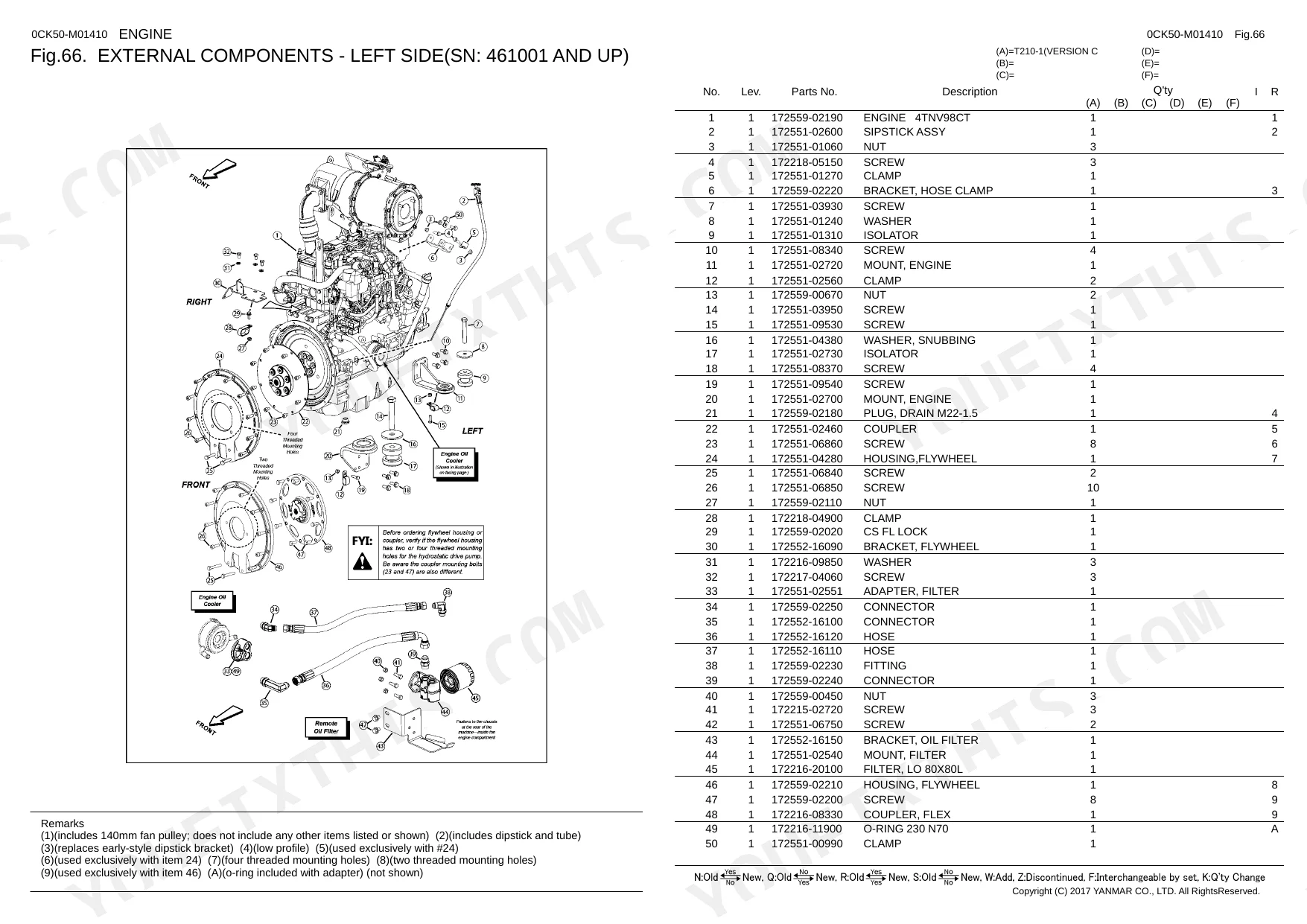

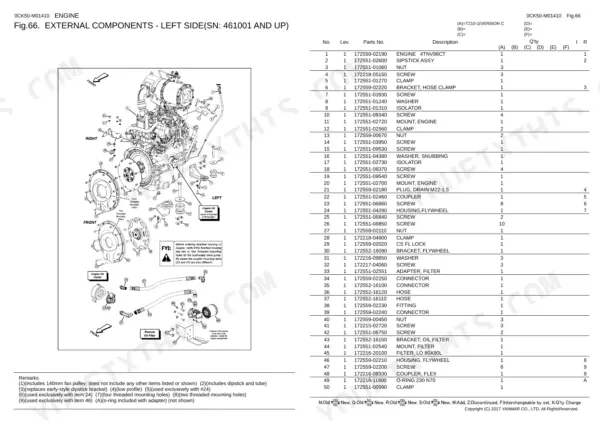

| Engine | External Components - Remote Oil Filter - High-Flow, External Components - Flywheel Housing | |
| Electrical System | Chassis Wire Harness / Components, Fuse Boxes / Fuses / Relays, Battery Circuit / Engine Wire Harness, Cab - Operator Wire Harness, Cab - ROPS Wire Harness / Work Lights, Self-Level Valve - Non-Switchable, Self-Level Valve - Switchable | |

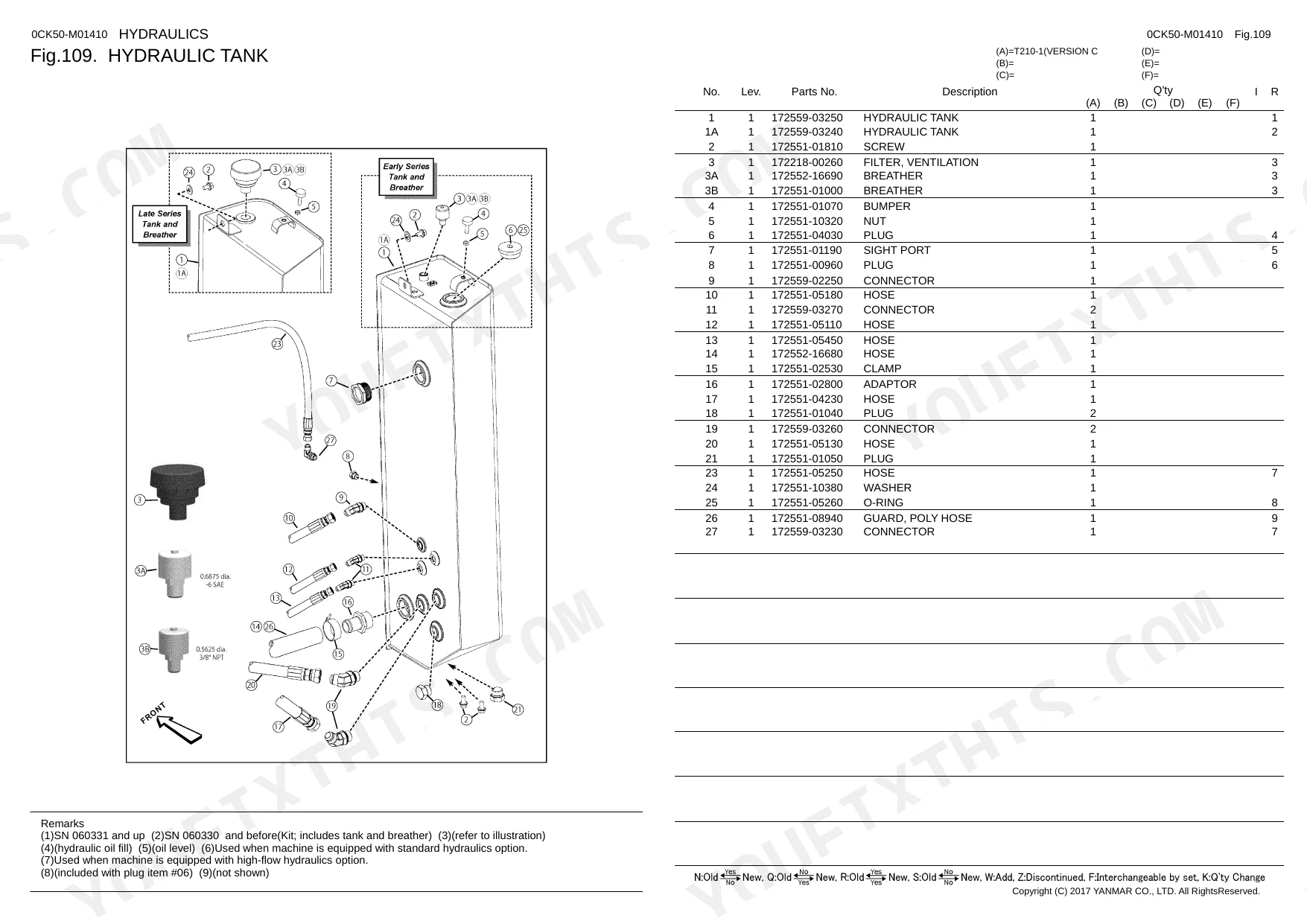

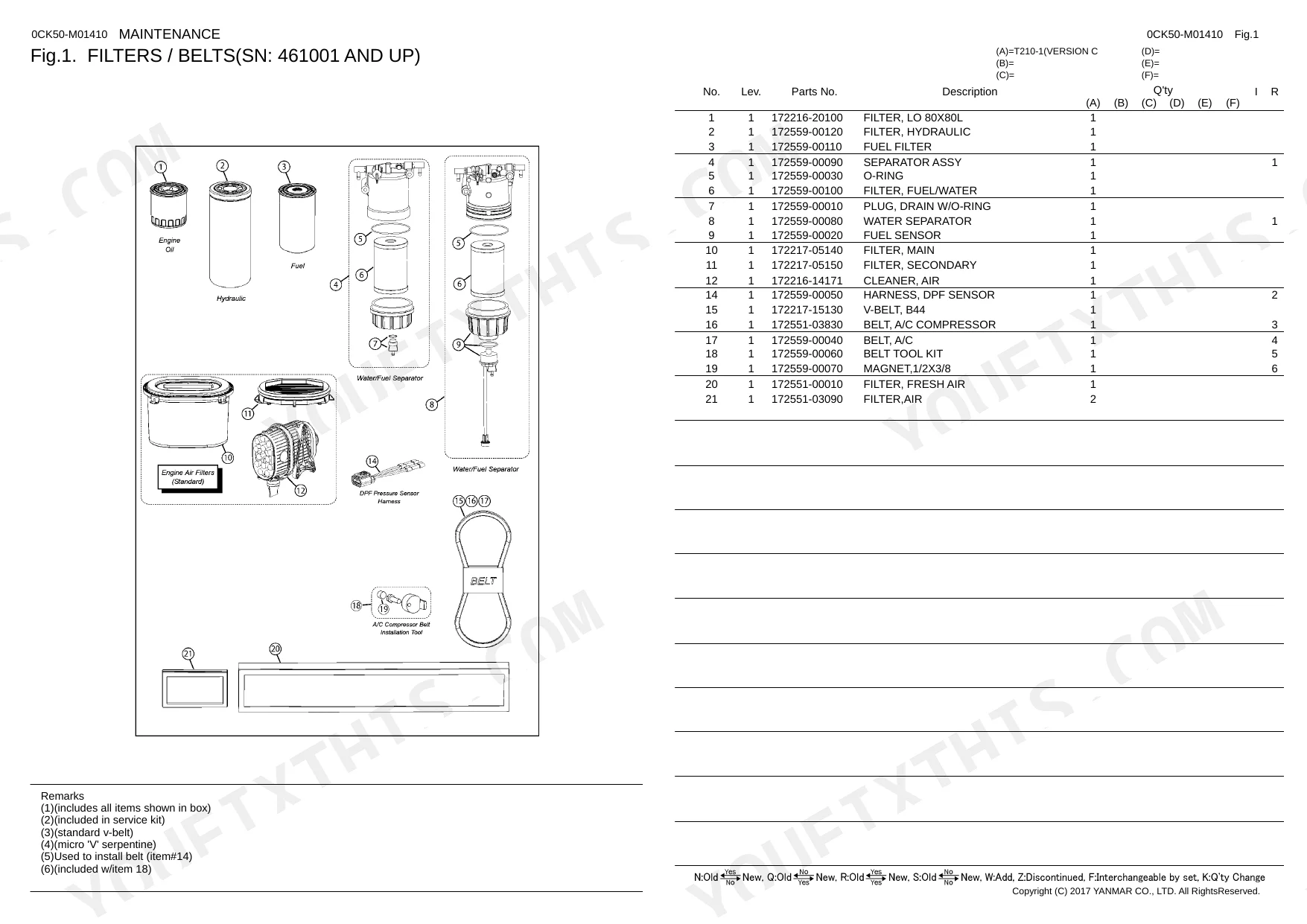

| Hydraulics & 3-Point Hitch | Attachment Bracket - Q Coupler, Auxiliary Hydraulics Circuit, High-Flow Hydraulics Circuit, Hydraulic Tank, Hydrostatic Drive Pump Circuit, Hydraulic Pump Circuit, Hydraulic Pump Circuit - Standard Hydraulics, Hydraulic Pump Circuit - High-Flow Hydraulics, Self-Level Valve Circuit - Lift / Tilt, Standard and High-Flow Auxiliary Hydraulics Circuit, Hydrostatic Drive Pump, Hydraulic Pump - Standard Hydraulics, Hydraulic Pump - High-Flow Hydraulics, Hydraulic Main Valve - Standard Hydraulics, Hydraulic Main Valve - High-Flow Hydraulics, Track Tension Cylinder | |
| Body & Operator Station | Rear Cab - HVAC Cover, Cab Interior, Cab Interior W/Hvac, Cab Door - Swing-Out, Cab Door - Fold-Up, Floor Pan / Foot Throttle, Seat, Frame - Front / Under, Counterweights / Center Frame, Rear Hood, Rear Hood - Air Conditioning Condenser Assembly, Attachment Bracket - Manual and Bucket | |
| Other Components | Filters / Belts, Standard, Swing-Out Door Latches, Rear Window with Wiper, Window Washer, Side Windows, Console - Right-Side, Console - Left-Side, Console Controls - Left Side, Console Controls - Right Side, Mirror, Radio, Backup Camera Group, Heater / Air Conditioning Blower, Heater Hose Circuit, Air Conditioning Circuit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hose dimension | -06 X 34 IN. | p. 117 |
| Hose length | 84" | p. 127 |
| Sprocket teeth | 17T | p. 91 |
| Track dimensions (width x pitch x links) | 450X86X56 | p. 91 |
| Wiper Blade Size | 24 | p. 17 |

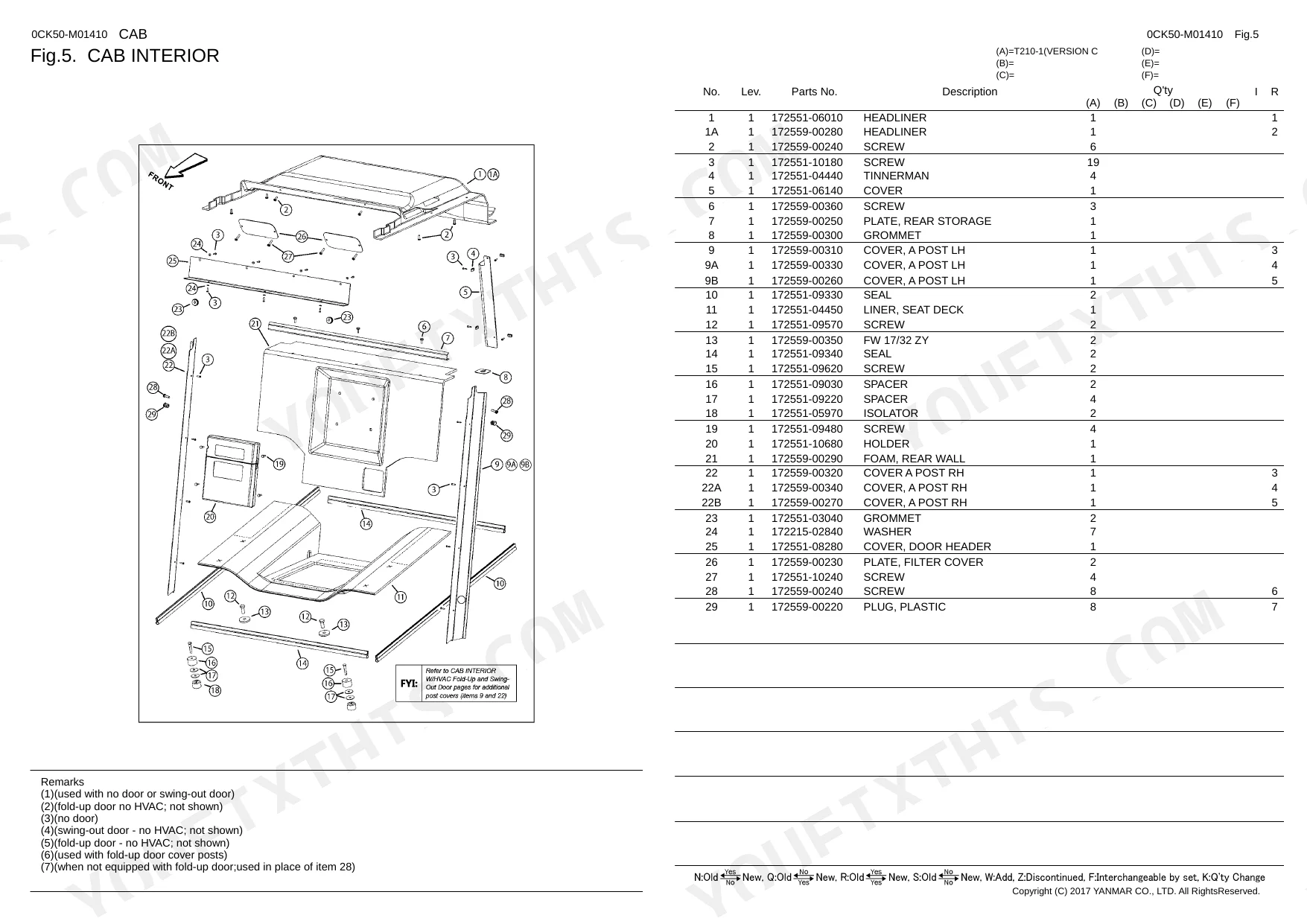

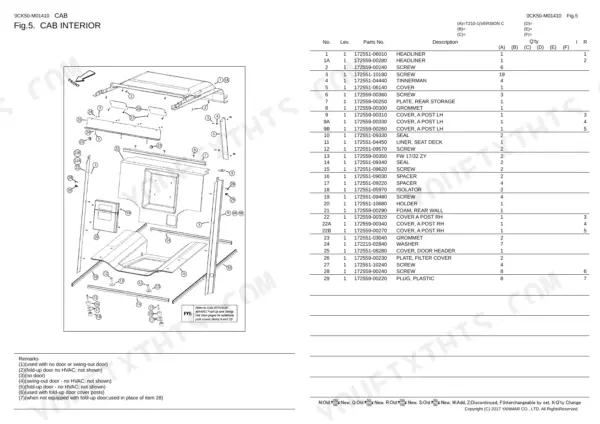

| Cab Interior W/HVAC (Fold-Up Door) Dimension | 2-1/2" x 31" | p. 12 |

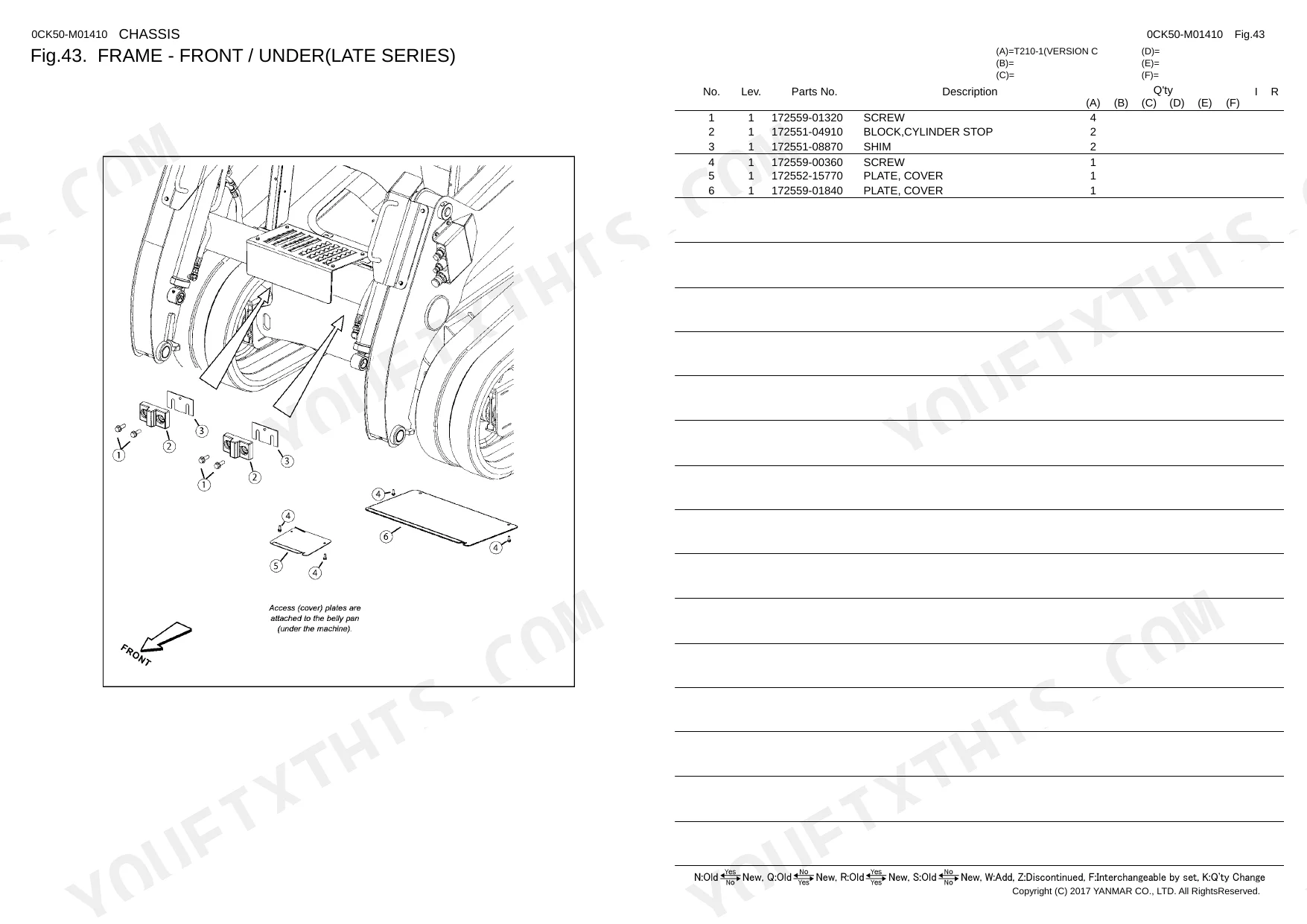

| Frame - Front / Under (Early Series) Plate Dimension | 20 inches long X 7 inches wide | p. 49 |
| Counterweights / Center Frame Shim Thickness | 0.0598" | p. 50 |
| Rear Door Bulb Specification | 12V-27WATT | p. 52 |
| Chassis Wire Harness Pin Count | 72-pin | p. 61 |
| Maxi Fuse Amperage | 20 AMP | p. 63 |
| Starter Specification | 12V-3KW | p. 74 |
Yanmar T210 Common Problems This Manual Covers
Cannot locate Yanmar T210 replacement starter part number for machine cranking slowly or not starting p. 74
Inspect the external components diagram on page 74 to find the exact starter motor assembly. Verify your machine requires the 12V-3KW starter unit before ordering replacements. Cross-reference the specific part number with your serial number range to ensure correct fitment and resolve the starting issue.

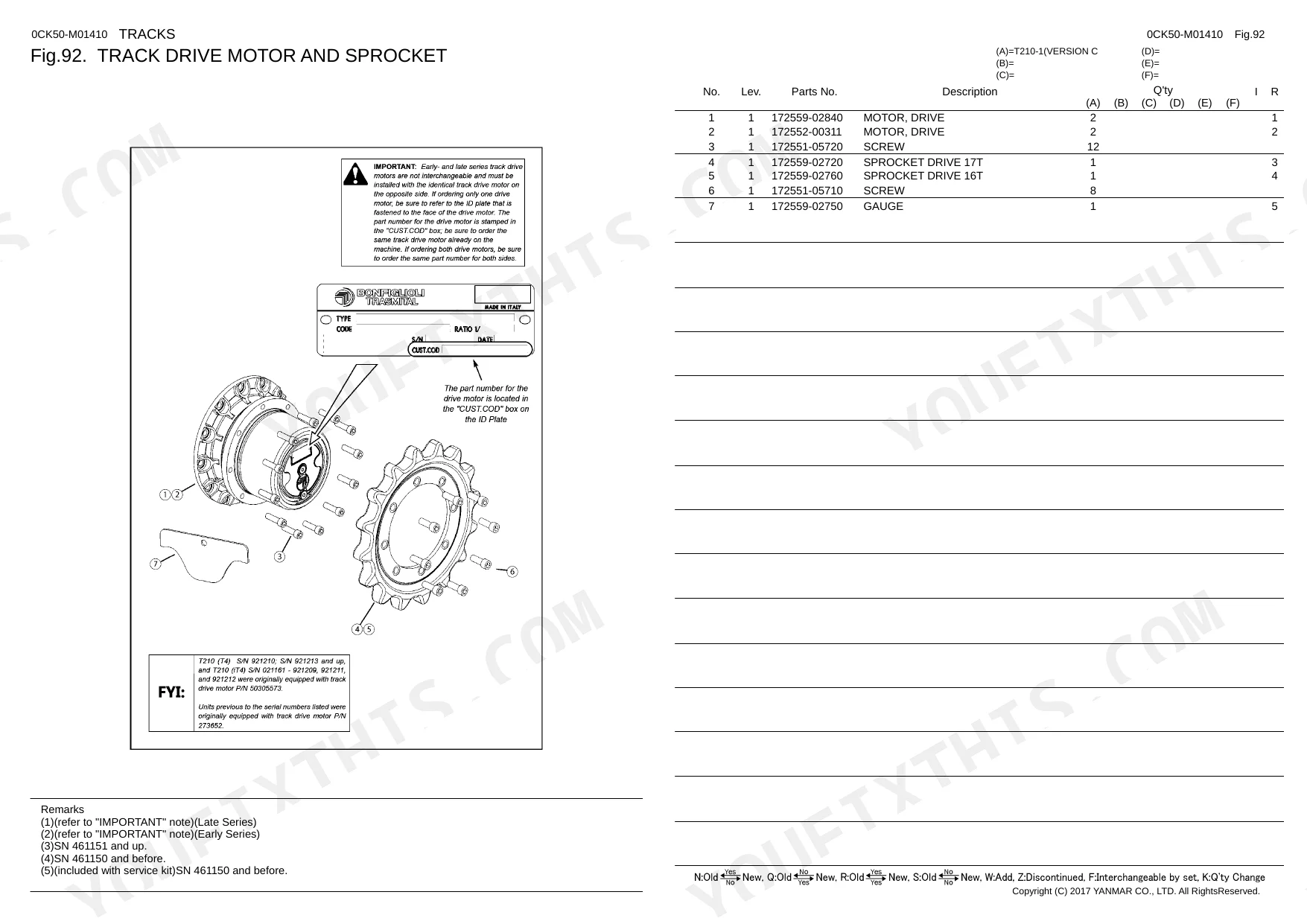

Manual Section: External Components - Right Side(Sn: 461001 and Up)Need replacement part numbers for torn rubber tracks and worn drive sprockets p. 91
Review the track assembly exploded view on page 91. Identify the correct replacement part numbers for the 450X86X56 BBE rubber tracks and the 17T drive sprockets. Match these components against your specific serial number block to order the right parts and get the machine moving.

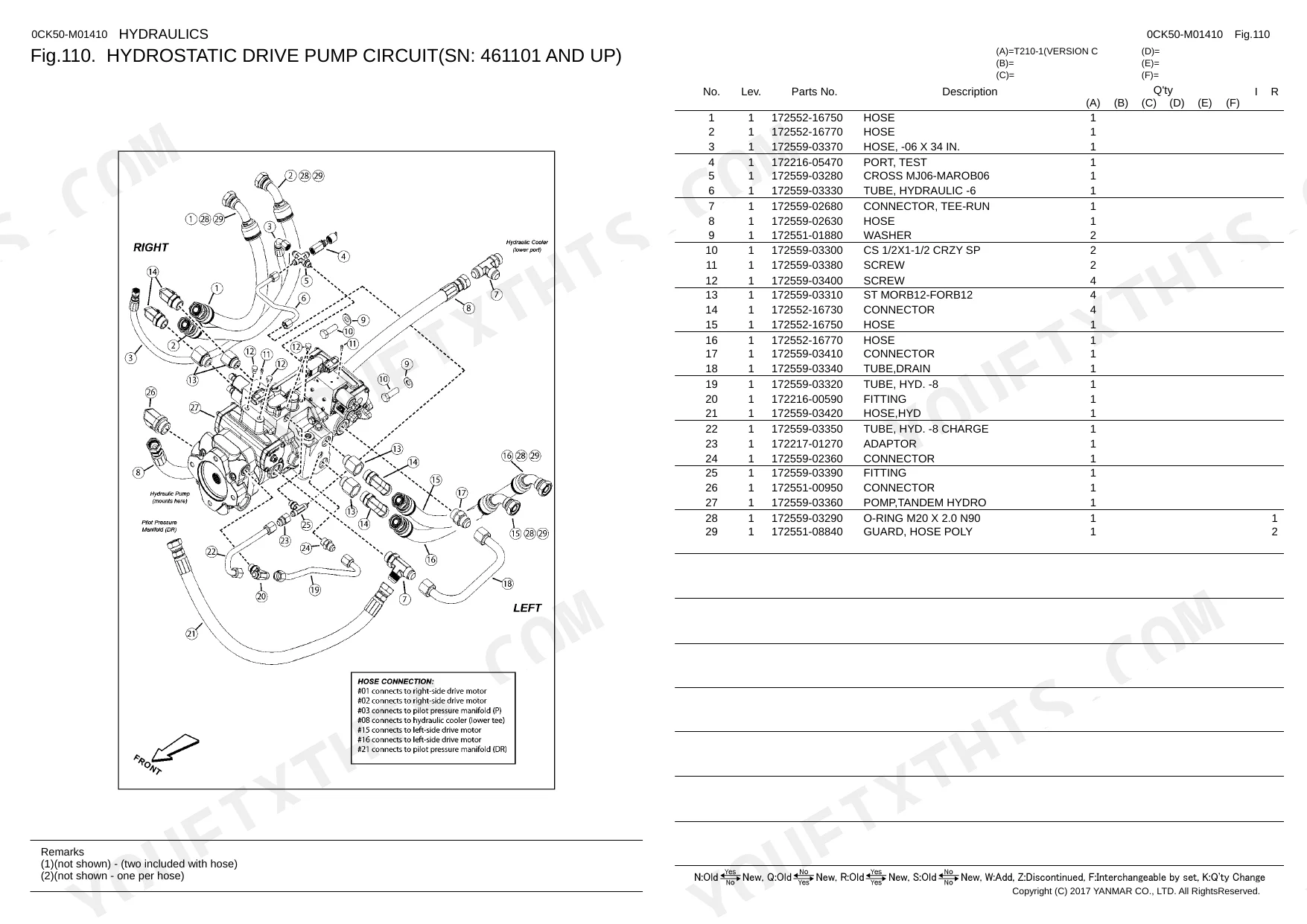

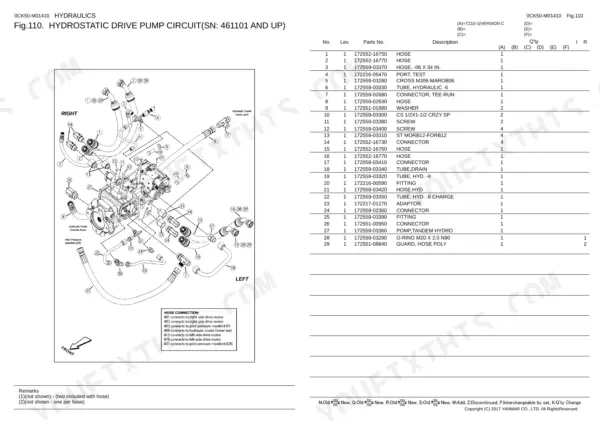

Manual Section: Track Assembly(Sn: 461151 and Up)Trying to identify replacement hydrostatic drive pump hoses after a blown line p. 117
Check the hydrostatic drive pump circuit diagram on page 117. Locate the required replacement part numbers for the specific -06 X 34 IN. hydraulic hoses. Order the correct fittings and lines based on your exact serial number to restore proper fluid flow.
Manual Section: 110.Hydrostatic Drive Pump Circuit(Sn: 461101 and Up)Looking for the main hydraulic valve seal kit numbers due to weak bucket response p. 143
Examine the main hydraulic valve components on page 143 to identify the required seal kit part numbers. Ensure you select the correct kit rated for the standard hydraulics 120 BAR port relief pressure. Order the exact matching seals for your specific valve block assembly.
Manual Section: 135.Hydraulic Main Valve - Standard HydraulicsFrequently Asked Questions
What are the hydraulic system specifications?
The hydraulic main valve for standard hydraulics has a port relief pressure of 120 BAR, with early units using 240-A BAR for 2 valves. For high-flow hydraulics, specifications include 210 BAR, 240-A BAR (for early units with 2 valves), 200 BAR, and a port relief pressure of 120 BAR.
How do you fix cannot locate Yanmar T210 replacement starter part number for machine cranking slowly or not starting?
Inspect the external components diagram on page 74 to find the exact starter motor assembly. Verify your machine requires the 12V-3KW starter unit before ordering replacements. Cross-reference the specific part number with your serial number range to ensure correct fitment and resolve the starting issue.
How do you fix need replacement part numbers for torn rubber tracks and worn drive sprockets?
Review the track assembly exploded view on page 91. Identify the correct replacement part numbers for the 450X86X56 BBE rubber tracks and the 17T drive sprockets. Match these components against your specific serial number block to order the right parts and get the machine moving.
How do you fix trying to identify replacement hydrostatic drive pump hoses after a blown line?
Check the hydrostatic drive pump circuit diagram on page 117. Locate the required replacement part numbers for the specific -06 X 34 IN. hydraulic hoses. Order the correct fittings and lines based on your exact serial number to restore proper fluid flow.
What format is this manual in?
A 174-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this Yanmar T210 Parts Catalog cover the hydraulic system?
Yes, a hydraulic system diagram is included showing the main circuit layout.
