All 42 pages of this Yanmar TB235 / 3TNV88-BPTB2 Parts Catalog zero in on the 3TNV88-BPTB2 engine (cab) and 3TNV88-BPTB1 (canopy) variants used in the Takeuchi TB235. You get exploded-view figures stepping through every major assembly: cylinder block, gear housing, flywheel, cylinder head, camshaft, crankshaft and piston, fuel injection pump, governor, injectors, fuel line, starting motor, alternator, and gasket sets. Each figure pairs with a numbered parts list so you can identify components, confirm OEM part numbers, and cross-reference superseded items without a phone call to the dealer. Sizing data is baked right into the lists: main metal, thrust metal, piston pin, and ring sets all show 0.25 mm undersize and oversize options so your order lands correct the first time. Chasing a part number across three websites ends now. Bookmarked by assembly, searchable by keyword, and downloadable in seconds.
What's Inside This Yanmar P-TB235EAD, TB235, 3TNV88-BPTB2 (cab), 3TNV88-BPTB1 (canopy) Parts Manual
| System | Pages | Key Topics |
|---|---|---|

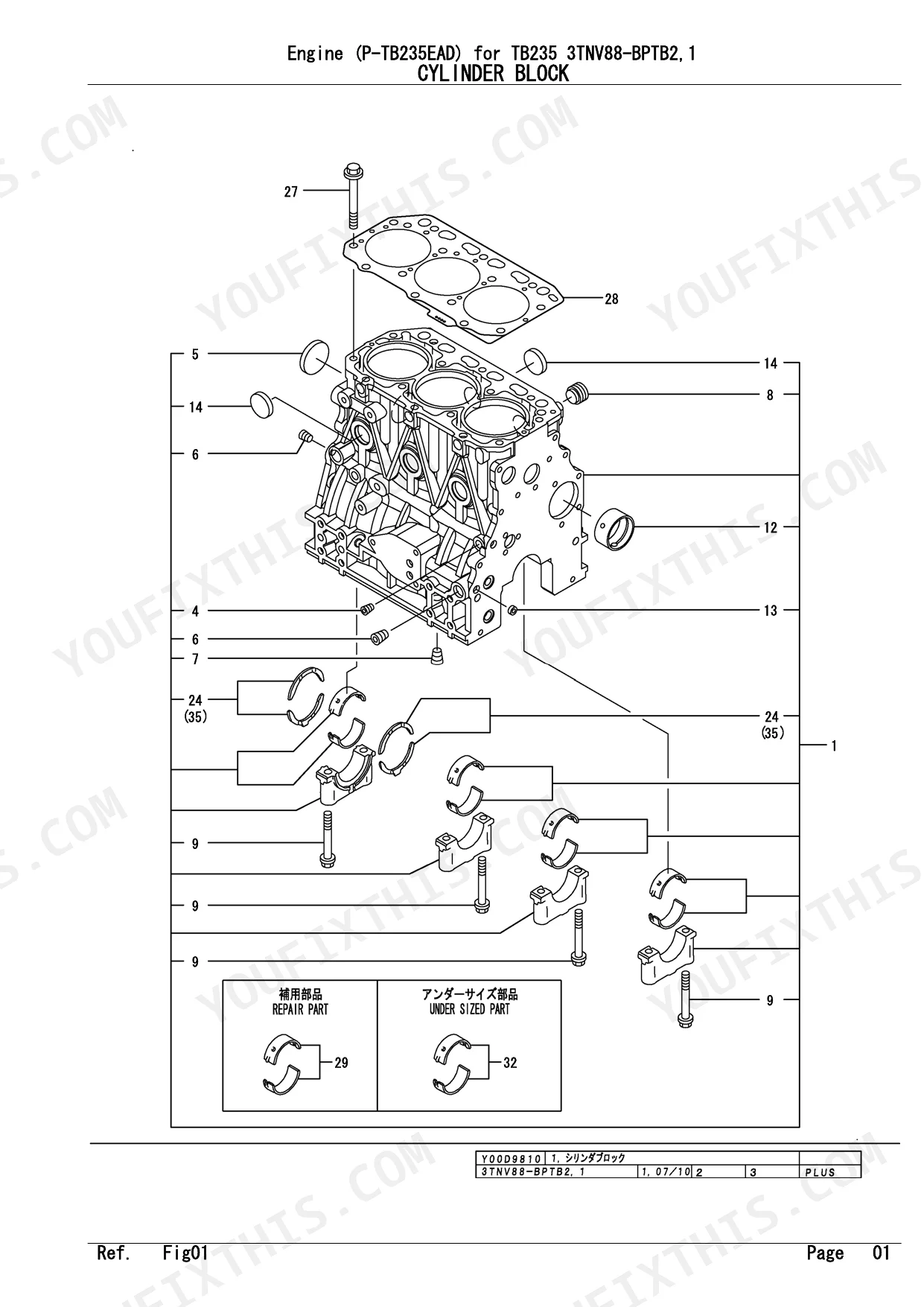

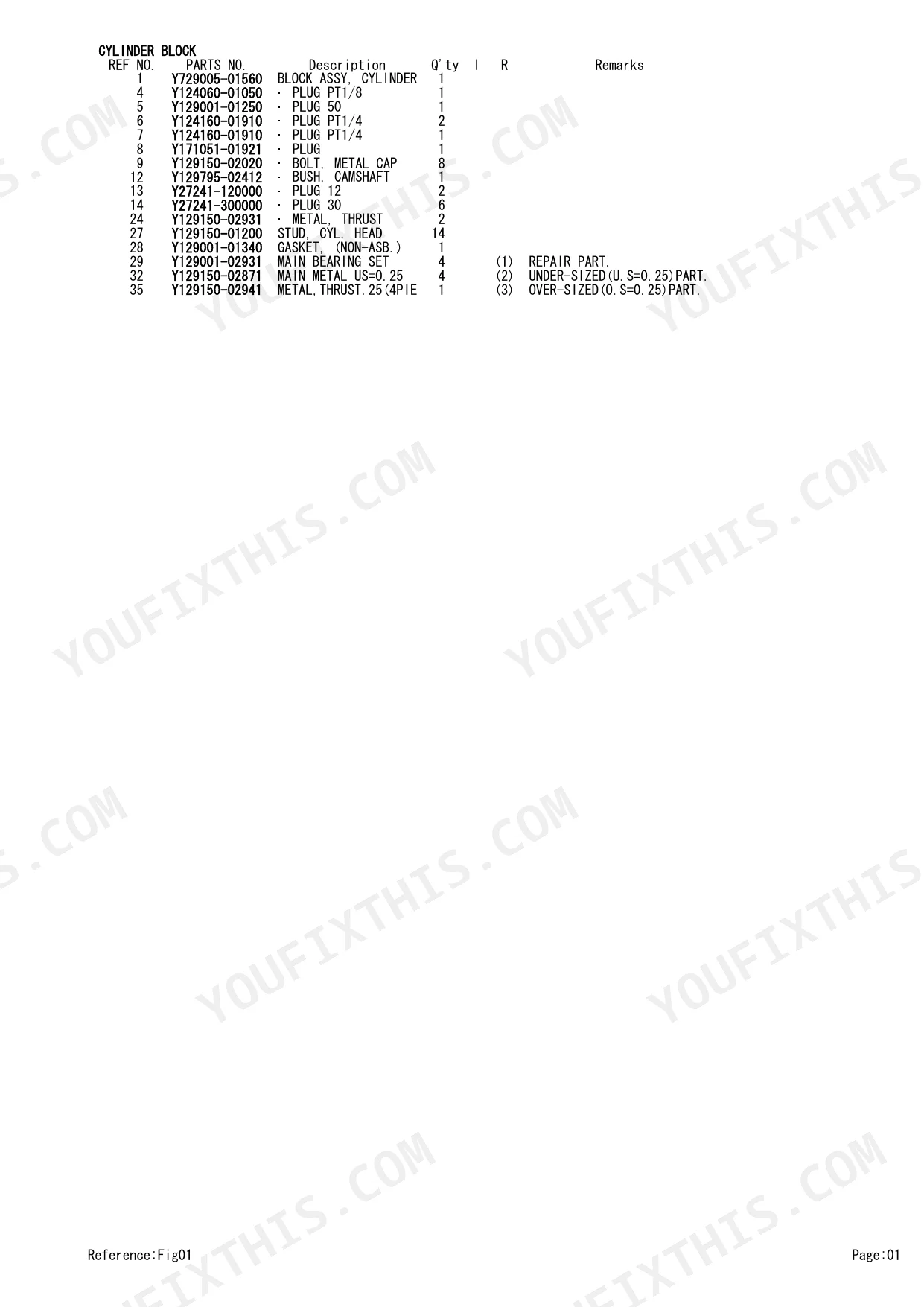

| Cylinder Block | 6-7 | Block Assy, Cylinder, Plug, Bolt, Metal Cap, Bush, Main Bearing Set |

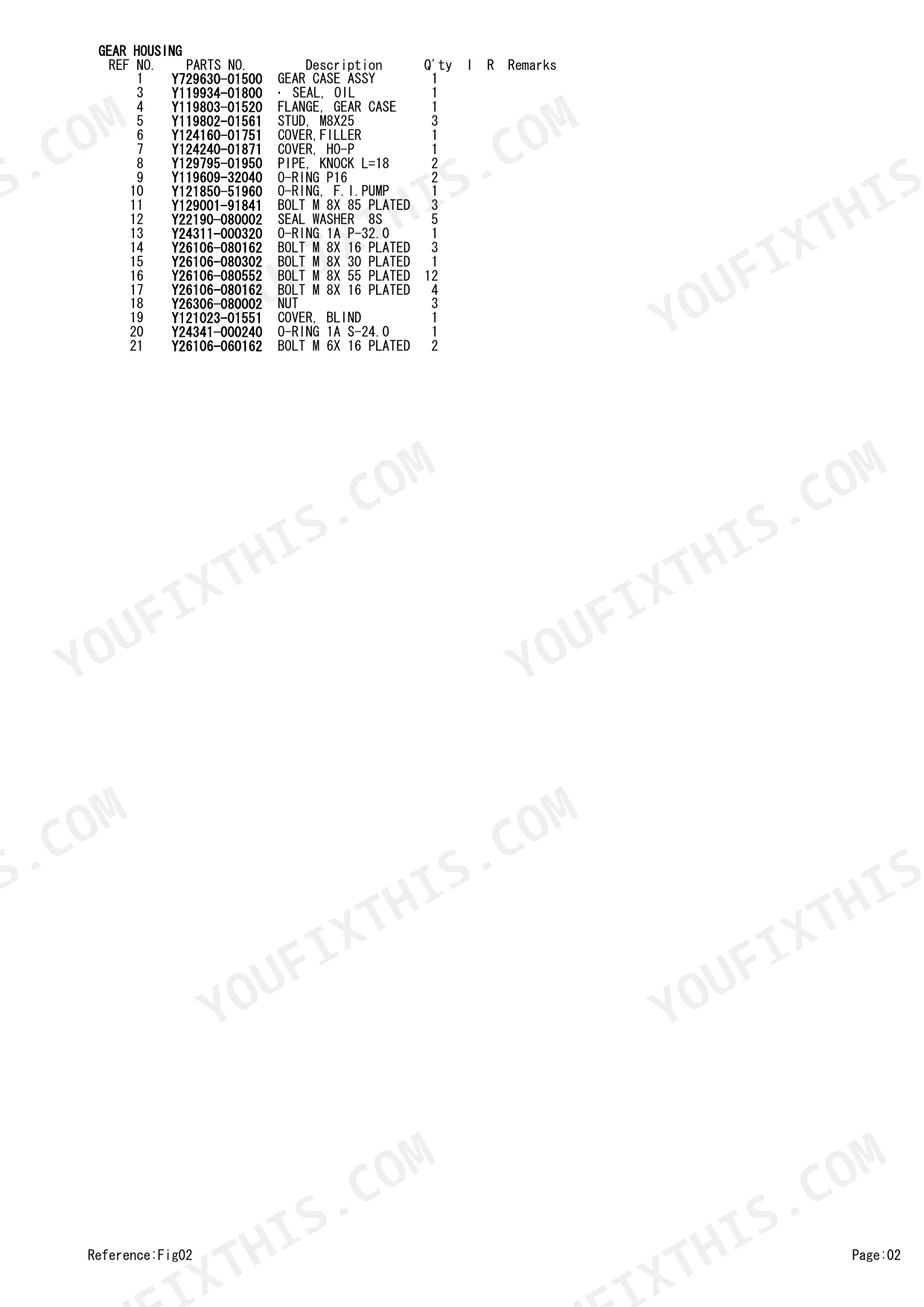

| Gear Housing | 8-9 | Gear Case Assy, Seal, Oil, Flange, Cover, O-Ring, Bolt |
| Flywheel Housing & Oil Sump | 10-11 | Housing, Flywheel, Cap, Flywheel Cover, Oil Sump, Sump Assy, Lub. Oil, Drain Plug |
| Cylinder Head & Bonnet | 12-13 | Lifter, Shaft Assy, Rocker, Head Assy, Cylinder, Valve, Bonnet Assy, Head |

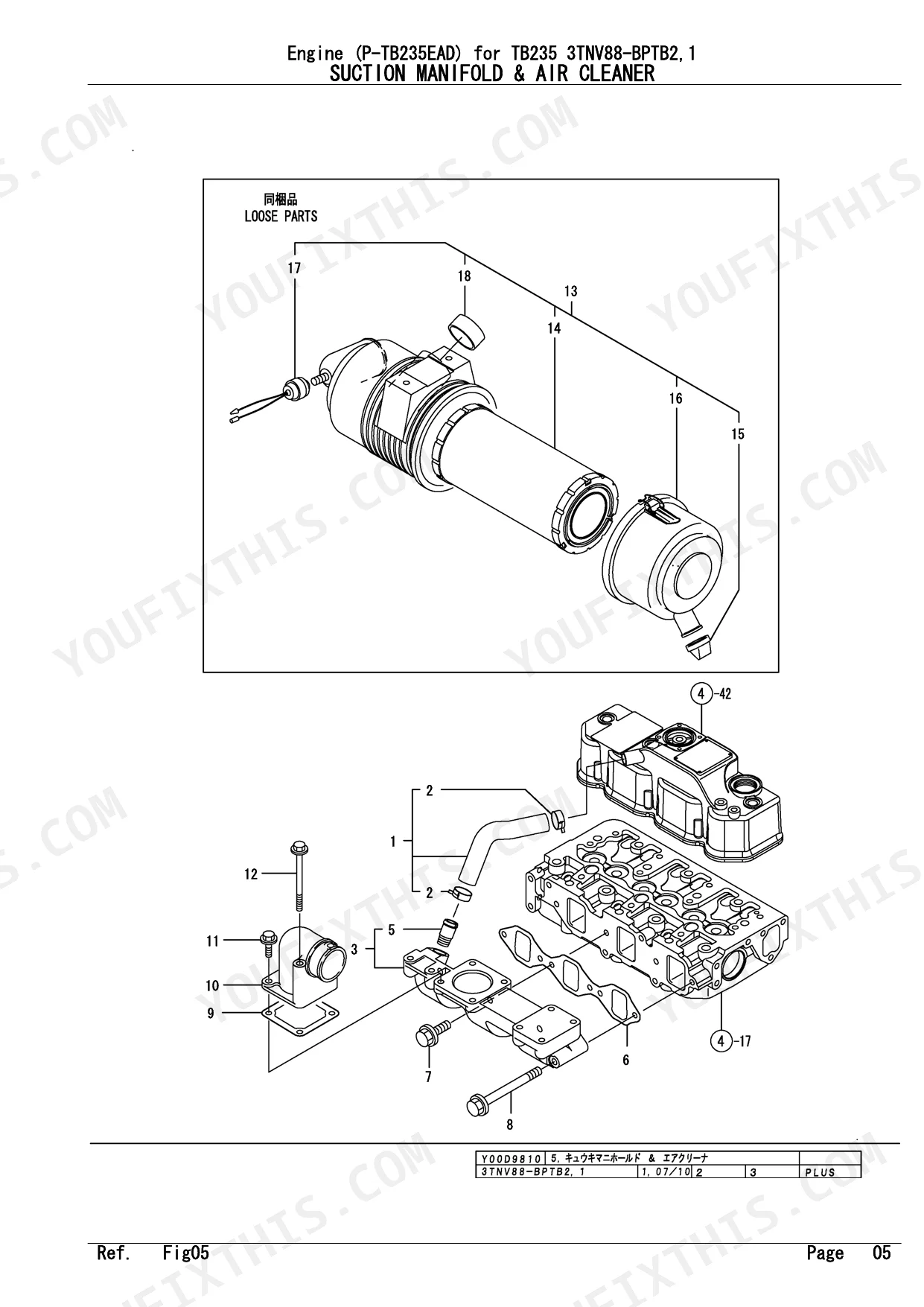

| Suction Manifold & Air Cleaner | 14-15 | - |
| Exhaust Manifold & Silencer | 16-17 | - |
| Camshaft & Driving Gear | 18-19 | - |
| Crankshaft & Piston | 20-21 | - |
| Lub.Oil System | 22-23 | Pump Assy, Dipstick, Filter, Oil Cooler, Pipe Assy |
| Cooling Water System | 24-25 | Pump Assy, Thermostat, Fan, V-Pulley, V-Belt, Sub-Tank Assy |
| Fuel Injection Pump | 26-27 | Injection Pump Assy, Valve Assy, Delivery Holder, Timer Set, Damper Assy, Pump Assy |
| Governor | 28-29 | Lever, Regulator, Retainer, Cover, Solenoid |
| Fuel Injection Valve | 30-31 | Fuel Injector, Nozzle Assy, Holder Assy, Injection Pipe, Return Pipe, Corrugated Tube |
| Fuel Line | 32-33 | Fuel Filter, Fuel Oil Filter, Fuel Pump, Separator Assy, Fuel Pipe |
| Starting Motor | 34-35 | Starter, Magnetic Switch, Armature, Brush Holder, Pinion Assy, Gear Case |
| Generator | 36-37 | Alternator, Rotor Assy, Ball Bearing, Pulley, Regulator Assy, Adjuster |
| Gasket Set & Tools | 38-42 | Numerical Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main Metal Undersize | 0.25 | p. 7 |
| Thrust Metal Undersize | 0.25 | p. 7 |
| Piston Pin Undersize | 0.25 | p. 21 |
| Piston w/Ring Oversize | 0.25 | p. 21 |
| Ring Set Oversize | 0.25 | p. 21 |
| Oil Pressure Switch Setting | 0.5KG | p. 23 |
| Thermostat Opening Temperature | 82 | p. 25 |
| Thermo Switch Activation Temperature | 110 | p. 25 |
| Hose Dimensions | 7X 225mm | p. 25 |
Yanmar P-TB235EAD, TB235, 3TNV88-BPTB2 (cab), 3TNV88-BPTB1 (canopy) Common Problems This Manual Covers
Yanmar TB235 fuel filter part number unclear after filter service, engine won't reprime p. 32
Open the Fuel Line exploded view on page 32. Locate the Fuel Oil Filter and Separator Assy entries in the parts list. Cross-reference the part number against your serial number range before ordering. The same section lists the Fuel Pump and all connecting Fuel Pipe assemblies, so order any associated seals at the same time to avoid a second bleed job.
Manual Section: Fuel LineCooling system hose part number needed, engine running hot after water pump replacement p. 24
Check the Cooling Water System parts list on page 24. The catalog lists a 7x225mm hose (part reference on page 25) alongside the Pump Assy, Thermostat, Fan, V-Pulley, and V-Belt; the thermostat opens at 82 degrees C and the thermo switch activates at 110 degrees C. Verify both temperature ratings match your engine spec before ordering.
Manual Section: Cooling Water SystemFuel injection nozzle part number needed for 3TNV88-BPTB2 engine overhaul p. 30
Turn to the Fuel Injection Nozzle section starting around page 30. The catalog lists the nozzle assembly with individual sub-components and OEM part numbers for both cab (BPTB2) and canopy (BPTB1) variants. Order the complete gasket set alongside the nozzle to avoid a second teardown, as the head gasket and related seals are listed in the same section.
Manual Section: Fuel Injection NozzleFrequently Asked Questions
What are the replacement specifications for fuel filter?
For replacement, the fuel filter is specified as part number Y129907-55801 for the "FILTER, FUEL OIL" and Y119802-55710 for the "ELEMENT". Each is required in a quantity of 1. This information is found in the Fuel Line section of the parts catalog.
What are the replacement specifications for air filter?
For replacement, the air filter assembly is specified as part number Y129236-12510 for the "CLEANER ASSY, AIR", and the element as Y129004-12520 for "ELEMENT 5INCH". Each is required in a quantity of 1. This information is located in the Suction Manifold & Air Cleaner section.
How do you fix yanmar TB235 fuel filter part number unclear after filter service, engine won't reprime?
Open the Fuel Line exploded view on page 32. Locate the Fuel Oil Filter and Separator Assy entries in the parts list. Cross-reference the part number against your serial number range before ordering. The same section lists the Fuel Pump and all connecting Fuel Pipe assemblies, so order any associated seals at the same time to avoid a second bleed job.
How do you fix cooling system hose part number needed, engine running hot after water pump replacement?
Check the Cooling Water System parts list on page 24. The catalog lists a 7x225mm hose (part reference on page 25) alongside the Pump Assy, Thermostat, Fan, V-Pulley, and V-Belt. The thermostat listed opens at 82°C and the thermo switch activates at 110°C — if you're ordering a replacement thermostat, verify the part number matches those temperature ratings shown on page 25.
What format is this Yanmar P-TB235EAD, TB235, 3TNV88-BPTB2 (cab), 3TNV88-BPTB1?
You get a 42-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this Yanmar P-TB235EAD, TB235, 3TNV88-BPTB2 (cab), 3TNV88-BPTB1?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text. The text quality is generally clear and readable, though it exhibits minor artifacts typical of scanned content rather than native digital crispness. Diagrams and illustrations are raster images, and their labels are readable despite some pixelation upon zooming. Pages are clean with no significant marks or skewing, and there is one blank 'Memo' page included.
