Tracking down exact replacement components is simple when you open this 121-page Yanmar V3-6, 3TNV88-BNKAH parts catalog PDF (OEM #0CS10-M53302EN) for 2008 wheel loaders. You get clear exploded views covering every system, from the complete HST pump and motor assemblies to the lift cylinders and cabin ducting. Inside, detailed factory diagrams map out every assembly so you can verify part numbers and order the right hardware on the first try. Verify your component dimensions instantly, like confirming the M20X35 plated wheel bolts or checking the exact 45X55X48 lift arm bushings. Grab this bookmarked digital file, jump straight to the assembly you need, and get your parts order submitted today.
What's Inside This Yanmar V3-6, 3TNV88-BNKAH Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-6 | - |

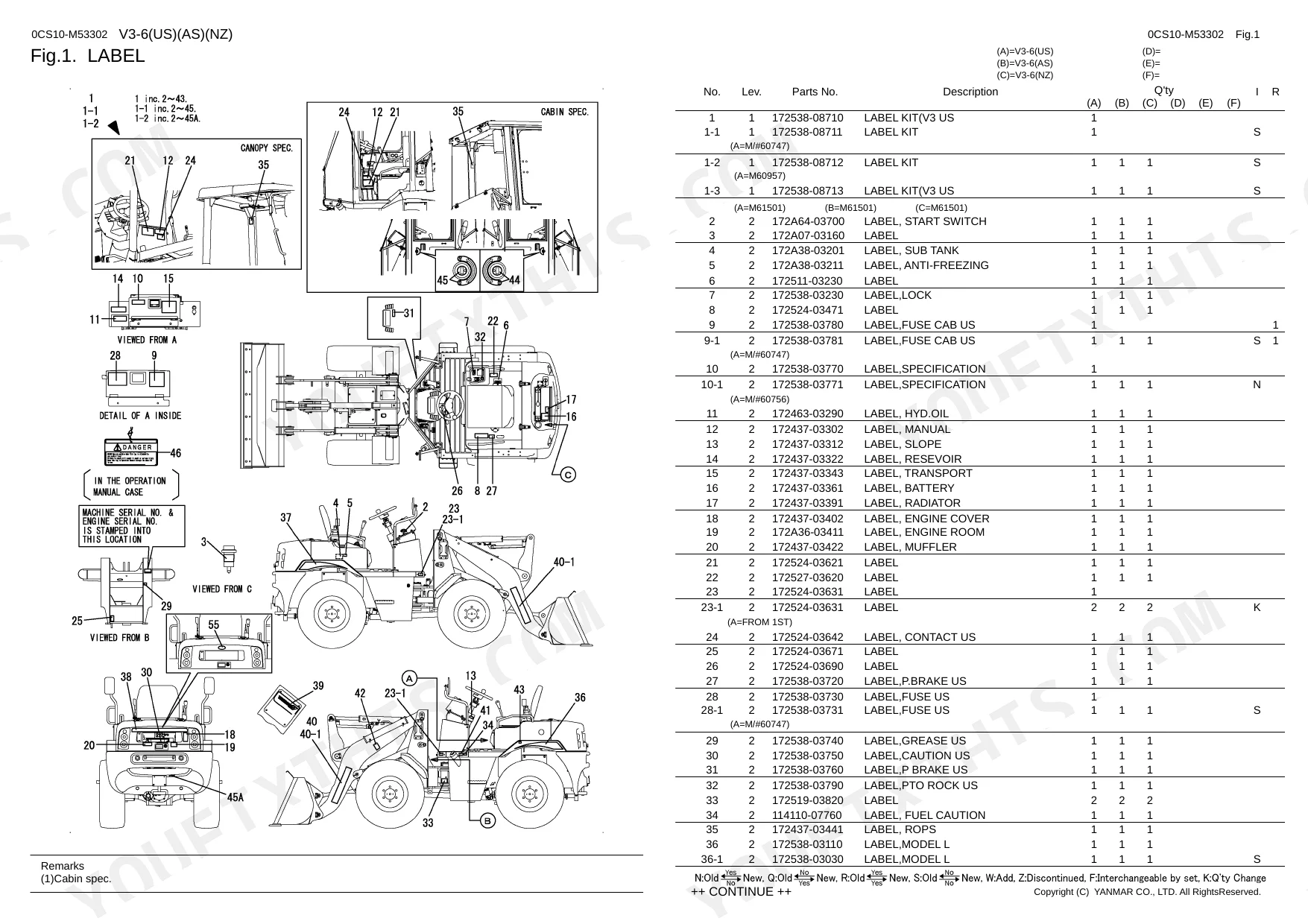

| Label | 9-10 | Label Kit Us, Label Kit S, Label Kit Us S, Lock Label, Fuse Cab Us Label, Fuse Cab Us S Label, Specification Label |
| 79.(1A)Label(For Canada)(Optional) | 11 | Label Kit F W, Door Lock Label, Lock R Label, Air Press.f Label, Seat Belt Fr Label, Fuse C F Label, Spec.f Label, Oil Label |
| Safety Label | 12 | Manual Label, Label, Label K, Contact Us Label, Lift Arm Lock Label, Engine Cover Label, Resevoir Label, Radiator Label |
| Silencer | 13 | Tail Pipe, Exhaust Tubr Assy, Silencer Band, Muf L Bracket Assy, Muf R Bracket Assy, Drain Bracket, Silencer Gasket |
| Air Cleaner & Engine Drain | 14 | Air Hose A, In Hose A, In S Hose, Air Stay Assy, Air N Stay Assy, Hose B Z, Air Cleaner Assy, Element |
| Foot Accelerator | 15-16 | 73X64X12 W Plate, Pedal W Plate, Washer, Bolt |

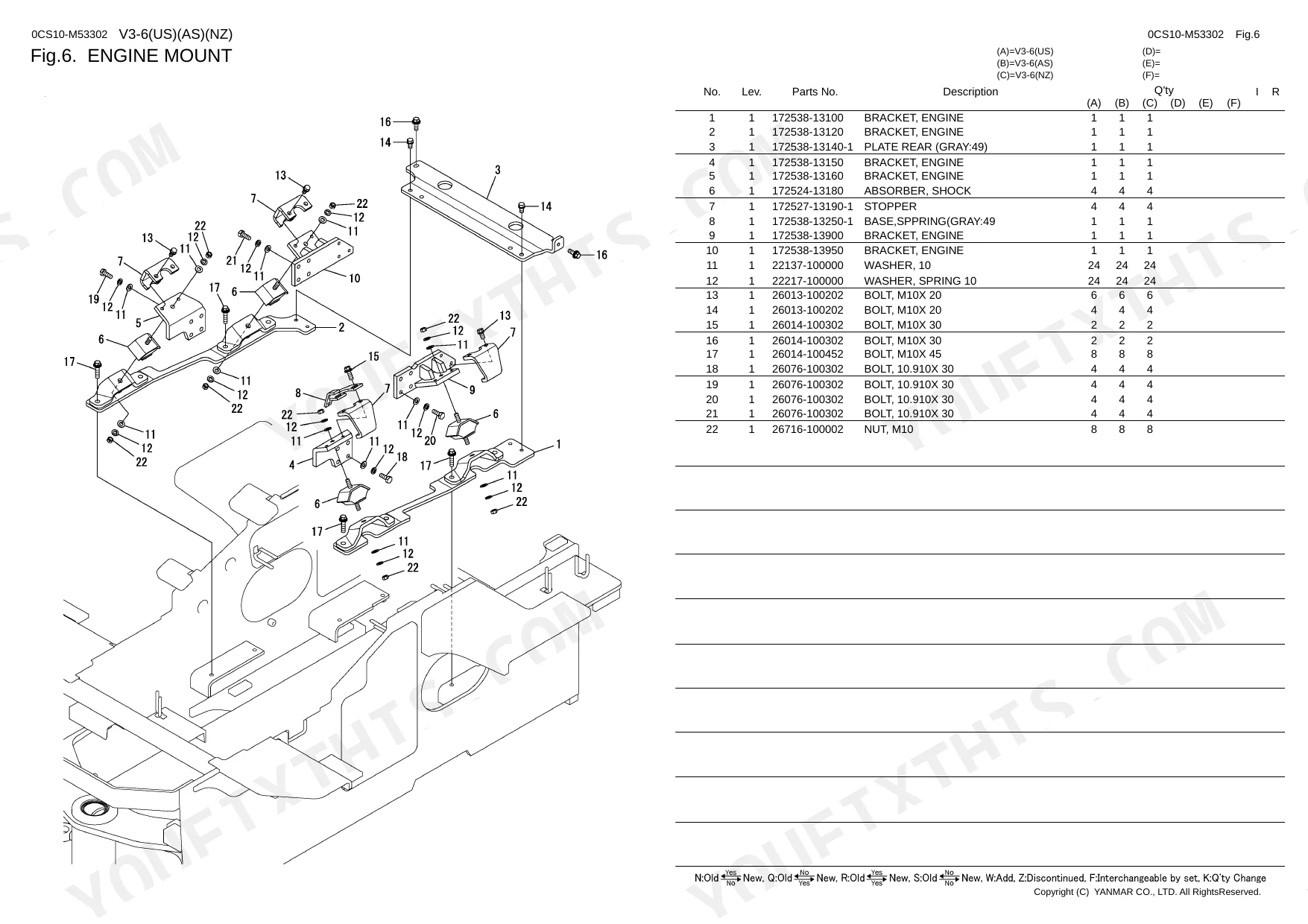

| Engine Mount | 17 | Engine Bracket, Plate Rear, Shock Absorber, Stopper, Sppring Base |
| Radiator | 18-19 | Radiator Support, Shroud Assy, Shroud Assy S, Battery Label, Radiator Label, Collar, Water Pipe, Water S Pipe |
| Radiator(Air Con.Spec.) | 20-21 | Radiator Support, Shroud Assy, Battery Label, Radiator Label, Collar, Water Pipe, Fan Guard, Oil Cover |
| Fuel Tank | 22 | Fuel Tank Assy, Fuel Filter, Tank Cap Assy, Gasket, Fuel Return Pipe, Fuel L390 Pipe Assy, Hose, Corrugated Tube |
| Battery | 23 | Battery Cable Assy, Battery Cord, Wire Harness C, Battery Earth Cable, Battery Cover, Battery Retainer |
| Wiring(To M61068) | 24-25 | Support Assy, M Harness Assy, M S Harness Assy, M N Harness Assy, Diode W, Rear Harness Assy, Rear S Harness Assy, Rear N Harness Assy |
| 72.(11A)Wiring(From M61069) | 26 | Support Assy, M Harness Assy, Main Us S Harness Assy, Diode, Rear Harness Assy, Rear S Harness Assy, 5A Fuse, Slowblow Fuse |
| Electric Part(1) | 27-28 | Relay Base Assy, Head Lamp, Lens, Lim, Gasket, 12V 55W Bulb, Lamp Support, Lamp S Support |
| Electric Part(2) | 29 | Flasher Switch, Starter Switch Assy, Cord Assy, Cover, Combination Meter, Meter Cover, Slope Label, P Brake Us Label |
| Electric Part(Auto Lebeller) | 30 | Proximity Sensor, Sensor Stay Assy, Sensing Bar Assy, Washer |

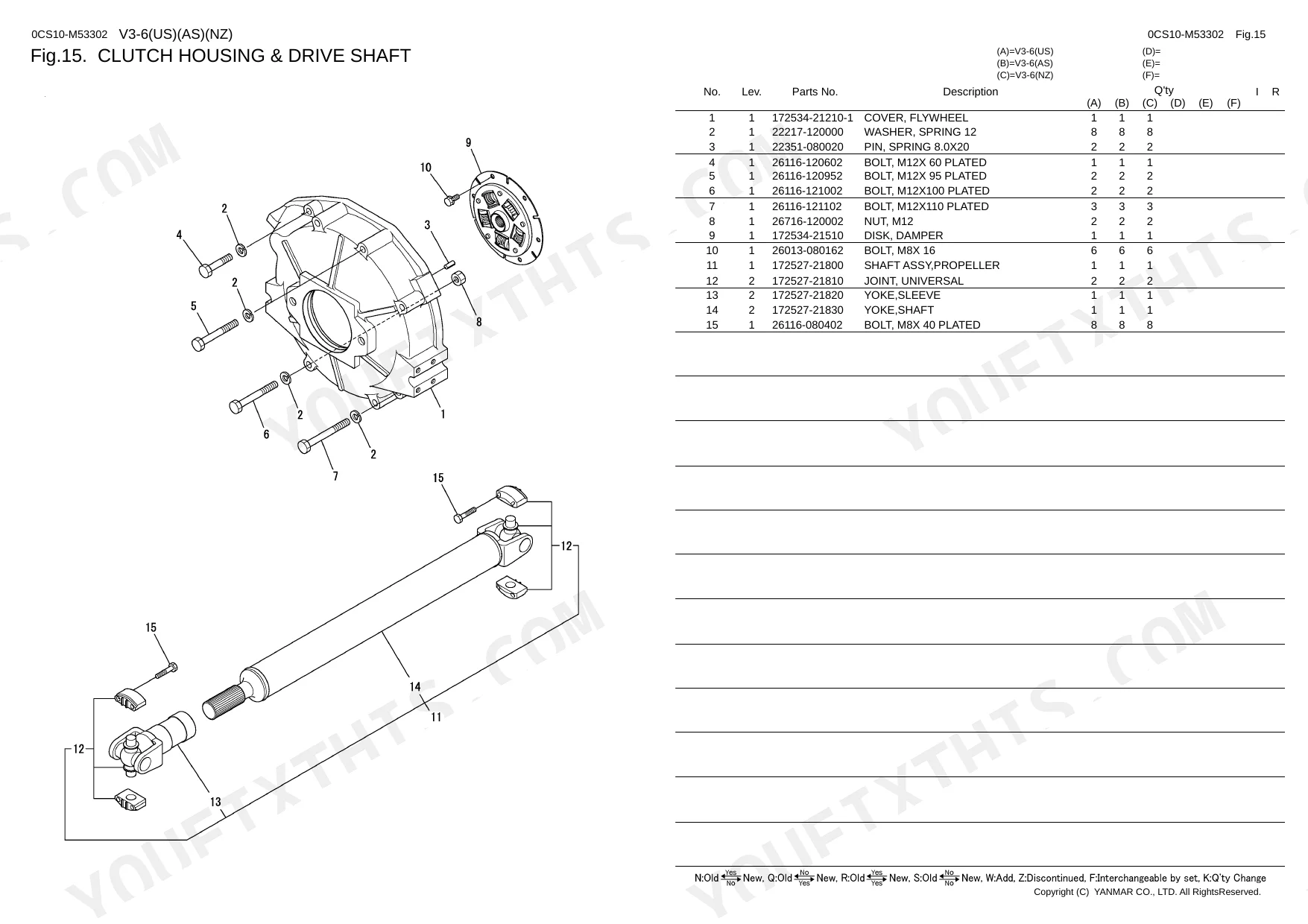

| Clutch Housing & Drive Shaft | 31 | Flywheel Cover, Damper Disk, Propeller Shaft Assy, Universal Joint, Sleeve Yoke, Shaft Yoke |
| Transfer Case | 32 | Case, Idle Gear, Gear, Brake Shaft, Brake F Shaft, Joint Flange, Gasket, Coupling |
| Spiral Bevel Gear | 33 | Bevel Gear Assy, Bearing Holder, Bearing S Holder, Collar, Spline Collar, Ring, 30306D Bearing, 30307DH Bearing |
| Differential Gear | 34 | Pinion Liner, Differential Pinion, Differential Shaft, Differential Case |
| Axle Shaft | 35 | Seal TC6Y 70X88X12, Axle Cover, Bearing |
| Final Gear | 36 | Sun Gear, Internal Gear, Planetary Pinion, Planetary Shaft, Planetary Carrier, T253324 Needle |
| Axle Case | 37 | Case, Bearing Holder, Axle Case Gasket, Breather, 16X1 Gasket |
| Axle Holder | 38 | Axle Holder Assy, Axle S Holder Assy, Bush, Grease B Nipple, Axle R Holder Assy, 85X40 Bush, Grease R1 Nipple, Gasket |
| Center Brake | 39 | Oil TC6Y577512 Seal, Brake Assy, Oil TC253506 Seal, Brake Case, Brake Camshaft, Friction Disk, Case Gasket, Actuator |

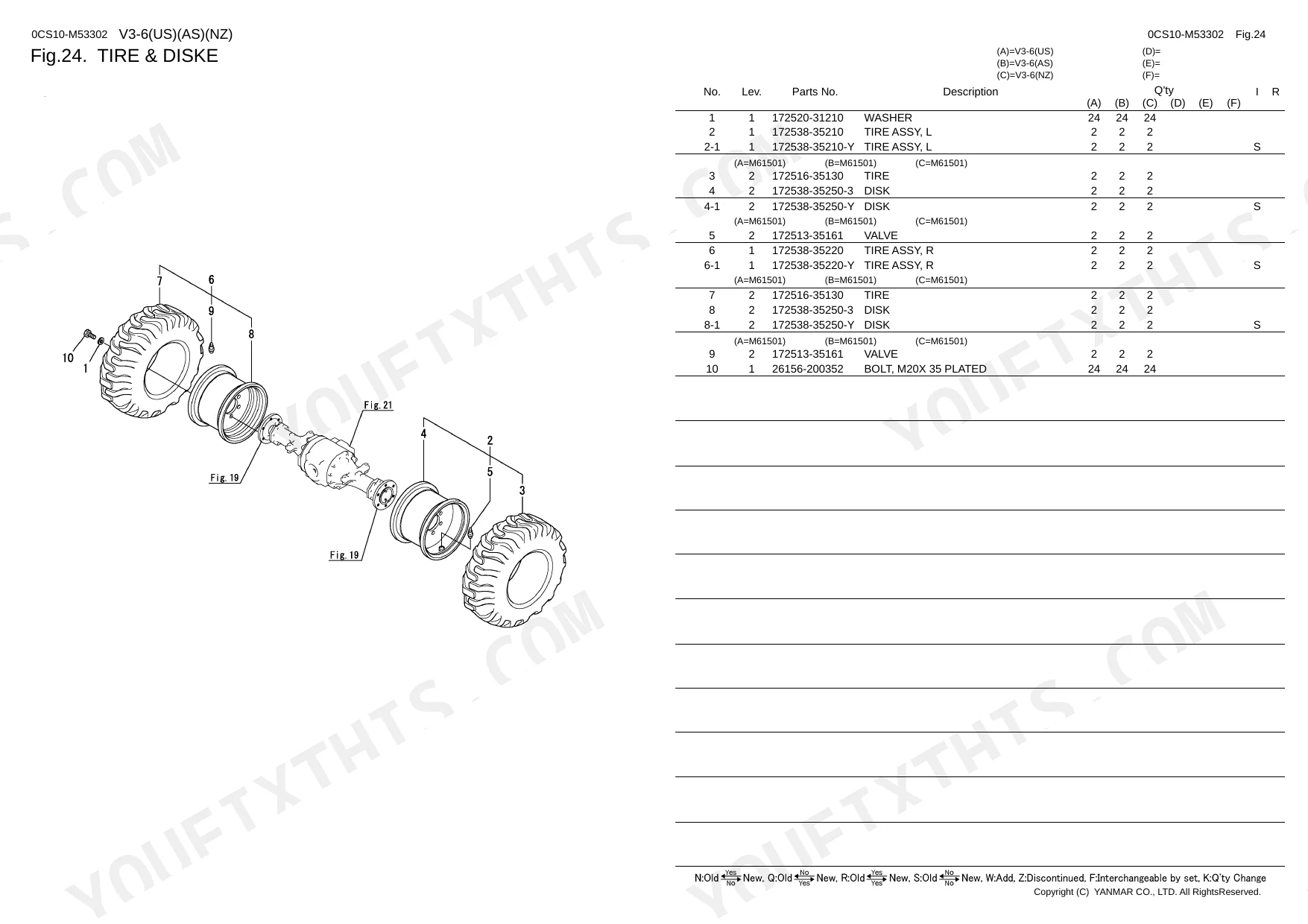

| Tire & Diske | 40 | L Tire Assy, Tire, Disk, Valve, R Tire Assy |
| Inching Pedal | 41 | Pedal Pad, Boot, Pedal Plate Assy, Inching Plate, Inching Assy Rod A, Inching Assy Rod B, Return Spring |
| Braket Pedal | 42 | Pedal Pad, Boot, Pedal Plate Assy, Return Spring, Joint, Link Cam Assy, 25X15 Bush, Cam A Holder Assy |
| Park Brake Lever | 43 | Boot, Return Spring, 4X12X61 Spring, Head Pedal, Pedal Lock Assy, Pedal Lock Assy N, Parking Cam, Parking Lever Assy |
| Hyd.Oil Control Lever | 44 | Knob Assy, Loader Lever, 12X12 Bush, Loader Link Cable, Boot, 8X12X2 Collar, Lever Link, Spacer |
| Steering Wheel & Column | 45 | Steering Handle, Knob Assy W, Handle Cap, Column Assy, Steering Shaft, Bearing 20X37X9, Column Bush, Grommet |
| Control Cover | 46 | Lever Stand, 16X15 Bush, Lock Label, PTO Rock Us Label |
| P.T.O.Lever | 47 | Accelerator Grip, 3RD Lever Assy, 3RD Bracket, 3RD Stopper, Boot, Lever Pin Assy, Rod End, Loader Link Cable |
| Front Frame | 48 | Front Frame Assy, Front N Frame Assy, Front S Frame Assy, Label, Grease Us Label, Frame Stopper Assy, Thrust Collar, Thrust Plate |
| Rear Frame | 49-50 | Rear Frame Assy, Rear Frame Assy N, Bush, Sponge, Sponge N, Label, Frame Cover, Grease PT1 Nipple |
| Cover & Step | 51-52 | Front Floor A, Front S Floor A, Label, Front Floor B, Floor B, Fender F Assy, Fender F Assy S, Fender Assy |
| Cover & Step(Air Con.Spec.) | 53-54 | Front Floor A, Front S Floor A, Label, Front Floor B, Floor B, Fender F Assy, Fender F Assy S, Fender Assy |
| Seat & Seat Mount | 55-56 | Seat Assy, Seatbelt Assy W, Grille Assy, Grille Assy S, Hose Cover, Harness Cover, Deffrencal Cover, Seal Rubber |
| Seat & Seat Mount(Air Con.Spec.) | 57 | Seat Assy, Seatbelt Assy W, Plate, Seat A As Plate, Seat A As S Plate Assy, Channel Assy, Cover Assy, Cover Assy S |
| Bonnet | 58-59 | Us Bonnet R Assy, Emblem S Bonnet Kit, Emblem Assy W, Rear W Bonnet Assy, Sponge, Bonnet Frame, Bonnet S Frame, Engine Cover Label |
| Canopy | 60 | Back Mirror Assy, Mirror Frame Assy, Cap, Roof Assy, Roof Assy S, ROPS Frame Assy, Roof Frame, Rear Frame |

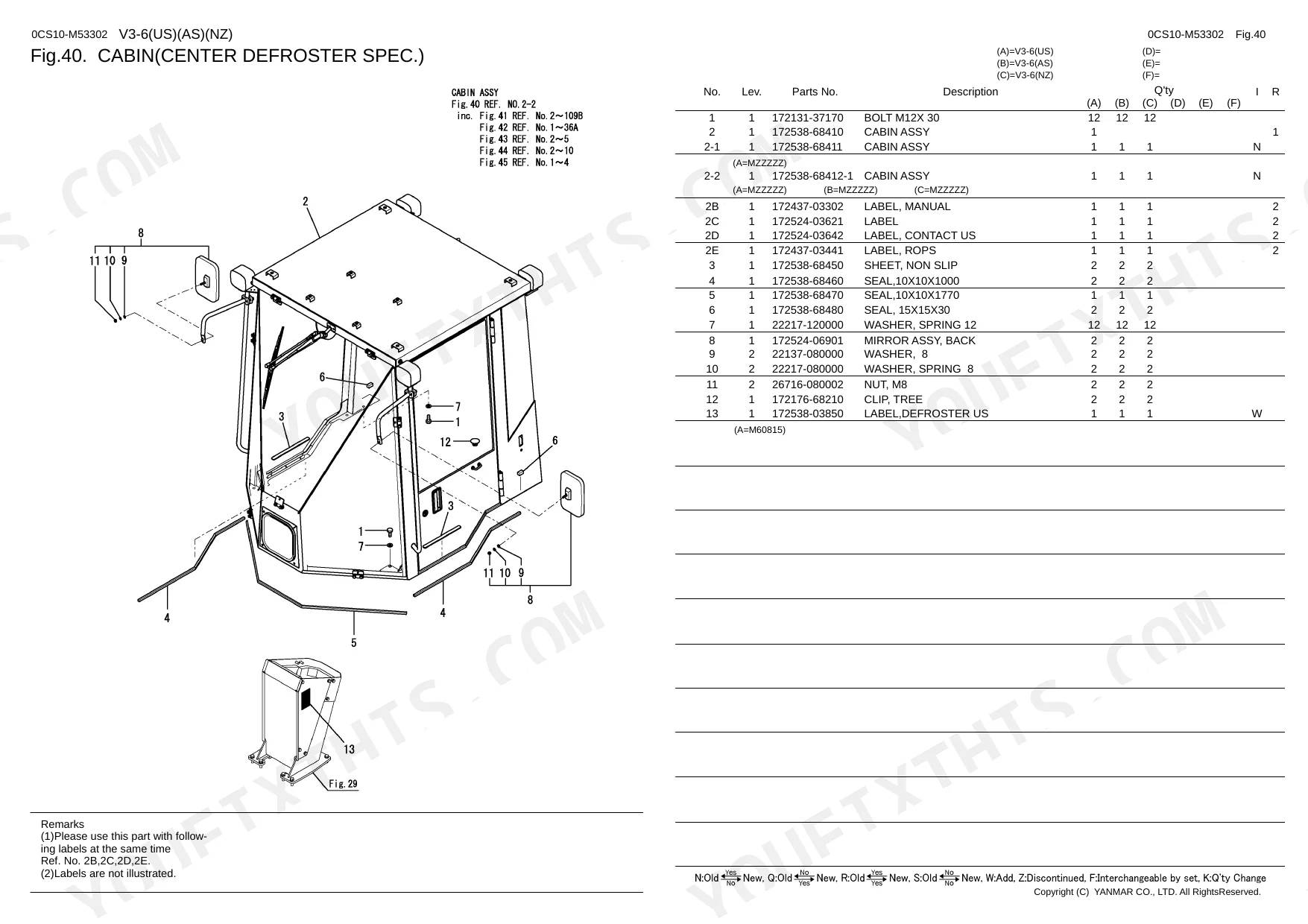

| Cabin(Center Defroster Spec.) | 61 | Cabin Assy, Cabin Assy N, Manual Label, Label, Contact Us Label, ROPS Label, Non Slip Sheet, 10X10X1000 Seal |
| Cabin(Door)(Center Defroster Spec.) | 62-65 | Grommet, Room Mirror, Bracket, Mirror Stay, Cover, Door, S Oc Rubber, Interior Seat |
| Cabin(Glass)(Center Defroster Spec.) | 66 | Glass Assy, Rubber, Bracket, Stopper, Wiper Motor, Wiper Arm, Wiper Blade, Motor Cover |
| Cabin(Sunvisor)(Center Defroster Spec.) | 67 | - |
| Cabin(Window Washer)(Center Defroster Spec.) | 68 | Hose, Check Valve Assy, Clip, Nozzle Assy, Nozzle Adapter, Packing |
| Cabin(Lamp)(Center Defroster Spec.) | 69 | Bracket, Work Lamp, Bulb, Bolt |
| 73.(45A)Cabin(Side Defroster Spec.) | 70 | Sponge, 15X200X5 Seal, Tree Z Clip, Non Slip Sheet, Cabin Assy, Manual Label, Label, Contact Us Label |
| 74.(45B)Cabin(Frame)(Side Defroster Spec.) | 71-72 | Grommet, Room Mirror, Bracket, Mirror Stay, Cover, Door, S Oc Rubber, Interior Seat |
| 75.(45C)Cabin(Door)(Side Defroster Spec.) | 73-74 | Door Assy, Door LH Panel Assy, Door Glass, Cover, LH Rod, Lock Assy, Handle Assy LH, Inner Handle |
| 76.(45D)Cabin(Grass)(Side Defroster Spec.) | 75 | Glass Assy, Bracket, Stopper, Rubber |
| 77.(45E)Cabin(Electric,Wiper)(Side Defroster Spec.) | 76 | Wiper Motor, Wiper Arm, Motor Cover, Rr Wiper Motor, Pivot Cap, Rubber, Collar, Arm Cover |
| Heater(Cabin) | 77 | Heater, Heater Duct Assy, Duct Seal, Defroster Hose Assy, Hose Sponge, Heater Valve Assy, Pipe Joint, Heater Hose Assy |

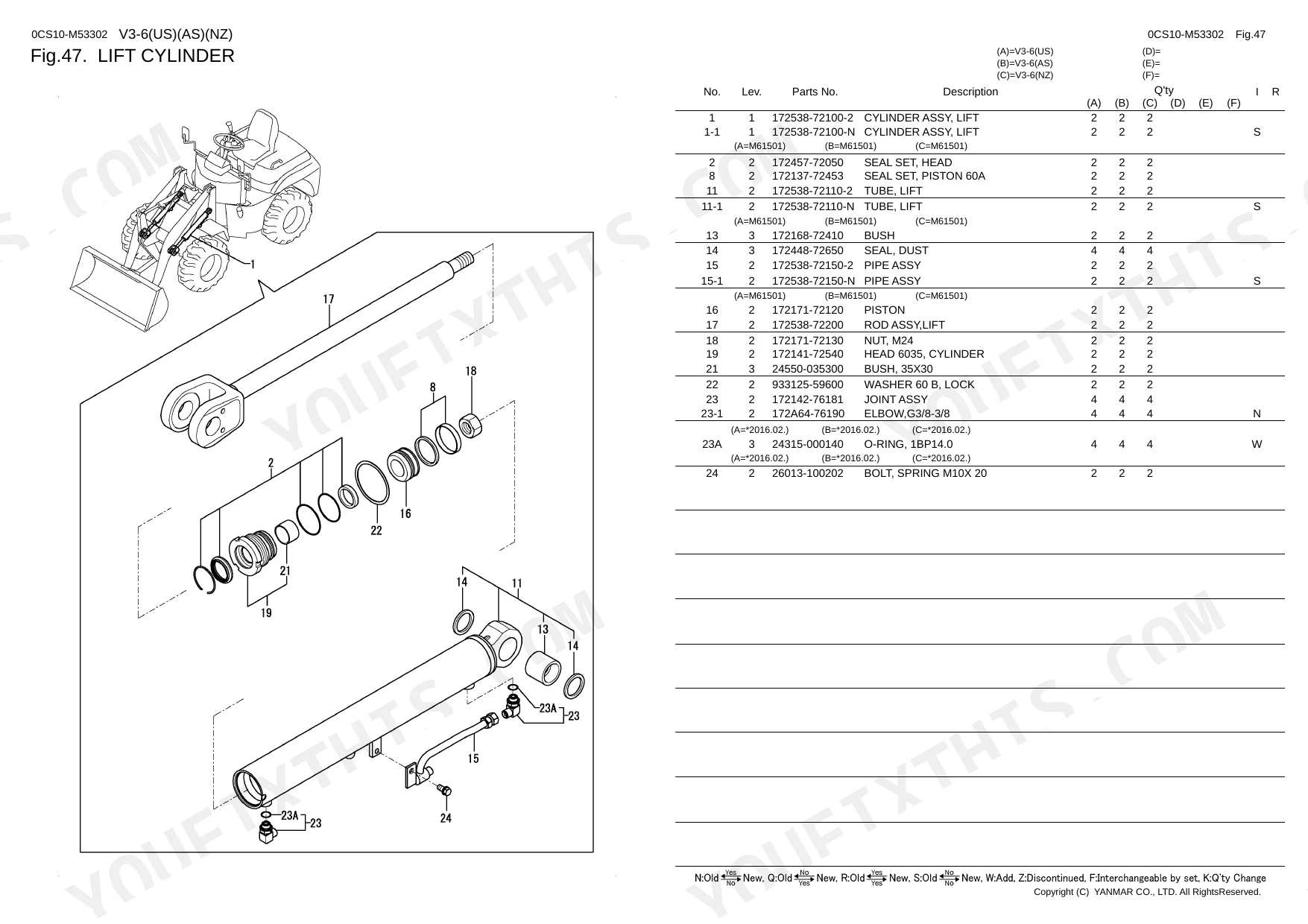

| Lift Cylinder | 78 | Lift Cylinder Assy, Head Seal Set, Piston 60A Seal Set, Lift Tube, Lift S Tube, Bush, Dust Seal, Pipe Assy |
| Dump Cylinder | 79 | Dump Cylinder Assy, Head Seal Set, Piston 60A Seal Set, Piston, Dump Tube Assy, Dump S Tube Assy, Bush, Dust Seal |
| Power Steering Cylinder | 80 | Cylinder Assy, Steering Tube Assy, Dust 35X45X4 Seal, Ps Rod Assy, Piston 60G, Piston 60A Seal Set, Head, 30X30 Bush |

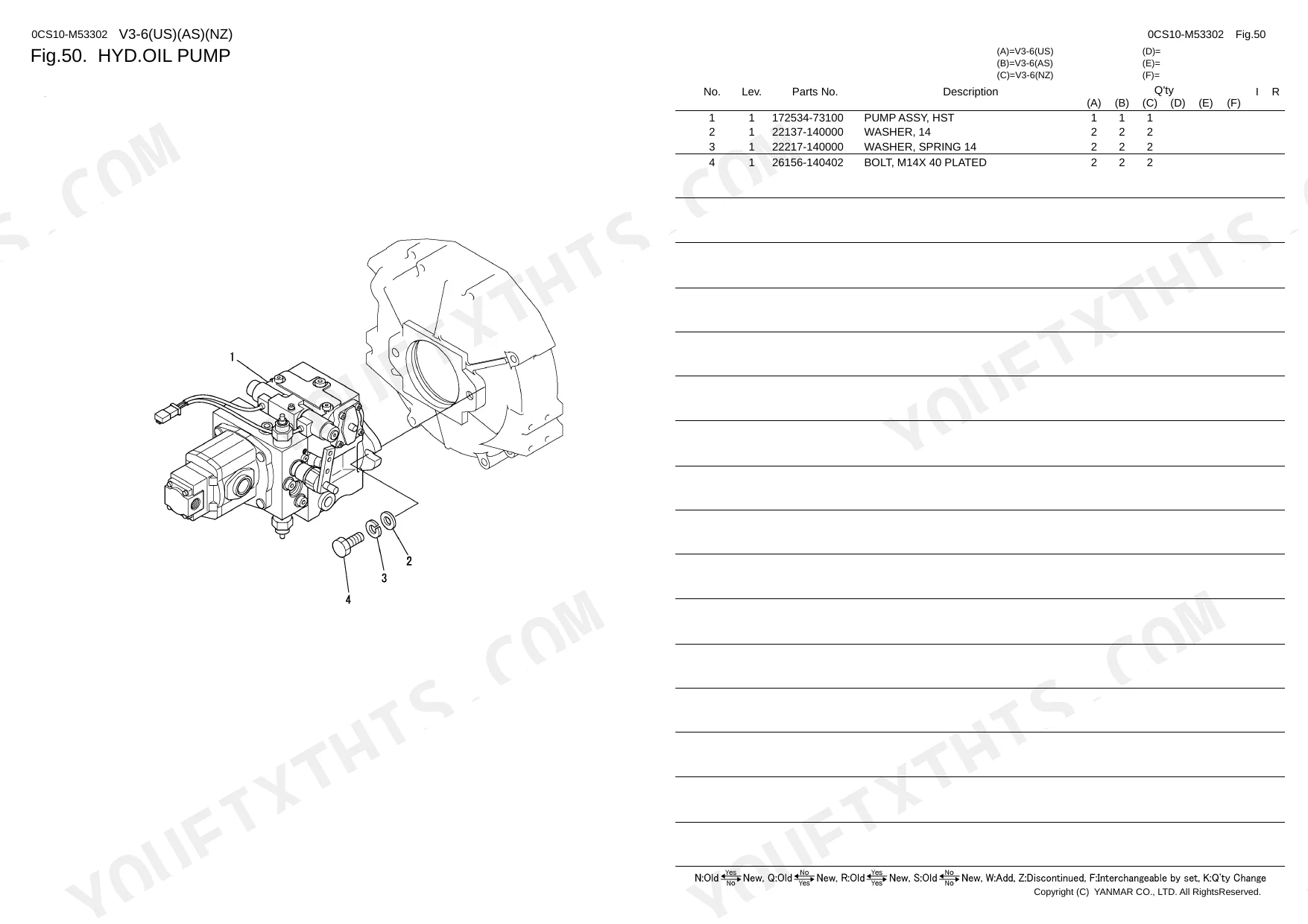

| Hyd.Oil Pump | 81 | HST Pump Assy, Washer, Bolt |
| Hyd.Oil Motor | 82 | - |
| Steering Unit | 83 | - |
| Control Valve(3-Way) | 84 | -way Us Valve Assy, Inlet Cover Assy, F Block Assy, Ed Block Assy, L Block Assy, End Coner, Valve Assy, Suction Valve |
| Hyd.Oil Tank | 85 | Reservoir Tank Assy, Suction Filter, Gauge Assy, Suction Flange Assy, Oil W Tank Kit |
| Filter & Pipe Fitting | 86-87 | Line Filter, Filter Element, Case, Oil Filter, Element, Elbow, Connector Assy, PF1/2PF3 Connector |
| Hyd.Oil Piping(Hst) | 88 | Oil Cooler, Oil S Cooler, Hose, Bolt |
| Hyd.Oil Piping(Loader) | 89 | 11X16X13 Collar, Lift Pipe Assy, W.p Bach Plate, Band, Hose, Disk Seal, Hose Sponge, Rubber |
| Hyd.Oil Piping(3Rd) | 90 | PF1 Adapter, Connector, 16X2.5X13 Collar, 3RD Pipe Assy, 3RD S Pipe Assy, W.p Bach Plate, Hose Stay Assy, Rubber |
| Greasing | 91 | Joint, Grease, Hose, Nipple, Grease B |
| Lift Arm | 92 | Lift Arm Lock Assy, Rubber, Arm Lock Pin Assy, Spacer, 5X65X1 Collar, Lift Arm Assy, Lift N Arm Assy, Lift S Arm Assy |
| Loader Link | 93 | 5X65X1 Collar, 5X65X1 K Collar, Spacer, Link, Us N Link Assy, Dust Seal, Bush, Bell-crank Assy |
| Oil Jockey | 94 | - |
| Bucket | 95 | Bucket Assy, Edge, Bolt, Washer |
| Air Con.(Front) | 96 | A/c Harness, A/c N Harness Assy, Diode W, A/c Base, Safety Relay, Band, Pad Mount, Condenser Cover |
| Air Con.(Duct) | 97-98 | Duct Seal, Grille Duct, 5X10X265 Seal, Insulator, Duct Cover, Duct, A/c Filter, Filter Plate |
| 78.(65A)Air Con.(Duct)(Enhanced Defroster Spec.) | 99 | Duct Seal, Grille, Grille Duct, 5X10X265 Seal, Insulator, Duct Cover, A/c Def Duct, A/c Filter |
| Air Con.(Rear) | 100 | Com Assy Bracket, Tension Pulley, Compressor Stay, Belt Cover, Idler Stay, Pully, Conpressor Belt A/c, Pulley Bracket Assy |
| Air Con.(Electric Part) | 101-102 | Hose Assy, Radiator Bracket, Air Conditioner Kit, Comp-cond Hose Assy, Comp-unit Hose Assy, R/d-unit Hose Assy, Cond-r/d Hose Assy, Drain Tube |
| Front Glass Kit | 103 | Front Window Rubber, Front Window Stopper |
| Rear Glass Kit | 104 | Rear Window Rubber, Rear Window Stopper |
| HST Pump(Component Part) | 105-106 | HST Pump Assy, Piston Pump Assy, Rotary Group, Retaning Ring, Seal Ring, Ring, Hydraulic Control, Cover |
| HST Motor(Component Part) | 107-108 | HST Us Motor Assy, Housing Assy, Rotary Group, Cylinder Block Assy, Ring, Control, Piston, Valve Guide |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel bolt dimension | M20X 35 PLATED | p. 40 |
| Bushing dimension | 45X55X48 | p. 92 |
| Pin dimension | 45X141 | p. 92 |
| Fuse Rating (5A) | 5A | p. 24 |
| Fuse Rating (10A) | 10A | p. 24 |
| Fuse Rating (15A) | 15A | p. 24 |
| Fuse Rating (30A) | 30A | p. 24 |
| Diode Rating | 090 1.5A | p. 24 |
| Bulb Rating (12V 55W) | 12V 55W | p. 27 |
| Bulb Rating (12V P21W) | 12V P21W | p. 27 |
| Bulb Rating (12V5W/21W) | 12V5W/21W | p. 27 |
| O-RING Size (1AP16.0) | 1AP16.0 | p. 22 |
Yanmar V3-6, 3TNV88-BNKAH Common Problems This Manual Covers
Yanmar V3-6 loader link pins are heavily worn and causing severe bucket slop p. 93
Inspect the exploded view on page 93 for the loader link assembly. Order the exact replacement pins, noting dimensions like the 45X115 or 40X141 sizes depending on the specific joint. Verify part numbers directly against the page 93 diagram to confirm fit before submitting your parts order.
Manual Section: Loader LinkFuel system is leaking around the tank separator cap and needs new seals p. 22
Check the fuel tank parts diagram on page 22 to identify the correct separator assembly components. Locate the specific O-ring part numbers, such as the 1AP16.0 or 1AG65.0 sizes, to properly reseal the system. Order the exact replacements to stop the fuel leak immediately.
Manual Section: Fuel TankBlown fuses in the main harness keep killing power to the dashboard gauges p. 24
Review the wiring diagram and fuse block layout on page 24. Verify the correct fuse ratings, whether you need a 5A, 10A, 15A, or 30A replacement. Identify the exact OEM part numbers for the fuses and the 090 1.5A diode to restore electrical function safely.
Manual Section: Wiring(To M61068)Missing or stripped wheel nuts causing loose rims and tire wobble during travel p. 40
Inspect the chassis parts diagram on page 40 to find the correct hardware for your rims. Locate the exact OEM part number for the M20X35 PLATED wheel bolts on page 40. Order by that part number to restore the specified clamping force and eliminate the wobble.
Manual Section: Tire & DiskeFrequently Asked Questions
How do you fix yanmar V3-6 loader link pins are heavily worn and causing severe bucket slop?
Inspect the exploded view on page 93 for the loader link assembly. Order the exact replacement pins, noting dimensions like the 45X115 or 40X141 sizes depending on the specific joint. Cross-reference the part numbers to ensure a tight fit and fix the loose bucket.
How do you fix fuel system is leaking around the tank separator cap and needs new seals?
Check the fuel tank parts diagram on page 22 to identify the correct separator assembly components. Locate the specific O-ring part numbers, such as the 1AP16.0 or 1AG65.0 sizes, to properly reseal the system. Order the exact replacements to stop the fuel leak immediately.
How do you fix blown fuses in the main harness keep killing power to the dashboard gauges?
Review the wiring diagram and fuse block layout on page 24. Verify the correct fuse ratings, whether you need a 5A, 10A, 15A, or 30A replacement. Identify the exact OEM part numbers for the fuses and the 090 1.5A diode to restore electrical function safely.
How do you fix missing or stripped wheel nuts causing loose rims and tire wobble during travel?
Inspect the chassis parts diagram on page 40 to find the correct hardware for your rims. Locate the exact part number for the M20X 35 PLATED wheel bolts. Order the correct fasteners to secure the tire disk to the axle and stop the wobble.
What do I get after purchasing this Yanmar V3-6, 3TNV88-BNKAH manual?
A 121-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
