Every page of this 168-page Yanmar Vio27-3 C, Vio27-3B G, Vio27-3 P parts catalog PDF (OEM #0CK10-M39802EN) is dedicated to mapping out the exact components for your 2004-2006 crawler back-hoe excavator. You get highly detailed exploded views for the entire machine, breaking down the boom cylinders, travel motors, and hydraulic oil piping. Inside, open up complete parts lists with hardware sizes, factory part numbers, and clear component identification so you know exactly how the assemblies fit together. Identify the specific M8x 55 plated bolt for the muffler extension and verify you need a 1AP16.0 O-ring for the radiator sub-tank before calling the parts counter. Stop wasting money ordering the wrong hardware. Grab this bookmarked file, pull it up on your phone at the machine, and get the right part numbers today.
What's Inside This Yanmar ViO27-3 Parts Manual

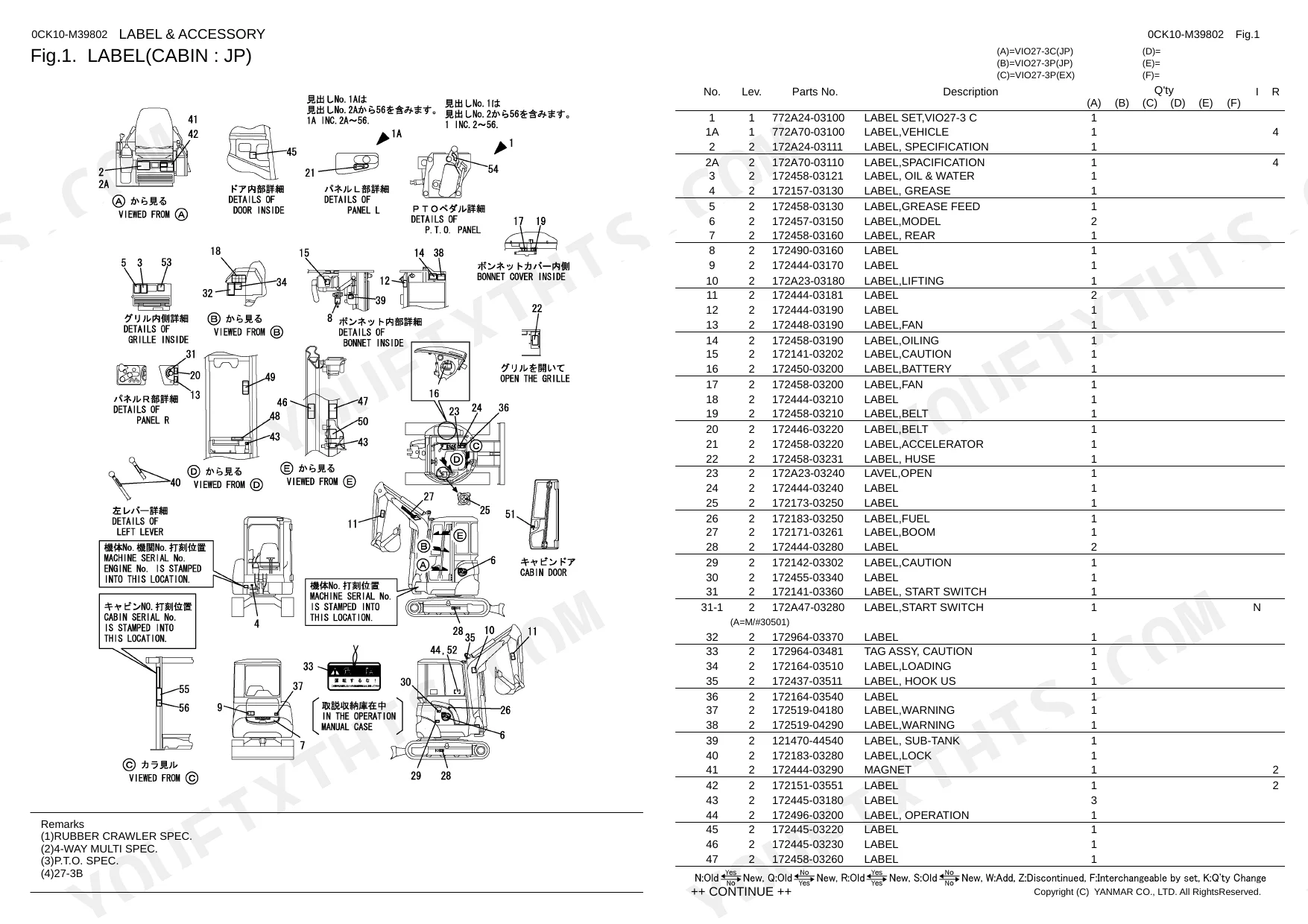

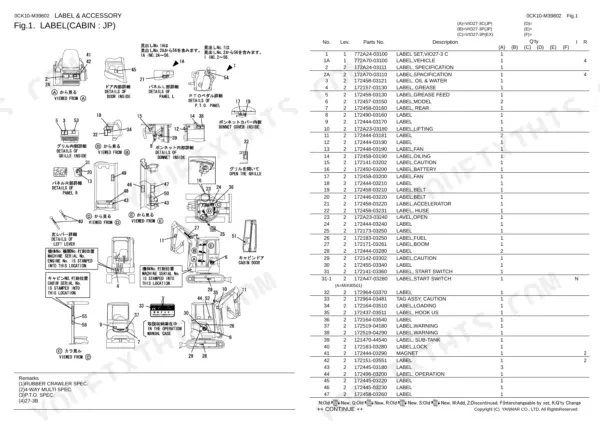

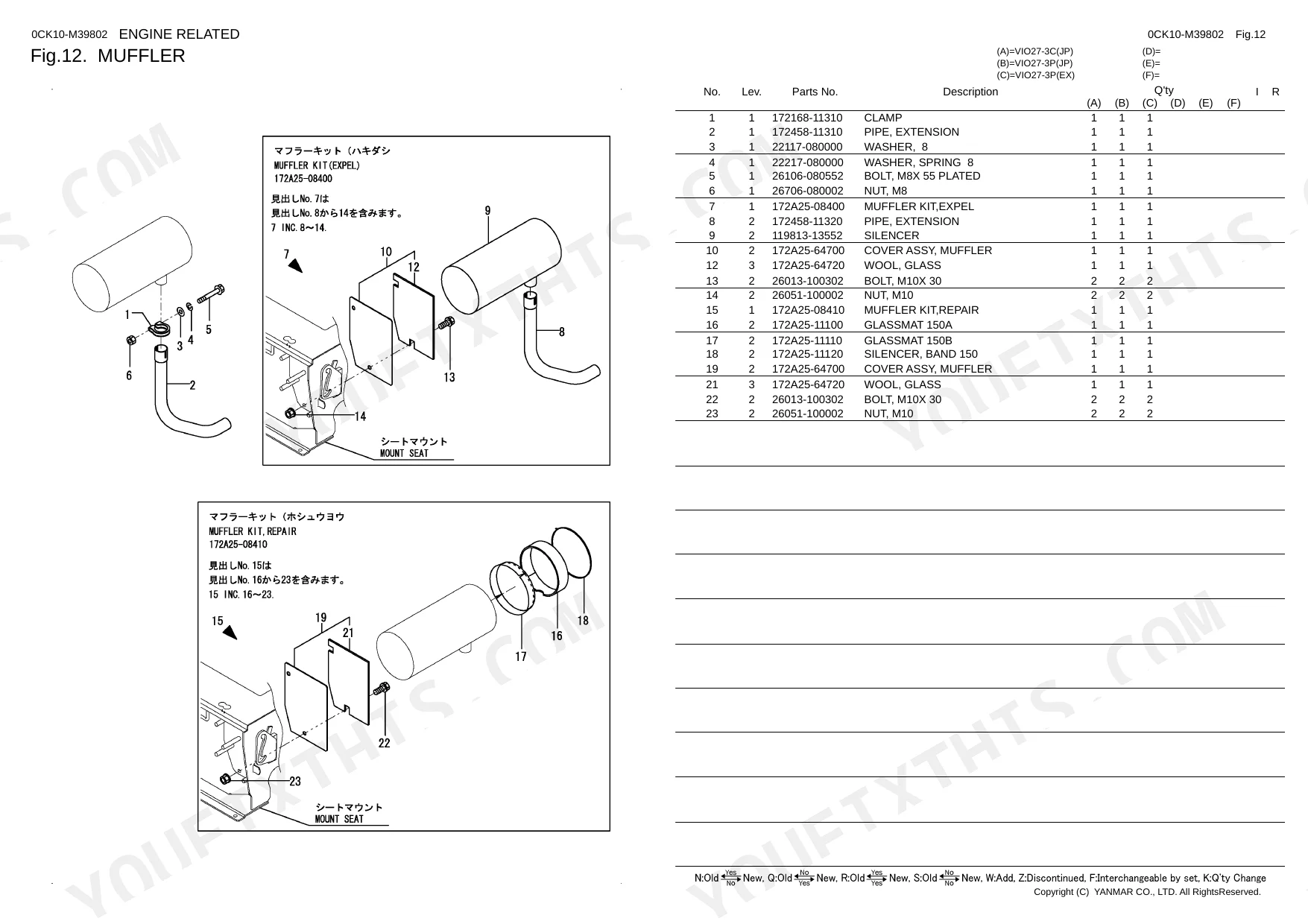

| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-5 | - |
| Label(Cabin : Jp) | 10-11 | Set, Vehicle, Oil & Water, Grease, Battery, Accelerator |
| Label(Canopy : Jp) | 12-13 | Vehicle, Oil & Water, Grease, Battery, Accelerator |
| Label(Canopy : Ex) | 14-15 | Set, Model, Fuse Us, P.T.O., Crawler Us, Boom |
| Label(Quick Hitch : Jp) | 16 | Set, Pin, Lock, Collar, Plug |
| Label(Crane : Jp) | 17 | Set, Load |
| Safety Label(Cabin : Jp) | 18 | Label, Fan, Caution, Battery, Belt, Warning |
| Safety Label(Canopy : Jp) | 19 | Label, Fan, Caution, Battery, Belt, Warning |
| Safety Label(Canopy : Ex) | 20 | Label, Front, Oil & Water, Tag Assy, Caution, HYD.OIL Tank |
| Safety Label(Quick Hitch : Jp) | 21 | Label, Pin, Plug |
| Safety Label(Crane : Jp) | 22 | Label Set, Label, Load |
| Accessory | 23 | Bag, Manual, Label, Collar, Case, Plug |
| Muffler | 24 | Clamp, Pipe, Extension, Washer, Kit, Expel, Silencer, Cover Assy |
| Air Cleaner | 25 | Cleaner Assy, Air, Element, Valve, Unloader, Hose, Suc. a, Bracket Assy |
| Accelerator | 26 | Lever, Grip, Cable, Bracket, Accel W1RE73, Joint, Clamp |
| Engine Mount | 27 | Absorber, Shock, Mount, Engine, Plate, Bracket, Stopper |
| Radiator Mount | 28 | - |
| Radiator & Sub-Tank | 29 | - |
| Fuel Tank | 30 | - |
| Fuel Line | 31 | - |

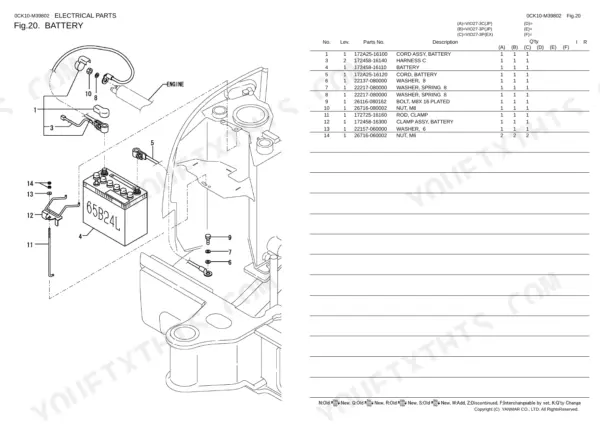

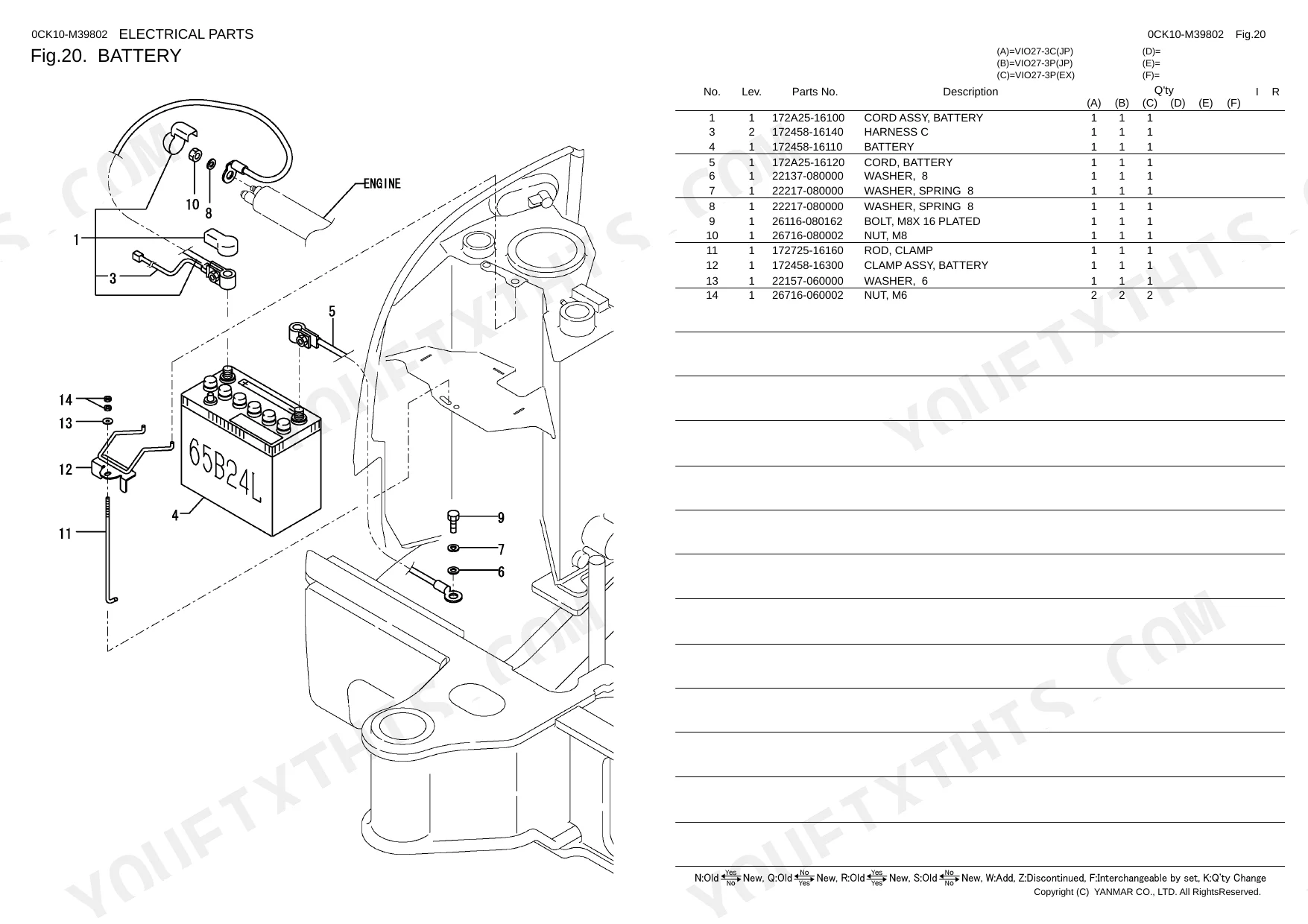

| Battery | 32 | - |
| Electric Part(Wiring) | 33 | - |
| Electric Part(Wiring : Crane) | 34 | - |
| Electric Part(Equipment) | 35 | - |
| Electric Part(Indicator Box) | 36 | Switch Assy, Starter, Key Assy, Box, INDICATOR(CANOPY), Gauge Assy, Meter Assy, Hour |
| Electric Part(Equipment: Indicator Box)(Immobilizer Spec.) | 37 | Switch Assy, Starter, Cylinder Assy, Key, Panel Assy, Monitor, Gauge Assy, Meter Assy |
| Electric Part(Equipment : Quick Hitch) | 38 | Box, Switch, Switch Assy, Indicater Lamp, Screw, Tapping, Bracket, Plug |
| Electric Part(Equipment : Crane 1) | 39 | Bracket Assy, Gauge, Level, Buzzer, Relay, Flasher, Lamp |
| Electric Part(Equipment : Crane 2) | 40 | Sensor, Bolt, Nut |
| Work Lamp | 41 | Lamp, Work, Bulb |
| Canopy Lamp | 42 | Lamp, Bulb, Stay, Washer, Nut |
| Heater | 43 | Duct Assy, Hose, Defroster, Valve Assy, Cover, Seal, Duct, Grille |
| Sprocket & Roller | 44 | - |

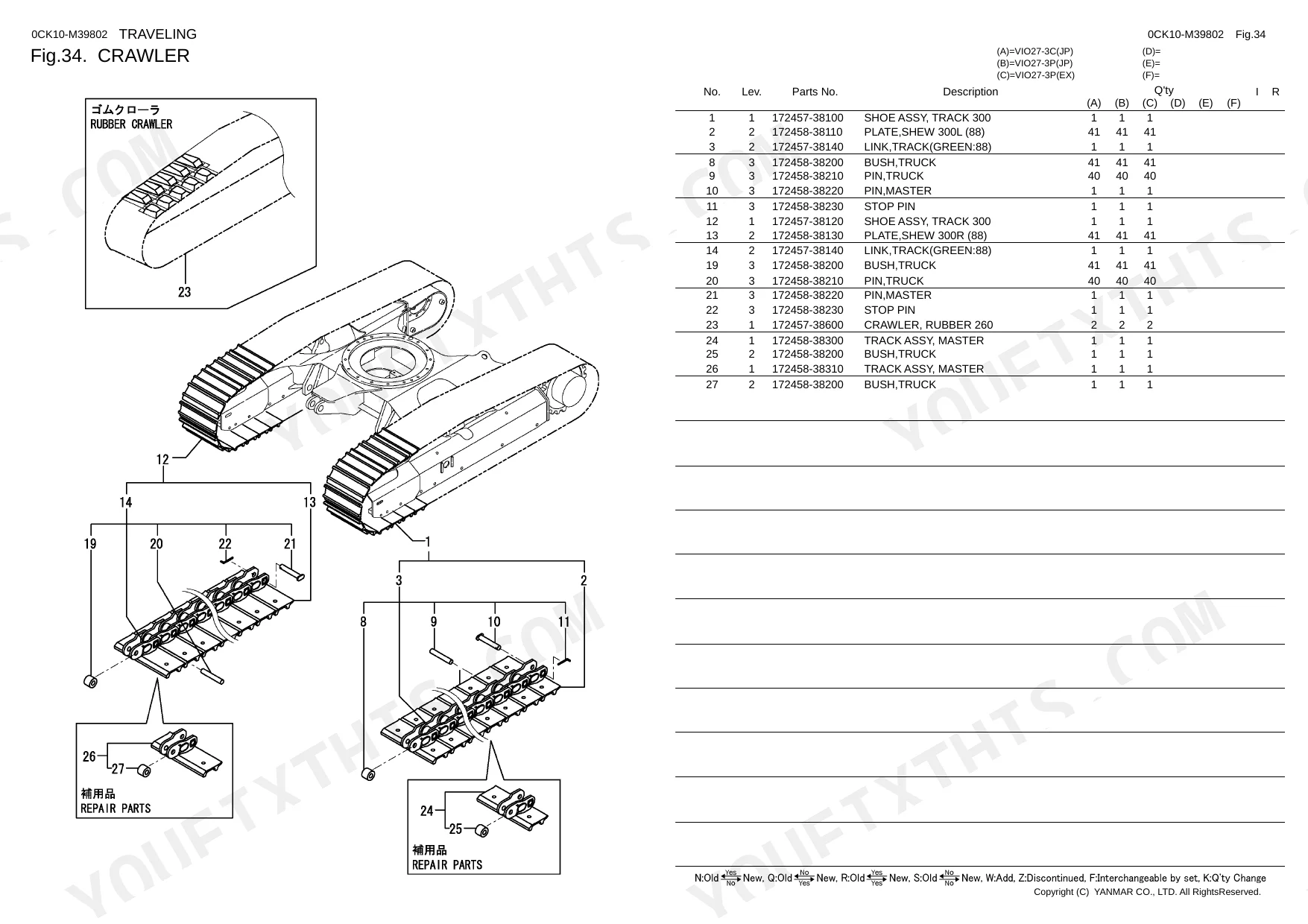

| 130.(32A)Track Roller(K Spec.) | 45 | - |
| Idler & Adjust | 46-47 | - |
| Crawler | 48 | - |
| Control Equipment(Lock Lever & Stand)(Right) | 49 | - |
| Control Equipment(Lock Lever & Stand)(Left) | 50 | - |
| Control Equipment(Travel Lever & Link Stand) | 51 | - |
| Control Equipment(Operation Lever) | 52 | - |
| Control Equipment(Blade Lever) | 53 | Lever, Shaft Assy, Grip, Pin, O-Ring, Cable |
| Control Equipment(Swing Pedal) | 54 | Link, Bush, Shaft, O-Ring, Nipple, Pedal |
| Control Equipment(Low-High Pedal) | 55 | Spring, Pedal, Bracket, Bush, Pad, O-Ring |
| Control Equipment(P.T.O. Pedal) | 56 | Label, Link Assy, Bush, Pedal, O-Ring, Nipple |
| Control Equipment(P.T.O. Link) | 57 | Joint, Rod, Link Assy, Bush, Bracket, Nipple |
| Control Valve Plate | 58 | Plate, Bolt, Bracket |
| Turning Frame & Canopy Mount | 59 | Weight Assy, Sponge, Seal, Washer, Bolt, Mount |
| Track Frame & Turning Bearing | 60 | Frame Assy, Cover, Plate, Bearing, Seal, Pin |
| Cover(Frame) | 61 | Sponge, Valve, Pump, Plate Assy, Rubber Seal |
| Cover(Around Control) | 62 | Electric, Grommet, Multi, Rubber Seal, Sponge |
| Cover(Cabin) | 63 | Clip, Grip, Assy, Rubber Seal, Bonnet, Trim |
| Cover(Canopy) | 64 | Clip, Bonnet, Rubber Seal, Assy, Handrail |
| Cover(Boom) | 65 | - |
| Cover(Crane) | 66 | Harness, Stay Assy, Case Assy, Sensor, Boss |
| Step & Floor Mat(Cabin) | 67 | Step, Plate, Step Assy, Sponge, Floor Mat, Washer |
| Step & Floor Mat(Canopy) | 68 | Step, Plate, Floor Mat, Step Assy, Sponge, Hook |
| Instrument Panel | 69 | - |
| Seat & Seat Mount(Cabin) | 70-71 | - |
| Seat & Seat Mount(Canopy) | 72-73 | - |
| Seat & Seat Mount(Canopy:Crane Spec.) | 74-75 | - |
| Bonnet(1) | 76 | - |
| Bonnet(2) | 77 | - |

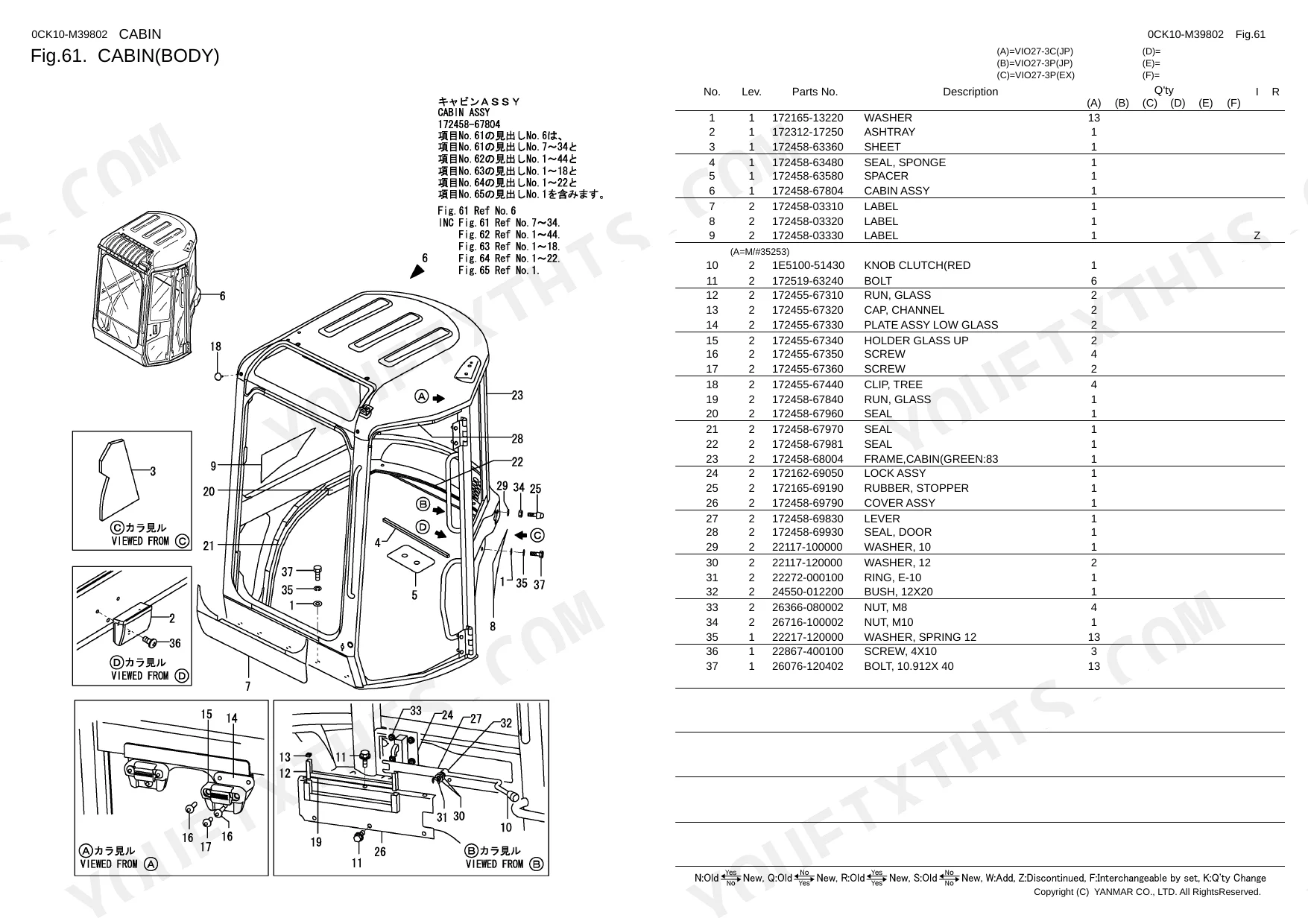

| Cabin(Body) | 78 | - |
| Cabin(Glass) | 79 | - |
| Cabin(Accessory) | 80 | Plate, Screw, Rubber, Stopper, Spacer, Seal, Dam |
| Cabin(Electric Part) | 81 | Harness, Wiper Motor, Arm, Wiper, Wiper Blade, Room Lamp |
| Cabin Door(Front) | 82 | Door Assy, Stopper, Spacer, Key Assy, Cylinder, Seal, Dam |
| Cabin Door(Rear) | 83 | Door Assy, Upper Plate, Door Rea, Nut, Cap, Trim Assy, Glass, Door |
| Back Mirror | 84 | Bracket, Mirror, Rearview Mirror, Bolt |
| Canopy | 85 | Washer, Cap, Roof Assy, Assy, Tops, Spring, Bolt |

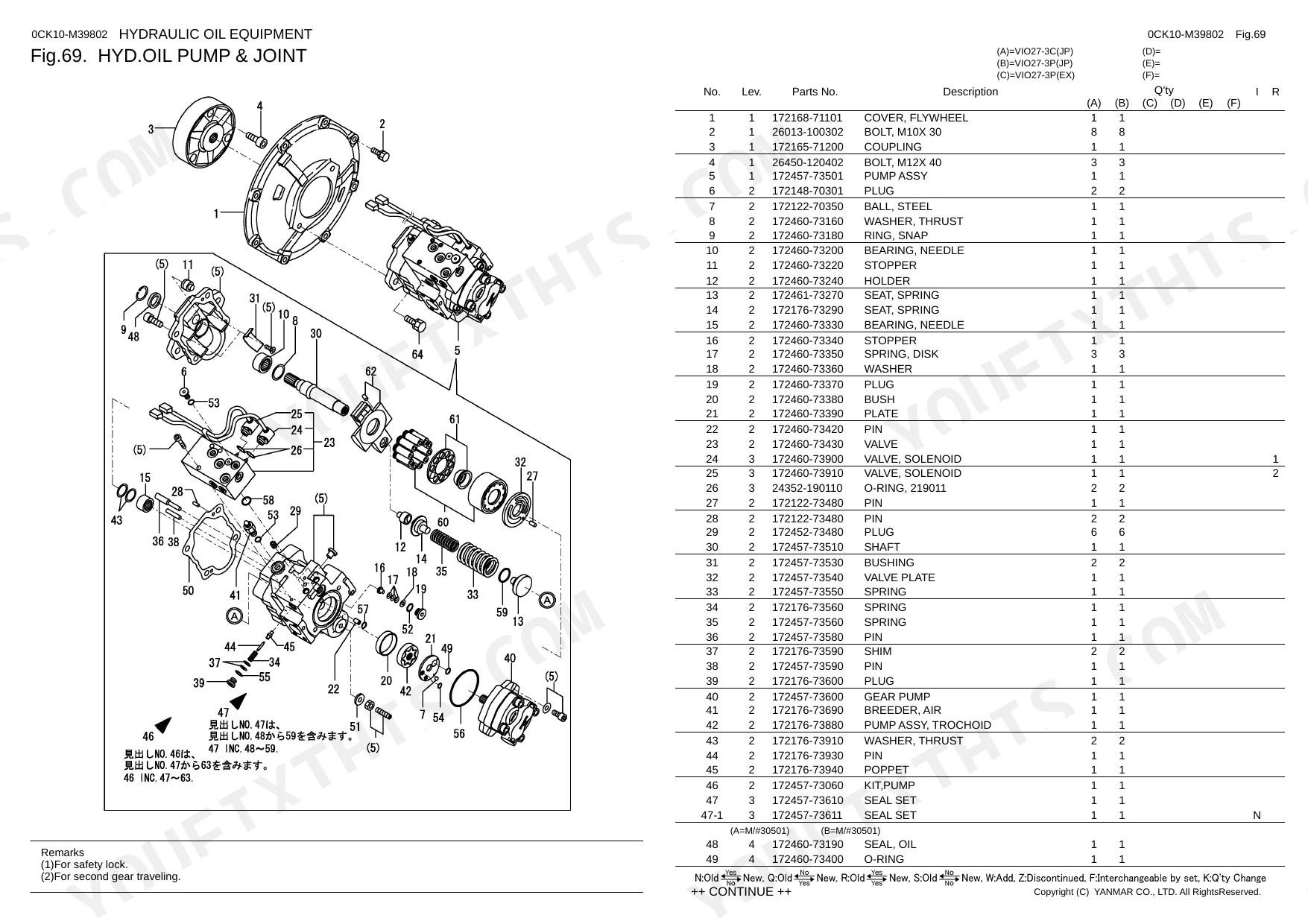

| Hyd.Oil Pump & Joint | 86-87 | Pump Assy, Valve, Solenoid, O-Ring, Shaft |
| Hyd.Oil Pump & Joint(Quick Hitch Spec.) | 88-89 | Pump Q Assy, Valve, Solenoid, O-Ring, Shaft |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse Rating | 5A | p. 33 |
| Band Size | 300 | p. 33 |
| Washer Size | 10 | p. 25 |
| Bolt Dimension | M8X 55 PLATED | p. 24 |
| O-Ring Dimension | 1AP16.0 | p. 29 |
| Clamp Size | 60 | p. 25 |
| Pin Dimension | 30X37 | p. 142 |
| Bush Dimension | 50-60 | p. 90 |
| Hose Dimension | 7.5X13 | p. 31 |
| Washer Dimension | 6.4X15.5X1.5 | p. 142 |
Yanmar ViO27-3 Common Problems This Manual Covers
Yanmar Vio27-3 broken muffler mounting hardware loud exhaust noise and excessive vibration p. 24
Check the muffler exploded view on page 24 to locate the silencer and cover assembly part numbers. Find the exact replacement M8X 55 PLATED dimension bolt in the parts index. Order the matching clamps and pipes to properly secure the exhaust system.

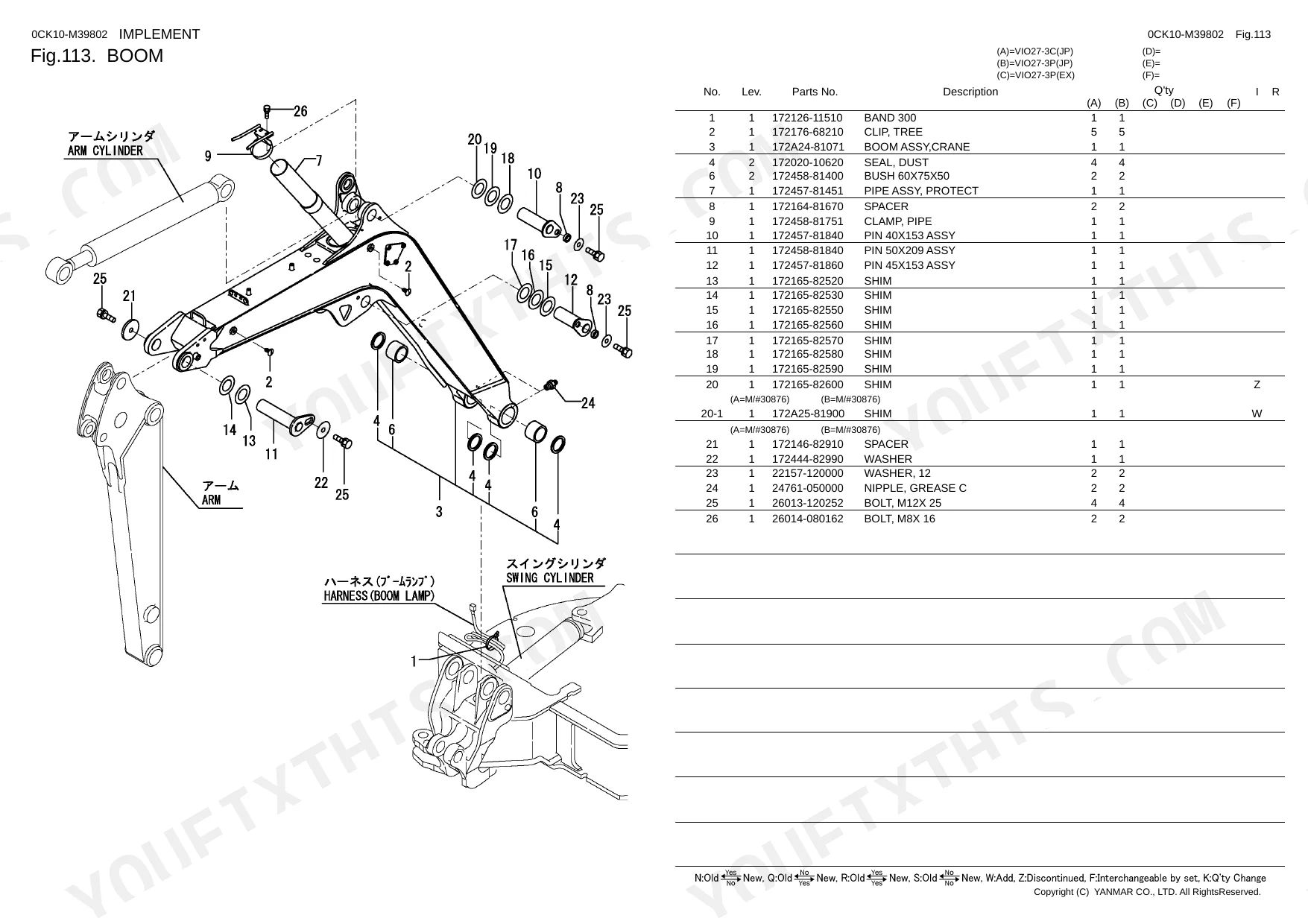

Manual Section: Engine Related PartsLeaking boom cylinder seals main boom slowly dropping under load p. 90
Open the boom cylinder diagram on page 90 to find the specific seal set part number. Locate the correct 50-60 dimension bush in the parts list. Verify your machine has the cabin specification before ordering the replacement rod and piston components.
Manual Section: Hydraulic System PartsBlown main harness fuses engine hard start or complete no-start condition p. 33
Check the electric part wiring diagram on page 33 to locate the main harness connectors. Find the exact part number for the blown 30A rating fuse in the replacement list. Order the matching indicator box components to restore normal electrical function.
Manual Section: Electrical System PartsClogged water separator and contaminated fuel lines engine stalling or power loss p. 31
Inspect the fuel line exploded view on page 31 to find the correct water separator part number. Locate the specific 7.5X13 dimension hose in the parts index. Order the precise replacement clamps and fittings to rebuild the fuel delivery system.
Manual Section: Engine Related PartsWorn quick hitch pins bucket linkage loose and rattling during operation p. 142
Review the quick hitch implement diagram on page 142 to identify replacement locking mechanisms. Find the exact 30X37 dimension pin required for your specific attachment setup. Order the matching 6.4X15.5X1.5 dimension washers from the parts index to eliminate play in the linkage.
