Looking for the exact factory part numbers for your Yanmar 1100, 1110, 122, 126, 1300, 1301, 135, 140, 142, 146, 147, 1500, 1502, 1510, 155, 1600, 1601, 1602, 1610, 165, 169, 1700, 1702, 1720, 175, 177, 180, 1802, 1810, 1820, 186, 187, 1900, 195, 2000, 2001, 2002, 2010, 2020, 220, 2200, 2202, 2210, 2220, tractor? All 200 pages of this Parts Catalog focus exclusively on component identification and exploded views. Inside, you get detailed diagrams showing exactly how every gear, seal, and bearing fits together on the assembly line. Expect complete hardware lists covering the engine, drivetrain, steering box, and three-point hitch. Verify your water pump hub mount is 2-1/4 inches before ordering, and grab PTO shaft replacement part number 194300-26311 to swap out a busted unit. Ordering the wrong component wastes days of shop time. Open this bookmarked PDF on your tablet, find the exact cross-reference, and get back to work.

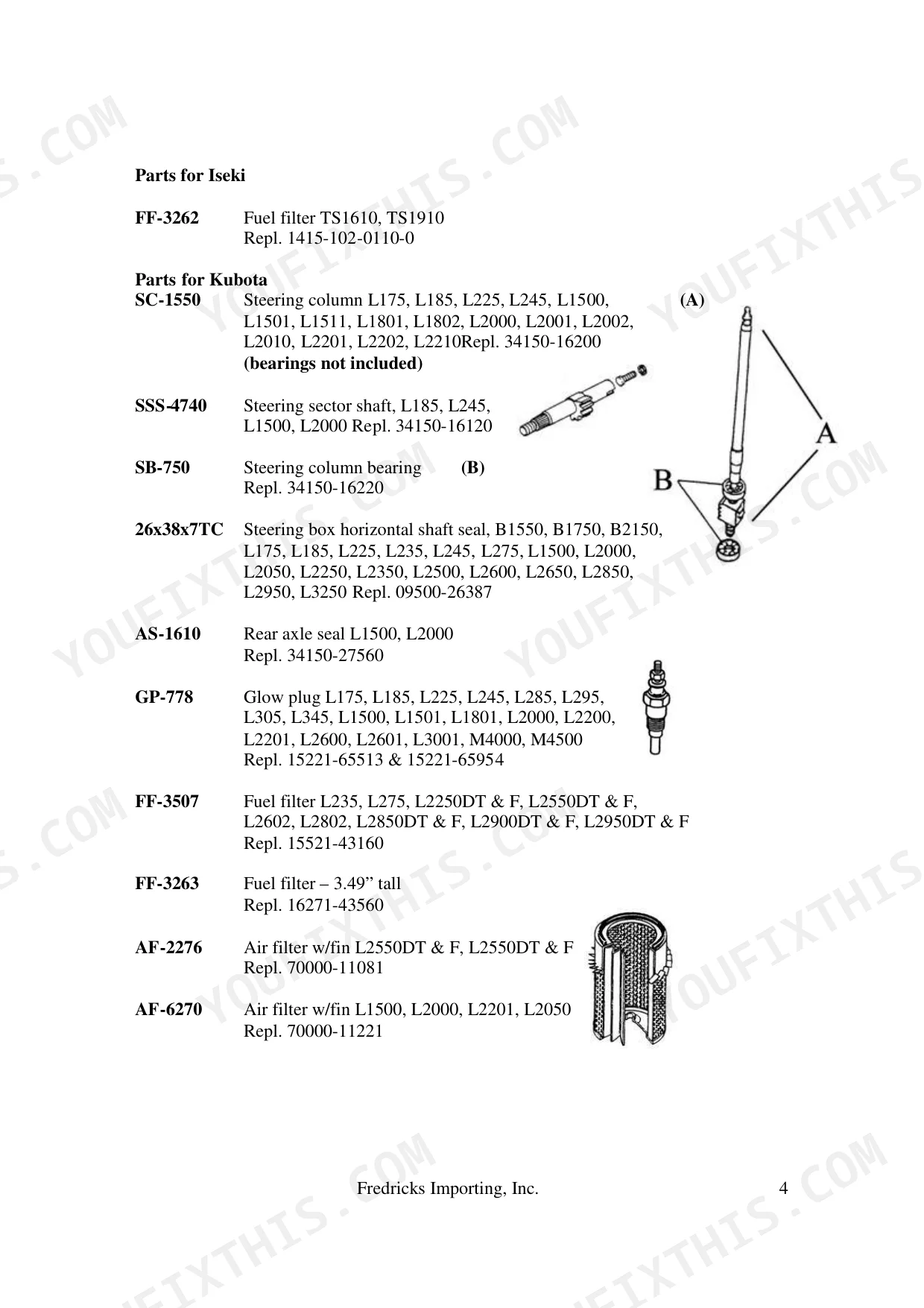

What's Inside This Yanmar 1100-4500 Series Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Yanmar | 5-14 | Light Components, Electrical System Components |

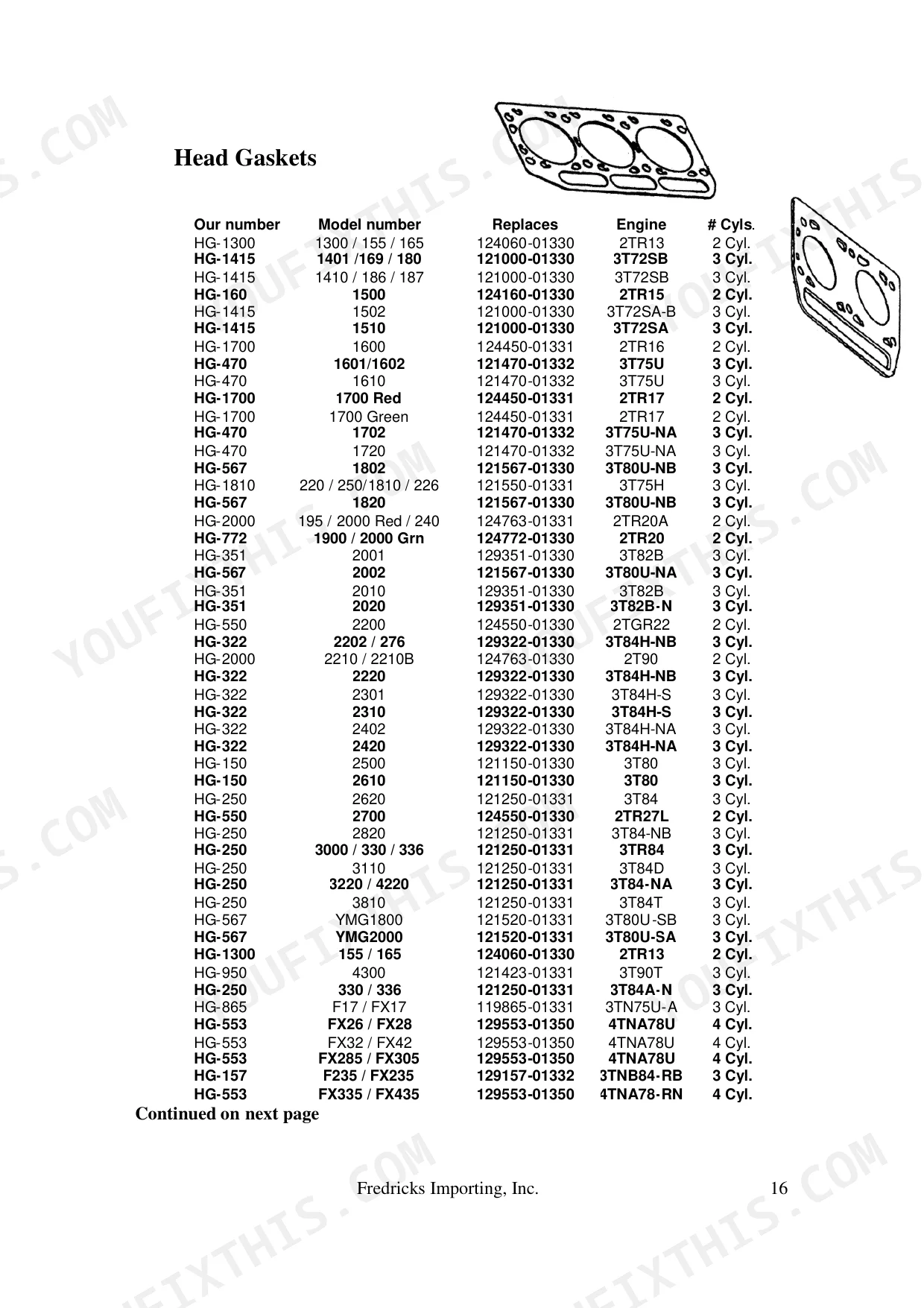

| Group 2 | 15-59 | Engine Gaskets, Pistons and Connecting Rods, Engine Bearings, Crankshaft Components, Valves and Push Rods, Oil System Components, Fuel System Components, Cooling System |

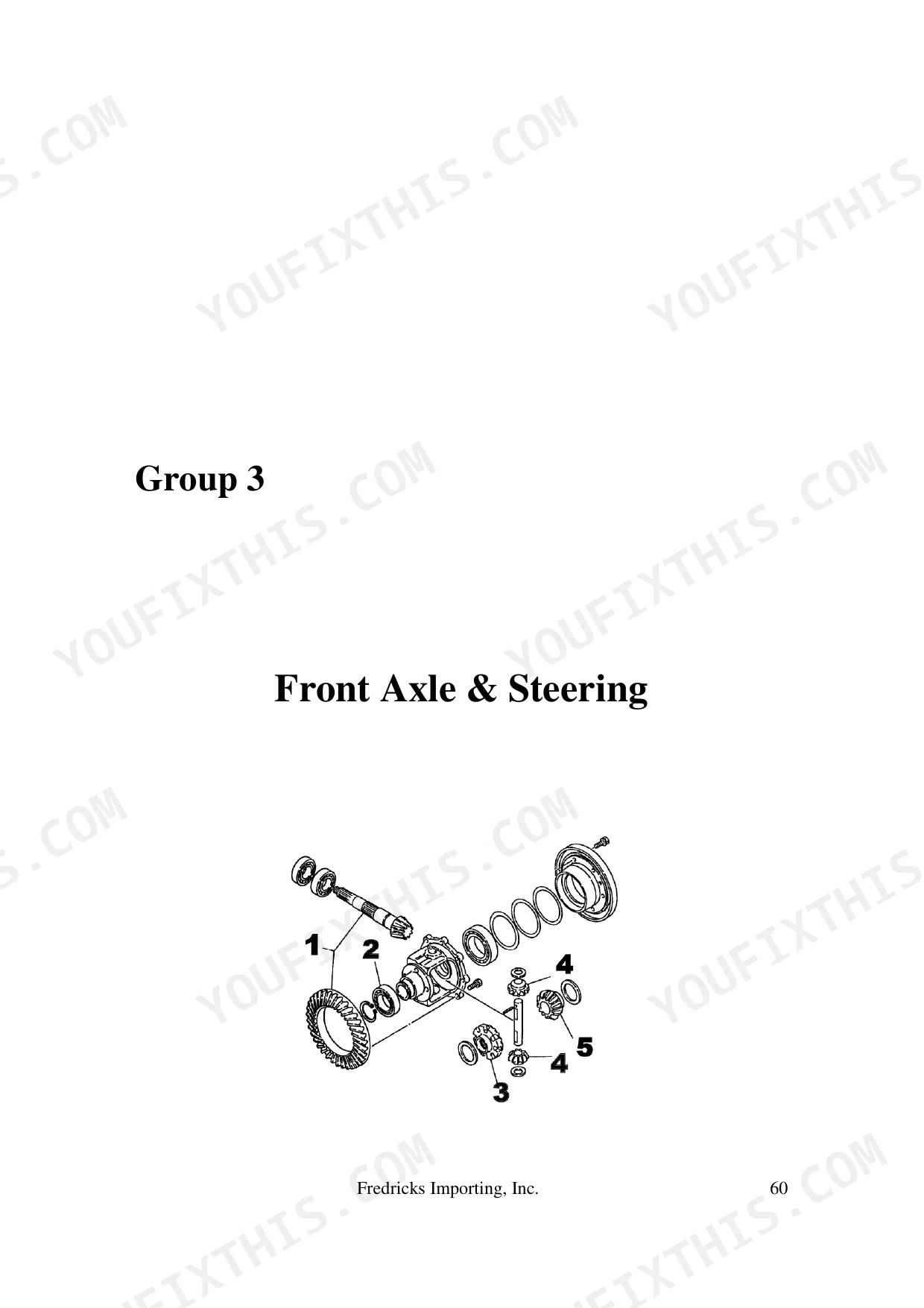

| Group 3 | 60-107 | Steering System Components, 2WD Front Axle Components, 4WD Drop Box and Drive Shaft, Center Axle Housing and Knuckle Gears, YM1500D Knuckle Components |
| Group 4 | 108-122 | Transmission Shift Components, Transmission Internal Parts, PTO System Components |
| Group 5 | 123-153 | Transmission and PTO Gaskets, Clutch System, Differential and Rear Axle, Brake System, Hydraulic System |

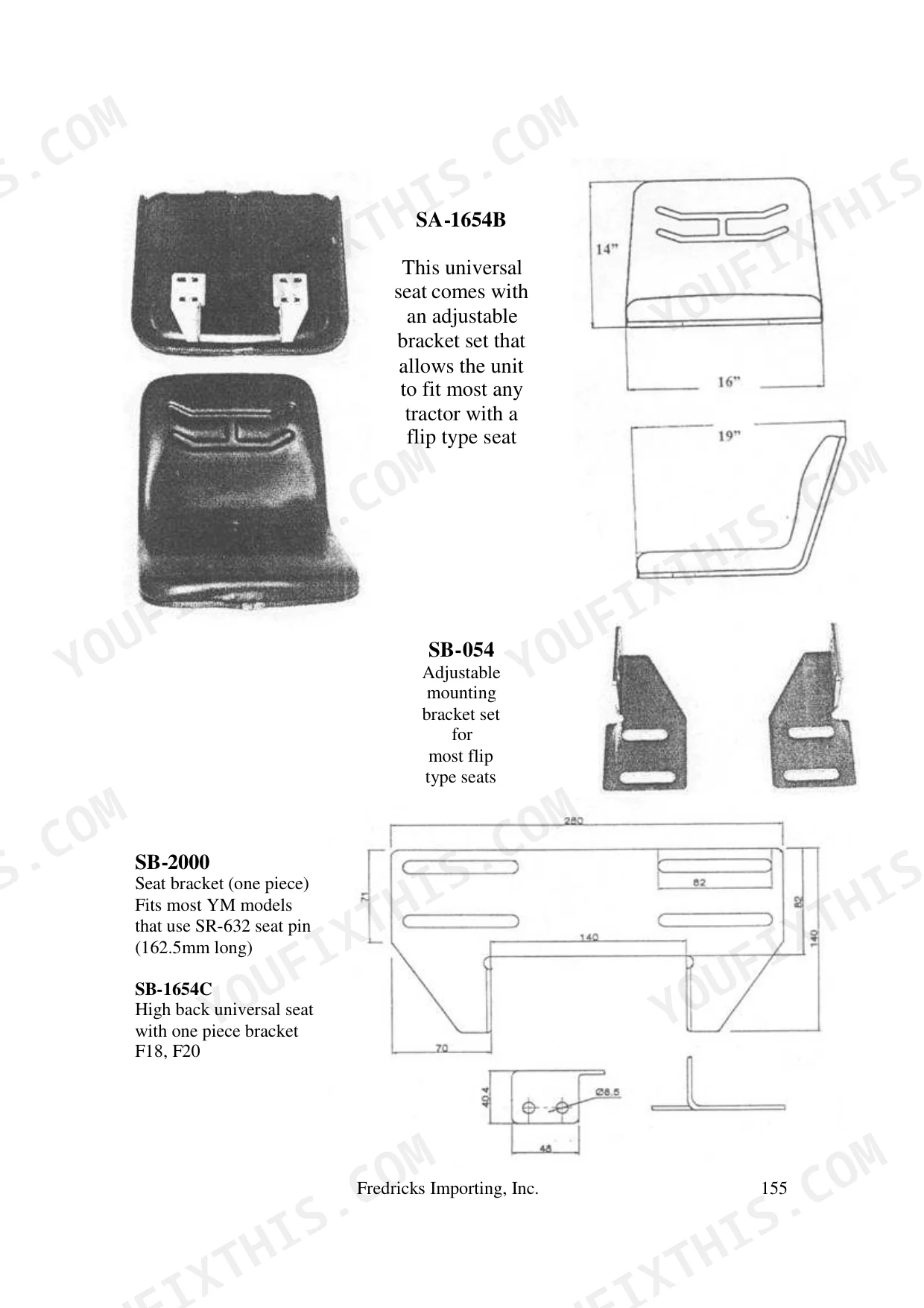

| Group 6 | 154-170 | Body and Seat Components, Decal Sets, Fenders and Dash Components, Cables and Lever Components |
| Group 7 | 171-180 | Point Linkage Pins and Links, Hitch Assemblies and Components |

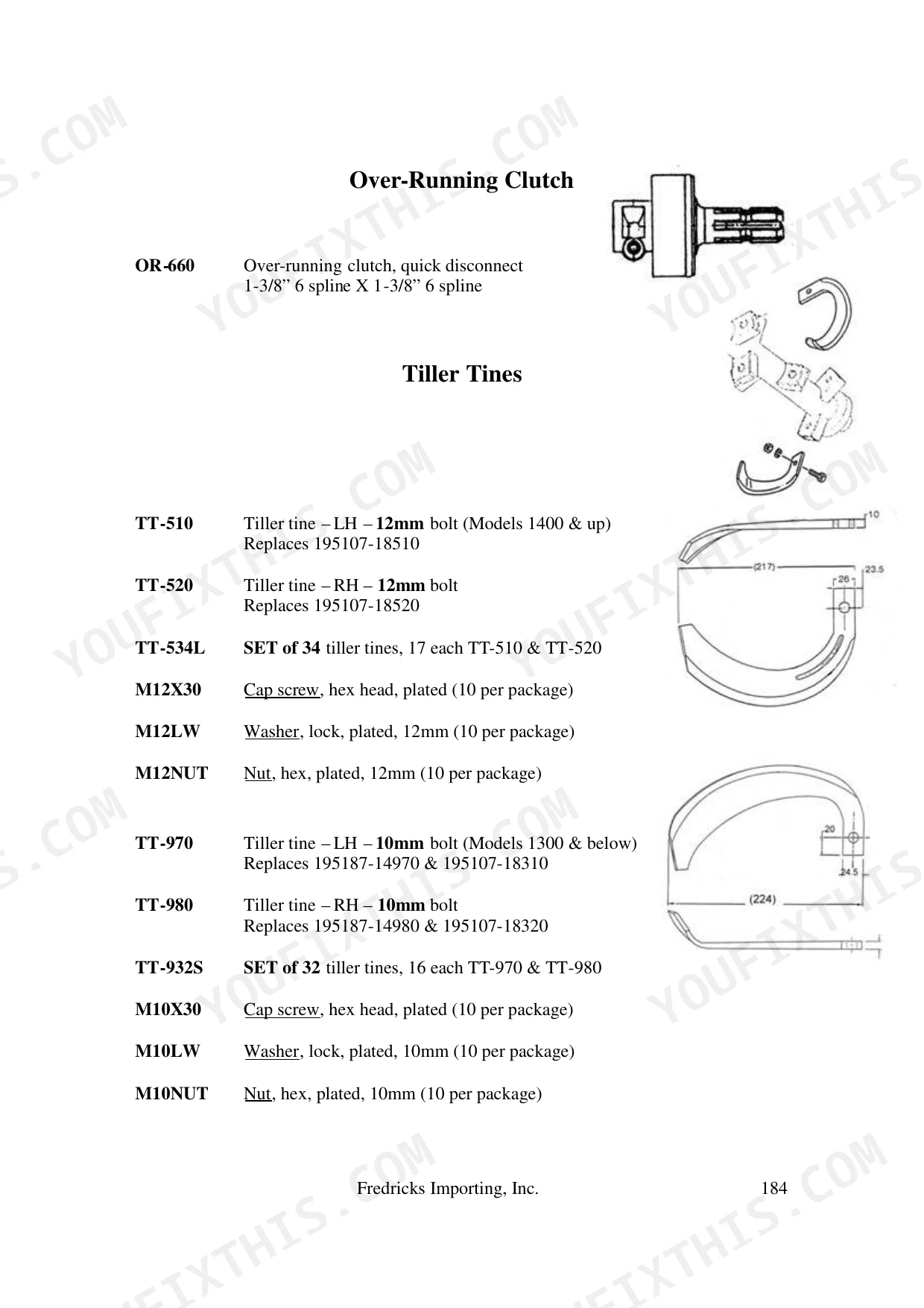

| Group 8 | 181-185 | Tiller |
| Group 9 | 186-191 | Bearings & Seals |
| Group 10 | 192-200 | Miscellaneous |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 135, 155, 165, 1100, 1300 | ||
| Radiator w/cap replacement part number | 124064-44500 & 124064-44500 | p. 48 |
| 1500 Red | ||
| Radiator w/cap lower mounting nuts | 8-3/4” centers | p. 48 |
| 240, 330, 336, 1700B, 1900, 2000, 2000B, 2500, 2610, 2620, 2820, 3000, 3110, 3810, 4300 | ||
| Water pump hub or fan mount | 2” | p. 49 |
| 195, 2210, 240 | ||
| Water pump hub or fan mount | 2-1/4” | p. 49 |
| YM1110, YM1510 | ||
| PTO shaft replacement part number | 194300-26311 | p. 119 |
| 2500, 2610 | ||
| Bypass hose replacement part number | 121150-49030 | p. 50 |
| 135, 155, 165, 1300 | ||
| Upper radiator hose replacement part number | 124060-49010 | p. 50 |
| 135, 142, 146, 155, 165, 169, 180, 195, 226, 240, 276, 330, 336, 1110, 1300, 1500, 1510, 1600, 1700, YMG1800, 1802, 1810, 1820, 1900, 2000, YMG2000, 2001, 2002, 2010, 2020, 2202, 2210, 2220, 2301, 2310, 2402, 2420, 2500, 2610, 2620, 2820, 3000, 3110, 3220, 3810, 4220, 4300, 4500, F14, F15, F16, F17, F18, FX18, F20, FX20, F22, FX22, F24, FX24, FX26, FX28, FX32, FX42, F165 | ||
| Injector nozzle replacement part number | 172100-53000 | p. 45 |
| 2200, 2700 | ||
| Injector assembly replacement part number | 724550-53100 | p. 44 |
| 195, 240, 330, 1500, 1700, 2000, 2001, 2010, 2210, 2210B, 2301, 2310, 2500, 2610, 3000, 3810, 4300, 4500 | ||
| Head light bulb voltage/wattage | 12v, 25w/25w | p. 6 |
| 195, 240, 330, 336, 1700, 2000, 2210, 2500, 2610, 3000, 3110, 3810, 4300 | ||
| Alternator output | 12V – 35Amp | p. 10 |
| 122, 126, 142, 146, 165, 169, 1100, 1110, 1300, 1500, 1700, 2000, 2210, F16, FX16, F175 | ||
| Fuel filter dimensions | 2.717” tall, 1.378” OD | p. 42 |
Yanmar 1100-4500 Series Common Problems This Manual Covers
Yanmar 1300 tractor engine fails to start or hesitates violently due to degraded fuel delivery components p. 45
Check the Group 2 parts list on page 45 for the correct fuel system components. Order replacement injector nozzle part #172100-53000 for your specific engine. Verify the fuel filter matches the 2.717 inches tall by 1.378 inches OD dimensions listed on page 42.
Manual Section: Group 2Cooling system overheating leading to sudden engine shutdown from blocked radiator or blown hoses p. 48
Inspect the cooling system exploded views to identify the correct replacement components for your machine. Order radiator assembly part #124064-44500 as shown on page 48. Ensure your replacement water pump fits a 2 inch fan mount hub exactly as specified on page 49.
Manual Section: Group 2Power take off shaft failure or loss of power transmission under heavy mowing load p. 119
Review the PTO system components breakdown to locate the correct driveline parts. Replace the broken assembly with PTO shaft part #194300-26311 listed on page 119. Inspect the mechanical clutch rod and verify it has 10mm threads as shown on page 127.
Manual Section: Group 4Front end wandering and excessive play in the steering column during normal field operation p. 62
Check the steering system exploded views to locate worn linkage parts. Order the correct steering column shim with a 0.1 thick measurement as shown on page 62. Cross-reference the front tire size to ensure it matches the 4.00x12 specification on page 106.
Manual Section: Group 3Frequently Asked Questions
What are the replacement specifications for Cooler for Yanmar YM135, YM155, YM165, Y
For Yanmar models YM135, YM155, YM165, YM1100, and YM1300, the replacement radiator with cap is part number RA-4060, which replaces 124064-44500. For the YM1500 model, the replacement radiator with cap is part number RA-4160, which replaces 124160-44501 and has lower mounting nuts on 8-3/4” centers.
Which group and part numbers cover this issue: Yanmar 1300 tractor engine fails to start or hesitates violently due to degraded fuel delivery components?
Check the Group 2 parts list on page 45 for the correct fuel system components. Order replacement injector nozzle part #172100-53000 for your specific engine. Verify the fuel filter matches the 2.717 inches tall by 1.378 inches OD dimensions listed on page 42.
Which group and part numbers cover this issue: Cooling system overheating leading to sudden engine shutdown from blocked radiator or blown hoses?
Inspect the cooling system exploded views to identify the correct replacement components for your machine. Order radiator assembly part #124064-44500 as shown on page 48. Ensure your replacement water pump fits a 2 inch fan mount hub exactly as specified on page 49.
Which group and part numbers cover this issue: Power take off shaft failure or loss of power transmission under heavy mowing load?
Review the PTO system components breakdown to locate the correct driveline parts. Replace the broken assembly with PTO shaft part #194300-26311 listed on page 119. Inspect the mechanical clutch rod and verify it has 10mm threads as shown on page 127.
Which group and part numbers cover this issue: Front end wandering and excessive play in the steering column during normal field operation?
Check the steering system exploded views to locate worn linkage parts. Order the correct steering column shim with a 0.1 thick measurement as shown on page 62. Cross-reference the front tire size to ensure it matches the 4.00x12 specification on page 106.
How will I receive this Yanmar tractor Parts Catalog?
You get a searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
No. The PDF is DRM-free, so print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
