Looking for a complete Yanmar Vio40-2, 3TNE88-EBVC parts catalog pdf for your 2001-2015 crawler back-hoe? This 142-page factory manual (OEM #0CS10-M41302EN) lays out every single component so you can order exactly what you need. Inside, you get highly detailed exploded views covering the complete hydraulic control valves, quick coupler cylinders, and the full undercarriage track assembly. Every diagram pairs directly with factory part numbers and interchangeability symbols, making component identification fast and accurate. Verify that the swivel joint requires a 1AP75.0 O-ring, or confirm the travel motor reduction gear houses exactly 198 steel balls before you call the dealer. Stop wasting time explaining what a broken bracket looks like to the parts counter guy. Grab this bookmarked file, pull up the exploded view on your tablet, and order the right hardware on the first try.
What's Inside This Yanmar ViO40-2 Parts Manual

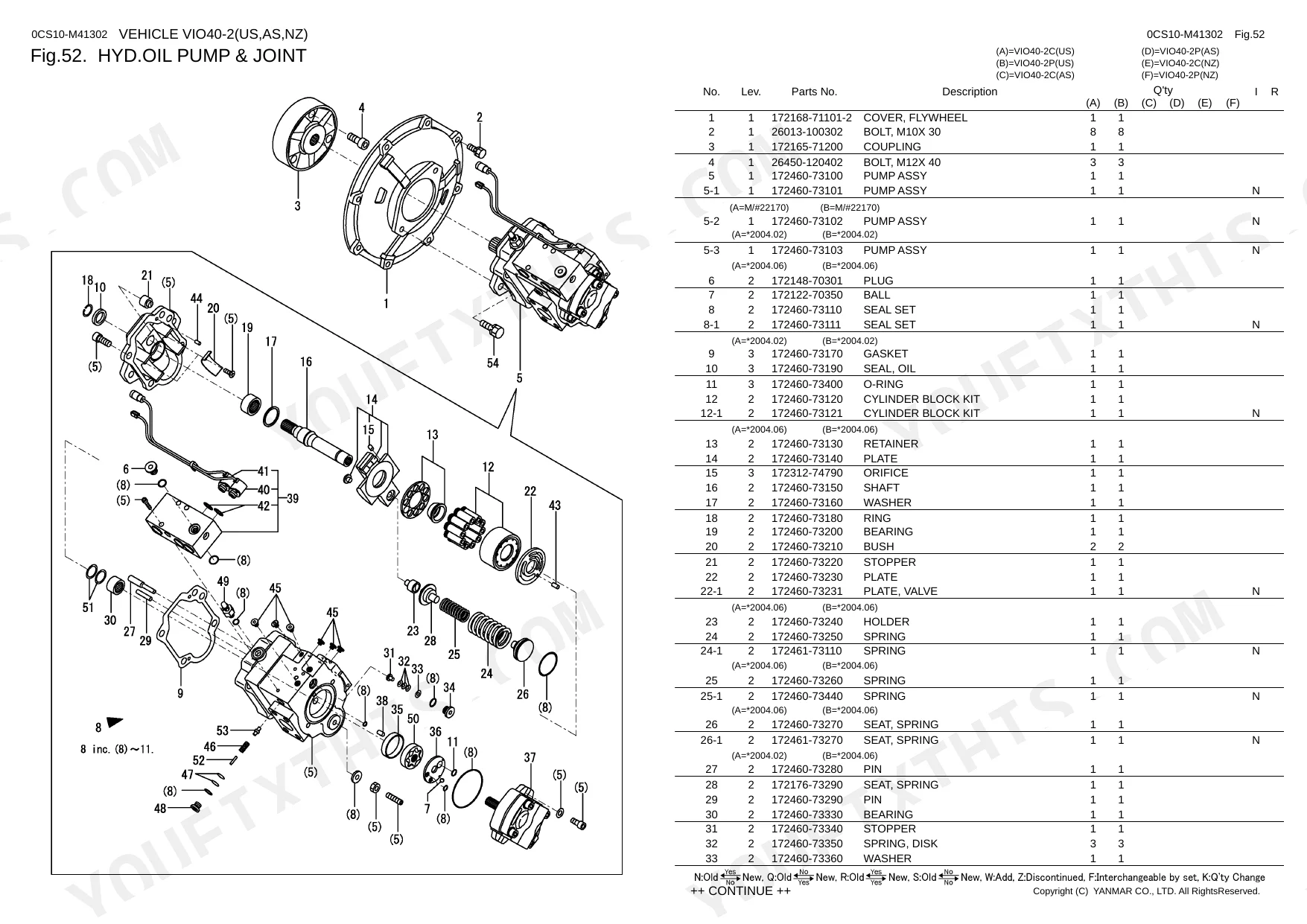

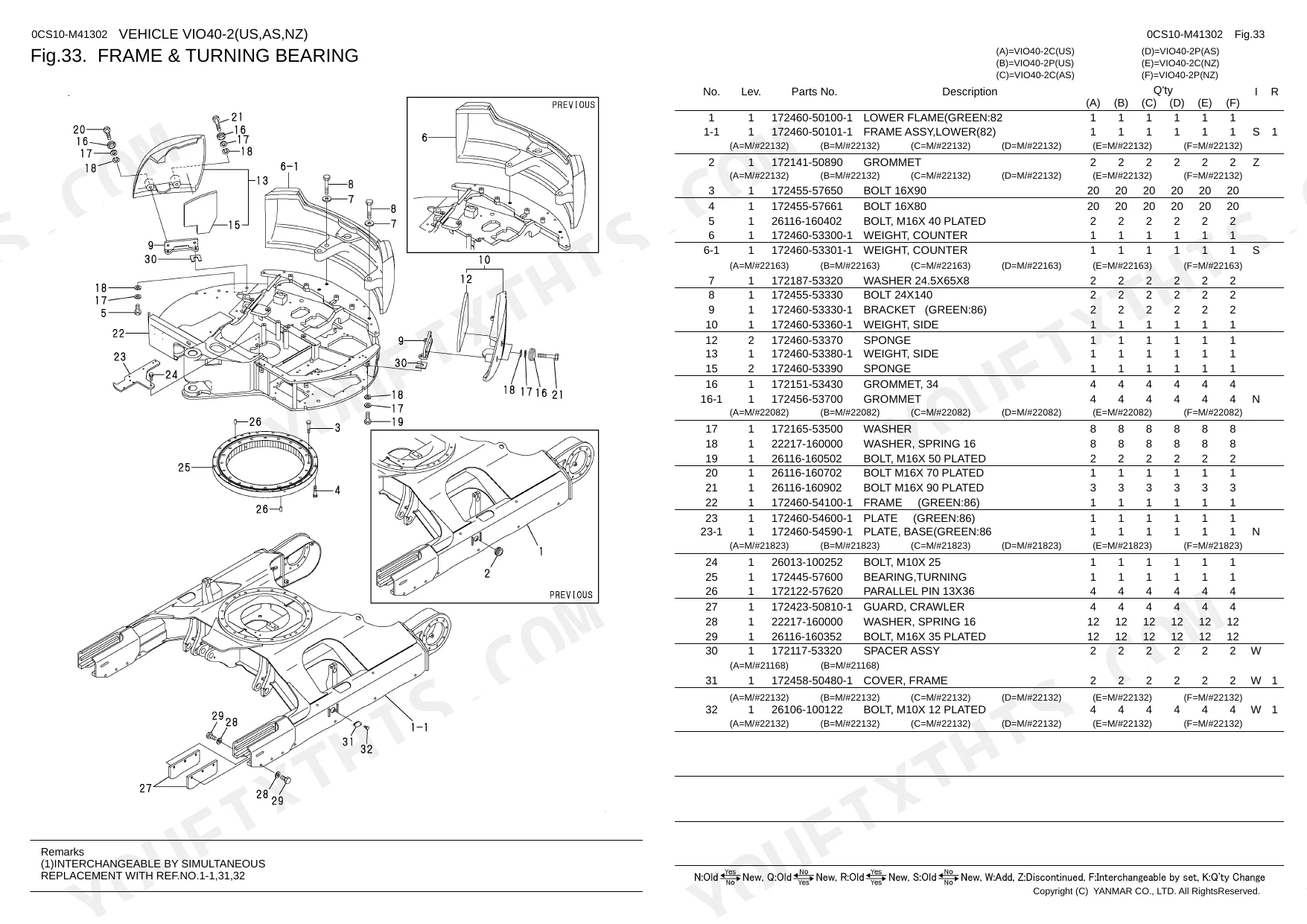

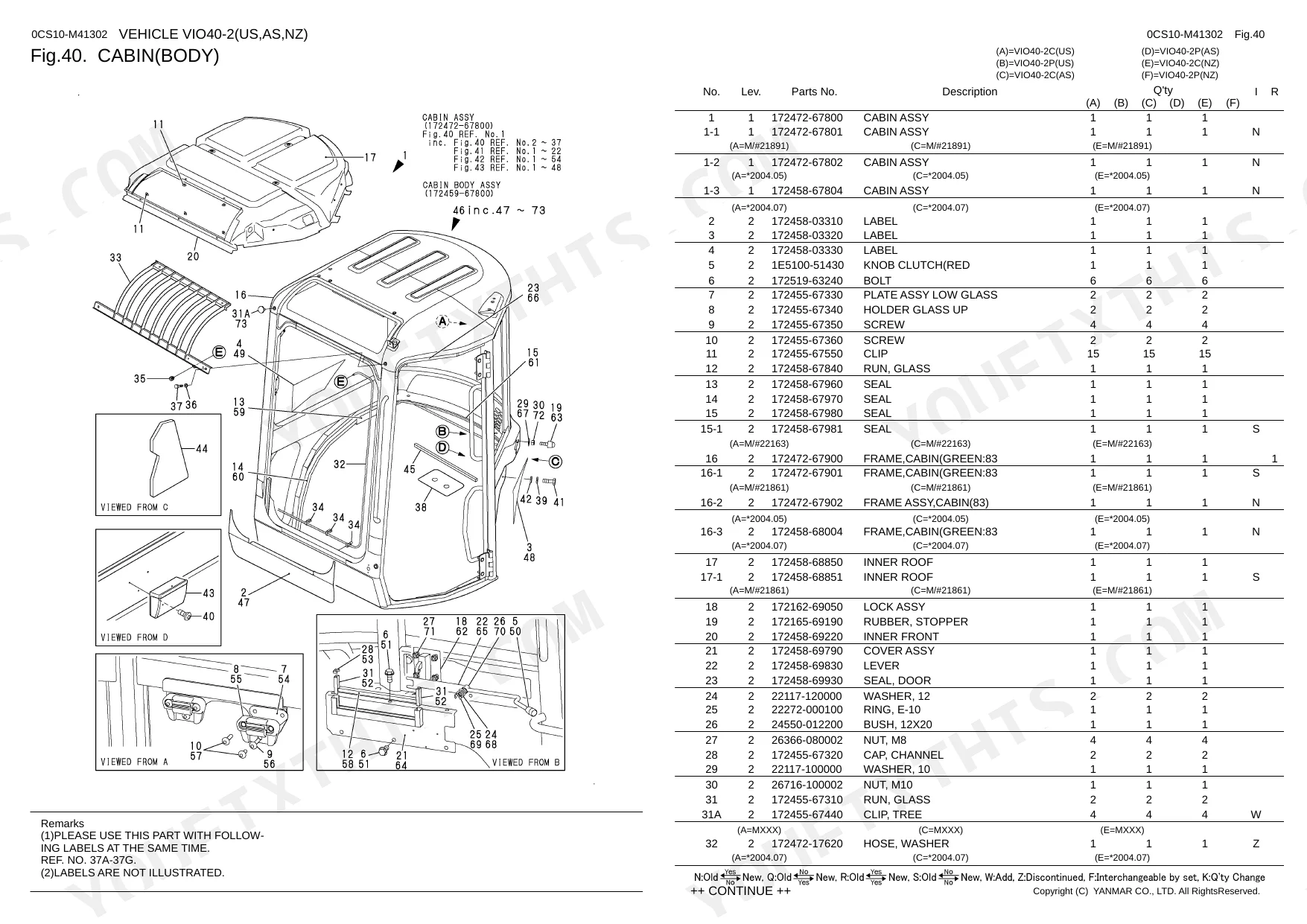

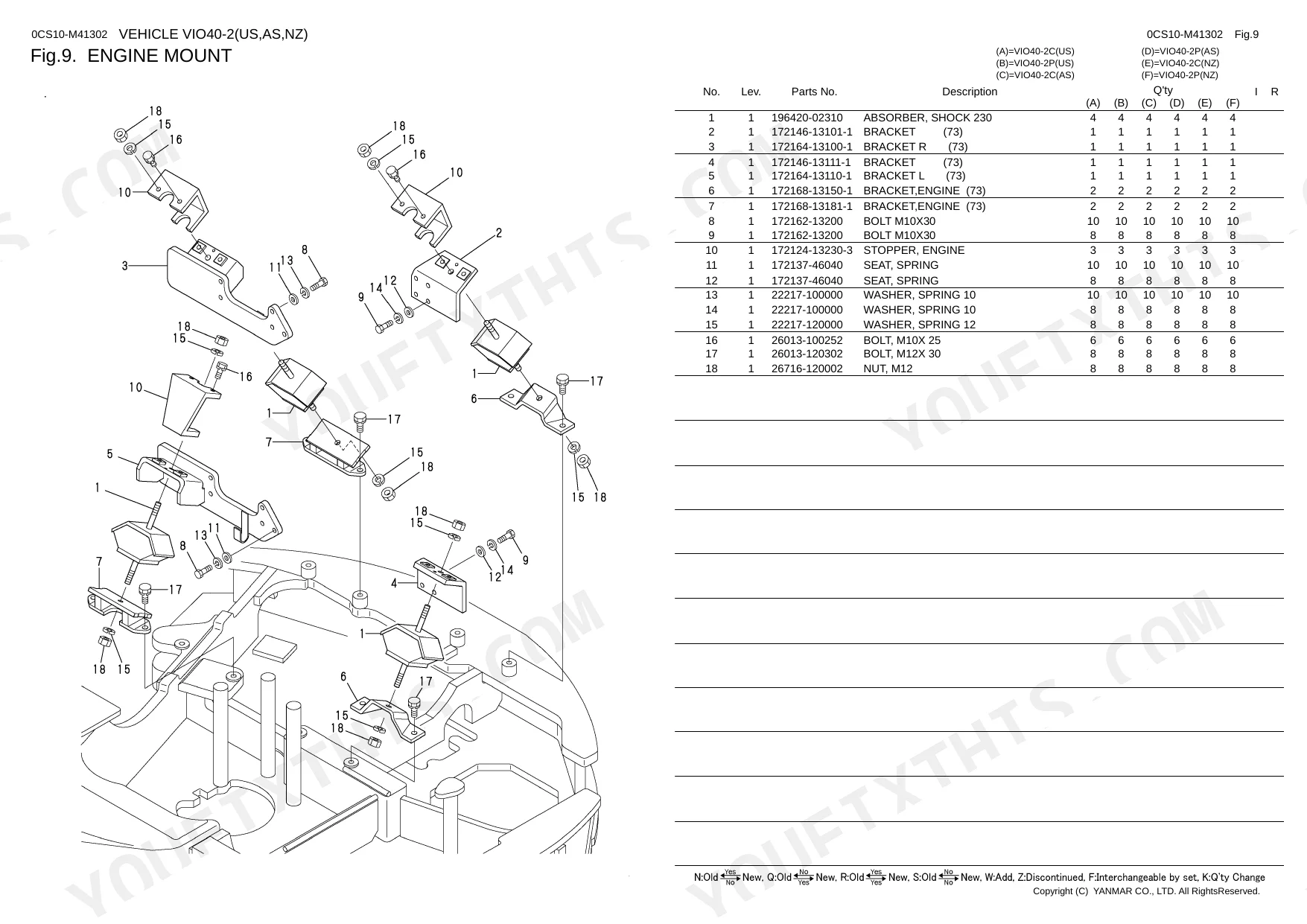

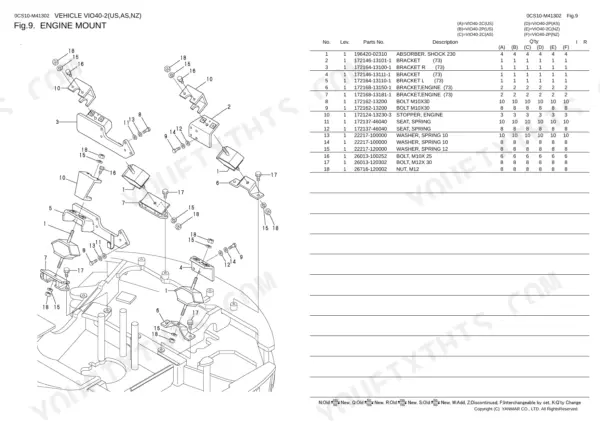

| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Silenser & Air Cleaner, Accelerator, Fuel Tank & Fuel Pipe | |
| Cooling System | Fan, Radiator & Mount | |
| Engine | Frame & Turning Bearing, Hyd.Oil Pump & Joint | |
| Electrical System | Battery, Work Lamp & Canopy Lamp | |
| Hydraulics & 3-Point Hitch | Boom Cylinder, Arm Cylinder, Bucket Cylinder, Swing Cylinder, Blade Cylinder, Quick Coupler Cylinder, Control Valve, Remote Control Valve, Way Valve, Arm & Quick Coupler | |
| Body & Operator Station | Cover, Step & Instrument Panel, Seat & Seat Mount, Bonnet, Cabin, Tim Cabin, Tim Cabin D00R, Tim Cabin Door, Canopy & Canopy Mount, Hyd.Oil Tank, Boom & Boom Bracket | |
| Decals & Accessories | Label, Safety Label | |
| Other Components | Reference Materials, Engine Mount, Electric Part, Travel Alarm, Heater, Window Washer, Compressor & V Pulley, Piping, Roller & Adjust, Crawler, Control EquipmentRight, Control EquipmentLeft, Control Equipment, Travel Motor, Turning Motor, Swivel Joint |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Grommet Size (Air Cleaner) | 16x20x4.5 | p. 20 |
| Slow Blow Fuse Rating | 50 A | p. 27 |
| Bulb Rating (Cabin Electric Part) | 12V 5W | p. 68 |
| O-Ring Size (Swivel Joint) | 1AP75.0 | p. 98 |
| Travel Motor Ball Quantity | 198 | p. 95 |
| Port Relief Pressure (Arm & Swing Valve) | 250 | p. 101 |
| Hydraulic Joint Size | RGI-1/2 | p. 107 |
| Pin Size (Boom & Boom Bracket) | 50x204 | p. 118 |
Yanmar ViO40-2 Common Problems This Manual Covers
Yanmar Vio40-2 will not start or cranks but does not fire during morning startup. p. 27

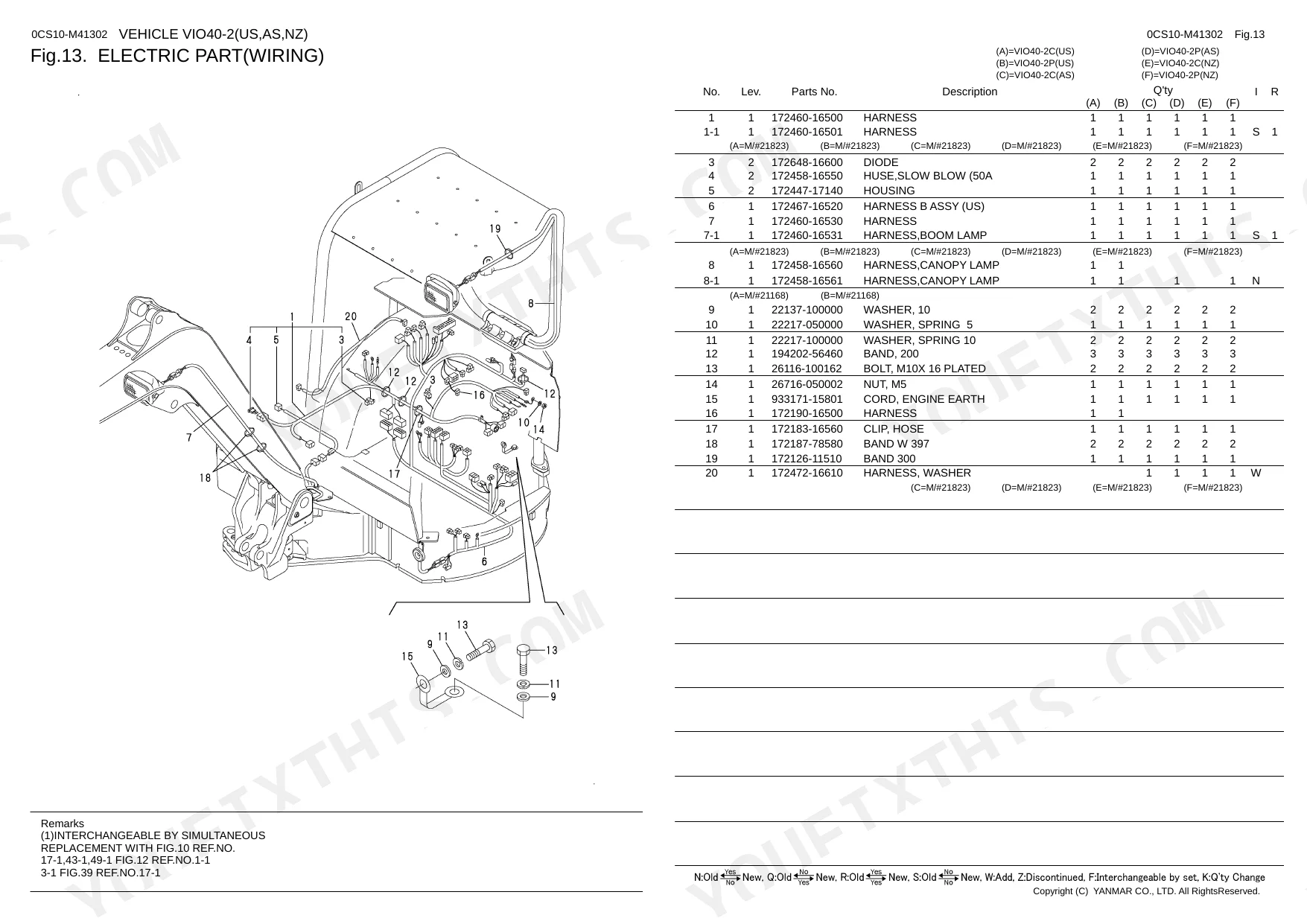

Inspect the electrical parts diagram on page 27 to identify the main wiring harness components. Locate the exact part number for the 50 A slow blow fuse before ordering replacements. Cross-reference the starter relay and battery cables in the parts list to ensure compatibility with your machine number.
Manual Section: Electric Part(Wiring)Hydraulic oil leaking heavily down the center of the undercarriage frame while tracking. p. 98
Review the swivel joint exploded view on page 98 to pinpoint the leaking seals. Identify the correct part number for the 1AP75.0 sized O-ring. Match the shaft assembly and flange part numbers against your specific serial number range to order the proper rebuild components.
Manual Section: Swivel JointTrack drive is weak or makes grinding noises during normal travel operation. p. 95

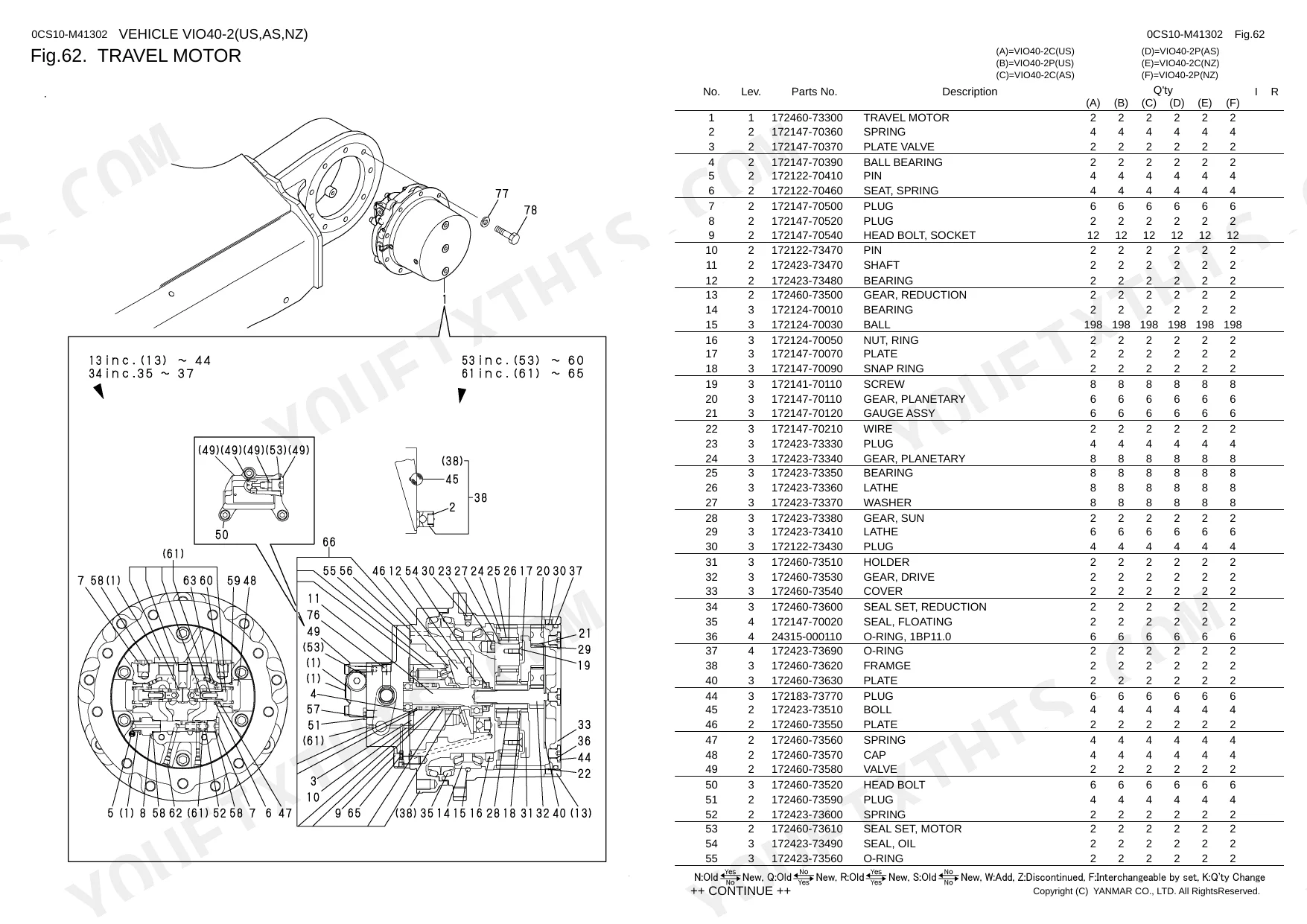

Examine the drivetrain parts diagram on page 95 to find the travel motor breakdown. Locate the part numbers for the planetary gears and verify the required 198 travel motor balls are listed. Order the complete seal set and reduction gear components using the provided interchangeability symbols.

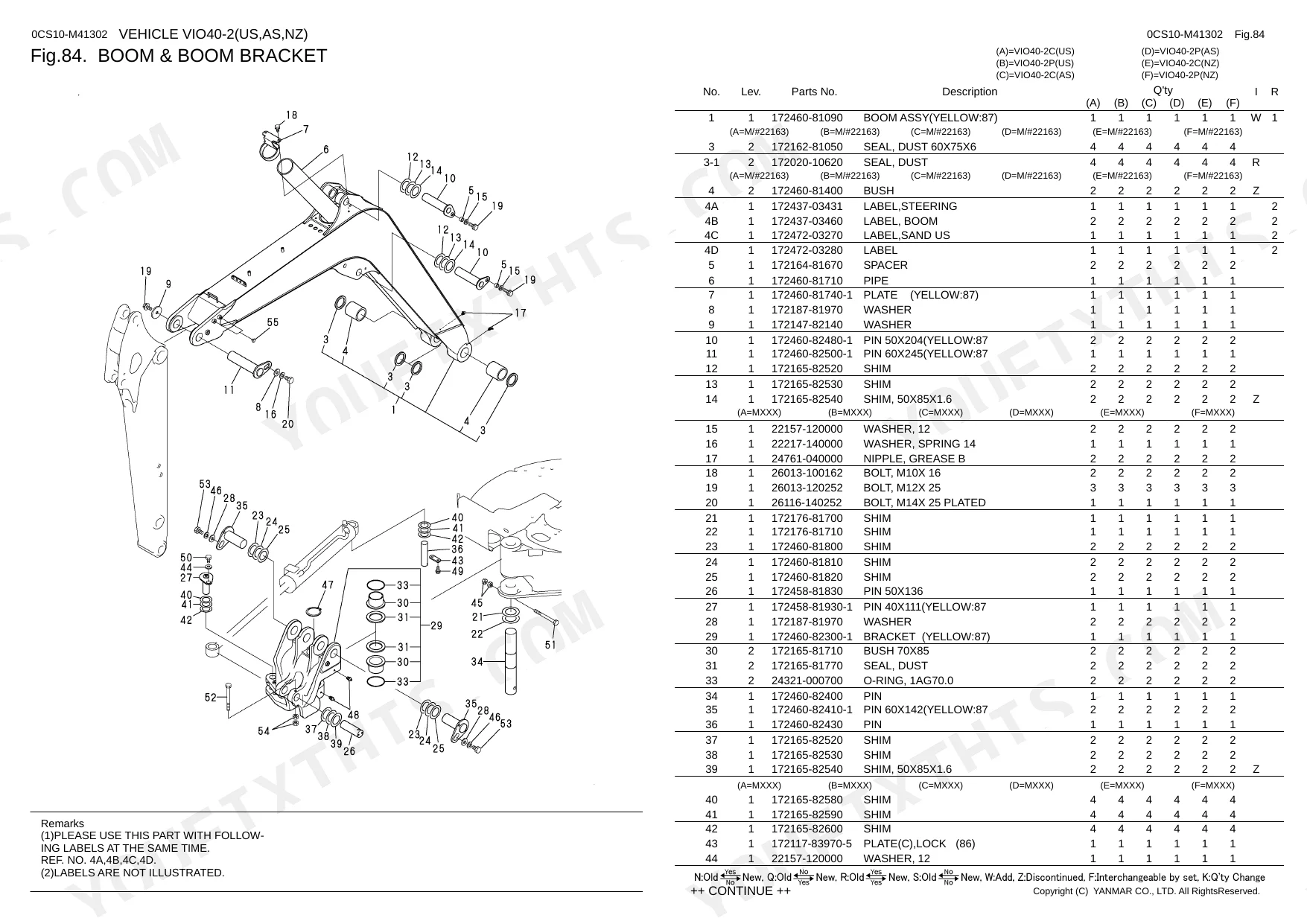

Manual Section: Travel MotorExcessive play and clunking noises originating from the main boom mounting point. p. 118
Check the boom and attachment parts diagram on page 118 for the main mounting hardware. Find the specific replacement part number for the 50x204 sized pin. Cross-reference the associated bushings, dust seals, and grease nipples in the parts catalog to order a complete repair package.
Manual Section: Boom & Boom BracketEngine loses power and stalls out under load due to restricted intake airflow. p. 20
Consult the silencer and air cleaner diagram on page 20 to identify required intake components. Find the exact part number for the 16x20x4.5 sized grommet. Verify the correct air filter element and intake hose part numbers in the catalog table before ordering replacements for your fleet.
Manual Section: Silenser & Air CleanerFrequently Asked Questions
How do you fix yanmar Vio40-2 will not start or cranks but does not fire during morning startup?
Inspect the electrical parts diagram on page 27 to identify the main wiring harness components. Locate the exact part number for the 50 A slow blow fuse before ordering replacements. Cross-reference the starter relay and battery cables in the parts list to ensure compatibility with your machine number.
How do you fix hydraulic oil leaking heavily down the center of the undercarriage frame while tracking?
Review the swivel joint exploded view on page 98 to pinpoint the leaking seals. Identify the correct part number for the 1AP75.0 sized O-ring. Match the shaft assembly and flange part numbers against your specific serial number range to order the proper rebuild components.
How do you rebuild a Yanmar Vio40-2 travel motor that whines or loses drive on one track?
Examine the drivetrain parts diagram on page 95 to find the travel motor breakdown. Locate the part numbers for the planetary gears and the reduction-gear components, and confirm the bearing balls listed for the assembly. Order the complete seal set and reduction gear components using the interchangeability symbols printed alongside each part number.
How do I find the correct part number for my specific Yanmar Vio40-2 build (canopy, cabin, or quick-coupler)?
Use the section index at the front of the catalog to jump to the assembly you need, then read the exploded figure: each callout number maps to a row in the adjacent parts list giving the exact Yanmar part number and quantity. Where a part differs between the canopy, cabin, or quick-coupler builds, the catalog flags it with an interchangeability symbol, so confirm your machine's spec and serial number range before ordering.
