Your search for the Yanmar vio70 parts manual pdf ends here: this 164-page Parts Catalog (OEM #000Y00S3631) is the official Yanmar factory reference for the ViO70 excavator. Inside, exploded-view diagrams cover every major system (engine, drivetrain, cab, hydraulics, and boom assembly), each with Ref. No. callouts, interchangeability marks, and effective machine numbers so you confirm fitment before you order. Parts lists run from fuel tank and fuel line components through battery, electrical fuses, and a complete hydraulic oil piping section. Battery type is 130E41R; equipment circuit fuse rating is 30A, the kind of data that ends dealer phone tag before it starts. Stop misidentifying parts and waiting on back-orders. Open this PDF on any device, hit a bookmark, and you're at the right system in seconds.
What's Inside This Yanmar ViO70 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Preface | 1 | Parts Catalog Edition, Parts Catalog History, Model Name, Publication Number, Publication Date |
| Wiring Diagram | 3 | Wiper Motor, Heater Switch, Horn Switch, Fuel Meter, Starting Switch, Alternator, Fuse 30A, Battery 130E41R |
| Vehicle Painted Color, M/#01235 | 4 | Yanmar New Deep Green, Yanmar Pear Cock Green, Yanmar Citrous Green, Yanmar Dark Olive Grey, Yanmar Warm Grey |
| Paint Part Numbers, M/#01235 | 5 | Label, Safety Label, Exhaust Pipe, Accelerator, Engine Mount, Radiator Mount, Fuel Tank, Fuel Line |
| Vehicle Painted Color, M/#01236 | 6 | Yanmar Deep Green, Yanmar New Permanent Yellow, Yanmar Warm Gray, Yanmar Dark Olive Gray, Yanmar New Grayish Green |
| Paint Part Numbers, M/#01236 | 7 | Label, Safety Label, Exhaust Pipe, Accelerator, Engine Mount, Radiator Mount, Fuel Tank, Fuel Line |

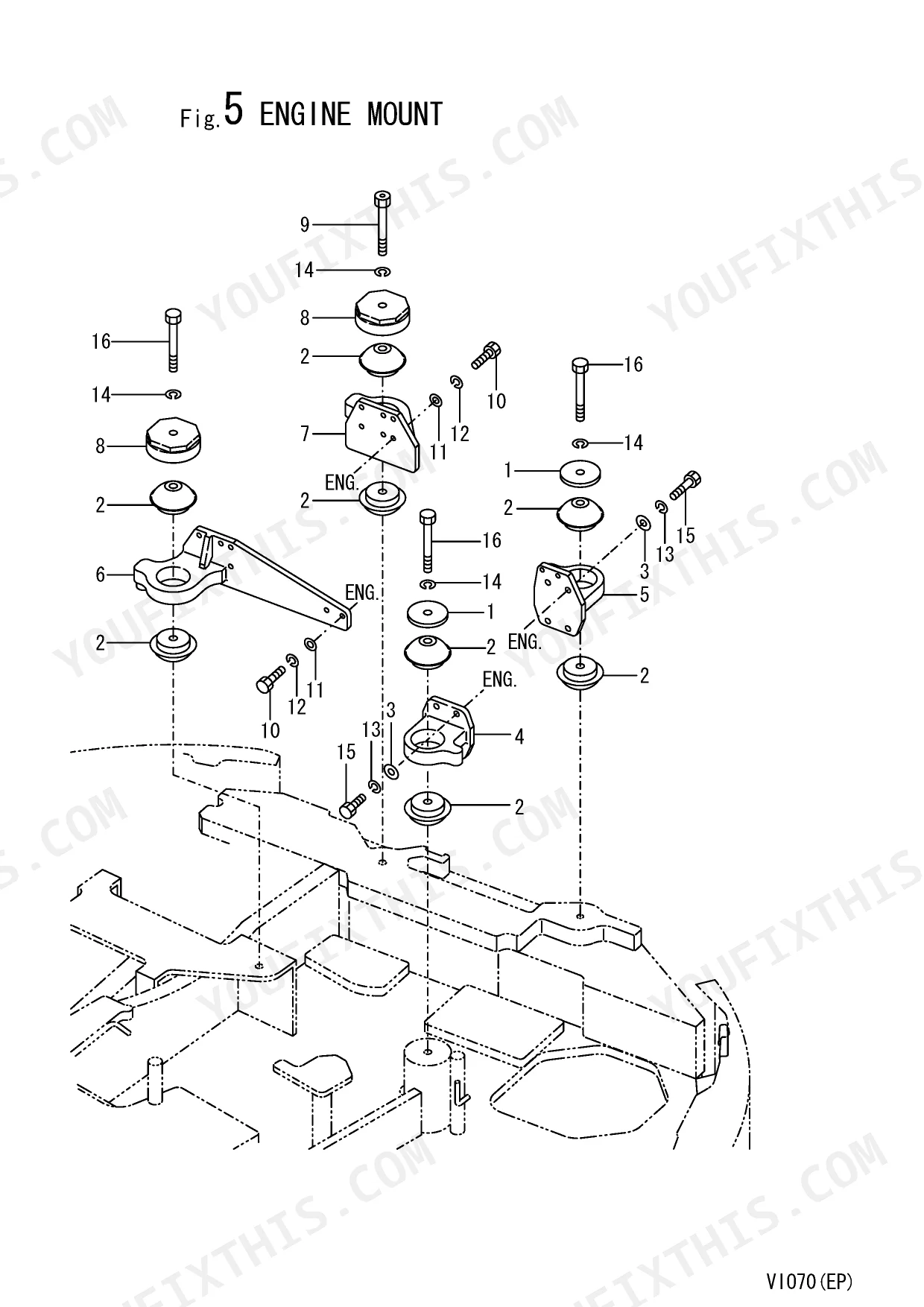

| Engine and Drivetrain Parts | 8-25 | Engine Assembly, Air Cleaner Element 129062-12560, Fuel Filter, Radiator, Fan Belt, Engine Mount, Exhaust Manifold |
| Hydraulic System Parts | 26-43 | Hydraulic Oil Piping, Pump Assembly, Control Valve, Hydraulic Hoses, Pressure Ports, Return Lines, Cylinder Seals, O-Ring Kits |
| Boom, Arm and Bucket Assembly Parts | 44-80 | Boom Cylinder O-Ring P-32.0, Circlip, Piston Seal, Rod Seal, Arm Cylinder, Bucket Link, Pin and Bushing, Attachment Bracket |
| Undercarriage and Track Parts | 81-130 | Track Shoe, Track Roller, Carrier Roller, Idler, Final Drive, Swing Bearing, Travel Motor, Sprocket |
| Cab, Electrical and Accessory Parts | 131-164 | Cab Glass, Wiper Motor, Horn Switch, Seat, Console, Battery 130E41R, Fuse Box, Heater, Work Light, Mirror |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hose dimensions (HYD. OIL PIPING (TANK~PUMP~VALVE)) | 7X 225 | p. 26 |
| Element (SUC. PIPE & EXH. PIPE) | 1 | p. 20 |
| Battery type | 130E41R | p. 31 |
| Fuse rating (ELECTRIC PART (EQUIPMENT)) | B30 | p. 34 |
| Fuse Rating | 30A | p. 34 |
| Headlight Bulb Voltage/Wattage | 12V 55W | p. 34 |
| Room Lamp Bulb Voltage/Wattage | 12V 5W | p. 36 |
| O-Ring Dimension (example) | P-32.0 | p. 44 |
Yanmar ViO70 Common Problems This Manual Covers
Yanmar ViO70 hydraulic supply hose from tank to pump cracked, need correct part number p. 26
Pull up the hydraulic oil piping diagram on page 26, which covers the tank-to-pump-to-valve circuit and lists 7 hoses in the 7X 225 dimension series. Match your effective machine number against the parts index before ordering. The hydraulic assembly overview confirms hose routing and fitting positions.
Manual Section: HYD. OIL PIPING (TANK~PUMP~VALVE)Battery dead and original part label unreadable, need correct OEM replacement spec and part number p. 31
Find the battery listing on page 31. The correct OEM type for this machine is 130E41R; confirm the group size and terminal layout match before purchasing a substitute. Cross-reference with the parts number list using your serial number to catch any mid-production specification changes.
Manual Section: ELECTRIC PART (EQUIPMENT)Fuse blown on cab circuit, need correct amperage rating and part number before ordering p. 34
Identify the blown fuse position using the wiring diagram on page 3, then check the electric parts listing on page 34 for the correct replacement. The rated value is 30A; installing a higher-rated fuse will bypass circuit protection entirely. Order by part reference number, not amperage alone, to get the correct physical format.
Manual Section: ELECTRIC PART (EQUIPMENT)Boom cylinder weeping hydraulic fluid at the rod, need O-ring or seal part number
Open the boom and attachment diagram to identify the cylinder assembly by reference number. Cross-check against the hydraulic parts section for seal and O-ring positions. One O-ring on this machine is dimensioned P-32.0 (page 44); verify the exact position reference number in the exploded view before ordering to avoid mismatched sizes.
Manual Section: Boom & Attachment Parts DiagramWork light bulb burned out, need part number and correct voltage spec to avoid wrong fitment p. 34
Locate the electric parts diagram on page 34 for exterior lighting; the headlight bulb is rated 12V 55W. For the interior room lamp, check page 36, where the bulb is listed at 12V 5W. Match the reference number to your serial number range in the parts index before placing an order.
Manual Section: ELECTRIC PART (EQUIPMENT)Frequently Asked Questions
What are the replacement specifications for engine filters?
The manual identifies the air cleaner element, part number 129062-12560, as a replacement component for the engine's air filter system. This element is listed as part of the air cleaner assembly, part number 172187-11500.
How do you fix yanmar ViO70 hydraulic supply hose from tank to pump cracked, need correct part number?
Pull up the hydraulic oil piping diagram on page 26, which covers the tank-to-pump-to-valve circuit and lists 7 hoses in the 7X 225 dimension series. Match your effective machine number against the parts index before ordering. The hydraulic assembly overview confirms hose routing and fitting positions.
How do you fix battery dead and original part label unreadable, need correct OEM replacement spec and part number?
Find the battery listing on page 31. The correct OEM type for this machine is 130E41R; confirm the group size and terminal layout match before purchasing a substitute. Cross-reference with the parts number list using your serial number to catch any mid-production specification changes.
How do you fix fuse blown on cab circuit, need correct amperage rating and part number before ordering?
Identify the blown fuse position using the wiring diagram on page 3, then check the electric parts listing on page 34 for the correct replacement. The rated value is 30A; installing a higher-rated fuse will bypass circuit protection entirely. Order by part reference number, not amperage alone, to get the correct physical format.
How will I receive this Yanmar ViO70 Parts Manual?
A 164-page Parts Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Yanmar ViO70 Parts Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This is a scanned PDF document. An OCR layer is present, allowing you to search and copy the full text, though the visual quality of the text is generally readable but not perfectly crisp. Diagrams and illustrations are raster images, so they may pixelate when zoomed, making some smaller labels and fine details challenging to read. The pages are mostly clean, free of significant scan artifacts, stains, or skewed content, and there are no notable blank or filler pages.
