All 173 pages of this Yanmar ViO75 Parts Catalog (OEM #Y00S4030) focus on one job: identifying and ordering the right component for your 2002 4TNE98-EBVA crawler backhoe. Inside, exploded-view figures walk through every major assembly, engine mount, muffler, radiator, fuel line, hydraulic oil tank and piping, control valve, boom, arm, bucket, blade cylinder, cabin, and crawler, each figure backed by a numbered parts list with Yanmar OEM part numbers ready to hand your dealer. Cross-reference marks flag interchangeable parts; effective machine number callouts confirm what fits your serial range. Factory change marks tell you when a revised part supersedes the original, so you're never ordering the wrong revision. Wrong part, two-week wait, machine still down. Bookmarked by assembly, open to any figure in one click, and keyword-searchable across all 173 pages.
What's Inside This Yanmar ViO75, 4TNE98-EBVA Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Muffler | — | Exhaust Muffler, Mounting Hardware, Gaskets, Heat Shield |

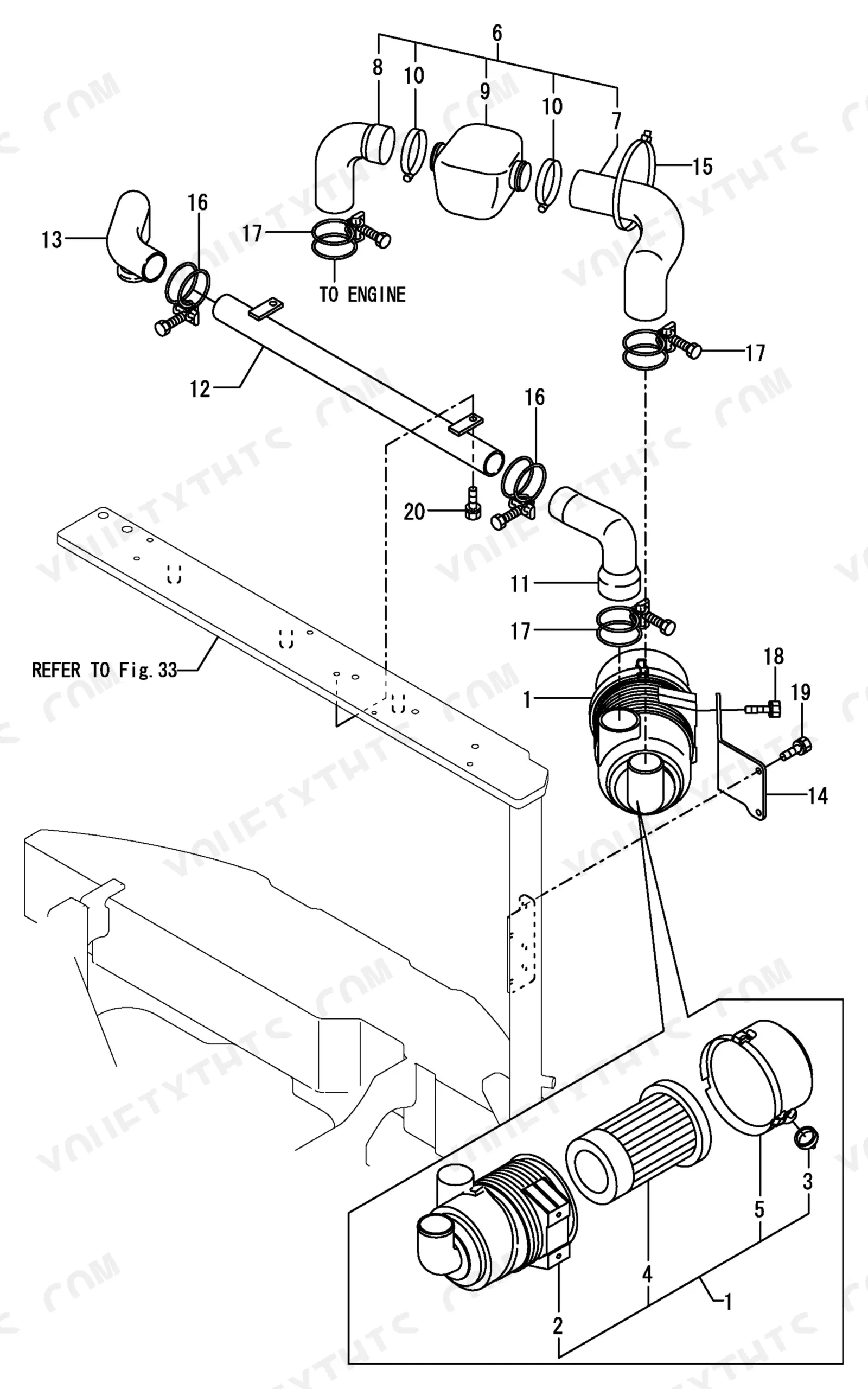

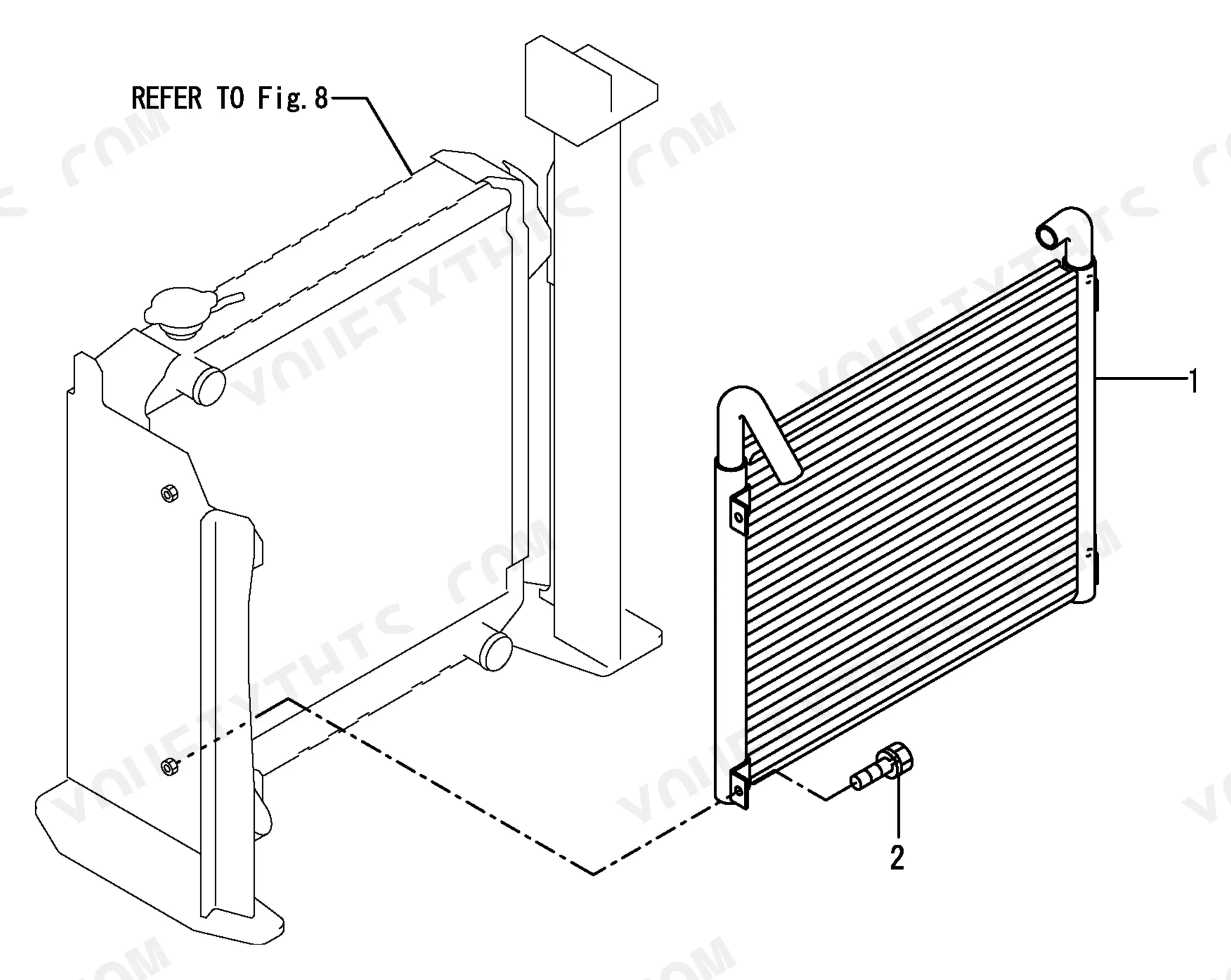

| Air Cleaner | — | Air Cleaner Assembly, Element 129062-12560, Intake Hoses, Clamps |
| Engine Mount | — | Engine Mount Bracket, Isolators, Bolts, 4TNE98-Ebva Mounting |
| Radiator & Sub Tank | — | Radiator Assembly, Coolant Sub Tank, Hoses, Clamps, Cap |
| Radiator Mount | — | Radiator Mounting Bracket, Rubber Isolators, Support Frame |
| Fuel Tank | — | Fuel Tank Assembly, Cap, Strainer, Gauge Sender, Fuel Lines |
| Fuel Line | — | Fuel Feed Pump 129412-52100, Water Separator 129335-55705, Screen 121850-55710, Fuel Hoses |
| Battery | — | Hold-Down Bracket, Cables, Terminal Connectors |
| Bonnet | — | Engine Hood, Latch, Hinges, Gas Strut, Rubber Seals |
| Lub. Oil Cooler | — | Lubricating Oil Cooler, Gaskets, Mounting Hardware, Bypass Valve |
| Hyd. Oil Tank | — | Hydraulic Oil Tank, Return Filter, Breather, Drain Plug, Sight Gauge |
| Hyd. Oil Piping | — | Hydraulic Hoses, Pressure Lines, Return Lines, Fittings, O-Rings |
| Boom Bracket | — | Swing Post, Pivot Pins, Bushings, Seals |
| Swing Cylinder | — | Piston Seals, Cylinder Head, Hydraulic Ports |
| Boom | — | Boom Assembly, Boom Cylinder Pins, Bushings, Grease Fittings |
| Arm Cylinder | — | Piston Rod Seals, Cylinder Head, Hydraulic Ports |
| Bucket Pin | — | Bucket Pivot Pin, Bushings, Grease Nipple, Retaining Hardware |
| Arm | — | Arm (Dipper Stick), Arm Cylinder Mount, Bucket Pivot, Bushings |
| Bucket Arm & Link | — | Bucket Arm Linkage, Link Pins, Bushings, Lock Hardware |
| Bucket Cylinder | — | Piston Seals, Rod Seals, Hydraulic Ports |
| Blade | — | Dozer Blade Assembly, Cutting Edge, End Bits, Pivot Pins |
| Blade Cylinder | — | Piston Rod, Seals, Hydraulic Fittings |
| Accelerator Lever | — | Throttle Control Lever, Cable, Bracket, Fasteners |
| Indicator Box | — | Gauge Cluster, Hour Meter, Temperature Gauge, Fuel Gauge |

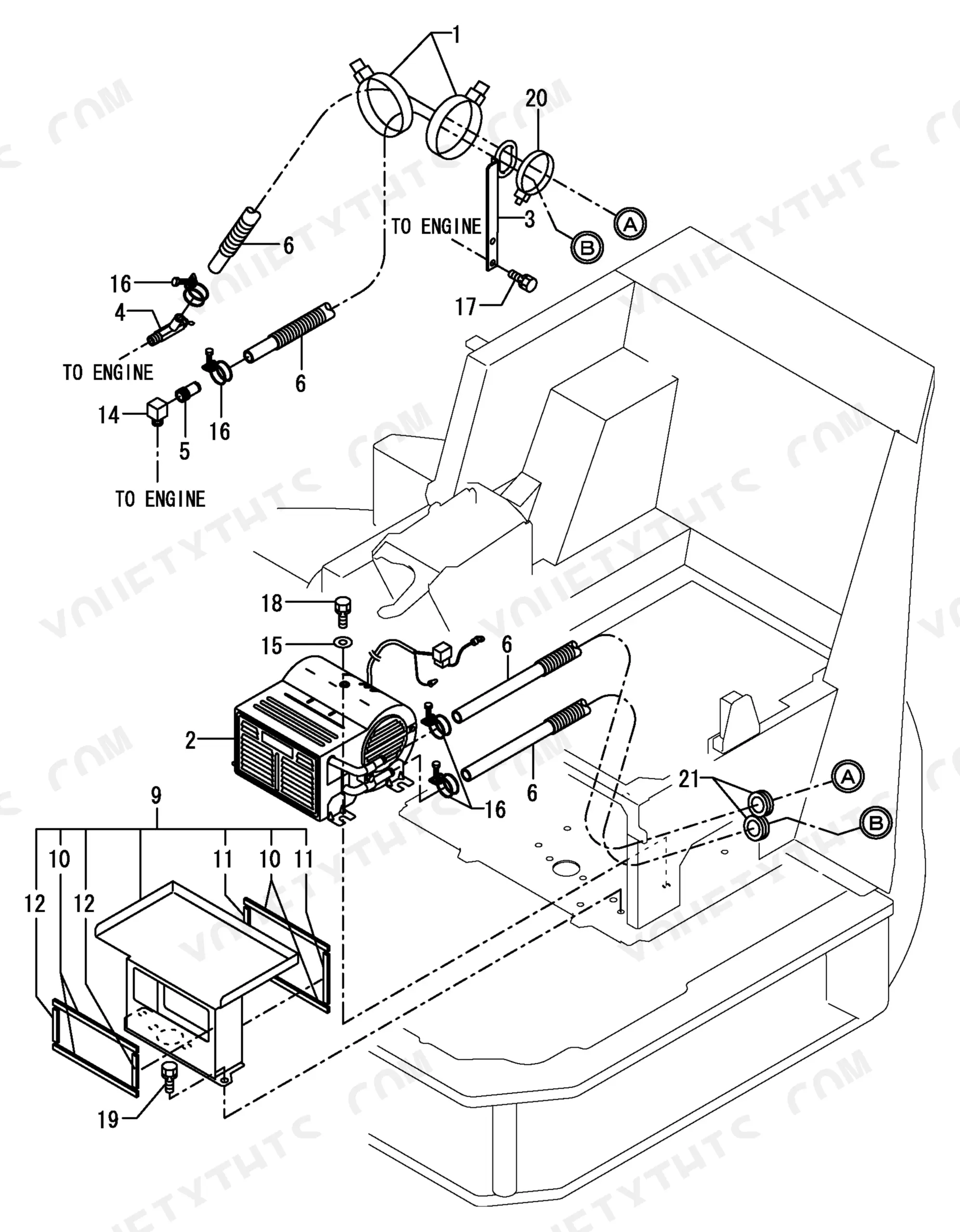

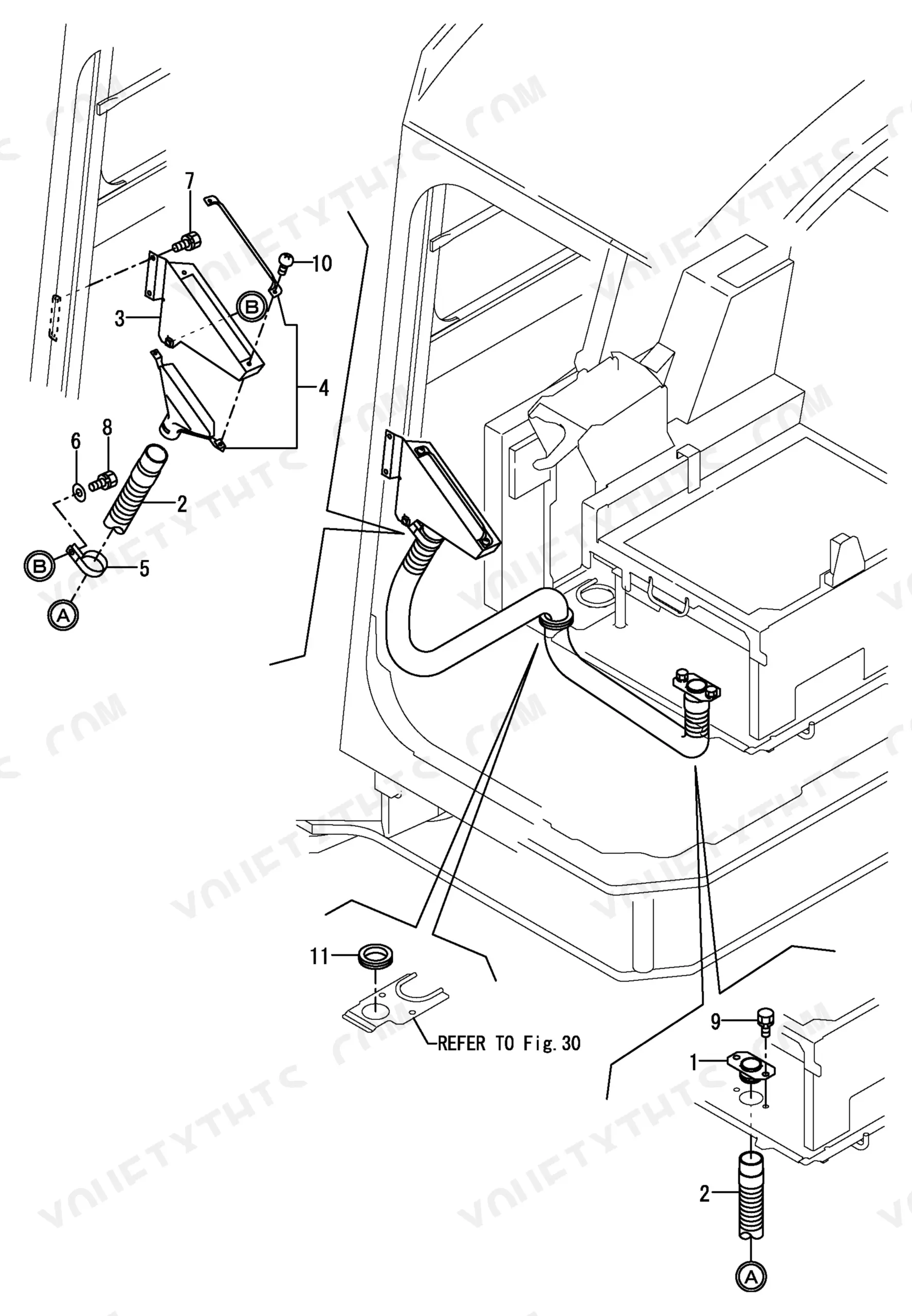

| Heater | — | Cab Heater Unit, Hoses, Clamps, Blower Motor, Heater Core |
| Defroster | — | Defroster Unit, Ducts, Blower, Mounting Hardware |
| Control Equipment | — | Joystick Controls, Pilot Valves, Control Linkage, Seals |
| Cover (Around the Control) | — | Control Cover Panels, Trim Pieces, Fasteners |
| Remote Control Valve | — | Pilot Control Valve, Joystick Valve, Hydraulic Connections |
| Control Piping | — | Pilot Hydraulic Hoses, Remote Control Piping, Fittings |

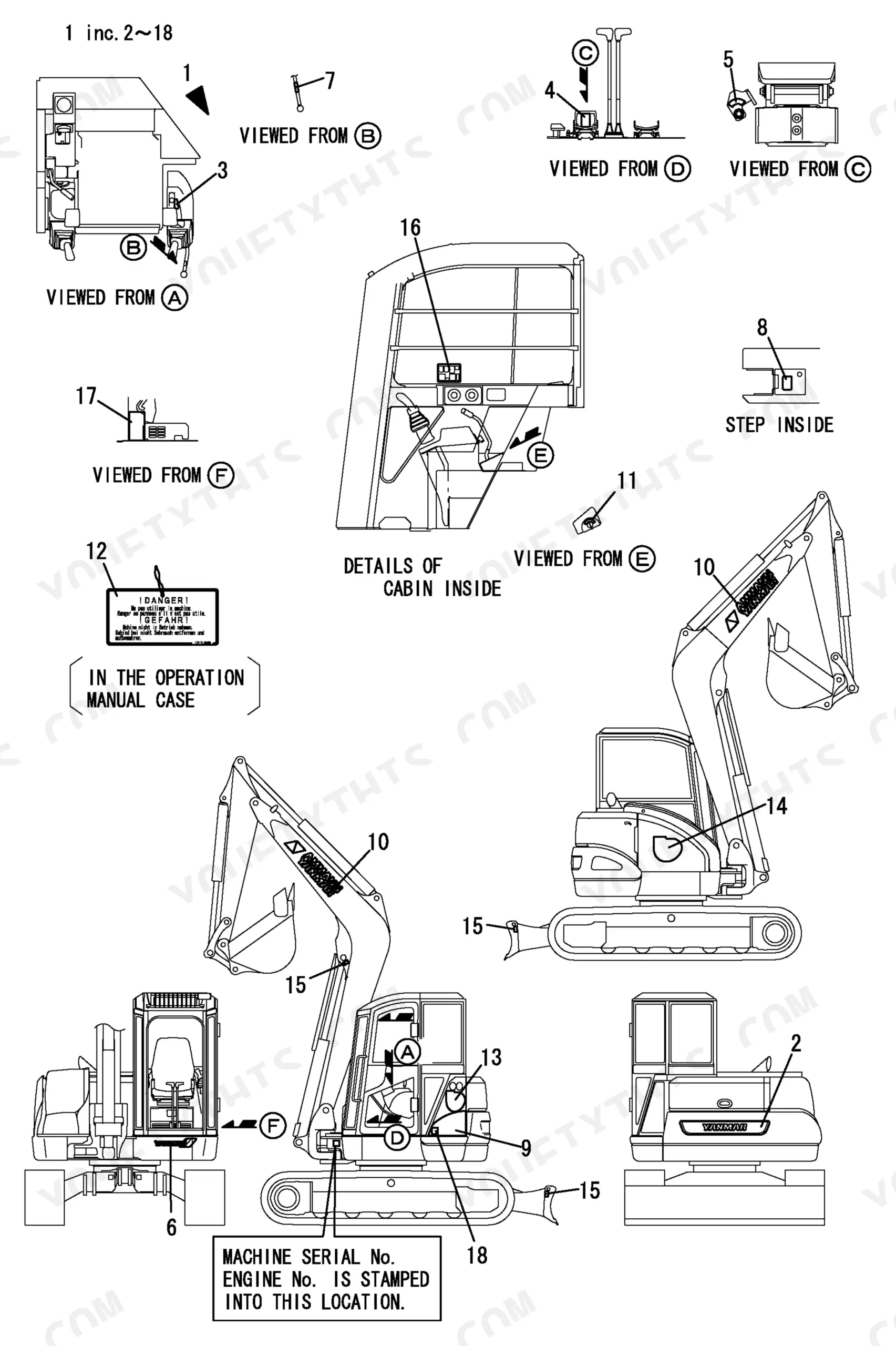

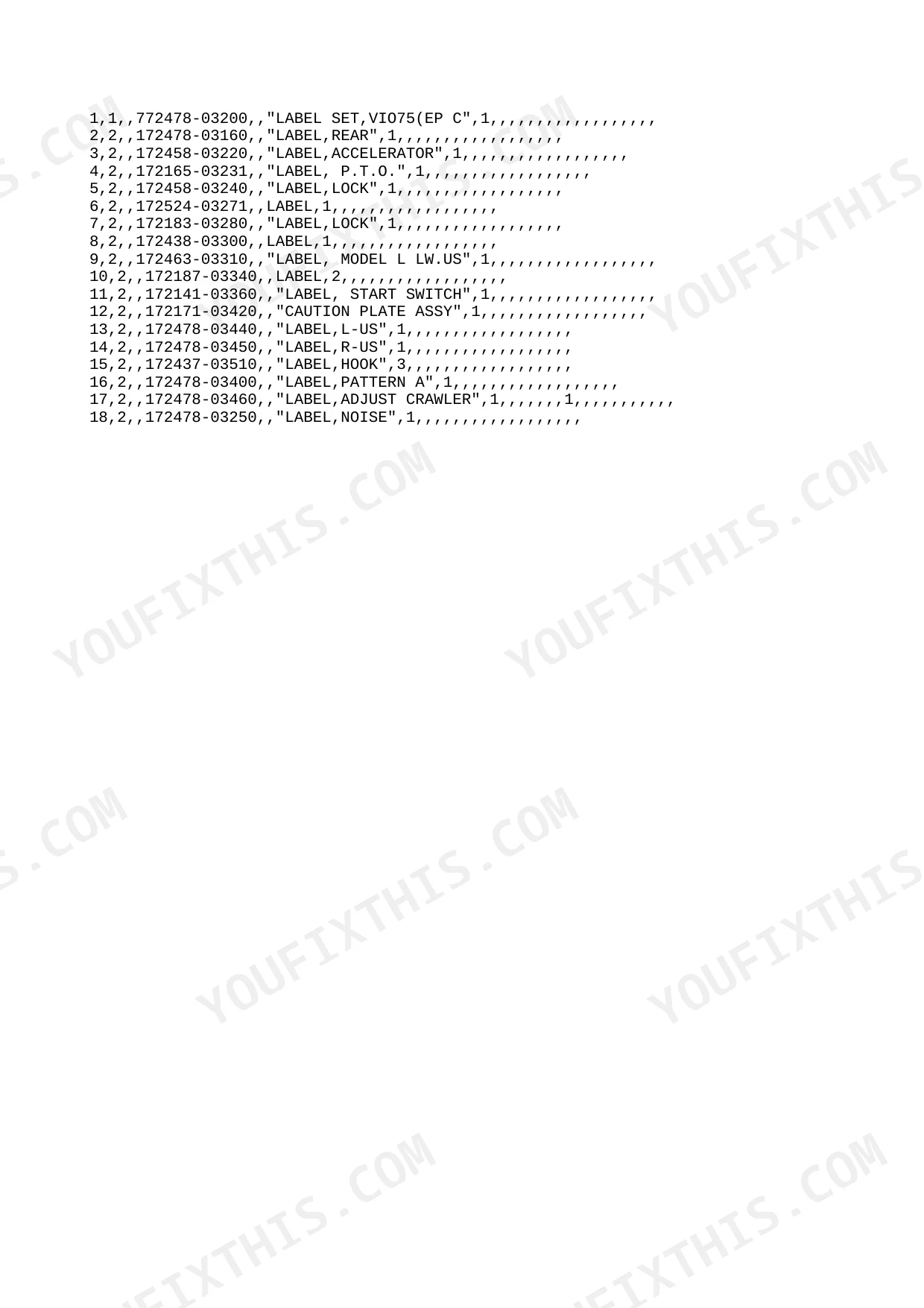

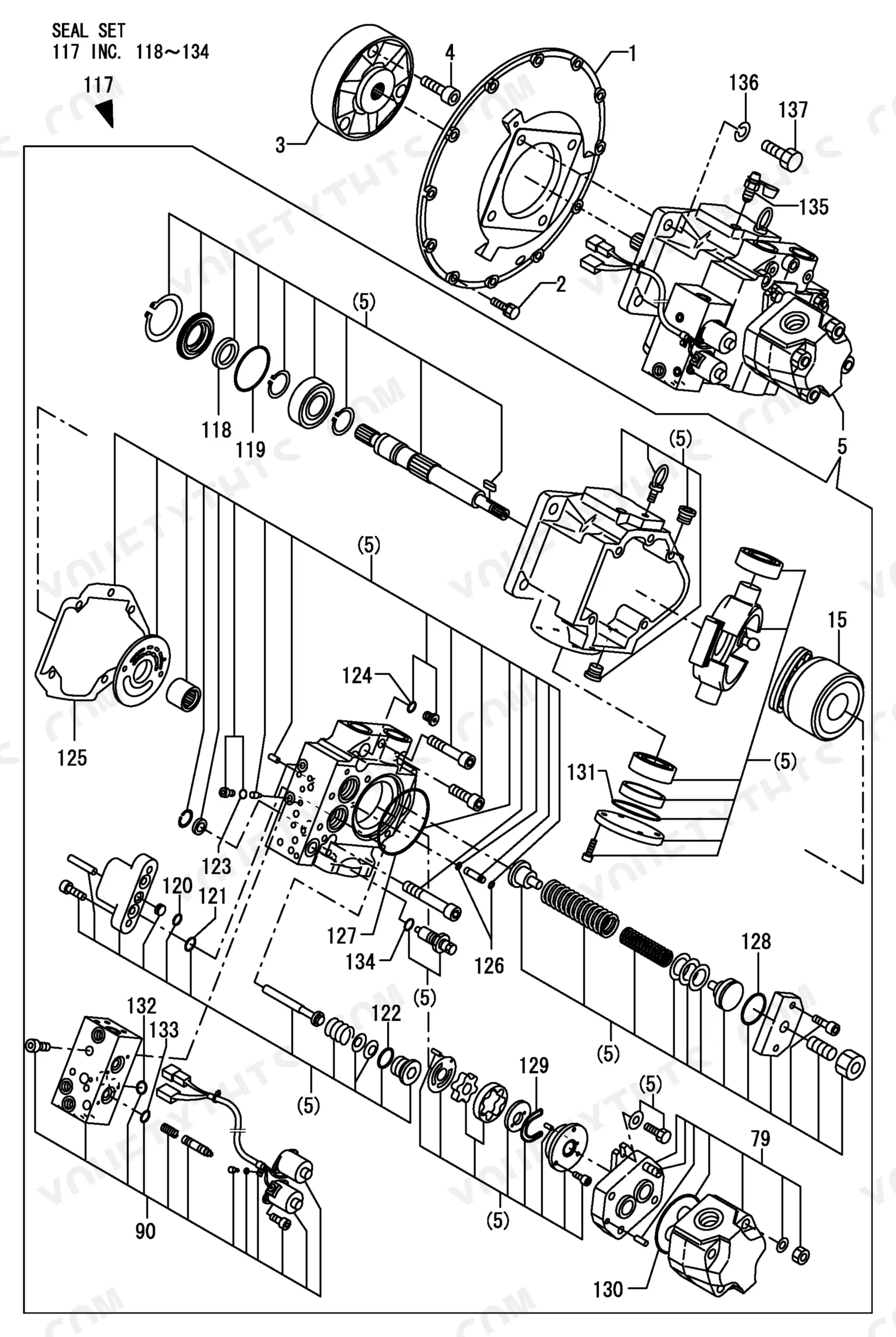

| Label | — | Machine Identification Labels, Model Plate, Serial Number Plate |
| Safety Label | — | Warning Decals, Safety Stickers, Hazard Labels |
| Wind Washer | — | Windshield Washer Pump, Reservoir, Nozzle, Tubing |
| Cabin | — | Cab Structure, Door, Glass, ROPS Frame, Floor Panels |
| Seat Mount | — | Operator Seat, Seat Mount Bracket, Suspension, Adjustment Rail |
| Driving Motor | — | Track Drive Motor, Hydraulic Motor, Reduction Gearbox, Seals |
| Sprocket & Roller | — | Drive Sprocket, Track Rollers (Top and Bottom), Mounting Hardware |
| Idler & Adjust | — | Front Idler, Track Tension Adjuster, Grease Cylinder, Recoil Spring |
| Crawler | — | Rubber Track, Track Links, Pins, Bushings, Track Assembly |
| Electric Part | — | Wiring Harness, Fuse Box, Relays, Switches, Sensors, Connectors |
| Control Valve Plate | — | Main Control Valve Mounting Plate, Porting Blocks, Seals |
| Frame & Turning Bearing | — | Upper Frame, Swing Bearing (Slewing Ring), Bolts, Seals |
| Cover (Frame) | — | Frame Cover Panels, Access Covers, Undercarriage Guards |
| Step & Instrument Panel | — | Entry Steps, Instrument Panel Housing, Gauges, Switches |
| Hyd. Oil Pump & Joint | — | Hydraulic Pump Assembly, Pump Drive Coupling, Fittings |
| Turning Motor | — | Swing Motor, Hydraulic Motor, Reduction Gear, Parking Brake |
| Accumulator | — | Hydraulic Accumulator, Nitrogen Charge, Safety Valve |
| Swivel Joint | — | Center Swivel Joint, Seals, Hydraulic Porting, O-Rings |
| Control Valve | — | Main Hydraulic Control Valve, Spools, Relief Valves, O-Rings |
| Greasing | — | Grease Points, Lubrication Schedule, Zerks, Grease Nipples |
