Need factory answers for your ASV RC-60? This 136-page ASV RC-60 Service Manual PDF (OEM #2030-184) covers the RC-60 and Turf Edition Rubber Track Loaders from teardown to final torque check. You get a full hydraulic schematic tracing the drive loop, auxiliary circuit, and loader valve, plus an electrical schematic mapping the fuse panel, glow plug relay, and starter circuit. Step-by-step procedures walk you through pulling the tandem pump, drive motors, tracks, sprockets, and lift and tilt cylinders, backed by charge and drive pressure checks with adjustment steps. Torque the drive sprocket lug nuts to 160 ft-lb dry, then set the transmission mounting bolts at 85 ft-lb with blue Loctite. Tracks off, machine on blocks, no numbers? Not anymore. Bookmarked with a real text layer: search any spec, jump straight to the section, and get back to wrenching.
What's Inside This ASV RC-60, RC-60 Turf Edition Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Product Safety | 1-8 | Safety Overview, Safety Messages, Basic Precautions, Repair, Asbestos Information, Machine Labels and Decals |

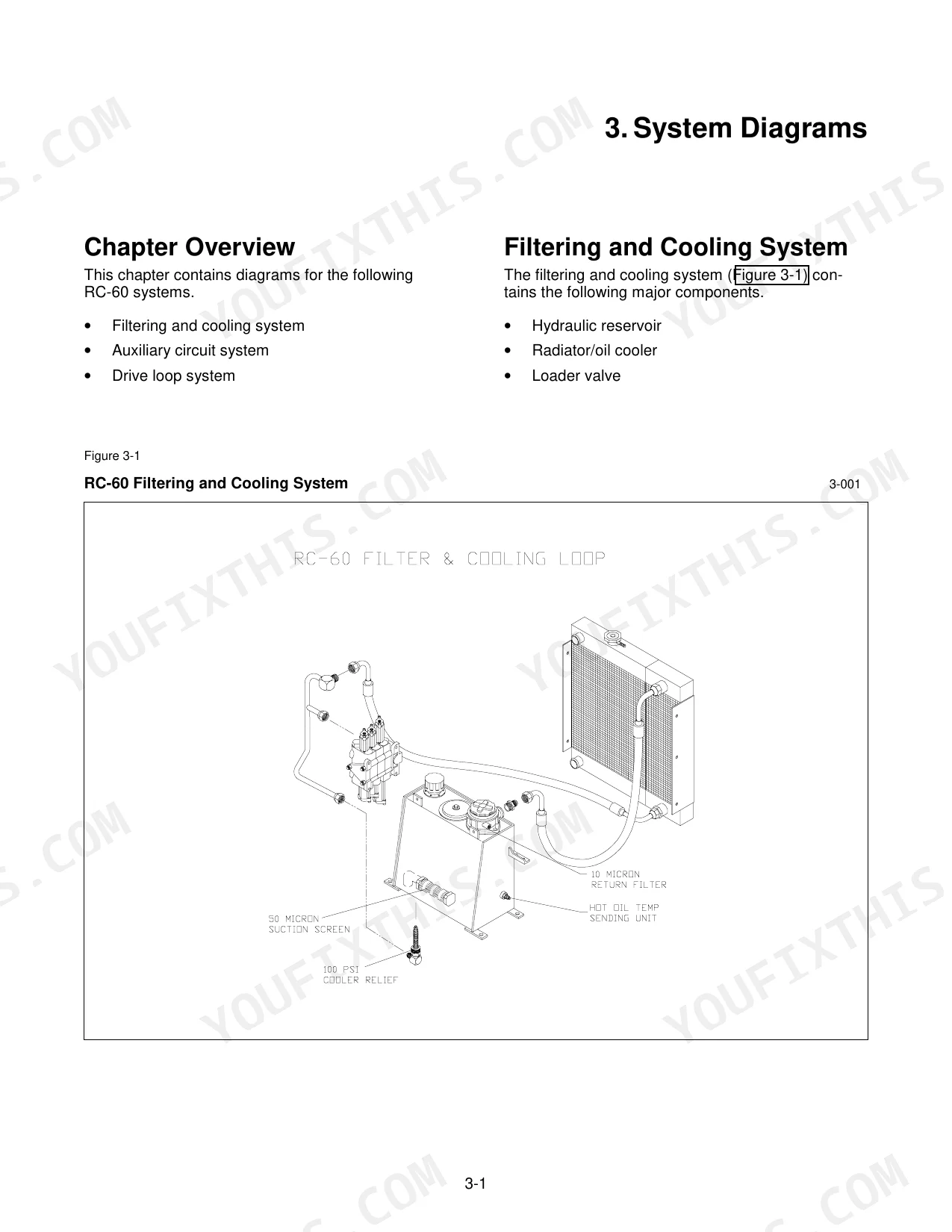

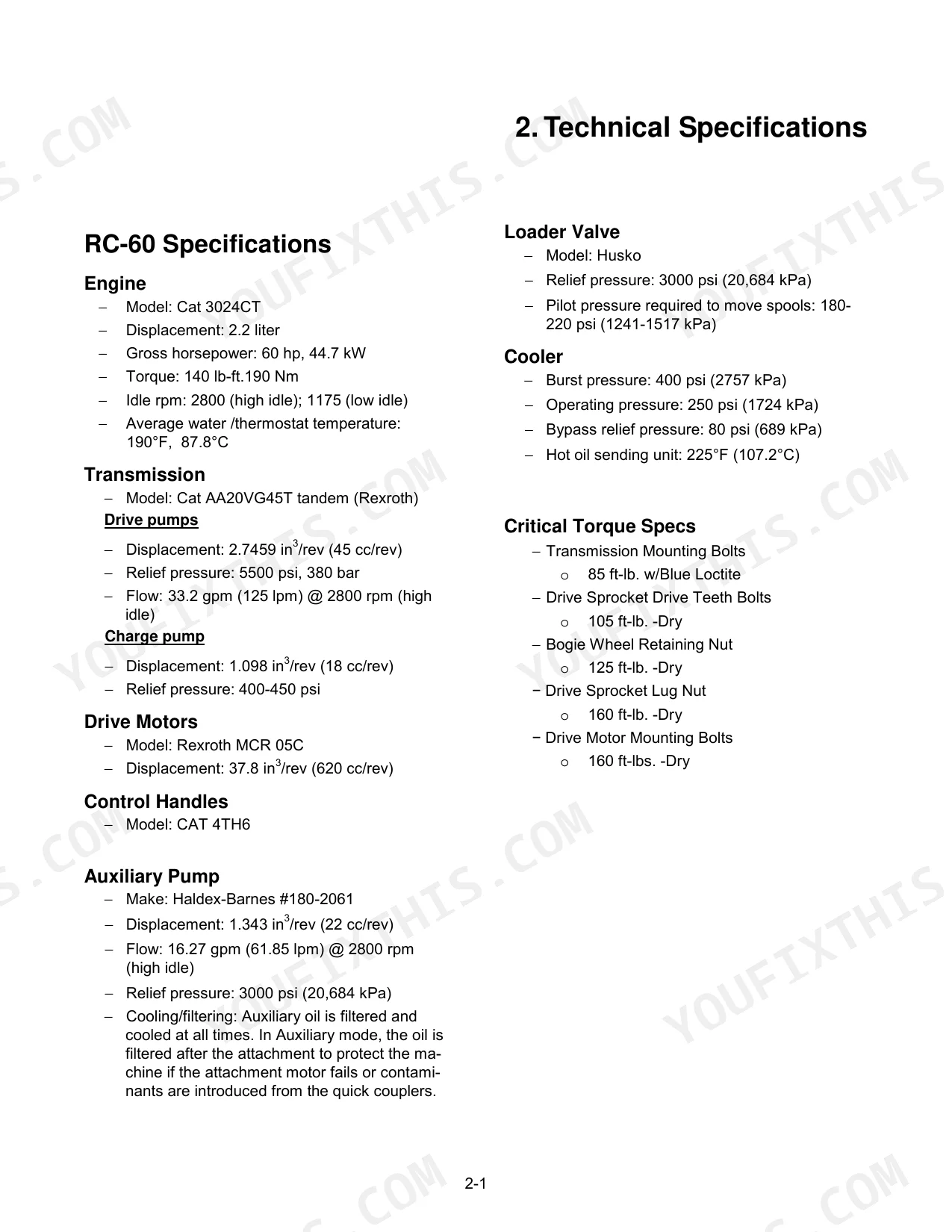

| Technical Specifications and System Diagrams | 9-15 | Engine Specifications, Transmission, Drive Motors, Auxiliary Pump, Filtering and Cooling System, Auxiliary Circuit System, Drive Loop System |
| Machine Controls and Instrumentation | 16-17 | Loader Control, Drive Control, Throttle, Dash Panel, Gauge/Warning Light Panel |

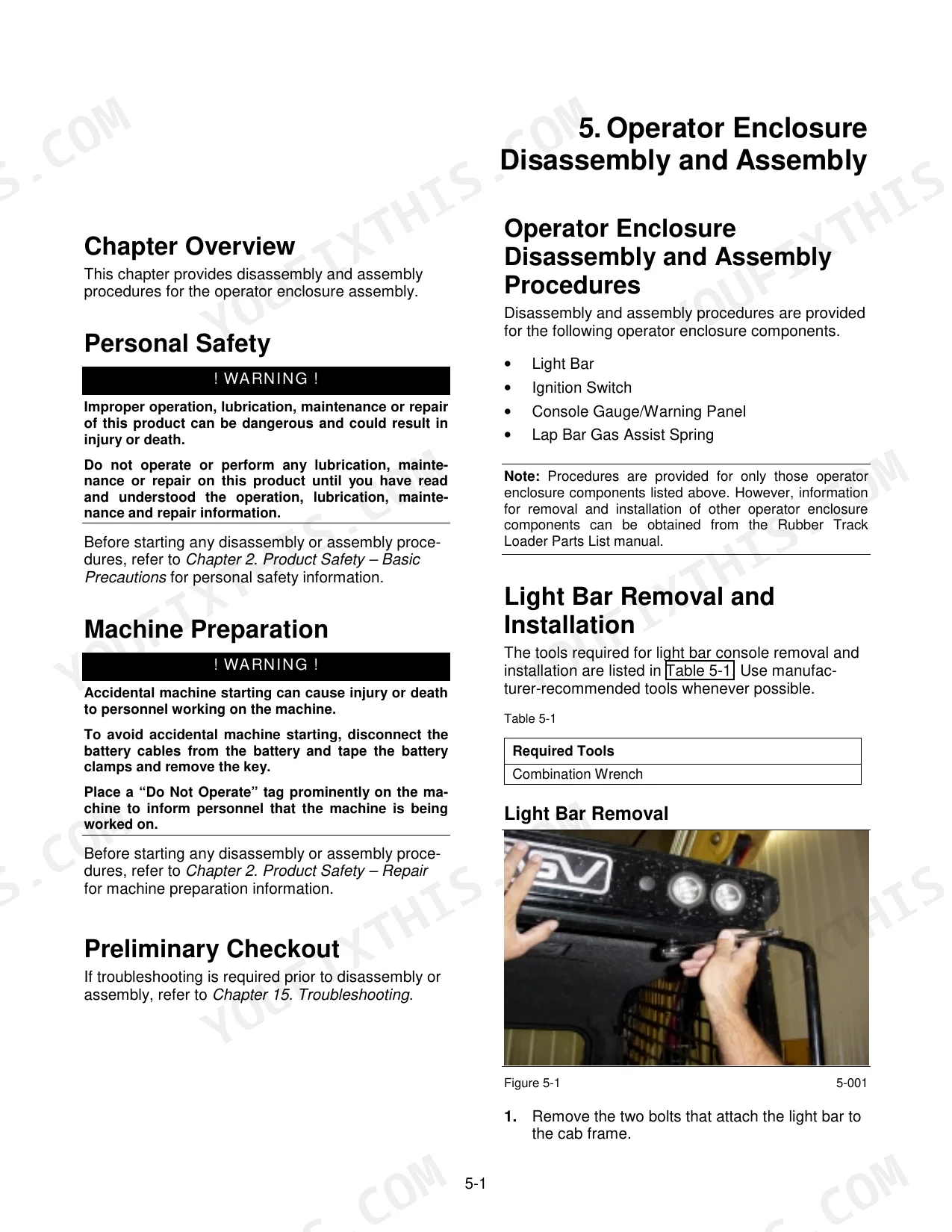

| Operator Enclosure and Chassis Disassembly | 18-27 | Light Bar, Ignition Switch, Console Gauge, Lap Bar Gas Assist Spring, Seat Removal, Fuel Sending Unit |
| Radiator, Oil Cooler, and Hydraulic Reservoir | 28-38 | Fan Guard, Radiator/Cooler Removal, Filter Manifold Assembly, Access Cover, Reservoir Gauge, Suction Screen, Hydraulic Reservoir Cleaning |
| Loader, Transmission, and Undercarriage Controls | 39-62 | Joystick Removal, Loader Valve, Auxiliary Gear Pump, Tandem Pump, Pump Drive Coupler, Wheel Removal, Sprocket Roller, Track Removal |
| Loader Disassembly, Maintenance, and Troubleshooting | 63-79 | Lift Cylinder, Tilt Cylinder, Pressure Release Valve, Maintenance Schedule, Engine Oil, Hydraulic Fluid, Fuel Filter, Air Cleaner |
| Rc-50 Rc-60 Operation Maintenance | 80-107 | Chapter Overview, Maintenance Schedule, Engine Oil (Oil Change Procedures, Specifications), Hydraulic Fluid and Filter (Change Procedures) |

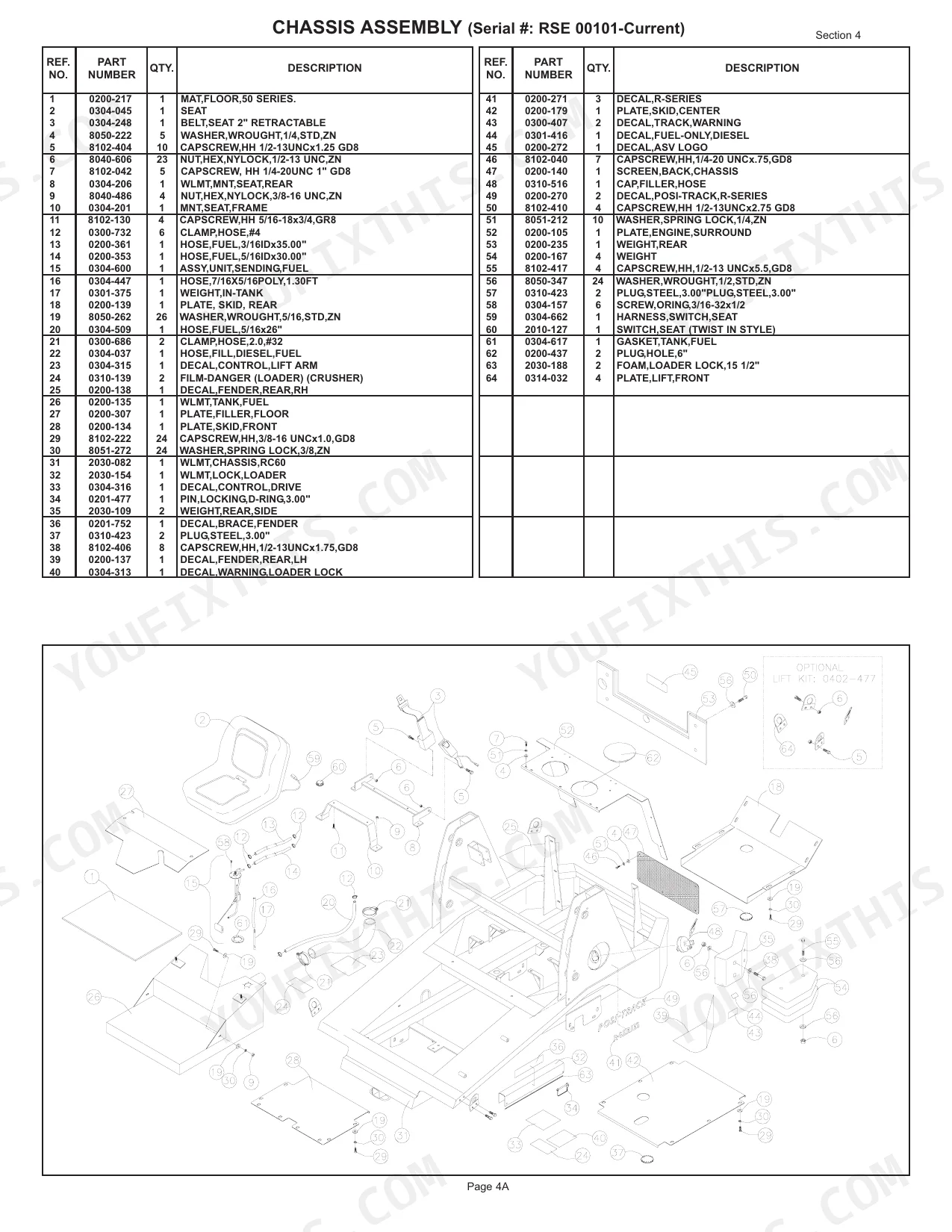

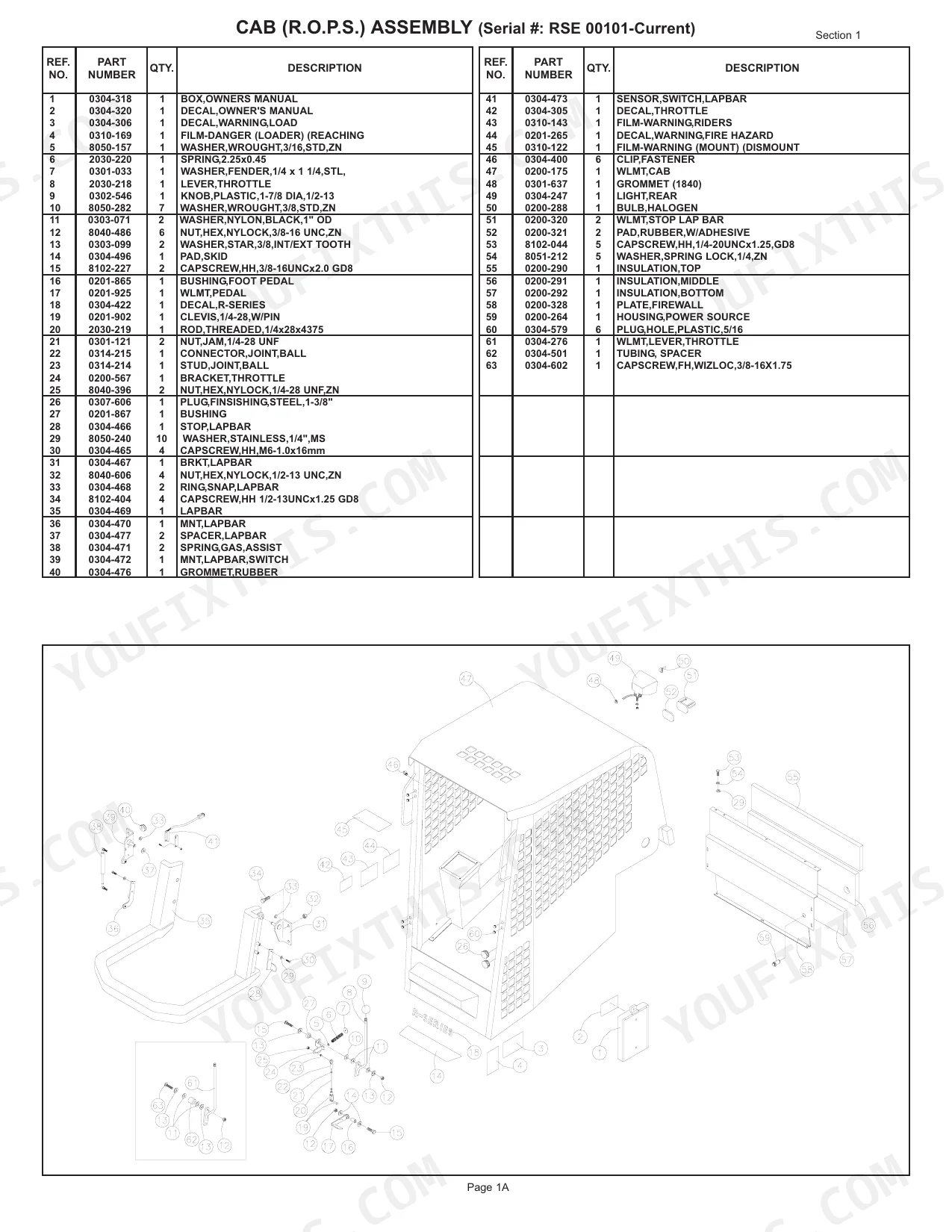

| Rc-60 Master Parts Manual | 108-134 | Cab Assembly, Chassis Assembly, Radiator/Oil Cooler Assembly, Hydraulic Reservoir Assembly, Engine Assembly, Undercarriage Assembly |
| Rc-60 Hydraulic Schematic | 135 | Self Leveling Valve, Loader Valve, Drive Motor, Auxiliary Pump, Pilot Manifold, Transmission |

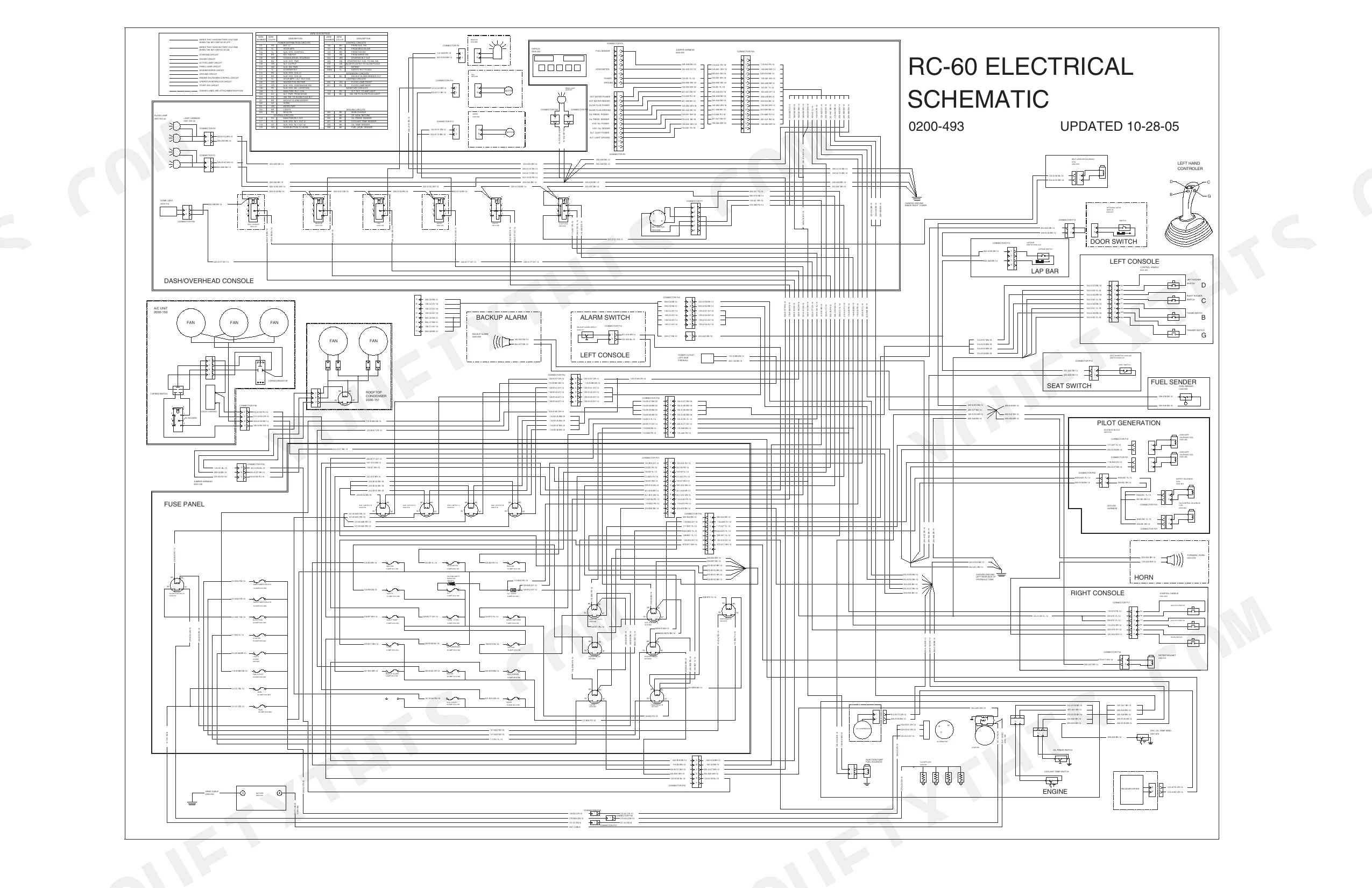

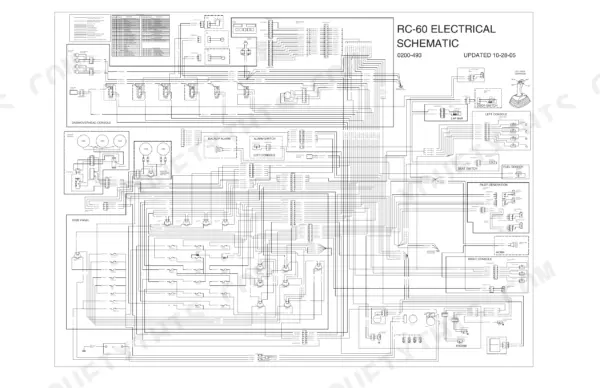

| Rc-60 Electrical Schematic | 136 | Fuse Panel, Glow Plug Relay, Ignition Switch, Battery, Starter Relay, Fuel Sender |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

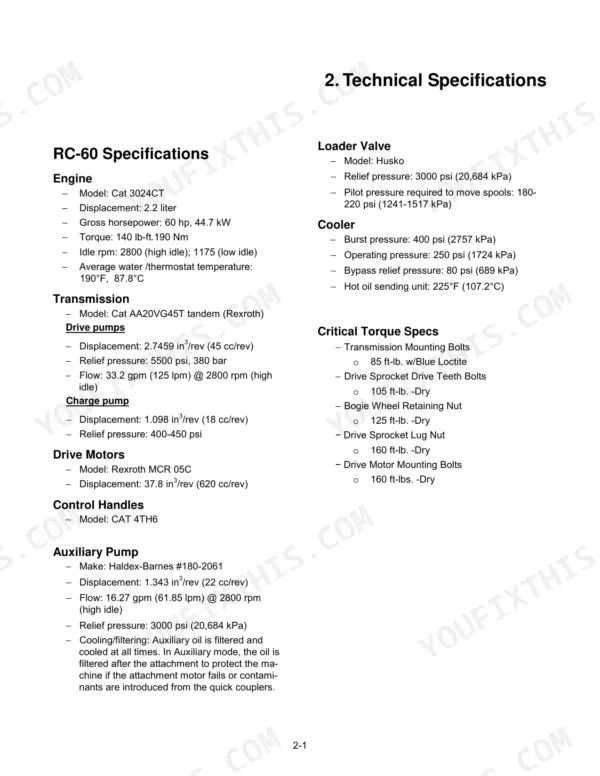

| Transmission Mounting Bolts | 85 ft-lb | p. 9 |
| Drive Sprocket Drive Teeth Bolts | 105 ft-lb | p. 9 |
| Hydraulic filter change interval | 250 hrs | p. 68 |
| Engine oil filter change interval | 250 hrs | p. 67 |
| Fuel filter change interval | 500 hrs | p. 69 |
| Wheel nut torque | 125 ft.-lbs. | p. 60 |
| Sprocket lug nut torque | 160 ft.-lbs. | p. 62 |
| Drive motor mounting bolt torque | 160 ft.-lbs. | p. 62 |
| Auxiliary hydraulic pressure limit | 3,000 psi | p. 75 |
| Attachment hose size minimum | 1/2 inch | p. 78 |
| Hydraulic Oil Filter | MP Filter (MF1003A10HB) | p. 110 |
| Engine Gross Horsepower | 60 hp | p. 9 |
ASV RC-60, RC-60 Turf Edition Common Problems This Manual Covers
ASV RC-60 stops driving or loses power when pushing hard into a pile

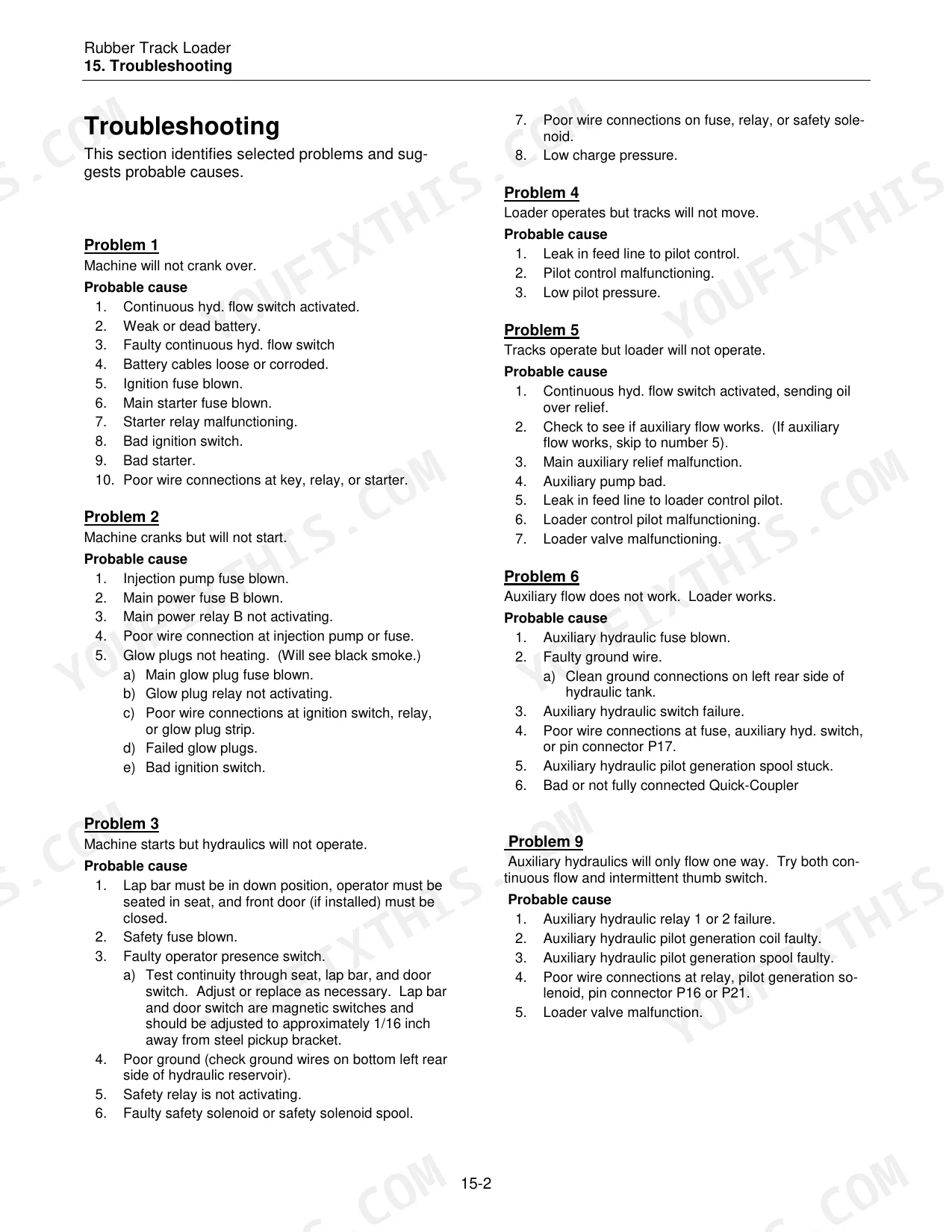

Check drive charge pressure before tearing anything down. Test the drive loop against the 5500 psi relief spec on page 9; a weak relief valve mimics a worn pump. Work through the track movement troubleshooting steps on page 77, then inspect the tandem pump drive coupler for stripped splines.
Manual Section: Troubleshooting p. 77Loader arms drift down overnight and bucket tilt leaks down after shutdown
Raise the loader, shut down, and watch which circuit creeps first. Replace the rod and piston seals using the lift and tilt cylinder procedures starting on page 63 if a cylinder drifts. Test loader relief at 3000 psi against the page 9 spec, then pull the loader valve (page 39) and inspect the check seats for scoring.
Manual Section: Loader Disassembly, Maintenance, and Troubleshooting p. 63Hydraulic oil temperature warning light comes on during heavy auxiliary or mowing work
Shut down, let it cool, then blow out the radiator and oil cooler stack from the fan side; removal steps start on page 28 if debris is packed between the cores. Verify the reservoir holds its full 8 gallons (page 83) and replace the hydraulic filter if it is past the 250 hour interval on page 68.
Manual Section: Radiator, Oil Cooler, and Hydraulic Reservoir p. 28Track walks off or bogie wheels wobble after working in mud and debris
Clean the undercarriage daily in muddy conditions; packed material forces the track off the wheels. Inspect bogie wheels and sprocket rollers using the procedures on page 39 forward. Torque wheel nuts to 125 ft-lbs (page 60) and sprocket lug nuts to 160 ft-lbs dry (page 62), and replace any wheel with chunked rubber.
Manual Section: Undercarriage Disassembly and Assembly p. 60Engine cranks but starts hard and runs rough, worse in cold weather
Replace the fuel filter if it is anywhere near the 500 hour interval on page 69 and drain any water from the separator. Confirm the glow plug indicator cycles before cranking, then work the start and crank troubleshooting table on page 77 and check the glow plug relay circuit against the wiring diagram on page 136.
Manual Section: Troubleshooting p. 77Frequently Asked Questions
What are the torque specifications for the RC-60?
The critical torque specifications for the RC-60 are: 85 ft-lb for transmission mounting bolts (with Blue Loctite), 105 ft-lb for drive sprocket drive teeth bolts (dry), 125 ft-lb for bogie wheel retaining nuts (dry), 160 ft-lb for drive sprocket lug nuts (dry), and 160 ft-lb for drive motor mounting bolts (dry). p. 9
What are the replacement specifications for the hydraulic oil filter?
The hydraulic oil filter should be changed every 250 service hours. The ASV part number for the hydraulic oil filter is 0200-204. p. 110
What is the correct procedure for checking track tension?
To check track tension, drive the machine forward 5 feet. Lay a straightedge along the top of the track between the sprocket and the front idler wheel. Apply 50 pounds of down force at the midpoint; the track should not deflect more than 0.75 inches. p. 71
What is the recommended engine oil for the RC-60?
ASV Posi-Lube Heavy Duty Diesel Engine Oil 10W30 is recommended. If not available, use commercial oils meeting API CH-4, CG-4, or CF-4 multigrade classifications. p. 67
What is the procedure for bleeding the fuel system?
If the machine runs out of fuel, locate the bleed screw directly above the fuel injection pump and loosen it two full turns. Pump the bulb primer by hand until fuel flows from the bleed screw without air bubbles, then tighten the screw. p. 72
What format is this ASV RC-60 manual in?
Instant PDF download. You get the full 136-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print just the pages I need from this ASV RC-60 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
